Lennox AIRCOOLAIR CIC 020S Instruction manual

lennoxemeia.com
COMPACTAIR
CSC - CSH
CDC - CDH
Installation,
operating
and maintenance
Indoor unit
MIL121E-0613 / 11-2014
Translation of original manual

1
3
4
1 -
1.1 5
1.2 5
1.3 7
1.4 12
2 -
2.1 14
2.2 14
2.3 15
2.4 15
2.5 15
2.6 16
2.7 17
3 -
3.1 22
4 -
4.1 23
4.2 23
WARNING: Read this manual before carrying out installation, repair or maintenance work.
All the technical and technological information contained in this manual, including any drawings and technical descriptions provided
by us, remain the property of Lennox and must not be utilised (except in the operation of this product), reproduced, issued to or
made available to third parties without the prior written agreement of Lennox.
INSTALLATION
OPERATION
MAINTENANCE MANUAL
TABLE OF CONTENTS
AIRCOOLAIR/COMPACTAIR
INDOOR UNITS
POINTS TO BEAR IN MIND
Manufacturer’s recommended inspections
DATA PAGE FOR COMMISSIONING OF THE UNIT
GENERAL CHARACTERISTICS
Physical data
Electrical data
Fan performance
Unit dimensions
INSTALLATION
Installation guidelines
Optional task prior to unit installation :
regulating airflow in the fans
Service space
Drainage
Refrigerant connections
Electrical connections
Installation of options
COMMISSIONING AND OPERATION
Preliminary checks
MAINTENANCE
Preventive maintenance
Fault diagnosis

2
POINTS TO BEAR IN MIND
DANGER AND WARNING SIGNS
Abrasive surfaces Low temperatures High temperatures Risk of injury from
moving objects
Electrical voltage Risk of injury from
rotating objects
ELECTRICAL CONNECTIONS
To prevent serious electrical injuries, make sure to switch off the power before doing any installation,
repair or maintenance work on the unit.
To install the unit, bear in mind local and national legislation.
ATTENTION - WARNING
Electric shock can cause injury or death. Before attempting
to perform any service or maintenance on the unit, turn
OFF the electrical power, and check that the fan has
stopped.
The air filter cleaning operations does not require technical
service; however, when an electrical or mechanical
operation is required, call an Engineer.
CLEANING THE FILTER
Check the air filter and make sure
it is not blocked with dust or dirt.
If the filter is dirty, wash it in a bowl with neutral soap and
water, drying it in the shade before re-inserting it in the
unit.
Standard Guidelines for Lennox equipment.
All technical data contained in these operating instructions, including diagrams and technical descriptions, remain the property
of Lennox and may not be used (except for the purpose of familiarizing the user with the equipment), reproduced, photocopied,
transferred or transmitted to third parties without prior written authorization from Lennox.
Data published in the operating instructions are based on the latest information available. We reserve the right to make
modifications without notice.
We reserve the right to modify our products without notice and with no obligation to modify goods previously supplied.
These operating instructions contain useful and important information for the smooth operation and maintenance of your equipment.
The instructions also include guidelines on how to avoid accidents and serious damage before commissioning the equipment and
during its operation and how to ensure smooth and fault-free operation. Read the operating instructions carefully before starting
the equipment, familiarize yourself with the equipment and with handling the installation and carefully follow the instructions. It is
very important to be properly trained in handling the equipment. These operating instructions must be kept in a safe place near
the equipment.
Like most equipment, the unit requires regular maintenance. This section concerns maintenance personnel and management.
If you have any queries or would like to receive further information on any aspect relating to your equipment, do not hesitate to
contact us.
The manufacturing of these units is made under the requirements of the ISO 9001 and ISO 14001.

3
DATA PAGE FOR UNIT COMMISSIONING
COOLING CYCLE
Air flow data:
Air intake temperature, Indoor Coil: ºC
High Pressure:
Low pressure :
HEATING CYCLE
Air flow data:
Air intake temperature, Indoor Coil: ºC
High Pressure:
Low pressure :
YES NO
DRAINAGE WITH TRAP
CLEAN INTERIOR AIR FILTER
GENERAL POWER SUPPLY CONNECTION
DATA INPUT:
ELECTRIC POWER CONSUMPTION (Amps)
Fan indoor section: Fan indoor section:
UNIT: ______________________________________ SERIAL NUMBER : _____________________________
CONTROL PANEL IDENTIFICATION CODE : ______________________________________________________
INSTALLATION ADDRESS: ____________________________________________________________________
INSTALLER : ________________________________ INSTALLER TEL : ______________________________
INSTALLER ADDRESS : _______________________________________________________________________
___________________________________________________________________________________________
COMMISSIONING DATE : _____________________________________________________________________
CHECKS : __________________________________________________________________________________
___________________________________________________________________________________________
SUPPLY VOLTAGE : __________________________ RATED VOLTAGE OF THE UNIT : _________________
Options installed : ____________________________________________________________________________
___________________________________________________________________________________________
___________________________________________________________________________________________
___________________________________________________________________________________________
Comments : _________________________________________________________________________________
___________________________________________________________________________________________
___________________________________________________________________________________________
___________________________________________________________________________________________
___________________________________________________________________________________________

4
C I C 020 S NM3M
CIC
CIH 020S 025S 030S 035S 040S 045D 055D 070D 085D 100D 120D 140D
108 111 115 150 160 170 242 259 276 470 480 490
2 2 2 2 2 2 2 3 3 3 3 3
10 10 10 10 10 20 20 20 30 45 45 45
50 50 50 75 75 75 165 165 165 190 190 190
10 10 10 12 16 20 20 24 30 40 40 40
6,5 3 3 5 0 3 3 3 13 13 8 8
6,5 3 8 8 3 6 6 16 21 27 14 14
9,5 8 11 8 6 6 19 24 21 27 40 40
25 25 25 28 28 28 37 37 37 65 65 65
n/a n/a n/a n/a n/a n/a 145 145 145 230 230 230
6 6 6 9 9 9 14 14 14 23
23 23
CIC
CIH 020S 025S 030S 035S 040S 045D 055D 070D 085D 100D 120D 140D
0,74 1,45 1,45 1,89 2,69 2,69 2,69 3,63 5,06 5,06 6,38 6,38
1,40 2,59 2,59 3,45 4,80 4,80 4,80 6,48 8,60 8,60 11,1 11,1
6,44 13,0 13,0 17,3 26,4 26,4 26,4 35,6 60,2 60,2 81 81
3N
~400V
50 Hz
3~400V 50Hz
M:400V/3/50
- - - -
1. GENERAL CHARACTERISTICS
1.1.- PHYSICAL DATA
Type of unit
COMPACTAIR /
AIRCOOLAIR
I: Indoor unit
Type of Refrigerant
M: R-410A
Approximate cooling
capacity in kW.
S: One circuit
D: Two circuits
CIC: Cooling only unit R-410A.
CIH: Heat pump unit R-410A.

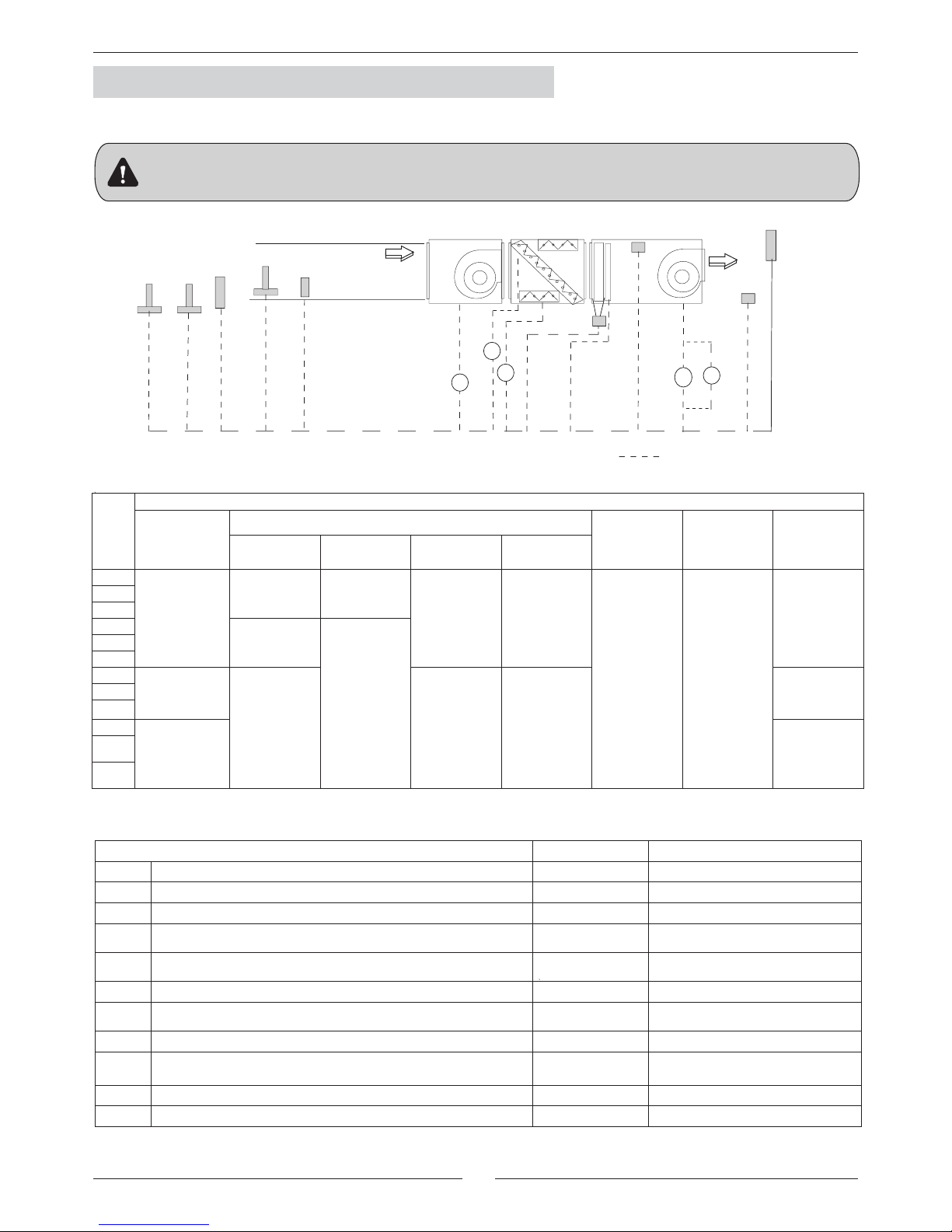

1.2.- ELECTRICAL DATA
ELECTRICAL CONSUMPTION FOR STANDARD UNITS
WEIGHT FOR STANDARD UNITS AND OPTIONS
C: Cooling only unit
H: Heat pump unit
Number of revision
MODELS
Indoor unit CIC/CIH
Airsock control
Electrical heater
Free-cooling
Hot water coil kg
Ventilation kit - HP1
Ventilation kit - HP2
Ventilation kit - HP3
Exhaust fan
Return fan
High efficiency air filter (G4 prefiltre/F7 filtration)
MODELS
Maximum absorbed power
Kw
Maximum current A
Start up current A
Voltage
Ph/V/Hz
n/a: not available

5
CIC/H 020S CIC/H 025S CIC/H 030S CIC/H 035S
MAP MC MAP MC MAP MC MAP MC
0 0 0 0 0 0 0 0
0,71 1,19 0,44 0,86 0,44 0,86 0,8 1,35
0,71 1,19 1,24 2,21 1,24 2,21 1,74 3,03
1,15 2,05 1,24 2,21 2,18 3,89 1,74 3,03
0,51 2,6 0,51 2,6 0,51 2,6 1,33 6,8
n/a n/a n/a n/a n/a n/a n/a n/a
10 14,3 10 14,3 10 14,3 15 21,5
15 21,5 15 21,5 15 21,5 20 28,6
20 28,6 20 28,6 20 28,6 27 39
CIC/H 040S CIC/H 045D CIC/H 055D CIC/H 070D
MAP MC MAP MC MAP MC MAP MC
00000000
0 0 0,94 1,68 0,94 1,68 1,43 2,12
0,94 1,68 2,37 3,8 2,37 3,8 2,75 4,62
2,37 3,8 2,37 3,8 3,69 3,69 5,16 8,82
1,33 6,8 1,33 6,8 2,65 4,5 2,65 4,5
n/a n/a n/a n/a 2,69 4,8 3,63 6,5
15 21,5 15 21,5 20 28,6 20 28,6
20 28,6 20 28,6 27 39 27 39
27 39 27 39 40 57,8 40 57,8
CIC/H 085D CIC/H 100D CIC/CIH 120D/140D
MAP MC MAP MC MAP MC
0 0 0 0 0 0
1,32 2,5 1,32 2,5 2,41 4,2
3,73 6,7 5,06 8,6 3,74 6,1
3,73 6,7 5,06 8,6 6,38 11,1
2,65 4,5 5,3 9 5,3 9
3,63 6,5 5,06 8,6 6,38 11,1
20 28,6 27 39 27 39
27 39 40 57,8 40 57,8
40 57,8 50 72,3 50 72,3
1. GENERAL CHARACTERISTICS
1.2.- ELECTRICAL DATA
ADDITIONAL ELECTRICAL CONSUMPTION FOR THE OPTIONS
kW A kW A kW A kW A
Standard Indoor fan
Ventilation kit - HP1
Ventilation kit - HP2
Ventilation kit - HP3
Exhaust fan
Return fan
Standard electrical heater
Medium electrical heater
High electrical heater
kW A kW A kW A kW A
Standard Indoor fan
Ventilation kit - HP1
Ventilation kit - HP2
Ventilation kit - HP3
Exhaust fan
Return fan
Standard electrical heater
Medium electrical heater
High electrical heater
kW A kW A kW A
Standard Indoor fan
Ventilation kit - HP1
Ventilation kit - HP2
Ventilation kit - HP3
Exhaust fan
Return fan
Standard electrical heater
Medium electrical heater
High electrical heater
MAP Maximum absorbed power MC Maximum current

6
020S
824 788 753 717 682
3150 167 149 132 116 101
3425 162 143 127 109 93
3700 155 138 120 103 85
4100 • 127 108 90 72
025S
824 788 753 717 682
4250 141 123 103 84 66
4625 129 109 89 69 49
5000 115 92 71 50 28
5500 89 66 42 19 n/a
030S
915 876 836 797 757
4650 173 149 125 103 80
5050 158 133 109 84 60
5450 141 115 89 63 38
6000 • 84 56 28 0
035S
735 704 672 640 609
6200 164 142 119 98 77
6650 153 130 106 83 61
7100 139 114 89 66 42
8050 102 75 48 22 n/a
040S
837 792 748 704 659
6950 213 178 143 109 75
7550 196 158 122 86 50
8150 175 136 97 58 21
9050 136 94 53 10 n/a
045D
937 888 838 788 738
6950 272 227 183 140 97
7550 249 201 155 109 63
8150 • 171 121 72 23
9050 • • 103 51 1
055D
837 792 748 704 659
9950 206 177 148 122 96
10825 195 166 138 110 83
11700 185 154 125 97 68
12850 136 105 75 45
070D
937 888 838 788 738
12450 237 200 163 128 95
13550 •183 145 109 73
14650 • • 124 85 48
15090 • • 115 75 36
085D
937 888 838 788 738
14000 202 163 125 87 51
15125 182 142 102 62 23
16250 160 117 75 34 n/a
16725 149 105 63 20 n/a
100D
750 710 670 630 591
17350 237 202 167 133 101
18875 223 185 149 115 81
20400 •168 131 94 59
22450 • • 100 63 25
120D
750 710 670 630 591
19300
207 169 133 98 64
21000 187 48 111 73 38
22700 164 124 84 46 9
24950 • 87 46 5 n/a
140D
750 710 670 630 591
21000
231 192 155 117 82
22250 218 178 140 101 65
23500 204 163 123 84 46
24750 • 146 105 65 25
1.3.- FAN PERFORMANCES
1.3.1.- STANDARD FAN PERFORMANCES
CLOSED PULLEY 1 TURN 2 TURNS 3 TURNS 4 TURNS
rpm
m3/h
Available static pressure (Pa)
rpm
m3/h
Available static pressure (Pa)
rpm
m3/h
Available static pressure (Pa)
rpm
m3/h
Available static pressure (Pa)
rpm
m3/h
Available static pressure (Pa)
rpm
m3/h
Available static pressure (Pa)
CLOSED PULLEY 1 TURN 2 TURNS 3 TURNS 4 TURNS
rpm
m3/h
Available static pressure (Pa)
rpm
m3/h
Available static pressure (Pa)
rpm
m3/h
Available static pressure (Pa)
rpm
m3/h
Available static pressure (Pa)
rpm
m3/h
Available static pressure (Pa)
rpm
m3/h
Available static pressure (Pa)
(●) WRONG STATUS ON ACCOUNT OF MOTOR POWER LIMIT.
NOTE: With long distance kit option, the unit should not operate below its nominal airflow.
NOMINAL FACTORY SETTING.
1. GENERAL CHARACTERISTICS

7
020S
1098 1051 1003 956 909
3150 324 294 264 237 211
3425 321 289 261 233 207
3700 317 285 257 229 202
4100 310 279 249 222 193
025S
1098 1051 1003 956 909
4250 308 276 246 218 190
4625 301 269 239 209 180
5000 292 260 228 197 167
5500 278 244 211 178 146
030S
1098 1051 1003 956 909
4650 290 259 228 198 169
5050 280 248 215 184 154
5450 269 235 201 169 138
6000 249 213 178 143 109
035S
937 888 838 788 738
6200 321 281 241 203 167
6650 313 272 232 193 155
7100 306 262 221 181 142
8050 282 236 191 148 105
040S
937 888 838 788 738
6950 298 255 214 174 135
7550 283 240 197 155 113
8150 267 221 176 132 88
9050 •186 138 90 43
045D
1041 986 931 876 820
6950 371 318 267 217 168
7550 353 298 244 190 139
8150 330 271 215 158 103
9050 316 258 199 141 84
055D
1041 986 931 876 820
9950 357 313 272 232 194
10825 349 304 263 223 185
11700 •295 253 213 173
12850 • • 239 196 156
070D
1041 986 931 876 820
12450 321 276 232 191 151
13550 307 262 217 174 133
14650 291 244 199 154 110
15090 •236 190 145 101
085D
1041 986 931 876 820
14000 288 242 197 155 112
15125 272 223 177 132 88
16250 253 203 154 107 60
16725 244 193 144 95 48
100D
837 792 748 704 659
17350 323 279 236 196 157
18875 310 264 221 180 140
20400 296 248 204 162 121
22450 • • 178 133 90
120D
837 792 748 704 659
19300 295 249 206 163 123
21000 278 231 186 142 101
22700 258 209 163 118 74
24950 228 176 127 80 35
140D
837 792 748 704 659
21000 322 275 230 186 145
22250 311 262 216 172 128
23500 299 249 202 157 112
24750 286 234 186 139
94
CLOSED PULLEY 1 TURN 2 TURNS 3 TURNS 4 TURNS
rpm
m3/h
Available static pressure (Pa)
rpm
m3/h
Available static pressure (Pa)
rpm
m3/h
Available static pressure (Pa)
rpm
m3/h
Available static pressure (Pa)
rpm
m3/h
Available static pressure (Pa)
rpm
m3/h
Available static pressure (Pa)
CLOSED PULLEY 1 TURN 2 TURNS 3 TURNS 4 TURNS
rpm
m3/h
Available static pressure (Pa)
rpm
m3/h
Available static pressure (Pa)
rpm
m3/h
Available static pressure (Pa)
rpm
m3/h
Available static pressure (Pa)
rpm
m3/h
Available static pressure (Pa)
rpm
m3/h
Available static pressure (Pa)
(●) WRONG STATUS ON ACCOUNT OF MOTOR POWER LIMIT.
NOTE: With long distance kit option, the unit should not operate below its nominal airflow.
NOMINAL FACTORY SETTING.
1. GENERAL CHARACTERISTICS
1.3.2.- FAN PERFORMANCES WITH KIT HIGH STATIC PRESSURE (OPTIONAL TRANSMISSION)
VENTILATION HP1

8
020S
1177 1126 1075 1024 974
3150
377 342 309 278 247
3425 373 338 306 273 243
3700 369 334 302 269 239
4100 364 329 295 263 232
025S
1318 1261 1204 1147 1091
4250
466 423 381 341 303
4625 461 418 375 335 295
5000 • 412 368 327 287
5500 • • • 314 273
030S
1339 1268 1197 876 1055
4650
468 413 359 309 261
5050 462 405 352 299 250
5450 454 396 341 289 238
6000 441 383 325 270 216
035S
1103 1044 986 927 869
6200
469 414 362 313 266
6650 463 408 356 305 257
7100 458 402 348 297 247
8050 442 383 327 272 220
040S
1103 1044 986 927 869
6950 449 393 340 289 239
7550 440 382 327 275 223
8150 427 370 312 257 203
9050 405 344 284 225 168
045D
1103 1044 986 927 869
6950 432 373 317 263 211
7550 415 355 296 240 184
8150 395 332 271 211 152
9050 384 320 256 195 134
055D
1172 1109 1047 985 923
9950 514 456 399 346 296
10825 508 448 391 338 286
11700 500 440 383 328 275
12850 • • 369 313 258
070D
1172 1109 1047 985 923
12450 371 421 363 307 252
13550 470 408 348 289 233
14650 457 391 329 268 208
15090 450 383 320 258 196
085D
1172 1109 1047 985 923
14000 452 390 328 268 211
15125 438 371 307 245 183
16250 418 349 282 215 150
16725 408 338 270 202 135
100D
937 888 838 788 738
17350 477 419 364 312 262
18875 469 410 354 299 248
20400 458 398 341 284 232
22450 440 379 319 261 206
120D
937 888 838 788 738
19300 454 396 339 284 232
21000 442 381 323 267 213
22700 426 364 304 246 190
24950 402 337 276 215 157
140D
937 888 838 788 738
21000 486 425 367 311 257
22250 479 416 357 300 245
23500 469 407 346 287 231
24750 460 395 334 274
215
1. GENERAL CHARACTERISTICS
1.3.2.- FAN PERFORMANCES WITH KIT HIGH STATIC PRESSURE (OPTIONAL TRANSMISSION)
VENTILATION HP2
CLOSED PULLEY 1 TURN 2 TURNS 3 TURNS 4 TURNS
rpm
m3/h
Available static pressure (Pa)
rpm
m3/h
Available static pressure (Pa)
rpm
m3/h
Available static pressure (Pa)
rpm
m3/h
Available static pressure (Pa)
rpm
m3/h
Available static pressure (Pa)
rpm
m3/h
Available static pressure (Pa)
CLOSED PULLEY 1 TURN 2 TURNS 3 TURNS 4 TURNS
rpm
m3/h
Available static pressure (Pa)
rpm
m3/h
Available static pressure (Pa)
rpm
m3/h
Available static pressure (Pa)
rpm
m3/h
Available static pressure (Pa)
rpm
m3/h
Available static pressure (Pa)
rpm
m3/h
Available static pressure (Pa)
(●) WRONG STATUS ON ACCOUNT OF MOTOR POWER LIMIT.
NOTE: With long distance kit option, the unit should not operate below its nominal airflow.
NOMINAL FACTORY SETTING.

9
020S
1318 1261 1204 1147 1091
3150 483 438 397 357 319
3425 478 434 393 353 316
3700 474 430 389 349 312
4100 469 425 383 343 305
025S
1500 1420 1340 1261 1181
4250 •550 485 423 365
4625 •545 480 418 359
5000 •541 475 412 352
5500 •532 466 402 339
030S
1500 1420 1340 1261 1181
4650 •535 469 408 349
5050 •529 463 399 340
5450 •521 455 391 330
6000 •511 443 376 313
035S
1250 1183 1117 1051 985
6200 •548 483 421 362
6650 •545 478 415 355
7100 •539 472 408 347
8050 •526 456 390 326
040S
1250 1183 1117 1051 985
6950 602 530 463 399 339
7550 594 522 453 388 326
8150 586 512 442 376 311
9050 570 493 421 351 283
045D
1250 1183 1117 1051 985
6950 589 515 446 381 317
7550 578 501 430 363 295
8150 562 485 411 340 270
9050 553 475 400 326 255
055D
1339 1268 1197 1126 1055
9950 689 612 539 471 406
10825 683 606 533 464 398
11700 677 599 525 457 390
12850 670 590 515 444 376
070D
1339 1268 1197 1126 1055
12450 662 582 508 437 370
13550 652 573 497 424 354
14650 641 561 484 408 336
15090 636 555 477 400 328
085D
1339 1268 1197 1126 1055
14000 636 557 478 406 336
15125 623 542 464 387 315
16250 609 526 445 367 289
16725 602 518 436 357 279
100D
1041 986 931 876 820
17350 606 537 469 407 346
18875 599 529 461 396 334
20400 592 519 451 384 321
22450 •504 433 364 299
120D
1041 986 931 876 820
19300 587 516 447 382 319
21000 576 503 433 367 303
22700 564 489 418 350 284
24950 543 467 393 322 255
140D
1041 986 931 876 820
21000 620 547 477 411 347
22250 615 541 471 402 337
23500 608 533 462 392 326
24750 601 525 451 380 313
1. GENERAL CHARACTERISTICS
1.3.2.- FAN PERFORMANCES WITH KIT HIGH STATIC PRESSURE (OPTIONAL TRANSMISSION)
VENTILATION HP3
CLOSED PULLEY 1 TURN 2 TURNS 3 TURNS 4 TURNS
rpm
m3/h
Available static pressure (Pa)
rpm
m3/h
Available static pressure (Pa)
rpm
m3/h
Available static pressure (Pa)
rpm
m3/h
Available static pressure (Pa)
rpm
m3/h
Available static pressure (Pa)
rpm
m3/h
Available static pressure (Pa)
CLOSED PULLEY 1 TURN 2 TURNS 3 TURNS 4 TURNS
rpm
m3/h
Available static pressure (Pa)
rpm
m3/h
Available static pressure (Pa)
rpm
m3/h
Available static pressure (Pa)
rpm
m3/h
Available static pressure (Pa)
rpm
m3/h
Available static pressure (Pa)
rpm
m3/h
Available static pressure (Pa)
(●) WRONG STATUS ON ACCOUNT OF MOTOR POWER LIMIT.
NOTE: With long distance kit option, the unit should not operate below its nominal airflow.
NOMINAL FACTORY SETTING.

10
020S-025S-030S 035S-040S-045D 055D-070D-085D
2000 2500 2750 3000 3500 4000 6000 7000 8000
160 105 75 210 180 130 260 200 90
100D 120D-140D
13200 14300 15400 16500 13200 14300 15400 16500
230 200 150 50 230 200 150 50
055D
755 715 675 635 595
9950
255 230 207 184 162
10825 257 232 208 184 162
11700 260 234 210 184 160
12850 260 233 207 180 155
070D
755 715 675 635 595
12450
260 235 208 182 157
13550 260 233 205 176 150
14650 258 228 198 168 140
15090 255 225 195 165 135
085D
755 715 675 635 595
14000
260 230 202 173 145
15125 255 225 195 165 135
16250 250 215 183 153 120
16725 • 212 178 145 115
100D
672 636 601 565 529
17350 293 263 234 205 178
18875 293 261 232 202 173
20400 291 258 227 196 166
22450 •251 218 185 153
120D
766 725 684 644 603
19300 381 343 305 268 232²
21000 380 340 300 263 227
22700 380 337 297 257 220
24750 373 330 287 245 205
140D
766 725 684 644 603
21000 380 340 300 263 227
22700 380 337 297 257 220
24750 373 330 287 245 205
1.3.3.- FAN PERFORMANCES WITH FREE-COOLING
Return fan performances for each models are:
Air flows with exhaust fan for option “free-cooling without return fan”
1. GENERAL CHARACTERISTICS
Models
Airflow
m3/h
Available static pressure
(Pa)
Models
Airflow
m3/h
Available static pressure
(Pa)
CLOSED PULLEY 1 TURN 2 TURNS 3 TURNS 4 TURNS
rpm
m3/h
Available static pressure (Pa)
rpm
m3/h
Available static pressure (Pa)
rpm
m3/h
Available static pressure (Pa)
CLOSED PULLEY 1 TURN 2 TURNS 3 TURNS 4 TURNS
rpm
m3/h
Available static pressure (Pa)
rpm
m3/h
Available static pressure (Pa)
rpm
m3/h
Available static pressure (Pa)
(●) WRONG STATUS ON ACCOUNT OF MOTOR POWER LIMIT.
NOTE: With long distance kit option, the unit should not operate below its nominal airflow.
NOMINAL FACTORY SETTING.

11
346 190
407
387
2
5
400
750
213
346
191
603
1005
387
400
407
645
1195
53
1
8
.
5
9
5
104.5
467
455.5
5
3
4
188.5
455.5
1445
1260
53
140
4
7
0
5
8
7
0
4
4
5
5
5
1
9
MODELS 020S-025S-030S
MODELS 035S-040S-042S-045D
VERTICAL DISCHARGE
(OPTIONAL)
HORIZONTAL DISCHARGE
STANDARD
Drainage outside
thread 3/4”
Refrigerant connections
Electrical power supply
Access to motor
Drainage outside
thread 3/4”
VERTICAL DISCHARGE (OPTIONAL)
Refrigerant connections
Electrical power supply
HORIZONTAL DISCHARGE
STANDARD
Access to
motor
Air filter VERTICAL DISCHARGE (OPTIONAL)
Drainage outside
thread 3/4”
Drainage outside
thread 3/4”
Transportation
support
VERTICAL DISCHARGE (OPTIONAL)
Drainage outside
thread 3/4”
Air filter
Transportation support
Drainage outside
thread 3/4”

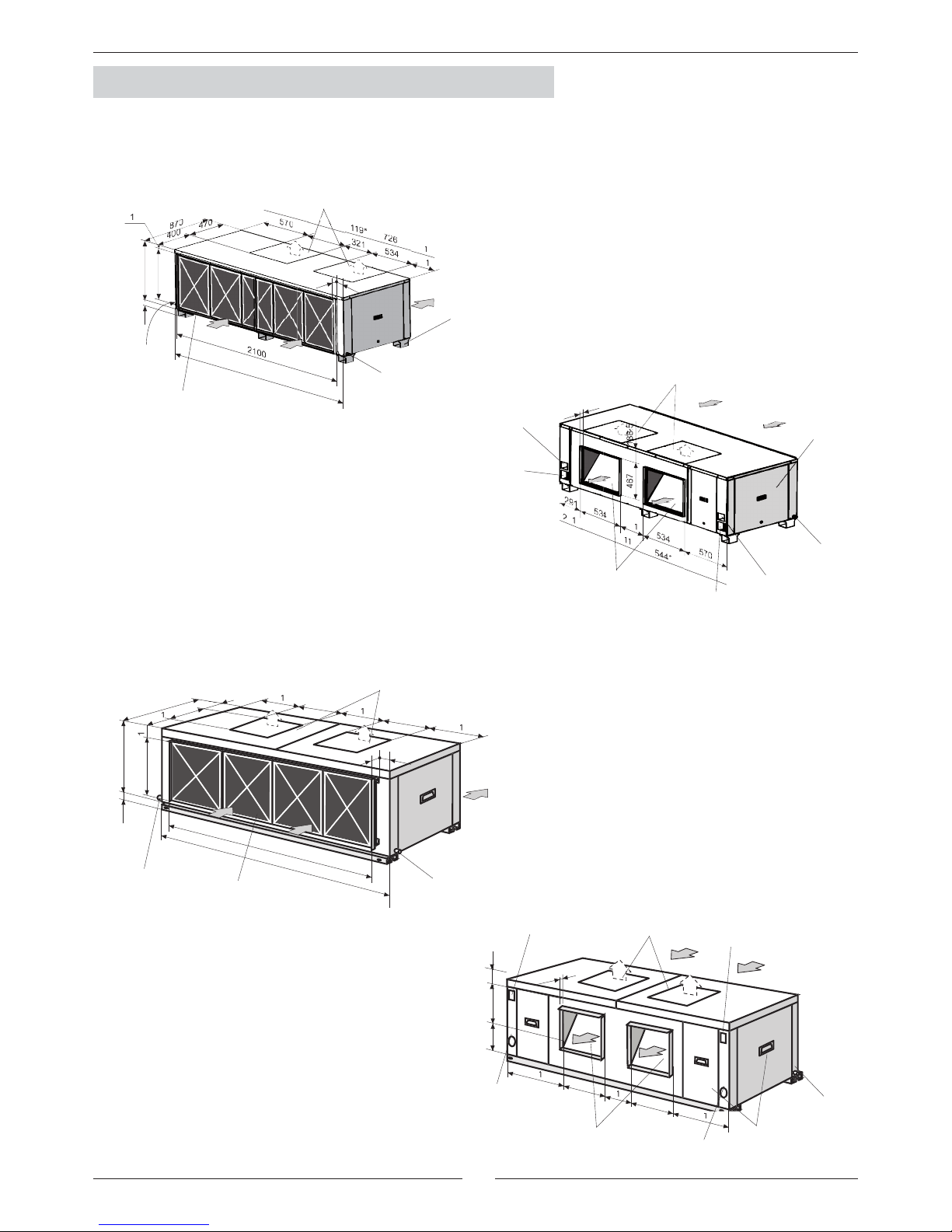

1.4.- UNIT DIMENSIONS
1. GENERAL CHARACTERISTICS

12
373 524 203
6
4
1
6
0
3
4
1
2
6
0
3
6
4
1
2
53
120
1054
1100
2660
2900
1050
2
7
1
5
2
4
4
2
2
5
5
5
4
0
6
4
1
6
0
3
4
1
2
6
0
3
6
4
1
1
8
3
2
1
2
5
7
2
6
*
1
1
9
9
*
*
5
7
0
*
9
1
*
695
740
53
75
9
5
2
2
9
1
2
2
5
0
5
3
4
1
9
5
7
0
*
5
5
4
4
4
*
*
2
9
1
*
MODELS 060S-070S-055D-070D-085D
MODELS 100D-120D-140D
Air filter
Drainage outside
thread 3/4”
VERTICAL DISCHARGE (OPTIONAL)
Drainage outside
thread 3/4”
Air filter
Drainage outside
thread 3/4”
VERTICAL DISCHARGE (OPTIONAL)
Drainage
outside
thread 3/4”
Transportation support
HORIZONTAL DISCHARGE STANDARD
VERTICAL DISCHARGE (OPTIONAL)
Electrical power supply
Electrical power supply
Refrigerant connections
Refrigerant connections
Drainage outside
thread 3/4”
Access to motor
VERTICAL DISCHARGE
(OPTIONAL)
Drainage outside
thread 3/4”
HORIZONTAL DISCHARGE (STANDARD)
Refrigerant connections
Electrical power supply
Access to motor
Refrigerant connections Electrical power supply
* Values with HP2 and HP3 option.
1. GENERAL CHARACTERISTICS
1.4.- UNIT DIMENSIONS

13
14
2
6
3
5
7
3
2
1
3
B A
7
3
B A
12
2.1.- INSTALLATION GUIDELINES
2.2.- OPTIONAL OPERATIONS PRIOR TO UNIT INSTALLATION:
VENTILATION FOR CIC-CIH UNITS IS PROVIDED BY:
1.- Centrifugal fan (single or double).
2.- Drive motor.
3.- Pulley fixed to the fan.
4.- Adjustable pulley on the fan motor.
5.- Pulley belt.
6.- Base of the motor with displacement system for tensioning belts.
7.- Tensioning screw.
The unit must be transported in a HORIZONTAL POSITION on its metal legs. Any other position may cause serious damage to
the machine. When the unit is received, it should be checked to ensure that there are no knocks or other damage, following the
instructions on the packaging. If there is damage, the unit may be rejected by notifying the LENNOX Distribution Department and
explaining on the transport agent’s delivery notice why the machine is unacceptable. Any complaint or claim made subsequently to
the LENNOX Distribution Department for this type of anomaly cannot be considered under the Guarantee.
Sufficient space must be allowed to facilitate placement of the unit.
ALL INSTALLATION, SERVICE and MAINTENANCE operations must be carried out by QUALIFIED PERSONNEL.
When positioning the unit, be sure that the Rating Plate will always be visible since this data will be necesary to
assure proper maintenance.
The units are designed to be installed with ducts, calculated by qualified technical staff. The joints to be used between ducts and
the openings to the unit should be Elastic Joints. Avoid the use of BYPASS joints between the extraction air and input air in both the
outdoor and indoor sections. The structure where the unit is placed must be able to support the weight of the unit during operation.
If there are problems of height, the transport supports can be removed by unscrewing them from
the base
(Units 020S to 085D).

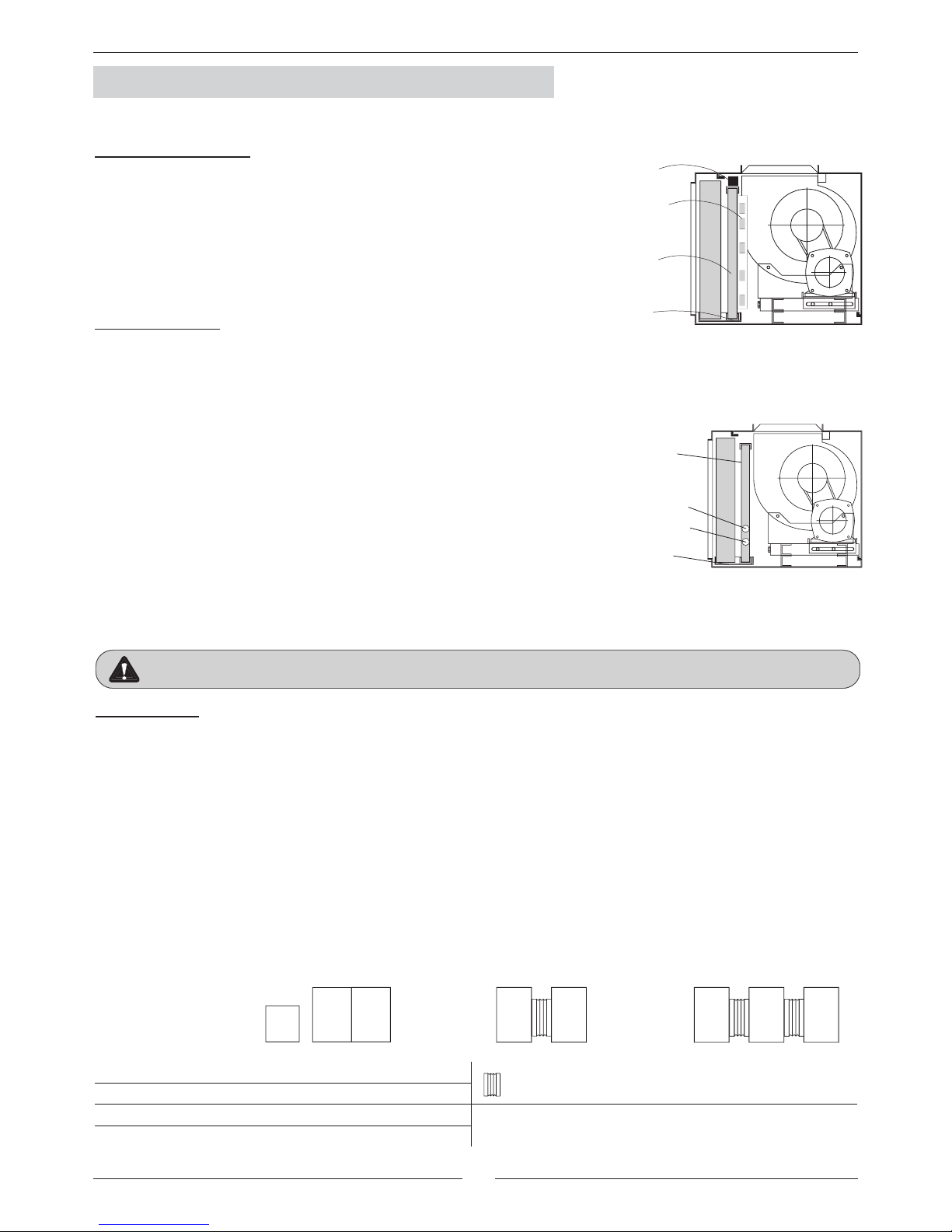

REGULATING AIRFLOW AT THE FANS
The unit fan has an adjustable pulley on the drive motor so that, when the fan is switched off, the pulley diameter can be adjusted
to modify the unit’s air flow, as required.
1. Fixed part.
2. Moving part.
3. Fixing screw.
CLOSE PULLEY:
To increase the air flow from the fan,
turn the moving part in direction “B”. (Clockwise).
OPEN PULLEY:
To reduce airflow, turn in direction “A”. (Anticlockwise).
TENSION OF BELTS
The belts can be easily tensioned by means of the tensioning screw incorporated into the
base of the motor in the transmission unit, which also makes it easy to carry out servicing
properly.
When the tensioning screw is turned, the fan motor is moved sideways in order to tension
the pulley.
ADJUSTABLE PULLEYS
SIMPLE PULLEY
DOBLE PULLEY
DISPLACEMENT
2. INSTALLATION

14
1m
1m
1m
1m
2%
C1
C2
2.3.- SERVICE SPACE
Free space should be left to enable access for servicing, in order to check the installation of
the cables, drainage connections, electrical installation and cleaning filters, as well as to give
easy access to the unit.
2.4.- DRAINAGE
All units have a 3/4” steel threaded drainage pipe welded to the condensation tray.
Drainage pipes will be fitted for each tray through a siphon with a height difference of 80
mm. to avoid drainage problems from the depression formed by the fans. The pipes should
have a 2% slope to enable condensation to be drained easily.
Also tip the unit slightly (2%) toward the drainage side. Check that the condensation trays are clean
and free of dirt and other debris from the installation work and that water drains correctly. UNIT
Min. 80 mm
Inspection and cleaning cap.
2.5.- REFRIGERANT CONNECTIONS
The unit is supplied with gas and liquid lines, sealed with copper caps.
THE UNITS ARE SUPPLIED WITH NITROGEN GAS. THIS MUST BE REMOVED BEFORE PROCEEDING AS FOLLOWS:
1 Remove the nitrogen gas through the top and bottom 5/16” service ports, leaving a vacuum as a safety measure.
2 Remove the caps from the connecting pipes.
3 Braze the connecting pipes.
(When brazing refrigerant pipes, nitrogen gas must be supplied through the service ports into the pipes to remove
any air).
DURING INSTALLATION OPERATIONS, KEEP GAS AND LIQUID PIPES COVERED, IN ORDER TO PREVENT HUMIDITY AND
DIRT FROM GETTING INTO THEM.
TAKE SPECIAL CARE TO ENSURE THAT REFRIGERANT PIPES ARE INSULATED.
AVOID COLLAPSE ON PIPE LINES INSTALLATION.
- 100D and 120D units model use different sizes of pipe connections: big size
for circuit 1 and small size for circuit 2.
Please be sure to connect indoor unit circuits C1 and C2 to the corresponding C1 and C2 circuits of the outdoor unit.
2. INSTALLATION
Legislation does not allow refrigerant gas emissions to the atmosphere, so the refrigerants have to be recycled to avoid being
released to the atmosphere. Those recycled refrigerants shall be processed afterwards by an authorized waste manager.
Those components derived from the recycling of the unit have to be managed by authorized waste manager or be left in local
waste facilities according the local normative in each country.

15
DS
AS
RS
RS HR/T
CO2
DPT
AS HRT
DIFS
LDRP
DADS
BAC
DS
AS
AS
HR/T
DPT
DIFS
RS
3
BAC
2
DADS
LDRP
CO2
RS
HR/T
6
5
4
020
4G x 1,5 mm²
(STD/HP1)
4G x 1,5 mm²
(HP2/HP3)
4G x 2,5 mm²
6G x 1,5 mm²
4G x 6 mm²
6G x 1,5 mm²
4G x 10 mm²
6G x 1,5 mm²
4G x 10 mm²
7G x 1,5 mm²
6G x 1,5mm² 4G x 1,5mm²
N/A
025
030
035
4G x 6 mm²
6G x 1,5 mm²
4G x 10 mm²
6G x 1,5 mm²
040-042
045
055-060 4G x 1,5 mm²
(STD/HP1)
4G x 2,5 mm²
(HP2/HP3)
4G x 10 mm²
6G x 1,5 mm²
4G x 25 mm²
6G x 1,5 mm²
4G x 25 mm²
7G x 1,5 mm²
4G x 1,5mm²
070
085
100 4G x 2,5 mm²
(STD/HP1)
2 x (4G x 2,5 mm²)
(HP2/HP3)
4G x 2,5mm²
120
140
2.6.- ELECTRICAL CONNECTIONS
- BEFORE MAKING ANY ELECTRICAL CONNECTIONS, BE SURE THAT ALL CIRCUIT BREAKERS ARE OPEN.
- IN ORDER TO CARRY OUT THE ELECTRICAL CONNECTIONS, FOLLOW THE ELECTRICAL DIAGRAM SUPPIED WITH THE
UNIT.
CONNECTION OF CONTROL ELEMENTS:
VOLTAGE OPERATING LIMITS: 342-462V
To be connected by installer
POWER SUPPY
COMPONENT Nr WIRES X SECTION
Discharge sensor STANDARD 2 x 1 mm² (shielded)
Remote ambient sensor STANDARD 2 x 1 mm² (shielded)
Remote duct sensor OPTION 2 x 1 mm² (shielded)
Duct remote sensor for enthalpic free-cooling OPTION 6x 1 mm² (shielded)
CO2 Air quality probe. (Available only with enthalpic free-cooling). OPTION 4 x 1 mm² (shielded)
Air differential pressure transducer OPTION 3 x 1 mm² (shielded)
Remote ambient sensor for enthalpic free-cooling OPTION 6 x 1 mm² (shielded)
Dirty filter sensor OPTION 3 x 1.5 mm² (shielded)
Long distance connection OPTION 3 x 1,5 mm² (1 circuit units)
2 x (3 x 1,5 mm² ) (2 circuits units)
Smoke detector OPTION 7 x 1,5 mm²
Hot water coil OPTION 5 x 1,5 mm²
POWER SUPPLY
FAN
2
ELECTRICAL HEATER 3
FREE-COOLING 4 EXHAUST FAN 5 RETURN FAN 6
STANDARD MEDIUM HIGH MODULATING
2. INSTALLATION

16
*
055D-140D * * 055D-140D020S-045D MS
EF IU
MS IU RS MS IU
EF
MS
RS *
IU
HOT WATER COIL
PROTECTION AGAINST FREEZING:
• Use glycol water. GLYCOL IS THE ONLY EFFECTIVE
PROTECTION AGAINST FREEZING.
This kit includes a safety thermostat with a probe located inside the hot
water coil. When the temperature drops below 4ºC, the unit will stop in
order to protect the hot water coil and to prevent the unit from working
with very low evaporating temperatures.
Five wires must be added between indoor and outdoor unit with this
option.
Hot water coil includes regulating valve:
- ON/OFF for standard and multi split.
- Proportional (0-10V).
You must ensure that manual or automatic air vents have been
installed on all high points in the system. In order to drain the system,
check that drain valves have been installed at all low points of the
system.
Location of the hot
water coil once
installed
Water inlet
Water outlet
Support
2.7.- OPTIONS INSTALLATION
ELECTRICAL HEATER
The electrical heater must be supplied from the unit’s
electrical box.
Safety thermostat
Small panel for contactors
and connections
Location of the electrical
heater once installed
Support
A HEATING COIL FROZEN DUE TO LOW AMBIENT CONDITIONS IS NOT COVERED BY THE WARRANTY.
INDOOR UNIT
FREE COOLING
1.- OPERATION
The control compares the values of temperature/enthalpy between outside air and room air by means of the probes; if there is a
negative difference and the safety elements allow (discharge temperature probes) then the control acts on the servomotor, which
opens the outside damper and closes the return damper, allowing cool outside air to enter the room.
The damper is proportionally regulated.
If there is not a great demand for air indoors, it may be enough just to have free cooling to condition the room. If there is a greater
demand for air, the free cooling and the unit may need to be working in different cooling mode stages.
2.- SUPPLY AND INSTALLATION
The free cooling option can be delivered as a packaged system or as a split system.
The mixing section will be delivered with the unit for models 020S to 045D and as a split system for the remaining models.
Return fan section will be delivered with the unit.
Configuration of free cooling supply:
2. INSTALLATION
Exhaust fan Flexible duct to be installed by the customer.
Mixing section
Return fan section *
Mixing and return fan sections can be together or not.
Indoor unit

17
DM FM
OS
HR/T
OS
AS
AS
HR/T
DPT
CO2
RS
RS
HR/T
DS
EFM
EFM
3x1.5
4 x 1.5
FM
DM
CO2
RS
RS
HR/T
DPT
DS
OS
HR/T
OS
AS
AS
HR/T
≥1m
DM EFM FM

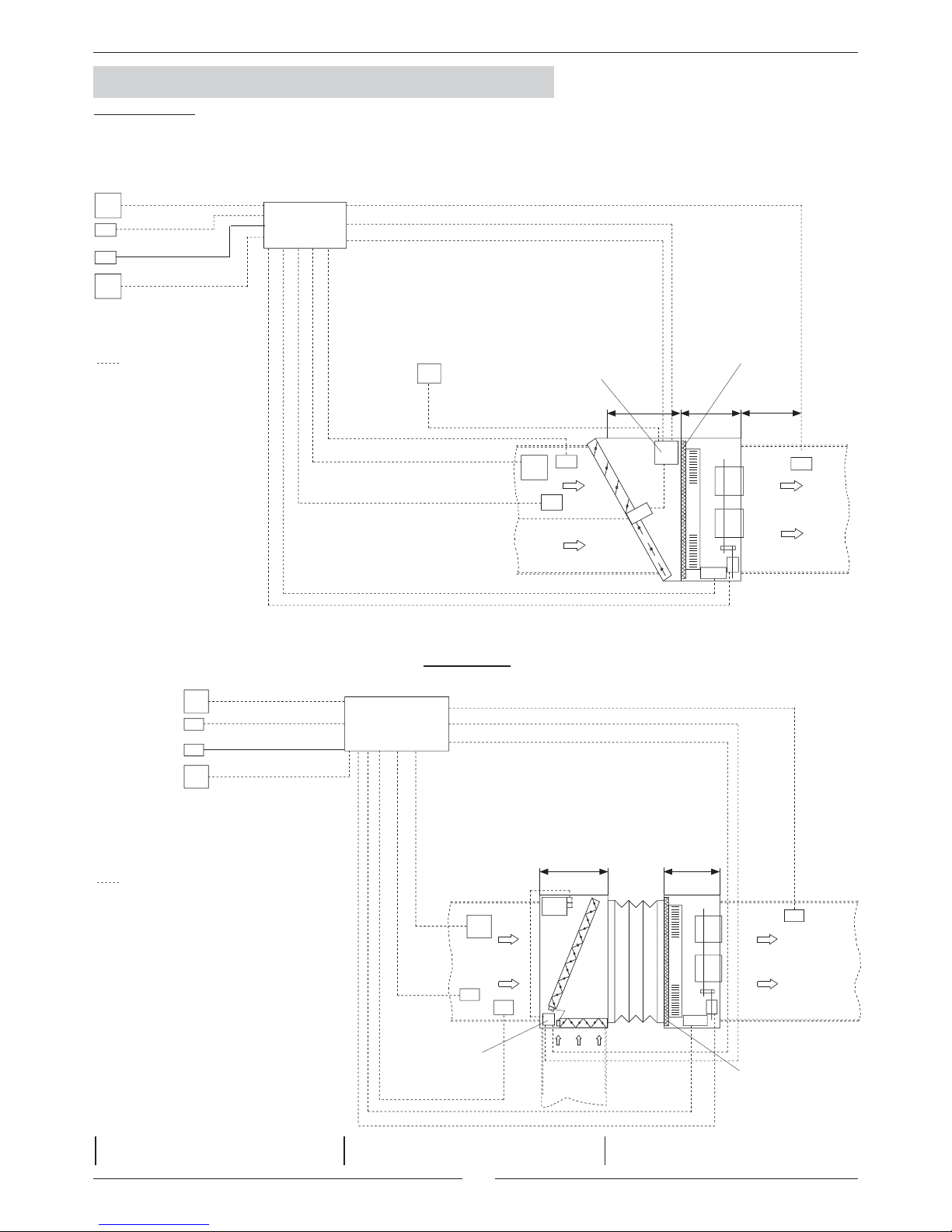

THERMOSTATIC AND ENTHALPIC FREE-COOLING WITHOUT RETURN FAN
CIC/CIH 020S TO 045D
THERMOSTATIC AND ENTHALPIC FREE-COOLING WITHOUT RETURN FAN
CIC/CIH 055D TO 140D.
C60 VERSION
FRESH AIR INTAKE
OUTDOOR UNIT
DISCHARGE AIR
DUCT
RETURN AIR DUCT
AIR FILTER
HEATER
MIXING SEC-
TION INDOOR UNIT
ELECTRICAL
BOX
2x1 Shielded
2x1 Shielded
DISCHARGE AIR
DUCT
HEATER
MIXING SECTION INDOOR UNIT
OUTDOOR UNIT
RETURN AIR
DUCT
FRESH AIR
INTAKE
ELECTRICAL
BOX
AIR FILTER
5x1 Shielded
2x1 Shielded
2x1 Shielded
5x1 Shielded
3x1 Shielded
3x1 Shielded
2x1 Shielded 5x1 Shielded
ELECTRICAL BOX
ELECTRICAL BOX
3x1 Shielded
3x1 Shielded
5x1 Shielded
2x1 Shielded
6x1.5+3x1.5 (With EFM)
4x1 Shielded
2x1 Shielded
2x1 Shielded
6Gx1 Shielded
To be wired by the
installer
To be wired by the
installer
The drawings show the side
view
The drawings show the top
view
5x1.5 (Standard version)
2x1 Shielded
2x1 Shielded
4X1.5 (4x2.5, 100D and 140D models)
6x1.5+4x1.5 (With EFM)
5x1.5 (Standard version)
2. INSTALLATION
FREE-COOLING
Damper actuator Exhaust fan motor Indoor fan motor

18
FMRFM
CO2
RS
RS
HR/T
OS
HR/T
OS
AS
AS
HR/T
4X2.5
DPT
4X2.5
DM
DS
DM
3x1
DM RFM FM
DS
OS
AS
RS
RS HR/T
CO2
DPT
OS HR/T
AS HR/T
To be wired by the
installer
The drawings show the top
view
2. INSTALLATION
FREE-COOLING
THERMOSTATIC AND ENTHALPIC FREE-COOLING WITH RETURN FAN
CIC/CIH 055D TO 140D
FRESH AIR
INTAKE
DISCHARGE AIR
DUCT
HEATER
INDOOR UNIT
RETURN AIR
DUCT
DISCHARGE
AIR
RETURN SECTION
AIR FILTER
5x1 Shielded
2x1 Shielded
2x1 Shielded
5x1 Shielded
3x1 Shielded
3x1 Shielded
2x1 Shielded
ELECTRICAL
BOX
MIXING SECTION
ELECTRICAL BOX 2x1 Shieled
6x1.5+4x2.5 (With EFM)
5x1.5 (Standard version)
OUTDOOR UNIT
Damper actuator Return fan motor Indoor fan motor
Free-Cooling
Thermostatic Enthalpic
Discharge sensor Standard
Outdoor sensor Standard
Remote ambient sensor Standard
Duct sensor Option
it replaces AS N/A
Duct remote sensor N/A Option
It replaces AS HR/T
CO2Air quality probe N/A Option
Air differential pressure transducer Option Option
Outdoor sensor N/A Standard
Remote ambient sensor N/A Standard

19
740
870
232.5
804
113.5
181.5
490
478.5
28 679 28
312
1626
312
679
38
9
5
7
3
5
1
1
5
0
2
2
5
0
2
2
2
2
8
2
2
5
0
A B C D E F G H I J K L M N
020S-030S 1000 148,5 291 38,5 138 74,5 1027 92,5 1194 640 749 789,5 100 307
035S-045D 1250 129,3 311,3 41 229,4 34 1282 129 1445 735 870 791 110 314
4
0
8
525
1
0
0
1
3
9
0
5
0
0
17
22.5
5
0
0
4
0
0
0
.
5
5
5
2
5
4
9
4
0
2
4
9
5
0
0
8
8
7
7
.
5
5
0
4
2
6
4
9
5
2
5
A
C
K
J
9
5
L
B
F
G
H
I
N
D
E
M
24
1100
1050
233
803
114
147
507
496
45 1010 45
312.5
2275
312.5
1008
38
4
0
1
1
0
0
1
1
1
5
0
2
9
0
0
4
5
2
9
0
0
1
MODELS 055D-070D-085D INDOOR UNIT
SECTION OF FLEXIBLE
DUCT TO BE INSTALLED
BY THE CUSTOMER
2100 x 698mm2
OUTDOOR AIR
DAMPER
MIXING SECTION
DISCHARGE FRAME
490x508x40
EXHAUST FAN (OPTION)
RETURN AIR
An exhaust fan may be included with free cooling without return
fan.
FREE-COOLING WITHOUT RETURN FAN
The position of the damper may be different from the one shown in the picture. See drawings.
RETURN AIR MIXING SECTION
EXHAUST FAN
(View front)
INDOOR UNIT
OUTDOOR AIR
EXHAUST FAN
(View back)
MODELS 020S to 045D
MODELS
MODELS 100D-120D-140D INDOOR UNIT
OUTDOOR AIR DAMPER
MIXING SECTION
DISCHARGE FRAME
803x1008x40
EXHAUST FAN (OPTION)
RETURN AIR
SECTION OF FLEXIBLE
DUCT TO BE INSTALLED
BY THE CUSTOMER
2660 x 1054mm2
2. INSTALLATION
