Lennox Comfort Series User manual

Model No:LNWR21X
Please read the operating instructions and safety
precautions carefully and thoroughly before installing
and operating your room air conditioner.
WINDOW-TYPE ROOM AIR CONDITIONER
LNWR53X
LNWR59X
LNWR39X

CONTENTS
Function
Operating Condition
Power requirement
Installation
Notes for installation
Part identification 6
Air direction adjustment 6
Operation Tips 11
Caution 12
Care and maintenance 13
Trouble-shooting guide 14
Structure mechanism and Installation
Operation of Remote Controller 7
Operation procedure
Care and maintenance
2
2
3
5
1
After service 15
Thank you for choosing LENNOX air conditoner.Our design is based on the best efficiency and the lowest
noise operation , whilst keeping the room comfortable.Please read this operating manual carefully before
operating the unit and store it away somewhere handy for future consultation.
Please read this operating manual care-
fully before operating the unit.
The figures in this manual may be different with the material objects,
please refer to the material objects for reference.
Remote control panel 10

Function
Introduction
Lennox, window type room air conditioners of can regulate the
room temperature to maintain the comfort levels inside you room.
It is convenient for your work,study and life and can be widely used
in residence, shop, hotel, office, library and laboratory, and so on.
Room
temp.
Spring
Summer
Autumn
Wind
direction
Winter
Cooling in summer
In hot summer, air conditioner can cool down
the room air by transferring heat out.
Dehumidifying in rainy or
humid season
Exchange fresh air
Open storm door to keep the fresh air in the room.
Dry
Fresh Air
Heating in winter
In cold winter, air conditioner can heat up room air.
(Only for heat unit)
Without reducing the room temp., air conditioner
can dehumidify and make the room air dry and
comfortable.
- 1 -

Operating Condition
Power requirement
DRY mode operation
Water pipe
Rated voltage :230V~
The electric components could get damaged if the voltage is too high.
If the voltage is too low, the compressor will vibrate violently
damaging
the refrigerant system and easily causing the compressor
and electrical
components to stop working.
The ground must be connected.
Special socket must be used. Furthermore, the socket and wiring
must conform to the local wiring regulations. And the earthing
must be reliable.
In fixed circuit, there must be electricity leakage protection switch
of enough power capacity and air switch with enough space.
Earth wire To ensure the reliable earthing, please do not connect earth wire to the following places:
Please operate air conditioner in the correct conditions as following.
COOL mode operation
In this mode, the air conditioner operates
efficiently when the ambient temperature
is between 18 and 43 oC.
Humidity inside the room has to be below
90 oC or else the air conditioner condensates
and there could be excessive water running
through the drains of the unit.
In this mode, the air conditioner operates
efficiently when the ambient temperature
is between 18 and 43 oC.
method
- 2 -

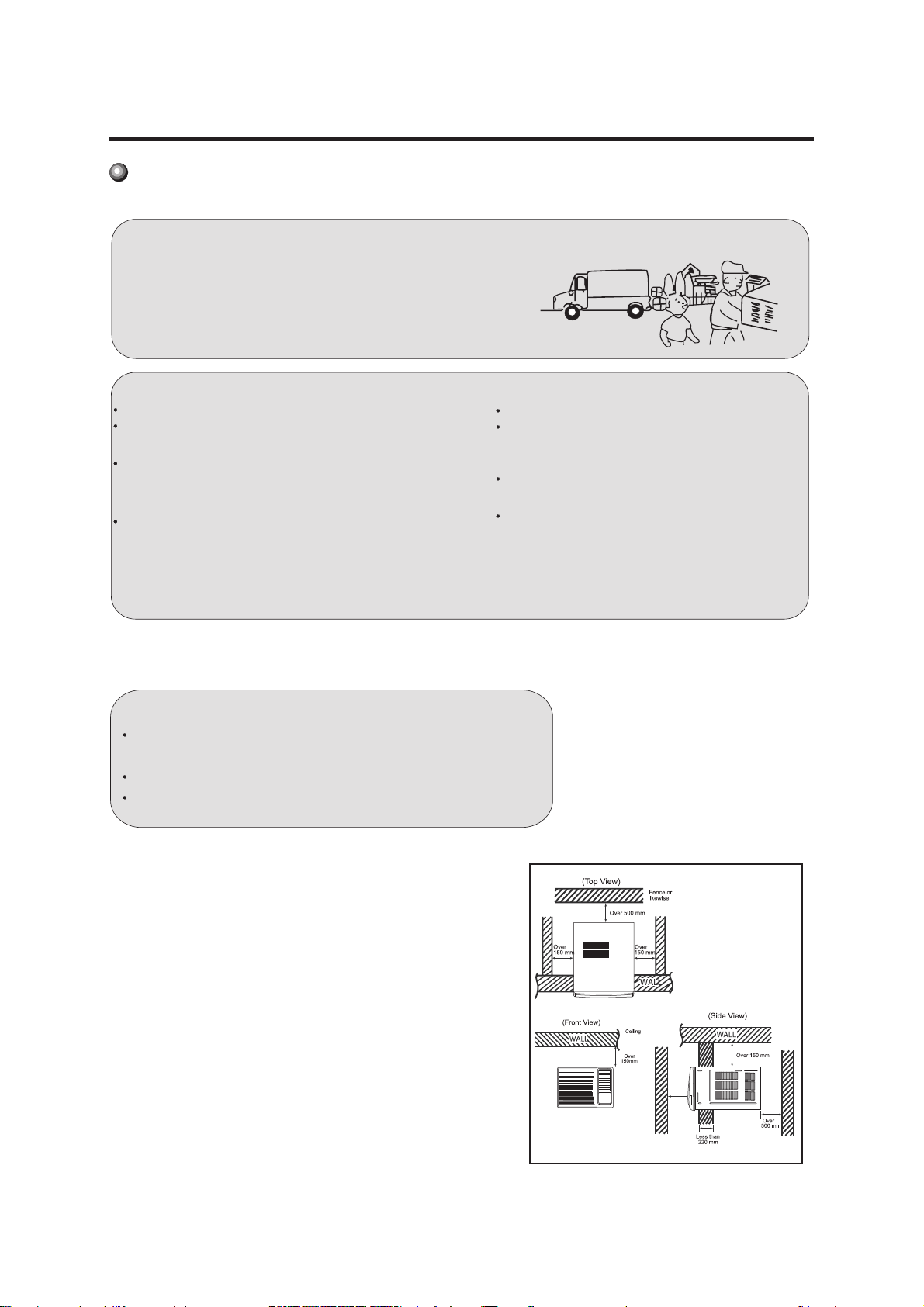

It would be beneficial to have following clearances
around the unit
1500mm,left 500mm,right 500mm, front 1500mm.
should be upper 300mm, lower
Installation
Installation precaution:
Improper installation of these units could potentially cause
serious damage to these units. It is recommended to engage
services of a professional expert to install these air
conditioning units.
Location:
The condensation water must be drained away conveniently.
In salt and coastal area or places near thermal springs
and polluted by sulphurous gas, or other special areas, please
contact
the seller before use.
Avoid other heat sources or direct sun light.
Avoid installing these products in places where
it is easy for children to touch or interfere with the
operation of these units.
For Window type air conditioners with remote
control, avoid installing these units in places
with strong electromagnetic disturbance to
prevent any malfunctioning of the remote signals.
How to install:
Choose a location where there are no any obstacle surrounding
the unit,and the plug is accessible.
Prepare the installation hole slightly bigger than unit size.
Choose the installation space according to the below diagram.
Don't use the unit in the immediate surrondings of
a laundry,a bath,a shower or a swimming pool.
Install air conditioner unit far away from TV set or radio
etc. to avoid disturbing video or voice.
Avoid installing these units close to places where there could
be a potential gas leak or near inflammable gases.
Over
1000 mm
- 3 -

Sunshade board
Wall
Wooden frame
Rubber plate
Support
Horizontal line
Horizontal line
Drain water :
Installation procedure:
1) Remove the sticker from the front panel.
2) Put the unit into the installation hole.
When installing the unit, it should be slanted
down to the back to avoid the enlargement of
noise or vibration. (Slant between 6-10mm.)
(As shown in the illustration.)
The installation place should be strong enough
to avoid any vibrational noises.
3) Fill up gaps in the cabinet with sponge or foam.
Installation assistance:
Use iron support
The installation hole should be strong enough to
support the air conditioner. If it cannot, iron sup-
port has to be used outdoors.
Iron support should be fixed on the building (Shown
at right figure.)
Use sunshade board
To avoid any accidental damage to the unit from
things falling from above, it is recommended to
install a sunshade board and this can be installed
by the installer.
To get the maximum cooling efficiency, the air conditioner is designed to splash the condensation
water on the condenser coil.To the cooling only unit,If the splashing sound annoys you, you can
provide an outside drain by using the following procedure, which may however cause a small loss
of performance.
1. Slide out the chassis from the cabinet.
2. Remove the rubber plug from the body base plate.
3. Install the drain pan to the corner of the cabinet with 2 screws.
4. Connect the drain hose to the outlet on the drain pan bottom.
5. Slide the chassis into its original place in the cabinet.
6~10mm
6~10mm
Please refer to below illustration.
- 4 -

Notes for installation
Un-install Air conditioner
Lennox Window air conditioner must be un-installed
by a professional installer of air conditioning equipment.
Noise
Electric wiring
Install air conditioner in a location with minimum vibrational noises.
Maintain unit outlet with no blockages or else the air conditioner
could be noisy.
Please contact your installer as soon as there is strange noise during operation.
Please use the safety support.
Must be connected to earth.
The exclusive circuit must be used. No removable socket can be used to connect
this unit or else it can over heat and cause fire.
If the supply cord is damaged,it must be replaced to avoid a hazard.
In fixed circuit, there must be electricity leakage protection switch and leakage current
should be less than 30mA.
Air switch (thermal-magnetic breaker) should be installed in the circuit.
Note:
Drain pan and drain hose must be installed before using reverse cycle models.
Drain hose or tubing can be purchased locally to satisfy your particular needs.
Don’t pull the power cord strongly.
All the electrical work must be carried out in accordance to local wiring regulations.
An all-pole disconnection switch having a contact separation of at least 3mm in all poles
should be connected in fixed wiring
Connecting method between air conditioners and power cord and interconnecting method
of each individual element with one another should comply with wiring diagram on the unit.
The air conditioner should be installed in accordance with local wiring regulation.
GJH18AC-K3RNB9A, GJC18AC-K3RNB9A can be connected only to a supply with system
impedance no more than 0.225 ohm. In case necessary, please consult your supply authority for
system impedance information.
GJH18AC-K3RNB9B, GJC18AC-K3RNB9B can be connected only to a supply with system impedance
no more than 0.243 ohm. In case necessary, please consult your supply authority for system
impedance information.
- 5 -

Part identification
Vertical airflow direction vane
(Airflow direction adjustment up and down).
Air direction adjustment
Front grille
Air inlet louver
Cabinet
Air filter
Front intake grille
Remote control panel
Panel outlook picture, just for reference, please take the real until as standard.
(behind the front intake grille)
Power cord
The vertical airflow direction vane is controlled by positioning the vane
to discharge the air upwards, downwards or straight out.
- 6 -

Press it to start or stop operation.
ON/OFF
MODE
-
+
Press it to select operation mode
(AUTO/COOL/DRY/FAN/HEAT).
:Press it to decrease temperature
setting.
:Press it to increase temperature
setting.
FAN
Press it to set swing angle.
TIMER
SLEEP
Press it to set fan speed.
Press it to set auto-on/auto-off timer.
1
2
3
4
5
6
8
7
Operation of Remote Controller
2
7
4
3
8
6
5
1
SWING
Remote Controller Description
- 7 -

Operation of Remote Controller
Remote controller description
Press this button to turn on the unit. Press this button again to turn off the unit.
Press this button to go into the SLEEP operation mode. Press it again to cancel this function.
This function is available in COOL, HEAT (Only for models with heating function) or DRY
mode to maintain the most comfortable temperature for you.
ON/OFF :
MODE :
Press this button to decrease set temperature. Hold it down for above 2 seconds to
rapidly decrease set temperature. In AUTO mode, set temperature is not adjustable.
Press this button to increase set temperature. Hold it down for above 2 seconds to
rapidly increase set temperature. In AUTO mode, set temperature is not adjustable.
Auto
Speed 1 Speed 2 Speed 4 Speed 3
Press this key to activate or deactivate the swing.
SLEEP:
1
2
3
4
5
6
7
AUTO COOL DRY FAN HEAT *
*Note: Only for modelswith heating function.
:
:
FAN
-
+
:
SWING:
This button is used for setting Fan Speed in the sequence that goes from AUTO,
,then back to Auto.
,
,to
Each time you press the button, a mode is selected in a sequence that goes from AUTO,
COOL, DRY, FAN,and HEAT *,as the following:
- 8 -

★
●
●
●
●
●

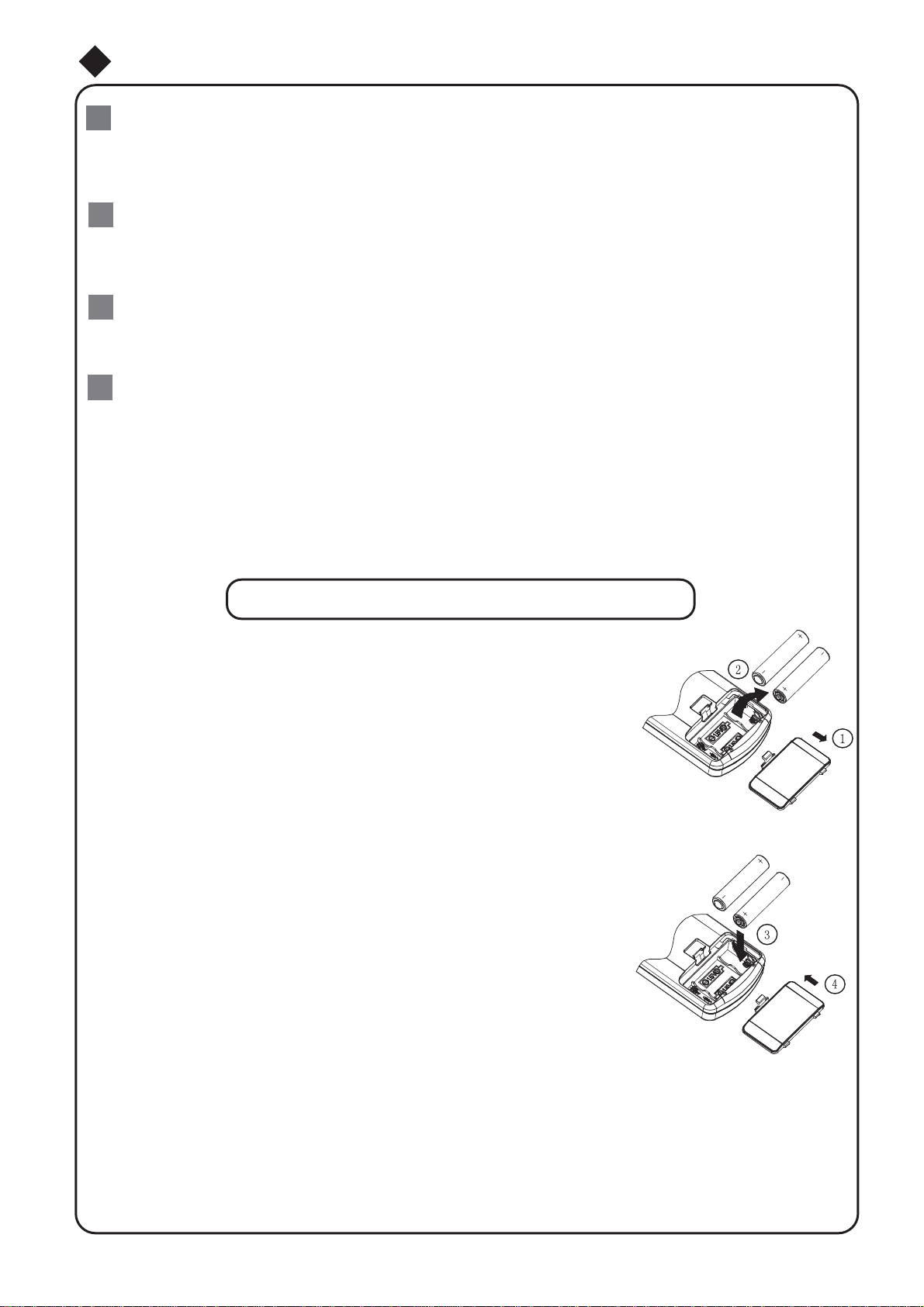

1.Remove the battery cover plate from the rear of the remote controller.
(As shown in the figure)
2.Take out the old batteries.
3.Insert two new AAA1.5V dry batteries, and pay attention to the polarity.
4. Reinstall the battery cover plate.
When replacing the batteries, do not use old or different types of batteries,
If the remote controller is not be used for a long time, please
otherwise, it may cause malfunction.
remove batteries to prevent batteries from leaking.
The operation should be performed in its receiving range.
To avoid any interference with infrared signals, please keep your
remote away (at least 1m) from other infrared sensing electrical
equipment e.g. stereo or TV sets
If the remote controller does not operate normally, please take the
batteriesoutandreinsert themafter30 seconds. Ifit still doesn't operate properly,
Notes:
replace the batteries.
Fig.1
Fig.2
Replacement of Batteries
Press "+" and "-" buttons simultaneously to lock or unlock the keypad.
At unit OFF, press "MODE"and"-" buttons simultaneously to switch between and .
℃
℉
4
TIMER:
Press this button to initiate auto-on/auto-off timer. To cancel auto-timer program, press
this button twice.
8
Operation of Remote Controller
Combination of "+" and "-" buttons: About lock
9
Combination of "MODE" and "-" buttons: About switch between fahrenheit and cenrigrade
9
10
Under switch-on or switch-off state, you may hold "+" and "FAN" buttons simultaneously for
3 seconds to set the lamp on or off and send the code. After being energized, the lamp is
defaulted on.
Combination of "+" and "FAN" buttons: About Lamp
11
- 9 -

If wireless remote controller is lost, you can use the control panel and operate manually.
Note:
VENTILATION LEVER
Ventilation Lever
When the slider at the: When the slider at the:
Remote control panel
1ON/OFF BUTTON
Operation starts when pressing this button, and stops
when pressing this button again.
2
FAN SPEED BUTTON
Select the fan speed HIGH, MID, LOW and AUTO in sequence.
3
4TIME/TEMP BUTTON
MODE BUTTON
5SIGNAL RECEIVER
6
SWING BUTTON
Activate the automatic air swing function.
7FILTER BUTTON
1
5
6
4
4
2
3
7
Press the∧keypad to increase the set (operating)
temperature of the unit.and Press the∨keypad to
decrease the set (operating) temperature of the unit.
The temperature seting range is from 16~30℃
Press the∧keypad also to increase the selected time
in 1 hour increments,and Press the∨keypad to
decrease the selected time in 1 hour decrements,The
time seting range is from 0~24 hours.
Select the operation mode, AUTO, COOL, DRY, FAN,
HEAT (for reverse cycle model) or AUTO,COOL, DRY,
FAN (for cooling only model).
This feature is a reminder to clean the Air Filter (See
Care and Cleaning) for more efficient operation and
cooling. The LED (light) will illuminate after 250 hours
of operation. To reset after cleaning the filter, press the
"Check Filter" button and the light will go off. Before the
LED(light) illuminate, press the "Check filter" button until
after 3 seconds, the accumulated time of. Operation will be
canceled.
CLOSE VENT OPEN CLOSE VENT OPEN
-"OPEN" position,the ventilation door
opens to allow air,smoke or odors to
be expelled from the room.
-"CLOSE" position,the ventilation door
is closed and the air will be circulated
inside the room and conditioned.
- 10 -

Operation Tips
Operation for comfort and economy
Do not overcool the room.
This is not good for health and
wastes electricity.
Keep blind or curtains closed.
Do not let sunshine enter the
room directly when the air con-
ditioning is on operation.
Keep the room temp. uniform.
Adjust the vertical and horizon-
tal airflow direction to ensure a
uniform temperature is maintained
in the room. Air can’t be discharged
to the direction of air-in.
Make sure that the doors and win-
dows are tightly closed. Avoid open-
ing doors and windows as much as
possible to maintain indoor
temperatures.
Clean the air filter regularly .
Blockages in the air filter re-
duces dehumidifying effects.
Clean the air filter at least once
every two weeks.
Ventilate the room occasionally.
Since windows are kept closed, it
is a good idea to open them and
ventilate the room now and then.
When starting the unit, curtains or
windows should be closed to pre-
vent the heat/cool leakage.
- 11 -

Caution
Operations for safety and health
1) The plug must be accessible after the appliance is positioned.
2) Do not use this appliance in the laundry.
3) If the power cord is damaged, it must be replaced.
Do not pull out the power cord.
Damage to the cord may result
in serious electric shocks
Do not use the air conditioner
for other purposes except for
air conditioning the room.
Do not use the air conditioner
for other purposes such as
drying clothes, preserving
foods, or cultivating
vegetables.
Do not block the air intake and
outlet vents.
This affects the lowered perfor-
mance and irregular operation.
Do not insert sticks or other
objects into these vents as it is
dangerous to touch the electric
components and the fan.
Rooms occupied by infants,the
elderly, or the sick should be kept
at an appropriate temperature.
Do not use heating apparatuses in
the vicinity. The air conditioner’s
plastic parts will melt if exposed to
excessive heat.
Avoid exposing the body directly to
a continuous unidirectional air flow
for long periods.
This is not recommended for health
reasons.
Always wait at least 3 minutes before switching the
air conditioner on again after you have switched it
off during cooling or heating.
Always wait
at least 3 minutes.
- 12 -

1. Cut power off before cleaning.
3.
4.
*
*
4.If the filter is very dirty, use a mild household
detergent in the wash water.
2.
Care and maintenance
Always turn off the air conditioner and main power supply before cleaning to ensure safety.
Cleaning unit
Plug out only after
air conditioner
stops at all.
Use soft cloth when
cleaning cabinet.If the
cabinet is very dirty, dip
cloth into warm water
below 40℃,dry the
cloth and then rub off
the dirt.
Dry the cloth by
hands before
cleaning.
Don’t use gas, benzene, solvent,wash,
chemical solvent, etc. for cleaning.
Do not splash water directly into indoor
unit, in which there are micro-computer
and circuit plate,
these parts must
not be drenched
in water.
Accident could
happen.
Check earth wire
Is it broken
or loose?
Air filter
The air filter behind the intake grille should be
washed at least once every two weeks or as often
as it needs cleaning.
How to clean the air filter:
1.To remove the air intake grille, grasp the tab on the filter
and pull to take out.
2. Vacuum the filter on the dusty side to remove light dust.
Vacuum cleaner
3.Wash the filter, cleaner side up under gently flowing
waterto wash out accumulated dust and lint.
Let the filter dry thoroughly before reinstalling it.If
necessary, please ask the professional personnel to
clean it.
Check if air inlet and outlet of outdoor unitare
blocked or not.
Air lock could result
in bad efficiency.
- 13 -

Fault phenomenon Trouble-shooting
Trouble-shooting guide
Air conditioner dose not
operate at all.
Is there a power failure?
Is the plug out?
*
*
*
*
*
*
*
*
*
*
*
*
Whether the voltage is too high or too low?
Is air inlet or outlet locking?
Is there any other heat /cool source in room?
Are air filters dirty?
Is indoor fan speed set at LOW?
Maybe the room is too hot/cool when the unit is
started.
At COOL mode operation, sometimes there is foggy
air flowing out of indoor unit, this is because the room
humid air has been cooling rapidly.
The unit is normal while the indoor outlet is sending
out some odor, because the inlet air may be mixed
with the smell of furniture and smoke.
For a noise that sounds like water flowing:
This is the sound of freon flowing inside the air con-
ditioner unit.
For a noise that sounds like a shower:
This is the sound of the dehumidifying water being
processed inside the air conditioner unit. If there
*
*
*
This is to protect the mechanism.
Wait about three minutes and operation will begin.
Cool or heat efficiency is
not good.
Foggy air
flows out.
The air conditioner opera-
tion is noisy.
It seems that condensation is leaking from air
conditioner.
Air conditioner dose not operate for about 3 minutes
when restart.
Please check the following items before asking for repair,it saves your time and
money.
OFF
No
cooling
Condensation occurs when the airflow from the air
conditioner cools the warm room air.
are any other noises please call a technician.
- 14 -

After service
If your air conditioner has the questions of quality or anything else, please contact
the service center of LENNOX on 13 23 50.
Immediately stop all operations and plug out, please contact your
dealer in the following situations.
* Operation starts or stops abnormally;
* Power fuse or switch often trips;
* Carelessly splash water or something into air conditioner;
* Electrical lines are much hot or lines cover breaks;
* Other strange situations.
- 15 -

66129911600
Distributed by:
Heatcraft Australia
286 Horsley Road
Milperra 2214
P:(612)9774 7155
F:(612)9774 7205
Heatcraft/Kirby New Zealand
12 George Bourke Drive
Mount Wellington 1006
P:[phone]
F:[phone]
2020001A5097
