Moto G Power
Lenovo Moto G Power
Level 2 –Service and Repair Manual

Lenovo Moto G Power
Level 2 –Service and Repair Manual
Lenovo Confidential Restricted:
PAGE 2 Do not share without consent from Lenovo
REVISION HISTORY
Revision
Date
Notes
1
02/10/2020
Initial Release.

Lenovo Moto G Power
Level 2 –Service and Repair Manual
Lenovo Confidential Restricted:
PAGE 3 Do not share without consent from Lenovo
TABLE OF CONTENTS
Revision History.................................................................................................................................. 2
List of Tables....................................................................................................................................... 6
Table of Figures.................................................................................................................................. 6
Safety Information .............................................................................................................................. 7
Cautions and Warnings.......................................................................................................................7
Battery Safety Guidelines....................................................................................................................7
Introduction......................................................................................................................................... 8
External Views.....................................................................................................................................8
Main Exploded Views........................................................................................................................10
Disassembly and Recovery ............................................................................................................. 13
Disassembly and Recovery Map.......................................................................................................13
Tools Required for Disassembly.......................................................................................................14
SIM Tray Removal ............................................................................................................................ 16
Water Detection Label Inspection.....................................................................................................17
IMEI Label Removal..........................................................................................................................18
Battery Cover Removal.....................................................................................................................19
Top Bracket Removal........................................................................................................................27
Water Detection Label Inspection.....................................................................................................28
Rear-Facing Camera Lens Removal ................................................................................................29
Flash Lens Removal ......................................................................................................................... 30
Top Bracket Heat Spreader Removal............................................................................................... 31
Receiver Conductive Gasket Removal............................................................................................. 32
5G Flex Removal ..............................................................................................................................33
FPS Flex Removal............................................................................................................................34
Main PCB Heat Spreader Removal..................................................................................................35
Rear-Facing Camera Removal .........................................................................................................36
Main PCB Removal...........................................................................................................................37
Water Detection Label Inspection.....................................................................................................39
Front-Facing Camera Copper Foil Removal..................................................................................... 40
Front-Facing Camera Removal.........................................................................................................41
Speaker Seal Gasket Removal......................................................................................................... 42
Flash Grease Removal ..................................................................................................................... 43
FPS Conductive Gasket Removal.....................................................................................................44
Main PCB Shield Graphite Removal.................................................................................................45
Sim Gasket Removal ........................................................................................................................46
Receiver Removal.............................................................................................................................47
Front-Facing Camera Gasket Removal............................................................................................ 48

Lenovo Moto G Power
Level 2 –Service and Repair Manual
Lenovo Confidential Restricted:
PAGE 4 Do not share without consent from Lenovo
Vibrator Gasket Removal..................................................................................................................49
Vibrator Removal .............................................................................................................................. 50
Flash Conductive Gasket Removal................................................................................................... 51
Speaker Box Heat Spreader Removal..............................................................................................52
Speaker Box Removal ......................................................................................................................53
Water Detection Label Inspection.....................................................................................................54
Speaker Gasket Removal.................................................................................................................55
Sub Board Removal.......................................................................................................................... 56
Ear Jack Gasket Removal.................................................................................................................57
USB Grommet Removal.................................................................................................................... 58
Battery Removal................................................................................................................................59
Battery Gasket Removal...................................................................................................................61
Coax Cable Removal........................................................................................................................62
MIC Grommet Removal .................................................................................................................... 63
Main Flex Removal ........................................................................................................................... 64
Parts Refresh..................................................................................................................................... 65
Tools Required for Parts Refresh .....................................................................................................65
Battery Cover Cleaning.....................................................................................................................66
Front Housing Cleaning ....................................................................................................................67
Top Bracket Cleaning........................................................................................................................68
Assembly........................................................................................................................................... 69
Assembly Map................................................................................................................................... 69
Tools Required for Assembly............................................................................................................70
Sim Gasket Assembly.......................................................................................................................72
Main PCB Shield Graphite Assembly ...............................................................................................73
Flash Grease Assembly....................................................................................................................74
Speaker Seal Gasket Assembly........................................................................................................75
Water Detection Label Assembly...................................................................................................... 76
MIC Grommet Assembly...................................................................................................................77
Vibrator Assembly............................................................................................................................. 78
Vibrator Gasket Assembly................................................................................................................. 79
Water Detection Label Assembly...................................................................................................... 80
Flash Conductive Gasket Assembly .................................................................................................81
Ear Jack Gasket Assembly...............................................................................................................82
Main PCB Assembly ......................................................................................................................... 83
USB Grommet Assembly..................................................................................................................84
Water Detection Label Assembly...................................................................................................... 85
Sub Board Assembly.........................................................................................................................86
Main Flex Assembly..........................................................................................................................87

Lenovo Moto G Power
Level 2 –Service and Repair Manual
Lenovo Confidential Restricted:
PAGE 5 Do not share without consent from Lenovo
Coax Cable Assembly.......................................................................................................................89
Battery Gasket Assembly.................................................................................................................. 90
Battery Assembly.............................................................................................................................. 91
Front-Facing Camera Gasket Assembly...........................................................................................93
Front-Facing Camera Assembly .......................................................................................................94
Front-Facing Camera Copper Foil Assembly.................................................................................... 95
Receiver Assembly ........................................................................................................................... 96
Rear-Facing Camera Grommet Assembly........................................................................................ 97
Rear-Facing Camera Assembly........................................................................................................ 98
Main PCB Heat Spreader Assembly................................................................................................. 99
FPS Conductive Gasket Assembly.................................................................................................100
FPS Flex Assembly.........................................................................................................................101
5G Flex Assembly...........................................................................................................................102
Flash Lens Assembly......................................................................................................................103
Rear-Facing Camera Lens Assembly............................................................................................. 105
Top Bracket Heat Spreader Assembly............................................................................................106
Receiver Conductive Gasket Assembly..........................................................................................107
Top Bracket Assembly....................................................................................................................108
Speaker Gasket Assembly..............................................................................................................109
Speaker Box Assembly...................................................................................................................110
Speaker Box Heat Spreader Assembly ..........................................................................................111
Battery Cover Adhesive Assembly.................................................................................................. 112
FPS Adhesive Assembly................................................................................................................. 114
Battery Cover Assembly.................................................................................................................. 115
IMEI Label Assembly ......................................................................................................................119
Sim Tray Assembly......................................................................................................................... 120

Lenovo Moto G Power
Level 2 –Service and Repair Manual
Lenovo Confidential Restricted:
PAGE 6 Do not share without consent from Lenovo
LIST OF TABLES
Table 1. External Views Parts List........................................................................................................9
Table 2. Assembly Exploded View Parts List.....................................................................................10
TABLE OF FIGURES
Figure 1. External Views.......................................................................................................................8
9BFigure 2. Assembly Exploded View....................................................................................................10

Lenovo Moto G Power
Level 2 –Service and Repair Manual
Lenovo Confidential Restricted:
PAGE 7 Do not share without consent from Lenovo
SAFETY INFORMATION
Cautions and Warnings
Electrostatic Discharge
The phone components may be damaged by electrostatic discharge (ESD). Always use an ESD mat and ground strap
when working with internal components.
Battery Safety Guidelines
Handle Battery with care. Ensure Battery edges and surfaces are not dented or deformed. If the Battery Pack is dropped
to the floor, it may be internally damaged and must be scrapped.
Ensure all surfaces, fixtures, and phone components contacting the Battery are smooth and clean.
Ensure Battery and its insulation are not damaged (e.g. scratched, dented, punctured) prior to and throughout assembly.
Prior to assembly, ensure Battery edges and surfaces are not dented or deformed, and that fixtures and parts that will
contact the Battery are free of foreign material.
Ensure screws and screwdrivers do not contact the Battery.
Failure to adhere to Safety Critical Note(s) may increase risk of rupture, burning, or failure to function safely when used
by the customer.

Lenovo Moto G Power
Level 2 –Service and Repair Manual
Lenovo Confidential Restricted:
PAGE 8 Do not share without consent from Lenovo
INTRODUCTION

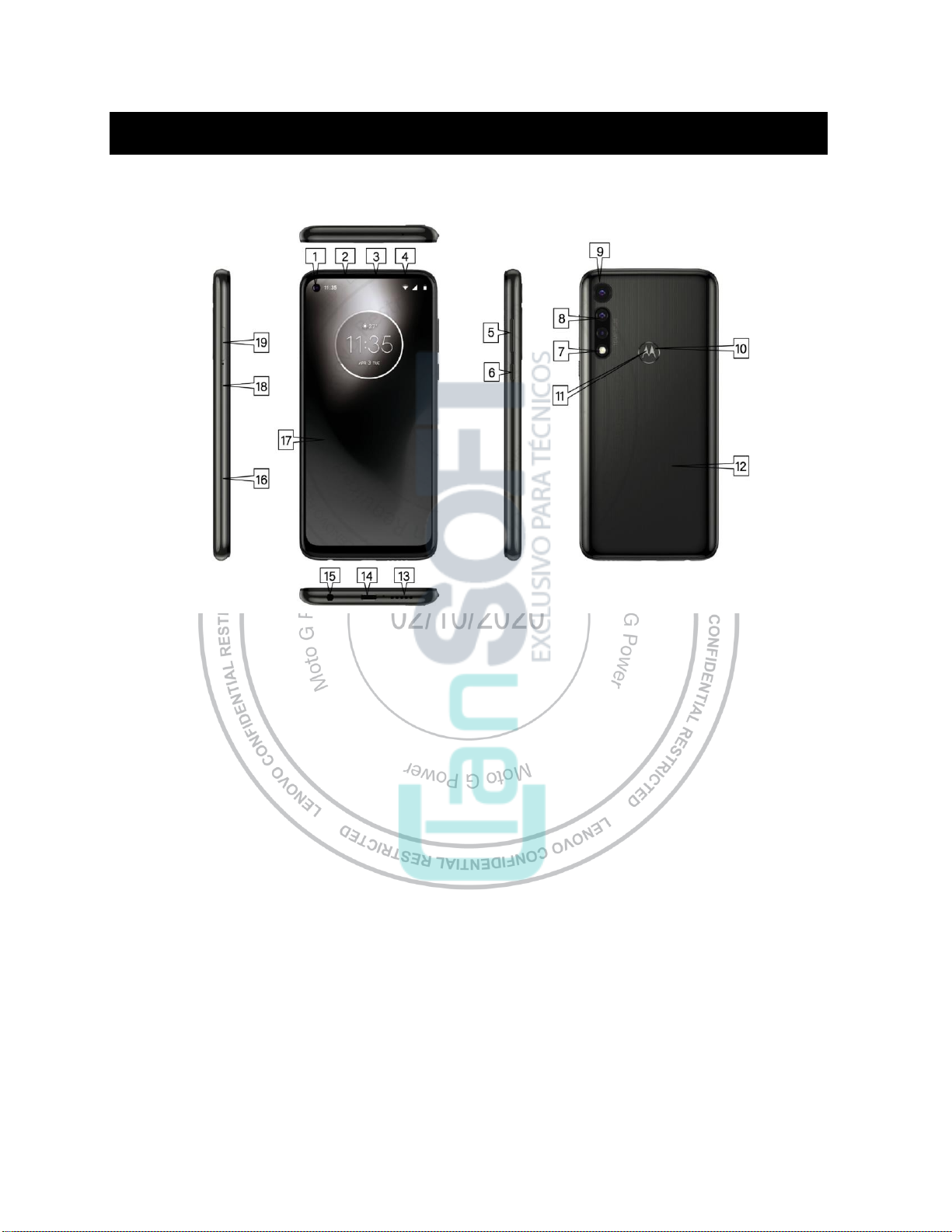

External Views
Figure 1. External Views

Lenovo Moto G Power
Level 2 –Service and Repair Manual
Lenovo Confidential Restricted:
PAGE 9 Do not share without consent from Lenovo
Table 1. External Views Parts List
Reference #
Description
1
Front-Facing Camera
2
LED
3
Receiver
4
P&L Sensor
5
Volume Key
6
Power Key
7
Flash Lens
8
Camera Lens
9
Camera Ring
10
FPS
11
FPS Bezel
12
Battery Cover
13
Speaker Mesh
14
USB Port
15
Headset Jack
16
Front Case
17
Main Lens
18
Housing Frame
19
Sim Door

Lenovo Moto G Power
Level 2 –Service and Repair Manual
Lenovo Confidential Restricted:
PAGE 10 Do not share without consent from Lenovo

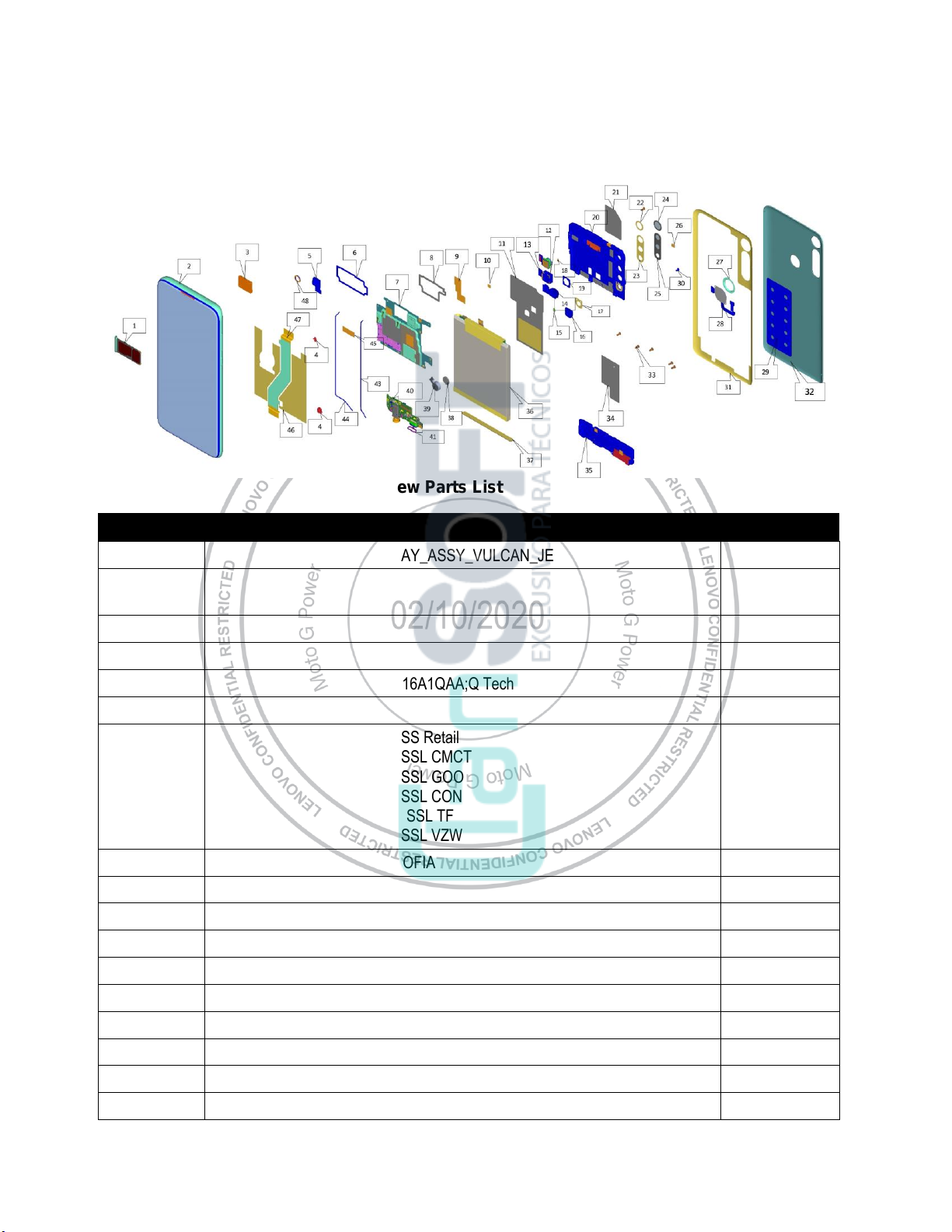

Main Exploded Views
9BFigure 2. Assembly Exploded View
Table 2. Assembly Exploded View Parts List
Reference #
Description
Recovery Part
1
SOFIA_NA_SINGLE_SIM_TRAY_ASSY_VULCAN_JEM
Yes
2
Sofia NA TP LCM ASSY
Sofia NA TP LCM ASSY VZW
Yes
3
AU,SPKR,15x11x2.8mm,7ohm
No
4
MIC1_GROMMET_SOFIA
Yes
5
MDL,CAMR,16M,sofia;Front;F16A1QAA;Q Tech
Yes
6
SOFIA_FM_SPK_GASKET_2
No
7
XT2041-4 Main Board 4+64G SS Retail
XT2041-4 Main Board 4+64G SSL CMCT
XT2041-4 Main Board 4+64G SSL GOO
XT2041-6 Main Board 4+64G SSL CON
XT2041DL Main Board 4+64G SSL TF
XT2041-7 Main Board 4+64G SSL VZW
Yes
8
DIECUT_BR_SPKGASKET_SOFIA
No
9
SOFIA_FCAM_COND_FAB
No
10
DIECUT_SOFIA_SHIELD_CON_GASKET
No
11
SOFIA-HEAT_SPREAD_PMU
No
12
MDL,CAMR,8M,F4H7YCC
Yes
13
MDL,CAMR,16M,sofia;after16M;F16E10AF;Q T
Yes
14
MDL,CAMR,2M,sofia;after2M;L02AA30;Ofilm
Yes
15
SOFIA_NA_GREASE_FLASH
No
16
FLASH,IN SOFIA_NA
Yes
17
SOFIA_NA_FLASH_ADH
No

Lenovo Moto G Power
Level 2 –Service and Repair Manual
Lenovo Confidential Restricted:
PAGE 11 Do not share without consent from Lenovo
Reference #
Description
Recovery Part
18
DIECUT_SOFIA_PLUS_FLASH_ADH
No
19
MAIN_CAM_GROMMET_SOFIA_NA
Yes
20
Sofia NA Rear housing ASSY CS
Yes
21
SOFIA-HEAT_SPREAD_TOP_BRACKET
No
22
SOFIA_CAM1_ADH
No
23
SOFIA_NA_CAM2_ADH
No
24
TOP_CAM_LENS_SOFIA_NA
Yes
25
BOTTOM_CAM_LENS_SOFIA_NA
Yes
26
SOFIA_FPS_CON_GASKET
No
27
DIECUT_SOFIA_FPS_ADH
No
28
FINGERPRINT SCANNER,Vulcan,kerr
Yes
29
SOFIA_FP_CON_GASKET
No
30
HDW,SCR,STL,Screw_ M1.4x0.30x2.50mm_Plum
No
31
SOFIA_NA_INLAY_PSA
No
32
INLAY_Weibrass_SOFIA_NA
INLAY_Weibrass_Tracfone_SOFIA_NA
INLAY_Weibrass_Verizon_SOFIA_NA
Sofia NA Etching Inlay_VCN Retail CS
Sofia NA Etching Inlay_VCN TF CS
Sofia NA Etching Inlay_VCN VZW CS
Yes
33
SCR,M1.4,ENDO, 3.6
No
34
SOFIA-NA_HEAT_SPREAD_BOTTOM_SPK
No
35
Speaker BOX,8ohm,95dB,2.5dB,1W
Yes
36
ACCY,BAT,BAT 5000mAH KZ50 ATL536580 ATL
No
37
SOFIA_NA_CAM1_GASKET
No
38
DIECUT_MOTO_GASKET_SOFIA_NA
No
39
Vibrator,235Hz,D8xH3.25,L0832F-0012
No
40
USB,4+64GB,IN,SOFIA_NA
Yes
41
SEAL,MOIS,Rio M,ORING_USB_WORKING_LAKE,S
Yes
43
SUB CABLE_SOFIA_NA
Yes
44
MAIN CABLE_SOFIA_NA
Yes
45
SOFIA_SIM_GASKET
No
46
SOFIA_NA_BATTERY_ADH
No
47
FPCA,SOFIA NA,MAIN FPC,27x101mm,2L
No
48
SOFIA_NA_FPS_SUP_GASKET
No
-
LBL,WATER, DETECT, 3M 5559, 0.127T, VZ
No
-
FLASH_LENS_SOFIA_NA
Yes

Lenovo Moto G Power
Level 2 –Service and Repair Manual
Lenovo Confidential Restricted:
PAGE 12 Do not share without consent from Lenovo
Reference #
Description
Recovery Part
-
SOFIA_EAR JACK_Gasket
No
-
DICUT,WATERPROOF,Waterproof LBL TMO
No
-
FPCA,SOFIA+,5G ANT,11X10mm,2L
No

Lenovo Moto G Power
Level 2 –Service and Repair Manual
Lenovo Confidential Restricted:
PAGE 13 Do not share without consent from Lenovo
DISASSEMBLY AND RECOVERY
Disassembly and Recovery Map
*Shaded parts may be eligible for parts recovery.

Lenovo Moto G Power
Level 2 –Service and Repair Manual
Lenovo Confidential Restricted:
PAGE 14 Do not share without consent from Lenovo
Tools Required for Disassembly
The following tools are required to disassemble the Moto G Power phone.
Description
Part #
Picture/Drawing
Battery Cover/Display Removal Fixture
MR-M2-001
Battery Cover Removal Insert
MR-M2-001-049
Heating Plate
3-00-Z7-10000
3 mm Allen Wrench
--
Hot Plate
--
Thin Plastic Spudger
0-00-00-40826

Lenovo Moto G Power
Level 2 –Service and Repair Manual
Lenovo Confidential Restricted:
PAGE 15 Do not share without consent from Lenovo
Description
Part #
Picture/Drawing
SIM/SD Tray Removal Tool
--
Black Stick
--
Torque Driver
--
Shim
4-00-5L-10000
PH00 Bit
--
Plastic Tweezers
--
--
ESD Mat
--
--
Wrist Strap
--
--
Gloves
--
--

Lenovo Moto G Power
Level 2 –Service and Repair Manual
Lenovo Confidential Restricted:
PAGE 16 Do not share without consent from Lenovo
SIM Tray Removal
NOTE
The SIM Tray can be recovered and
reused after removal.
1. Power off the device before beginning with the
procedure. Use the SIM Tray Removal pin to
push into the SIM Tray hole.
2. Press the SIM Tray removal tool to make it pop-
out as shown.
3. Use fingers to take out the SIM Tray.

Lenovo Moto G Power
Level 2 –Service and Repair Manual
Lenovo Confidential Restricted:
PAGE 17 Do not share without consent from Lenovo
Water Detection Label Inspection
NOTE
If the Water Detection Label (WDL) has been
activated, the phone’s warranty no longer applies.
Inspect the WDL inside the SIM Tray Slot for signs of
activation. Use external light if needed.

Lenovo Moto G Power
Level 2 –Service and Repair Manual
Lenovo Confidential Restricted:
PAGE 18 Do not share without consent from Lenovo
IMEI Label Removal
NOTE
Remove the IMEI Label only if
necessary. After you remove it, you
cannot reuse it.
Use the Plastic Tweezer to remove the IMEI Label
from the SIM tray.

Lenovo Moto G Power
Level 2 –Service and Repair Manual
Lenovo Confidential Restricted:
PAGE 19 Do not share without consent from Lenovo
Battery Cover Removal
Preheating for Battery Cover Removal
NOTE
The Battery Cover can be recovered
and reused after removal.
NOTE
Battery Cover Removal Methods A and B have
the same preheating steps, as shown below.
// CAUTION //
Do not set the Hot Plate temperature higher than
80°C (176°F). Damage to the phone may occur.
1. Set the Hot Plate to 80°C (176°F).
NOTE
Preheating with an oven is also acceptable if the
oven is set to the same temperature.
2. Place the phone on the Heating Plate, with the
Battery Cover side down.
3. Wait 10 minutes for the Battery Cover Adhesive
to warm up.

Lenovo Moto G Power
Level 2 –Service and Repair Manual
Lenovo Confidential Restricted:
PAGE 20 Do not share without consent from Lenovo
4. Remove the phone from the Heating Plate or
the oven.
// CAUTION //
Wear protective gloves when handling heated
phones.
NOTE
Perform the Battery Cover removal procedure
before the phone starts to cool off.
