Lenovo K100 Parts list manual

Hardware Replacement Guide
31031416 Greenland HRG_EN.indd 29 2007.8.20 4:06:04 PM

31031416 Greenland HRG_EN.indd 30 2007.8.20 4:06:04 PM

Contents
Overview ................................................................................................ 1
Chapter 1 Locations ......................................................................... 3
Locating components .......................................................................... 3
Locating connectors on the front of the computer ................................ 4
Locating connectors on the rear of the computer ................................. 5
Identifying parts on the system board ................................................... 8
Chapter 2 Replacing hardware ...................................................... 10
Removing the computer cover ........................................................... 10
Removing and replacing the front bezel ............................................... 11
Replacing the power supply ............................................................... 12
Replacing the heat sink assembly ...................................................... 13
Replacing a memory module .............................................................. 15
Replacing an adapter ......................................................................... 16
Replacing the hard disk drive ............................................................. 18
Replacing an optical drive .................................................................. 20
Replacing the system fan assembly ................................................... 21
Replacing the keyboard ..................................................................... 22
Replacing the mouse ......................................................................... 23
Replacing the External speaker .......................................................... 24
Completing the installation ................................................................. 24
Appendix. ........................................................................................... 26
31031416 Greenland HRG_EN.indd 31 2007.8.20 4:06:05 PM

31031416 Greenland HRG_EN.indd 32 2007.8.20 4:06:05 PM

1
Hardware Replacement Guide
Overview
This guide is intended to be used by customers who are replacing Customer Replaceable Units (CRUs) as well
as trained service personnel who are replacing Field Replaceable Units (FRUs). In this guide, CRUs and FRUs
will often be referred to as parts.
Note
Trained service personnel should refer to the Hardware Maintenance Manual (HMM) for parts ordering
information.
This guide does not include procedures for all parts. It is expected that cables, switches, and certain
mechanical parts can be replaced by trained service personnel without the need for step-by-step procedures.
Note
Use only parts provided by Lenovo™.
The description of the TV card in this manual is only used for the machines which have the TV card. It is invalid
for those machines which do not have TV card.
This guide contains procedures for replacing the following parts:
• Power supply
• Memory modules
• Adapter
• Hard disk drive
• Optical drive
• System fan assembly
• Keyboard
• Mouse
• External Speakers
Safety information for replacing CRUs
Do not open your computer or attempt any repair before reading the “Important safety information” in the Safety
and Warranty Guide that was included with your computer. If you no longer have this copy of the Safety and
Warranty Guide, you can obtain one online from the Support Web site at http://www.lenovo.com/support.
Additional information resources
If you have Internet access, the most up-to-date information for your computer is available from the World Wide
Web.
31031416 Greenland HRG_EN.indd 1 2007.8.20 4:05:34 PM

2Hardware Replacement Guide
You can find the following information:
• CRU removal and installation information
• Publications
• Troubleshooting information
• Parts information
• Links to other useful sources of information
To access this information, go to http://www.lenovo.com/support.
Tools required
To replace some parts in your computer, you will need a flat-blade or Phillips screwdriver. Additional tools might
be needed for certain parts.
Handling static-sensitive devices
Static electricity, although harmless to you, can seriously damage computer components.
When you are replacing a part, do not open the static-protective package containing the new part until the
defective part has been removed from the computer and you are ready to install the new part.
When you handle parts and other computer components, take these precautions to avoid static-electricity
damage:
• Limit your movement. Movement can cause static-electricity to build up around you.
• Always handle parts and other computer components carefully. Handle adapters, memory modules, system
boards, and microprocessors by the edges. Never touch any exposed circuitry.
• Prevent others from touching the parts and other computer components.
• Before you replace a new part, touch the static-protective package containing the part to a metal expansion-
slot cover or other unpainted metal surface on the computer for at least two seconds. This reduces static
electricity in the package and your body.
• When possible, remove the new part from the static-protective packaging, and install it directly in the
computer without setting the part down. When this is not possible, place the static-protective package that
the part came in on a smooth, level surface and place the part on it.
• Do not place the part on the computer cover or other metal surface.
31031416 Greenland HRG_EN.indd 2 2007.8.20 4:05:35 PM

3
Hardware Replacement Guide
Locations
Chapter
This chapter provides illustrations to help locate the various connectors, controls and components of the
computer. To remove the computer cover, refer to “Removing the computer cover”.

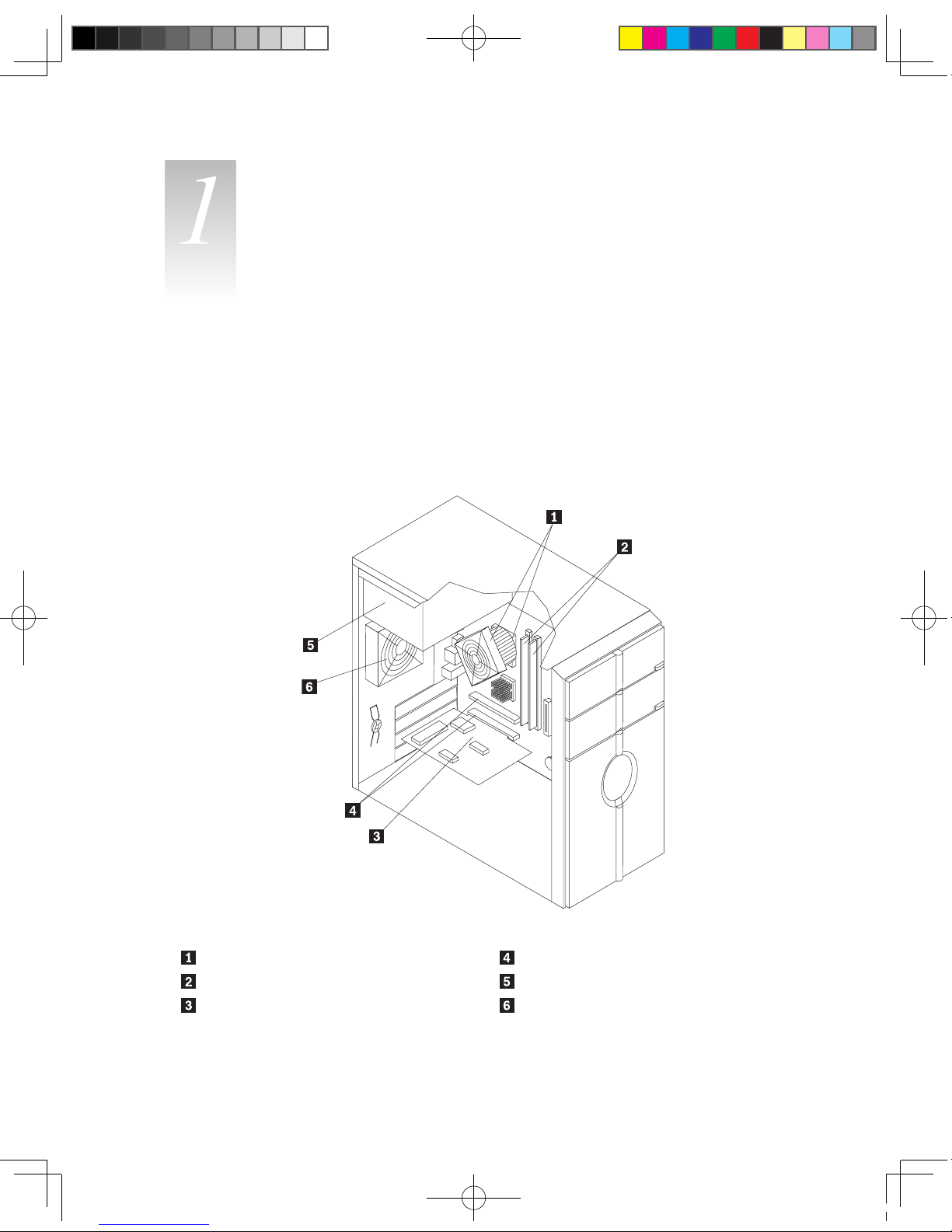

Locating components
The following illustration will help you locate the various components in your computer.
Microprocessor fan and heat sink PCIe adapter connectors
Memory modules Power supply
PCIe adapter card System fan
31031416 Greenland HRG_EN.indd 3 2007.8.20 4:05:37 PM

4Hardware Replacement Guide
Locating connectors on the front of the computer
The following illustration shows the location of connectors on the front of the computer.
F-1
F-2
F-1 Power switch on the top
[1-1] [1-2]
[1-1] Reset [1-2] Power Switch
31031416 Greenland HRG_EN.indd 4 2007.8.20 4:05:37 PM

5
Hardware Replacement Guide
F-2 Digital connector (open the Digital Panel)
MS/MS Pro
CF/MD
SM
SD/MMC
[D-1]
[D-3]
[D-2]
[D-2]
[D-4]
[D-5]
[D-1] Card Reader [D-4] Headphone connector
[D-2] USB connector [D-5] Microphone connector
[D-3] 1394 connector(Only some models are
equipped with this connector. )
Locating connectors on the rear of the computer
The following illustration shows the location of connectors on the rear of the computer.
The following illustrations show connections located at the rear of some computer models. The locations of
connectors on your computer will be similar to, but possibly not identical to these. Following the illustrations is a
key that explains the symbol callouts used in the figures.
31031416 Greenland HRG_EN.indd 5 2007.8.20 4:05:38 PM

6Hardware Replacement Guide
VGA-1
SPDIF
A-2
A-2 V-2
V-2
S-2
DVI
X-2
S-1
S-3
FM
ANT IN
L&R
V-2 ————The external VGA Card may have some of these connectors, but not have all of them. Use the
correct connector according to the monitor you used.
Key to symbols used in the above illustrations of the rear of the chassis:
———Power Connector: To supply power to the computer
—————PS/2 Mouse Connector: To connect a mouse having a PS/2 connector
———PS/2 Keyboard Connector: To connect a keyboard having a PS/2 connector
———Serial Connector: To connect devices requiring a serial connection (COM Connector)
31031416 Greenland HRG_EN.indd 6 2007.8.20 4:05:39 PM

7
Hardware Replacement Guide
————Parallel Connector: To connect devices requiring a parallel connection
VGA-1 —On-board VGA Card Connector: To connect with the signal cable of a monitor. On computer
models that have an external graphics card, on-board graphics card signals are shielded and
there are no VGA signal outputs - some models are equipped with this connector.
————USB Connector: To connect USB devices.
——Ethernet Connector: To connect LAN or broadband network devices.
X-2 ———External VGA Card Connector: To connect with the signal cable of a monitor. It connects with
the data cable of the monitor. (Some models are equipped with this connector.)
DVI ———External DVI Card Connector: To connect to the data cable of the DVI connector. (Some
models are equipped with this connector)
S-1 ———S Video Connector: To connect the data cable of the S video. (You cannot connect with the
data cable of the S video provided with the computer.) Some models are equipped with this
connector.
S-2 ———S Video Connector: To connect the data cable of the S video. (You cannot connect with the
data cable of the S video provided with the computer.) Some models are equipped with this
connector.
S-3 ———S Video Connector: To connect the data cable of the S video. (You can connect with the data
cable of S video provided in the computer.) Some models are equipped with this connector.
FM ————FM Antenna Connector: To connect an FM antenna provided with the computer. (Some
models are equipped with this connector.)
————TV Antenna Connector: To connect the signal input cable for the CATV. (Some models are
equipped with this connector)
ANT-IN ——ANT-IN Connector: To connect the digital signal input cable. (Some models are equipped with
this connector)
L&R ————Left and right audio connector: Audio input connector. (Some models are equipped with this
connector)
———Chassis Side Lock: After installing the side panel of the chassis, push the lock upward to lock
the side panel in place. To remove the side panel, depress the lock first.
31031416 Greenland HRG_EN.indd 7 2007.8.20 4:05:41 PM

8Hardware Replacement Guide

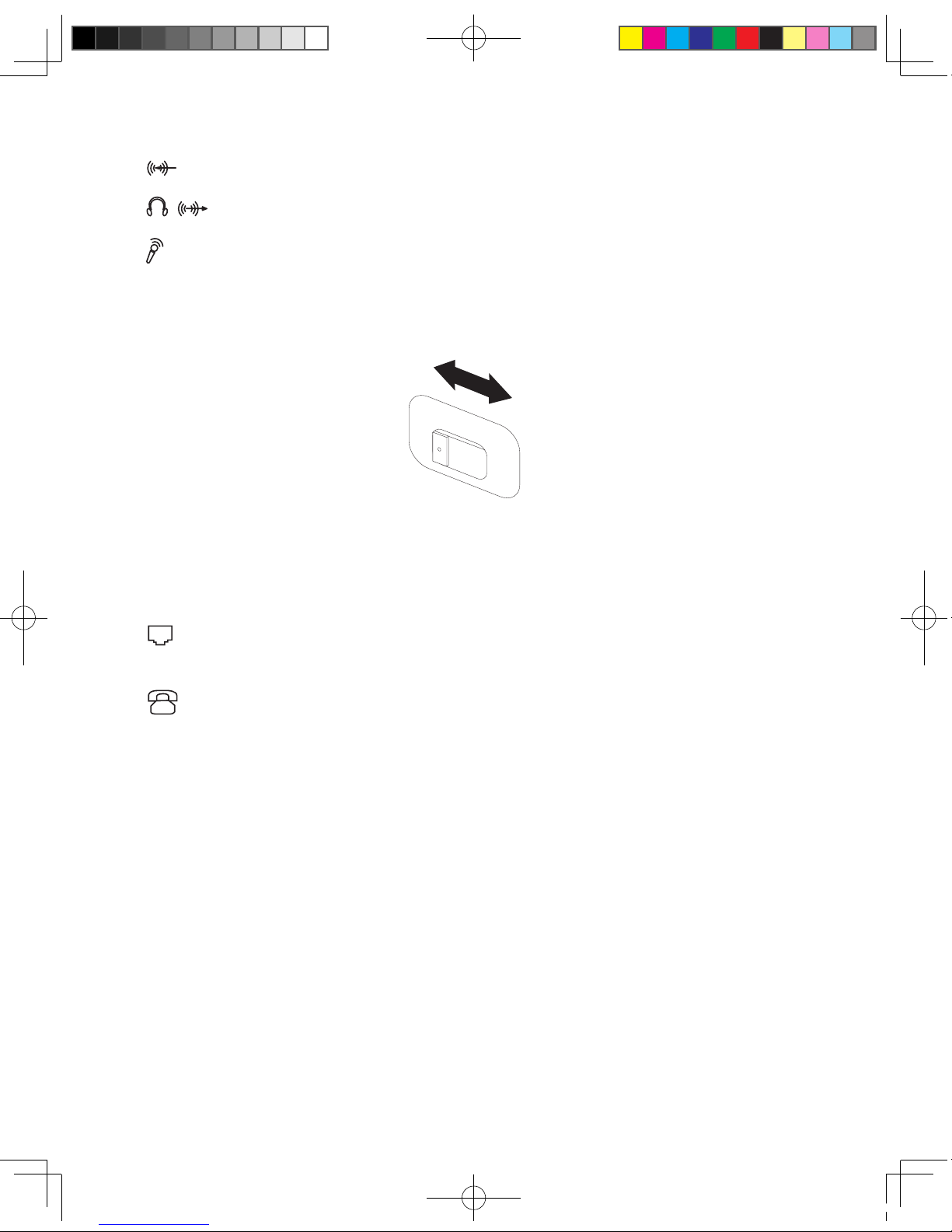

————Audio Line-in Connector: To connect audio input to the computer.
——Audio Line-out Connector: To connect to the speakers or headphones.
—————Microphone Jack: To connect to audio input from a microphone.
SPDIF ——SPDIF Audio Line-out Connector: Output the SPDIF audio signal.
Voltage ——selection switch (Some models are equipped with this switch)
110
Check the position of the voltage-selection switch on the rear of the computer. Use a ballpoint pen to slide the
switch, if necessary.
1. If the voltage supply range is 100-127 V ac, set the switch to 110 V.
2. If the voltage supply range is 200-240 V ac, set the switch to 230 V.
————Used to attach your computer to a telephone line for modem use. (some models equipped
with this connector)
————Used to attach a telephone line to your computer for modem use. (some models equipped
with this connector)
Identifying parts on the system board
The system board (sometimes called the planar or motherboard) is the main circuit board in your computer. It
provides basic computer functions and supports a variety of devices that are factory-installed or that you can
install later.
The following illustration shows the locations of parts on the system board (some models).
31031416 Greenland HRG_EN.indd 8 2007.8.20 4:05:42 PM

9
Hardware Replacement Guide
Microprocessor and heat sink Clear CMOS/Recovery jumper
Microprocessor fan connector Front USB connectors (2)
Memory connector 1 Serial (com2) connector
Memory connector 2 Front audio connector
Power connector PCI adapter connectors (1)
Diskette drive connector PCI Express x1 adapter connector
SATA IDE connectors (2) Battery
SATA IDE connectors (2) PCI E x p re s s x 1 6 graphi c s a d apter
connector
Power fan connector System fan connector
Front panel connector 12v power connector
31031416 Greenland HRG_EN.indd 9 2007.8.20 4:05:44 PM

10 Hardware Replacement Guide
Replacing hardware
Attention
Do not remove the computer cover or attempt any repair before reading the “Important safety
information” in the Safety and Warranty Guide that was included with your computer or in the Hardware
Maintenance Manual (HMM) for the computer. To obtain copies of the Safety and Warranty Guide or
HMM, go to the Support Web site at http://www.lenovo.com/support.
Note
Use only parts provided by Lenovo.
Removing the computer cover
Important
Turn off the computer and wait 3 to 5 minutes to let the computer cool before removing the
computer cover.
To remove the computer cover:
1. Remove any media (diskettes, CDs, or tapes) from the drives, shut down your operating system, turn off all
attached devices, and the computer.
2. Unplug all power cords from electrical outlets.
3. Disconnect all cables attached to the computer. This includes power cords, input/output (I/O) cables, and
any other cables that are connected to the computer. Refer to “Locating connectors on the front of the
computer” and “Locating connectors on the rear of the computer”.
4. Remove any locking devices that secure the computer cover.

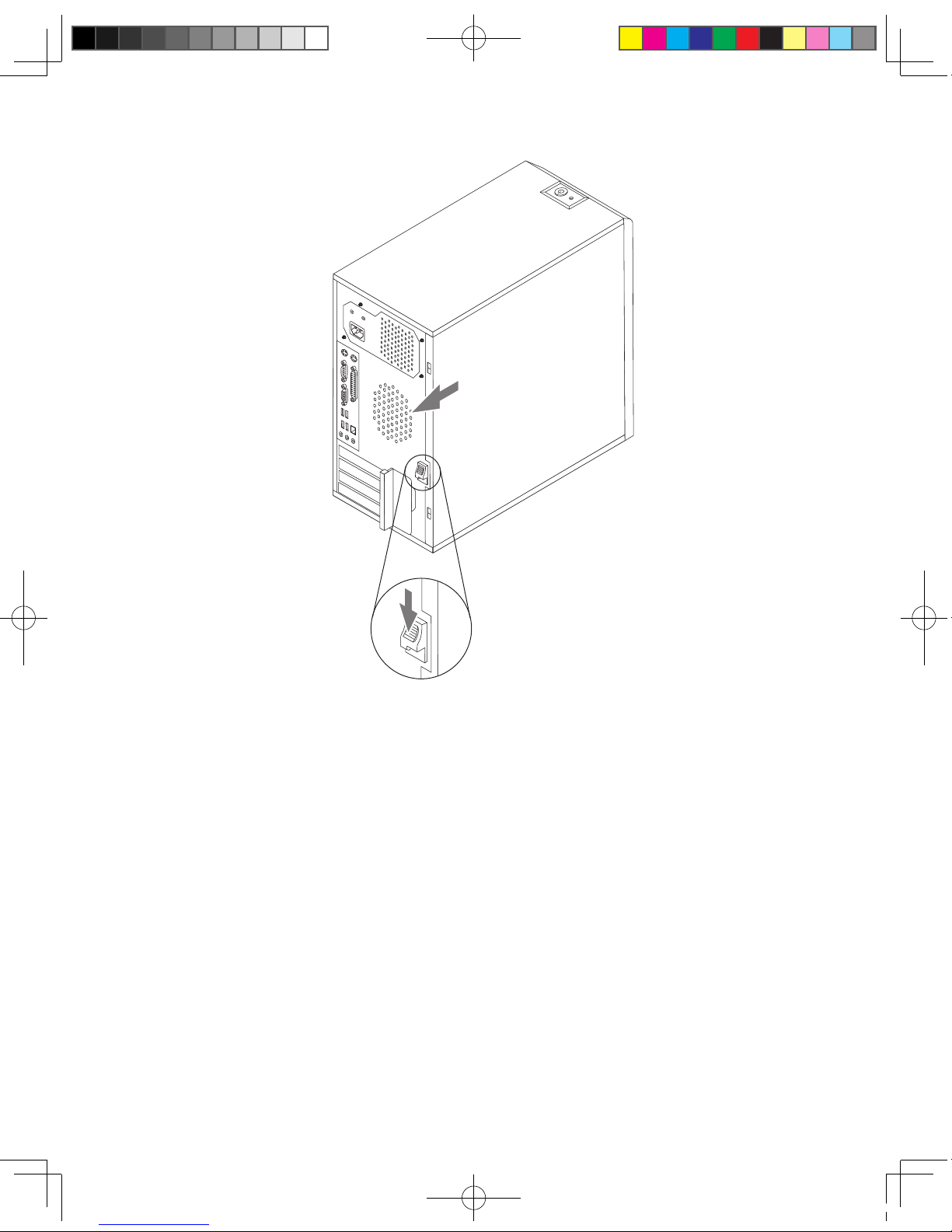

5. Pull down the switch at the rear of the chassis and slide the computer cover to the rear to remove.
Chapter
31031416 Greenland HRG_EN.indd 10 2007.8.20 4:05:45 PM

11
Hardware Replacement Guide
Removing and replacing the front bezel
To remove and replace the front bezel:
1. Remove the computer cover. Refer to “Removing the computer cover”.
2. Remove the front bezel by releasing the three plastic tabs inside the chassis and push the bezel outward as
shown.
31031416 Greenland HRG_EN.indd 11 2007.8.20 4:05:46 PM

12 Hardware Replacement Guide
3. To reinstall the bezel, align the plastic tabs on the bottom of the bezel with the corresponding holes in the
chassis, then snap it into position at the bottom and top of the chassis.
4. Refer to the “Completing the installation”.
Replacing the power supply
Attention
Do not remove the computer cover or attempt any repair before reading the “Important safety
information” in the Safety and Warranty Guide that was included with your computer or in the Hardware
Maintenance Manual (HMM) for the computer. To obtain copies of the Safety and Warranty Guide or
HMM, go to the Support Web site at http://www.lenovo.com/support.
To replace the power supply:
1. Remove the computer cover. Refer to “Removing the computer cover”.
Note: For this procedure, it helps to lay the computer on its side.
31031416 Greenland HRG_EN.indd 12 2007.8.20 4:05:47 PM

13
Hardware Replacement Guide
2. Disconnect the power supply cables from the system board and from all drives. Refer to “Identifying parts
on the system board”.
3. Remove the four screws that secure the power supply at the rear of the chassis.
4. Lift the power supply out of the chassis.
5. Install the new power supply into the chassis so that the screw holes in the power supply align with those in
the chassis.
6. Install the four screws to secure the power supply. Note: Use only the screws provided by Lenovo.
7. Reconnect the power supply connectors to the system board.
8. Reconnect a power supply connector to each of the drives.
9. Refer to the “Completing the installation”.
Replacing the heat sink assembly
Attention
Do not remove the computer cover or attempt any repair before reading the “Important safety
information” in the Safety and Warranty Guide that was included with your computer or in the Hardware
Maintenance Manual (HMM) for the computer. To obtain copies of the Safety and Warranty Guide or
HMM, go to the Support Web site at http://www.lenovo.com/support.
To replace the heat sink assembly:
1. Remove the computer cover. Refer to “Removing the computer cover”.
31031416 Greenland HRG_EN.indd 13 2007.8.20 4:05:48 PM

14 Hardware Replacement Guide
2. Lay the computer on its side.
3. Locate the heat sink. Refer to “Identifying parts on the system board”.
4. Disconnect the heat sink and the fan assembly cable from the system board.
5. Remove the four screws securing the heat sink and fan assembly to the system board.
6. Lift the failing heat sink and fan assembly off the system board.
7. Use the thermal grease syringe to place five drops of grease on the top of the microprocessor. Each drop of
grease should be 0.03ml (3 tick marks on the grease syringe).
8. Install the heat sink and fan assembly on the heat sink retention bracket.
9. Reconnect the disconnected cables to the system board.
10. Refer to the “Completing the installation”.
31031416 Greenland HRG_EN.indd 14 2007.8.20 4:05:49 PM

15
Hardware Replacement Guide
Replacing a memory module
Attention
Do not remove the computer cover or attempt any repair before reading the “Important safety
information” in the Safety and Warranty Guide that was included with your computer or in the Hardware
Maintenance Manual (HMM) for the computer. To obtain copies of the Safety and Warranty Guide or
HMM, go to the Support Web site at http://www.lenovo.com/support.
To replace a memory module:
1. Remove the computer cover. Refer to “Removing the computer cover”.
Note: For this procedure, it helps to lay the computer on its side.
2. Locate the memory module connectors. Refer to “Locating components”.
3. Remove the memory module being replaced by opening the retaining clips as shown.
4. Position the new memory module over the memory connector. Make sure the notch on the memory
aligns correctly with the connector key on the system board. Push the memory module straight down
into the connector until the retaining clips close.
5. Refer to the “Completing the installation”.
31031416 Greenland HRG_EN.indd 15 2007.8.20 4:05:49 PM

16 Hardware Replacement Guide
Replacing an adapter
Attention
Do not remove the computer cover or attempt any repair before reading the “Important safety
information” in the Safety and Warranty Guide that was included with your computer or in the Hardware
Maintenance Manual (HMM) for the computer. To obtain copies of the Safety and Warranty Guide or
HMM, go to the Support Web site at http://www.lenovo.com/support.
To replace an adapter:
1. Remove the computer cover. Refer to “Removing the computer cover”.
2. At the rear of the computer, press the release button to open the adapter latch and remove the
adapter by pulling it straight out of the adapter connector.
3. Install the new adapter into the same adapter connector.
31031416 Greenland HRG_EN.indd 16 2007.8.20 4:05:50 PM
