Lenovo ThinkCentre 8116 Parts list manual

Hardware Replacement Guide
Ty pe s 8099, 8116, 8155, 8156
Ty pe s 8157, 8158, 8159, 8160
Ty pe s 8215, 9210, 9211

Hardware Replacement Guide
Ty pe s 8099, 8116, 8155, 8156
Ty pe s 8157, 8158, 8159, 8160
Ty pe s 8215, 9210, 9211

Third Edition (October 2005)
©Copyright Lenovo 2005.
Portions ©Copyright International Business Machines Corporation 2005.
All rights reserved.
U.S. GOVERNMENT USERS –RESTRICTED RIGHTS: Our products and/or services are provided with
RESTRICTED RIGHTS. Use, duplication or disclosure by the Government is subject to the GSA ADP Schedule
contract with Lenovo Group Limited, if any, or the standard terms of this commercial license, or if the agency is
unable to accept this Program under these terms, then we provide this Program under the provisions set forth in
Commercial Computer Software–Restricted Rights at FAR 52.227-19, when applicable, or under Rights in
Data-General, FAR 52.227.14 (Alternate III).

Contents
Overview ..............v
Safety information for replacing CRUs......v
Safety information for replacing FRUs ......v
Additional information resources .......v
Tools required .............vi
Handling static-sensitive devices .......vi
Chapter 1. Locations .........1
Locating components ...........1
Locating controls and connectors on the front of your
computer ...............2
Locating connectors on the rear of your computer ..3
Identifying parts on the system board ......4
Chapter 2. Replacing hardware .....5
Opening the cover ............5
Replacing the power supply .........6
Replacing the system board assembly ......8
Replacing the microprocessor ........12
Replacing amemory module ........17
Replacing an adapter ...........19
Replacing ahard disk drive .........21
Replacing an optical drive .........23
Replacing the diskette drive .........25
Replacing the keyboard ..........26
Replacing the mouse ...........26
Replacing the internal speaker ........27
Completing the CRU replacement .......28
Updating (flashing) BIOS from adiskette or
CD-ROM ...............29
Appendix. Notices ..........31
Television output notice ..........32
Trademarks ..............32
©Lenovo 2005. Portions ©IBM Corp. 2005. iii

iv Hardware Replacement Guide

Overview
This guide is intended to be used by customers who are replacing Customer
Replaceable Units (CRUs) as well as trained service personnel who are replacing
Field Replacement Units (FRUs). In this guide, CRUs and FRUs will often be
referred to as parts.
This guide does not include procedures for all parts. It is expected that cables,
switches, and certain mechanical parts can be replaced by trained service personnel
without the need for step-by-step procedures.
Note: Use only the parts provided by Lenovo
™
.
This guide contains instructions for replacing the following parts:
vPower supply
vSystem board
vMicroprocessor
vMemory modules
vAdapter
vHard disk drive
vOptical drive
vDiskette drive
vKeyboard
vMouse
vInternal speaker
Safety information for replacing CRUs
Do not open your computer or attempt any repair before reading the “Important
safety information” in the Quick Reference that was included with your computer. If
you no longer have this copy of the Quick Reference,you can obtain one online
from the Support Web site at http://www.lenovo.com/think/support.
Safety information for replacing FRUs
Do not attempt any repair before reading the “Important safety information” in the
Hardware Maintenance Manual (HMM) for the computer. You can find the HMM on
the Support Web site at http://www.lenovo.com/think/support.
Additional information resources
If you have Internet access, the most up-to-date information for your computer is
available from the World Wide Web.
You can find the following information:
vCRU removal and installation information
vPublications
vTroubleshooting information
vParts information
©Lenovo 2005. Portions ©IBM Corp. 2005. v

vDownloads and drivers
vLinks to other useful sources of information
vSupport phone list
To access this information, point your browser to:
http://www.lenovo.com/think/support
Tools required
To replace some parts in your computer, you might need aflat-blade or Phillips
screwdriver. Additional tools might be needed for certain parts.
Handling static-sensitive devices
Static electricity, although harmless to you, can seriously damage computer
components and parts.
When you are replacing apart, do not open the static-protective package
containing the new part until the defective part has been removed from the
computer and you are ready to install the new part.
When you handle parts and other computer components, take these precautions to
avoid static-electricity damage:
vLimit your movement. Movement can cause static electricity to build up around
you.
vAlways handle parts and other computer components carefully. Handle
adapters, memory modules, system boards, and microprocessors by the edges.
Never touch any exposed circuitry.
vPrevent others from touching the parts and other computer components.
vBefore you replace anew part, touch the static-protective package containing the
part to ametal expansion-slot cover or other unpainted metal surface on the
computer for at least two seconds. This reduces static electricity in the package
and your body.
vWhen possible, remove the new part from the static-protective packaging, and
install it directly in the computer without setting the part down. When this is
not possible, place the static-protective package that the part came in on a
smooth, level surface and place the part on it.
vDo not place the part on the computer cover or other metal surface.
vi Hardware Replacement Guide

Chapter 1. Locations
This chapter provides illustrations to help locate the various connectors, controls,
and components of the computer. To open the computer cover, see “Opening the
cover” on page 5.

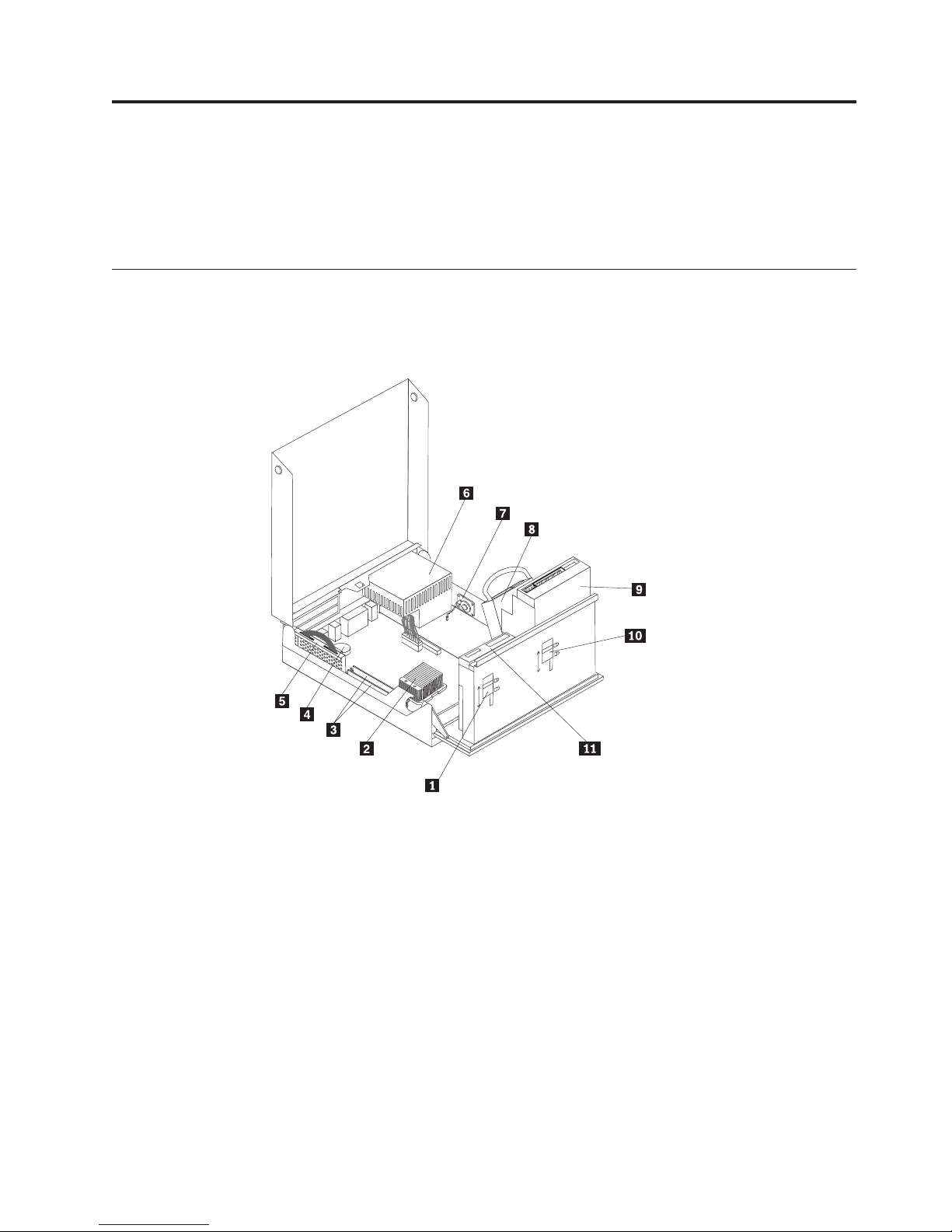

Locating components
The following illustration will help you locate the various components in your
computer.
1 Diskette drive lock 7 Internal speaker
2 Microprocessor and heat sink 8 Hard disk drive
3 Memory connectors (2) 9 Optical drive (such as aCD or DVD
drive)
4 Battery 10 Optical drive lock
5 PCI riser assembly 11 Diskette drive
6 Power supply
©Lenovo 2005. Portions ©IBM Corp. 2005. 1

Locating controls and connectors on the front of your computer
The following illustration shows locations of the controls and connectors on the
front of your computer.
Note: Not all computer models will have the following controls and connections.
1 Optical drive or second hard disk
drive (some models)
5 USB connectors (2)
2 Hard disk drive activity indicator 6 Microphone connector
3 Power-on indicator 7 Headphone connector
4 Power button 8 Diskette drive (some models)
2Hardware Replacement Guide

Locating connectors on the rear of your computer
The following illustration shows locations of connectors on the rear of your
computer.
1 Power cord connector 9 Parallel connector
2 Cable lock (Kensington) latch 10 Audio line-in connector
3 PCI Express (x1) adapter
connector
11 Audio line-out connector
4 PCI adapter connector 12 USB connectors (4)
5 Serial connectors (2) 13 Standard keyboard connector
6 Ethernet connector 14 Standard mouse connector
7 USB connectors (2) 15 Power supply diagnostic LEDs
8 VGA monitor connector
Chapter 1. Locations 3

Identifying parts on the system board
The following illustration shows the locations of parts on the system board.
1 Memory connector 19 Diskette drive connector
2 Memory connector 210 Front panel connector
3 SATA IDE connectors (2) 11 Power supply connector
4 Chassis intrusion switch 12 PATA primary IDE connector
5 PCI riser connector 13 12V Power connector
6 Battery 14 Microprocessor
7 Clear CMOS/Recovery jumper 15 Fan connector 2
8 Internal speaker connector 16 Fan connector 1
4Hardware Replacement Guide

Chapter 2. Replacing hardware
Attention
Do not open your computer or attempt any repair before reading the “Important safety
information” in the Quick Reference that was included with your computer or in the
Hardware Maintenance Manual (HMM) for the computer. To obtain copies of the Quick
Reference or the HMM,go to the Support Web site at
http://www.lenovo.com/think/support.
Note: Use only parts provided by Lenovo.
Opening the cover
Important
Turn off the computer and wait 3to 5minutes to let the computer cool
before opening the computer cover.
To open the computer cover:
1. Remove any media (diskettes, CDs, or tapes) from the drives, shut down your
operating system, turn off all attached devices and the computer.
2. Unplug all power cords from electrical outlets.
3. Disconnect the cables attached to the computer. This includes power cords,
input/output (I/O) cables, and any other cables that are connected to the
computer. See “Locating controls and connectors on the front of your
computer” on page 2and “Locating connectors on the rear of your computer”
on page 3.
4. Remove the floor stand, if attached.
5. Remove any locking devices, such as aKensington lock, that secure the
computer cover.
6. Press inward on the two buttons and pivot the top cover upward.
©Lenovo 2005. Portions ©IBM Corp. 2005. 5

Replacing the power supply
Attention
Do not open your computer or attempt any repair before reading the “Important safety
information” in the Quick Reference that was included with your computer or in the
Hardware Maintenance Manual (HMM) for the computer. To obtain copies of the Quick
Reference or the HMM,go to the Support Web site at
http://www.lenovo.com/think/support.
To replace the power supply:
1. Remove the screws at the rear of the chassis that secure the power supply.
2. Open the computer cover. See the “Opening the cover” on page 5.
3. Pivot the drive bay assembly upward to gain access to the cable connections.
4. Locate the power supply. See “Locating components” on page 1.
Important
Note the cable routing. It is important to route the cables the same way
after you install the new power supply assembly.
6Hardware Replacement Guide

5. Disconnect the power supply cables from the hard disk drive and optical
drive.
6. Disconnect the power supply cables 1and 2 from the system board
connectors and from all drives.
7. Remove the power supply cables from the cable clips and ties.
8. Slide the power supply forward and remove from the computer.
9. Install the new power supply into the chassis so that the screw holes in the
power supply assembly align with those in the chassis.
Note: Use only the screws provided by Lenovo.
10. Install and tighten the assembly screws into the rear of the chassis.
11. Reconnect the power supply connectors to the hard disk drive and optical
drive.
12. Reconnect the power supply cables to the system board.
13. Go to “Completing the CRU replacement” on page 28.
Chapter 2. Replacing hardware 7

Replacing the system board assembly
Attention
Do not open your computer or attempt any repair before reading the “Important safety
information” in the Quick Reference that was included with your computer or in the
Hardware Maintenance Manual (HMM) for the computer. To obtain copies of the Quick
Reference or the HMM,go to the Support Web site at
http://www.lenovo.com/think/support.
To replace the system board assembly:
1. Turn off the computer and allow the computer to cool for one hour.
2. Open the computer cover. See “Opening the cover” on page 5.
3. Pivot the drive bay assembly upward to gain access to the system board.
8Hardware Replacement Guide

4. While holding the rear of the computer chassis down, pull upward on the
handle provided to remove the PCI riser assembly and any adapters that are
currently installed.
5. Disconnect the cables connected to the system board. See “Identifying parts on
the system board” on page 4.
Important
Note the cable routing. It is important to route the cables the same way
after you install the new system board.
6. Using the two blue handles provided, lift the system board assembly out of
the computer.
Chapter 2. Replacing hardware 9

Note: You will have to tilt the system board assembly and move it around the
edge of the power supply assembly to remove it from the computer.
7. Place the defective system board next to the new system board on aclean, flat
surface.
8. Release the lever 1holding the microprocessor heat sink.
9. Remove the heat sink from the system board.
10. Release the lever 1 for the microprocessor retainer 2 securing the
microprocessor 3 and pivot the retainer upward to the open position.
*XXXXXXXXX*
10 Hardware Replacement Guide

11. Use the vacuum pen 1 to lift the microprocessor straight up and out of the
socket.
Important
Do not touch the gold contacts on the bottom of the microprocessor. Use
the vacuum pen provided to remove and install the microprocessor. If
you must touch the microprocessor, touch only the sides.
a. Note the orientation of the notches 1 on the microprocessor. This is
important when installing the microprocessor on the new system board.
* XXXXXXXXX*
b. Do not drop anything on the socket while it is open. Keep all contacts as
clean as possible.
12. On the new system board, release the lever securing the microprocessor
retainer and then pivot the retainer until it is fully open.
13. Position the microprocessor so that the notches on the microprocessor are
aligned with the tabs in the microprocessor socket on the new system board.
Important
To avoid damaging the microprocessor, do not tilt the microprocessor
when installing it into the microprocessor socket.
Chapter 2. Replacing hardware 11

14. Use the vacuum pen 1 to lower the microprocessor straight down into the
microprocessor socket.
15. Lower the microprocessor retainer and secure it with the lever.
Note: There will be ablack plastic cover on the microprocessor retainer to
protect the socket on the new system board. When you lock the
microprocessor in position, remove the black plastic cover. Place the black
plastic cover on the microprocessor retainer of the defective system board.
16. Install and secure the heat sink on the microprocessor.
17. Remove the memory modules from the defective system board, and install
them on the new system board. See to “Replacing amemory module” on page
17. Return here after installing the memory modules and continue to the next
step.
18. Install the new system board assembly into the computer chassis by aligning
the tabs on the rear of the system board with the slots in the rear of the
computer chassis. Slide the system board toward the rear of the chassis.
19. Reconnect the cables that were disconnected from the system board. Make
sure all cables are routed correctly. See “Identifying parts on the system
board” on page 4.
20. Reinstall the PCI riser assembly and adapters.
21. Go to “Completing the CRU replacement” on page 28.
Replacing the microprocessor
Attention
Do not open your computer or attempt any repair before reading the “Important safety
information” in the Quick Reference that was included with your computer or in the
Hardware Maintenance Manual (HMM) for the computer. To obtain copies of the Quick
Reference or the HMM,go to the Support Web site at
http://www.lenovo.com/think/support.
This section provides instructions on how to replace the microprocessor.
Important
Turn off your computer for at least one hour before removing the
microprocessor to allow the thermal interface between the microprocessor and
the heat sink time to cool down.
12 Hardware Replacement Guide
