Personal Systems Reference
Lenovo®ThinkCentre Desktops
January 2010 - Version 370
Lenovo ThinkCentre M90/M90p
(Eco Ultra Small, Small, Tower Form Factors)
Visit www.lenovo.com/psref for the latest version

Lenovo®USB-to-DVI Monitor Adapter
45K5296
1GB PC2-6400 NP DDR2 UDIMM 41U2977
2GB PC2-6400 NP DDR2 UDIMM 41U2978
1GB PC3-8500 DDR3 UDIMM 45J5434
2GB PC3-8500 DDR3 UDIMM 45J5435
1GB PC3-8500 DDR3 SODIMM (notebook) 43R1987
2GB PC3-8500 DDR3 SODIMM (notebook) 43R1988
(UDIMM for SFF, Tower only; SODIMM for Eco USFF only)
Kensington®MicroSaver®Cable Lock
73P2582
Kensington Twin Head Cable Lock
45K1620
ATI™Radeon™HD 3470 256MB (DP, VGA)
45K1636
Ultraslim Wireless Keyboard and Mouse
57Y4700
Lenovo Laser Mouse (USB)
41U3074

Lenovo ThinkCentre M58e Small
with dual Lenovo ThinkVision monitors
Lenovo ThinkCentre M58e Small
with Lenovo ThinkVision monitor
Lenovo ThinkCentre M58e Tower
Lenovo ThinkCentre M58e Small
Lenovo ThinkCentre M58e Tower
with Lenovo ThinkVision monitor
Lenovo ThinkCentre M58e Small and Tower
Lenovo ThinkCentre M58e Small and
Lenovo ThinkCentre M58e Tower

Positioning
Processor
Implementation
Memory
Graphics
SATA disk
SATA controller
S ATA DV D
S ATA DV D ±RW
SATA cables
eSATA port
Diskette drive
Media reader
Chipset
Front ports
Rear ports
Rear audio ports
Audio
Speaker
IEEE 1394
Ethernet
Intel AMT
Modem
Security chip
Keyboard
Mouse
Power supply
Mainstream enterprise stability and manageability
Intel®Pentium®Processor E6300 with dual-core,
1066MHz system bus, and 2MB L2 cache
Processor in LGA775 socket
1GB, 2GB, or 3GB std, 4GB max8, PC2-6400 800MHz DDR2,
non-parity, dual-channel capable, two 240-pin DIMM sockets;
Italics: standard memory in both sockets; no sockets avail;
Non-italics: standard memory in one socket; one socket available
Intel Graphics Media Accelerator X4500 (GMA X4500),
integrated graphics in G41, uses main memory
(up to 512MB [1GB models], 1GB [2GB or 3GB models]),
one analog VGA DB-15 connector, DirectX®10,
supports dual independent display with optional ADD2 adapter
250GB or 500GB, SATA 3.0Gb/s 7200 rpm, vibration dampening
Serial ATA, SATA 3.0Gb/s, integrated in ICH7
Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4Drive
Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), two SATA connectors
None
None
None
Intel G41 Express Chipset (PCI Express®x16),
I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB,
LPC bus)
Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2),
ethernet (RJ-45), monitor (VGA DB-15)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
High Definition (HD) Audio, Realtek®ALC662 codec
One internal speaker for business audio
None
Gigabit ethernet on planar, Marvell®88E8057, Wake on LAN®
None
None
None
Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo®logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, autosensing
M58e 7259-B1U 2x3 Pentium E6300 2.80 2MB 2 1GB 250GB2 DVD GMA XP Pro None Nov 09
M58e 7259-B2U 2x3 Pentium E6300 2.80 2MB 2 2GB 250GB DVD±RW GMA XP Pro None Nov 09
M58e 7259-B3U 2x3 Pentium E6300 2.80 2MB 2 3GB 500GB DVD±RW GMA XP Pro None Nov 09
ThinkCentre®M58e Small (7259) - TopSeller (XP with Win 7 License)
GHz
Type-model Processor Memory8
SATA
disk
SATA
optical Graphics Cores
Avail
dateName
Slot x
bay
Personal Systems Reference (PSREF)
Global
Educ
L2
cache
See footnotes for important warranty information
US models announced November 3, 2009
© Lenovo
(MIAM3-7) November 2009
Security
•Security slot (in rear for attachment of
optional Kensington®MicroSaver®cable)
- optional cable also locks the cover by
deactivating the cover release buttons
• Power-on password
• Administrator password
• Hard disk password
• Boot sequence control
• Boot without keyboard, mouse, diskette
• Serial port I/O control
• Parallel port I/O control
• USB port disablement
Limited Warranty1
➫ 1-year parts and labor
➫ International Warranty Service9
➫ Customer Replaceable Unit (CRU)
parts only (with limited onsite service
for selected parts3, 8 am - 5 pm,
Mon - Fri coverage excluding holidays,
next business day response time)
➫Onsite service upgrade options
(in eligible locations):7
•1-year LOR 9x5, 4 hour response
(ThinkPlus™part number 41C9189)
•2-year LOR 9x5, Next Business Day
(ThinkPlus part number 41C9187)
•2-year LOR 9x5, 4 hour response
(ThinkPlus part number 41C9190)
•3-year LOR 9x5, Next Business Day
(ThinkPlus part number 41C9188)
•3-year LOR 9x5, 4 hour response
(ThinkPlus part number 41C9191)
➫ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day14 toll-free support
during the warranty period1
via 800-426-7378
Supports ThinkVantage®technologies
•Business black color; metal case
•12.5" W X 14.0" D X 3.9" H
•317mm W X 355mm D X 99mm H
•16.5 lb (7.5 kg) in maximum configuration
•Toolless cover flips up and tilts backward on rear hinges
•Toolless disk, optical drive removal
•Toolless adapter retention
•Toolless systemboard retention
•System floor stand for vertical orientation
Small
Slot 1: Low Profile, PCI Express x16 (35w max)
Slot 2: Low Profile, 32-bit PCI 2.3
Bay ①5.25", 1.6" high, access, std optical
Bay ②3.5", 1" high, no access, std disk
Bay ③3.5", .5" high, access, open (reader)
GREENGUARD®certified
RoHS-compliant
Preloaded operating system20
- Windows®XP Professional preinstalled
through downgrade rights in Genuine
Windows 7 Professional
Preloaded applications5(only some listed)
•Rescue and Recovery™
•Client Security Solution™
•ThinkVantage Productivity Center
•ThinkVantage System Update
•ThinkVantage Power Manager
•McAfee®VirusScan®Plus
(30 days of virus definitions)
•Lenovo System Toolbox
•Adobe®Reader®
•Windows Live™Toolbar
• Microsoft®Office 2007 Trial (60-day)
•Roxio®Creator®Business Edition
(DVD±RW)
•Roxio MyDVD®(DVD±RW)
•Corel®WinDVD®(DVD, DVD±RW)
Accessories
1GB PC2-6400 DDR2 UDIMM 41U2977
2GB PC2-6400 DDR2 UDIMM 41U2978
250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort™to Single-link DVI-D Cable 45J7915
ADD2 DVI-D Monitor Connection (HDCP) 43R1985
AT I ™Radeon™HD 3470 256MB (DP, VGA) 45K1636
NVIDIA®Quadro®256MB FX 370 LP 55Y9275
NVIDIA Quadro 256MB NVS 290 43R1765
More accessories on O-M58E sheet
Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories
• These small and medium business (SMB) models are part of the US TopSeller ™Program
• These models have a 1-year limited warranty1
optical disk
(in rear)
Preload

Positioning
Processor
Implementation
Memory
Graphics
SATA disk
SATA controller
S ATA DV D ±RW
SATA cables
eSATA port
Diskette drive
Media reader
Chipset
Front ports
Rear ports
Rear audio ports
Audio
Speaker
IEEE 1394
Ethernet
Intel AMT
Modem
Security chip
Keyboard
Mouse
Power supply
Mainstream enterprise stability and manageability
Intel®Celeron®Processor E3200 with dual-core,
800MHz system bus, and 1MB L2 cache or
Intel Pentium®Processor E5400 with dual-core,
800MHz system bus, and 2MB L2 cache
Processor in LGA775 socket
1GB, 2GB, or 3GB std, 4GB max8, PC2-6400 800MHz DDR2,
non-parity, dual-channel capable, two 240-pin DIMM sockets;
Italics: standard memory in both sockets; no sockets avail;
Non-italics: standard memory in one socket; one socket available
Intel Graphics Media Accelerator X4500 (GMA X4500),
integrated graphics in G41, uses main memory
(up to 253MB [1GB models], 765MB [2GB models], or
1277MB [3GB models]),
one analog VGA DB-15 connector, DirectX®10,
supports dual independent display with optional ADD2 adapter
250GB or 320GB, SATA 3.0Gb/s 7200 rpm, vibration dampening
Serial ATA, SATA 3.0Gb/s, integrated in ICH7
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), two SATA connectors on planar
None
None
None
Intel G41 Express Chipset (PCI Express®x16),
I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB,
LPC bus)
Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2),
ethernet (RJ-45), monitor (VGA DB-15)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
High Definition (HD) Audio, Realtek®ALC662 codec
One internal speaker for business audio
None
Gigabit ethernet on planar, Marvell®88E8057, Wake on LAN®
None
None
None
Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo®logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, autosensing
M58e 7259-D3U 2x3 Celeron E3200 2.40 1MB 2 1GB 250GB2 DVD±RW GMA Pro 32 None Jan 10
M58e 7259-D2U 2x3 Pentium E5400 2.70 2MB 2 2GB 250GB DVD±RW GMA Pro 32 None Jan 10
M58e 7259-D1U 2x3 Pentium E5400 2.70 2MB 2 3GB 320GB DVD±RW GMA Pro 32 None Jan 10
ThinkCentre®M58e Small (7259) - TopSeller (Windows 7)
GHz
Type-model Processor Memory8
SATA
disk
SATA
optical Graphics Cores
Avail
dateName
Slot x
bay
Personal Systems Reference (PSREF)
Global
Educ
L2
cache
See footnotes for important warranty information
US models announced December 15, 2009
© Lenovo
(MIAM3-11) December 2009
Security
•Security slot (in rear for attachment of
optional Kensington®MicroSaver®cable)
- optional cable also locks the cover by
deactivating the cover release buttons
• Power-on password
• Administrator password
• Hard disk password
• Boot sequence control
• Boot without keyboard, mouse, diskette
• Serial port I/O control
• Parallel port I/O control
• USB port disablement
Limited Warranty1
➫ 1-year parts and labor
➫ International Warranty Service9
➫ Customer Replaceable Unit (CRU)
parts only (with limited onsite service
for selected parts3, 8 am - 5 pm,
Mon - Fri coverage excluding holidays,
next business day response time)
➫Onsite service upgrade options
(in eligible locations):7
•1-year LOR 9x5, 4 hour response
(ThinkPlus™part number 41C9189)
•2-year LOR 9x5, Next Business Day
(ThinkPlus part number 41C9187)
•2-year LOR 9x5, 4 hour response
(ThinkPlus part number 41C9190)
•3-year LOR 9x5, Next Business Day
(ThinkPlus part number 41C9188)
•3-year LOR 9x5, 4 hour response
(ThinkPlus part number 41C9191)
➫ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day14 toll-free support
during the warranty period1
via 800-426-7378
Supports ThinkVantage®technologies
•Business black color; metal case
•12.5" W X 14.0" D X 3.9" H
•317mm W X 355mm D X 99mm H
•16.5 lb (7.5 kg) in maximum configuration
•Toolless cover flips up and tilts backward on rear hinges
•Toolless disk, optical drive removal
•Toolless adapter retention
•Toolless systemboard retention
•System floor stand for vertical orientation
Small
Slot 1: Low Profile, PCI Express x16 (35w max)
Slot 2: Low Profile, 32-bit PCI 2.3
Bay ①5.25", 1.6" high, access, std optical
Bay ②3.5", 1" high, no access, std disk
Bay ③3.5", .5" high, access, open (reader)
GREENGUARD®certified
RoHS-compliant
Preloaded operating system20
- Genuine Windows®7 Professional 32
Preloaded applications5(only some listed)
•Rescue and Recovery™
•Password Manager
•ThinkVantage System Update
•ThinkVantage Power Manager
•ThinkVantage Toolbox
•Lenovo Online Data Backup
•Norton™Internet Security 2009
(30 days of virus definitions)
•Adobe®Reader®
•Adobe Flash®Player
•Skype™for Windows
• Microsoft®Office 2007 Trial (60-day)
•Roxio®Creator®Business Edition
(DVD±RW)
•Roxio MyDVD®(DVD±RW)
Accessories
1GB PC2-6400 DDR2 UDIMM 41U2977
2GB PC2-6400 DDR2 UDIMM 41U2978
250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort™to Single-link DVI-D Cable 45J7915
ADD2 DVI-D Monitor Connection (HDCP) 43R1985
AT I ™Radeon™HD 3470 256MB (DP, VGA) 45K1636
NVIDIA®Quadro®256MB FX 370 LP 55Y9275
NVIDIA Quadro 256MB NVS 290 43R1765
More accessories on O-M58E sheet
Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories
• These small and medium business (SMB) models are part of the US TopSeller ™Program
• These models have a 1-year limited warranty1
optical disk
(in rear)
Win7
preload

Positioning
Processor
Implementation
Memory
Graphics
SATA disk
SATA controller
S ATA DV D
S ATA DV D ±RW
SATA cables
eSATA port
Diskette drive
Media reader
Chipset
Front ports
Rear ports
Rear audio ports
Audio
Speaker
IEEE 1394
Ethernet
Intel AMT
Modem
Security chip
Keyboard
Mouse
Power supply
Mainstream enterprise stability and manageability
Intel®Pentium®Processor E5400 with dual-core,
800MHz system bus, and 2MB L2 cache or
Intel Pentium Processor E6300 with dual-core,
1066MHz system bus, and 2MB L2 cache or
Intel Core™2 Duo Processor E7500 with dual-core,
1066MHz system bus, and 3MB L2 cache or
Intel Core 2 Quad Processor Q9400 with quad-core,
1333MHz system bus, and 6MB L2 cache
Processor in LGA775 socket
1GB, 2GB, or 3GB std, 4GB max8, PC2-6400 800MHz DDR2,
non-parity, dual-channel capable, two 240-pin DIMM sockets;
Italics: standard memory in both sockets; no sockets avail;
Non-italics: standard memory in one socket; one socket available
Intel Graphics Media Accelerator X4500 (GMA X4500),
integrated graphics in G41, uses main memory
(up to 512MB [1GB models], 1GB [2GB or 3GB models]),
one analog VGA DB-15 connector, DirectX®10,
supports dual independent display with optional ADD2 adapter
250GB, 320GB, or 500GB, SATA 3.0Gb/s 7200 rpm,
vibration dampening mounts
Serial ATA, SATA 3.0Gb/s, integrated in ICH7
Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4Drive
Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), two SATA connectors
None
None
None
Intel G41 Express Chipset (PCI Express®x16),
I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB,
LPC bus)
Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2),
ethernet (RJ-45), monitor (VGA DB-15)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
High Definition (HD) Audio, Realtek®ALC662 codec
One internal speaker for business audio
None
Gigabit ethernet on planar, Marvell®88E8057, Wake on LAN®
None
None
None
Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo®logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, autosensing
M58e 7269-E5U 2x3 Pentium E5400 2.70 2MB 2 1GB 250GB2 DVD GMA XP Pro None Jan 10
M58e 7269-D5U 2x3 Pentium E6300 2.80 2MB 2 1GB 250GB DVD GMA Switch XP Pro None Nov 09
M58e 7269-D6U 2x3 Pentium E6300 2.80 2MB 2 2GB 250GB DVD±RW GMA Switch XP Pro None Nov 09
M58e 7269-D7U 2x3 Core 2 Duo E7500 2.93 3MB 2 3GB 320GB DVD±RW GMA XP Pro None Nov 09
M58e 7269-D8U 2x3 Core 2 Quad Q9400 2.66 6MB 4 3GB 500GB DVD±RW GMA XP Pro None Nov 09
ThinkCentre®M58e Small (7269) - TopSeller (XP with Win 7 License)
GHz
Type-model Processor Memory8
SATA
disk
SATA
optical Graphics Cores
Avail
dateName
Slot x
bay
Personal Systems Reference (PSREF)
Global
Educ
L2
cache
See footnotes for important warranty information
☞US model announced December 15, 2009; previous models on November 3, 2009
✂ US models withdrawn effective January 2010
© Lenovo
(MIAM3-8) December 2009
✂
✂
Security
•Security slot (in rear for attachment of
optional Kensington®MicroSaver®cable)
- optional cable also locks the cover by
deactivating the cover release buttons
• Power-on password
• Administrator password
• Hard disk password
• Boot sequence control
• Boot without keyboard, mouse, diskette
• Serial port I/O control
• Parallel port I/O control
• USB port disablement
• Some: Chassis intrusion switch
Limited Warranty1
➫ 3-year parts and labor
➫ International Warranty Service9
➫ Customer Replaceable Unit (CRU)
parts only (with limited onsite service
for selected parts3, 8 am - 5 pm,
Mon - Fri coverage excluding holidays,
next business day response time)
➫Onsite service upgrade options
(in eligible locations):7
•3-year LOR 9x5, 4 hour response
(ThinkPlus™part number 41C9192)
•3-year LOR 24x7, 4 hour response
(ThinkPlus part number 41C9193)
•4-year LOR 9x5, Next Business Day
(ThinkPlus part number 41C9194)
•4-year LOR 9x5, 4 hour response
(ThinkPlus part number 41C9195)
•4-year LOR 24x7, 4 hour response
(ThinkPlus part number 41C9196)
➫ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day14 toll-free support
during the warranty period1
via 800-426-7378
Supports ThinkVantage®technologies
•Business black color; metal case
•12.5" W X 14.0" D X 3.9" H
•317mm W X 355mm D X 99mm H
•16.5 lb (7.5 kg) in maximum configuration
•Toolless cover flips up and tilts backward on rear hinges
•Toolless disk, optical drive removal
•Toolless adapter retention
•Toolless systemboard retention
•System floor stand for vertical orientation
Small
Slot 1: Low Profile, PCI Express x16 (35w max)
Slot 2: Low Profile, 32-bit PCI 2.3
Bay ①5.25", 1.6" high, access, std optical
Bay ②3.5", 1" high, no access, std disk
Bay ③3.5", .5" high, access, open (reader)
GREENGUARD®certified
RoHS-compliant
Preloaded operating system20
- Windows®XP Professional preinstalled
through downgrade rights in Genuine
Windows 7 Professional
Preloaded applications5(only some listed)
•Rescue and Recovery™
•Client Security Solution™
•ThinkVantage Productivity Center
•ThinkVantage System Update
•ThinkVantage Power Manager
•McAfee®VirusScan®Plus
(30 days of virus definitions)
•Lenovo System Toolbox
•Adobe®Reader®
•Windows Live™Toolbar
• Microsoft®Office 2007 Trial (60-day)
•Roxio®Creator®Business Edition
(DVD±RW)
•Roxio MyDVD®(DVD±RW)
•Corel®WinDVD®(DVD, DVD±RW)
Accessories
1GB PC2-6400 DDR2 UDIMM 41U2977
2GB PC2-6400 DDR2 UDIMM 41U2978
250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort™to Single-link DVI-D Cable 45J7915
ADD2 DVI-D Monitor Connection (HDCP) 43R1985
AT I ™Radeon™HD 3470 256MB (DP, VGA) 45K1636
NVIDIA®Quadro®256MB FX 370 LP 55Y9275
NVIDIA Quadro 256MB NVS 290 43R1765
More accessories on O-M58E sheet
Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories
☞
• These small and medium business (SMB) models are part of the US TopSeller ™Program
• These models have a 3-year limited warranty1
optical disk
(in rear)
Preload
Chassis
intr switch

Positioning
Processor
Implementation
Memory
Graphics
SATA disk
SATA controller
S ATA DV D
S ATA DV D ±RW
SATA cables
eSATA port
Diskette drive
Media reader
Chipset
Front ports
Rear ports
Rear audio ports
Audio
Speaker
IEEE 1394
Ethernet
Intel AMT
Modem
Security chip
Keyboard
Mouse
Power supply
Mainstream enterprise stability and manageability
Intel®Pentium®Processor E5400 with dual-core,
800MHz system bus, and 2MB L2 cache or
Intel Core™2 Duo Processor E7500 with dual-core,
1066MHz system bus, and 3MB L2 cache or
Intel Core 2 Quad Processor Q9400 with quad-core,
1333MHz system bus, and 6MB L2 cache
Processor in LGA775 socket
1GB, 2GB, or 3GB std, 4GB max8, PC2-6400 800MHz DDR2,
non-parity, dual-channel capable, two 240-pin DIMM sockets;
Italics: standard memory in both sockets; no sockets avail;
Non-italics: standard memory in one socket; one socket available
Intel Graphics Media Accelerator X4500 (GMA X4500),
integrated graphics in G41, uses main memory
(up to 253MB [1GB models], 765MB [2GB models], or
1277MB [3GB models]),
one analog VGA DB-15 connector, DirectX®10,
supports dual independent display with optional ADD2 adapter
250GB, 320GB, or 500GB, SATA 3.0Gb/s 7200 rpm,
vibration dampening mounts
Serial ATA, SATA 3.0Gb/s, integrated in ICH7
Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4Drive
Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), two SATA connectors on planar
None
None
None
Intel G41 Express Chipset (PCI Express®x16),
I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB,
LPC bus)
Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2),
ethernet (RJ-45), monitor (VGA DB-15)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
High Definition (HD) Audio, Realtek®ALC662 codec
One internal speaker for business audio
None
Gigabit ethernet on planar, Marvell®88E8057, Wake on LAN®
None
None
None
Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo®logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, autosensing
M58e 7269-E6U 2x3 Pentium E5400 2.70 2MB 2 1GB 250GB2 DVD GMA Pro 32 None Jan 10
M58e 7269-E7U 2x3 Pentium E5400 2.70 2MB 2 2GB 250GB DVD±RW GMA Pro 32 None Jan 10
M58e 7269-E8U 2x3 Core 2 Duo E7500 2.93 3MB 2 3GB 320GB DVD±RW GMA Pro 32 None Jan 10
M58e 7269-E9U 2x3 Core 2 Quad Q9400 2.66 6MB 4 3GB 500GB DVD±RW GMA Pro 32 None Jan 10

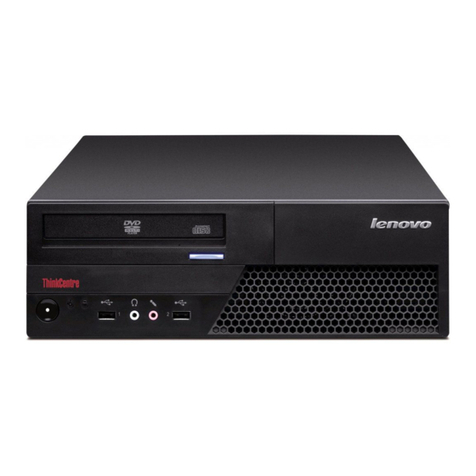

ThinkCentre®M58e Small (7269) - TopSeller (Windows 7)
GHz
Type-model Processor Memory8
SATA
disk
SATA
optical Graphics Cores
Avail
dateName
Slot x
bay
Personal Systems Reference (PSREF)
Global
Educ
L2
cache
See footnotes for important warranty information
US models announced January 12, 2010
© Lenovo
(MIAM3-15) January 2010
Security
•Security slot (in rear for attachment of
optional Kensington®MicroSaver®cable)
- optional cable also locks the cover by
deactivating the cover release buttons
• Power-on password
• Administrator password
• Hard disk password
• Boot sequence control
• Boot without keyboard, mouse, diskette
• Serial port I/O control
• Parallel port I/O control
• USB port disablement
Limited Warranty1
➫ 3-year parts and labor
➫ International Warranty Service9
➫ Customer Replaceable Unit (CRU)
parts only (with limited onsite service
for selected parts3, 8 am - 5 pm,
Mon - Fri coverage excluding holidays,
next business day response time)
➫Onsite service upgrade options
(in eligible locations):7
•3-year LOR 9x5, 4 hour response
(ThinkPlus™part number 41C9192)
•3-year LOR 24x7, 4 hour response
(ThinkPlus part number 41C9193)
•4-year LOR 9x5, Next Business Day
(ThinkPlus part number 41C9194)
•4-year LOR 9x5, 4 hour response
(ThinkPlus part number 41C9195)
•4-year LOR 24x7, 4 hour response
(ThinkPlus part number 41C9196)
➫ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day14 toll-free support
during the warranty period1
via 800-426-7378
Supports ThinkVantage®technologies
•Business black color; metal case
•12.5" W X 14.0" D X 3.9" H
•317mm W X 355mm D X 99mm H
•16.5 lb (7.5 kg) in maximum configuration
•Toolless cover flips up and tilts backward on rear hinges
•Toolless disk, optical drive removal
•Toolless adapter retention
•Toolless systemboard retention
•System floor stand for vertical orientation
Small
Slot 1: Low Profile, PCI Express x16 (35w max)
Slot 2: Low Profile, 32-bit PCI 2.3
Bay ①5.25", 1.6" high, access, std optical
Bay ②3.5", 1" high, no access, std disk
Bay ③3.5", .5" high, access, open (reader)
GREENGUARD®certified
RoHS-compliant
Preloaded operating system20
- Genuine Windows®7 Professional 32
Preloaded applications5(only some listed)
•Rescue and Recovery™
•Password Manager
•ThinkVantage System Update
•ThinkVantage Power Manager
•ThinkVantage Toolbox
•Lenovo Online Data Backup
•Norton™Internet Security 2009
(30 days of virus definitions)
•Adobe®Reader®
•Adobe Flash®Player
•Skype™for Windows
• Microsoft®Office 2007 Trial (60-day)
•Roxio®Creator®Business Edition
(DVD±RW)
•Roxio MyDVD®(DVD±RW)
Accessories
1GB PC2-6400 DDR2 UDIMM 41U2977
2GB PC2-6400 DDR2 UDIMM 41U2978
250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
DVD-ROM DL SATA 1.5Gb/s 16-48X Max 41N5618
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort™to Single-link DVI-D Cable 45J7915
ADD2 DVI-D Monitor Connection (HDCP) 43R1985
AT I ™Radeon™HD 3470 256MB (DP, VGA) 45K1636
NVIDIA®Quadro®256MB FX 370 LP 55Y9275
NVIDIA Quadro 256MB NVS 290 43R1765
More accessories on O-M58E sheet
Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories
• These small and medium business (SMB) models are part of the US TopSeller ™Program
• These models have a 3-year limited warranty1
optical disk
(in rear)
Win7
preload

Positioning
Processor
Implementation
Memory
Graphics
SATA disk
SATA controller
S ATA DV D ±RW
SATA cables
eSATA port
Diskette drive
Media reader
Chipset
Front ports
Rear ports
Rear audio ports
Audio
Speaker
IEEE 1394
Ethernet
Intel AMT
Modem
Security chip
Keyboard
Mouse
Power supply
Mainstream enterprise stability and manageability
Intel®Pentium®Processor E2220 with dual-core,
800MHz system bus, and 1MB L2 cache or
Intel Core™2 Duo Processor E7300 with dual-core,
1066MHz system bus, and 3MB L2 cache or
Intel Core 2 Duo Processor E8400 with dual-core,
Virtualization Technology, TXT, 1333MHz system bus,
and 6MB L2 cache
Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket
2GB std, 4GB max8, PC2-6400 800MHz DDR2,
non-parity, dual-channel capable, two 240-pin DIMM sockets;
Non-italics: standard memory in one socket; one socket available
Intel Graphics Media Accelerator X4500 (GMA X4500),
integrated graphics in G41, uses main memory (up to 765MB),
one analog VGA DB-15 connector, DirectX®10,
supports dual independent display with optional ADD2 adapter
160GB, SATA 3.0Gb/s 7200 rpm, vibration dampening mounts
Serial ATA, SATA 3.0Gb/s, integrated in ICH7
Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), two SATA connectors
None
None
None
Intel G41 Express Chipset (PCI Express®x16),
I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB,
LPC bus)
Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2),
ethernet (RJ-45), monitor (VGA DB-15)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
High Definition (HD) Audio, Realtek®ALC662 codec
One internal speaker for business audio
None
Gigabit ethernet on planar, Marvell®88E8057, Wake on LAN®
None
None
None
Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo®logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, autosensing
M58e 7279-B1U 2x3 Pentium E2220 2.40 1MB 2 2GB 160GB2 DVD±RW GMA Business32 Basic None Apr 09
M58e 7279-A9U 2x3 Core 2 Duo E7300 2.66 3MB 2 2GB 160GB DVD±RW GMA Business32 Basic None Apr 09
M58e 7279-A8U 2x3 Core 2 Duo E8400 3.00 6MB 2 2GB 160GB DVD±RW GMA Business32 Basic None Apr 09
ThinkCentre®M58e Small (7279)
GHz
Type-model Processor Memory8
SATA
disk
SATA
optical Graphics Cores
Avail
dateName
Slot x
bay
Personal Systems Reference (PSREF)
Global
Educ
L2
cache
See footnotes for important warranty information
US models announced March 10, 2009
✂ US models withdrawn effective June or August 2009
© Lenovo
(MIAM1-2) March 2009
Vista
preload
Security
•Security slot (in rear for attachment of
optional Kensington®MicroSaver®cable)
- optional cable also locks the cover by
deactivating the cover release buttons
• Power-on password
• Administrator password
• Hard disk password
• Boot sequence control
• Boot without keyboard, mouse, diskette
• Serial port I/O control
• Parallel port I/O control
• USB port disablement
Limited Warranty1
➫ 1-year parts and labor
➫ International Warranty Service9
➫ Customer Replaceable Unit (CRU)
parts only (with limited onsite service
for selected parts3, 8 am - 5 pm,
Mon - Fri coverage excluding holidays,
next business day response time)
➫Onsite service upgrade options
(in eligible locations):7
•1-year LOR 9x5, 4 hour response
(ThinkPlus™part number 41C9189)
•2-year LOR 9x5, Next Business Day
(ThinkPlus part number 41C9187)
•2-year LOR 9x5, 4 hour response
(ThinkPlus part number 41C9190)
•3-year LOR 9x5, Next Business Day
(ThinkPlus part number 41C9188)
•3-year LOR 9x5, 4 hour response
(ThinkPlus part number 41C9191)
➫ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day14 toll-free support
during the warranty period1
via 800-426-7378
Supports ThinkVantage®technologies
•Business black color; metal case
•12.5" W X 14.0" D X 3.9" H
•317mm W X 355mm D X 99mm H
•16.5 lb (7.5 kg) in maximum configuration
•Toolless cover flips up and tilts backward on rear hinges
•Toolless disk, optical drive removal
•Toolless adapter retention
•Toolless systemboard retention
Small
Slot 1: Low Profile, PCI Express x16 (35w max)
Slot 2: Low Profile, 32-bit PCI 2.3
Bay ①5.25", 1.6" high, access, std optical
Bay ②3.5", 1" high, no access, std disk
Bay ③3.5", .5" high, access, open (reader)
GREENGUARD®certified
RoHS-compliant
Preloaded operating system20
- Genuine Windows®Vista®Business 32
Preloaded applications5
•Rescue and Recovery™
•Client Security Solution™
•ThinkVantage Productivity Center
•ThinkVantage System Update
•ThinkVantage Power Manager
•McAfee®VirusScan®Plus
(30 days of virus definitions)
•Lenovo System Toolbox
•Adobe®Reader®
•Windows Live™Toolbar
• Microsoft®Office 2007 Trial (60-day)
•Roxio®Creator®Business Edition
(DVD±RW)
•Roxio MyDVD®(DVD±RW)
•Corel®WinDVD®(DVD±RW)
Accessories
1GB PC2-6400 DDR2 UDIMM 41U2977
2GB PC2-6400 DDR2 UDIMM 41U2978
160GB SATA 3.0Gb/s Disk (7200 rpm) 09N4254
250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
ADD2 DVI-D Monitor Connection (HDCP) 43R1985
AT I ™Radeon™HD 3470 256MB (DP, VGA) 45K1636
NVIDIA®Quadro®256MB FX 370 LP 55Y9275
NVIDIA Quadro 256MB NVS 290 43R1765
More accessories on O-M58E sheet
Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories
• These models have a 1-year limited warranty1
Vista
logo
optical disk
(in rear)
✂
✂

Positioning
Processor
Implementation
Memory
Graphics
SATA disk
SATA controller
S ATA DV D
S ATA DV D ±RW
SATA cables
eSATA port
Diskette drive
Media reader
Chipset
Front ports
Rear ports
Rear audio ports
Audio
Speaker
IEEE 1394
Ethernet
Intel AMT
Modem
Security chip
Keyboard
Mouse
Power supply
Mainstream enterprise stability and manageability
Intel®Pentium®Processor E5200 or E5300 with dual-core,
800MHz system bus, and 2MB L2 cache or
Intel Core™2 Duo Processor E7400 or E7500 with dual-core,
1066MHz system bus, and 3MB L2 cache or
Intel Core 2 Duo Processor E8400 or E8500 with dual-core,
1333MHz system bus, and 6MB L2 cache or
Intel Core 2 Quad Processor Q8200 with quad-core,
1333MHz system bus, and 4MB L2 cache
Processor in FC-LGA6 or FC-LGA8 package in LGA775 socket
1GB or 2GB std, 4GB max8, PC2-6400 800MHz DDR2,
non-parity, dual-channel capable, two 240-pin DIMM sockets;
Non-italics: standard memory in one socket; one socket available
Intel Graphics Media Accelerator X4500 (GMA X4500),
integrated graphics in G41, uses main memory
(up to 512MB [1GB models], 1GB [2GB models]),
one analog VGA DB-15 connector, DirectX®10,
supports dual independent display with optional ADD2 adapter
160GB or 250GB, SATA 3.0Gb/s 7200 rpm, vibration dampening
Serial ATA, SATA 3.0Gb/s, integrated in ICH7
Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4Drive
Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), two SATA connectors
None
None
None
Intel G41 Express Chipset (PCI Express®x16),
I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB,
LPC bus)
Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2),
ethernet (RJ-45), monitor (VGA DB-15)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
High Definition (HD) Audio, Realtek®ALC662 codec
One internal speaker for business audio
None
Gigabit ethernet on planar, Marvell®88E8057, Wake on LAN®
None
None
None
Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo®logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, autosensing
M58e 7303-F9U 2x3 Pentium E5200 2.50 2MB 2 1GB 160GB2 DVD GMA Stand XP Pro Apr 09
M58e 7303-C6U 2x3 Pentium E5300 2.60 2MB 2 1GB 160GB DVD GMA Stand XP Pro Apr 09
M58e 7303-G8U 2x3 Pentium E5300 2.60 2MB 2 1GB 160GB DVD±RW GMA XP Pro Educ Apr 09
M58e 7303-C7U 2x3 Pentium E5300 2.60 2MB 2 2GB 250GB DVD±RW GMA Stand XP Pro Apr 09
M58e 7303-C8U 2x3 Core 2 Duo E7400 2.80 3MB 2 1GB 160GB DVD GMA Stand XP Pro Apr 09
M58e 7303-D1U 2x3 Core 2 Duo E7400 2.80 3MB 2 2GB 160GB DVD±RW GMA Stand XP Pro Apr 09
M58e 7303-C9U 2x3 Core 2 Duo E7500 2.93 3MB 2 1GB 160GB DVD GMA Stand XP Pro Apr 09
M58e 7303-D2U 2x3 Core 2 Duo E7500 2.93 3MB 2 2GB 160GB DVD±RW GMA Stand XP Pro Apr 09
M58e 7303-D3U 2x3 Core 2 Duo E8400 3.00 6MB 2 1GB 160GB DVD±RW GMA Stand XP Pro Apr 09
M58e 7303-D5U 2x3 Core 2 Duo E8400 3.00 6MB 2 2GB 160GB DVD±RW GMA Stand XP Pro Apr 09
M58e 7303-G7U 2x3 Core 2 Duo E8400 3.00 6MB 2 2GB 160GB DVD±RW GMA XP Pro Educ Apr 09
M58e 7303-D4U 2x3 Core 2 Duo E8500 3.16 6MB 2 1GB 250GB DVD±RW GMA Stand XP Pro Apr 09
M58e 7303-D6U 2x3 Core 2 Duo E8500 3.16 6MB 2 2GB 250GB DVD±RW GMA Stand XP Pro Apr 09
M58e 7303-G9U 2x3 Core 2 Quad Q8200 2.33 4MB 4 2GB 250GB DVD±RW GMA Stand XP Pro Apr 09
ThinkCentre®M58e Small (7303)
GHz
Type-model Processor Memory8
SATA
disk
SATA
optical Graphics Cores
Avail
dateName
Slot x
bay
Personal Systems Reference (PSREF)
Global
Educ
L2
cache
See footnotes for important warranty information
US models announced March 10 or March 24, 2009
✂ US models withdrawn effective October or December 2009
© Lenovo
(MIAM1-3) April 2009
Preload
Security
•Security slot (in rear for attachment of
optional Kensington®MicroSaver®cable)
- optional cable also locks the cover by
deactivating the cover release buttons
• Power-on password
• Administrator password
• Hard disk password
• Boot sequence control
• Boot without keyboard, mouse, diskette
• Serial port I/O control
• Parallel port I/O control
• USB port disablement
Limited Warranty1
➫ 3-year parts and labor
➫ International Warranty Service9
➫ Customer Replaceable Unit (CRU)
parts only (with limited onsite service
for selected parts3, 8 am - 5 pm,
Mon - Fri coverage excluding holidays,
next business day response time)
➫Onsite service upgrade options
(in eligible locations):7
•3-year LOR 9x5, 4 hour response
(ThinkPlus™part number 41C9192)
•3-year LOR 24x7, 4 hour response
(ThinkPlus part number 41C9193)
•4-year LOR 9x5, 4 hour response
(ThinkPlus part number 41C9195)
•4-year LOR 24x7, 4 hour response
(ThinkPlus part number 41C9196)
➫Other ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day14 toll-free support
during the warranty period1
via 800-426-7378
Supports ThinkVantage®technologies
•Business black color; metal case
•12.5" W X 14.0" D X 3.9" H
•317mm W X 355mm D X 99mm H
•16.5 lb (7.5 kg) in maximum configuration
•Toolless cover flips up and tilts backward on rear hinges
•Toolless disk, optical drive removal
•Toolless adapter retention
•Toolless systemboard retention
•Some: system floor stand for vertical orientation
Small
Slot 1: Low Profile, PCI Express x16 (35w max)
Slot 2: Low Profile, 32-bit PCI 2.3
Bay ①5.25", 1.6" high, access, std optical
Bay ②3.5", 1" high, no access, std disk
Bay ③3.5", .5" high, access, open (reader)
GREENGUARD®certified
RoHS-compliant
Preloaded operating system20
- Genuine Windows®XP Professional
(preinstalled via downgrade rights in
Windows Vista®Business)
Preloaded applications5(only some listed)
•Some: Education software
-VitalSource Library School Edition
-Adobe®Elements
− Photoshop Elements 7
−Premiere Elements 7
•Rescue and Recovery™
•Client Security Solution™
• Microsoft®Office 2007 Trial (60-day)
•Roxio®Creator®Business Edition
(DVD±RW)
•Roxio MyDVD®(DVD±RW)
•Corel®WinDVD®(DVD, DVD±RW)
Accessories
1GB PC2-6400 DDR2 UDIMM 41U2977
2GB PC2-6400 DDR2 UDIMM 41U2978
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort to Single-link DVI-D Cable 45J7915
ADD2 DVI-D Monitor Connection (HDCP) 43R1985
AT I ™Radeon™HD 3470 256MB (DP, VGA) 45K1636
NVIDIA®Quadro®256MB FX 370 LP 55Y9275
NVIDIA Quadro 256MB NVS 290 43R1765
More accessories on O-M58E sheet
Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories
• These models have a 3-year limited warranty1
optical disk
(in rear)
Floor
stand
✂
✂
✂
✂
✂
✂
✂
✂
✂

Positioning
Processor
Implementation
Memory
Graphics
SATA disk
SATA controller
S ATA DV D
S ATA DV D ±RW
SATA cables
eSATA port
Diskette drive
Media reader
Chipset
Front ports
Rear ports
Rear audio ports
Audio
Speaker
IEEE 1394
Ethernet
Intel AMT
Modem
Security chip
Keyboard
Mouse
Power supply
Mainstream enterprise stability and manageability
Intel®Pentium®Processor E6300 with dual-core,
Virtualization Technology, 1066MHz system bus,
and 2MB L2 cache or
Intel Core™2 Quad Processor Q8400 with quad-core,
Virtualization Technology, 1333MHz system bus,
and 4MB L2 cache
Processor in LGA775 socket
1GB or 2GB std, 4GB max8, PC2-6400 800MHz DDR2,
non-parity, dual-channel capable, two 240-pin DIMM sockets;
Non-italics: standard memory in one socket; one socket available
Intel Graphics Media Accelerator X4500 (GMA X4500),
integrated graphics in G41, uses main memory
(up to 512MB [1GB models], 1GB [2GB models]),
one analog VGA DB-15 connector, DirectX®10,
supports dual independent display with optional ADD2 adapter
250GB, SATA 3.0Gb/s 7200 rpm, vibration dampening mounts
Serial ATA, SATA 3.0Gb/s, integrated in ICH7
Some: DVD-ROM DL SATA 1.5Gb/s 16-48X Max4Drive
Some: Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
Two SATA cables (each 1-drop to device), two SATA connectors on planar
None
None
None
Intel G41 Express Chipset (PCI Express®x16),
I/O Controller Hub 7 [ICH7] (SATA 3.0Gb/s, PCI Express x1, PCI 2.3, USB,
LPC bus)
Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Four USB 2.0, serial (9-pin), parallel (25-pin), keyboard (PS/2), mouse (PS/2),
ethernet (RJ-45), monitor (VGA DB-15)
Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
High Definition (HD) Audio, Realtek®ALC662 codec
One internal speaker for business audio
None
Gigabit ethernet on planar, Marvell®88E8057, Wake on LAN®
None
None
None
Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo®logo
Optical Wheel Mouse (USB connector), 400 dpi, black, Lenovo logo
280 watts with variable speed fan, autosensing
M58e 7303-R1U 2x3 Pentium E6300 2.80 2MB 2 1GB 250GB2 DVD GMA XP Pro Oct 09
M58e 7303-R2U 2x3 Pentium E6300 2.80 2MB 2 2GB 250GB DVD±RW GMA XP Pro Oct 09
M58e 7303-R3U 2x3 Pentium E6300 2.80 2MB 2 2GB 250GB DVD±RW GMA XP Pro Educ Oct 09
M58e 7303-Q9U 2x3 Core 2 Quad Q8400 2.66 4MB 4 2GB 250GB DVD±RW GMA XP Pro Oct 09
ThinkCentre®M58e Small (7303) - XP with Win 7 License
GHz
Type-model Processor Memory8
SATA
disk
SATA
optical Graphics Cores
Avail
dateName
Slot x
bay
Personal Systems Reference (PSREF)
Global
Educ
L2
cache
See footnotes for important warranty information
US models announced October 22, 2009
✂ US model withdrawn effective December 2009
© Lenovo
(MIAM3-1) October 2009
Preload
✂
Security
•Security slot (in rear for attachment of
optional Kensington®MicroSaver®cable)
- optional cable also locks the cover by
deactivating the cover release buttons
• Power-on password
• Administrator password
• Hard disk password
• Boot sequence control
• Boot without keyboard, mouse, diskette
• Serial port I/O control
• Parallel port I/O control
• USB port disablement
Limited Warranty1
➫ 3-year parts and labor
➫ International Warranty Service9
➫ Customer Replaceable Unit (CRU)
parts only (with limited onsite service
for selected parts3, 8 am - 5 pm,
Mon - Fri coverage excluding holidays,
next business day response time)
➫Onsite service upgrade options
(in eligible locations):7
•3-year LOR 9x5, 4 hour response
(ThinkPlus™part number 41C9192)
•3-year LOR 24x7, 4 hour response
(ThinkPlus part number 41C9193)
•4-year LOR 9x5, Next Business Day
(ThinkPlus part number 41C9194)
•4-year LOR 9x5, 4 hour response
(ThinkPlus part number 41C9195)
•4-year LOR 24x7, 4 hour response
(ThinkPlus part number 41C9196)
➫ThinkPlus services at
lenovo.com/thinkplus/warranty
➫ Post warranty maintenance
services available
➫ 24 hour x 7 day14 toll-free support
during the warranty period1
via 800-426-7378
Supports ThinkVantage®technologies
•Business black color; metal case
•12.5" W X 14.0" D X 3.9" H
•317mm W X 355mm D X 99mm H
•16.5 lb (7.5 kg) in maximum configuration
•Toolless cover flips up and tilts backward on rear hinges
•Toolless disk, optical drive removal
•Toolless adapter retention
•Toolless systemboard retention
• System floor stand for vertical orientation
Small
Slot 1: Low Profile, PCI Express x16 (35w max)
Slot 2: Low Profile, 32-bit PCI 2.3
Bay ①5.25", 1.6" high, access, std optical
Bay ②3.5", 1" high, no access, std disk
Bay ③3.5", .5" high, access, open (reader)
GREENGUARD®certified
RoHS-compliant
Preloaded operating system20
- Windows®XP Professional preinstalled
through downgrade rights in Genuine
Windows 7 Professional
Preloaded applications5(only some listed)
•Some: Education software
-VitalSource Library School Edition
-Adobe®Elements
− Photoshop Elements 7
−Premiere Elements 7
•Rescue and Recovery™
•Client Security Solution™
•ThinkVantage Productivity Center
•ThinkVantage System Update
•ThinkVantage Power Manager
•McAfee®VirusScan®Plus
(30 days of virus definitions)
•Lenovo System Toolbox
•Adobe Reader®
•Windows Live™Toolbar
• Microsoft®Office 2007 Trial (60-day)
•Roxio®Creator®Business Edition
(DVD±RW)
•Roxio MyDVD®(DVD±RW)
•Corel®WinDVD®(DVD, DVD±RW)
Accessories
1GB PC2-6400 DDR2 UDIMM 41U2977
2GB PC2-6400 DDR2 UDIMM 41U2978
250GB SATA 3.0Gb/s Disk (7200 rpm) 41N3015
500GB SATA 3.0Gb/s Disk (7200 rpm) 43R1990
1TB SATA 3.0Gb/s Disk (7200 rpm) 45J7918
DVD-ROM DL SATA 1.5Gb/s 16X-48X Max 41N5618
Super Multi-Burner DL DVD±RW SATA Drive 41N5620
DisplayPort™to Single-link DVI-D Cable 45J7915
ADD2 DVI-D Monitor Connection (HDCP) 43R1985
AT I ™Radeon™HD 3470 256MB (DP, VGA) 45K1636
NVIDIA®Quadro®256MB FX 370 LP 55Y9275
NVIDIA Quadro 256MB NVS 290 43R1765
More accessories on O-M58E sheet
Acc Guide in pdf lenovo.com/accessoriesguide
Other accessories at lenovo.com/accessories
• These models have a 3-year limited warranty1
optical disk
(in rear)
