Chapter 1. Getting to know your computer

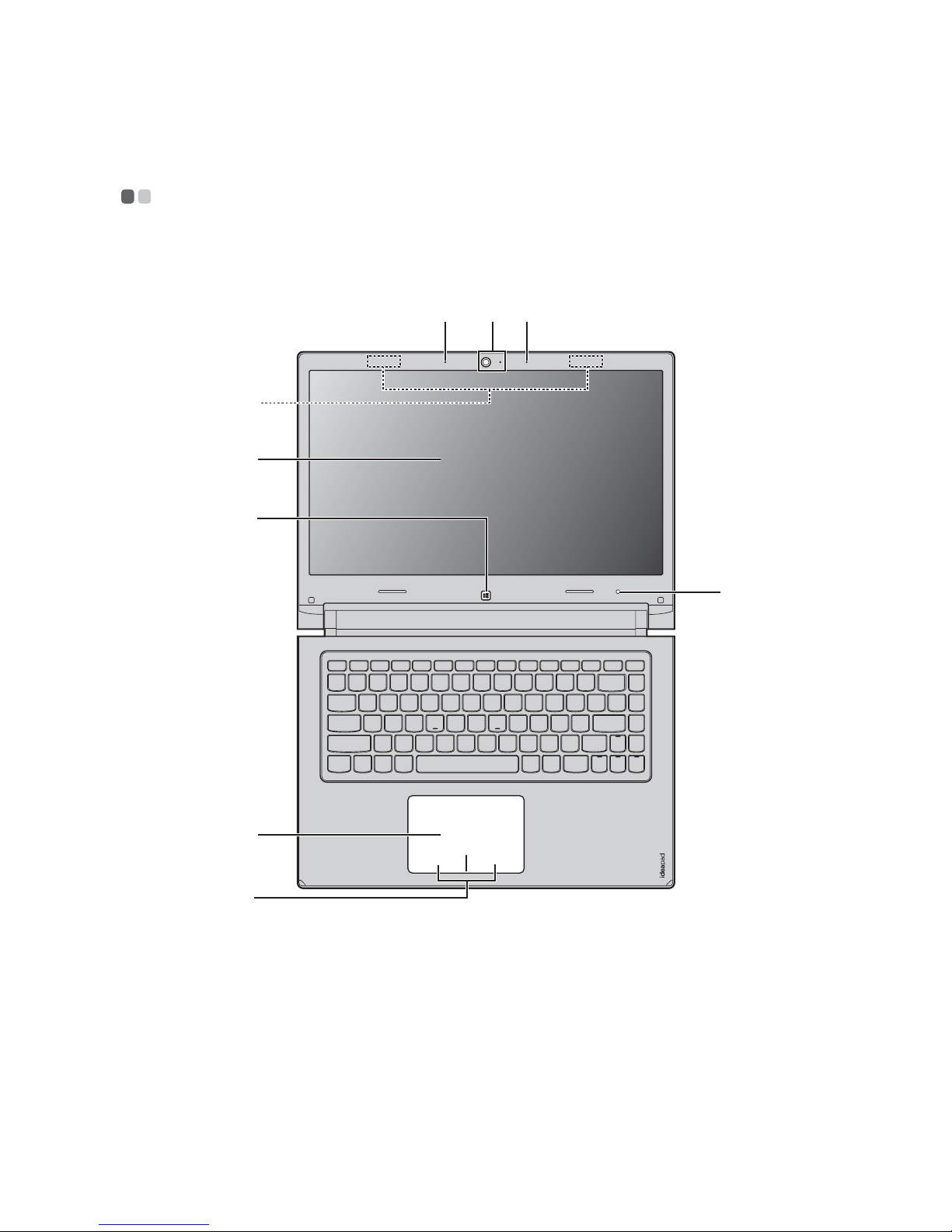

Top view------------------------------------------------------------------------------------------------------
Flex 14/Flex 14D
a cc
b
e
f
g
d
i

2
Chapter 1. Getting to know your computer
Flex 15/Flex 15D
Note: The dashed areas indicate parts that are invisible from outside.
Attention:
•Do not open the display panel beyond 300 degrees. When closing the display panel, be
careful not to leave pens or any other objects in between the display panel and the
keyboard. Otherwise, the display panel may be damaged.
a cc
b
e
f
g
h
d
i


Chapter 1. Getting to know your computer
3
Integrated
camera
Use the camera for video communication.
Wireless
antennas
Connect to the wireless adapter to receive and send
wireless radio.
Built-in
microphone
Captures sound which can be used for video
conferencing, voice narration, or audio recording.
Display Provides brilliant visual output.
Windows button
(on select
models)
Press this button to:
Toggle between the current view and the Start screen.
Touch pad The Touch pad functions as a conventional mouse.
To move the cursor on the screen, slide your fingertip over
the pad in the direction in which you want the cursor to
move.
Touch pad
buttons
The functions of the left and right buttons correspond to
those of the left and right buttons on a conventional
mouse.
Note: You can enable or disable the Touch pad and the Touch pad buttons by pressing
.
Numeric keypad
(Flex 15/Flex 15D)
For details, see “Using the keyboard” on page 4.
Light sensing
hole (on select
models)
This senses the ambient light. By default, the screen
brightness changes automatically according to the
ambient light.
Note: If you want to adjust the brightness of the screen manually, open the charms bar and
select Settings →Change PC settings →General →Screen (Adjust my screen
brightness automatically) and toggle the switch to Off.
a
b
c
d
e
f
g
h
i

4
Chapter 1. Getting to know your computer
Using the keyboard
Your computer has number keys and function keys and may also have a
numeric keypad (Flex 15/Flex 15D only) incorporated into its standard key-
board.

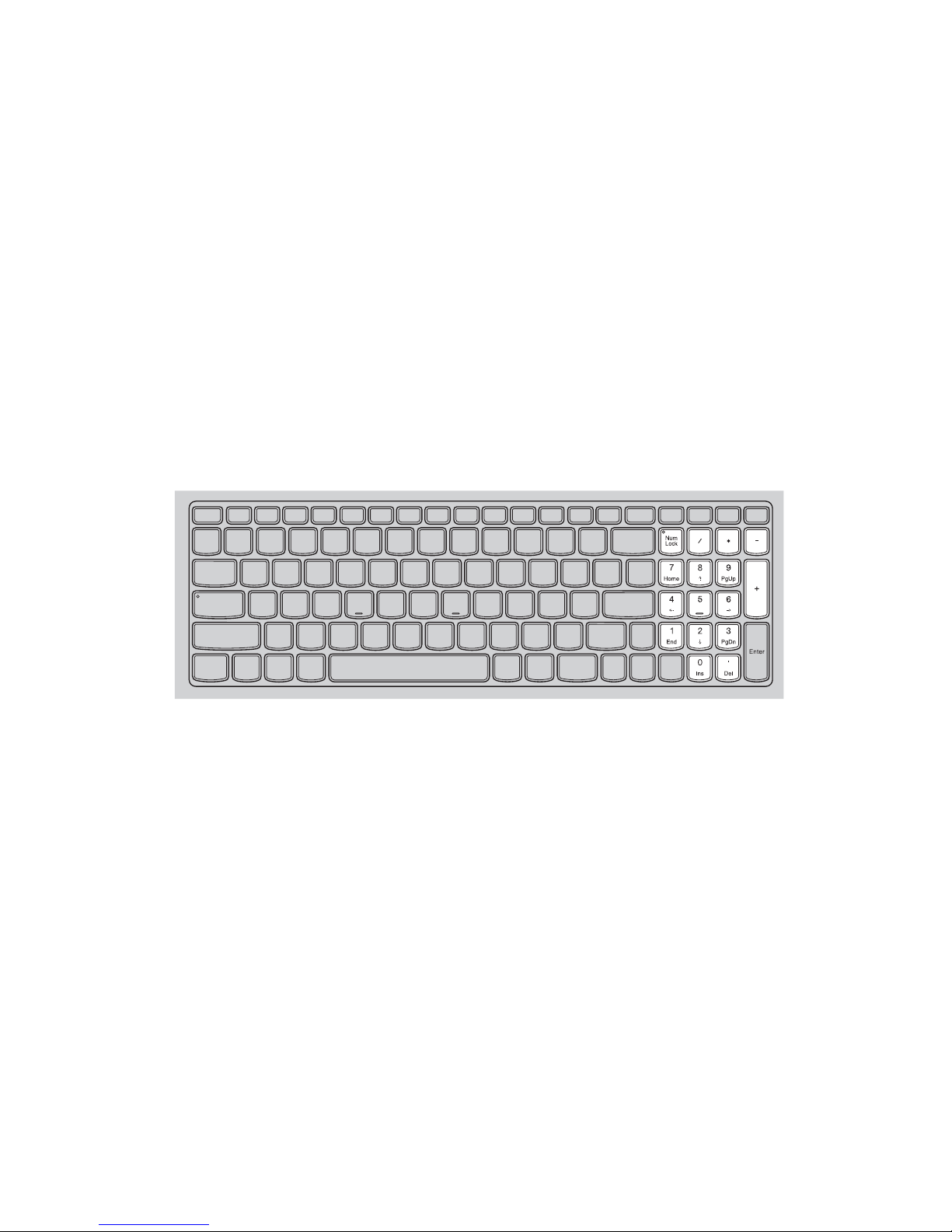

Numeric keypad
Flex 15/Flex 15D
The keyboard has a separate numeric keypad. To enable or disable the
numeric keypad, press the Num Lock key.

Chapter 1. Getting to know your computer
5
Hotkeys
You can access certain system settings quickly by pressing the appropriate
hotkeys.
: Mutes/unmutes the sound. : Enables/disables airplane
mode.
: Decreases the volume level. : Switches the active program.
: Increases the volume level. : Turns on/off the backlight of
the display.
: Closes the currently active
window. : Projects to a connected display.
: Refreshes the desktop or the
currently active window. : Decreases display brightness.
:
Enables/disables the
touch pad and the touch pad
buttons.
: Increases display brightness.
Note: If you changed the HotKey Mode from Enabled to Disabled in the BIOS setup utility,
you will need to press the Fn key in combination with the appropriate hotkey.

6
Chapter 1. Getting to know your computer
Function key combinations
Through the use of the function keys, you can change operational features
instantly. To use this function, press and hold Fn ; then press one of the
function keys .
Flex 14/Flex 14D
Flex 15/Flex 15D
The following describes the features of each function key.
Fn + Home: Activate the pause function.
Fn + End: Activate the break function.
Fn + PgUp: Enable/Disable the scroll lock.
Fn + PgDn (Flex 14/
Flex 14D): Activate the insert function.
Fn + PgDn (Flex 15/
Flex 15D): Activate the system request.
a
b
b
a
b
a

Chapter 1. Getting to know your computer
7
Positioning the display panel
Notebook Mode
Suitable for tasks that require a keyboard and mouse (such as creating
documents, writing e-mails, and so on).
Stand Mode (Theater Mode)
Suitable for tasks that require little or no touch (such as viewing photos or
playing videos).

8
Chapter 1. Getting to know your computer
Attention:
•Do not open the display with too much force, otherwise the display panel or hinges may be
damaged.
Notes:
•The keyboard and touch pad are automatically locked if the keyboard panel faces down.
•In the stand mode (theater mode), only the following buttons can be used:
-Windows button
-Volume U p butt on
-Volume Down button
-Power button
-Novo button


Chapter 1. Getting to know your computer
9

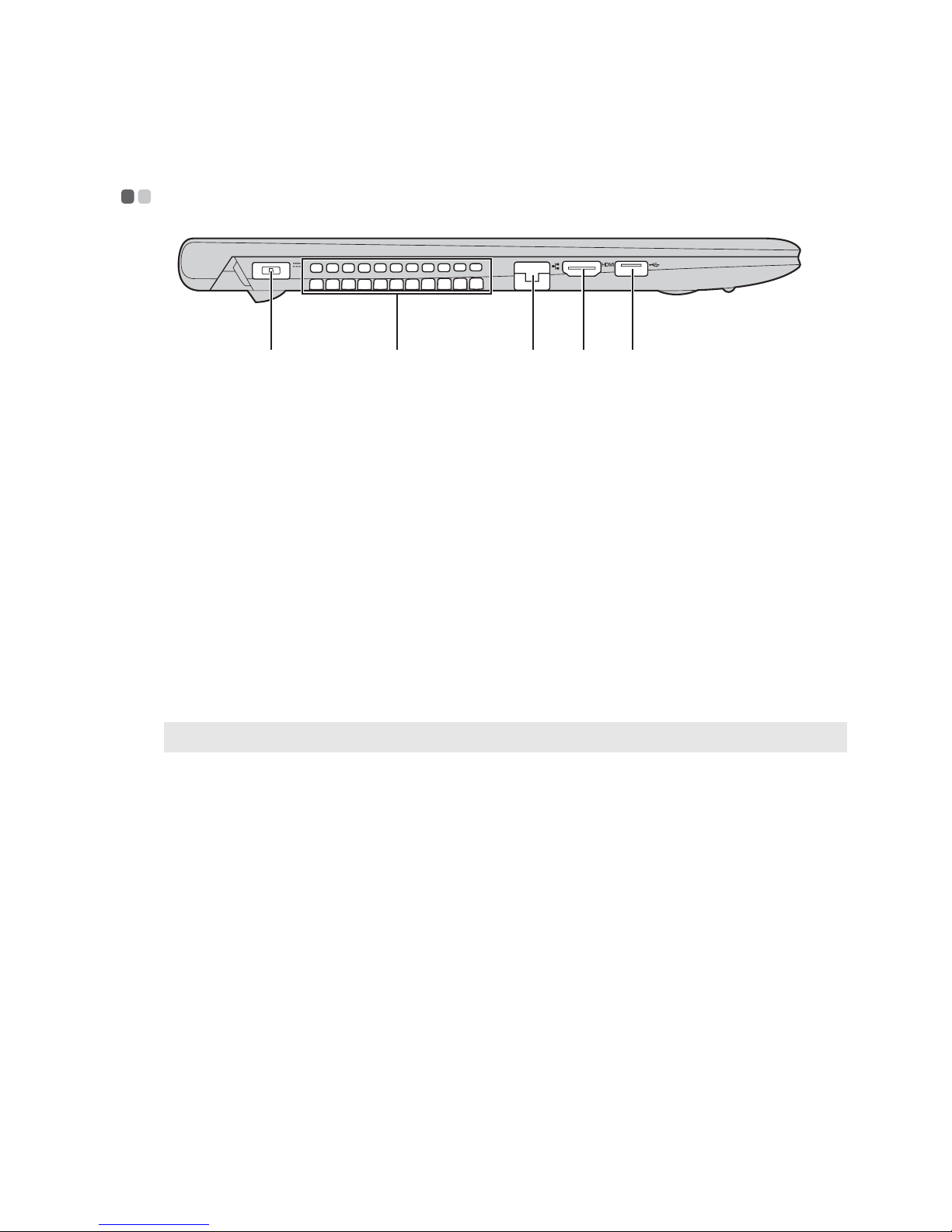

Left-side view ------------------------------------------------------------------------------------------
AC power adapter
jack
Connects the AC power adapter.
Ventilation slots Dissipate internal heat.
Attention:
•Make sure that none of the ventilation slots are blocked or else overheating of the
computer may occur.
RJ-45 port Connects the computer to an Ethernet network.
HDMI port Connects to devices with HDMI input such as a TV or a
display.
USB 3.0 port Connects to USB devices.
Note: For details, see “Connecting USB devices” on page 10.
a b
c d
e
a
b

c
d
e

10
Chapter 1. Getting to know your computer
Connecting USB devices

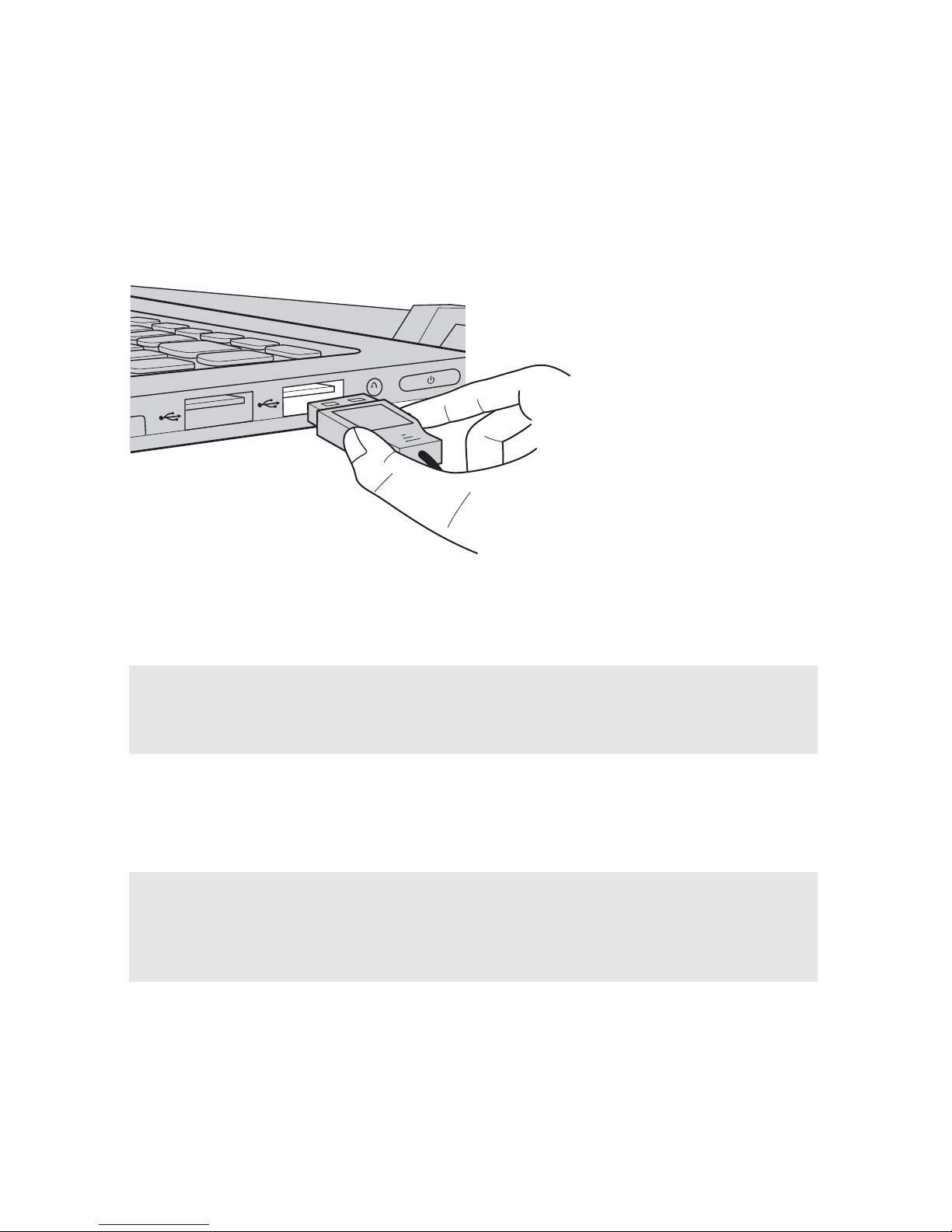

You can connect a USB device to your computer by inserting its USB plug
(Type A) into the USB port on your computer.
The first time you plug a USB device into a particular USB port on your
computer, Windows automatically installs a driver for that device. After the
driver is installed, you can disconnect and reconnect the device without
performing any additional steps.
Before disconnecting a USB storage device, make sure your computer has
finished transferring data by that device. Click the Safely Remove Hardware
and Eject Media icon in the notification area of the Windows desktop screen
to remove the device before disconnecting.
Note: Typically, Windows detects a new device after connecting it, and then installs the
driver automatically. However, some devices may require you to install the driver
before connecting. Check the documentation provided by the device’s manufacturer
before connecting the device.
Notes:
•If your USB device uses a power cord, connect the device to a power source before
connecting it. Otherwise, the device may not be recognized.
•When in sleep mode, you can only use keyboard instead of mouse to wake up the
computer.

Chapter 1. Getting to know your computer
11
Connecting network cables
To insert a network cable, do the following:
1 Hold one connector of the network cable to press the RJ-45 cover down
gently .
2 Insert the connector into the RJ-45 port .
Software configuration
Consult your Internet Service Provider (ISP) for details on how to configure
your computer.
a
b
a
b

12
Chapter 1. Getting to know your computer
Right-side view ---------------------------------------------------------------------------------------
Volume up button Increases volume level.
Volume down
button
Decreases volume level.
Combo audio
jack
Connects to headsets.
Notes:
•The combo audio jack does not support conventional microphones.
•The recording function may not be supported if third-party headphones or headsets are
connected, due to different industry standards.
Memory card slot Insert memory cards (not supplied) here. For details, see
“Using memory cards (not supplied)” on page 13.
USB ports Connect to USB devices. For details, see “Connecting USB
devices” on page 10.
Novo button When the computer is off, press this button to start the
Lenovo OneKey Recovery system or the BIOS setup
utility, or to enter the boot menu.
Note: For details, see “Chapter 3. Lenovo OneKey Recovery system” on page 26.
Power button Press this button to turn on the computer.
cba d
f g
e
a
b
c
d
e
f
g

Chapter 1. Getting to know your computer
13
Using memory cards (not supplied)
Your computer supports the following types of memory card:
• Secure Digital (SD) card
• MultiMediaCard (MMC)
Inserting a memory card
Slide a memory card in until it clicks into place.
Removing a memory card
Gently pull the memory card out of the memory card slot.
Attention:
•Insert only one card in the slot at a time.
•This card reader does not support SDIO devices (e.g., SDIO Bluetooth, etc.).
Note: If a dummy card is shipped with the computer, push the dummy card and then
remove it before inserting a memory card.
Attention:
•Before removing a memory card, disable it through Safely Remove Hardware and
Eject Media to avoid data corruption.



14
Chapter 1. Getting to know your computer
Front view --------------------------------------------------------------------------------------------------
Power indicator
Battery indicator
Symbol Indicator status Meaning
On (solid white) The computer is powered on.
Blinking The computer is in sleep mode.
Off The computer is powered off.
On (solid white) The battery has more than 20%
charge.
Solid amber The battery has between 5% and
20% charge.
Fast blinking amber There is a problem with the battery
or the battery connection.
Slow blinking amber The battery is being charged. When
battery charge reaches 20%, the
blinking color changes to white.
Slow blinking white The battery has between 20% and
80% charge and is still charging.
When the battery reaches 80%
charge, the light will stop blinking,
but charging will continue until the
battery is fully charged.
a
a
b

Chapter 1. Getting to know your computer
15
Bottom view ---------------------------------------------------------------------------------------------
Battery latch -
manual
Keeps the battery pack secured in place.
Battery pack
Battery latch -
spring loaded
Keeps the battery pack secured in place.
Ventilation slots Allow air to enter the computer for cooling.
Speakers Provide audio output.
b da
e
c
a
b
c
d
e

16
Chapter 2. Starting to use Windows 8
Configuring the operating system for the first time --------
You need to configure the operating system when it is first used. The
configuration process may include the procedures below:
• Accepting the end user license agreement
• Configuring the Internet connection
• Registering the operating system
• Creating a user account
Operating system interfaces ----------------------------------------------------------
Windows 8 comes with two main user interfaces: the Start screen and the
Windows desktop.
To switch from the Start screen to the Windows desktop, do one of the
following:
• Select the Desktop tile on the Start screen.
• Press the Windows button.
• Press the Windows key + D.
To switch from the desktop to the Start screen, do one of the following:
• Select Start from the charms bar.
• Move the cursor to the lower-left corner, then select the Start screen
thumbnail when it is displayed.
Start screen Desktop
