LEQISMART S11 User manual
ELECTRIC SCOOTER S11
USER MANUAL
Wear personal Protective equipment IMPORTANT!
Read carefully and keep for future reference
Thank you for the purchase of your new scooter, and thanks for taking time to
read the User Manual. We hope that the information you obtained from this manual
will help you operate safely, maintain and enjoy your scooter for years to come.
We appreciate your consideration and hope you enjoy and share your scooter
experience with all of your friends, family members, and loved ones.
Thank you and welcome to the scooter movement!
Enjoy your scooter!
1
Contents
1. General Information .............................................................................................................................. 2
2. Product Overview .................................................................................................................................. 3
2.1 General information ....................................................................................................................... 3
2.2 What you need to know ................................................................................................................ 3
3. Product Description ................................................................................................................................3
3.1 How to assemble ............................................................................................................................3
3.2 How to fold .........................................................................................................................................4
3.3 How to unfold ....................................................................................................................................4
4. How to ride ...............................................................................................................................................5
4.1 How to ride ........................................................................................................................................5
4.2 Display description ..........................................................................................................................6
4.3 Light description ...............................................................................................................................6
5. Scooter Safety Precautions ..................................................................................................................7
6. Weight and Speed Limitations ............................................................................................................8
7. Operating Range .....................................................................................................................................9
8. Battery Information and Specications .............................................................................................9
8.1 Battery Specications ....................................................................................................................9
8.2 Battery Waring ...............................................................................................................................10
9. Charging your scooter .........................................................................................................................10
10. Inspection, Maintenance, and Storage .........................................................................................11
11. Scooter Specications .......................................................................................................................12
12. After-sales service ..............................................................................................................................12
13. Non-warranty rule ...............................................................................................................................13
14. Warranty content ...............................................................................................................................13
2
1.General Information
Handle
Folding Hook
Accelerate Throttle
LCD Display
Brake handle
Hook Hole
Back Fender
LED Light
Long Pole
Folding
Wrench
Kickstand
Deck
Charging Port
3
2. Product Overview
2.1 General information
The original scooter is an intuitive, technologically advanced solution. Using the latest technology and production processes, each
scooter undergoes strict testing for quality and durability. With its lightweight, portable design, ease of use, range, and low carbon
footprint.The name or trade mark of the manufacturer, importer or organization responsible for its sale.
2.2 What you need to know
It is a short-distance mode of transportation ,Before you rst experience your scooter, please read the USER MANUAL thoroughly and
learn the basics to ensure the safety of you and others.
The power will be shut down if nobody operate it in ve minutes, you need to turn on the power button before you ride.
3. Product Description
3.1 How to assemble
The Smart Kick Scooter can be assembled within 2 minutes:
• Install the Handles and tighten the handles.
WARNING: Failure to follow the basic instructions and safety precautions listed in the user manual. Please read carefully
and keep it for the future reference it maybe lead to the damage of your scooter,other property, or other serlous bodlly injury.
Read carefully and keep for future reference !
Before installing the handles, please make sure to differenciate the
left & right handles carefully.
Please see the difference of left & right handles from below images.
LR
R
L
4

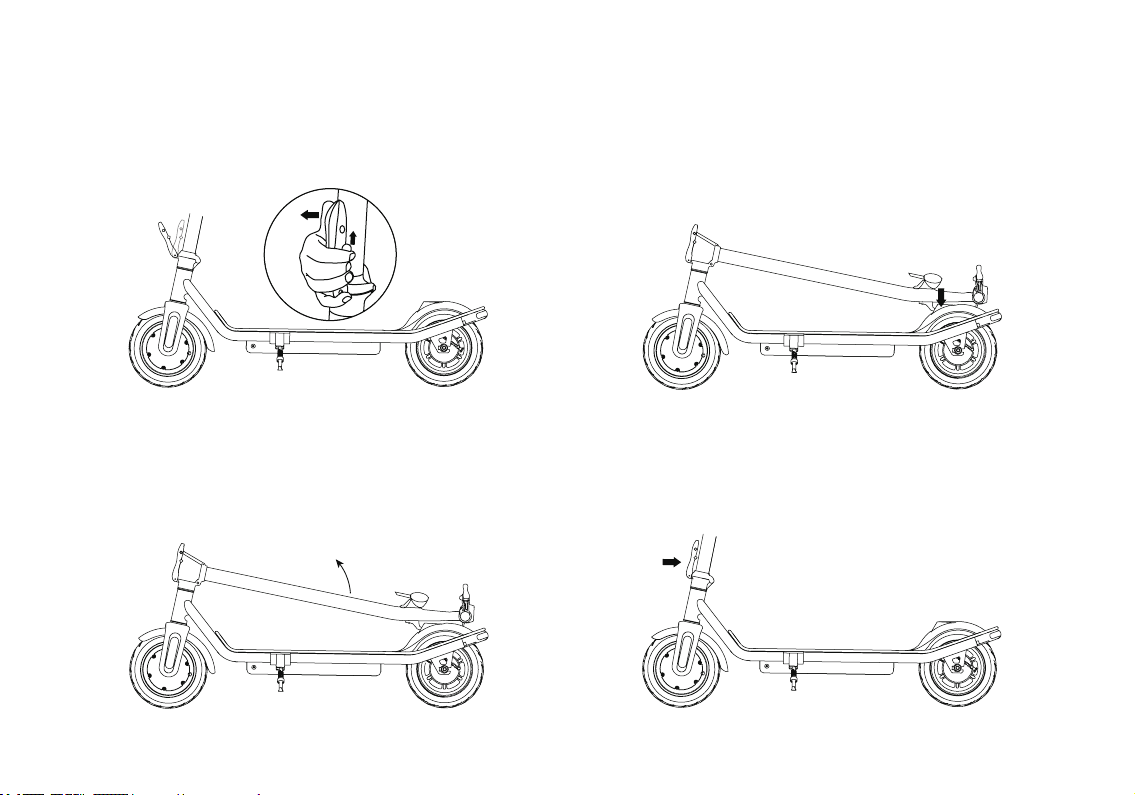

3.2 How to fold
1. Right index nger lift the buckle lock up, push the folding wrench
outward with the thumb to put down the upright pole.
3.3 How to unfold
1. Right hand presses down the back fender and the left hand pulls
up the long pole until folding hook gets out of the hook hole on back
fender.
2. Press the upright pole down until the folding hook is xed
into the hook hole on back fender.
2. Get the long pole stand up, then pull up the folding wrench
towards the upright pole and force it to stay close to upright
pole.
5
4. How to ride
4.1 How to ride
1. Turn on the Scooter by press the Power key for 2 seconds and
check the battery power.
2. once the power is on it is safer to start riding with one foot on
the deck and give a kick by other foot to speed up the scooter
to 5km/h, then push accelerator and place the other foot on the
deck, this is safer and more controlled than pulling o with two
feet on the deck as you will have less control and stability with
two feet on the deck.
3. To stop riding, release the throttle and press the brake handle
to stop the scooter. Do not stop suddenly! Be extra cautions
when dismounting for the rst time.
4. Turn o the scooter when nish using the product by press
the power key for 3seconds.
WARNING: There is risk of falling down during learning, so make sure to wear helmet and protection kits all the time.
6

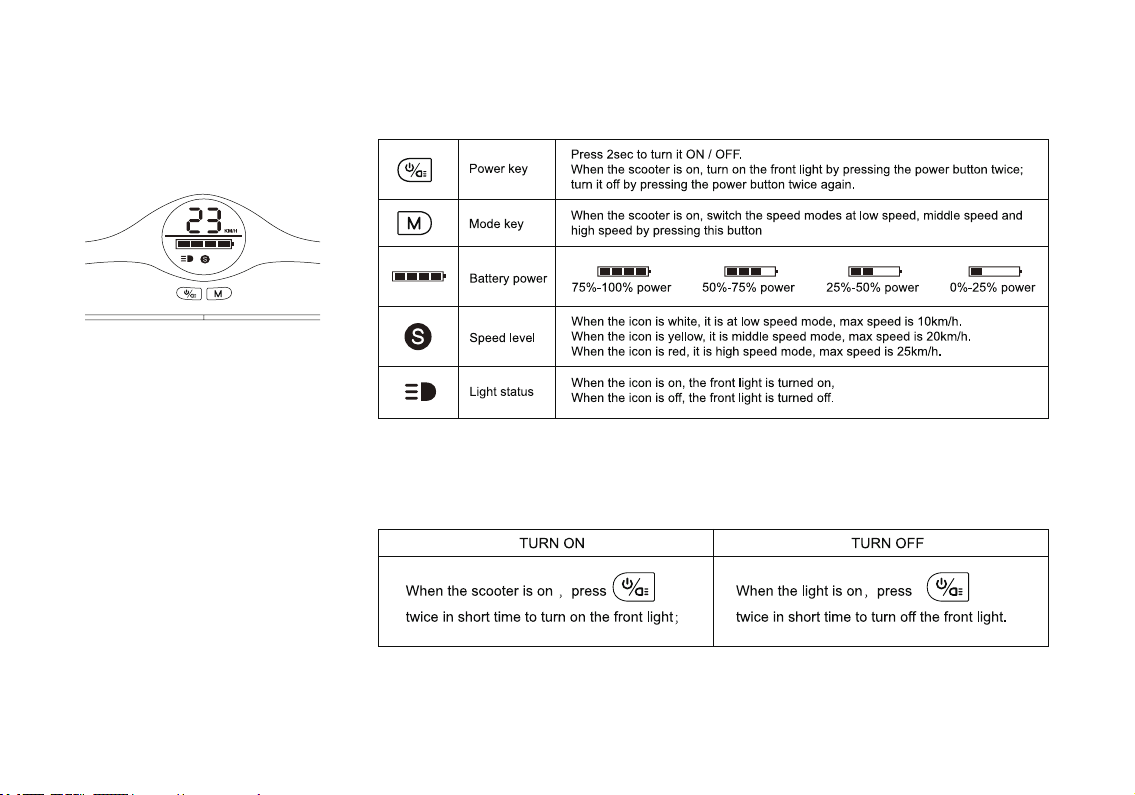

4.2 Display description
4.3 Light description
7
5. Scooter Safety Precautions
Failure to follow any of the following safety precautions may lead to the damage of your scooter, void your
manufacturer warranty, lead to property damage, cause serious bodily injury, and can lead to death.
1. Please wear all appropriate safety and protective gear as previously mentioned in the User Manual before operating the scooter.
2. Make sure to wear comfortable clothes and at closed toe shoes when operating your scooter.
3. Please carefully read the User Manual, which will assist in explaining the basic working principles and provide tips on how to best
enjoy your scooter experience.
4. Do not try to open or modify your scooter, as doing so will void your manufacturer warranty, and may cause failure to your device
leading to serious bodily injury or death.
5. Do not use the scooter to place yourself or anyone else and their property in danger.
6. Do not operate the scooter while under the inuence of drugs and/or alcohol.
7. Do not operate the scooter when you are restless or sleepy.
8. Use your best judgment to keep yourself out of dangerous situations with your scooter.
9. Do not ride your scooter o of curbs, ramps, or attempt to operate in a skate park, empty pool, or in any ways similar to a skateboard
or scooter. THE SCOOTER IS NOT A SKATEBOARD.
10. Do not turn sharply, especially at high speeds.
11. Do not abuse your scooter, otherwise it maybe damage your unit and cause failure to the operating system leading to injury.
12. Do not drive in or near puddles of water, mud, sand, stones, gravel, debris or near rough and rugged terrain.
13. The scooter can be used on paved roads that are at and even. If you encounter uneven pavement, please lift your scooter over
and past the obstruction.
14. Do not ride in inclement weather: snow, rain, hail, sleek, on icy roads or in extreme heat.
15. Do not ride in or near pools or other large bodies of water.
16. For Bumps and Uneven pavement-Bend your knees when riding on bumpy or uneven pavement to absorb the shock and vibration
and help you keep your balance. If you are unsure you can safely ride on a specic terrain, step o and carry your scooter. ALWAYS
ERR ON THE SIDE OF CAUTION.
17. Do not attempt to ride over bumps or objects greater then 1.5cm even when prepared and bending your knees.
18. PAY ATTENTION - look at where you are riding and be cognoscente of the road conditions, people, places, property and objects
around you.
19. Do not operate the scooter in crowded areas.
20. Operate your scooter with extreme caution when indoors, especially around people, property, and narrow spaces like doorways and
8
other narrow spaces.
21. Operate your scooter with extreme consideration for people and property at all times.
22. Do not operate the scooter while talking, texting, or looking at your phone.
23. Do not ride your scooter where it is not permitted.
24. Do not ride your scooter near motor vehicles or on public roads.
25. Do not climb or travel down steep hills with your scooter.
26. The scooter is intended for use by a single individual, DO NOT attempt to operate the scooter with two or more people.
27. Do not carry anything while reding the scooter.
28. Individuals with lack of balance should not attempt to operate the scooter.
29. Women who are pregnant or are preparing for pregnancy should not operate the scooter.
30. Young children and the elderly should not operate the scooter without proper instruction and supervision from a Certied scooter
trainer.
31. At higher speeds, always take into consideration longer stopping distances.
32. Do not step forward o your scooter.
33. Do not attempt to jump on or o your scooter.
34. Do not attempt any stunts or tricks with your scooter.
35. Do not ride the scooter in dark or poorly lit areas.
36. Do not ride the scooter near or over potholes, cracks or uneven pavement.
37. Do not operate yout scooter o-road.
38. Do not exceed the maximum or minimum weight limits.
39. Avoid driving the scooter in unsafe places, including near areas with ammable gas, steam, liquid, dust, ber, which could cause re
and explosion accidents.
6. Weight and Speed Limitations
6.1 Weight Restrictions
Maximum Weight: 100 kg.
6.2 Speed Limits
Maximum Speed: 10 km/h , 20 km/h , 25 km/h
PLEASE NOTICE
Speed and weight limits are set for your own safety.
Please do not exceed the limits listed in the User Manual.
9
7. Operating Range
Please notice the scooter can travel a distance of 15-22 km on a fully charged battery in ideal conditions. The
following are some of the major factors that will aect the operating range of your scooter.
Terrain: A smooth, at surface will increase your driving distance, while driving uphill, as well as rough or uneven terrain will reduce your
distance signicantly.
Weight: The weight of the user can aect driving distance, a lighter user will have further range than a heavier user.
Ambient temperature: Please ride and store the scooter under recommended temperatures, which will increase driving distance;
battery life, and overall performance of your scooter.
Maintenance: Reasonable battery charging and maintenance will increase the distance. Overcharging the battery can reduce range.
Speed and Driving Style: Maintaining a moderate speed will increase your distance; while travelling at high speeds for extended
periods, frequent starts, stops, idling, along with frequent acceleration and deceleration will reduce your overall distance.
8. Battery Information and Specications
This section is intended to provide you basic information about your battery and charger. Please read this
section carefully to ensure you riding safety. For user safety and to prolong the life of your battery, as well as
improve battery performance,please follow these instructions.
When the battery indicator shows lowbattery capacity, please charge your battery 4.5 hours utilizing
the charger that you received in your scooter package. To fully recharge your battery please follow the
instructions under charging your scooter.
8.1 Battery Specications
Battery Charging
time Voltage Initial
Capacity
Working
Temperature
Charging
Temperature Storage Time Storage
Temperature
Storage
Humidity
Lithium Battery 4.5 Hours 36 VDC 270 Wh 0 ℃~ 45 ℃-20 ℃~ 60 ℃6 Months -10 ℃~45 ℃45 % ~85 %
10
8.2 Battery Waring
Failure to follow the Safety Precautions listed in the Battery Warning could lead to serious bodily injury and death. Seek immediate
medical attention if you are exposed to any substance that is emitted from the battery.
• Do not attempt to modify, change, or replace your battery.
• Do not use your scooter if the battery begins to emit odor, overheats, or begins to leak.
• Do not touch any leaking materials, or breathe fumes emitted.
• Do not allow children and animals to touch the battery.
• The battery contains dangerous substances, do not open the battery, or insert anything into the battery.
• Please only use the charger provided by scooter.
• Do not attempt to charge the scooter if the battery has discharged or emitted any substances. In that case, the battery should be abandoned for safety.
• Please follow all local, state and federal laws in regards to recycling, handling and disposing of Lithium Ion batteries.
• The scooter should only be shipped in its original packaging.
• Do not throw away your box as you need you scooter packaging for future use.
9. Charging your scooter
Step 1: Ensure that the charging port is clean and dry.
Step 2: Plug the charger into the power socket, then connect the
cable with the power supply (100V~240V; 50,60Hz), make sure the
light on the charger is lit GREEN.
Step 3: Male DC connector plug into the charging port ofthe scooter.
The indicator light on the charger should change to RED, indicating
that your scooter is now, being charged. When the RED indicator light
on your charger turns to GREEN then your scooter is fully charged.
A full charge typically occurs within 4 hours.
Step 4: Please unplug the charger from your scooter and from the
power outlet.
If the green light on your charger does not turn RED when
you plug it tinto your scooter, it could mean you have to
check the cables to ensure you have a proper connection;
or that your scooter is already fully chaged. Push and hold
your power button next to the charging port to check the
status of your battery in the display.
• The best charging temperatures are between 0°~40°. Extreme cold and
extreme heat will prevent your battery from charging fully.
• Make sure to unplug your charger before standing on or operating you scooter,
as this can be very dangerous.
• Use only the scooter charger that you received in your box.
• If the scooter is powered on when you enter the plug, the Battery Indicator will
begin blinking, if the scooter is powered o when you enter the plug, the Battery
Indicator will not blink.
WARNING
11
NOTE
Only the indicator light on the charger will tell you the status of the battery during charging.
10. Inspection, Maintenance, and Storage
Your scooter requires routine inspection and maintenance. This chapter escribes maintenance steps and
important operating tips. Before you perform the following operations, ensure the power and charging cable
is disconnected.
10.1 Inspecting and Cleaning your scooter
Disconnect the charger and turn o your scooter.
Routinely check the body of the scooter and tires for damage or excessive wear.
Avoid using water or other liquids and cleaners on the scooter for cleaning. Wet a clean cloth with clean soapy water, rinse the cloth
thoroughly, and wipe the
body of the scooter making sure that water does not get into the power button, charging port, the foot mats, or tires.
10.2 Storing your scooter
Fully charge your battery before storing.
If you are storing your scooter for an extended period of time, please fully charge your scooter at least once every three month.
If the ambient temperature of the storage location is below 0°, please do not
charge. You must bring the scooter into a warmer environment before charging.
Check under Battery Information and Specications for more details.
To prevent dust from getting into your scooter, try wrapping it or sealing it with its original packaging.
Store your scooter indoors, in a dry and suitable temperature.
12
NOTE
Users who disassemble the scooter will forfeit their right of warranty.
11. Scooter Specications
• Model: S11
• Load: 100 kg
• Max. Speed Limit: 10 km/h , 20 km/h , 25 km/h
• Range: 15-22 km
• Max. Climbing Limit: 20 degree
• Battery: Lithium-ion, 7.5 Ah 270Wh
• Power Requirement: AC 100-240V / 50-60Hz
• Size (fold): 108 x 45 x 51.5 cm
• Size (unfold): 108 x 45 x 122 cm
• Platform Height: 170 mm
• Tire: Air tyre
12. After-sales service
1. Within 7 days from the day after you sign, the second sale of the product will not be aected. After testing
by the after-sales service center, you can enjoy free return or replacement services.
2. Within 8-15 days from the next day after you sign for the product, if the performance of the product failure,
through the after-sales service center detection and determination, you can enjoy free replacement or
maintenance services.
3. Within 12 months from the day after you sign the receipt, the product performance failure situation, through
the after-sales service center detection and determination, can enjoy free maintenance services.
Attention:
You are advised to keep the packing case for at least 15 days from the next day after you sign for it.
13
13. Non-warranty rule
1. Has exceeded the expiry date of three packages.
2. Damage caused by force majeure.
3. Damage caused by human causes (liquid injection, puncture, impact and traces and damage caused by
the normal use of appearance parts, etc).
4. Unauthorized maintenance, misuse, collision, negligence, abuse, infusion, accident, modication, incorrect
use of parts other than the product, tear or alter the label.
5. Commercial use of this product is not guaranteed.
14. Warranty content
Type Parts Times
Main parts Frame body, motor assembly, controller, handle, instrument, front tube, front fork assembly 12 Months
Attachment Battery body, charger, throttle indicator, brake handle, rear wheel, brake cable, connector cable,
foot support group 6 Months
Wearing parts Cover, front and rear lights, front and rear fenders, rubber plug, frame bottom cover, charging seat 3 Months
ShenZhen LEQI Intelligent Technology Co., Ltd.
Add: Factory Room 202, No. 340 Guihua Road, Guixiang Community,
Guanlan Sub-district, Longhua District, Shenzhen, Guangdong, China
Tel ：+86 400-088-7917 Web:www.leqismart.com
Table of contents
Other LEQISMART Scooter manuals
