Leroy-Somer Varmeca LS 71 Instruction Manual

VARMECA
Installation and maintenance
Installation and maintenance
Réf. 2534 - 4.33 / c - 2.99
Variable speed
Variable speed
motor or geared motor
motor or geared motor
This manual must begiven
to theenduser

VARMECA
2
NOTE
LEROY-SOMER reserves the right to modify the characteristics of its products at any
time in order to incorporate the latest technological developments. The information
contained in this document may therefore be changed without notice.
LEROY-SOMER gives no contractual guarantee whatsoever concerning the information
published in this document and cannot be held responsible for any errors it may contain, nor
for any damage resulting from its use.
CAUTION
For the user's own safety, this VARMECA motor must be connected to an approved earth
(B terminal).
It is imperative that the equipment is supplied via an isolating device and a circuit-breaking
device (power contactor) which can be controlled by an external safety system (emergency
stop, fault detector).
The VARMECA motor is fitted with safety devices which, in the event of a fault, control
stopping and thus stop the motor. The motor itself can become jammed for mechanical
reasons. Voltage fluctuations, and in particular power cuts, may also cause the motor to
stop.
The removal of the causes of the shutdown can lead to restarting, which may be dangerous
for certain machines or installations. In such cases, it is essential that the user takes
appropriate precautions against the motor restarting after an unscheduled stop.
VARMECA is a component designed to be integrated in an installation or an electrical
machine and can under no circumstances be considered to be a safety device. It is the
responsibility of the manufacturer of the machine, the designer of the installation or the user
to take all necessary precautions to ensure that the system complies with current standards
and to provide devices to ensure the safety of equipment and personnel.
For safety reasons, LEROY-SOMER prohibits the use of VARMECA for lifting applications.
LEROY-SOMER declines all responsibility in the event of the above recommendations
not being observed.

VARMECA
3
Throughout the manual, this
symbol warns of consequences
which may arise from inappropriate use
of the VARMECA, since electrical risks
may lead to material or physical damage
as well as constituting a fire hazard.
1 - General
Depending on their degree of protection,
VARMECA motors may contain moving
parts, as well as hot surfaces, during
operation.
Unjustified removal of protections, incorrect
use, faulty installation or inappropriate
operation could represent a serious risk to
personnel, animals and equipment.
For further information, consult the manual.
All work relating to transportation, installa-
tion, commissioning and maintenance
must be performed by experienced quali-
fied personnel (see IEC 364 or CENELEC
HD 384, or DIN VDE 0100 and national
specifications for installation and accident
prevention).
In these basic safety instructions, qualified
personnel means persons competent to
install, mount, commission and operate
the product and possessing the relevant
qualifications.
2 - Use
VARMECA motors are components
designed for integration in installations or
electrical machines.
When integrated in a machine, commiss-
ioning must not take place until it has
been verified that the machine conforms
with directive 89/392/EEC (Machinery
Directive).
It is also necessary to comply with standard
EN 60204, which stipulates in particular
that electrical actuators (which include
VARMECA) cannot be regarded as circuit-
breaking devices and certainly not as
isolating switches.
Commissioning can take place only if the
requirements of the Electromagnetic
Compatibility Directive (EEC/89/336,
modified by EEC 92/31) are met.
VARMECA motors meet the requirements
of the Low Voltage Directive 73/23/EEC,
modified by 93/68/EEC. The harmonised
standards of the DIN VDE 0160 series in
connection with standard VDE 0660, part
500 and EN 60146/VDE 0558 are also
applicable.
The technical characteristics and instructions
concerning the connection conditions
specified on the nameplate and in the
documentation provided must be observed
without fail.
3 - Transportation, storage
All instructions concerning transportation,
storage and correct handling must be
observed.
The climatic conditions specified in the
technical manual must be observed.
SAFETY AND OPERATING INSTRUCTIONS FOR ELECTRICAL
ACTUATORS (In accordance with the low voltage directive 73/23/EEC
modified by 93/68/EEC)

VARMECA
4
4 - Installation
The installation and cooling of equipment
must comply with the specifications in the
manual supplied with the product.
VARMECA motors must be protected
against excessive stress. In particular, the-
re must be no damage to parts and/or
modification of the clearance between
components during transportation and
handling. Avoid touching the electronic
components and contact parts.
VARMECA motors contain parts which are
sensitive to electrostatic stress and may be
easily damaged if handled incorrectly.
Electrical components must not be exposed
to mechanical damage or destruction (risks
to health!)
5 - Electrical connection
When work is performed on VARMECA
motors which are powered up, national
accident prevention specifications must be
respected.
The electrical installation must comply with
the relevant specifications (for example
conductor cross-sections, protection via
fused circuit-breaker, connection of protec-
tive conductor). More detailed information
is given in the manual.
Instructions for an installation which meets
the requirements for electromagnetic
compatibility, such as screening, earthing,
presence of filters and correct insertion of
cables and conductors, are given in the
documentation supplied with the VARMECA.
These instructions must be followed in all
cases, even if the VARMECA carries the
CE mark. Adherence to the limits given in
the EMC legislation is the responsibility of
the manufacturer of the installation or the
machine.
6 - Operation
Installations incorporating VARMECA motors
must be fitted with additional protection
and monitoring devices as laid down in the
current relevant safety regulations : law on
technical equipment, accident prevention
regulations, etc. Modification of VARMECA
motors using control software is permitted.
Active parts of the device and live power
connections must not be touched
immediately after the VARMECA is
powered down, as the capacitors may still be
charged. In view of this, the warnings fixed
to VARMECA motors must be observed.
During operation, all doors and protective
devices must remain closed.
7 - Service and maintenance
Refer to the manufacturer's documenta-
tion.

VARMECA
5
CONTENTS Pages
1 - GENERAL INFORMATION
1.1 - General operating principle.................................................. 6
1.2 - Product name....................................................................... 6
1.3 - Characteristics..................................................................... 7 - 8
1.4 - Environmental specifications............................................... 9

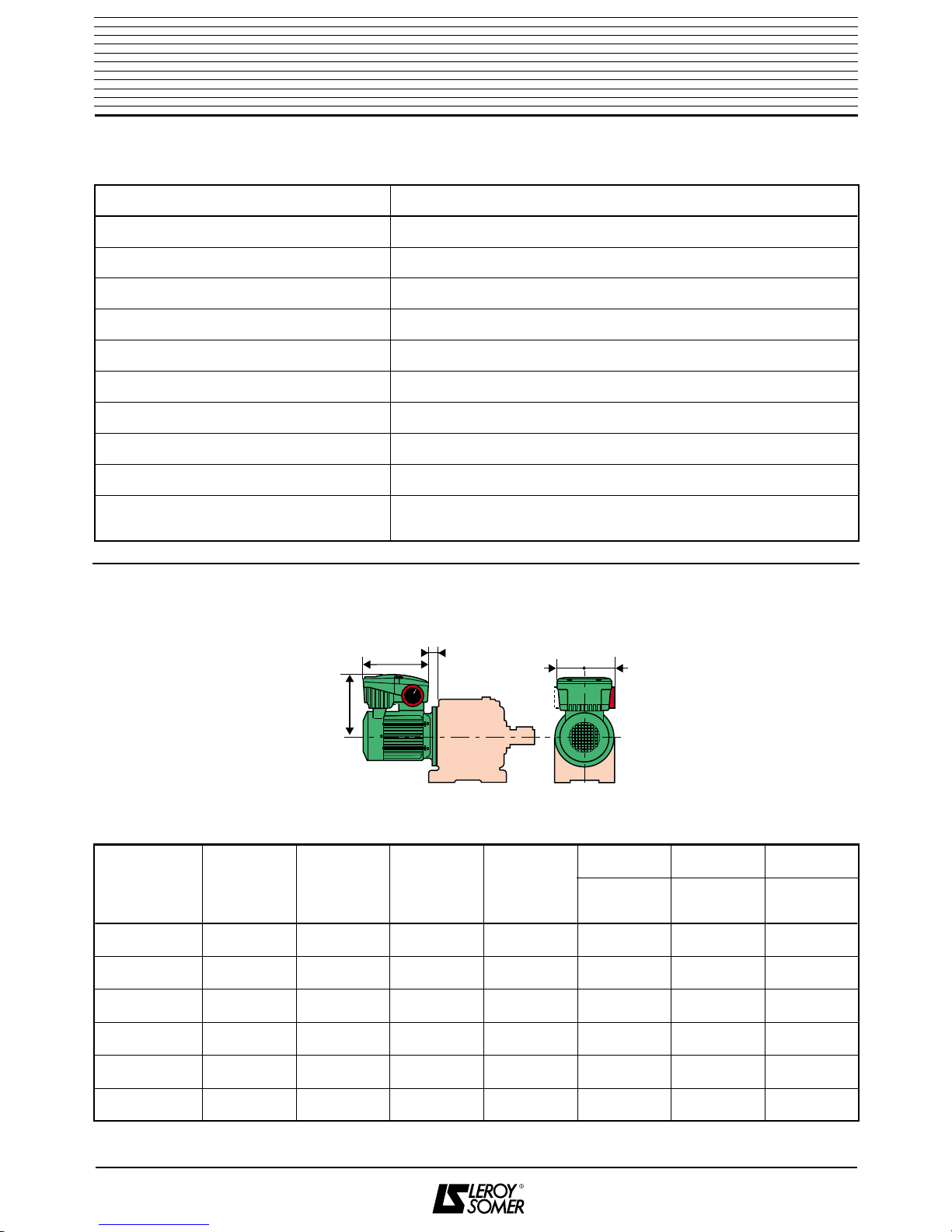

1.5 - Weight and dimensions........................................................ 9
2 - INSTALLATION
2.1 - General information............................................................. 10

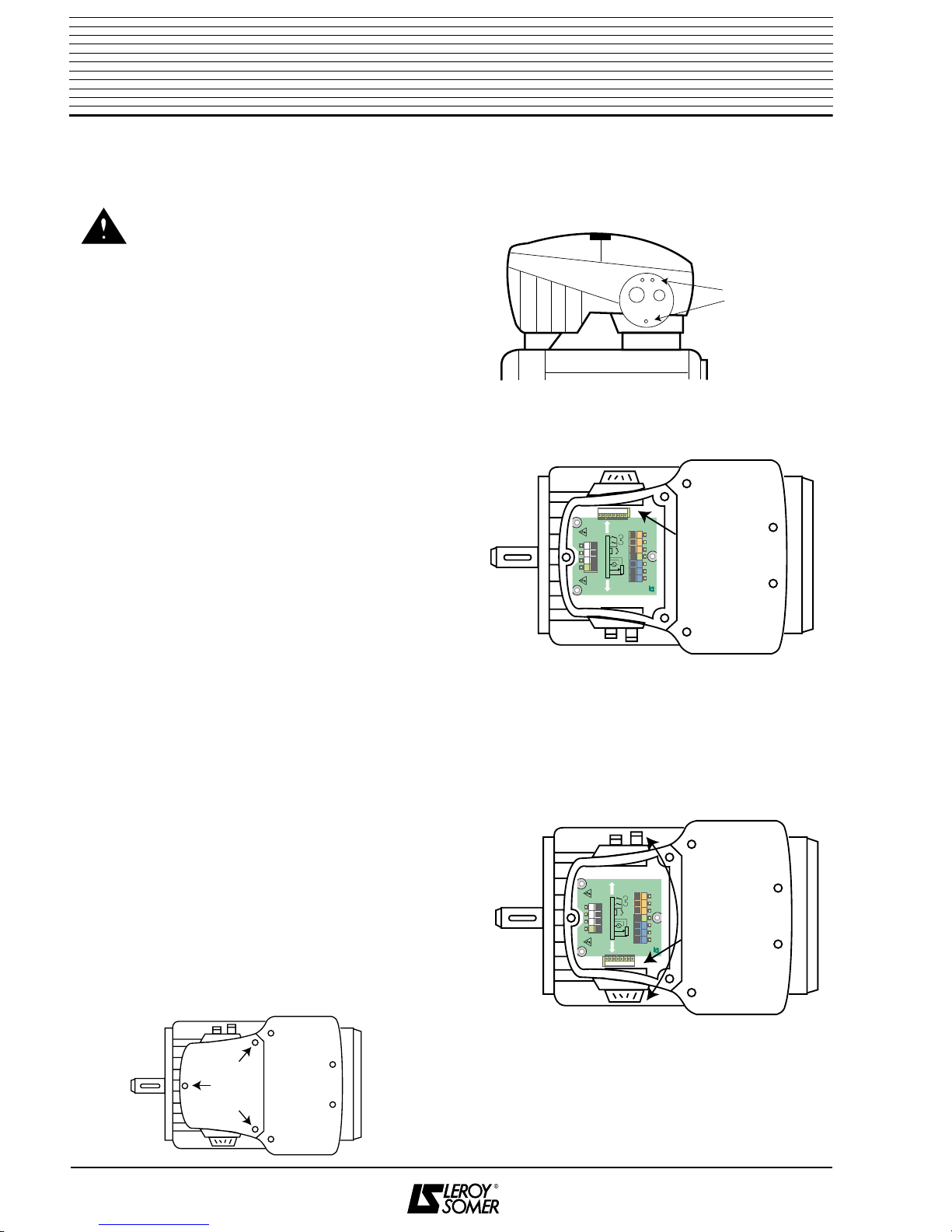

2.2 - Reversing the supports........................................................ 10
3 - CONNECTIONS
3.1 - Wiring precautions............................................................... 11
3.2 - Terminal blocks.................................................................... 11-12
3.3 - Electrical and electromagnetic phenomena......................... 13
3.4 - Description of cables and protections.................................. 13
4 - COMMISSIONING
4.1 - Standard VARMECA............................................................ 14
4.2 - VARMECA with remote control option................................. 14
5 - FAULTS - DIAGNOSTICS........................................................... 14
6 - MAINTENANCE
6.1 - Servicing.............................................................................. 15
6.2 - Measurements..................................................................... 15
6.3 - Spare parts.......................................................................... 16 - 17
7 - OPERATING EXTENSIONS
7.1 - Option without control button (SD or SG)............................ 18
7.2 - Option with integrated run-stop control (CMA)..................... 18
7.3 - Forward/Reverse/Stop control option (CMAVAR)............... 18
7.4 - Grouped option (RDCVS).................................................... 19
7.5 - EMC filter option (FLT VMA)................................................ 20
7.6 - Electromechanical brake option........................................... 20

VARMECA
6
1 - GENERAL INFORMATION
1.1 - General operating principle
The VARMECA is the physical association
of a 3-phase asynchronous motor and an
integrated speed controller.
The motor allows all kind of mounting
arrangements (foot or flange) and can be
combined with the standard gearboxes of
the LEROY-SOMER range.

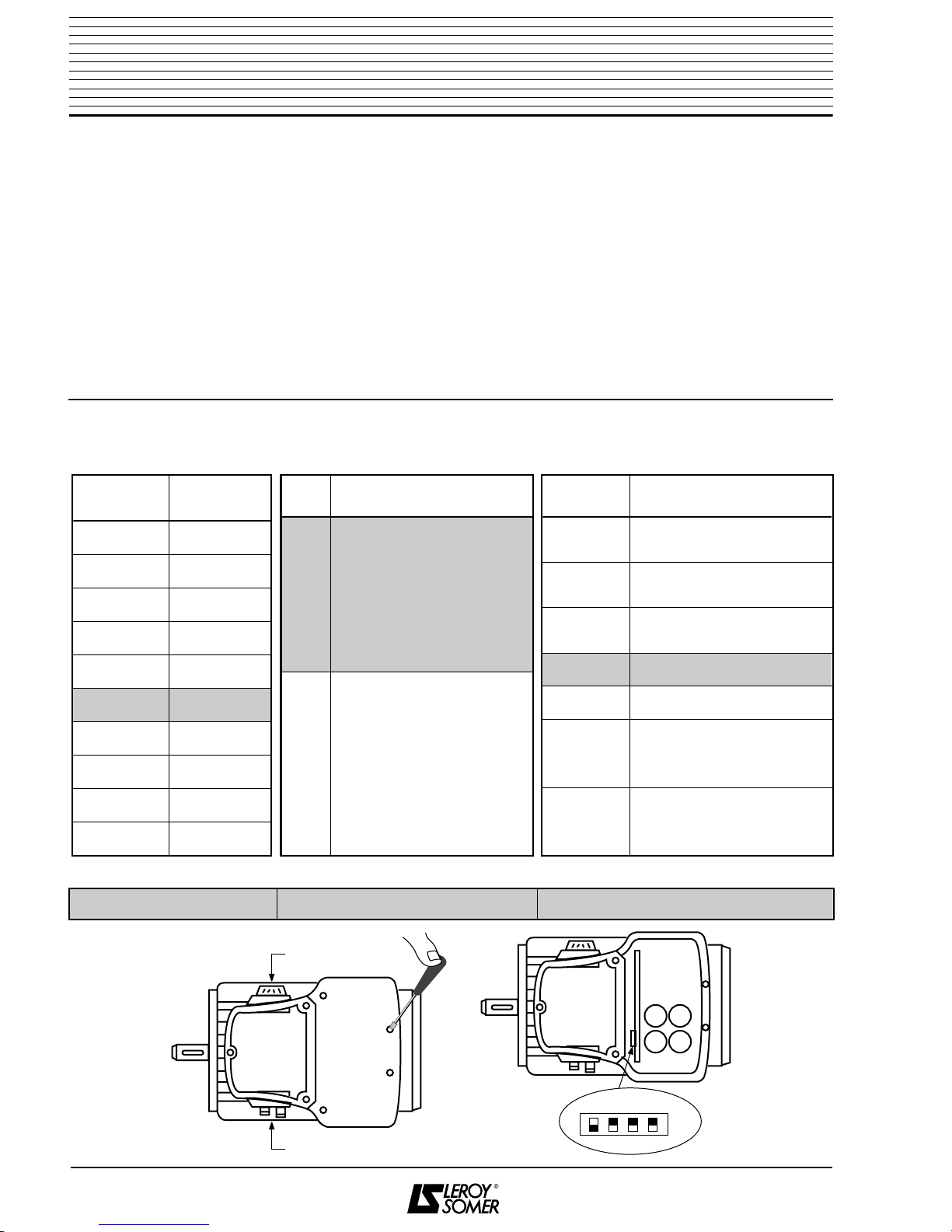

1.2 - Product name
Exemple
In the standard version, the integrated
speed controller does not require any
connection other than the power supply.
The options may be used to broaden the
application range of the VARMECA speed
controller.
Thanks to the advanced technology of the
IGBT power module, very high efficiency
and reduced noise level are possible.
Rating Power
(kW)
37 0,37
55 0,55
75 0,75
90 0,9
110 1,1
150 1,5
180 1,8
220 2,2
300 3
400 4
Code Position
BD Button on left side
Cable gland : right side
BG Button on right side
Cable gland on left side
Code Option
SD Without button
Cable gland : right side
SG Without button Cable
gland : left side
CMA With integrated
Run/Stop control
FLT VMA Integrated EMC filter
RDCVS With group option
CMA VAR With integrated For-
ward/Reverse/Stop
control
Brake With electromechanical
failsafe brake
Button + indicator
Cable gland
S4*
S4* : ON = 80 Hz
OFF = 50 Hz
S3 S2 S1 OFF
ON
VARMECA rating Cable gland position Option
VMA 150 BD FLT VMA

VARMECA
7
1.3 - Specifications
1.3.1 - Electrical data
1.3.2 - Specifications and functions
Power supply 3-phase supply 400V ±10 %, 50-60Hz ±5 %
Output voltage From 0V to input voltage
Power range 0.37 - 0.55 - 0.75 - 0.9 - 1.1 - 1.5 - 1.8 - 2.2 - 3 - 4 kW
Maximum number of power-ups
per hour 10
Description VARMECA
Overload 150 % of In for 40s 10 times per hour
Motor speed variation
range ✶From 12 to 80 Hz at constant torque ✶ mini DIP S4 = ON
6-pole motor : 240 to 1600 min-1
4-pole motor : 360 to 2400 min-1
2-pole motor : 720 to 4800 min-1
From 12 to 50 Hz for general applications ✶ mini DIP S4 = OFF
6-pole motor : 240 to 1000 min-1
4-pole motor : 360 to 1500 min-1
2-pole motor : 720 to 3000 min-1
Efficiency 96 % x motor efficiency
Control VARMECA
Speed reference
0V or 4mA = minimum spee
d
10V or 20mA =maximum
speed
•0 - 10V with integrated potentiometer
•0 - 10V with remote potentiometer option
•0 - 10V with external reference
•4 - 20mA with external reference (with RDCVS option)
•0 - 10V with internal potentiometer including speed limiting
with a second internal potentiometer (RDCVS option)
Run/Stop •With 3-phase power supply (10 times per hour max)
•With remote volt-free contact
•With integrated Run/Stop control (CMA option)
Forward/Reverse •With internal connection in the terminal block
•With remote volt-free contact
•With integrated Forward/Reverse/Stop control (CMVAR option)
✶Selection by mini DIP switch, reference S4 situated on the electronic board (access via
rear terminal box cover - see opposite).

VARMECA
8
Control (continued) VARMECA
Stop modes • On ramp (with volt-free contact or integrated Run/Stop control
• Free wheel stop (by cutting off the 3-phase power supply)
• On electromechanical brake (integrated control)
Ramps • Selection of acceleration and deceleration ramps with volt-
free contact : 2s or 5s (factory setting 5s)
Indications VARMECA
Display Two-colour indicator lamp
• Permanent green light : mains connected
• Flashing green light : overload
• Flashing red light : Fault, under- or overvoltage
• Permanent red light : other fault
Analogue output • Speed image 0 - 10V, 3mA
• 0V = zero speed
• 10V = maximum speed
Protections VARMECA
Power • Undervoltage
• Overvoltage
• Overloads :
- overheating, motor and speed controller
- protection against blocked rotor
• Short-circuit
- motor windings
- phase-earth
Control Short-circuit on inputs or outputs 0-10V
Trip clearance • By powering down the VARMECA
Options VARMECA
Run/Stop control • Integrated in the cover
Forward/Reverse/Stop
control • Integrated in the cover
Without control button • For remote control. Indicator lamp on the VARMECA.
With EMC filter Integrated in the cover
With grouped options Integrated, mounted instead of the mains supply connection
plate
Electromechanical brake • Integrated, the control and power supply do not require any
connection

VARMECA
9
1.5 - Weight and dimensions
Weight : 4.2 kg in addition to motor weight.
Specifications Level
Protection index IP 55
Storage temperature -40°C to +70°C (IEC 68.2.3)
Transport temperature -40°C to +70°C
Operating temperature -20°C to +40°C (+50°C with derating)
Altitude ≤1000m without derating
Ambient humidity Without condensation
Vibrations IEC 68-2-34 (acceleration 0.01 g2/Hz)
Shocks IEC 68-2-27 (peak acceleration 50g)
Immunity According to EN 50082-2
Conducted and radiated emissions
(
with inte
g
rated filter option
)
According to EN 50081-2 and : EN 55011 class A
1.4 - Environmental specifications
JLJ
HJ
III
LJ
Type HJ J I II B3 / B14 B5 B5 with
gearbox
LS 71 195 225 82,5 92,5 8 8 34
LS 80 205 225 82,5 92,5 12 12 39
LS 90 215 225 82,5 92,5 12 32 32
LS 100 220 225 82,5 92,5 12 12 33
LS112 M 220 225 82,5 92,5 - - -
LS 112 MG 229 225 82,5 92,5 22 12 16,5

VARMECA
10
2 - INSTALLATION
• It is the responsibility of the
owner or user to ensure that the
installation, operation and maintenance
of the inverter and its options comply
with legislation relating to the safety
of personnel, animals and equipment,
and with the current regulations of the
country of use.
• Do not carry out any work
before having disconnected and
locked the speed controller power
supply ; furthermore, it is necessary
to wait 2 minutes to make sure that
the capacitors have discharged.
• After connection, ensure that
the seals are firmly in place, and that
the screws and cable glands are
watertight to ensure IP55 protection.
Clear any condensation from the drain
holes.
2.1 - General
The VARMECA is fitted to the machine
like a standard motor, with flange or foot
mounting.
The motor ventilation cools the whole
assembly. Make sure that the ventila-
tion air inlet is free of obstruction.
The position of the potentiometer and cable
gland supports is specified at the time of
ordering, however they may be reversed
if necessary.
2.2 - Reversing the supports
1) Undo the 3 TORX 20 + slot type
screws and remove the cover.
2) Remove the control button and cable
gland support fastening screws (TORX 10
+ slot type screws).
3) Disconnect the printed circuit layer holding
the control button potentiometer.
4) Reverse the control button and cable
gland supports.
5) Reconnect the printed circuit layer holding
the control button potentiometer and replace
the fastening screws.
6) Replace the cover.
CAUTION :
This operation should only be performed in
exceptional circumstances and must be carried
out by experienced and qualified personnel.
L1
1563PE 42
L2
Filtre
CEM EMC
filter
L3PE
12345
5s
2s Start/Stop
Accel
Decel
678
Avant
intervention
attendre 2mn
Before
maintenance
wait 2mn
ATTENTION CAUTION
10kΩ
12345678
TORX 10 +
slot type screw
L1
1563PE 42
L2
Filtre
CEM EMC
filter
L3PE
12345
5s
2s Start/Stop
Accel
Decel
678
Avant
intervention
attendre 2mn
Before
maintenance
wait 2mn
ATTENTION CAUTION
10kΩ
1234567 8

VARMECA
11
3 - CONNECTIONS
• The voltages existing on the power
supply terminal blocks and the
connected cables may cause fatal
electric shocks. The stop function of
the controller does not protect against
these high voltages.
• The controller contains capacitors
which remain charged at a fatal voltage
level even after the power supply has
been cut off.
• After the controller power
supply has been cut off, wait for 2
minutes (so the internal circuits can
discharge the capacitors) before
removing the protective covers.
• The speed controller power
supply must be protected against over-
loads and short-circuits.
It is vital to respect the rating of
protections.
3.1 - Wiring precautions
- When the VARMECA is controlled
remotely, avoid parallel routing of power
cables and control cables.
- All remote control cables should be
shielded and have a cross-section
between 0.22 mm2 and 1 mm2.
- Incorporate a bend where the cables
enter the cable glands so that water cannot
penetrate the terminal box.
- Tighten the cable glands firmly.

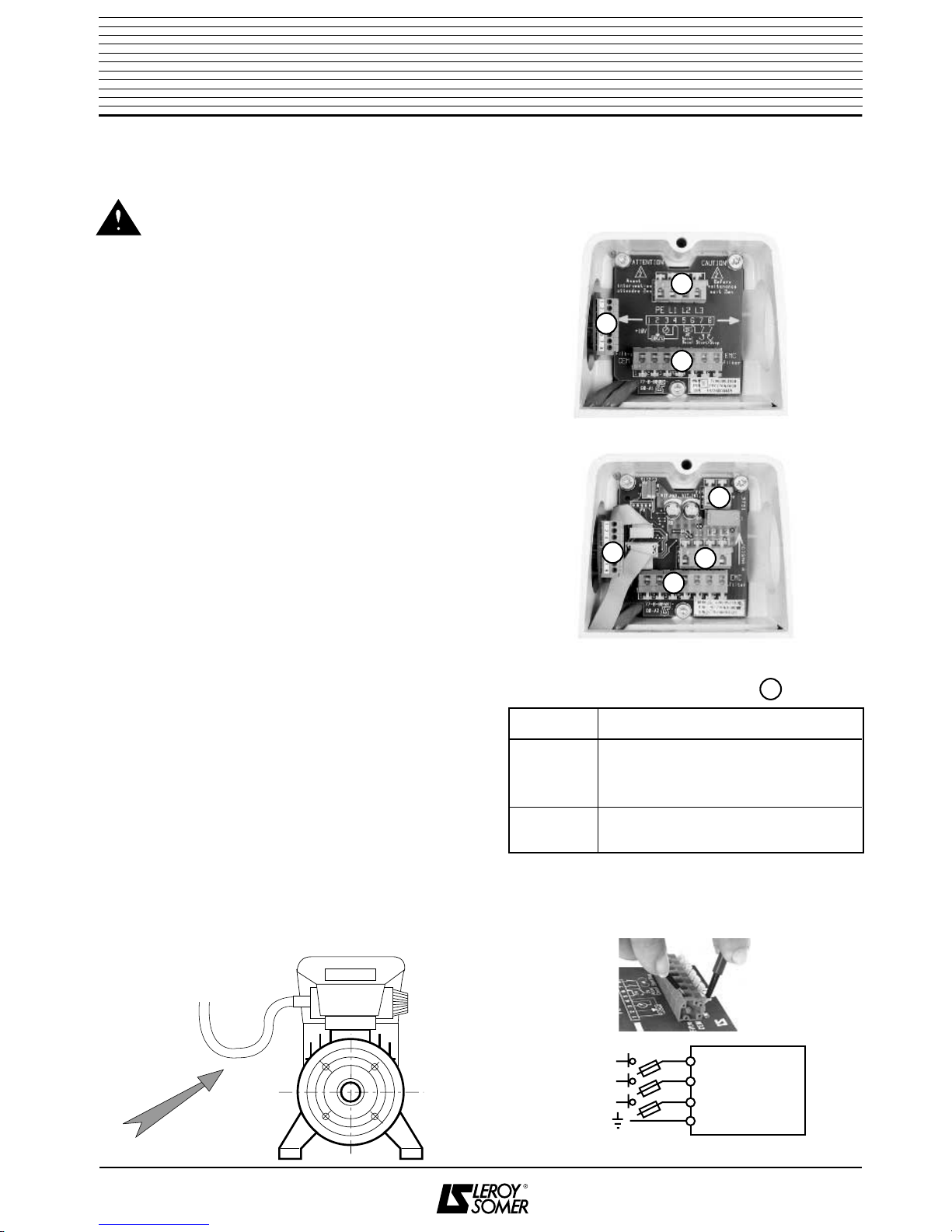

3.2 - Terminal blocks
3.2.1 - Layout
•Standard
•With RDCVS option
3.2.2 - Mains terminal block
Note : To open blade terminals, use a flat
screwdriver with a maximum width of 4 mm.
Ref. Function
L1
L2
L3
Connection of the 3 mains
protected phases, defined in
section 1.3.1
PE Compulsory connection to
earth
VARMECA
L1
L2
L3
PE
3-phase
mains
supply
1
2
3
1
2
3
4
1

VARMECA
12
3.2.3 - EMC filter option terminal block
CAUTION :
Standard VARMECA motors are supplied
with blade terminals 1 and 4, 2 and 5, 3 and
6 connected together : to fit the filter it is
necessary to undo these connections.
3.2.4 - Control terminal block
This is located on the side printed circuit
and is used for remote control.
To open blade terminals use a flat screw-
driver with a maximum width of 2.5 mm.
On leaving the factory, terminals 5 and 6
are connected together (ramp 5s) as well
as terminals 6 and 8 (forward).
3.2.5 - Fault relay terminal block
3.2.6 - Connection
All connections and work must
be carried out with the power
switched off.
✶✶ Connection of a 10kΩpotentiometer for
remote control should be carried out with the
"without control button" option. Nevertheless,
if you have the standard "with control button"
version, it is necessary to remove connection
S1 (located on the side printed circuit which
holds the terminal block) with a soldering
iron, to avoid parallel connection of both
potentiometers.
Ref. Function
1
2
3
Filter output
Connection of blue wires
PE Compulsory connection of filter
earth
4
5
6
Filter input
Connection of orange wires
12345678
Terminals Specifications
7Reverse/Stop control logic
input
8Forward/Stop control logic
input
Terminals Specifications
1Source +10V, 3mA of the
10kΩpotentiometer
2Reference input 0 to +10V
(4-20mA with RDCVS option)
3
Analogue speed output 0 to
+10V, 3mA
0V = zero speed
10V = max speed 80 Hz
4 0V common with terminal 6
5
Ramp selection logic input
5s:terminals5&6connected
2s : terminals 5 & 6 not
connected
6 0V common with terminal 4
1
2
3
4
5
6
7
8
V
External 10 kΩpotentiometer
Speed reference
Speed image output
0V
Ramp selection
0V
Reverse/Stop
Forward/Stop
✶✶
4
Ref. Function
P1, P2 Volt-free contact 250V 1A
S1 S1
S1
Factory
setting (weld spot)
Weld spot
removed
Term. blk
2
3

VARMECA
13
3.3 - Electrical and electromagnetic phenomena
The VARMECA conforms to electromagnetic compatibility directive 89/336/EEC, modified by
92/31/EEC, provided it is fitted with the EMC filter option.
3.4 - Description of cables and protections
•When using a circuit-breaker, it must be a motor circuit-breaker.
•Comply with size of protection fuses.
•Cable size may vary according to current national standards, which take
precedence over the values given in the table below without exception.
•These tables should never be used instead of current standards.
Note : The value of the mains current is a typical value which depends on the source
impedance. The higher the impedance, the lower the current.
VARMECA Power 3-phase mains 400V ±10 %
rating (kW) Current (A) gl fuses (A) Cables (mm2)
37 0,37 1,7 3 1,5
55 0,55 2,2 3 1,5
75 0,75 3 4 1,5
90 0,9 3,5 6 1,5
110 1,1 4,1 6 1,5
150 1,5 5,3 6 1,5
180 1,8 6,2 8 2,5
220 2,2 7,7 10 2,5
300 3 8,9 16 2,5
400 4 10 16 2,5

VARMECA
14
4 - COMMISSIONING
•Before the VARMECA motor is
powered up, check that all
electrical connections are correct and
that any moving parts are mechanically
protected.
•For safety of personnel, the
VARMECA motor must not be powered
up with the protective covers removed.
4.1 - Standard VARMECA
4.1.1 - Starting on power-up
- Power-up : the green indicator lamp is lit
continuously. As control terminals 6 and 8
are connected, the motor starts running
forward.
- Set the speed reference with the side
control button.
The number of power-ups is limited to
10 per hour.
4.1.2 - Starting with remote control
- Power-up : the green indicator lamp is lit
continuously.
- Activate the run command corresponding
to the desired direction, the motor starts.
- Set the speed reference with the side
control button.
4.2 - VARMECA with remote control
option
- Power-up : the green indicator lamp is lit
continuously.
- Select the desired ramp.
- Set the reference with the 10 kΩremote
potentiometer.
- Select the desired direction of rotation,
the motor starts running.
5 - FAULTS - DIAGNOSTICS
Information relating to the VARMECA status is provided by a two-colour indicator lamp located on
the control button support.
Trips can be cleared by powering down.
Colour and state
of indicator lamp Trip cause Checks to be performed
Permanent green No fault
Mains present -
Flashing green •Overload •Check that the motor is not overloaded
or jammed
Permanent red
•Short-circuit of a
motor winding
•Locked rotor
•Faulty insulation
of winding
•Overheating I2t
•Internal fault
•Check no incident has occurred
•Power down the controller, then power up again
•Check that the deceleration ramp is long
enough (5s) for applications with high inertia
•If the fault remains, consult LEROY-SOMER
Flashing red
•Undervoltage
•Overvoltage •Check mains voltage •Check that the deceleration ramp is long
enough (5s) for applications with high inertia
•Switch off and then on again

VARMECA
15
6 - MAINTENANCE
• All work related to installation,
commissioning and maintenance
must be carried out by experienced and
qualified personnel.
• Do not carry out any work
before the VARMECA power supply has
been cut off and locked, and wait 2
minutes until the capacitors have
discharged.
6.1 - Servicing
No specific maintenance is required for
VARMECA motors, apart from the
regular removal of dust from the
ventilation louvres and the cooling
fins situated at the bottom of the box.
Do not dismantle the VARMECA while it
is still under guarantee, as this would
then immediatelybecome null and void.
CAUTION :
The rear cover protects the electronic
boards and should only be removed for
adjustment using the mini DIP switch
marked S4 ✶.
Certain components which are sensitive
to electrostatic discharges can be
destroyed simply by touching them.
Do not leave any metal object in the
connection area, as this might cause a
short-circuit.
✶ For ratings 300 and 400, S4 can be
accessed without removing the rear cover,
via the connection space, through a
special opening in the rear cover, which is
protected by a plastic plug.
6.2 - Measurements
6.2.1 - General
The input voltages can be measured with
ordinary instruments.
Motor current is not measured on the
VARMECA power supply (L1, L2, L3). It
is measured with an ordinary clamp ammeter
on the longest wire, which forms a loop on
the side of the connection circuit.
6.2.2 - Procedure for measuring the
motor current (if the motor wire loop is
accessible)
- Open the VARMECA power supply
circuit and lock it.
- Wait 2 min for the capacitors to discharge.
- Open the cover of the VARMECA.
- Remove the mains cable (L1, L2, L3).
- Remove the 3 TORX 20 + slot type
screws from the connection circuit.
- Pass the longest motor wire along the
side of the connection circuit.
- Replace the connection circuit and fasten it.
- Reconnect the mains (L1, L2, L3).
- Pass the clamp ammeter through the motor
wire loop.
L1
1563PE 42
L2
Filtre
CEM EMC filter
L3PE
12345
5s
2s Start/Stop
Accel
Decel
678
Avant
intervention
attendre 2mn
Before
maintenance
wait 2mn
ATTENTION CAUTION
10kW
Motor
wire
(black)

VARMECA
16
6.3 - Spare parts Description Part code Ref.
Control button + indicator lamp kit (BD or BG) VMA999KB001
Kit without control button (SD or SG) VMA999KB002
Cable gland kit (standard) VMA999KE001
Cable gland kit (3 PE brake) VMA999KE002
DE cover + EMC filter kit (FLT VMA) VMA999KC001
+ Run/Stop control (CMA)
DE cover and EMC filter kit (FLT VMA) VMA999KC002
DE cover + Run/Stop control kit (CMA) VMA999KC003
DE cover only VMA999KC004
DE cover + EMC filter kit (FLT VMA) VMA999KC005
+ FWD/REV control (CMAVAR)
DE cover kit + FWD/REV control (CMAVAR) VMA999KC006
Brake supply kit VMA999KA001
Standard interconnection printed circuit PEF770NC000
Interconnection printed circuit with RCDVS options PEF770NH000
Standard speed controller kit with 0.37 / 0.5 / 0.75 / 0.9 /1.1 kW VMA080CB001
NDE cover 1.5 / 1.8 / 2.2 kW VMA090CB001
3 / 4 kW VMA100CB001
Speed controller kit with RDCVS 0.37 / 0.55 / 0.75 / 0.9 / 1.1 kW VMA080CB002
option and NDE cover 1.5 / 1.8 / 2.2 kW VMA090CB002
3 / 4 kW VMA100CB002
When ordering spare parts, specify the serial number and type of the motor and gearbox on
which the VARMECA is installed.
41a
41b
78
78
74
74
74
74
74
74
46
84
84
70
70
70
70
70
70

VARMECA
17
TORX 10 screw
78
84
70
41b
41a
46
74

VARMECA
18
7.1 - Option without control button
(SD or SG)
The potentiometer is no longer located on
the VARMECA (the indicator lamp remains),
but near the operator.
Ramp selection and selection of running
direction can also be positioned close to
the operator.
7 - OPERATING EXTENSIONS
7.2 - Integrated run-stop control option (CMA)
With a Run key and a Stop key located on the cover, it is possible to control the VARMECA
locally, as desired, once powered up.
7.3 - Forward/Reverse/Stop control option (CMAVAR)
As with the CMA option, the keys are located on the cover. They are used to control the
motor locally in both directions of rotation.
For an instruction to be taken into account, the relevant key must be held down for 1 second.
L1
1563PE 42
L2
Filtre
CEM EMC filter
L3PE
12345
5s
2s Start/Stop
Accel
Decel
678
Avant
intervention
attendre 2mn
Before
maintenance
wait 2min
ATTENTION CAUTION
10kW
EMC filter option terminal block
12345678
B
l
u
e
(
t
e
r
m
i
n
a
l
8
)
M
a
u
v
e
(
t
e
r
m
i
n
a
l
7
)
B
l
a
c
k
(
t
e
r
m
i
n
a
l
4
)
R
e
d
(
t
e
r
m
i
n
a
l
1
)
w
o
l
l
e
Y
L1
1563PE 42
L2
Filtre
CEM EMC filter
L3PE
12345
5s
2s Start/Stop
Accel
Decel
678
Avant
intervention
attendre 2mn
Before
maintenance
wait 2min
ATTENTION CAUTION
10kΩ
EMC filter option terminal block
12345678
B
l
u
e
(
t
e
r
m
i
n
a
l
7
o
r
8
)
B
l
a
c
k
(
t
e
r
m
i
n
a
l
4
)
R
e
d
(
t
e
r
m
i
n
a
l
1
)
w
o
l
l
e
Y

VARMECA
19
7.4 - Grouped options (RDCVS)
The RDCVS printed circuit is fitted instead
of the standard connection circuit and
offers the additional functions described
below.
7.4.3 - Selector switches for the speed
reference
The selection is made according to the table
below :
Factory setting.
7.4.1 - Speed controller fault
Volt-free contact (1A/250V) on terminal block
no. 4 (terminals P1 - P2). Contact open when
there is a fault on the electrical part or when
the speed controller is switched off.
Reference Position
of switches
selected S1 S2 S3
"Local" control
button or external
potentiometer 0 1 1
"VIT INT" potentio-
meter 001
0 - 10 V external
reference 101
4 - 20mA external
reference 100
7.4.2 - Adjustment of the internal speed (VIT INT) and the maximum speed (VIT MAX) via
potentiometers.
The "VIT MAX" potentiometer is used to reduce the maximum speed for a maximum
reference, independently of the setting of S4. The "VIT INT" potentiometer is used to adjust an
operating speed : it replaces the adjustment of the external potentiometer. Access to these
settings depends on the position of the selector switches (S1, S2, S3).
Fault relay
Supply
RFI filter
Adjustment of
internal speed
Control reference
selector
Max. speed stop
Control/Command

VARMECA
20
7.5 - EMC filter option (FLT VMA)
The filter is located in the VARMECA
cover and is connected instead of connec-
tions 1-4, 2-5, 3-6, paying attention to the
colour of the wires.
It is essential to connect the filter PE terminal.
7.6 - Electromechanical brake option
The motor should be equipped with an
FCR brake adapted for the VARMECA.
The brake has an integral power supply.
The brake is energised as soon as the
run instruction has been validated. It is
released after a stop instruction, at the
end of deceleration or on disconnection of
the power supply.
The rectifier circuit is mounted on the
motor terminal plate.
