Leuze electronic AMS 348i User manual

AMS 348i
Optical Laser Measurement System 
PROFINET
TECHNICAL DESCRIPTION
en 01-2011/04 50113340

Condelectric S.A.
Tel. Int. + 54 1148 361053
Fax Int. + 54 1148 361053
Tel. Int. + 43 732 7646-0
Fax Int. + 43 732 7646-785
Balluff-Leuze Pty. Ltd.
Tel. Int. + 61 3 9720 4100
Fax Int. + 61 3 9738 2677
Leuze electronic nv/sa
Tel. Int. + 32 2253 16-00
Fax Int. + 32 2253 15-36
ATICS
Tel. Int. + 359 2 847 6244
Fax Int. + 359 2 847 6244
Leuze electronic Ltda.
Tel. Int. + 55 11 5180-6130
Fax Int. + 55 11 5180-6141
Leuze electronic AG
Tel. Int. + 41 41 784 5656
Fax Int. + 41 41 784 5657
Imp. Tec. Vignola S.A.I.C.
Tel. Int. + 56 3235 11-11
Fax Int. + 56 3235 11-28
Leuze electronic Trading
(Shenzhen) Co. Ltd.
Tel. Int. + 86 755 862 64909
Fax Int. + 86 755 862 64901
Componentes Electronicas Ltda.
Tel. Int. + 57 4 3511049
Fax Int. + 57 4 3511019
Schmachtl CZ s.r.o.
Tel. Int. + 420 244 0015-00
Fax Int. + 420 244 9107-00
Leuze electronic Scandinavia ApS
Tel. Int. + 45 48 173200
SKS-automaatio Oy
Tel. Int. + 358 20 764-61
Fax Int. + 358 20 764-6820
Leuze electronic Sarl.
Tel. Int. + 33 160 0512-20
Fax Int. + 33 160 0503-65
Leuze electronic Ltd.
Tel. Int. + 44 14 8040 85-00
Fax Int. + 44 14 8040 38-08
UTECO A.B.E.E.
Tel. Int. + 30 211 1206 900
Fax Int. + 30 211 1206 999
ALL IMPEX 2001
Tel. Int. + 7 495 9213012
Fax Int. + 7 495 6462092
Leuze electronic Scandinavia ApS
Ingermark (M) SDN.BHD
Tel. Int. + 60 360 3427-88
Fax Int. + 60 360 3421-88
Movitren S.A.
Tel. Int. + 52 81 8371 8616
Fax Int. + 52 81 8371 8588
Leuze electronic BV
Tel. Int. + 31 418 65 35-44
Fax Int. + 31 418 65 38-08
LA2P, Lda.
Tel. Int. + 351 21 4 447070
Fax Int. + 351 21 4 447075
Balluff Sp. z o. o.
Tel. Int. + 48 71 338 49 29
Fax Int. + 48 71 338 49 30
O`BOYLE s.r.l
Tel. Int. + 40 2 56201346
Fax Int. + 40 2 56221036
Elteco A/S
Tel. Int. + 47 35 56 20-70
Fax Int. + 47 35 56 20-99
Great Cofue Technology Co., Ltd.
Tel. Int. + 886 2 2983 80-77
Fax Int. + 886 2 2985 33-73
Countapulse Controls (PTY.) Ltd.
07/2010
Tel. Int. + 27 116 1575-56
Fax Int. + 27 116 1575-13
Schmachtl SK s.r.o.
Tel. Int. + 421 2 58275600
Fax Int. + 421 2 58275601
Tipteh d.o.o.
Tel. Int. + 386 1200 51-50
Fax Int. + 386 1200 51-51
Industrial Electrical Co. Ltd.
Tel. Int. + 66 2 642 6700
Fax Int. + 66 2 642 4250
Leuze electronic San.ve Tic.Ltd.Sti.
Tel. Int. + 90 216 456 6704
Fax Int. + 90 216 456 3650
Balluff Asia Pte Ltd
Tel. Int. + 65 6252 43-84
Fax Int. + 65 6252 90-60
Leuze electronic, Inc.
Tel. Int. + 1 248 486-4466
Fax Int. + 1 248 486-6699
SV Altera OOO
Tel. Int. + 38 044 4961888
Fax Int. + 38 044 4961818
C. Illies & Co., Ltd.
Tel. Int. + 81 3 3443 4143
Fax Int. + 81 3 3443 4118
Profa-Tech Ltd.
Tel. Int. + 254 20 828095/6
Fax Int. + 254 20 828129
Leuze electronic Co., Ltd.
Tel. Int. + 82 31 3828228 Tel. Int. + 45 48 173200
Fax Int. + 82 31 3828522
Leuze electronic S.A.
Tel. Int. + 34 93 4097900
Fax Int. + 34 93 49035820
Schmachtl GmbH
SABROW HI-TECH E. & A. LTD.
Tel. Int. + 234 80333 86366
Fax Int. + 234 80333 84463518
Tipteh d.o.o. Beograd
Tel. Int. + 381 11 3131 057
Fax Int. + 381 11 3018 326
Tipteh d.o.o. Skopje
Tel. Int. + 389 70 399 474
Fax Int. + 389 23 174 197
Leuze electronic S.r.l.
Tel. Int. + 39 02 26 1106-43
Fax Int. + 39 02 26 1106-40
Kvalix Automatika Kft.
Tel. Int. + 36 1 272 2242
Fax Int. + 36 1 272 2244
P.T. Yabestindo Mitra Utama
Tel. Int. + 62 21 92861859
Fax Int. + 62 21 6451044
Galoz electronics Ltd.
Tel. Int. + 972 3 9023456
Fax Int. + 972 3 9021990
M + V Marketing Sales Pvt Ltd.
Tel. Int. + 91 124 4121623
Fax Int. + 91 124 434233
Sensortech Company
Tel. Int. + 852 26510188
Fax Int. + 852 26510388
Tipteh Zagreb d.o.o.
Tel. Int. + 385 1 381 6574
Fax Int. + 385 1 381 6577
Leuze electronic GmbH + Co. KG
P.O. Box 1111, D- 73277 Owen / Teck
Tel. [phone],
Fax [phone]
INFO LEUZEDEsWWWLEUZECOM
Sales Region East
Phone [phone]
Fax [phone]
Postal code areas
01000-19999
39000-39999
98000-99999
Sales Region North
Phone [phone]
Fax [phone]
Postal code areas
20000-38999
40000-65999
97000-97999
Sales Region South
Phone [phone]
Fax [phone]
Postal code areas
66000-96999
Sales and Service
Worldwide
AT (Austria)
AR (Argentina)
AU + NZ (Australia + New Zealand)
BE (Belgium)
BG (Bulgaria)
BR (Brasil)
CH (Switzerland)
CO (Colombia)
CZ (Czech Republic)
CL (Chile)
CN (China)
DK (Denmark)
FI (Finland)
GB (United Kingdom)
GR (Greece)
FR (France)
RU (Russian Federation)
SE (Sweden)
MY (Malaysia)
MX (Mexico)
NL (Netherlands)
PT (Portugal)
PL (Poland)
RO (Romania)
NO (Norway) TW (Taiwan)
ZA (South Africa)
SK (Slowakia)
SI (Slovenia)
TH (Thailand)
TR (Turkey)
SG + PH (Singapore +
Philippines)
US + CA (United States +
Canada)
UA (Ukraine)
JP (Japan)
KR (South Korea)
ES (Spain)
Germany
KE (Kenia)
NG (Nigeria)
RS (Republic of Serbia)
MK (Macedonia)
IT (Italy)
HU (Hungary)
ID (Indonesia)
IL (Israel)
IN (India)
HK (Hong Kong)
HR (Croatia)
© All rights reserved, especially the right of reproduction, distribution and translation.
Copying or reproductions in any form require the written consent of the manufacturer.
Product names are used without warranty of unrestricted applicability.
Changes reflecting technical improvements may be made.

AMS 348i
The main menus AMS 348i 120
Leuze electronic
GmbH & Co. KG
SW: V 1.3.0 HW:1
SN: -----------------------
Device information - main menu
This menu item contains detailed information on
• Device model,
• Manufacturer,
• Software and hardware version,
• Serial number.
No entries can be made via the display.
Network information
Address: ---.---.---.---
Net mask: ---.---.---.---
Gateway: ---.---.---.---
MAC ID: --.--.--.--.--.--
DevName: ------------------------
Network information - main menu
Under this menu item, you will find detailed
information on the network addresses.
No entries can be made via the display.
IO1 LSR PLB LNK0
IO2 TMP ATT LNK1
ERR
+ 87.000m
Status- and measurement data - 
main menu
• Display of status-, warning-, and error messages.
• Status overview of the switching inputs/outputs.
• Bar graph for the reception level.
• Activated interface.
• Measurement value.
No entries can be made via the display.
See "Indicators in the display" on page 37.
Parameter
Parameter handling
PROFINET
Position value
I/O
Other
Parameter - main menu
Configuration for PROFI NET is carried out via the
modules of the GSDML file.
Input of values
100
<-|0123456789 save
Standard ----- Unit
126 | |
Language selection
o Deutsch
English
o Español
o Français
o Italiano
Language selection - main menu
• Selection of the display language.
See "Language selection menu" on page 47.
Service
Status messages
Diagnostics
Expanded diagnostics
Service - main menu
• Display of status messages.
• Display of diagnostic data.
No entries can be made via the display.
See "Service menu" on page 48.
Delete character
Enter digit
Save input
ESC
Navigate
upward/laterally
Navigate
downward/laterally
ESCAPE
leave
ENTER
confirm
Device buttons:

Table of contents
1 AMS 348i
1 General information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.2 Declaration of conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.3 Description of functions AMS 348i. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2 Safety notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.1 General safety notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
2.2 Safety standards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.3 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.4 Working safely . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3 Fast commissioning / operating principle . . . . . . . . . . . . . . . . . . . 10
3.1 Mounting the AMS 348i. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.1.1 Mounting the device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.1.2 Mounting the reflector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.2 Connecting the voltage supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.3 Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.4 AMS 348ion the PROFINET. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.1 Specifications of the laser measurement system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.1.1 General specificationsAMS 348i. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.1.2 Dimensioned drawing AMS 348i. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.1.3 Type overview AMS 348i. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5 Installation and mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.1 Storage, transportation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.2 Mounting the AMS 348i. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
5.2.1 Optional mounting bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5.2.2 Mounting distances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.3 Mounting the AMS 348iwith laser beam deflector unit . . . . . . . . . . . . . . . . . . . . . . . . . 21
5.3.1 Mounting the laser beam deflector unit with integrated mounting bracket. . . . . . . . . . . . 21
5.3.2 Dimensioned drawing of US AMS 01 deflector unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5.3.3 Mounting the US 1 OMS deflector unit without mounting bracket . . . . . . . . . . . . . . . . . . 23

Table of contents
AMS 348i2
6 Reflectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6.1 General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6.2 Description of the reflective tape . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6.2.1 Specifications of the self-adhesive foil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
6.2.2 Specifications of the reflective tape on a metal plate. . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
6.2.3 Dimensioned drawing of reflective tape on a metal plate. . . . . . . . . . . . . . . . . . . . . . . . . 26
6.2.4 Specifications of heated reflectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
6.2.5 Dimensioned drawing of heated reflectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
6.3 Selecting reflector sizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
6.4 Mounting the reflector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
6.4.1 General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
6.4.2 Mounting the reflector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
6.4.3 Table of reflector pitches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
7 Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
7.1 Safety notices for the electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
7.2 PWR – voltage supply / switching input/output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
7.3 PROFINET BUS IN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
7.4 PROFINET BUS OUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
7.5 Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
8 Display and control panel AMS 348i. . . . . . . . . . . . . . . . . . . . . . . 37
8.1 Structure of the control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
8.2 Status display and operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
8.2.1 Indicators in the display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
8.2.2 LED status displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
8.2.3 Control buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
8.3 Menu description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
8.3.1 The main menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
8.3.2 Parameter menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
8.3.3 Language selection menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
8.3.4 Service menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
8.4 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Table of contents
3 AMS 348i
9 PROFINET interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
9.1 General information on PROFINET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
9.2 Identification & Maintenance Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
9.3 PROFINET – Star topology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
9.4 PROFINET – Linear topology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
9.5 PROFINET – General information on wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
9.6 PROFINET – Cable lengths and shielding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
9.7 PROFINET - Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
9.8 PROFINET – Commissioning and configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
9.8.1 PROFINET implementation of the AMS 348i. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
9.8.2 Measures to be performed prior to the initial commissioning . . . . . . . . . . . . . . . . . . . . . . 55
9.8.3 Starting the device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
9.8.4 Configuration steps for a Siemens Simatic S7 control . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
9.9 PROFINET GSD file. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
9.9.1 General information on the GSD file . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
9.9.2 Overview of the GSD modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
9.9.3 Detail description of the modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
10 Diagnostics and troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . 92
10.1 Service and diagnostics in the display of the AMS 348i. . . . . . . . . . . . . . . . . . . . . . . . . 93
10.1.1 Status messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
10.1.2 Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
10.1.3 Expanded diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .94
10.2 General causes of errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
10.2.1 Power LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
10.3 Interface errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
10.3.1 BUS LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
10.4 Status display in the display of the AMS 348i. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
11 Type overview and accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
11.1 Type key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
11.2 Type overview AMS 348i(PROFINET) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
11.3 Overview of reflector types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
11.4 Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
11.4.1 Accessory mounting bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
11.4.2 Accessory deflector unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
11.4.3 Accessory M12 connector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

Table of contents
AMS 348i4
11.4.4 Accessory ready-made cables for voltage supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
11.4.5 Accessory ready-made cables for PROFINET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
12 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
12.1 General maintenance information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
12.2 Repairs, servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
12.3 Disassembling, packing, disposing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

General information
5 AMS 348iLeuze electronic
1 General information
1.1 Explanation of symbols
The symbols used in this operating manual are explained below.
Attention!
This symbol precedes text messages which must strictly be observed. Failure to comply with
this information results in injuries to personnel or damage to the equipment.
Attention Laser!
This symbol warns of possible danger caused by hazardous laser radiation.
Notice!
This symbol indicates text passages containing important information.
1.2 Declaration of conformity
The AMS 348iabsolute measuring optical laser measurement system was designed and
manufactured in accordance with applicable European directives and standards.
The AMS series is "UL LISTED" according to American and Canadian safety standards and
fulfills the requirements of Underwriter Laboratories Inc. (UL).
Notice!
The Declaration of Conformity for these devices can be requested from the manufacturer.
The manufacturer of the product, Leuze electronic GmbH + Co. KG in D-73277 Owen/Teck,
possesses a certified quality assurance system in accordance with ISO 9001.
UL
US
C
LISTED

General information
Leuze electronic AMS 348i6
TNT 35/7-24V
1.3 Description of functions AMS 348i
The AMS 348ioptical laser measurement system calculates distances to fixed as well as
moving system parts. The distance to be measured is calculated according to the principle
of the propagation time of radiated light. Here, the light emitted by the laser diode is reflected
by a reflector onto the receiving element of the laser measurement system. The AMS 348i
uses the "propagation time" of the light to calculate the distance to the reflector. The high
absolute measurement accuracy of the laser measurement system and the fast integration
time are designed for position control applications.
With the AMS 3xx i product series, Leuze electronic makes available a range of internationally
relevant interfaces. Note that each interface version listed below corresponds to a different
AMS 3xx
i model.
AMS 304i
AMS 348i
AMS 355i
AMS 358i
AMS 335i
AMS 338i
AMS 308i
AMS 384i
AMS 301i
AMS 300i

Safety notices
7 AMS 348iLeuze electronic
2 Safety notices
2.1 General safety notices
Documentation
All entries in this technical description must be heeded, in particular those in section "Safety
notices". Keep this technical description in a safe place. It should be available at all times.
Safety regulations
Observe the locally applicable legal regulations and the rules of the employer's liability
insurance association.
Repair
Repairs must only be carried out by the manufacturer or an authorized representative.
2.2 Safety standards
The devices of the series AMS 348iwere developed, manufactured and tested in
accordance with the applicable safety standards. They correspond to the state of the art.
2.3 Intended use
The AMS 348i… device series is an absolute measuring system based on laser technology.
The devices use a visible optical laser to measure distances of up to 300m contactlessly.
The laser is designed so that distance measurements are made against a reflector.
Attention!
The protection of personnel and the device is guaranteed only if the device is operated in a
manner corresponding to its intended use.
Areas of application
The AMS 348i… is suitable for the following areas of application:
• Distance measurements for determining the position of automated, moving plant
components such as:
- Travel and lifting axes of high-bay storage devices
- Gantry crane bridges and their trolleys
- Repositioning units
-Lifts
- Electroplating plants

Safety notices
Leuze electronic AMS 348i8
TNT 35/7-24V
2.4 Working safely
Attention!
Access to or changes on the device, except where expressly described in this operating
manual, are not authorized.

The device must not be opened. Failure to comply will render the guarantee void. Warranted
features cannot be guaranteed after the device has been opened.
Safety regulations
Observe the locally applicable legal regulations and the rules of the employer's liability
insurance association.
Attention!
The AMS 348i… is not a safety module acc. to EU machinery directives.
Qualified personnel
Mounting, commissioning and maintenance of the device must only be carried out by
qualified personnel. Electrical work must be carried out by a certified electrician.
Attention, laser radiation!
The AMS 348i operates with a red light laser of class 2 acc. to EN 60825-1. If you look
into the beam path over a longer time period, the retina of your eye may be damaged!
Never look directly into the beam path!
Do not point the laser beam of the AMS 348i at persons!
When mounting and aligning the AMS 348i, avoid reflections of the laser beam off of
reflective surfaces!
Heed the laser safety regulations according to DIN EN 60825-1 in their most current
version! The output power of the laser beam at the reading window is at most 4.0mW
acc. to EN 60825-1. The average laser power is less than 1mW in accordance with laser
class 2 as well as CDRH class 2.
The AMS 348iuses a laser diode with low power in the visible red light range with an
emitted wavelength of 650 … 690nm.
Attention!
CAUTION! The use of operating and adjusting devices other than those specified here
or carrying out of differing procedures may lead to dangerous exposure to radiation.

Safety notices
9 AMS 348iLeuze electronic
The housing of the AMS 348ihas been provided with the following labeling:
Figure 2.1: Location of the name plate on the AMS 348i
AHazard warning & logotype
BWarning and certification plate
CName plate with part no., version no., date of manufacture and serial no.
For EtherNet-based devices, the MAC ID is specified on the name plate.
Please note that the shown name plate is for illustration purposes only; the contents do
not correspond to the original.
AB
C

Fast commissioning / operating principle
Leuze electronic AMS 348i10
TNT 35/7-24V
3 Fast commissioning / operating principle
Notice!
Below, you will find a short description for the initial commissioning of the AMS 348i.
Detailed explanations for the listed points can be found throughout the handbook.
3.1 Mounting the AMS 348i
The AMS 348iand the corresponding reflector are mounted on two mutually opposing,
plane-parallel, flat walls.

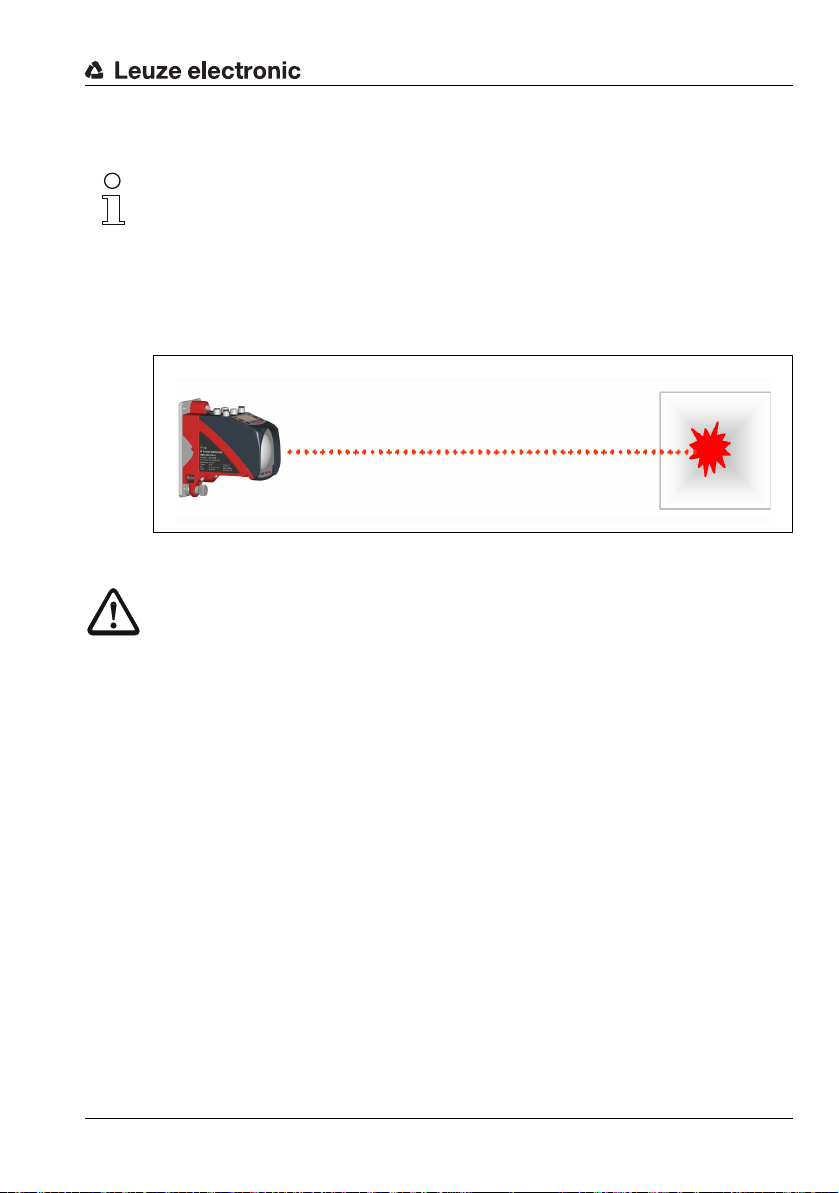

Figure 3.1: Schematic illustration of mounting
Attention!
For error-free position measurement, there must be an unobstructed line-of-sight between
the AMS 348iand the reflector.
3.1.1 Mounting the device
The laser is mounted on a vertical wall using 4 screws (M5).
Alignment is performed using 2 adjustment screws. Adjust so that the laser light spot is
positioned at the center of the reflector. The alignment is to be secured with the knurled nut
and locked with the M5 nut.
Further information can be found in chapter 5.2 and chapter 5.3.
3.1.2 Mounting the reflector
The reflector is mounted on a vertical wall with 4 screws (M5). The reflector is angled using
the included shims. Incline the reflector by approx. 1°.
Detailed information can be found in chapter 6.4.

Fast commissioning / operating principle
11 AMS 348iLeuze electronic
3.2 Connecting the voltage supply
The laser measurement system is connected using M12 connectors. The voltage supply is
connected via the PWR M12 connection (18 … 30VDC). 2 freely programmable switching
inputs/outputs for individual adaptation to the respective application are also available here.
Detailed information can be found in chapter 7.
3.3 Display
Once the laser measurement system is supplied with voltage, the device status as well as
the measured position values can be read on the display. The display automatically switches
to the display of the measurement values.
Use the up/down buttons to the left of the display to read and change a wide range
of data and parameters.
Detailed information can be found in chapter 8.
3.4 AMS 348ion the PROFINET
Install the GSDML file associated with the AMS 348iin the PROFINET Manager of your
control. Activate the desired modules (at least one module).
The network address for PROFINET is assigned via the PROFINET Manager.
Standalone operation in PROFINET
During standalone operation of the AMS 348i, the PROFINET network is connected to
BUS IN. BUS OUT requires no terminating resistor.
Network operation in PROFINET
In network mode the AMS 348iis connected to PROFINET via BUS IN. Further PROFINET
participants can be connected to the integrated switch of the AMS 348ivia the BUS OUT
connection.
Commissioning of the AMS 348i
The procedures described below are for the configuration of an AMS 348iwith a Siemens
Simatic S7 PLC.
• Switching on the supply voltage. 
The AMS 348idisplays the "Status and measurement values" main menu.
• Installation of the corresponding GSD file in the Simatic Hardware Manager.
• Projection of the PROFINET network including the AMS 348iGSD file. Definition of
the IP addresses, sub-network mask and definition of a device name assigned to the
IP address.
• Download of the project to the connected Siemens control.
Further information regarding the individual commissioning steps is provided in see chapter
9.8.4 "Configuration steps for a Siemens Simatic S7 control".
Detailed information can be found in chapter 9.

Specifications
Leuze electronic AMS 348i12
TNT 35/7-24V
4 Specifications
4.1 Specifications of the laser measurement system
4.1.1 General specificationsAMS 348i
Measurement data AMS 348i40 (H) AMS 348i120 (H) AMS 348i200 (H) AMS 348i300 (H)
Measurement range 0.2 … 40m 0.2 … 120m 0.2 … 200m 0.2 … 300m
Accuracy ± 2mm ± 2mm ± 3mm ± 5mm
Consistency 1) 0.3mm 0.5mm 0.7mm 1.0mm
Light spot diameter 40mm 100mm 150mm 225mm
Measurement value output 1,7ms
Integration time 8ms
Resolution adjustable, see chapter of the individual interfaces
Temperature drift 0.1mm/K
Ambient temperature sensitivity 1ppm/K
Air pressure sensitivity 0.3ppm/hPa
Traverse rate 10m/s
Electrical data
Supply voltage Vin 2) 18 … 30VDC
Current consumption without device heating: 250mA / 24VDC
with device heating: 500mA / 24VDC
Optical data
Transmitter laser diode, red light, wavelength 650 … 690nm
Laser class 2 acc. to EN 60825-1, CDRH
Laser life expectancy 3) average temperature / year 50°C: 23.000h
25°C: 60.000h
20°C: 75.000h
10°C: 120.000h
Interfaces
Interface type PROFINET-RT with integrated switch
for BUS IN and BUS OUT
Protocol PROFINET-RT communication
Conformance Class B
Operating and display elements
Keyboard 4 buttons
Display monochromatic graphical display, 128 x 64 pixels
LED 4 LEDs, 2 of which are used to display the PROFINET connection

Specifications
13 AMS 348iLeuze electronic
The AMS 348iis designed in accordance with safety class III for supply with
PELV (protective extra-low voltage).
Inputs/outputs
Quantity
Input
Output
2, programmable
protected against polarity reversal
max. 60mA, short-circuit proof
Mechanical data
Housing cast zinc and aluminum
Optics glass
Weight approx. 2.45kg
Protection class IP 65 acc. to EN 60529 4)
Environmental conditions
Operating temperature
without device heating
with device heating
-5°C … +50°C
-30°C … +50°C5)
Storage temperature -30°C … +70°C
Air humidity max. 90% rel. humidity, non-condensing
Mechanical/electrical loading capacity
Vibrations acc. to EN 60068-2-6
Noise acc. to EN 60060-2-64
Shock acc. to EN 60068-2-27
EMC acc. to EN 61000-6-2 and EN 61000-6-4 6)
1) Statistical error: 1 sigma; minimum switch-on time: 2min.
2) For UL applications: only for use in "Class 2" circuits acc. to NEC.
3) Switching off the laser diode during system downtime can considerably extend the life expectancy of
the device. The laser life expectancy is calculated using a failure rate of 1%.
4) With screwed-on M12 plugs or mounted caps.
5) With devices with heating, the switch on/off area of the internal heating can be extended to prevent
condensation from forming. A 100% prevention of the formation of condensation cannot be
guaranteed due to the limited heating capacity of the AMS 348i.
6) This is a Class A product. In a domestic environment this product may cause radio interference, in
which case the operator may be required to take adequate measures.

Specifications
Leuze electronic AMS 348i14
TNT 35/7-24V
4.1.2 Dimensioned drawing AMS 348i
Figure 4.1: Dimensioned drawing AMS 348i
AM5 screw for alignment
BKnurled nut with WAF4 
hexagon socket and M5 nut for securing
COptical axis
DZero point of the distance to be measured
A
B
D
A
C

Specifications
15 AMS 348iLeuze electronic
4.1.3 Type overview AMS 348i
AMS 348i(PROFINET)
Type designation Description Part No.
AMS 348i40 40m operating range, PROFINET interface 50113709
AMS 348i120 120m operating range, PROFINET interface 50113710
AMS 348i200 200m operating range, PROFINET interface 50113711
AMS 348i300 300m operating range, PROFINET interface 50113712
AMS 348i40 H 40m operating range, PROFINET interface, integrated heating 50113713
AMS 348i120 H 120m operating range, PROFINET interface, integrated heating 50113714
AMS 348i200 H 200m operating range, PROFINET interface, integrated heating 50113715
AMS 348i300 H 300m operating range, PROFINET interface, integrated heating 50113716
Table 4.1: Type overview AMS 348i

Installation and mounting
Leuze electronic AMS 348i16
TNT 35/7-24V
5 Installation and mounting
5.1 Storage, transportation
Attention!
When transporting or storing, package the device so that it is protected against collision and
humidity. Optimum protection is achieved when using the original packaging. Heed the
required environmental conditions specified in the technical data.
Unpacking
Check the packaging for any damage. If damage is found, notify the post office or shipping
agent as well as the supplier.
Check the delivery contents using your order and the delivery papers:
• Delivered quantity
• Device type and model as indicated on the nameplate
• Brief manual
The name plate provides information as to what AMS 348itype your device is. For specific
information, please refer to chapter 11.2.
Name plates
Figure 5.1: Device name plate using the AMS 300ias an example
Notice!
Please note that the shown name plate is for illustration purposes only; the contents do not
correspond to the original.
Save the original packaging for later storage or shipping.

Installation and mounting
17 AMS 348iLeuze electronic
If you have any questions concerning your shipment, please contact your supplier or your
local Leuze electronic sales office.
Observe the applicable local regulations when disposing of the packaging materials.
5.2 Mounting the AMS 348i
Figure 5.2: Mounting the device
The AMS 348iand the corresponding reflector are mounted on two mutually opposing,
plane-parallel, flat walls or system parts. For error-free position measurement, there must
be an unobstructed line-of-sight connection between the AMS 348iand the reflector.
Use M5 screws to fasten the laser measurement system. Secure the screws with a toothed
lock washer to protect against loosening caused by vibrations.
AM5 screw for
aignment
BKnurled nut and
WAF4 nut for
securing
COptical axis
A
B
A
C
