Leuze BPS 37 User manual

BPS 37
Bar code positioning system - SSI interface
Original operating instructions
EN • 2021-01-08 • 50124376
We reserve the right to make technical changes

Leuze electronic GmbH + Co. KG BPS 37 2
© 2021
Leuze electronic GmbH & Co. KG
In der Braike 1
D-73277 Owen / Germany
Phone: [phone]
Fax: [phone]
http://www.leuze.com
[email protected]

Leuze electronic GmbH + Co. KG BPS 37 1
1 General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2 Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.1 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.2 Foreseeable misuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.3 Competent persons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.4 Exemption of liability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.5 Laser safety notices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.1 Device construction of the BPS 37 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.2 Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.3 Function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.4 Advantages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.5 Stand-alone operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.1 General specifications BPS 37 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.2 LED indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.3 Dimensioned drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.4 BPS 37 reading field curve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5 Accessories/order codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5.1 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5.1.1 Connection units / connector hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5.1.2 Mounting accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.1.3 Interconnection cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
6 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
6.1 Storage, transportation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
6.2 Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
6.2.1 Device arrangement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
6.3 Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
6.3.1 Connecting the BPS 37 (SSI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
6.3.2 Connecting the SSI interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
6.3.3 Connecting the switching input and switching output . . . . . . . . . . . . . . . . . . . . . . . . . . 21
6.3.4 Connection with MS 37 103 modular connector hood. . . . . . . . . . . . . . . . . . . . . . . . . . 22
6.3.5 Cable lengths and shielding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
6.4 Disassembling, packing, disposing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
7 Commissioning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
7.1 Measures to be performed prior to the initial commissioning . . . . . . . . . . . . . . . . . . . . . . 26
7.2 Function Test. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
7.3 Setting the parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
7.3.1 Parameter sets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
7.3.2 Service operating mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
8 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
8.1 BPS 37 display elements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
8.2 MS 37 103 display elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Leuze electronic GmbH + Co. KG BPS 37 2
9 Communication with the device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
9.1 Installing the "BPSConfig" software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
9.2 Overview of commands and parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
9.2.1 General online commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
9.2.2 General parameter structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
10 Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
10.1 General maintenance information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
10.2 Repairs, servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
11 Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
11.1 EC Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Leuze electronic GmbH + Co. KG BPS 37 3
Figure 2.1: Laser apertures, laser warning and information signs........................................................ 7
Figure 3.1: Device construction of the BPS 37 ..................................................................................... 8
Figure 3.2: Connection BPS "Stand alone" .......................................................................................... 9
Figure 3.3: BPS connection with MA 4.7 connection unit ..................................................................... 9
Figure 3.4: BPS connection with MS 37 103 modular connector hood .............................................. 10
Table 4.1: General specifications ...................................................................................................... 11

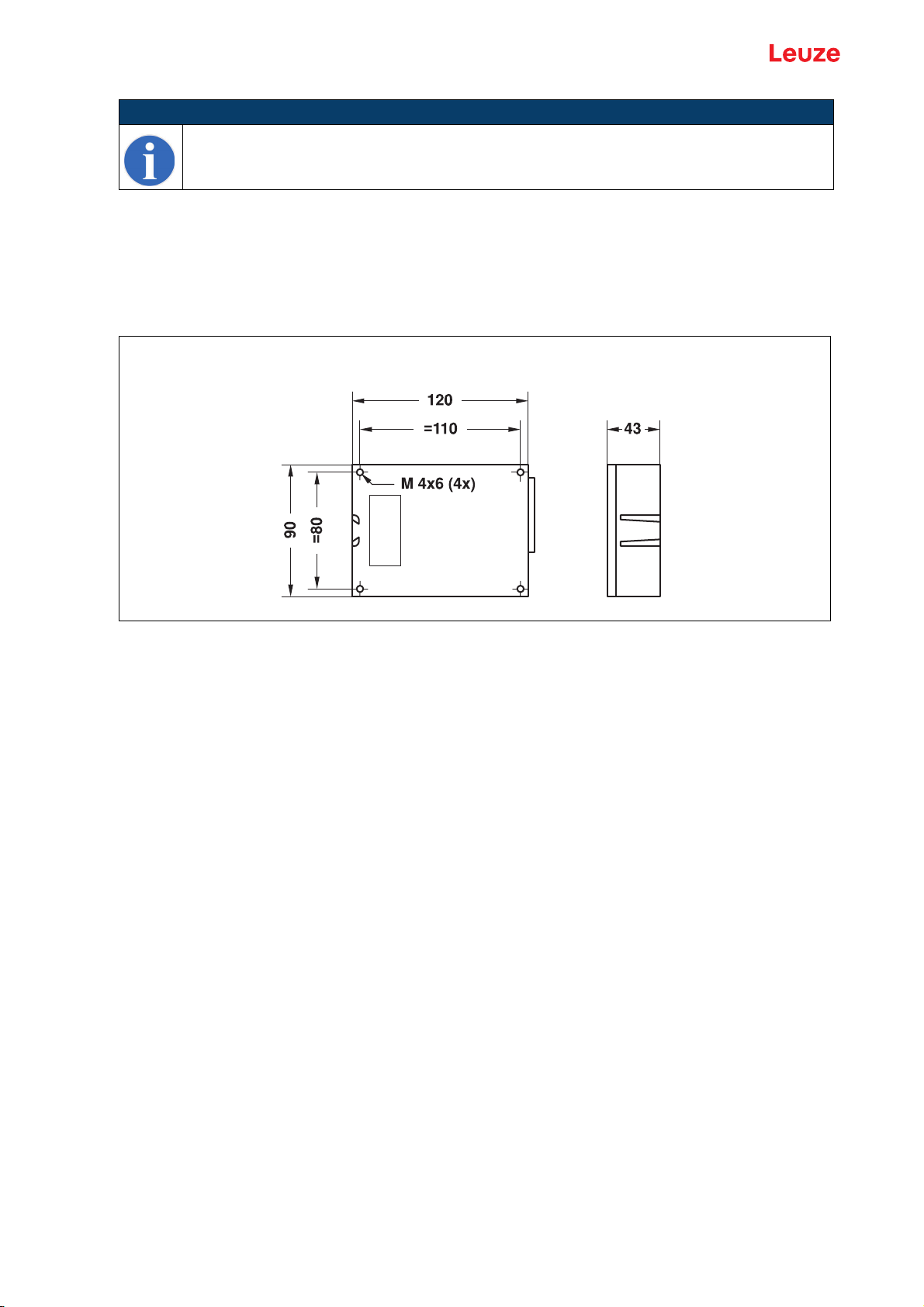

Figure 4.1: BPS 37 dimensioned drawing .......................................................................................... 12
Figure 4.2: MS 37 103 dimensioned drawing ..................................................................................... 13
Figure 4.3: BPS 37 reading field curve ............................................................................................... 13
Table 5.1: Accessories/order codes .................................................................................................. 14
Figure 5.1: MA 4.7/MA 4D.7 connection unit / dimensioned drawing................................................. 15
Figure 5.2: BT 56 mounting device..................................................................................................... 16
Figure 6.1: Mounting example BPS 37 ............................................................................................... 18
Figure 6.2: Beam exit on the BPS 37 ................................................................................................. 19
Figure 6.3: Application example ......................................................................................................... 19
Figure 6.4: BPS 37 sub-D pin assignments........................................................................................ 20
Table 6.1: Connection description BPS 37........................................................................................ 21
Figure 6.5: Connection with MA.......................................................................................................... 21
Figure 6.6: Connection directly with BPS ........................................................................................... 21
Figure 6.7: Connection diagram for switching input and switching output of the BPS 37................... 22
Figure 6.8: Pin assignment of the BPS 37 with MS 37 103 ................................................................ 23
Figure 6.9: Pin assignment - PWR IN................................................................................................. 24
Figure 6.10: Pin assignment - HOST/BUS IN.......................................................................................24
Figure 6.11: Pin assignment - SERVICE.............................................................................................. 25
Table 6.2: Cable lengths and shielding ............................................................................................. 25
Figure 7.1: Connecting the service interface to a PC or terminal ....................................................... 27
Figure 9.1: Installation window ........................................................................................................... 29
Figure 9.2: Installation directory.......................................................................................................... 29

General information
Leuze electronic GmbH + Co. KG BPS 37 4
1 General information
1.1 Explanation of symbols
The symbols used in this technical description are explained below.
1.2 Declaration of Conformity
The bar code positioning system BPS 37, the modular connector hood MS 37 103, and the optional
connection units MA 4.7/MA 4D.7 have been developed and manufactured in accordance with the appli-
cable European standards and directives.
The devices of the BPS 37 series without integrated heating also fulfill the cUL requirements (Underwriters
Laboratory Inc.) for the USA and Canada.
The manufacturer of the product, Leuze electronic GmbH & Co. KG in D-73277 Owen, possesses a certi-
fied quality assurance system in accordance with ISO 9001.
ATTENTION!
This symbol precedes text messages which must strictly be observed. Failure to observe the
provided instructions could lead to personal injury or damage to equipment.
ATTENTION LASER!
This symbol warns of possible danger caused by hazardous laser radiation.
NOTE
This symbol indicates text passages containing important information.
NOTE
The corresponding declaration of conformity can be requested from the manufacturer

Safety
Leuze electronic GmbH + Co. KG BPS 37 5
2 Safety
The bar code positioning systems of the BPS 37 series, the MS 37 103 modular connector hoods and the
optional MA 4.7/MA 4D.7 connection units have been developed, produced and tested subject to the appli-
cable safety standards. They correspond to the state of the art.
2.1 Intended use
Bar code positioning systems of the BPS 37 series are optical measuring systems which use visible red
laser light to determine the position of the BPS relative to a permanently mounted bar code tape.
The modular connector hood MS 37 103 is intended for the easy connection of bar code positioning
systems of type BPS 37 with M12 connection technology.
The modular service display MSD 1 101, which is optionally available, displays operational data of the
BPS 37 and is used as a simple means of access to the service interface of the MS 37 103.
Areas of application
The BPS 34 bar code positioning systems are designed for the following areas of application:
• High-bay storage devices: Positioning in the travel and lifting axes
• Crane bridges and trolleys
• Side-tracking skates
• Electrical monorail systems
•Elevators
2.2 Foreseeable misuse
Any use other than that defined under "Intended use" or which goes beyond that use is considered
improper use.
CAUTION
Use only approved bar code tapes!
The bar code tapes approved by Leuze and listed as accessories are an essential part of the
measurement system.
Bar code tapes not approved by Leuze are not allowed.
The use of such bar code tapes is contrary to the intended use.
CAUTION
Observe intended use!
Only operate the device in accordance with its intended use. The protection of personnel and
the device cannot be guaranteed if the device is operated in a manner not complying with its
intended use.
Leuze electronic GmbH + Co. KG is not liable for damages caused by improper use.
Read the technical description before commissioning the device. Knowledge of this technical
description is an element of proper use.
NOTE
Comply with conditions and regulations!
Observe the locally applicable legal regulations and the rules of the employer's liability insur-
ance association.
ATTENTION!
For UL applications, use is only permitted in Class 2 circuits in accordance with the NEC
(National Electric Code).

Safety
Leuze electronic GmbH + Co. KG BPS 37 6
In particular, use of the device is not permitted in the following cases:
• in rooms with explosive atmospheres
• as stand-alone safety component in accordance with the machinery directive 1
• for medical purposes
2.3 Competent persons
Connection, mounting, commissioning and adjustment of the device must only be carried out by competent
persons.
Prerequisites for competent persons:
• They have a suitable technical education.
• They are familiar with the rules and regulations for occupational safety and safety at work.
• They are familiar with the technical description of the device.
• They have been instructed by the responsible person on the mounting and operation of the device.
Certified electricians
Electrical work must be carried out by a certified electrician.
Due to their technical training, knowledge and experience as well as their familiarity with relevant stan-
dards and regulations, certified electricians are able to perform work on electrical systems and indepen-
dently detect possible dangers.
In Germany, certified electricians must fulfill the requirements of accident-prevention regulations BGV A3
(e.g. electrician foreman). In other countries, there are respective regulations that must be observed.
2.4 Exemption of liability
Leuze electronic GmbH + Co. KG is not liable in the following cases:
• The device is not being used properly.
• Reasonably foreseeable misuse is not taken into account.
• Mounting and electrical connection are not properly performed.
• Changes (e.g., constructional) are made to the device.
1. Use as safety-related component within the safety function is possible, if the component combination is designed correspondingly by the machine manufacturer.
NOTE
Do not modify or otherwise interfere with the device!
Do not carry out modifications or otherwise interfere with the device.
The device must not be tampered with and must not be changed in any way.
The use of a bar code tape not approved by Leuze is equivalent to an intervention in or
change to the device/measurement system.
The device must not be opened. There are no user-serviceable parts inside.
Repairs must only be performed by Leuze electronic GmbH + Co. KG.

Safety
Leuze electronic GmbH + Co. KG BPS 37 7
2.5 Laser safety notices

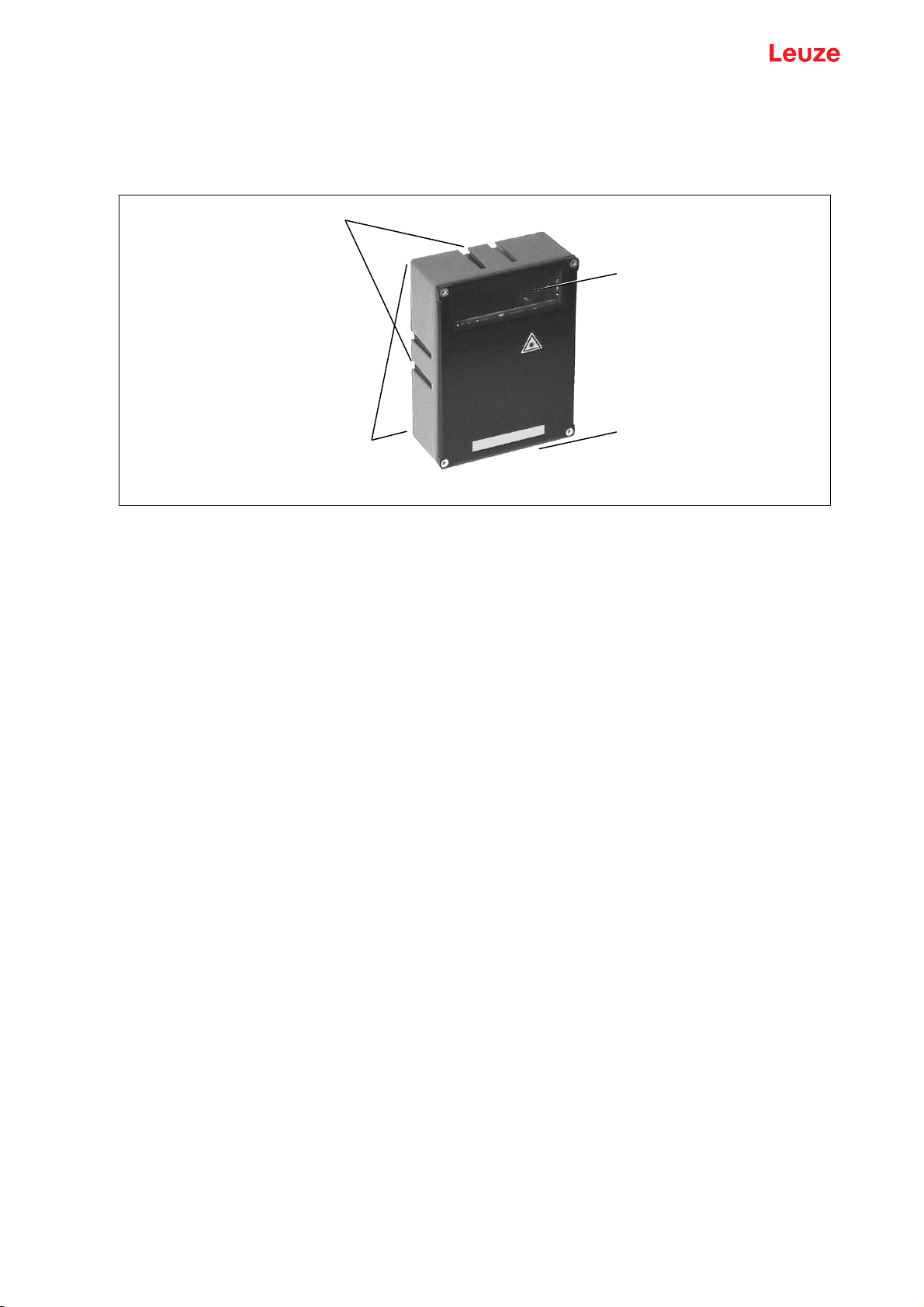

Figure 2.1: Laser apertures, laser warning and information signs
ATTENTION, LASER RADIATION – CLASS 2 LASER PRODUCT
Do not stare into beam!
The device satisfies the requirements of IEC 60825-1:2014 safety regulations for a product of
laser class 2 as well as the U.S. 21 CFR 1040.10 regulations with deviations corresponding to
"Laser Notice No. 56" from May 8, 2019.
Never look directly into the laser beam or in the direction of reflected laser beams!
If you look into the beam path over a longer time period, there is a risk of injury to the retina.
Caution: Opening the device can lead to dangerous exposure to radiation
Do not point the laser beam of the device at persons!
Interrupt the laser beam using a non-transparent, non-reflective object if the laser beam is
accidentally directed towards a person.
When mounting and aligning the device, avoid reflections of the laser beam off reflective
surfaces!
CAUTION! Use of controls or adjustments or performance of procedures other than specified
herein may result in hazardous light exposure.
Observe the applicable statutory and local laser protection regulations.
The device must not be tampered with and must not be changed in any way.
There are no user-serviceable parts inside the device.
Repairs must only be performed by Leuze electronic GmbH + Co. KG.
NOTE
Affix laser information and warning signs!
Laser information and warning signs are attached to the device (see Figure 2.1):
A Laser aperture
B Laser warning sign
C Laser information sign with laser parameters
B
B
C
A

Description
Leuze electronic GmbH + Co. KG BPS 37 8
3 Description
For information on technical data and characteristics, refer to Chapter 4.
3.1 Device construction of the BPS 37
Figure 3.1: Device construction of the BPS 37
3.2 Application
Wherever systems are moved automatically, it is necessary to uniquely determine their respective posi-
tions. This is achieved using various measurement procedures. In addition to mechanical measurement
sensors, optical methods are particularly well suited for determining positions as they operate without
mechanical wear and slippage.
Unlike other optical measurement methods, the bar code positioning system is not restricted to linear
movements. It can also be used flexibly in curved systems. Anywhere the long-wearing bar code tape can
be attached, it is possible to use the BPS to determine the position to within a millimeter.
Guide tolerances of the system play no roll as the permitted distance range between tape and BPS allows
for large deviations in distance.
3.3 Function
The BPS uses visible red laser light to determine its position relative to the bar code tape. This essentially
takes place in three steps:
1. Reading a code on the bar code tape
2. Determining the position of the read code in the scanning area of the laser beam
3. Calculating the position to within a millimeter using the code information and code position
The position value is then passed on via the standardized SSI interface (synchronous serial interface) to
the drive system of the vehicle for which the position is to be determined.
3.4 Advantages
• Easy mounting and commissioning
• Teach function for the "zero point", i.e. it is not necessary to exactly affix the bar code tape.
• Data output via SSI interface; BPS can be connected instead of a conventional rotary encoder.
• The function of the BPS makes it possible to attach the bar code tape only at those locations where
it is necessary that the position be known exactly.
• Positioning of non-linear movements as well
• No referencing necessary following a voltage drop
• Thanks to the large scanning depth, it is possible to compensate for mechanical tolerances.
• It is possible to exactly determine positions from distances of 10000 meters
Laser-beam exit
window
4x M3 mounting threads on the
rear of the device
15-pin sub-D con-
nector on the bot-
tom of the device
Dovetail
fastening grooves

Description
Leuze electronic GmbH + Co. KG BPS 37 9
3.5 Stand-alone operation
The bar code positioning system BPS 37 is operated as individual "stand alone" device. The BPS features
a 15-pin sub-D connector for the electrical connection of the supply voltage, the interface and the switching
inputs.
With connection units
The connection units simplify the electrical installation of the bar code positioning systems in stand-alone
operation.
Moreover, they store the operating parameters so that the configuration data are retained even if the BPS
is replaced and can show parameters and operating data on a display (MA 4D.7).
A listing of the available connection units and associated short descriptions can be found in Chapter 5.
Separate data sheets are available that contain further details about the connection units.
With MS 37 103 connector hood
The modular connector hood MS 37 103 is intended for the easy connection of the BPS 37 with M12
connection technology.
Without connection unit/connector hood
Figure 3.2: Connection BPS "Stand alone"
With MA 4.7/MA4D.7 connection unit
Figure 3.3: BPS connection with MA 4.7 connection unit
Voltage supply
10 … 30 V DC
SI SO
SSI
15 pin sub-D
connector,
socket
version
BPS 37
MA 4.7/MA 4D.7
SO
SI
Power
SSI
SSI
Interconnection
cable KB031-3000

Description
Leuze electronic GmbH + Co. KG BPS 37 10
With MS 37 103 modular connector hood
Figure 3.4: BPS connection with MS 37 103 modular connector hood
BPS 37
MS 37 103
SSI
PWR
Service

Technical data
Leuze electronic GmbH + Co. KG BPS 37 11
4 Technical data
4.1 General specifications BPS 37
Table 4.1: General specifications
Optical data
Light source Laser diode
Laser class 2 acc. to IEC 60825-1:2014
Wavelength 655nm
Max. output power (peak) 1.8mW
Impulse duration 120µs
Scanning rate 1000 scans/s
Measurement data
Reproducibility (3 sigma) -1 mm
Response time 16ms (configurable)
Output time 2ms
Basis for contouring error calculation 7ms
Working range 90 … 170 mm
Electrical data
Interface type
(Standard setting)
SSI (RS422)
Electrically isolated
Bits 0 … 24: data bits with position value
Bit 25: error bit
Resolution: 1mm
800 kHz max. clock frequency
Output of positive and negative position values
Gray coded
Service interface RS 232 with fixed data format,
9600Bd, 8 data bits, no parity, 1 stop bit
Ports 1 switching output, 1 switching input
Green LED Device ready (power on)
Operating voltage 10 … 30 V
Power consumption 3.2W
Mechanical data
Degree of protection IP 65
Weight 400 g
Dimensions (H x W x D) 120 x 90 x 43 mm
Housing Diecast aluminum
Environmental data
Recommended processing tempera-
ture
+10 °C … +25 °C
Processing temperature 0 °C … +45 °C
Operating temperature range Without optics heating: 0°C … +40°C
With optics heating: -30°C … +40°C
Storage temperature range -30°C … +60°C
Air humidity Max. 90% rel. humidity, non-condensing
Vibration IEC 68.2.6
IEC 68.2.27 (shock)
IEC 801
Electromagnetic compatibility Acc. to IEC 60947-5-2
Bar code tape
Max. length (measurement length) 10000 m
Ambient temperature -40 °C … -120 °C
Mech. properties Scratch and wipe resistant, UV resistant,
moisture resistant, partly chemical resistant

Technical data
Leuze electronic GmbH + Co. KG BPS 37 12
4.2 LED indicators
An internal LED indicates in the reading window whether or not the supply voltage is applied.
4.3 Dimensioned drawings
BPS 37 S M 100 / BPS 37 S M 100 H
Figure 4.1: BPS 37 dimensioned drawing
NOTE
Two models of the BPS 37 are available:
BPS 37 S M 100without optics heating, UL approval
BPS 37 S M 100 Hwith optics heating, no UL approval
Top viewRear view

Technical data
Leuze electronic GmbH + Co. KG BPS 37 13
MS 37 103
Figure 4.2: MS 37 103 dimensioned drawing
4.4 BPS 37 reading field curve
Figure 4.3: BPS 37 reading field curve
MS 37 103
A = BPS 37
all dimensions in mm
Note!
The BUS OUT and SW IN/OUT
connections are sealed with caps upon de-
livery.
A
-80
-60
-40
-20
0
20
40
60
80
025 75 125 17550 100 150 200 250
225
Reading distance in mm
Reading field width [mm]
BPS 37
Working range

Accessories/order codes
Leuze electronic GmbH + Co. KG BPS 37 14
5 Accessories/order codes
5.1 Accessories
Table 5.1: Accessories/order codes
5.1.1 Connection units / connector hood
MA 4.7/MA 4D.7 connection unit
The connection units MA 4.7/MA 4D.7 are used to simplify the electrical installation of the BPS 37. They
have the following advantages compared to the installation of the BPS 37 as a stand-alone device:
• Terminals for switching inputs and outputs, including voltage supply
• 9-pin sub-D plug for service interface
• Operating mode switch: service operation/normal operation
• Code types - changeover switches binary/gray
• Rotary switch for setting the resolution
• Parameter memory for the BPS - the BPS can be exchanged without the need for reconfiguration.
• Display (MA 4D.7 only)
NOTE
Products from Leuze electronic GmbH & Co KG can be ordered from any of the sales and
service offices listed on the back page of this operating manual.
Designation Order no. Short description
MA 4.7 50037324 Connection unit for BPS 37 with parameter memory
MA 4D.7 50037325 Connection unit for BPS 37 with parameter memory and display
MS 37 103 50107684 Modular connector hood for BPS 37 with M12 connection tech-
nology
BT 56 50027375 Mounting device featuring dovetail for rod
KB 031-3000 50035355 Interconnection cable between BPS and MA, length: 3 m
NOTE
The connection units are described here in brief only. For further information regarding the
connection units please refer to the relevant data sheets

Accessories/order codes
Leuze electronic GmbH + Co. KG BPS 37 15
Figure 5.1: MA 4.7/MA 4D.7 connection unit / dimensioned drawing
MS 37 103 connector hood
The modular connector hood MS 37 103 is intended for the easy connection of the BPS 37 with M12
connection technology. If offers the following advantages over the installation of the BPS 37 as a stand-
alone device:
• M12 connectors for quick and reliable connection
• Display (MA 4D.7 only)
5.1.2 Mounting accessories
The BT 56 mounting device is available for mounting the BPS 37. It is designed for rod mounting.

Accessories/order codes
Leuze electronic GmbH + Co. KG BPS 37 16
BT 56 mounting device
Figure 5.2: BT 56 mounting device
5.1.3 Interconnection cable
A special interconnection cable is available for the connection between BPS and connection units. This
interconnection cable may be used for the connection units MA 4.7 as well as for MA 4D.7.
Clamping jaws for
mounting on the BPS
Clamp profile for
mounting to round or
oval pipes
Ø16…20mm

Installation
Leuze electronic GmbH + Co. KG BPS 37 17
6Installation
6.1 Storage, transportation
Unpacking
Check the packaging content for any damage. If damage is found, notify the post office or shipping
agent as well as the supplier.
Check the delivery contents using your order and the delivery papers:
• Delivered quantity
• Device type and model as indicated on the name plate
•Accessories
• Operating instructions
Save the original packaging for later storage or shipping.
If you have any questions concerning your shipment, please contact your supplier or your local Leuze elec-
tronic sales office.
Observe the applicable local regulations when disposing of the packaging materials.
Cleaning
Clean the glass window of the BPS 37 with a soft cloth before mounting. Remove all packaging remains,
e.g. carton fibers or styrofoam balls.
6.2 Mounting
Accessories
The mounting system BT 56 is available for installation. It may be ordered separately from Leuze elec-
tronic. For order numbers, see Table 5.1 "Accessories/order codes" on page 14.
Mounting the BPS 37
There are two basic types of mounting arrangements for the BPS 37:
• Using the dovetail groove and the corresponding mounting accessories see figure 6.1
• Using the mounting threads on the rear and bottom of the device (Chapter 4.3)
ATTENTION!
Package the device for transport and storage in such a way that is protected against shock and
humidity. Optimum protection is achieved when using the original packaging. Ensure
compliance with the approved environmental conditions listed in the specifications.
ATTENTION!
Do not use aggressive cleaning agents such as thinner or acetone for cleaning the device and
bar code tape.

Installation
Leuze electronic GmbH + Co. KG BPS 37 18
Mounting example BPS 37
Figure 6.1: Mounting example BPS 37
Mounting of MA
You can mount all connection units individually through the holes located on the mounting plate (see
Figure 5.1).
Subsequently, connect the BPS 37 with the connection unit via the respective cable (see Chapter 5.1.3).
6.2.1 Device arrangement
Selecting a mounting location
In order to select the right mounting location, several factors must be considered:
• The scanning range determined from the scanning curve must be adhered to at all areas at which a
position determination is to be made
• The BPS should be mounted inclined by 10° in the vertical axis towards the bar code tape to ensure
that the read results are reliably obtained even if the bar code tape is soiled.
BT 56 mounting
device
NOTE
The best functionality is obtained when:
• The BPS is guided parallel to the tape
• The permitted working range is not exited
NOTE
On the BPS 37, the beam is not emitted perpendicular to the housing cover, but with an angle
of 10° towards the top. This angle is intended to prevent total reflection on the bar code tape.
2
0
8
0
8
2
0
0
028
0
028
0 028
1
6
0
8
0
2
00
28
000
0
4
08122
0
24
10°
*
*
*
*
*
*
*
