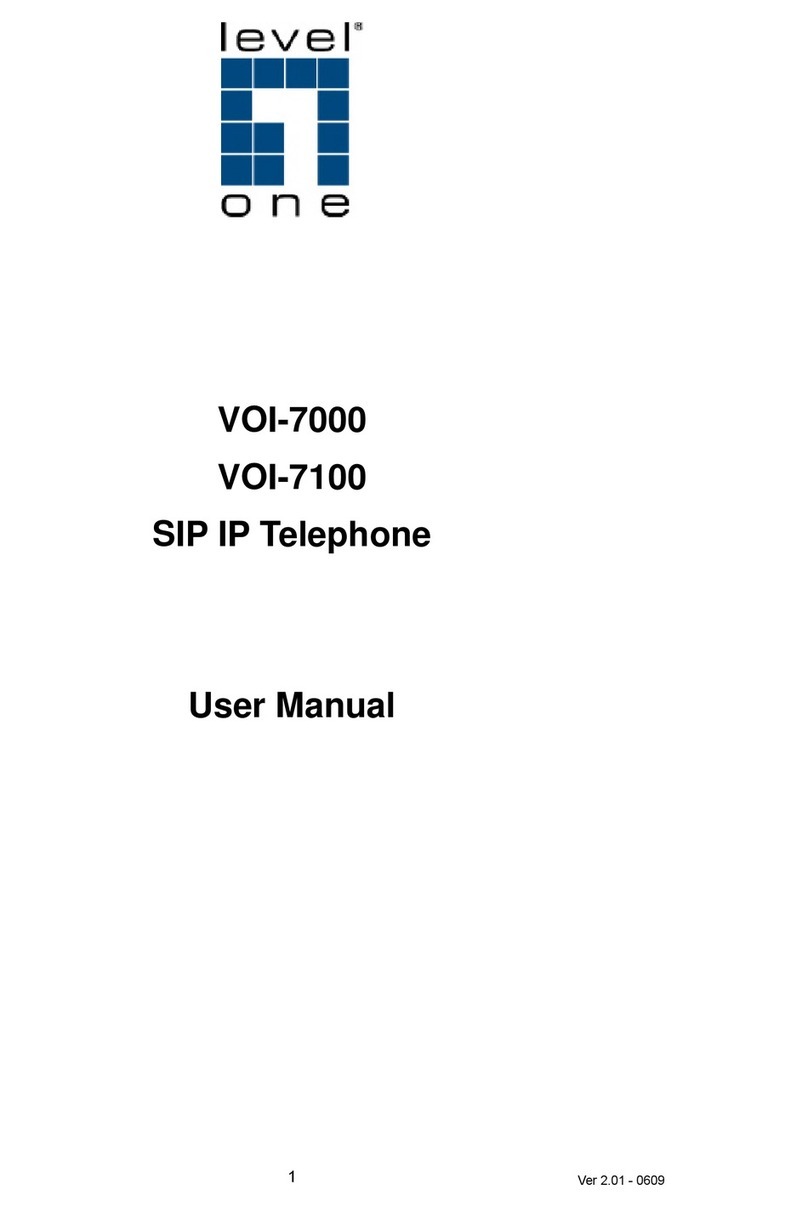

LevelOne VOI-7000 User manual

LevelOne
VOI-7000 VoIP Phone
VOI-7100 PoE VoIP Phone
User Manual
Ver. 2.4 - 1008

ii
Safety
FCC WARNING
This equipment may generate or use radio frequency energy. Changes or
modifications to this equipment may cause harmful interference unless the
modifications are expressly approved in the instruction manual. The user could
lose the authority to operate this equipment if an unauthorized change or
modification is made.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
1) Reorient or relocate the receiving antenna.
2) Increase the separation between the equipment and receiver.
3) Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
4) Consult the dealer or an experienced radio/TV technician for help.
CE Declaration of conformity
This equipment complies with the requirements relating to electromagnetic
compatibility, EN 55022 class B for ITE, the essential protection requirement of
Council Directive 89/336/EEC on the approximation of the laws of the Member
States relating to electromagnetic compatibility.

iii
Table of Contents
1. INTRODUCTION..........................................................................................1
1.1. FEATURES .................................................................................................2
1.2. PACKING CONTENTS .................................................................................3
2. HARDWARE DESCRIPTION.....................................................................4
2.1. LCD DISPLAYAND KEYPADS....................................................................4
2.2. FRONT PANEL ...........................................................................................5
2.3. CONNECTION DIAGRAM............................................................................7
Without Broadband Router ..............................................................................7
With Broadband Router....................................................................................7
2.4. INSTALLATION...........................................................................................8
2.5. DEFAULT SETTING ....................................................................................9
2.6. RESET TO DEFAULT...................................................................................9
3. WEB CONFIGURATION...........................................................................10
3.1. PHONE BOOK..........................................................................................12
Speed Dial Setting..........................................................................................14
3.2. PHONE SETTING......................................................................................16
Call Forward .................................................................................................17
SNTP..............................................................................................................19
Volume............................................................................................................20
Melody ...........................................................................................................21
Block Setting ..................................................................................................22
Auto Answer...................................................................................................23
Auto Dial........................................................................................................25

iv
Call Waiting ...................................................................................................26
3.3. NETWORK...............................................................................................27
Network Status ...............................................................................................28
Bridge ............................................................................................................29
NAT Settings...................................................................................................30
DDNS Setting.................................................................................................32
3.4. SIP SETTINGS..........................................................................................34
Service Domain..............................................................................................36
Codec.............................................................................................................40
Codec ID........................................................................................................43
Other Settings ................................................................................................44
3.5. AUTO CONFIG.........................................................................................45
Auto Config....................................................................................................45
ICMP Setting..................................................................................................47
3.6. USER PASSWORD.....................................................................................47
3.7. SAVE CHANGE.........................................................................................48
3.8. UPDATE...................................................................................................48
Update Firmware...........................................................................................49
Default Setting ...............................................................................................51
3.9. REBOOT ..................................................................................................51
4. LCD DISPLAYAND KEYPAD..................................................................52
4.1. KEYPAD DESCRIPTIONS ..........................................................................53
4.2. LCD MENU.............................................................................................55
1. Phone Book........................................................................................55
2. Call History........................................................................................55
3. Call setting.........................................................................................55
4. Network..............................................................................................57

v
5. SIP Settings........................................................................................58
6. NAT Transversal.................................................................................60
7. Administrator.....................................................................................60
5. APPLICATION EXAMPLE.......................................................................61
5.1. PSTN CALLING ......................................................................................62
5.2. SIP-TO-SIP CALLING..............................................................................63
5.3. SIP-TO-PSTN CALLING..........................................................................65
5.4. PSTN-TO-SIP CALLING..........................................................................66
5.5. 3-WAY CONFERENCE CALLING ...............................................................67
5.6. DIRECT IPTO DIRECT IP CALLING ..........................................................69
5.7. FREEWORLD DIALUP (FWD)..................................................................70
SIP Settings....................................................................................................71
Codec Setting.................................................................................................72
6. SPECIFICATION........................................................................................73
7. TROUBLE SHOOTING .............................................................................75
7.1. DO NOT HEAR DIALTONE? ......................................................................75
7.2. CAN NOTACCESS WEB PAGE?..................................................................75

1
1. Introduction
The VOI-7000 / VOI-7100 IP Phone is an LCD VoIP Phone with SIP Protocols
for Voice over IP (VoIP) applications. This user‟s manual will explain the
keypad instructions and web configurations for the VoIP Phone. IP Phone can
make a VoIP call over the ADSL Internet connection, and it provides one RJ45
WAN port for ADSL Internet connections plus one RJ45 LAN port for Notebook
PC connection. With the embedded NAT/DHCP server, IP Phone can be easily
configured for different network diagrams by PC Web browser and telephone
keypads. This is very suitable for ITSP (Internet Telephony Service Providers)
and SOHO users to make VoIP calls.
Moreover, with PPTP VPN client supported, user can create secured tunnel
between central office and IP Phone, make sure your communication is safe.
VOI-7100 IP phone adopts the latest Power Over Ethernet technology to not
only save user investments, simplify network deployment, but also provide
centralized power management.

2
1.1. Features
SIP v1 (RFC2543), v2 (RFC3261) with MD5 authentication (RFC2069
and RFC 2617)
RJ45 x 2 for Ethernet WAN and LAN ports
ITU-T G.711, G.723, G.726, G.729A/B, VAD and CNG for Speech Codec
ITU-T G.165/168 Echo Cancellation
LCD Display for registered IP phone number
Configurations by Web Browser and Telephone Keypads
Embedded NAT/DHCP Server
PPPoE/DHCP Client for Dynamic IP plus NAT, DNS, and DDNS Clients
Support STUN server for NAT Traversal
Speed Dial, Call Forward/Waiting/Transfer/Hold, and 3-Way Conference
Call features
Direct IP/URL Dial without SIP Proxy or Dial number via SIP server
Phone book stores up to 140 records
VPN PPTP Client embedded
VOI-7100 PoE
Complies with 802.3af PoE Standard

3
1.2. Packing Contents
Open the shipping cartons of the Switch and carefully unpacks its contents.
The carton should contain the following items:
–SIP IP Telephone
–Power Adaptor
–Cat.5 Cable
–CD User Manual
If any item is found missing or damaged, please contact your local reseller for
replacement

4
2. Hardware Description
2.1. LCD Display and Keypads
The LCD display and keypads of IP Phone are as the following.
LCD Display
Menu Key
Volume
Up / Down
Number
Keypads
Handsfree
VMS LED
Handset

5
2.2. Front Panel
VOI-7000
VOI-7100
Power
LAN
RJ45
WAN
RJ45
Power
LAN
RJ45
WAN
RJ45
(PoE)
