Introduction
The List of Models
This hardware manual contains the following models:
FCS-1152
Fixed Network Camera, 5-Megapixel, PoE 802.3af, Day & Night,
WDR
FCS-1153
Fixed Network Camera, 5-Megapixel, PoE 802.3af, Day & Night
From the installation perspective, these models are very similar; therefore one manual is used for
all of them.

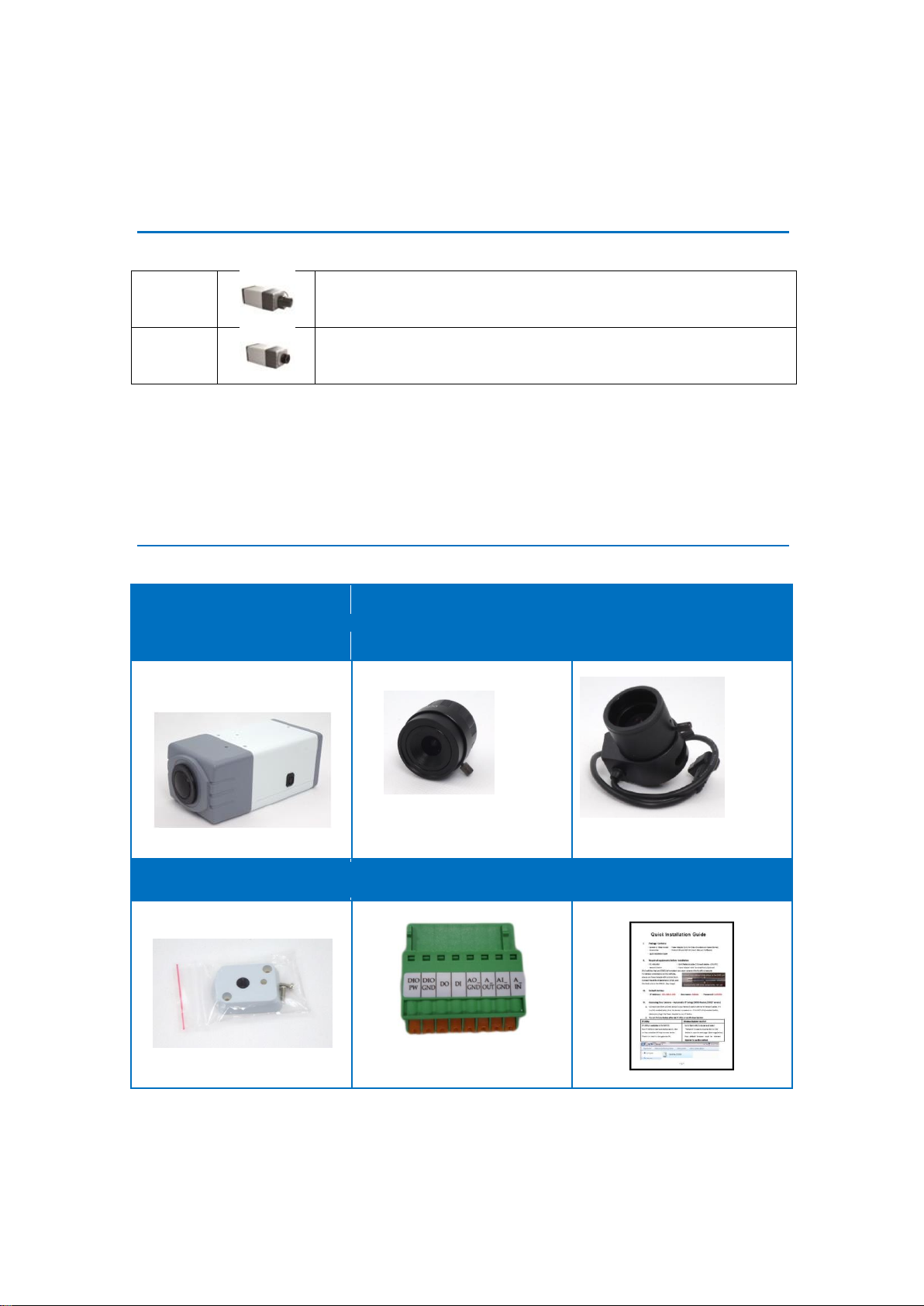

Package Contents
Camera
Lens (FCS-1153)
Lens (FCS-1152)
Fixed focal lens with
manual focus and fixed iris
Vari-focal lens with manual
focus and DC iris
Mounting Block
with Screws
Terminal Block
(for Audio and DI/DO)
Quick Installation Guide

Hardware Manual
8
Physical Description
FCS-1152
FCS-1153

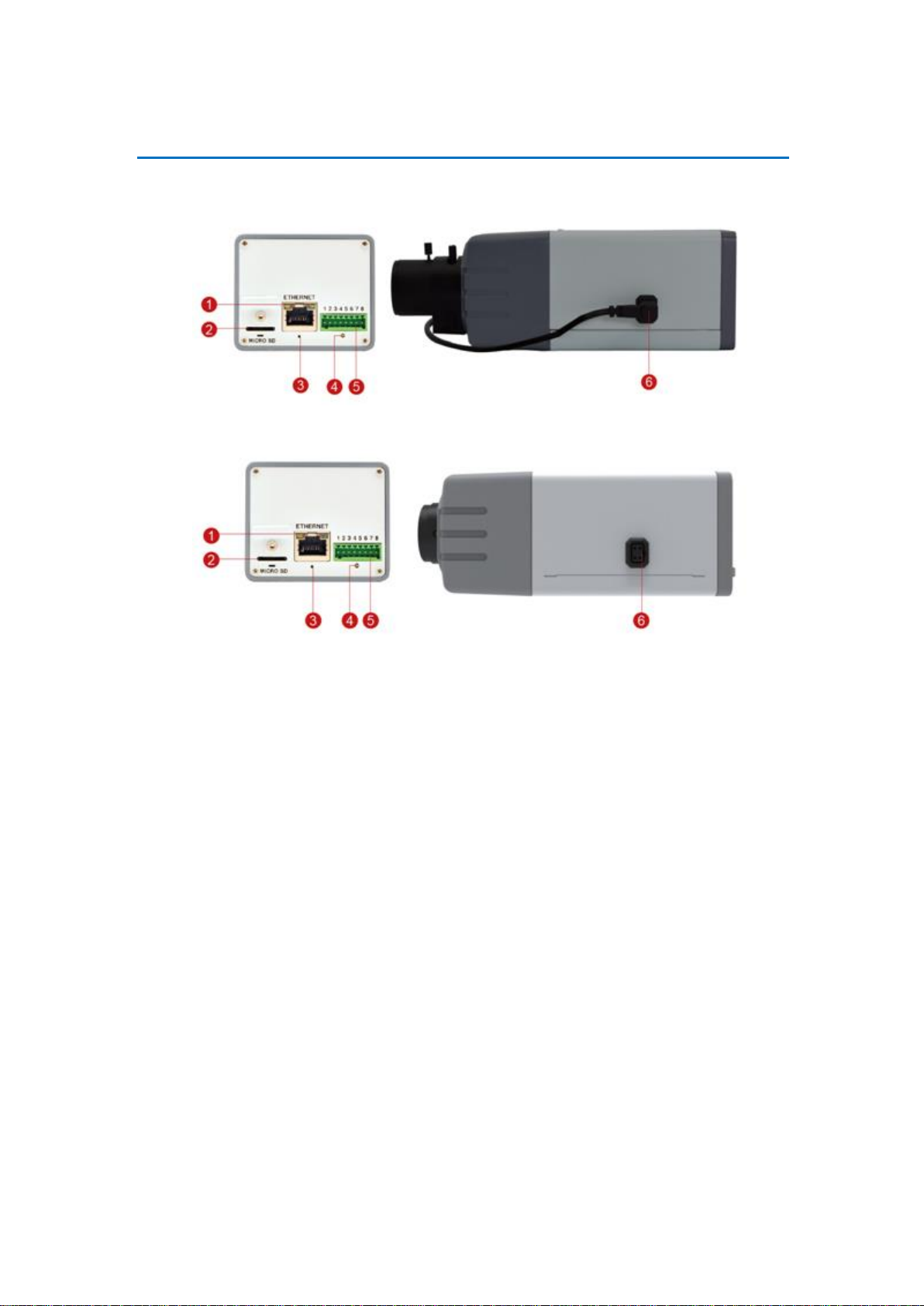

1) Ethernet Port
Connects to a network using an Ethernet cable.
2) Memory Card Slot
Insert a memory card into this slot for local recording purposes. See How to Install /
Remove the Memory Card on page 25 for more information.
NOTE: Supports microSDHC and microSDXC cards.
3) Reset Button
The purpose of reset button is to restore the factory default settings of the camera, including
administrator’s password.
The reset button can be used for following purposes:
1. The administrator’s password has been forgotten and therefore the camera cannot be
accessed.
2. In case of IP address, mask, or allow/deny filter related issues, resulting with inability to
modify these settings.
3. In case of connectivity issues or abnormal video quality.

Hardware Manual
9
How to do the reset?
Using a pointed object, such as a paper clip, press and hold the reset button for at least 5
seconds or until the Power LED goes off.
4) Power LED
The Power LED turns on when the camera is powered on and the system is running.
5) Digital Input / Output (DI/DO) and Audio Input / Output
This connector connects to digital input or output devices, such as an alarm trigger, panic
button, etc., as well as audio input and output devices, such as microphones and speakers.
Digital Input (DI) and Digital Output (DO) devices are used in applications like motion
detection, event triggering, alarm notifications, etc. See How to Connect DI/DO and Audio
Devices (Optional) on page 10 for more information.
6) DC Iris Port
When a DC iris lens is used, connect the lens cable to this port.

Hardware Manual
10
Before Installation
This section describes the procedures in preparing the Digital Input and Output (DI/DO) and
Audio Input and Output devices that you can connect to the camera using the bundled terminal
blocks. The use of these devices, however, is optional.
How to Connect DI/DO and Audio Devices (Optional)
Depending on your surveillance needs, you may connect digital input / output or audio input /
output devices to your camera. The camera comes with one (1) terminal block for both digital and
audio input/output devices.
How to Connect DI/DO Devices
Digital Input (DI) devices can be used to notify the camera about an activity in the camera site. DI
can be triggers of events. For example, you can connect a “panic button” to the camera; as such
when the panic button is pressed, the alarm signal will be sent through the camera. Other
common DI device applications are emergency button, smoke detector, passive infrared sensor,
etc.
Digital Output (DO) devices are external devices that are activated by the camera upon an event
inside the camera. For example, you can connect an “alarm horn” to the camera; as such when
an event occurs inside the camera (e.g. detected intruder), the alarm horn will sound. Other
common DO device applications are motion-triggered lights, electric fence, magnetic door locks,
etc.

Hardware Manual
11
Press and hold the orange tab as you insert the wire through the pin slot, then release the orange
tab to secure the wire.
To connect digital input / output devices (DI/DO), map the pins to one of the pin combinations
below:
Device
Pin
Mapping Instructions
Digital Output (DO)
DIO PW
Connect the wires of the output device to DIO PW
and DO.
DO
Digital Input (DI)
DIO GND
Connect the wires of the input device to DIO GND
and DI.
DI
The table below shows the DI/DO connection specifications:
Device
DI
Connection design
TTL - compatible logic levels
Voltage
To trigger (low)
Logic level 0: 0V ~ 0.4V
Normal (high)
Logic level 1: 3.1V ~ 30V
Current
10mA ~ 100mA
DO
Connection design
Transistor (Open Collector)
Voltage & Current
< 24V DC, < 50mA
For Audio Use
For DI/DO Use

Hardware Manual
12
Typical Connection
Based on these specifications, if the DI device has a voltage of 0V ~ 30V or the DO device has a
voltage of < 24V (< 50mA), then the camera can supply internal power to these devices and there
is no need to connect the DI/DO device to an external power source.
Use the DIO GND and DI pins to connect a DI device and use the DIO PW and DO pins to
connect a DO device. See wiring scheme below:
High Voltage DO Device Connection
Even though the camera provides 12V power, this may not be enough for some high voltage DO
devices, such as a ceiling light or a motor that opens or closes a gate. In this case, there is a
need to connect an external relay. See wiring scheme below:
Note that when choosing an appropriate relay, please refer to its specifications and make sure
they match the above design. The triggering circuit voltage has to be around 12V DC and the
switch-controlled circuit voltage has to match the external power supply (e.g. 110V AC or 220V
AC).

Hardware Manual
13

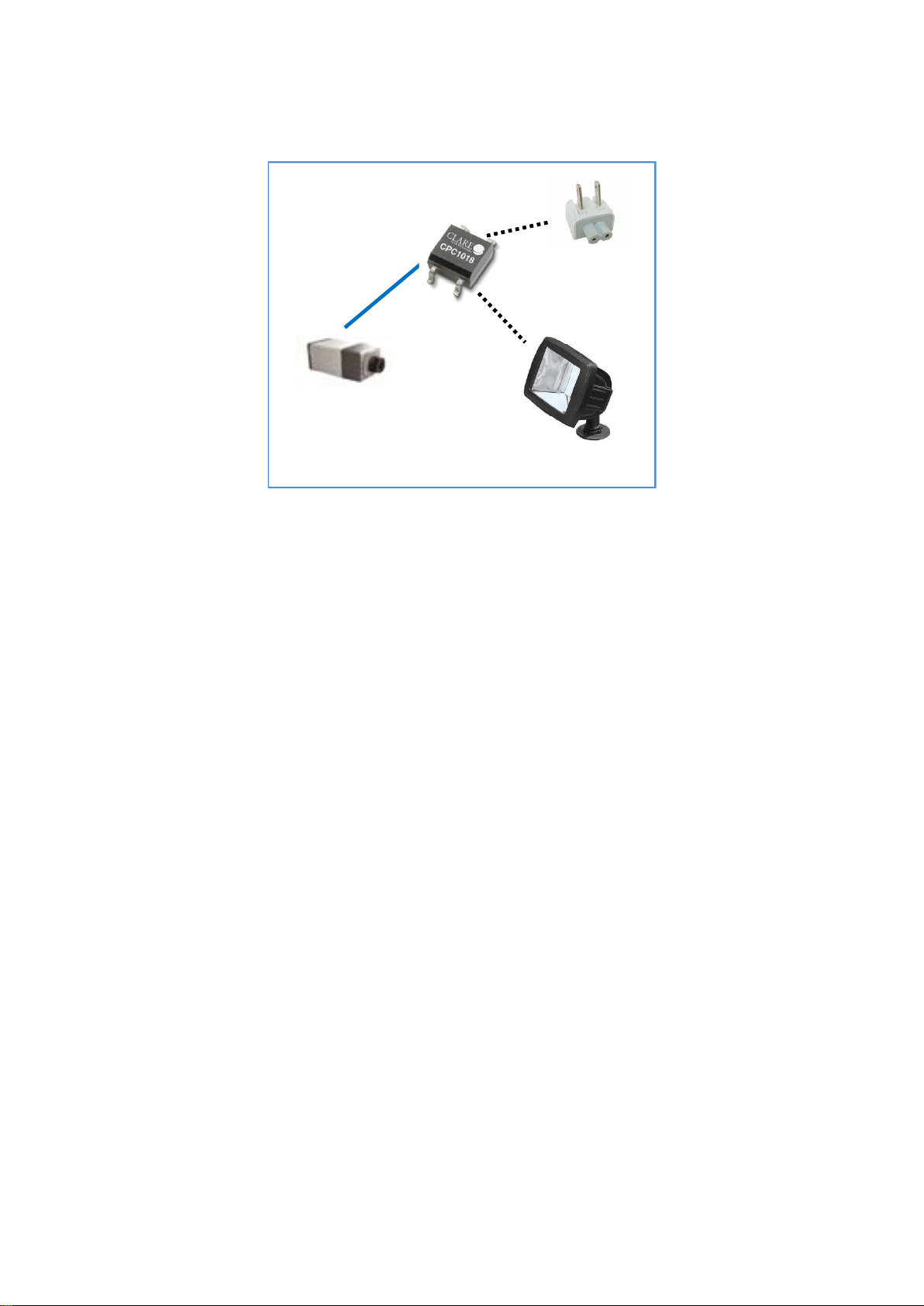

The illustration below is a graphic example of connecting a relay to a high voltage DO device.
Relay
(DO1 Device)
)
Camera
Illuminator
110V-220V AC
External Power
Source
NOTE: For more information on DI/DO connections, please refer to the Knowledge Base
article on our website.

Hardware Manual
14
How to Connect Audio Devices
Audio input / output devices, such as an active microphone or speaker can be connected to the
camera using the supplied terminal block.
Press and hold the orange tab as you insert the wire through the pin slot, then release the orange
tab to secure the wire.
To connect audio devices, map the pins to one of the pin combinations below:
Device
Pin
Mapping Instructions
Audio Output (AO)
AO_GND
Connect the wires of the audio output device to
AO_GND and A_OUT.
A_OUT
Audio Input (A1)
AI_GND
Connect the wires of the audio input device to
AI_GND and A_IN.
A_IN
NOTE:For more information about AUDIO in connections, please refer to the Knowledge Base
article on our website.
For DI/DO Use
For Audio Use

Hardware Manual
15
Indoor Installation Procedures
This section describes the procedures in installing the camera indoors using PMAX-1104 indoor
bracket (purchased separately).
When using brackets from other manufacturers, check the installation guide included in the
bracket to install the camera. Similar procedures apply when using brackets from other camera
manufacturers.
NOTE: Some pictures in this documentation only show one type of camera lens; this means that
the procedures are applicable to other types of lens, unless specified otherwise.
Step 1: Attach the Camera Lens
NOTE: To avoid scratches or leaving fingerprints on the lens, it is recommended to retain the
protective cap covering the lens until the camera is completely installed.
1. Unpack the camera and check the bundled camera lens. The camera comes with one of the
following lens.
FCS-1153
FCS-1152
2. Pull to remove the cap covering the camera lens holder.
or

Hardware Manual
16
3. Twist and pull to remove the cap covering the threaded end of the lens.
FCS-1153
FCS-1152
Attach the lens to the camera.
4. For cameras models FCS-1152, connect the lens cable to the DC-iris port.
or
or

Hardware Manual
17
Step 2: Attach the Mounting Block
Determine where you want to install the camera: on the ceiling or on the wall.
If the camera will be installed on the ceiling, attach the mounting block on the top side
of the camera.
If the camera will be installed on the wall, attach the mounting block on the bottom
side of the camera. Secure the mounting block to the camera using the two (2) screws
included in the mounting block package.

Hardware Manual
18

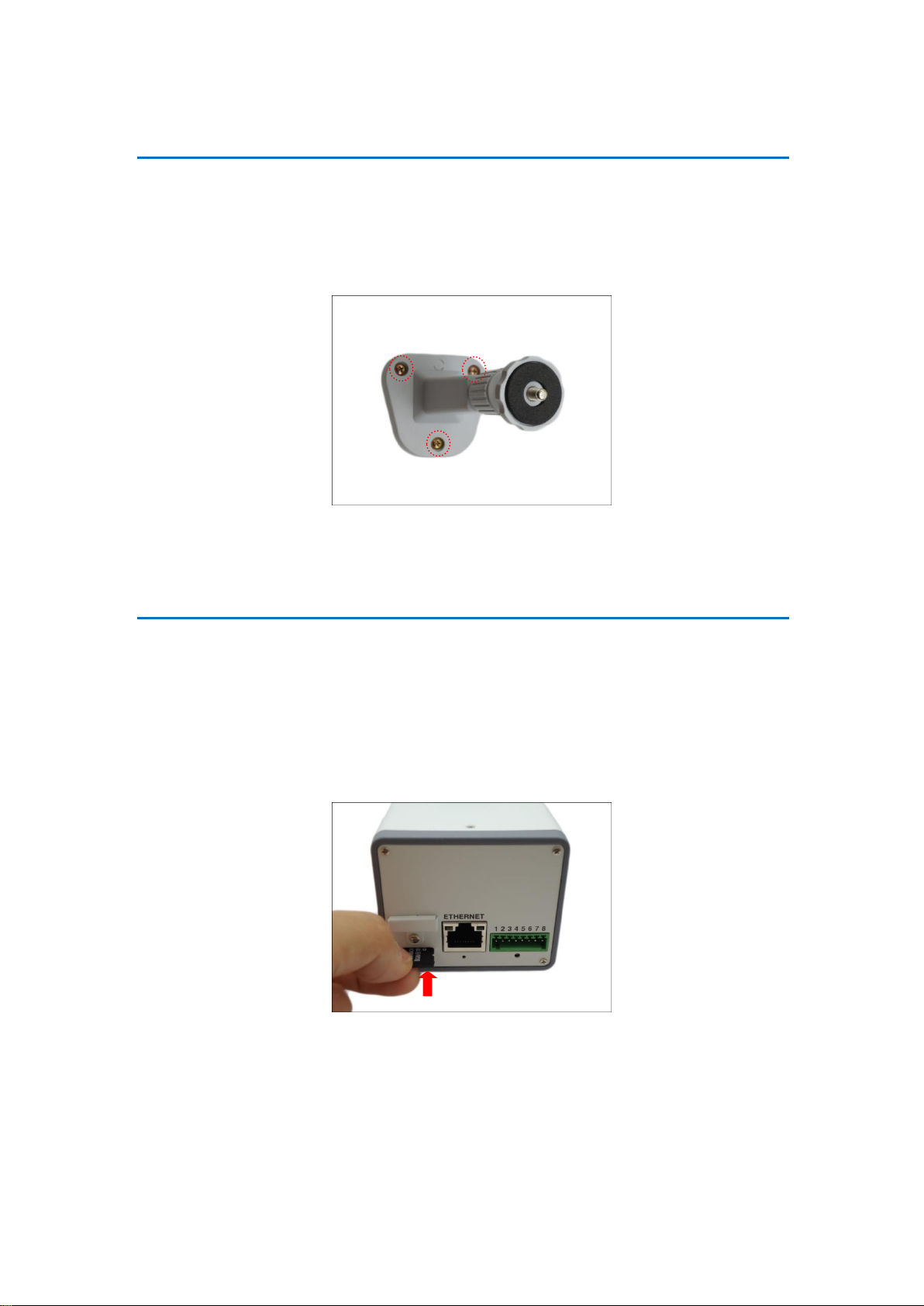

Step 3: Mount the Indoor Bracket
NOTE: Before installing the bracket, make sure the ceiling or wall can bear more than the weight
of the camera and its accessories.
Install the indoor bracket to the ceiling or wall using the three (3) screws included in the bracket
package.
Step 4: Attach the Camera to the Bracket
NOTE: The following images show the mounting bracket attached on the bottom side of the
camera. Same procedures apply when attaching the mounting bracket on the top side.
1. If necessary, insert a memory card into the memory card slot of the camera with the metal
contacts facing down. Push until the card clicks into place. See How to Install / Remove the
Memory Card on page 25 for more information.

Hardware Manual
19
2. Slightly loosen the knurled knob.
3. Screw the camera to the bracket by its mounting block.
4. Tighten the hand knob until the camera is secured to the bracket.
5. Adjust the camera angle.

Hardware Manual
20
6. Tighten the knurled knob to fix the camera position.
7. Remove the protective cap from the lens (if any).
