LevelOne FCS-3054 Instructions for use

Fixed Network Camera
Hardware User Manual
FCS-3054, FCS-3065, FCS-3092
Ver. 2014/01/09

Hardware Manual
2
Table of Contents
Precautions 3
Safety Instructions ...........................................................................5
Introduction 6
List of Models....................................................................................6
Package Contents.............................................................................7
Physical Description ........................................................................8
Installation Procedures 10
Installing the Camera on a Surface............................................... 11
Basic Connections .........................................................................14
Other Adjustments and Accessories 15
How to Adjust the Viewing Angle and Focus ...............................15
How to Replace the Dome Cover................................................... 17
How to Replace the Lens (for FCS-3065 only)..............................19
Accessing the Camera 22
Configure the IP Addresses...........................................................22
Using DHCP Server to Assign IPAddresses................................22
Using the Default Camera IPAddress..........................................24
Access the Camera.........................................................................25

Hardware Manual
3
Precautions
Read these instructions
You should read all the safety and operating instructions before using this product.
Heed all warnings
You must adhere to all the warnings on the product and in the instruction manual. Failure to
follow the safety instruction given may directly endanger people, cause damage to the system
or to other equipment.
Servicing
Do not attempt to service this video device yourself as opening or removing covers may
expose you to dangerous voltage or other hazards. Refer all servicing to qualified service
personnel.
Trademarks
All names used in this manual are probably registered trademarks of respective companies.
Liability
Every reasonable care has been taken during the writing of this manual. Please inform your
local office if you find any inaccuracies or omissions. We cannot be held responsible for any
typographical or technical errors and reserve the right to make changes to the product and
manuals without prior notice.

Hardware Manual
4
Federal Communications Commission Statement
This equipment has been tested and found to comply with the limits for a
class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications to the equipment that are not expressly approved by the
responsible party for compliance could void the user’s authority to operate the equipment.
European Community Compliance Statement
This product has been tested and found to comply with the limits for Class B
Information Technology Equipment according to European Standard EN 55022
and EN 55024. In a domestic environment, this product may cause radio interference in which
cause the user may be required to take adequate measures.

Hardware Manual
5
Safety Instructions
Cleaning
Disconnect this video product from the power supply before cleaning.
Attachments
Do not use attachments not recommended by the video product manufacturer as they may
cause hazards.
Water and Moisture
Do not use this video product near water, for example, near a bathtub, washbowl, kitchen sink,
or laundry tub, in a wet basement, or near a swimming pool and the like.
Don’t use accessories not recommended by the manufacturer
Only install this device in a dry place protected from weather
Servicing
Do not attempt to service this video product yourself as opening or removing covers may
expose you to dangerous voltage or other hazards. Refer all servicing to qualified service
personnel.
Damage Requiring service
Disconnect this video product from the power supply immediately and refer servicing to
qualified service personnel under the following conditions.
1) When the power-supply cord or plug is damaged
2) If liquid has been spilled, or objects have fallen into the video product.
3) If the video product has been directly exposed to rain or water.
4) If the video product does not operate normally by following the operating Instructions in
this manual. Adjust only those controls that are covered by the instruction manual, as an
improper adjustment of other controls may result in damage, and will often require
extensive work by a qualified technician to restore the video product to its normal
operation.
Safety Check
Upon completion of any service or repairs to this video product, ask the service technician to
perform safety checks to determine if the video product is in proper operating condition.

Hardware Manual
6
Introduction
List of Models
This hardware manual contains the following models:
FCS-3054
3MP Indoor Mini Dome with Fixed lens
FCS-3065
5MP Indoor Mini Dome with Basic WDR, Fixed lens
FCS-3092
5MP Indoor Mini Fisheye Dome with Basic WDR, Fixed lens
From the installation perspective, these camera models are very similar, therefore one manual
can be used for all of them.

Hardware Manual
7
Package Contents
Camera
Camera
FCS-3092 (Mini Fisheye Dome)
Screw Kit
Drill Template
Hexagon Screwdriver
Lens Focus Tuner
(Not available in E93, E96, and E97 models)
Quick Installation Guide
Drill Template
or

Hardware Manual
8

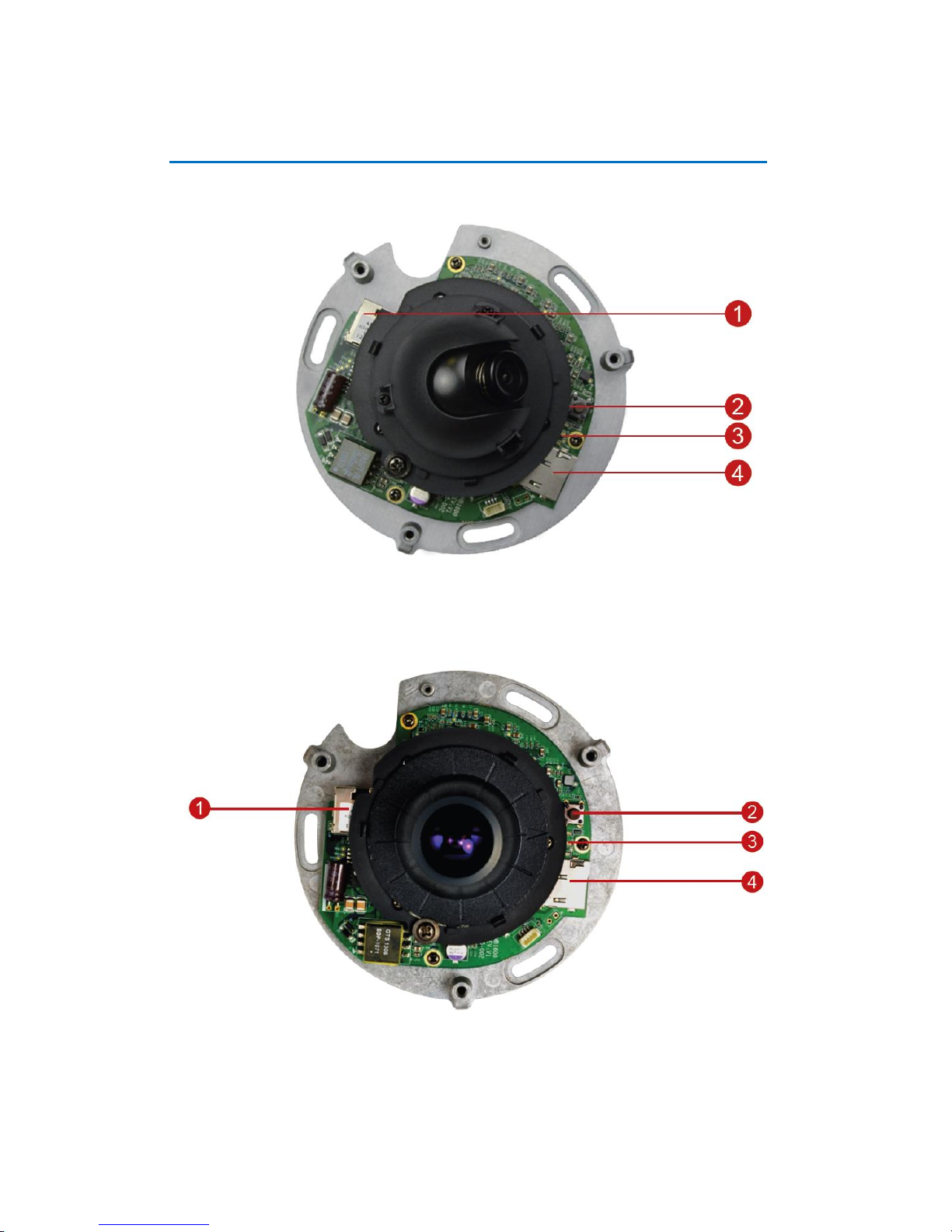

Physical Description
Mini Dome
Mini Fisheye Dome

Hardware Manual
9
1) Ethernet Port
The Ethernet port connects to a network using an Ethernet cable.
2) Reset Button
The Reset Button is used to restore the factory default settings of the camera, including
the administrator’s password.
How to reset the camera?
While the power is on, press and hold the Reset Button for 5 seconds or until the Blue
LED lights up.
3) LED Indicators
Blue LED: The Power LED lights blue when the camera is powered on, the light
goes off once the initial boot up process is complete.
Amber LED: The Ethernet Activity LED blinks amber when network activity is in
progress.
Green LED: The Ethernet Link LED lights green when a network connection is
established.
4) Memory Card Slot
Insert a memory card (not included) into this slot for local recording.
NOTE: Supports microSDHC and microSDXC cards.
How to install the memory card?
Insert the memory card into the slot with the metal contacts facing down, and then push
the card until it clicks into place.
How to remove the memory card?
Access the Web Configurator to “safely unmount” the card (see the camera Firmware
Manual for details). Once unmounted from the firmware, push the card to eject it from the
slot.

Hardware Manual
10
Installation Procedures
Before mounting the camera, remove the dome cover by loosening the three (3) screws.
There are two ways to mount the camera:
Surface mount: Use this method to mount the camera directly on the ceiling. See
Installing the Camera on a Surface on page 11.
Gang Box Mount: If the camera will be mounted on a gang box (applicable in some
areas in the US), a gang box converter (not included in the camera package)

Hardware Manual
11
Installing the Camera on a Surface

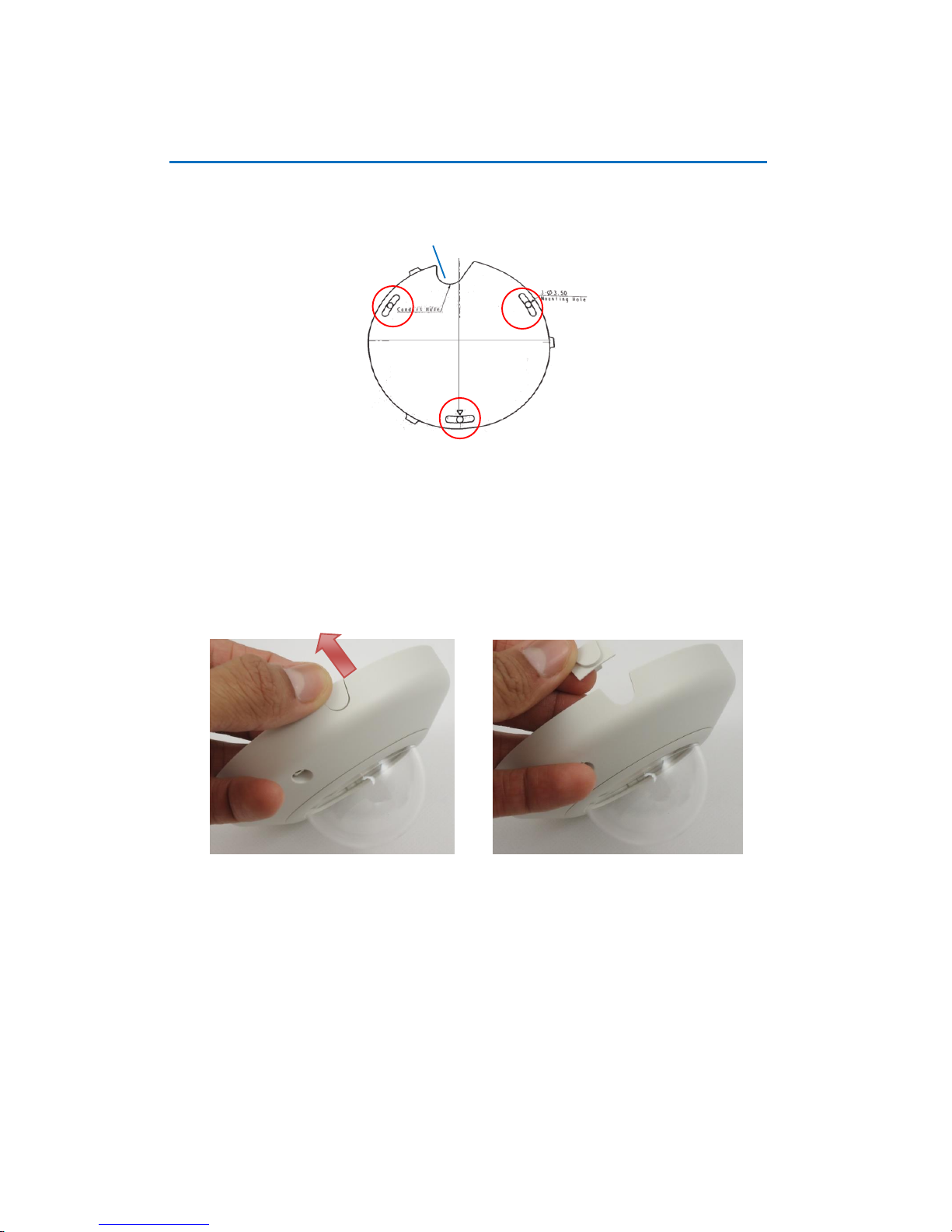

1. Mark the location of the screw holes base on the drill template included in the package.
NOTE: Depending on the surface where you will install the camera, it may be necessary to
drill three (3) holes with φ 3.5 on the ceiling and use the supplied screw torx.
2. Route the cables through the ceiling, taking the Conduit Hole on the drilling template as a
reference. Or, slide off the cable exit tab on the dome cover to route the cable through that
hole later.
Conduit Hole

Hardware Manual
12

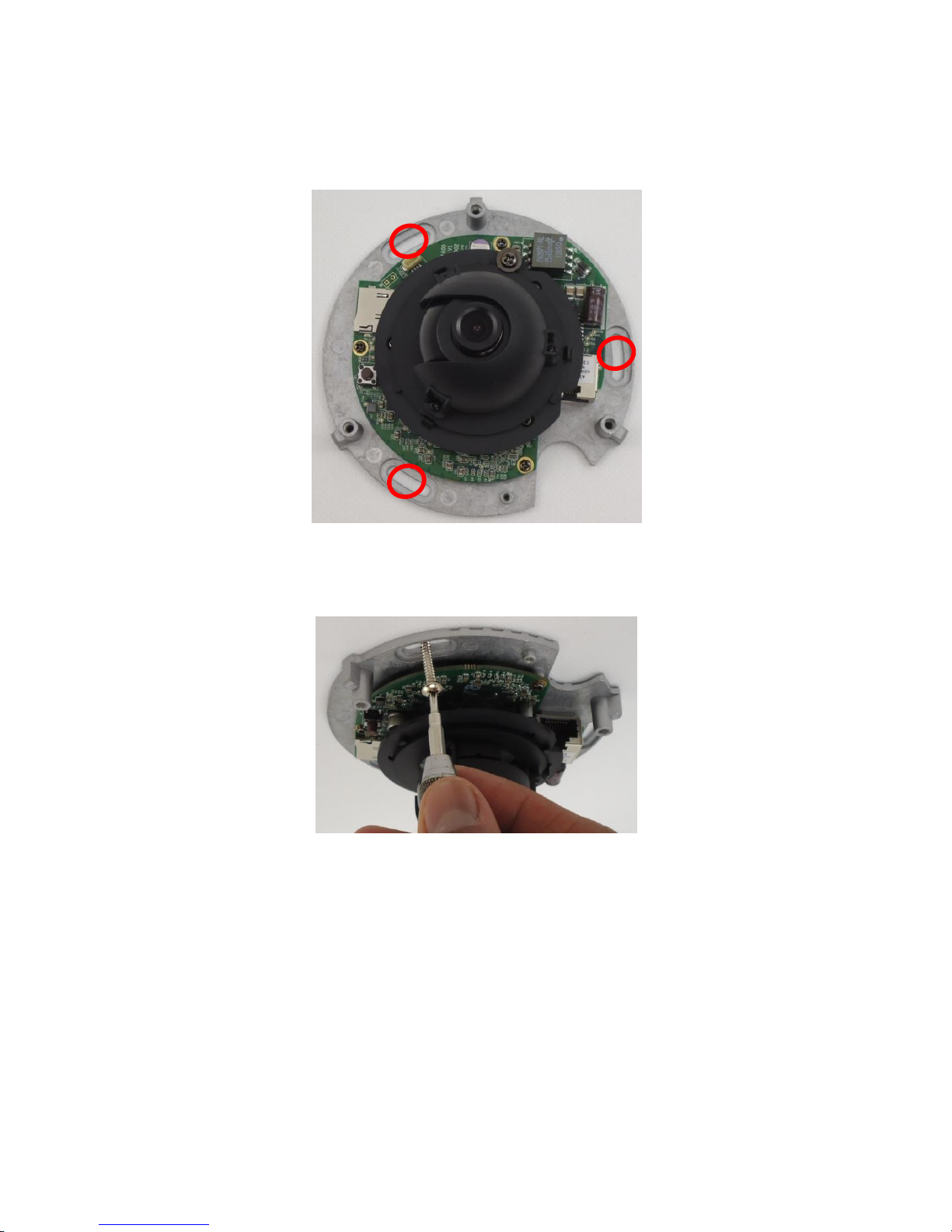

3. Use the camera body and locate the three (3) screw holes.
4. Install the camera body to the ceiling using the three (3) screws included in the camera
package.
NOTE: Please make sure the screw is flat on the plate.

Hardware Manual
13
5. Connect the Ethernet cable to the Ethernet port of the camera.
6. Adjust the camera viewing angle and focus. See How to Adjust the Viewing Angle and
Focus on page 15.
NOTE: Not applicable to E96 model.

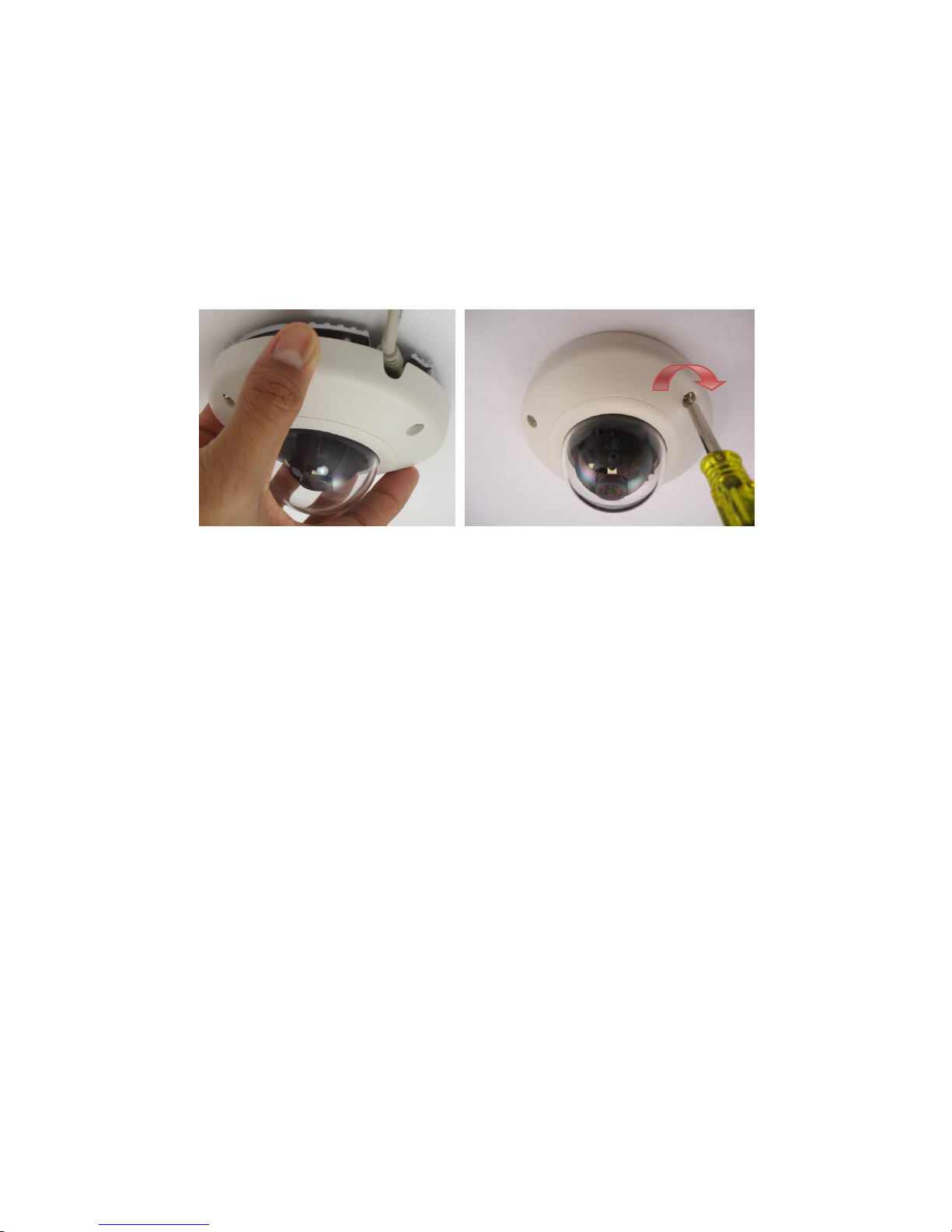

7. Attach the cover to the camera body and tighten the three (3) screws to secure it.

Hardware Manual
14
Basic Connections

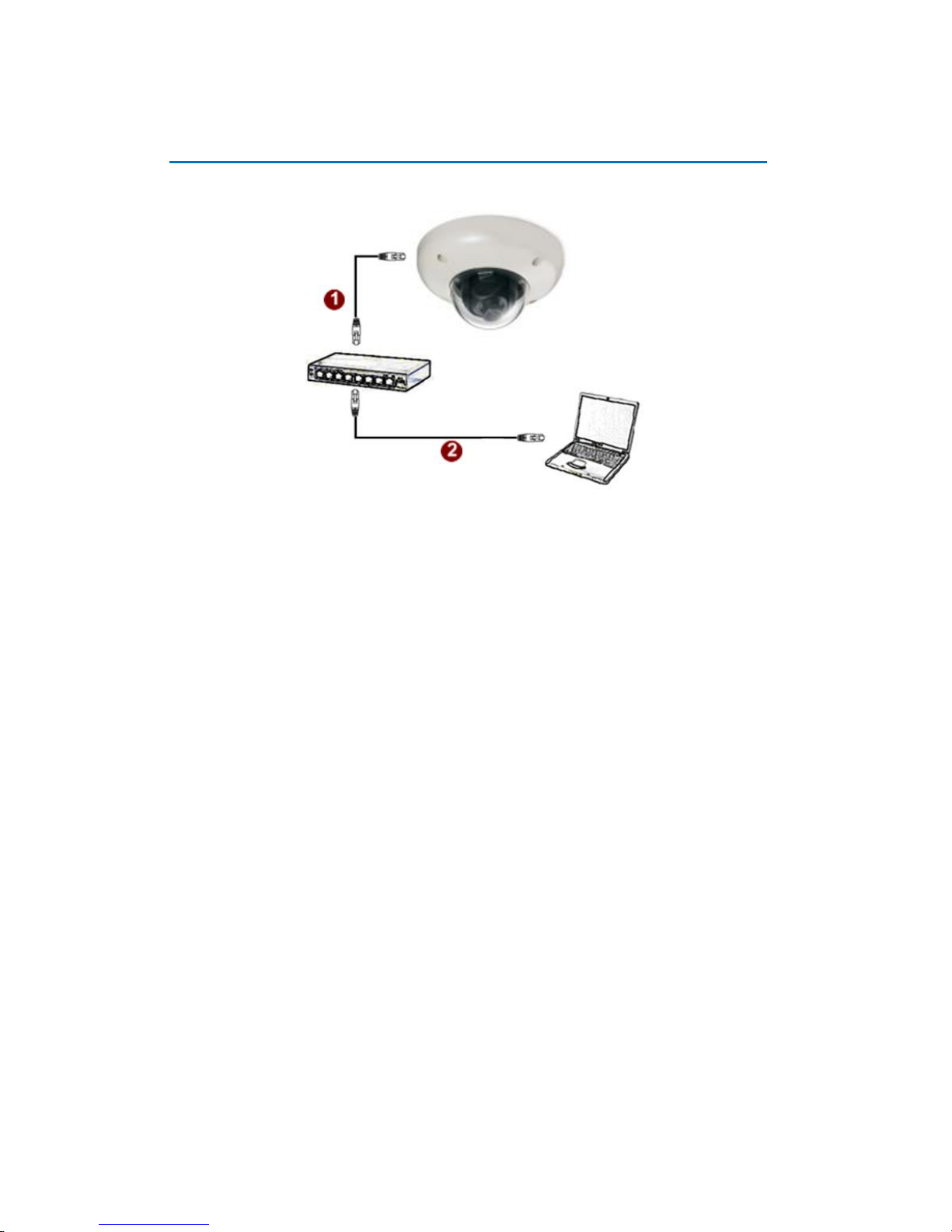

Follow the procedures below to connect the camera to the network.
Please use a PoE (Power over Ethernet) supported switch or injector:
1) Connect your IP Camera to the PoE Switch / Injector using an Ethernet cable.
2) Connect your PoE Switch / Injector to a PC / network using another Ethernet cable.

Hardware Manual
15
Other Adjustments and Accessories
How to Adjust the Viewing Angle and Focus
NOTE: The following procedures are not applicable toFCS-3092 (Mini Fisheye Dome)
cameras.

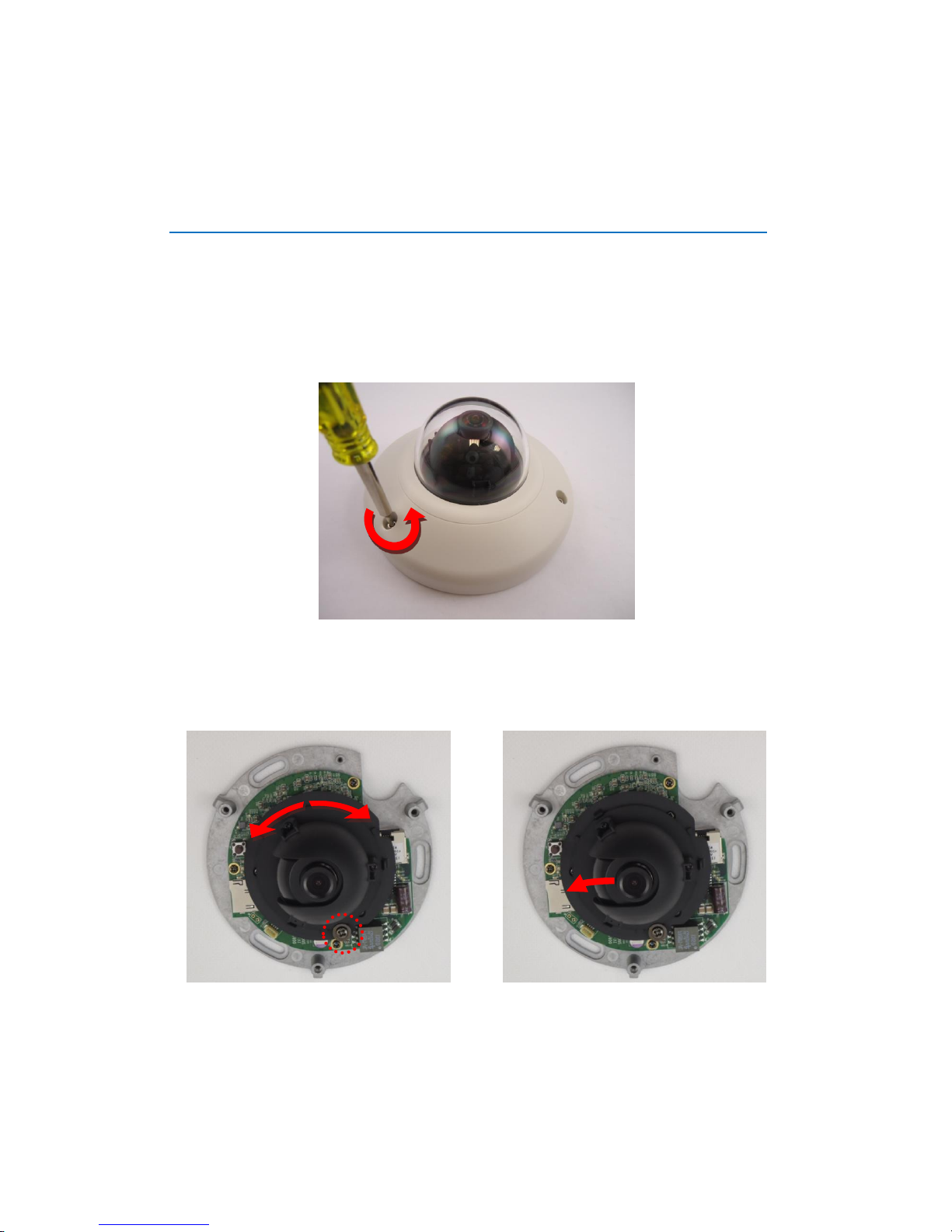

1. Loosen the three (3) screws to remove the dome cover.
2. Based on the live view from the camera, adjust the viewing angle with pan and tilt direction
(for Mini Dome models only).

Hardware Manual
16
3. Adjust the focus.
NOTE: Not applicable for FCS-3065 model because the camera is already pre-focused.
a. Attach the focus tuner (included in the camera package) on the lens and adjust the
focus of the lens.
b. Remove the lens focus tuner.
4. Attach the dome cover to the camera and tighten the three (3) screws.

Hardware Manual
17
How to Replace the Dome Cover
For more discrete surveillance needs, the pre-installed dome cover can be replaced with a
smoked, non-vandal proof dome cover. The smoked dome cover is an optional accessory;
contact your sales agent to purchase.
To replace the dome cover, follow the procedures below:

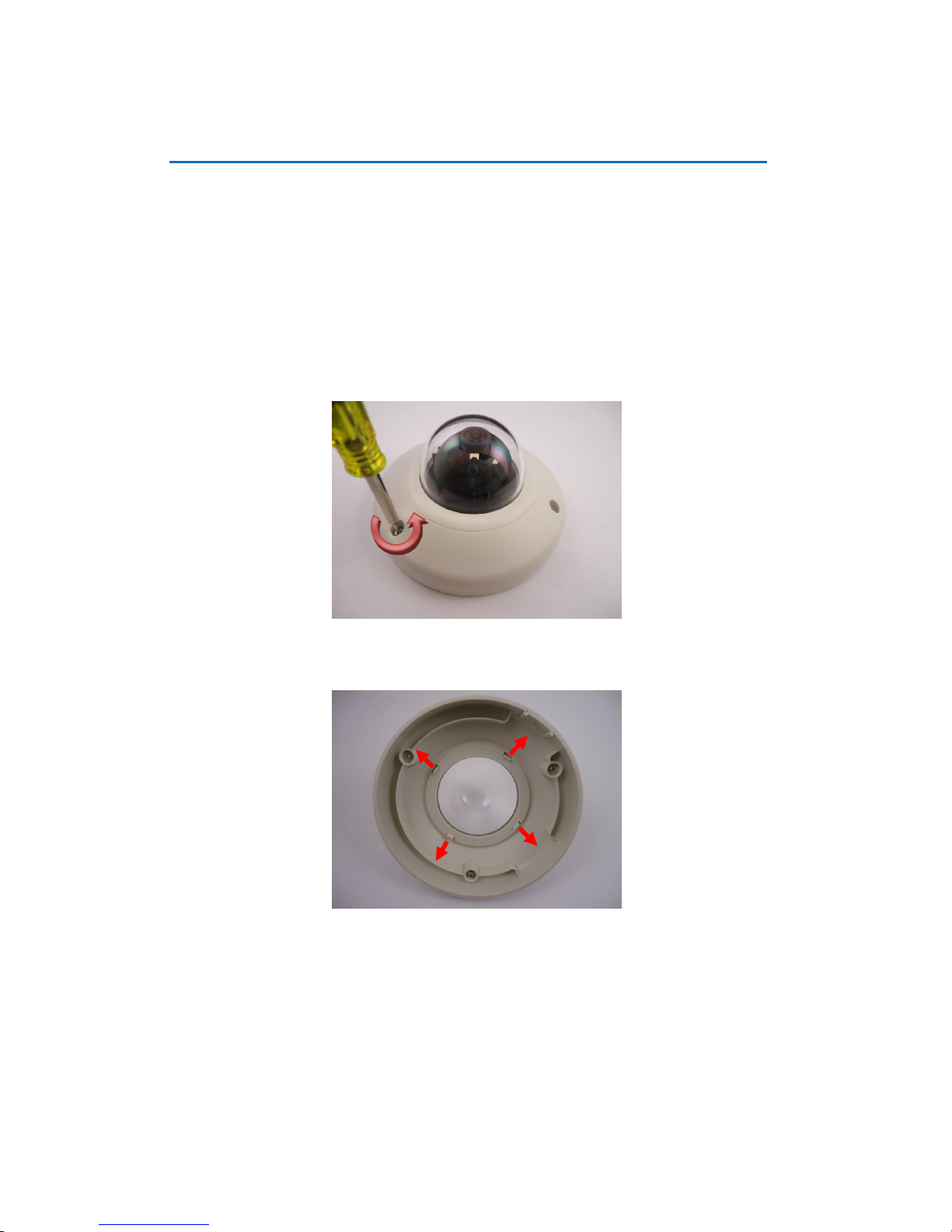

1. Loosen the three (3) screws to remove the dome cover.
2. Push the clips outwards to release the dome cover latches.

Hardware Manual
18
3. Remove the ring from the cover.
4. Insert ring to the new dome cover and latch it to the cover body.

Hardware Manual
19
How to Replace the Lens (for FCS-3065 only)
For wider viewing angle, the bundled lens can be replaced with the optional IR-compatible lens.
Contact your sales agent to purchase.
To replace the lens, follow the procedures below:
1. Using the bundled hex screwdriver, loosen the three (3) screws to open the dome cover.
2. Attach the lens focus tuner to the lens and continuously rotate until the lens comes off.

Hardware Manual
20
3. When the lens comes off, remove the spring and remove the bundled lens from the lens
focus tuner.
4. Remove the transparent plastic from the replacement lens.
5. Attach the spring to the replacement lens.
6. Continuously rotate the replacement lens to attach it to the camera.
