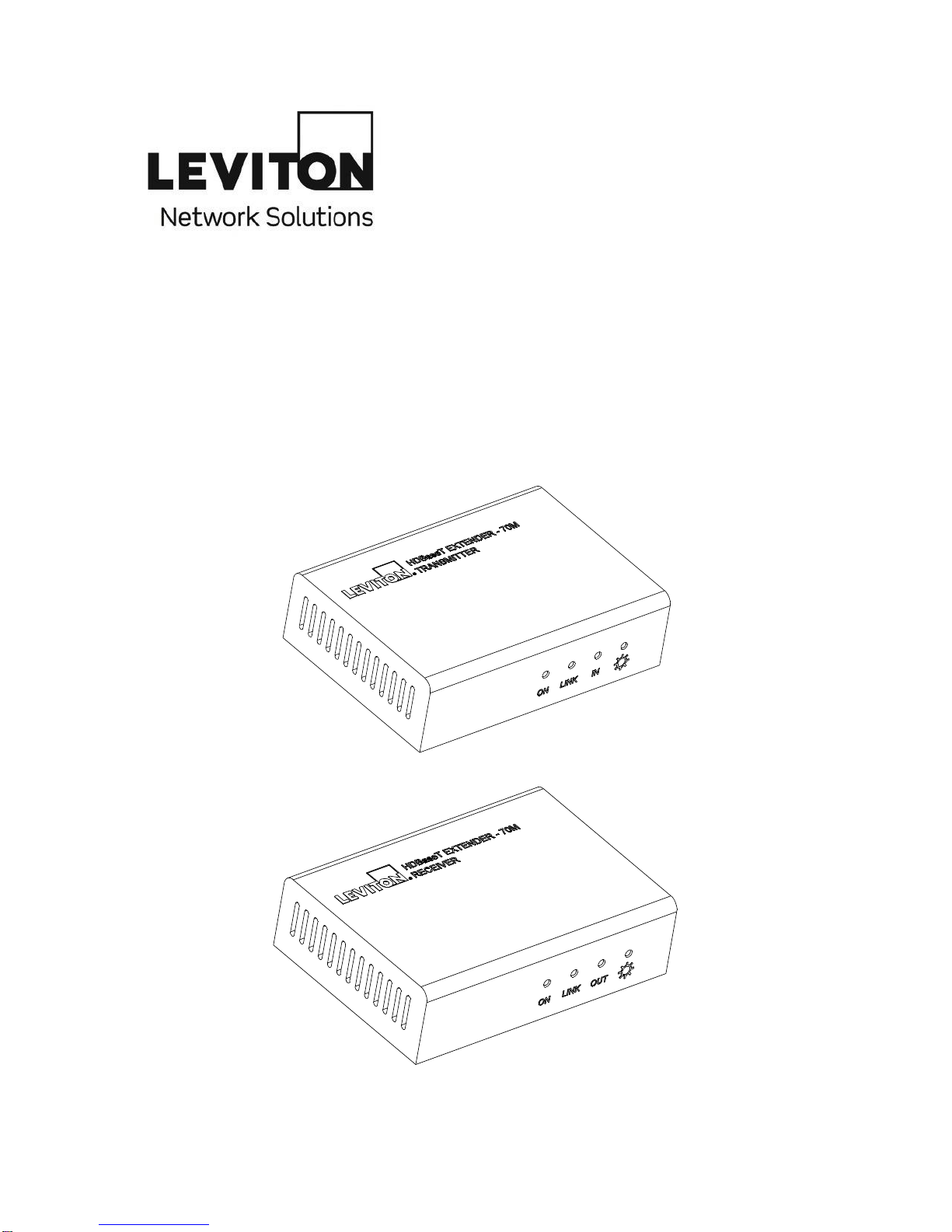

Leviton 41910-HT0 User manual

41910-HT0
41910-HTR
HDMI/IR/RS232 Extender

HDBaseT Extender –70M PK-A3064-10-02-5A
Leviton Manufacturing Co. 2 www.leviton.com
IMPORTANT INSTRUCTIONS
1. Read and understand all instructions. Follow all warning and instructions marked on
the product.
2. Do not use this product near water-e.g., near a tub, wash basin, kitchen sink or
laundry tub, in a wet basement, or near a swimming pool.
3. Never push objects of any kind into this product through openings, as they may touch
dangerous voltages.
4. SAVE THESE INSTRUCTIONS.
SAFETY INFORMATION
1. Never install communications wiring or components during a lightning storm.
2. Never install communications components in wet locations unless the components
are designed specifically for use in wet locations.
3. Never touch uninsulated wires or terminals unless the wiring has been disconnected
at the network interface.
4. Use caution when installing or modifying communications wiring or components.

HDBaseT Extender –70M PK-A3064-10-02-5A
Leviton Manufacturing Co. 3 www.leviton.com
Contents
1. Introduction.................................................................................................................4
1.1 Introduction to the 41910-HT0...........................................................................4
1.2 Features ............................................................................................................4
1.3 Package Contents.............................................................................................4
2. Product Exterior..........................................................................................................5
2.1 41910-HT0 Transmitter......................................................................................5
2.2 41910-HT0 Receiver .........................................................................................6
3. System Connection.....................................................................................................7
3.1 System Diagram................................................................................................7
3.2 Connection Procedure.......................................................................................7
3.3 Twisted Pair Cable Connection..........................................................................7
4. Specification ...............................................................................................................8
5. Troubleshooting & Maintenance .................................................................................8
6. Warranty.....................................................................................................................8

HDBaseT Extender –70M PK-A3064-10-02-5A
Leviton Manufacturing Co. 4 www.leviton.com
1. Introduction
1.1 Introduction to the 41910-HT0
The 41910-HT0 sends HDMI™, IR, and RS232 over twisted pair cabling and includes a
transmitter and receiver. The 41910-HT0 uses HDBaseT™technology and has a max
transmission distance up to 70 meters with CAT6A cable. Consumer Electronics Control
(CEC), bi-directional RS232, IR pass-through, and Power over HDBaseT (PoH) are
supported by the 41910-HT0.
1.2 Features
Supports VESA resolutions up to 1920x1200@60Hz
Supports HDTV resolutions including 720p, 1080p, 2160p
Supports 3D
Max transmission distance is up to 70 meters over single CAT6A cable.
High Bandwidth: 10.2Gps.
HDTV Compatible; uses HDMI 1.4 and is HDCP compliant.
Supports PoH for powering devices from either end
CEC, EDID and HDCP pass through
HDBaseT certified
Bi-directional RS232 and IR pass-through
Wall or table mountable aluminum enclosure
Locking input power connector & HDMI connector
1.3 Package Contents
1 x 41910-HT0 Transmitter (Not in 41910-HTR)
1 x 41910-HT0 Receiver
4 x Mounting brackets
8 x Rubber feet
2 x RS232 cables
8 x Screws
1 x Power adapter (DC 24V)
1 x User manual

HDBaseT Extender –70M PK-A3064-10-02-5A
Leviton Manufacturing Co. 5 www.leviton.com
2. Product Exterior
2.1 41910-HT0 Transmitter
1) ON: Blinks green when the device is operational; turns off when the device stops
working.
2) LINK: Twisted Pair cable link status indicator, illuminates green when the
connection between the transmitter and receiver is successful.
3) IN: HDCP compliance indicator, solid green when the connected device supports
HDCP and works normally; blinks green when the connected device does not
support HDCP.
4) POWER LED: Illuminates red when the power is on.
5) HDBT OUT: Connect to the HDBT IN port of an HDBaseT certified receiver with a
twisted pair cable.
6) HDMI IN: Connect to HDMI source.
a) Threaded insert for locking connector is M3 –0.5mm (kit sold separately
41900-LKT)
7) IR IN: Connect with an IR target (sold separated 41910-HIR)
8) IR OUT: Connect with an IR emitter (sold separately 41910-HIR)
9) RS232: Serial pass through
10) DC 24V: Connect with the included power supply (can be placed at transmit or
receive end).
1
2
3
4
5
6
7
8
9
10
PoH

HDBaseT Extender –70M PK-A3064-10-02-5A
Leviton Manufacturing Co. 6 www.leviton.com
2.2 41910-HT0 Receiver
1) ON: Blinks green when the device is operational; turns off when the device stops
working.
2) LINK: Twisted Pair link status indicator, illuminates green when the connection
between the two devices is successful.
3) OUT: HDCP compliance indicator, illuminates green when the connected device
supports HDCP and works normally; blinks green when the connected device does
not support HDCP.
4) POWER LED: Illuminates red when the power is on.
5) HDBT IN: Connect to the HDBT OUT port of an HDBaseT certified transmitter with
a twisted pair cable.
6) HDMI OUT: Connect to an HDMI display device.
a) Threaded insert for locking connector is M3 –0.5mm (kit sold separately
41900-LKT)
7) IR IN: Connect with an IR target (sold separately 41910-HIR).
8) IR OUT: Connect with an IR emitter (sold separately 41910-HIR).
9) RS232: Serial pass-through
10) DC 24V: Connect with the included power supply (can be placed at transmit or
receive end).
1
2
3
4
5
6
7
8
9
10
PoH

HDBaseT Extender –70M PK-A3064-10-02-5A
Leviton Manufacturing Co. 7 www.leviton.com
3. System Connection
3.1 System Diagram
01:52:16DVD
123
456
789
0
DVD
IR Remote
Projector
IR Target
IR Emitter
41910-HT0 - Transmitter 41910-HT0 - Receiver
System Controller
Twisted Pair Cable
HDMI Cable
IR Cable
RS232 Cable
H H
3.2 Connection Procedure
Step1.Connect an HDMI source (such as a Blu-ray or DVD player) to the HDMI IN port
of the 41910-HT0 Transmitter with an HDMI cable.
Step2.Connect the HDBT OUT port of the 41910-HT0 Transmitter to the HDBT IN port
of 41910-HT0 Receiver through a CAT 6A cable.
Step3.Connect an HDMI display (such as an HDTV) to the HDMI OUT port of the
41910-HT0 Receiver with an HDMI cable.
Step4.Both the 41910-HT0 Transmitter and the 41910-HT0 Receiver have IR IN and
OUT. When one end is used as an IR target, the other end will be used as an IR
emitter (sold separately 41910-HIR).
Step5.Connect the RS232 port to a system controller and controlled device as required.
Step6.Connect the DC 24V power adaptor (one is sufficient as the other end can be
energized via the PoH function).
3.3 Twisted Pair Cable Connection
For best performance, twisted pair cable should be installed in accordance with
TIA-568-C.0 and NEC 300 and field certified using ANSI/TIA-568 UL approved testers.

HDBaseT Extender –70M PK-A3064-10-02-5A
Leviton Manufacturing Co. 8 www.leviton.com
4. Specification
General
Resolution
VESA up to 1920x1200@60Hz
HDTV 720p@60Hz, 1080p@60Hz, 2160p@30Hz
Transmission Distance
Max distance 70M
HDMI Standard
Supports HDMI1.4 and HDCP
Temperature
-10 ~ +40℃
Humidity
10% ~ 90%
Power Supply
Input: 100VAC~240VAC, 50/60Hz Output: DC 24V,
1.25A
Power Consumption
9.6W
Dimension (W*H*D)
110 x 77x 30 mm / 4.3 x 3 x 1.2 inches
Net Weight
0.5Kg, 1.1 lbs
NOTE: All nominal levels are ±10%.
5. Troubleshooting & Maintenance
LED STATUS
ON
OFF
OFF
ON
OFF
ON
ON
LINK
OFF
OFF
OFF
ON
ON
ON
IN/OUT
OFF
OFF
OFF
OFF
OFF
ON
POWER
OFF
ON
ON
ON
ON
ON
NOTES
CHECK POWER
CHECK TWISTED PAIR WIRING
CHECK TWISTED PAIR WIRING
CHECK INPUT STATUS
HDCP PROBLEM
UNIT WORKING PROPERLY
If your problem persists, please call technical support at [phone].
6. Warranty
Go to www.leviton.com/warranty for more information

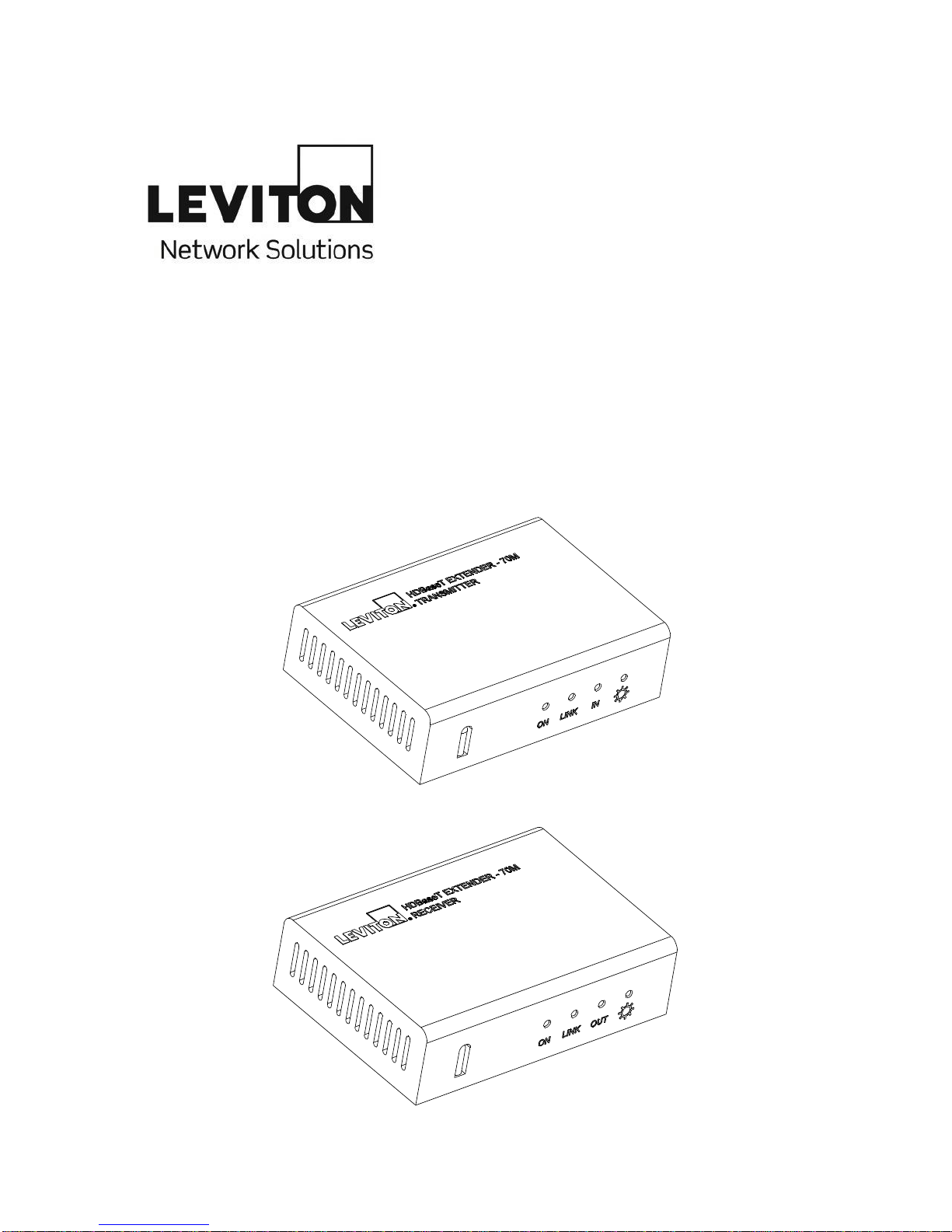

41910-HT0
41910-HTR
Prolongateur RS232/infrarouges/HDMI

Prolongateur HDBaseT –70M PK-A3064-10-02-5A
Leviton Manufacturing Co. 10 www.leviton.com
DIRECTIVES IMPORTANTES
1. S’assurer de bien lire et comprendre toutes les directives. Observer tous les
avertissements et consignes apparaissant sur le dispositif.
2. Ne pas installer ce dispositif à proximité d’une source d’eau – comme une baignoire,
un bac à laver, une cuve à lessive ou un évier de cuisine –, dans un sous-sol humide
ni près d’une piscine.
3. Ne jamais insérer quelque objet que ce soit dans les ouvertures de ce dispositif; elles
sont sous tension et peuvent présenter un danger.
4. CONSERVER LES PRÉSENTES DIRECTIVES.
CONSIGNES DE SÉCURITÉ
1. Ne jamais effectuer l’installation de câblage ou de composants de communication
pendant un orage.
2. Ne jamais installer de composants de communication dans des endroits mouillés à
moins qu’il s’agisse de dispositifs conçus spécialement pour cet usage.
3. Ne jamais toucher des bornes de raccordement ni des fils non isolés, à moins que le
circuit ne soit pas relié à l’interface réseau.
4. Toujours procéder prudemment lorsqu’on installe ou on modifie du câblage de
communication.
