Lexmark PrintCryptionTM
(Firmware Version 1.3.1)
FIPS 140-2 Non-Proprietary
Security Policy
Level 1 Validation
Version 0.95
April 2007

Page 2 of 17
© Copyright 2006 Lexmark International Inc.
This document may be freely reproduced and distributed whole and intact including this Copyright Notice.
Table of Contents
INTRODUCTION......................................................................................................................... 3
PURPOSE....................................................................................................................................... 3
REFERENCES................................................................................................................................. 3
DOCUMENT ORGANIZATION ......................................................................................................... 3
LEXMARK PRINTCRYPTIONTM............................................................................................. 4
OVERVIEW.................................................................................................................................... 4
MODULE SPECIFICATION .............................................................................................................. 4
MODULE INTERFACES................................................................................................................... 6
ROLES AND SERVICES................................................................................................................... 7
Crypto Officer Role .................................................................................................................. 7
User Role.................................................................................................................................. 8
PHYSICAL SECURITY .................................................................................................................... 8
OPERATIONAL ENVIRONMENT ...................................................................................................... 9
CRYPTOGRAPHIC KEY MANAGEMENT .......................................................................................... 9
Access Control Policy ............................................................................................................ 10
Key Generation ...................................................................................................................... 10
Key Storage ............................................................................................................................ 10
Key Entry and Output............................................................................................................. 10
Key Zerorization..................................................................................................................... 10
SELF-TESTS ................................................................................................................................ 10
DESIGN ASSURANCE................................................................................................................... 11
MITIGATION OF OTHER ATTACKS............................................................................................... 11
OPERATION IN FIPS MODE.................................................................................................. 12
INITIAL SETUP ............................................................................................................................ 12
CRYPTO OFFICER GUIDANCE...................................................................................................... 13
USER GUIDANCE......................................................................................................................... 14
ACRONYMS............................................................................................................................... 17

Page 3 of 17
© Copyright 2006 Lexmark International Inc.
This document may be freely reproduced and distributed whole and intact including this Copyright Notice.
Introduction
Purpose
This is a non-proprietary Cryptographic Module Security Policy for the Lexmark
PrintCryptionTM from Lexmark International Inc. This Security Policy describes
how the Lexmark PrintCryptionTM meets the security requirements of FIPS 140-2
and how to run the module in a secure FIPS 140-2 mode. This policy was
prepared as part of the Level 1 FIPS 140-2 validation of the module.
FIPS 140-2 (Federal Information Processing Standards Publication 140-2 —
Security Requirements for Cryptographic Modules) details the U.S. Government
requirements for cryptographic modules. More information about the FIPS 140-2
standard and validation program is available on the National Institute of Standards
and Technology (NIST) Cryptographic Module Validation Program (CMVP)
website at http://csrc.nist.gov/cryptval/.
The Lexmark PrintCryptionTM is referred to in this document as PrintCryption,
PrintCryption module, cryptographic module, firmware module, or module.
References
This document deals only with operations and capabilities of the module in the
technical terms of a FIPS 140-2 cryptographic module security policy. More
information is available on the module from the following sources:
•The Lexmark International website (http://www.lexmark.com) contains
information on the full line of products from Lexmark International.
•The CMVP website (http://csrc.nist.gov/cryptval/) contains contact
information for answers to technical or sales-related questions for the module.
Document Organization
The Security Policy document is one document in a FIPS 140-2 Submission
Package. In addition to this document, the Submission Package contains:
Vendor Evidence document
Finite State Machine
Other supporting documentation as additional references
With the exception of this Non-Proprietary Security Policy, the FIPS 140-2
Validation Documentation is proprietary to Lexmark and is releasable only under
appropriate non-disclosure agreements. For access to these documents, please
contact Lexmark International.

Page 4 of 17
© Copyright 2006 Lexmark International Inc.
This document may be freely reproduced and distributed whole and intact including this Copyright Notice.
LEXMARK PRINTCRYPTIONTM
Overview
The Lexmark PrintCryptionTM is an option for the Lexmark printers that enable
the transfer and printing of encrypted print jobs. This new Lexmark technology
offers a level of security that is the first of its kind in the printing industry. With
the PrintCryption module installed, the printer is capable of decrypting print jobs
encrypted with the AES (FIPS 197) algorithm. The Lexmark PrintCryptionTM
analyses the encrypted data stream, determines if the correct key was used to
encrypt the data, decrypts the data and allows the confidential document to be
printed. This new level of printing security is ideal for industries that commonly
handle sensitive or personal information, such as financial institutions,
government agencies, and healthcare organizations.
Module Specification
The PrintCryptionTM module (firmware version 1.3.1) is a firmware module
composed of three binaries, and it is installed in Lexmark printers using a
Downloaded Emulator Card (DLE), a serial interface PCB board that plugs into
the printer. The DLE card is shown in Figure 1.

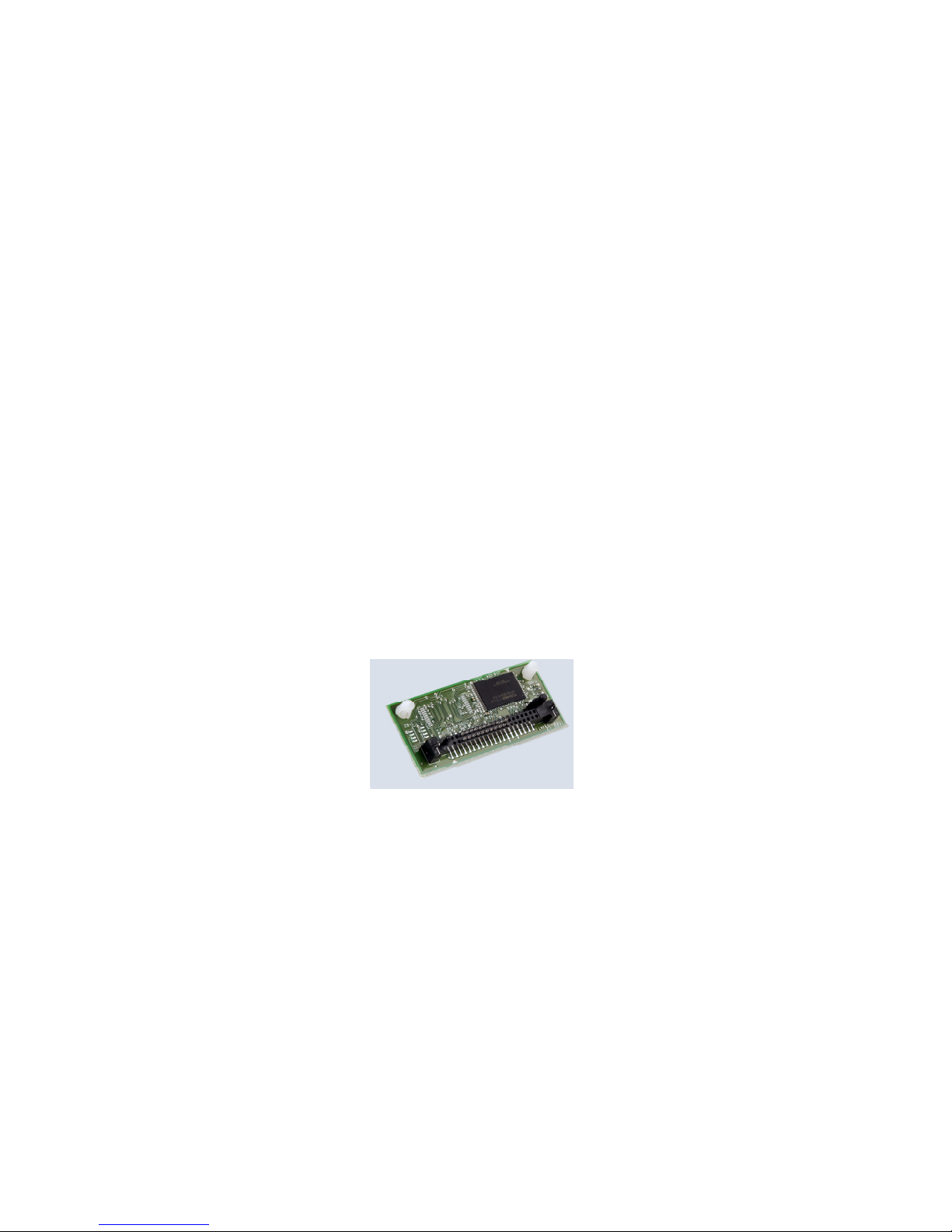

Figure 1 - Optional Firmware Card
Per FIPS PUB 140-2, the cryptographic module is classified as multi-chip
standalone cryptographic module. The module meets overall level 1 FIPS 140-2
requirements, as detailed in Table 1.
Tested DLE Configurations (Option P/N15A1962):
T630, T632, T634: P/N 10G0149
C760, C762: P/N 16N3204
W820: P/N 19E0123
C912: P/N 12N1253
T640, T642, T644: P/N 20G0740
W840: P/N 25A0034

Page 5 of 17
© Copyright 2006 Lexmark International Inc.
This document may be freely reproduced and distributed whole and intact including this Copyright Notice.
C920: P/N 13N1343
C534: P/N 36B0147
X644e, X646e, X646dte: P/N 22G0352
X850e, X852e, X854e: P/N 15R0093
C772: P/N 20B3204
C782: P/N 10Z0403
C935: P/N 21Z0366
X945e: P/N 21Z0370
Operating System: Lexmark proprietary ver. 2.4 based on Linux
Section Section Title Level
1 Cryptographic Module Specification 1
2 Cryptographic Module Ports and Interfaces 1
3 Roles, Services, and Authentication 1
4 Finite State Model 1
5 Physical Security 1
6 Operational Environment N/A
7 Cryptographic Key Management 1
8 EMI/EMC 1
9 Self-tests 1
10 Design Assurance 1
11 Mitigation of Other Attacks N/A
Table 1 – Security Level per FIPS 140-2 Section
Logically, the cryptographic boundary is composed of three binaries and is
evaluated for use on Lexmark printers that are running Linux operating system.
Once the PrintCryption firmware is installed in the printer, the printer must use
this firmware. The cryptographic module cannot be bypassed. Functionality is
then controlled by the PrintCryption firmware.

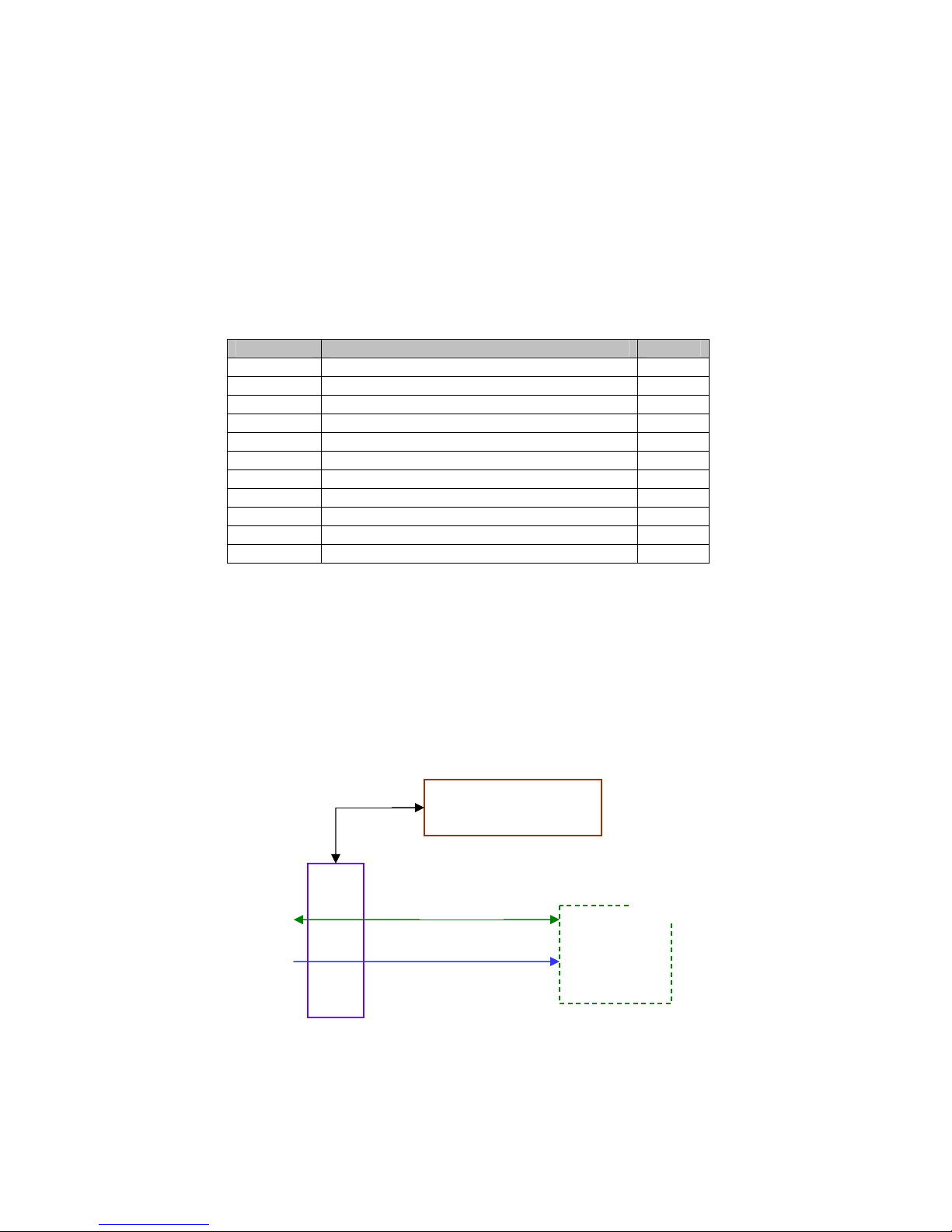

Figure 2 - Logical Cryptographic Boundary
OS
Applications
PrintCryption
Firmware
Cryptographic BoundaryPlaintext
Ciphertext
Internal Data

Page 6 of 17
© Copyright 2006 Lexmark International Inc.
This document may be freely reproduced and distributed whole and intact including this Copyright Notice.
The PrintCryption module is evaluated for running on number of Lexmark
printers including mono-color printers (T630, T632, T634, W820, T640, T642,
T644, W840), Color printers (C534, C760, C762, C912, C920, C772, C782,
C935) and MFP printers (X644e, X646e, X646dte, X850e, X852e, X854e,
X945e). The module’s physical cryptographic boundary is the metal and plastic
enclosure of the printer.

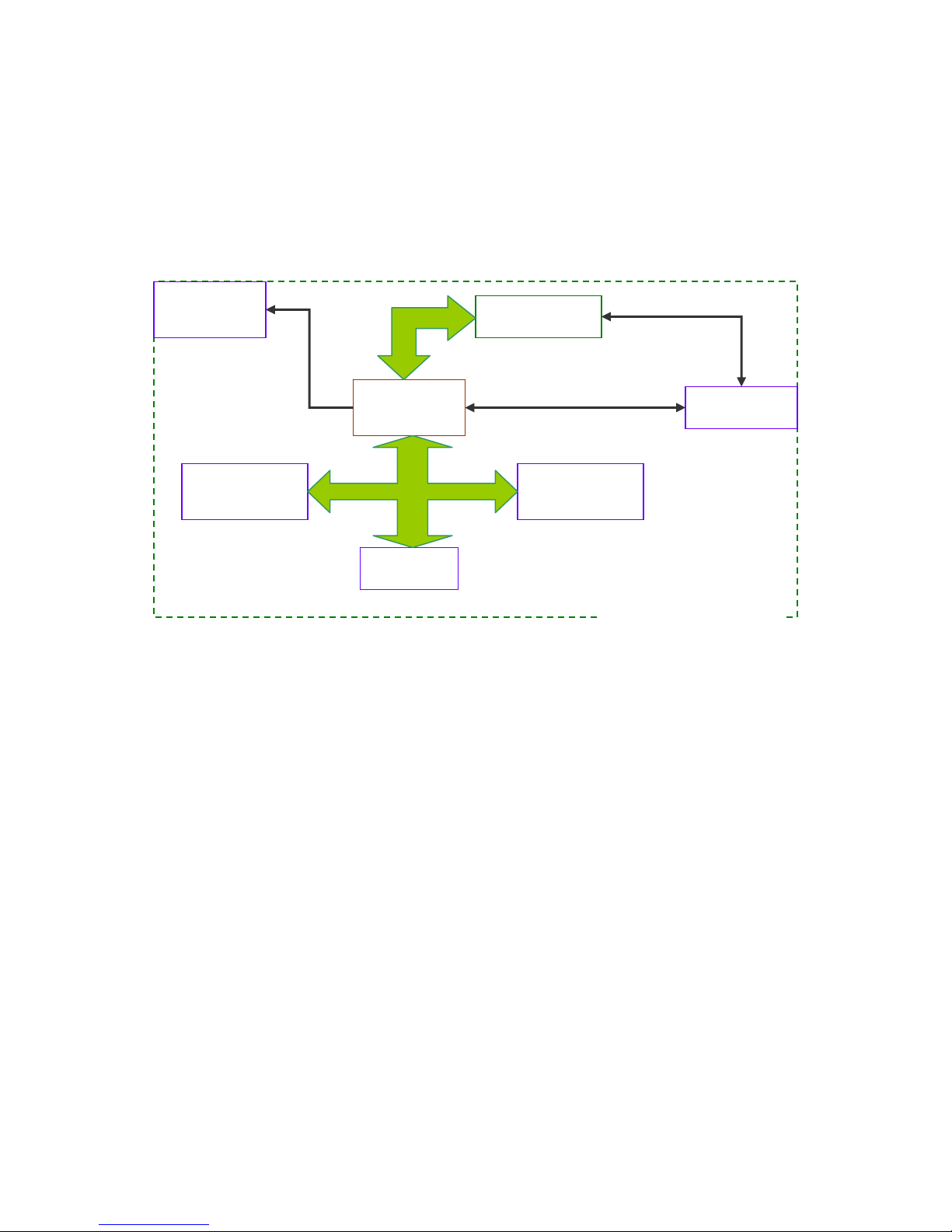

Figure 3 - Physical Cryptographic Boundary
Module Interfaces
The cryptographic module’s physical ports are composed of the physical ports
provided by the hardware platforms listed above. These printer ports include the
network port, parallel port, USB port, paper exit port, multipurpose feeder, LED,
and LCD display.
Since all of the module’s services are server processes, the logical interfaces of
the module are network port and API calls, which provide the only means of
accessing the module’s services. Data inputs are service requests on the TCP
ports. Control inputs are also data at TCP/IP port, however they are logically
distinct from Data input and controls how the function is executed. The data
output from the module includes X.509 certificate and deciphered data, which exit
through the network port and an internal API, respectively. The status outputs of
the module are sent via network and stored in log file.
All of these physical ports are separated into logical interfaces defined by FIPS
140-2, as described in the following table.
CPU
FLASH Volatile
Memory
Custom
ASIC I/O Port
Option Slot
Print
Engine PCI BUS
S
y
stem BUS
Cryptographic Boundary

Page 7 of 17
© Copyright 2006 Lexmark International Inc.
This document may be freely reproduced and distributed whole and intact including this Copyright Notice.
Logical Interface of the Module Module Physical Port FIPS 140-2 Logical Interface
Network Port Network (Ethernet 10/100) Port
USB Port
Parallel Port
Data Input Interface
Network Port
Internal API
Network (Ethernet 10/100) Port
Paper Exit Port
Data Output Interface
Network Port Operator Panel
Network (Ethernet 10/100) Port
USB Port
Parallel Port
Paper Exit Port
Multipurpose/envelope Feeder
Power Switch
Circuit Breaker Switch
Control Input Interface
Network Port
Log File
LED
LCD Display
Network (Ethernet 10/100) Port
USB Port
Parallel Port.
Status Output Interface
Not Applicable Power Plug
Power Connector
Power Interface
Table 2 – FIPS 140-2 Logical Interfaces
Roles and Services
The module supports two roles, a Crypto Officer role and a User role, and an
operator on the module must assume one of the roles. Descriptions and
responsibilities for the two roles are described below.
Crypto Officer Role
The Crypto Officer installs and uninstalls the PrintCryption. The Crypto Officer is
also responsible for monitoring the printer’s configuration and operational status
via network port.
Service Description Input Output CSP Type of Access
to CSP
Install Assemble the
printer(s); Install
PrintCryptionTM
firmware card; Install
printer driver on host
PC
Command Result of
installation
None --

Page 8 of 17
© Copyright 2006 Lexmark International Inc.
This document may be freely reproduced and distributed whole and intact including this Copyright Notice.
Service Description Input Output CSP Type of Access
to CSP
Uninstall Uninstall the firmware Command Uninstalled
module
None --
Monitor Configure of the
module
Command Module setting None --
Run Self-
Test
Perform the self-test
on demand
Command Status output Integrity Check
Key
Read
Show Status Call a show status
from the printer status
menu (HTTP) which
has an LPC log page
Command Status output None --
Table 3 – Crypto Officer Services, Descriptions, CSPs
User Role
Users utilize the cryptographic functionalities of the PrintCryption, and they
communicate with the module via network port only.
Service descriptions and inputs/outputs are listed in the following table:
Service Role Input Output CSP Type of Access
to CSP
Public Key
request
Users request for
printers public key.
The module generates
a key pair if needed
Public Key
Request (PKR)
at network port
9150.
X.509
certificate
RSA public key Read/Write
Secure
Printing
AES encrypted
printing program;
Decrypts and prints
the print job data
using the supplied
AES Session key
Encrypted
print job at
TCP/IP port
9152.
Status output AES session key Read/Write
Table 4 – User Services, Descriptions, Inputs and Outputs
Physical Security
In FIPS terminology, the firmware module is defined as a multi-chip standalone
cryptographic module. The module runs on Lexmark printers listed in Module
Specification section. The printers are made of all production-grade components
and are enclosed in a strong plastic and steel case, which surrounds all of the
module’s internal components, including all hardware and firmware.
While purely a firmware module, the FIPS 140-2 evaluated platforms must have
been tested for and meet applicable FCC EMI and EMC requirements for business
use as defined by 47 Code of Federal Regulations, Part15, Subpart B.

Page 9 of 17
© Copyright 2006 Lexmark International Inc.
This document may be freely reproduced and distributed whole and intact including this Copyright Notice.
Operational Environment
The operational environment is non-modifiable and thus not applicable for this
firmware module. The PrintCryption module runs on the Linux OS, and
configured for single-user mode by default. The operating system is used as an
embedded OS within the Lexmark printers, and there is no direct access to the OS
provided.
Cryptographic Key Management
The module implements the following FIPS-approved algorithms.
•AES ECB, CBC mode decryption – FIPS 197 (certificate #273, #274,
#275, #276, #277, and #452)
•Deterministic Random Number Generator (RNG) – Appendix A.2.4 of
ANSI X9.31 (certificate #100, #101, #102, #103, #104, and #237)
•HMAC – FIPS 198 (certificate #89, #90, #91, #92, #93, and #215)
•RSA (sign/verify) – PKCS#1 (certificate #73, #74, #75, #76, #77, and
#171)
•SHS– FIPS 180-2 (certificate #350, #351, #352, #353, #354, and #515)
•TDES 2 key ECB mode encryption/decryption – FIPS 46-3 (certificate
#356, #357, #358, #359, #360, and #470) (Note: The FIPS approved
X9.31 Appendix A.2.4 PRNG utilizes 2 key TDES algorithm).
Additionally, the module utilizes the following non-FIPS-approved algorithm
implementation:
•RSA Key Wrapping (PKCS #1): Key establishment method uses a 1024-
bit key length providing 80-bits of security.
The module supports the following critical security parameters:
Key or CSP Key type Generation Storage Use
AES Session Key 128, 192, 256
bits AES key
Externally generated. Imported in
encrypted form (RSA key transport)
Held in volatile
memory in plaintext.
Zerorized after the
session is closed or
on reboot.
Decrypts input data
for printing
RSA Public Key 1024 bit RSA
public key (80-
bits of
security)
Internally generated using PKCS#1
key generation mechanism
Stored on flash in
plaintext. Zerorized
by overwriting the
flash image.
Key transport

Page 10 of 17
© Copyright 2006 Lexmark International Inc.
This document may be freely reproduced and distributed whole and intact including this Copyright Notice.
RSA Private Key 1024 bit RSA
private key
(80-bits of
security)
Internally generated using PKCS#1
key generation mechanism
Stored on flash in
plaintext. Zerorized
by overwriting the
flash image.
Key transport
Integrity Check Keys HMAC keys Externally generated, hard coded in
the module
Stored on flash in
plaintext. Zerorized
by overwriting the
flash image.
Firmware Integrity
test
X9.31 PRNG 2-key TDES
keys, 8 bytes
of seed value
Internally generated Held in volatile
memory only in
plaintext. Zerorized
on reboot.
RNG
Table 5 – Listing of Key and Critical Security Parameters
Access Control Policy
User functionalities have read/write access to the AES Session Key and RSA
public key. AES Session key is used to decrypt the data for printing. RSA public
key is used for AES Session key transport. Integrity Check Keys can be read by
Crypto-Officer “Run Self-Test” service.
Key Generation
The module key is generated internally is 1024 bits RSA key pair using PKCS#1-
compliant key generation techniques. FIPS-approved PRNG X9.31 Appendix
A.2.4 is used to seed the RSA key generation mechanism. AES Session Key is
generated outside of the module and imported via RSA key transport.
Key Storage
The AES Session Key is held in volatile memory only in plaintext. The RSA
public key is stored in flash memory in an X.509 certificate in plaintext, and the
RSA private key is stored flash memory in plaintext.
Key Entry and Output
All keys that are entered into (AES key) or output from (RSA certificate) the
module are electronically entered or output. AES Session Key is enters into the
module transported (encrypted) by RSA public key.
Key Zerorization
AES Session key is an ephemeral key which is zerorized after the connection is
closed or by rebooting the module. The module provides no service to erase or
discard the RSA key pair. The key pair is erased by overwriting the flash image
with a new image.
Self-Tests
The PrintCryption module runs power-up and conditional self-tests to verify that
it is functioning properly. Power-up self-tests are performed during startup of the
module, and conditional self-tests are executed whenever specific conditions are
met.

Page 11 of 17
© Copyright 2006 Lexmark International Inc.
This document may be freely reproduced and distributed whole and intact including this Copyright Notice.
Firmware Integrity Check: The module employs a firmware integrity
test in the form of HMAC SHA-1 over the three module binaries.
Cryptographic Algorithm Tests: Known Answer Tests (KATs) are run
at power-up for the following algorithms:
•AES KAT
•TDES KAT
•RSA Sign/Verify and Encrypt/Decrypt pair-wise consistency
check
•SHA-1 KAT
•X9.31 RNG KAT
The module implements the following Conditional self-tests:
•Continuous RNG Test for X9.31 PRNG
•Continuous RNG Test for entropy gathering
•RSA Sign/Verify and Encrypt/Decrypt pair-wise consistency
check
If any of these self-tests fail, the module will output an error indicator and enter
an error state.
Design Assurance
Source code and associated documentation files are managed and recorded using
a MLS/Subversion system. Subversion is a version control system that stores
multiple revisions of the codeset with a revisionary history and older revisions are
always accessible. MLS is a customized user interface for use by developers that
does not override or bypass the role of the Subversion backend.
Additionally, Concurrent Versions System (CVS) is used to provide configuration
management for the firmware module’s FIPS documentation. This software
provides access control, versioning, and logging.
Mitigation of Other Attacks
The PrintCryption module does not employ security mechanisms to mitigate
specific attacks.

Page 12 of 17
© Copyright 2006 Lexmark International Inc.
This document may be freely reproduced and distributed whole and intact including this Copyright Notice.
OPERATION IN FIPS MODE
The PrintCryption meets Level 1 requirements for FIPS 140-2. The sections
below describe how to place and keep the module in FIPS-approved mode of
operation.
Initial Setup
The DLE card containing PrintCryption module may be factory installed or user-
installed. Lexmark provides an Installation sheet, a driver CD with publications,
and license agreement for the module in the option kit.
Installation procedure of the module is as follows.
1. Print a menu settings page from an AIO:
a. Press Menu and then select Reports.
b. Press Menu Settings Page to print the page.
Note: This Page is needed for later use.
c. Configure the printer onto the TCP/IP network per installation
requirements. If the printer is behind a firewall, it must allow IP
ports 9150 and 9152 to pass through.
1. Print a menu settings page from a printer:
a. Press Menus until Utilities menu appears, and then press Select.
b. Press Menu until Print menu appears, and then press Select to
print the page.
Note: This Page is needed for later use.
c. Configure the printer onto the TCP/IP network per installation
requirements. If the printer is behind a firewall, it must allow IP
ports 9150 and 9152 to pass through.
2. Turn off the printer and install the card. Please refer to the printer’s
documentation for further instructions on installing the card.
3. Turn the printer on.
a. If the printer displays the message 41 – Unsupported Firmware
Card, then the installed card is not compatible for the printer. Turn
off the printer and remove the card.

Page 13 of 17
© Copyright 2006 Lexmark International Inc.
This document may be freely reproduced and distributed whole and intact including this Copyright Notice.
b. If the printer displays the message Resetting all of NVRAM for
longer than 45 seconds, turn off the printer and reinstall the card.
4. Print a menu settings page. If the new card is not listed under Printer
Information, turn off the printer and repeat steps 2 and 3.
5. Launch the CD to host PC to install the software application using
setup.exe program. Please refer to the documents on the CD for further
instructions on installing the software. The setup executable, once
launched, will:
a. Ask for confirmation of the End-User License Agreement.
b. Present a small README, which explains that after installation,
the Crypto Officer can add a new port to their printer driver that
will support Lexmark PrintCryptionTM.
Note: Please refer to Crypto Officer Guidance section for more
information.
c. Perform the installation, and stop and restart the print spooler.
6. Print a menu settings page. Compare these settings to those on the page
printed in step 1.
7. Place the Option Added label on the printer next to the printer model and
serial number label. Lexmark provides the Option Added label with the
Installation guide.
Crypto Officer Guidance
The Crypto Officer is responsible for installing, uninstalling and monitoring the
module. The card comes in a static sensitive package. Upon receiving the
PrintCryption card, the Crypto Officer should check for any signs of tampering to
the package, including a damaged seal or package.
The Crypto Officer may follow the installation sheet found in the option kit to
install the PrintCryption module. After the installation is complete, the Crypto
Officer must print a Menu page and verify that Optional Firmware Card is
displayed under the Installed Features section of the Menu Page.
The Crypto Officer must configure the printer onto the TCP/IP network per
installation requirements. While installing the PrintCryption host software
application on a PC, Crypto Officer must choose port 9150 to communicate with
the printer. It is recommended that Crypto Officer name the port “FIPS” to clearly
distinguish the port that provides secured printing service.

Page 14 of 17
© Copyright 2006 Lexmark International Inc.
This document may be freely reproduced and distributed whole and intact including this Copyright Notice.
User Guidance
The User accesses the module printing functionality as a user over network.
Although outside the boundary of the module, the User should be careful to use
secured printing services as needed.
Uses can select the AES encryption key length, block length and mode using the
printer property.
1. Open the printer folder, right click on the desired printer and select
Properties.
2. Navigate to Port tab and press the Configure Port button to proceed.

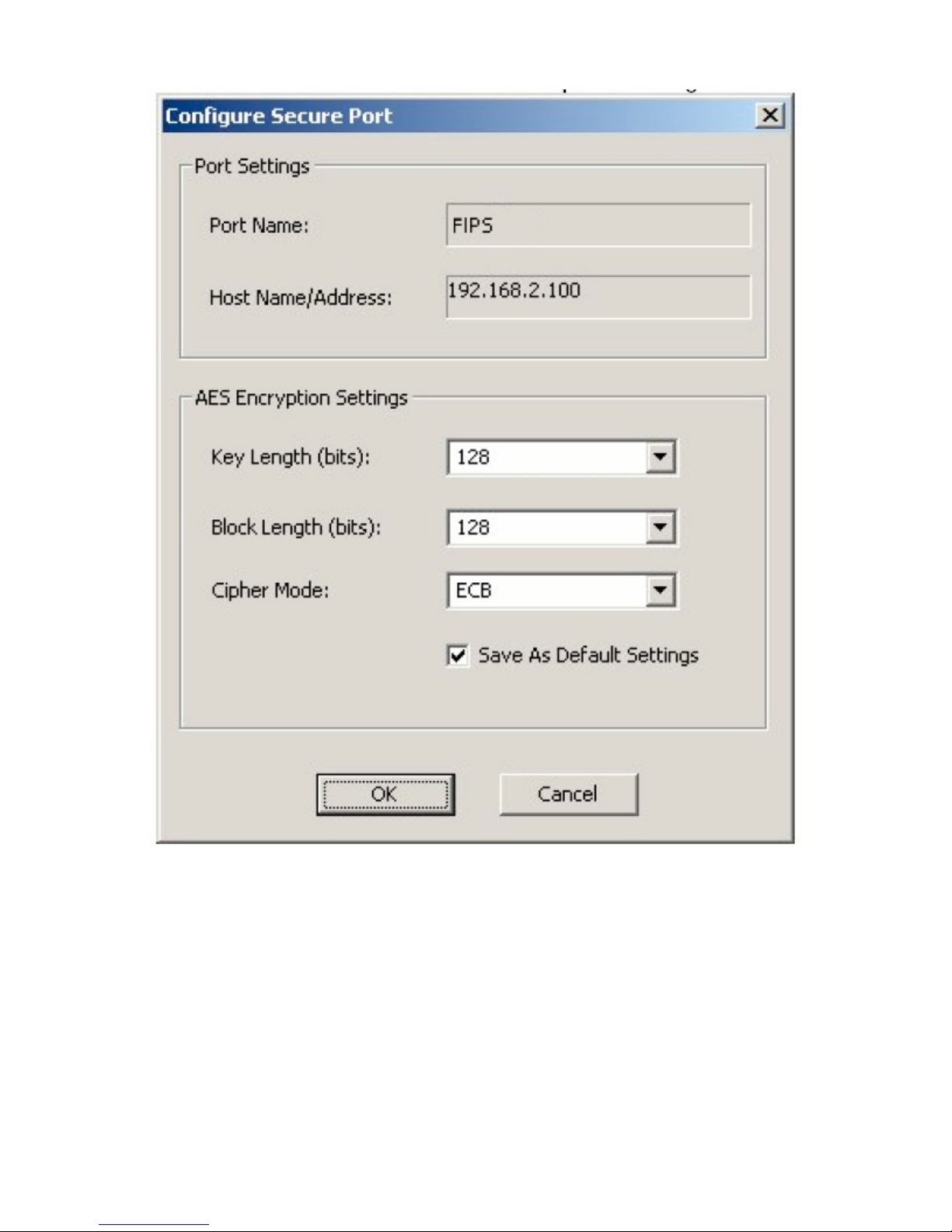

3. Configure Secure Port dialog box will appear which enables Users to
choose their options.

Page 15 of 17
© Copyright 2006 Lexmark International Inc.
This document may be freely reproduced and distributed whole and intact including this Copyright Notice.
Figure 4 - Configuring a Secure Port
Users must choose the key size and block size approved in FIPS PUB 197
standard. FIPS approved key and block sizes, and mode of operation are as
follows:
•Key Length: 128, 192, or 256 bit.
•Block Length: 128 bit.

Page 16 of 17
© Copyright 2006 Lexmark International Inc.
This document may be freely reproduced and distributed whole and intact including this Copyright Notice.
•Cipher Mode: ECB (Electronic Code Book, or CBC (Cipher Block
Mode)).
Setup.exe also installs the Lexmark PrintCryption Utility (LPCU) program as part
of the install session. The program can be invoked by -
START →Programs →Lexmark →PrintCryption →PrintCryption Test Utility
The LPCU utility program can help Users to determine:
•The Lexmark PrintCryption Card is installed.
•The network path exists, even through a firewall, and when ping
command does not work.
•The proper IP ports (9150 and 9152) are open.
•The printer is capable of returning an X.509 security certificate.
•The printer can successfully decode an encrypted packet.
Users also can view the communication to the printer via PrintCryption Log
Viewer, installed during the installation session, which can be started by -
START →Programs →Lexmark →PrintCryption →PrintCryption Log Viewer

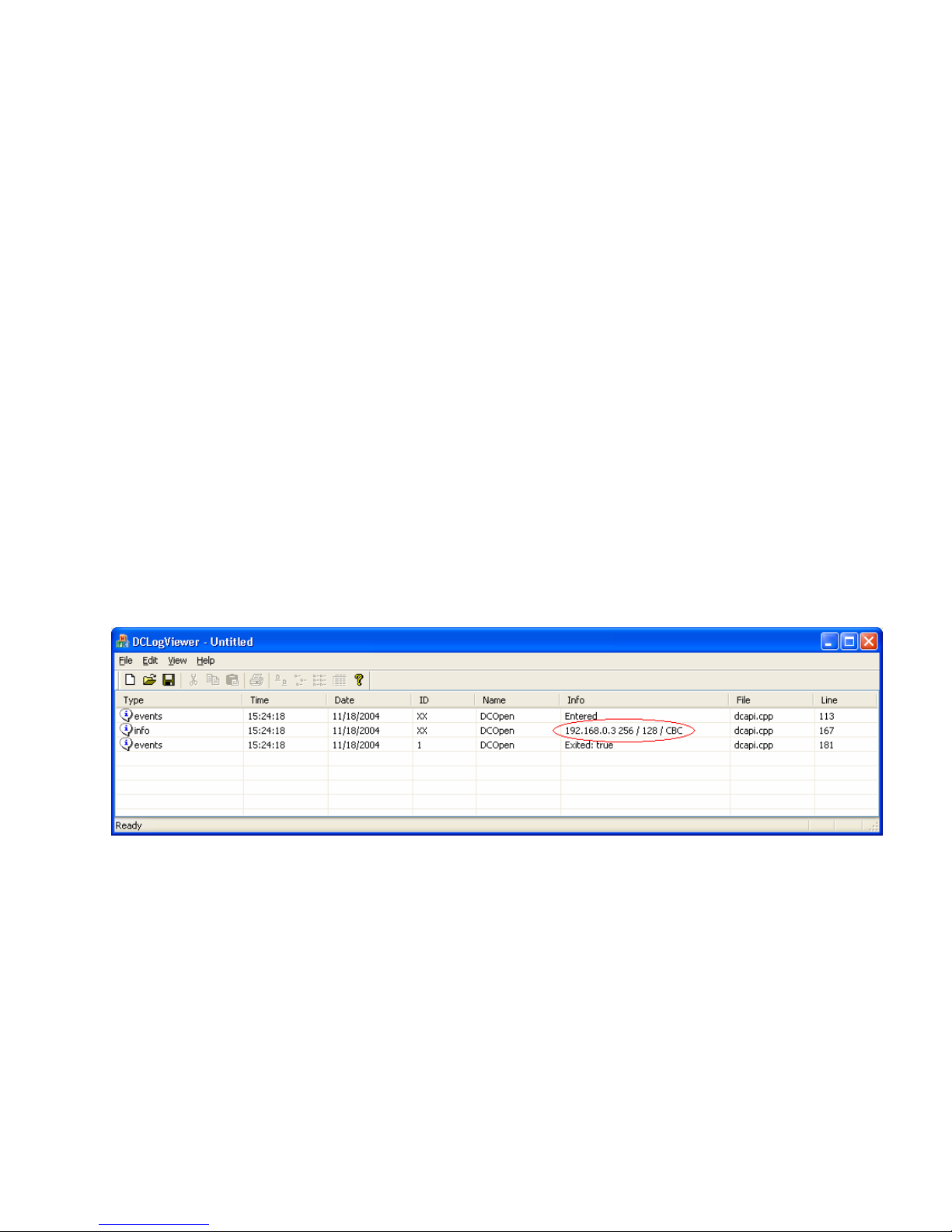

Figure 5 - PrintCryption Log Viewer
Users can see the key size, block length, and mode been used for encryption from
the Log Viewer program.

Page 17 of 17
© Copyright 2006 Lexmark International Inc.
This document may be freely reproduced and distributed whole and intact including this Copyright Notice.
ACRONYMS
AESSD AES Session Daemon
ANSI American National Standards Institute
API Application Programming Interface
CMVP Cryptographic Module Validation Program
CSE Communications Security Establishment
CSP Critical Security Parameter
DKMD Decryption Key Management Daemon
DLE Downloaded Emulator Card
EMC Electromagnetic Compatibility
EMI Electromagnetic Interference
FCC Federal Communication Commission
FIPS Federal Information Processing Standard
HMAC (Keyed-) Hash MAC
HTTP Hypertext Transfer Protocol
IP Internet Protocol
KAT Known Answer Test
LED Light Emitting Diode
LPC Line Printer Control
MAC Message Authentication Code
NIST National Institute of Standards and Technology
NVLAP National Voluntary Laboratory Accreditation Program
OS Operating System
PC Personal Computer
RAM Random Access Memory
RNG Random Number Generator
RSA Rivest Shamir and Adleman
SHA Secure Hash Algorithm
SKH Session Key Header
SNMP Simple Network Management Protocol
SP Secure Platform
TCP Transmission Control Protocol
VSS Visual Source Safe
