Optra T
2000-Sheet Drawer
User’s Guide
Optra T
Gaveta de 2000 folhas
Guia do usuário
Optra T
Tiroir 2000 feuilles
Manuel d’utilisation
Optra T
2000-Blatt-Zuführung
Benutzerhandbuch
Optra T
Cassetto da 2000 fogli
Guida per l’utente
Optra T
Alimentador de 2000 hojas
Guía del usuario

English
Optra T 2000-Sheet Drawer User's Guide

First Edition (June 1999)
The following paragraph does not apply to any country where such provisions are inconsistent with
local law: LEXMARK INTERNATIONAL, INC., PROVIDES THIS PUBLICATION “AS IS” WITHOUT
WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO,
THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE. Some states do not allow disclaimer of express or implied warranties in certain transactions;
therefore, this statement may not apply to you.
This publication could include technical inaccuracies or typographical errors. Changes are periodically made
to the information herein; these changes will be incorporated in later editions. Improvements or changes in the
products or the programs described may be made at any time.
References in this publication to products, programs, or services do not imply that the manufacturer intends to
make these available in all countries in which it operates. Any reference to a product, program, or service is not
intended to state or imply that only that product, program, or service may be used. Any functionally equivalent
product, program, or service that does not infringe any existing intellectual property right may be used instead.
Evaluation and verification of operation in conjunction with other products, programs, or services, except
those expressly designated by the manufacturer, are the user’s responsibility.
Lexmark and Optra are trademarks of Lexmark International, Inc., registered in the United States and/or other
countries.
Other trademarks are the property of their respective owners.
© Copyright 1999 Lexmark International, Inc. All rights reserved.
UNITED STATES GOVERNMENT RESTRICTED RIGHTS. This software and documentation are
provided with RESTRICTED RIGHTS. Use, duplication or disclosure by the Government is subject to
restrictions as set forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software
clause at DFARS 252.227-7013 and in applicable FAR provisions: Lex-mark International, Inc., Lexington,
KY 40550.

2000-Sheet Drawer User’s Guide
Table of Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Unpacking the 2000-Sheet Drawer . . . . . . . . . . . . . . . 2
Attaching Stabilizer Feet . . . . . . . . . . . . . . . . . . . . . . . 3
Installing the 2000-Sheet Drawer. . . . . . . . . . . . . . . . . 6
Verifying Installation. . . . . . . . . . . . . . . . . . . . . . . . . . 10
Setting the Paper Type . . . . . . . . . . . . . . . . . . . . . . . 11
Changing the Paper Size. . . . . . . . . . . . . . . . . . . . . . 12
Selecting Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Loading Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Clearing a Paper Jam . . . . . . . . . . . . . . . . . . . . . . . . 20

2000-Sheet Drawer User’s Guide

2000-Sheet Drawer User’s Guide 1
Introduction
The 2000-sheet drawer gives your printer added capacity by
allowing you to load up to four reams (approximately 2,000 sheets)
of 20 lb paper.
Your drawer is pre-configured to either letter or A4 paper size. To
use a different paper size, see page 12.
Your printer has an autoconnect feature that recognizes when the
2000-sheet drawer has been installed. After starting your printer,
this option is shown as Tray 2,Tray 3,Tray 4 or Tray 5,depending
upon the number of installed paper sources.
To ensure reliable paper feeding, it is important that you select
paper recommended for use with the 2000-sheet drawer and that
you load it properly. See page 15 for information on paper
specifications and page 16 for loading instructions.
To ensure compatibility with your printer, verify your drawer is
labeled with a colored triangle located on the top left front corner.
Refer to your printer documentation for information pertaining to
electronic emissions, safety, and warranty.

2000-Sheet Drawer User’s Guide
2
Unpacking the 2000-Sheet Drawer

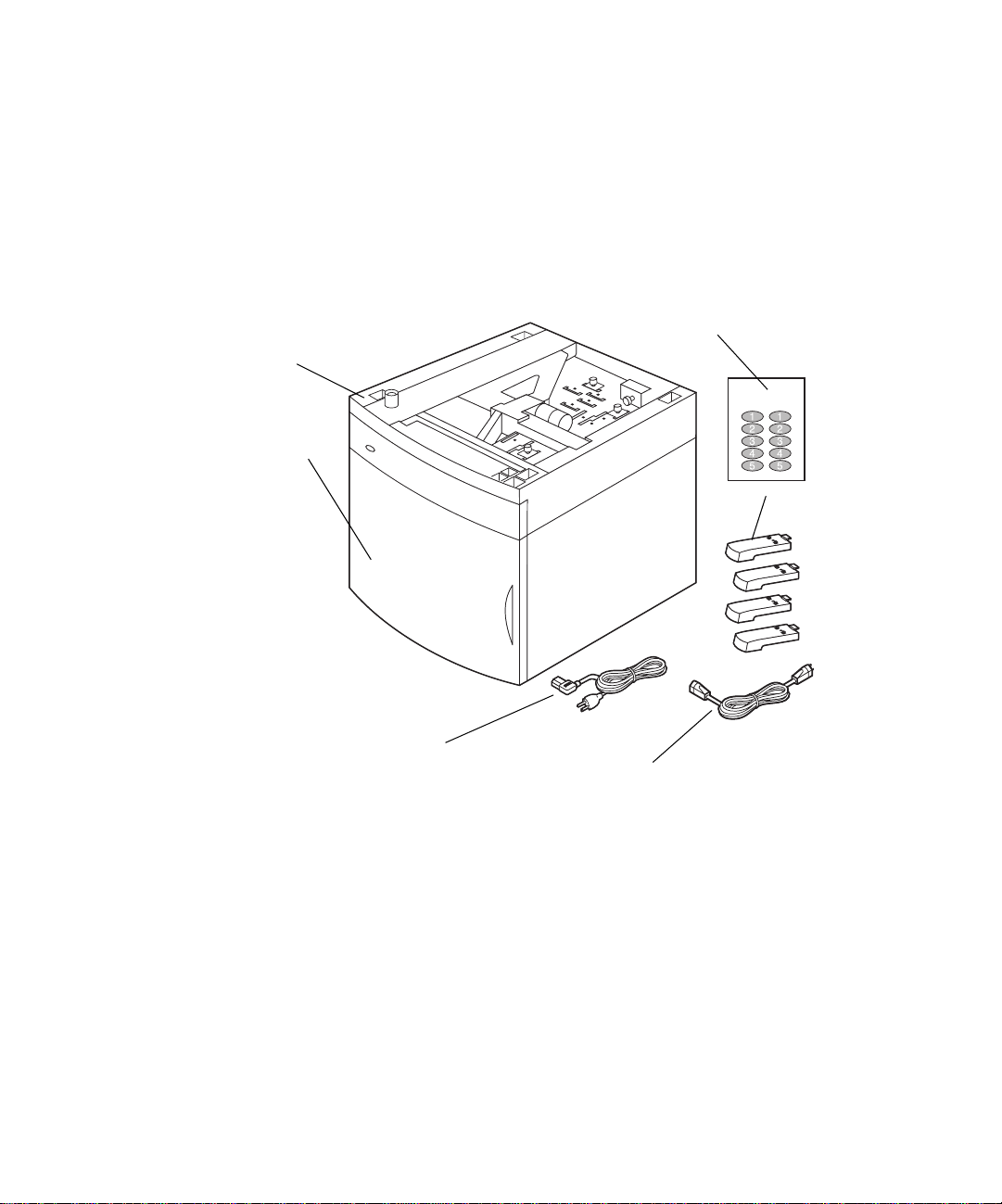

1Remove all items shown in the illustration from the carton. If
any items are missing, contact the place where you bought
the 2000-sheet drawer.
Note: The 16 AWG power cord is included only with units
intended to operate at 100 - 127V power.
2Remove all packing material and tape from each item.
Note: Save the carton and packing material in case you
need to repack the 2000-sheet drawer for service or
storage.
3Peel the appropriately numbered decals from the sheet and
attach them to the recessed areas on the drawer. Choose
the number that corresponds to the number of paper
options you are attaching, including the standard output
tray.
Stabilizer feet
16 AWG power cord
Decals
2000-sheet drawer
Jumper cord
Printer compatibility label
(colored triangle)

2000-Sheet Drawer User’s Guide 3
Attaching Stabilizer Feet
CAUTION: If you are not using an optional printer stand,
the four stabilizer feet
must
be attached to the
drawer.

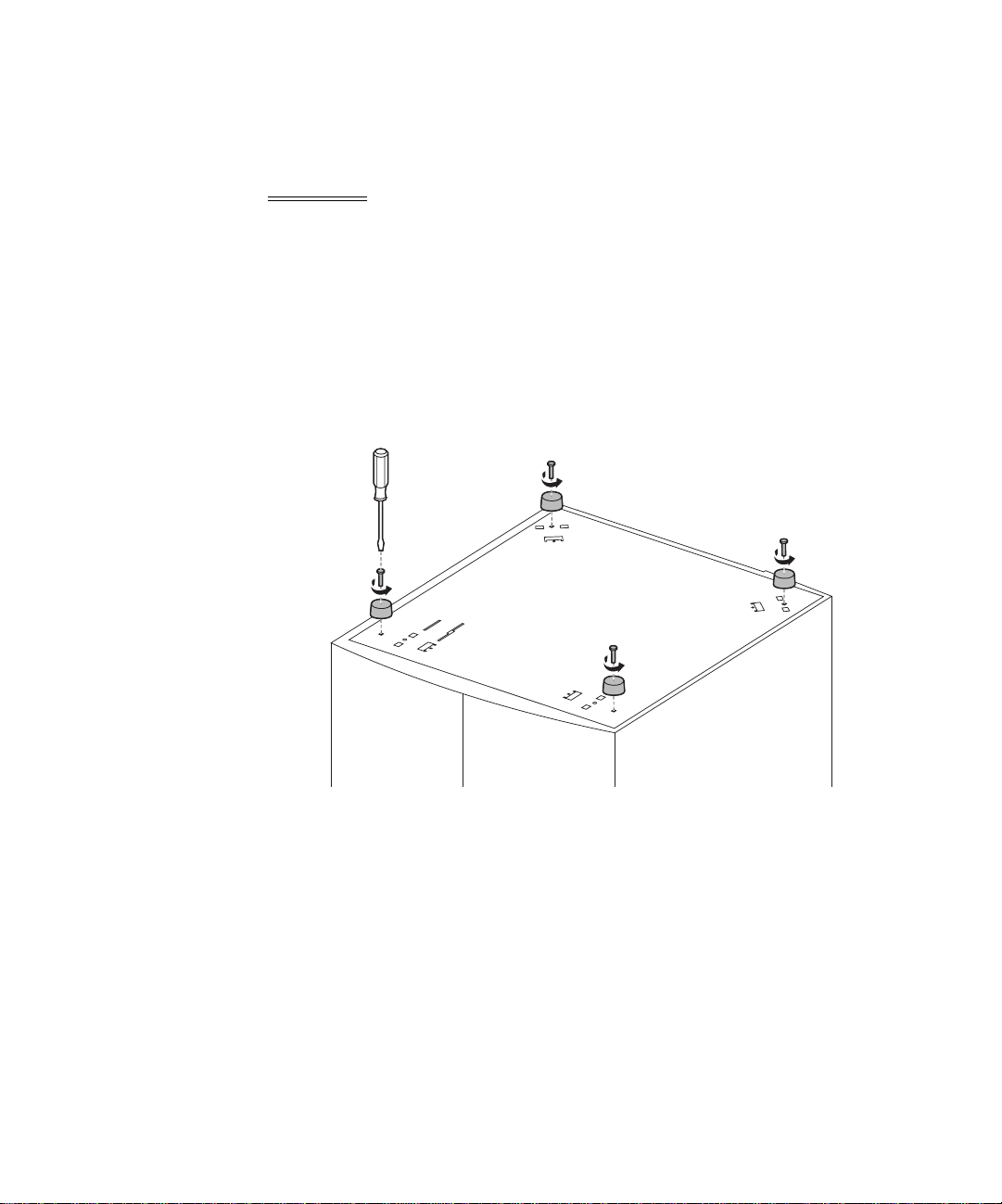

1Carefully invert the 2000-sheet drawer so the bottom faces
up.
2Remove the screws securing the rubber feet to the drawer.
Save the screws and rubber feet for use in step 5 on page
5.
Note: If you later choose to use the drawer with the printer
stand, you must remove the stabilizer feet and re-
attach the rubber feet.

2000-Sheet Drawer User’s Guide
4

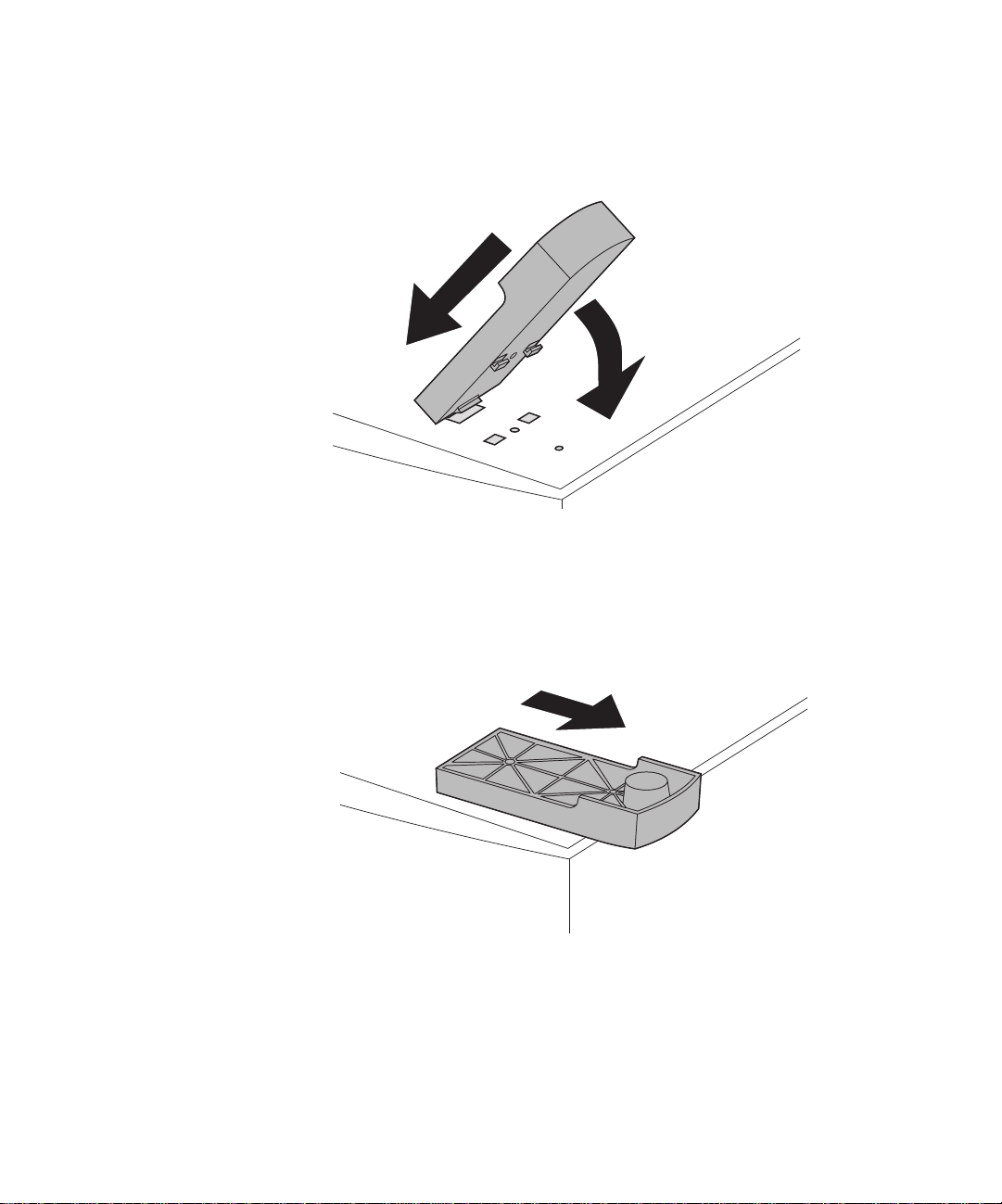

3Insert the tab on the end of the stabilizer foot into the slot on
the bottom of the drawer. Rotate the stabilizer foot down
until it is aligned with the bottom of the drawer.
4Slide the foot away from the center of the tray until it locks
into place.

2000-Sheet Drawer User’s Guide 5
5Using one of the rubber feet removed in step 2 on page 3,
align the openings of the rubber and stabilizer feet and
attach the screw as shown.
6Repeat step 3 on page 4 through step 5 on page 5 for the
remaining rubber and stabilizer feet.

2000-Sheet Drawer User’s Guide
6
Installing the 2000-Sheet Drawer
Decide on an installation location for the 2000-sheet drawer. The
printer, and possibly other options, will be placed on top of the
drawer, so allow a maximum of 137.16 cm (4 ½ ft) for clearance.
Note: Your drawer is pre-configured to either letter or A4 paper
size. To use a different paper size, see page 12
before
placing any options or the printer on the 2000-sheet drawer.
1Turn the printer power off and unplug the power cord.
2Disconnect any other cables attached to the printer.
3Place any options you may have on top of the drawer one at
a time. Refer to your printer documentation for proper
installation instructions.
4Ask someone to help you lift the printer and position it
above the drawer and any options you may have installed in
step 3.
CAUTION: Make sure your fingers are not under the
printer when you set it down. Use the
handholds on the printer or ask someone to
help you lift it.

2000-Sheet Drawer User’s Guide 7
5Place the printer on top of the drawer and any options
installed. The openings on top of the drawer will help you
set the printer so the edges are aligned properly. Make sure
the printer is securely in place.
Handhold
Square hole
Tab
Round hole

2000-Sheet Drawer User’s Guide
8
6Plug the jumper cord into the printer. Plug the other end of
the jumper cord into the drawer.
7Reconnect any disconnected cables.

2000-Sheet Drawer User’s Guide 9
8If you intend to operate your 2000-sheet drawer at 100 -
127V power, you
must
use the 16 AWG power cord
provided with the unit. Plug the 16 AWG power cord into the
back of the drawer and then into a properly grounded
electrical outlet. Do
not
use the power cord provided with
the printer; however, you may retain it for possible future
use. For example, if you later decide to detach the current
printer from the 2000-sheet drawer, and use the printer with
other paper options, you should use the original power cord
provided with the printer. The 16 AWg power cord should
always
remain with the 2000-sheet drawer.
If you intend to operate your 2000-sheet drawer at 200 -
240V power, use the power cord provided with the printer.
Plug the power cord into the back of the drawer and then
into a properly grounded electrical outlet.

2000-Sheet Drawer User’s Guide
10
Verifying Installation
Once the 2000-sheet drawer has been installed, verify that it is
installed properly by printing a menu settings page.
To print a menu settings page:
1Make sure the printer power is on and the Ready status
message appears on the display.
2Press Menu> or <Menu to access the menus.
3Continue to press and release Menu> or <Menu until
Utilities Menu appears on the display.
4Press Select to show the list of available menu items for the
Utilities Menu.
Utilities Menu now appears on the first line of the display.
5Press and release Menu> until Print Menus appears on the
second line of the display.
6Press Select to select Print Menus. The message
Printing Menu Settings is displayed.
The menu settings page prints.
Installed Features on the menu settings page lists all options that
have been installed.
Look for 2000-sheet drawer on the printed page. If the drawer is
listed, you are ready to begin using it.
If the drawer is not listed on the page, the printer or other options
may not be seated securely or aligned properly. Return to page 6
of this guide and carefully follow all installation instructions. Print
the menu settings page again to verify installation.

2000-Sheet Drawer User’s Guide 11
Setting the Paper Type
Once the drawer is installed, you should set the paper type. To set
the paper type, go to the printer operator panel, and then follow
these steps:
1Make sure the printer power is on and the Ready status
message appears on the display.
2Press Menu> or <Menu to access the menus.
3Continue to press and release Menu> until Paper Menu
appears on the display.
4Press Select to access the Paper Menu.
5Continue to press and release Menu> until Paper Type
appears on the display.
6Press Select to show the list of available menu items for the
Paper Type menu.
7Continue to press and release Menu> until Tray x Type
(where xrepresents the tray number of the 2000-sheet
drawer) appears on the display.
8Press Select to show the list of available menu items for
Tray x Type.
9Continue to press and release Menu> until the paper type
you are using in the 2000-sheet drawer appears on the
display.
10 Press Select to select the paper type.
Note: You may select any operator panel feature available
except Paper Type = Transparency.
11 Press Go to display the Ready status message.

2000-Sheet Drawer User’s Guide
12

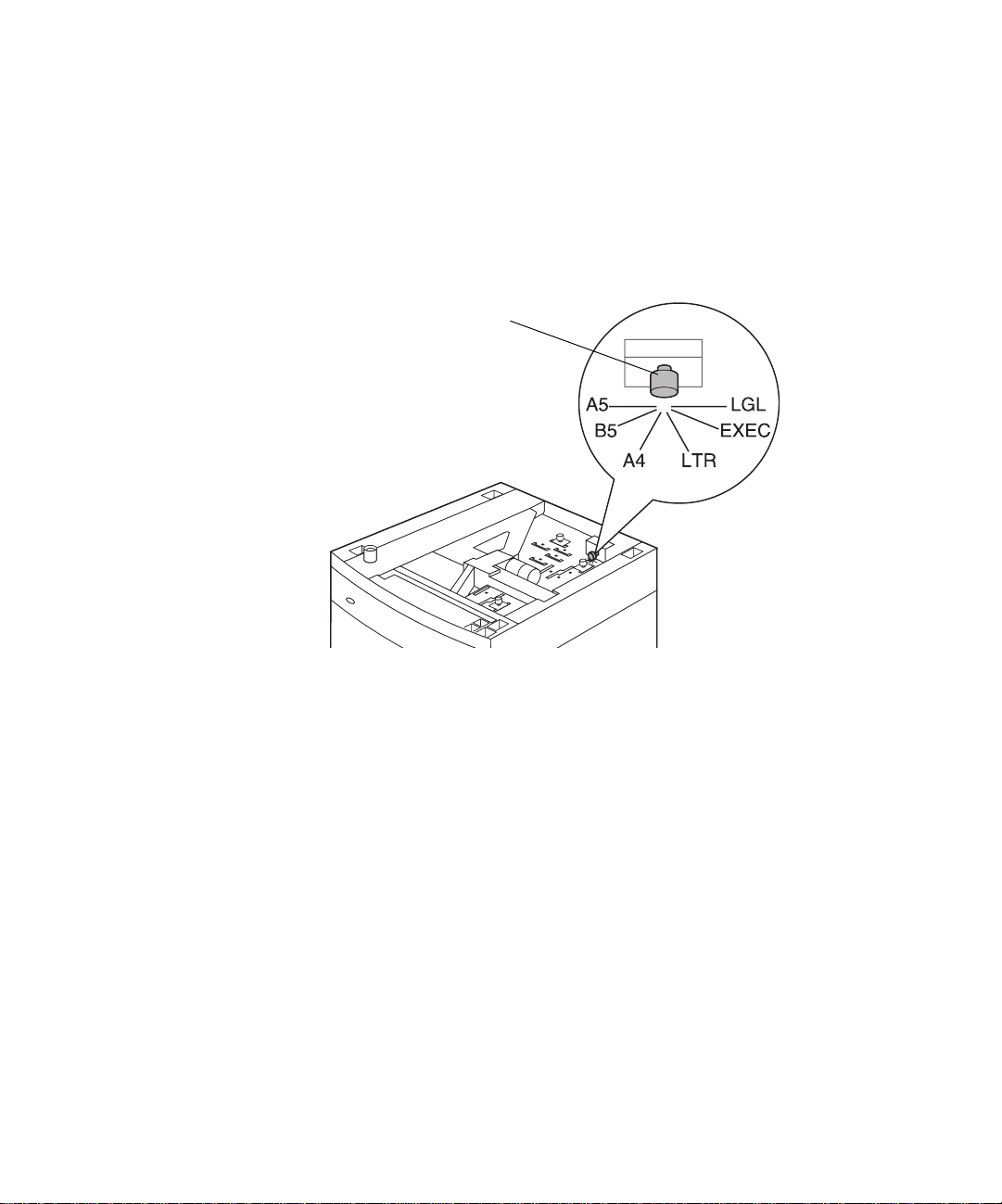

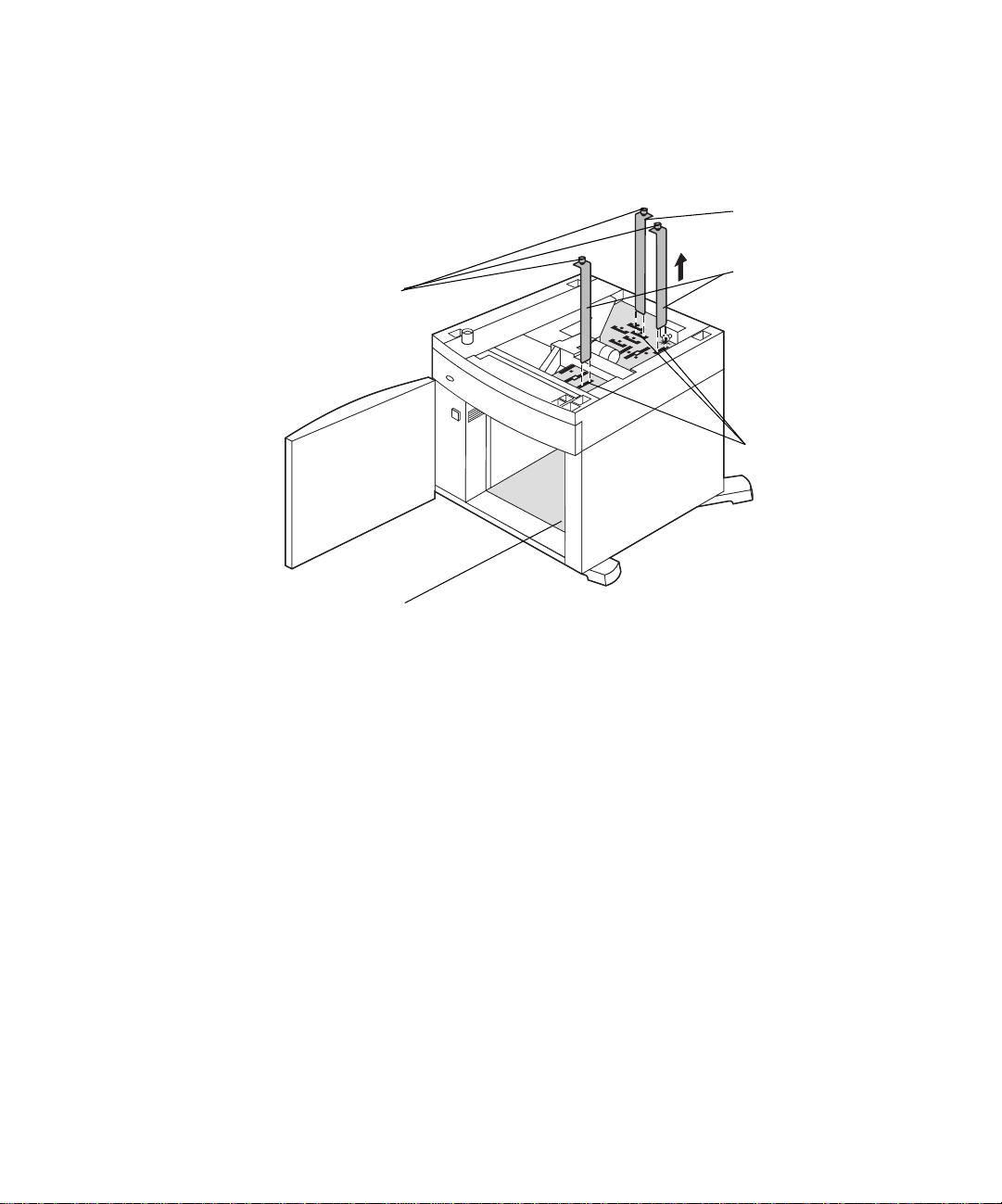

Changing the Paper Size
Your 2000-sheet drawer comes pre-configured for either letter or
A4 paper size.
To change the paper size prior to installation, proceed to step 7 of
the following instructions now. If you are changing the paper size
for a unit that is already attached to a printer and a power source,
proceed with step 1:
1Open the loading door.
2Push the elevator down button located on the left side of the
door opening. See illustration on page 17.
3Remove paper from the elevator tray and close the loading
door.
4Re-open the door. The printer elevator tray should be
approximately halfway up.
5Unplug the power cord.
6Remove the printer and all attached options from the
2000-sheet drawer.
CAUTION: Remove the attached options one at a time.
Make sure your fingers are not under the
printer when you set it down. Use the
handholds on the printer or ask someone to
help you lift it.
7Locate the paper size selector knob on top of the drawer.
See page 13 for an illustration and location of the knob.
Note:Six paper selections are available. Each paper
selection is color-coded. A new paper size is
displayed on the operator panel after the paper
elevator tray is in the up position.
8To make a selection, turn the knob completely in a
counterclockwise direction. This action sets the paper size
to legal (LGL).

2000-Sheet Drawer User’s Guide 13
9Count the clicks as you turn the knob clockwise to find the
correct paper size. For example, one click sets the paper
size to executive (EXEC).
Note: Make a note of the color associated with the paper
size you select.
Paper size selector knob

2000-Sheet Drawer User’s Guide
14
10 Pull each locking pin up to unlock it, and then pull up on the
guides to remove them.
11 Reposition the paper guides in the color-coded slots,
located at the top of the unit, corresponding to the paper
size you selected.
12 Insert the paper guides into the matching colored slots
located on the inside bottom of the unit. The guides should
now be seated flush against the top of the unit.
13 Push each pin down to lock the guides in place.
Locking pins Side guides
Back guide
Color-coded slots
(bottom)
Color-coded slots
(top)
