Lexmark Z52 User manual

First Edition: December 1999
The following paragraph does not apply to any country where such provisions are inconsistent with
local law:
LEXMARK INTERNATIONAL, INC., PROVIDES THIS PUBLICATION “AS IS” WITHOUT
WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some
states do not allow disclaimer of express or implied warranties in certain transactions; therefore, this statement
may not apply to you.
This publication could include technical inaccuracies or typographical errors. Changes are periodically made to
the information herein; these changes will be incorporated in later editions. Improvements or changes in the
products or the programs described may be made at any time.
References in this publication to products, programs, or services do not imply that the manufacturer intends to
make these available in all countries in which it operates. Any reference to a product, program, or service is not
intended to state or imply that only that product, program, or service may be used. Any functionally equivalent
product, program, or service that does not infringe any existing intellectual property right may be used instead.
Evaluation and verification of operation in conjunction with other products, programs, or services, except those
expressly designated by the manufacturer, are the user’s responsibility.
Lexmark, Lexmark with diamond design, and ColorFine are trademarks of Lexmark International, Inc.,
registered in the United States and/or other countries. Color Jetprinter is a trademark of Lexmark International,
Inc.
Other trademarks are the property of their respective owners.
© Copyright 1999 Lexmark International, Inc. All rights reserved.
UNITED STATES GOVERNMENT RESTRICTED RIGHTS
This software and documentation are provided with RESTRICTED RIGHTS. Use, duplication or disclosure by
the Government is subject to restrictions as set forth in subparagraph (c)(1)(ii) of the Rights in Technical Data
and Computer Software clause at DFARS 252.227-7013 and in applicable FAR provisions: Lexmark
International, Inc., Lexington, KY 40550.
Edition Notice

Home page
Lexmark Z52 Color Jetprinter
TM
User’s Guide for
Windows NT 4.0 and Windows 2000
Usethisguidewhenyouhave questionsaboutyour
printerorwhenyouencounteraproblem.
Tipsforusingthisguide:
•
Usethebuttonsontheleftsideofthescreento
navigatethroughthepagesofthisguide.
•
Click the
bluetext
tolinktoanotherpartofthisguide.
•
Clicktheleftorright
arrowstomove forwardor
back throughthepages.
Click thehousetoreturn
totheHomepage.
•
To vieweditionandtrademarkinformation,click the
EditionNotice
.
•
To printthisguide:
1
FromtheAcrobatReaderFilemenu,selectPrint.
2
ClickSetup,andmakesureLandscapeis
selected.
3
ChoosethepagesyouwanttoprintandclickOK.
Steps to basic printing
-tells you how to load paper and adjust
your printer software for printing.
Beyond the basics
-tells you how to print photographs and
two-sided documents.
Troubleshooting
-provides information for solving
printing problems.
Appendix
-provides notices, safety, and printer
software installation information.
Index
-provides quick links to the information
you need. Just click an index entry to
go to the information source.
Maintaining your printer
-tells you how to install, replace, and
align the print cartridges.

3
Beyond the basics
Maintaining your printer
Troubleshooting
Appendix
Index
Steps to basic printing
Steps to basic printing
Basic printing is as easy as:
Step One: Load the paper
Step Two: Customize the printer driver
Step Three: Print your document

Steps to basic printing
4
Printing beyond the basics
Beyond the basics
Maintaining your printer
Troubleshooting
Appendix
Index
Steps to basic printing

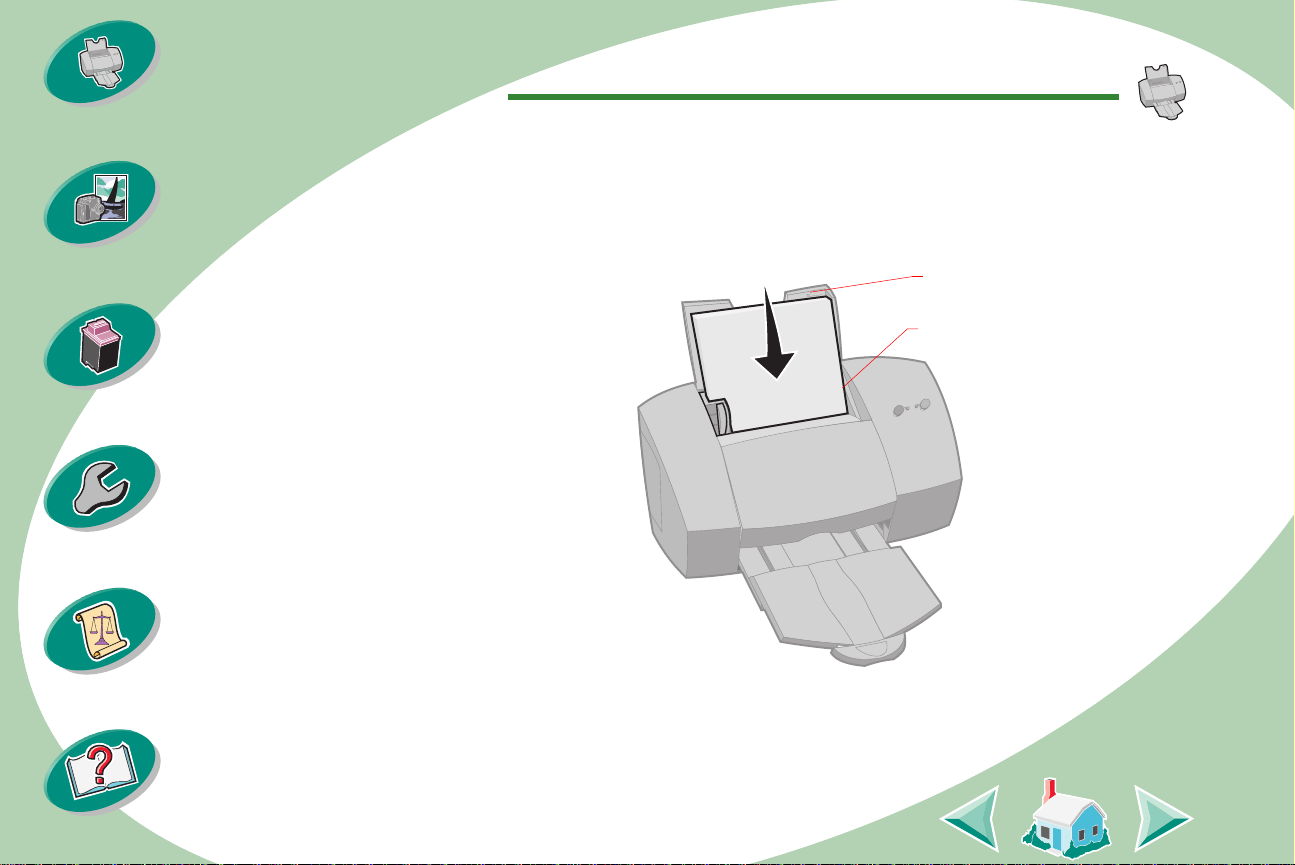

Step One: Load the paper
You can load up to 100 sheets of paper (depending on thickness).
1Place the paper against the right side of the sheet feeder,
with the print side facing you.
Sheet feeder
Paper alignment
marks

Steps to basic printing
5
Printing beyond the basics
Beyond the basics
Maintaining your printer
Troubleshooting
Appendix
Index
Steps to basic printing 2Squeeze the release tab and the paper guide together and
slide the paper guide to the edge of the paper.
Release tab
Paper guide

Steps to basic printing
6
Printing beyond the basics
Beyond the basics
Maintaining your printer
Troubleshooting
Appendix
Index
Steps to basic printing

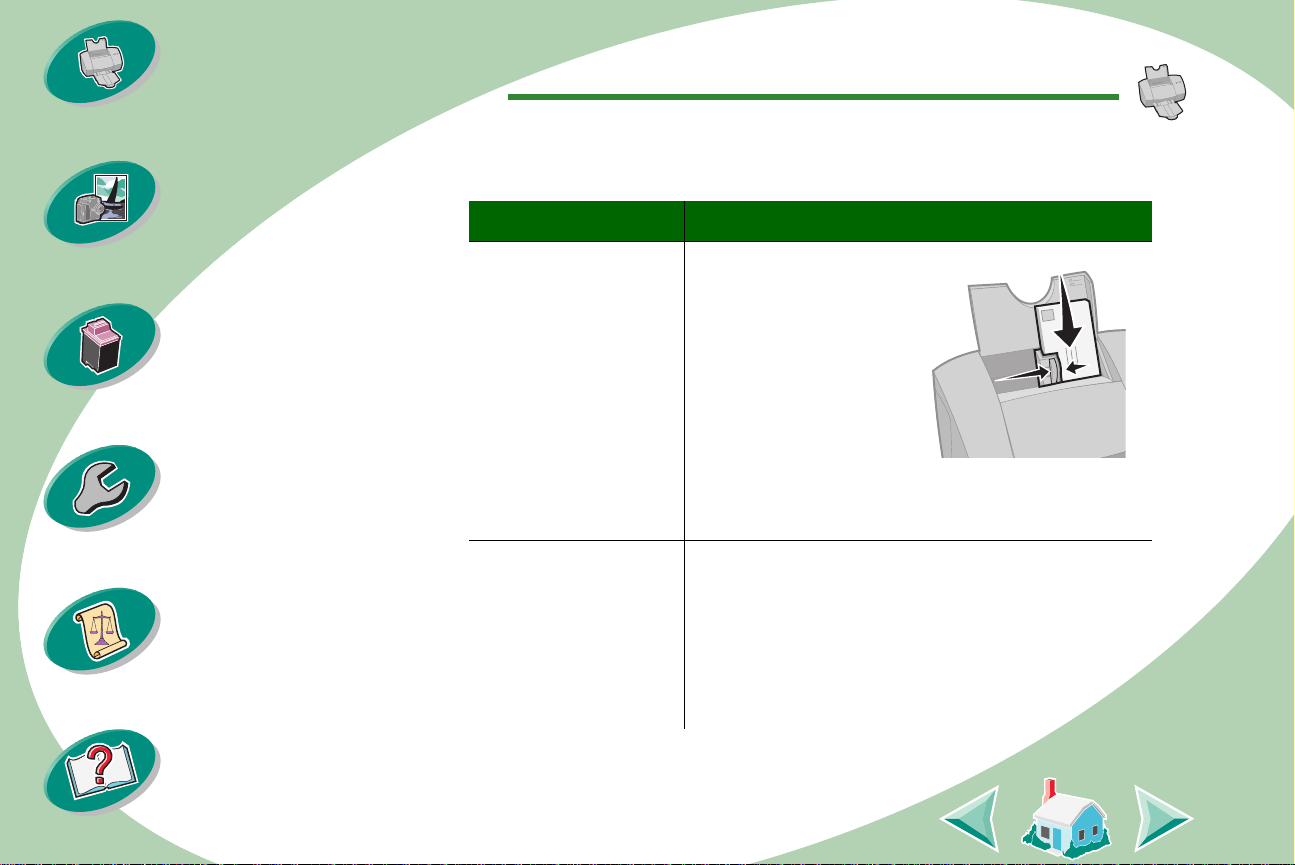

Loading specialty media
When loading specialty media, follow these guidelines:
Load up to: Make sure:
10 envelopes • the print side is
facing you.
• the stamp location is
in the upper left
corner.
• the envelope is
loaded vertically and
the paper guide is
against the side of the envelope.
10 greeting cards,
index cards, or
postcards
• the print side is facing you.
• the cards are loaded vertically against the
right side of the sheet feeder.
• the paper guide is against the side of the
cards.

Steps to basic printing
7
Printing beyond the basics
Beyond the basics
Maintaining your printer
Troubleshooting
Appendix
Index
Steps to basic printing
25 sheets of photo
paper or photo
cards
• the glossy or coated side is facing you.
• the paper guide is against the side of the
photo paper.
25 iron-on transfers • you follow the instructions on the packaging
to load the iron-on transfers.
• the paper guide is against the side of the
iron-on transfers.
100 sheets of
custom-sized paper • your paper size fits within these dimensions:
-Width:
76 mm to 216 mm
3.0” to 8.5”
- Length:
127 mm to 432 mm
5.0” to 17.0”
• the paper guide is against the side of the
paper.
Load up to: Make sure:

Steps to basic printing
8
Printing beyond the basics
Beyond the basics
Maintaining your printer
Troubleshooting
Appendix
Index
Steps to basic printing
20sheetsofbanner
paper
Note: Select
Banner or Banner
A4 paper size in the
Printer Properties.
• you place the banner
paper behind the
printer. Then bring the
unattached edge of the
first page over the
printer and into the
sheet feeder.
• the paper guide is against the side of the
paper.
10 transparencies • the rough side of the transparencies is
facing you (smooth side down).
• the paper guide is against the side of the
transparencies.
Load up to: Make sure:

Steps to basic printing
9
Printing beyond the basics
Beyond the basics
Maintaining your printer
Troubleshooting
Appendix
Index
Steps to basic printing
Step Two: Customize the printer driver
The software for your printer includes several applications that let
you perform printing tasks with superior printing results. One of
these applications is the printer driver. If you are using:
• Windows NT 4.0, your printer driver is called Document Defaults.
• Windows 2000, your printer driver is called Printing Preferences.
The printer driver includes three tabs: Page Setup, Color, and
Features. Each tab contains settings relating to the operation of your
printer and its software.
Opening the printer driver from an application
When you open the printer driver from your application, you can
change printer settings ONLY for the document(s) you are currently
creating.
1Open the application’s File menu.
2Choose Print (or Printer) Setup.
3In the Printer Setup dialog box, click the Properties, Option,
or Setup button (depending on the application).
4Change settings as needed.

Steps to basic printing
10
Printing beyond the basics
Beyond the basics
Maintaining your printer
Troubleshooting
Appendix
Index
Steps to basic printing
Opening the printer driver from Windows
When you open the printer driver from Windows, the settings apply
to ALL documents, unless you change them from the application.
1From the Start menu, select Settings, and then select
Printers.
2From the Printers folder, right-click the printer icon for your
printer.
3Select Document Defaults from the sidebar menu.
4Change settings as needed.

Steps to basic printing
11
Printing beyond the basics
Beyond the basics
Maintaining your printer
Troubleshooting
Appendix
Index
Steps to basic printing

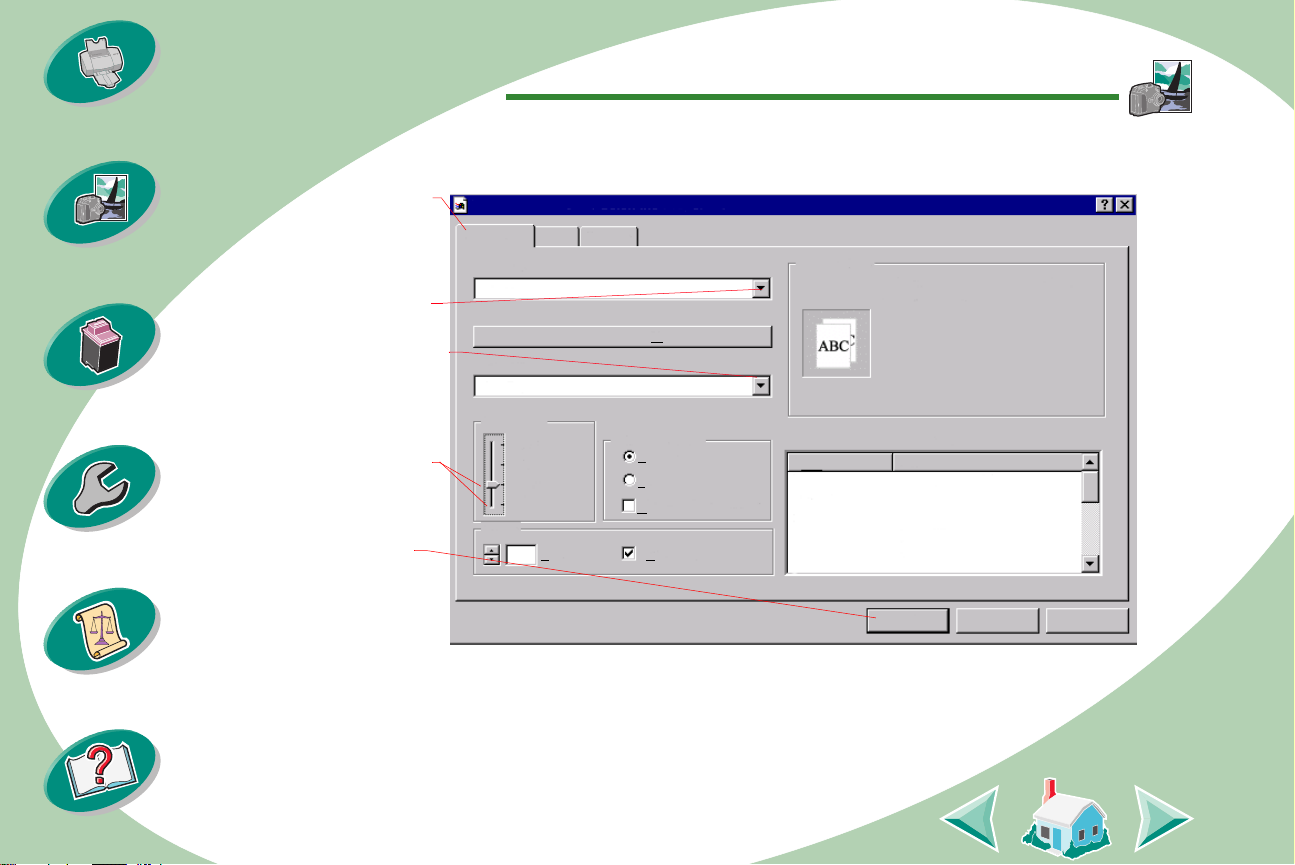

Click the...
Page Setup tab to:
• Select a paper size,
media type, and
orientation
• Select a print quality
setting
• Choose the number of
copies and the order of
printing
• View the current printer
settings

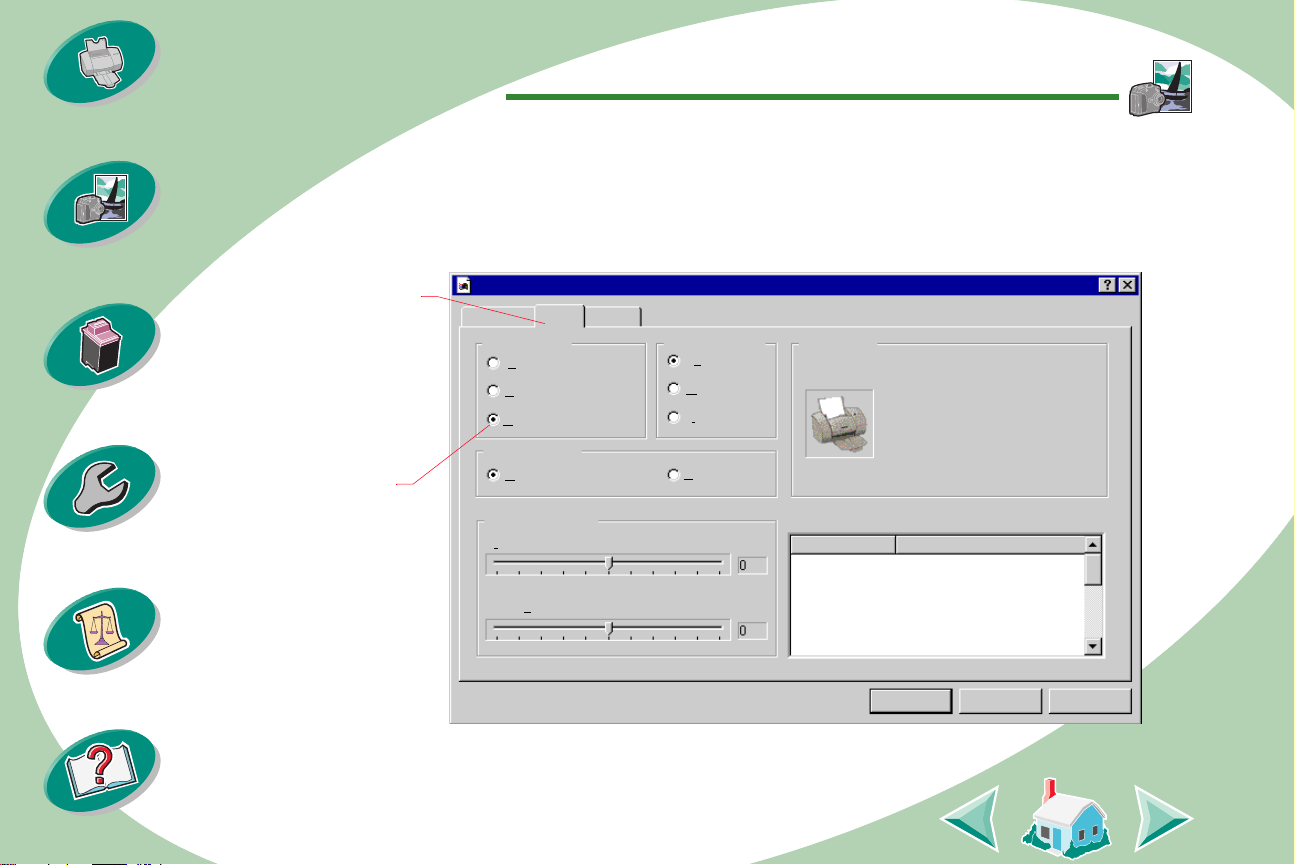

Color tab to:
• Select a Document
Color and Shading
(Halftone) setting
• Adjust the brightness
and contrast settings
• Choose to print in color
or black and white
• View the current printer
settings
Features tab to:
• Print on both sides of the page and select
a binding edge
• Choose the default settings
• View the current printer settings
Page Setup Color Features
Paper Size:
Custom Paper Size
Hot Spot Help
Click this to create a custom paper size.
Media Type:
Plain Paper
Current Settings
Item Setting
Print Quality Orientation/Order
Portrait
Landscape
Reverse Order Printing
Copies
1(1-99) Collate Copies
Draft
Normal
High
OK Cancel Help
Paper Size
Media Type
Paper Source
Print Quality
Orientation
Copies
Letter (8.5 x 11 in.)
Plain Paper
Automatic Paper Feed
Normal
Portrait
1
Lexmark Z52 Series ColorFine Properties
Letter (8.5 x 11 in.)
Maximum

Steps to basic printing
12
Printing beyond the basics
Beyond the basics
Maintaining your printer
Troubleshooting
Appendix
Index
Steps to basic printing
Selecting settings for specialty media
When your printer software was installed, the printer driver was set
to the default settings. Use the default settings for printing most
documents on plain paper. However, you may need to change your
printer settings for printing on specialty media.
When you are printing on
this specialty media: From the Page Setup tab, make these selections:
Envelopes
Note: Your application
may override the
envelope settings in the
printer software.
From the list of Paper Sizes, select the
appropriate envelope size.
Greeting cards, index
cards, or postcards From the Media Type drop-down menu, select Greeting Card Stock.
Select the appropriate Paper Size setting.
Photo papers or photo
cards From the Media Type drop-down menu, select Glossy/Photo Paper.

Steps to basic printing
13
Printing beyond the basics
Beyond the basics
Maintaining your printer
Troubleshooting
Appendix
Index
Steps to basic printing
Sheets of custom-sized
paper Click the Custom Paper Size button, and then enter the dimensions for your custom
paper size. For help, see Loading
specialty media.
Banner paper From the list of Paper Sizes, select
Banner Letter or Banner A4.
Transparencies
Note: When printing
transparencies, remove
each transparency as it
exits from the printer
and allow it to dry before
stacking.
From the Media Type drop-down menu,
select Transparency.
From the Print Quality area, select
Normal or High Quality.
When you are printing on
this specialty media: From the Page Setup tab, make these selections:

Steps to basic printing
14
Printing beyond the basics
Beyond the basics
Maintaining your printer
Troubleshooting
Appendix
Index
Steps to basic printing

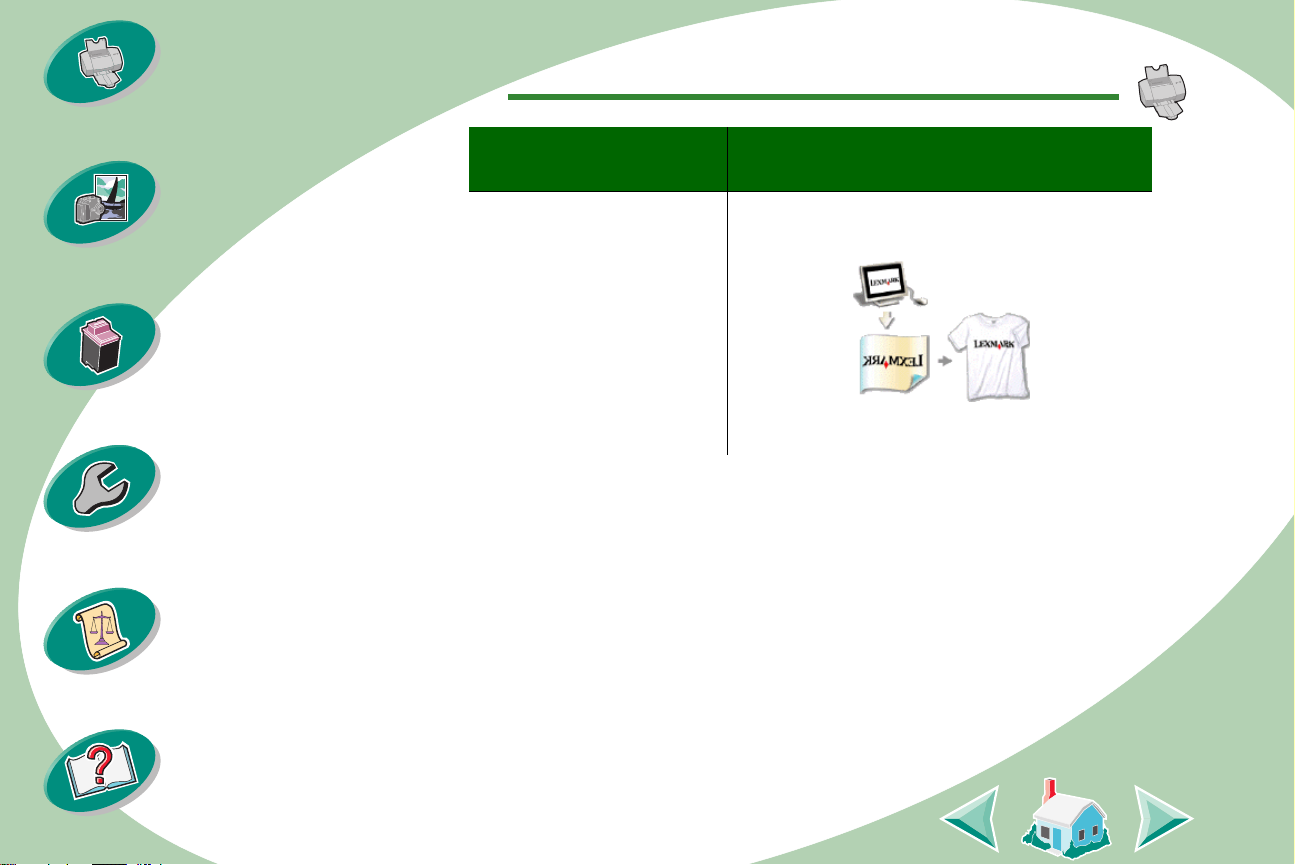

Iron-on transfers
Note: Many software
applications accept iron-
on transfers differently.
We recommend printing
your document on plain
paper before printing it
on an iron-on transfer.
From the Media Type drop-down menu,
select Iron-On Transfer.
When you are printing on
this specialty media: From the Page Setup tab, make these selections:

Steps to basic printing
15
Printing beyond the basics
Beyond the basics
Maintaining your printer
Troubleshooting
Appendix
Index
Steps to basic printing
Step Three: Print your document
1From your application’s File menu, click Print.
2From the Print dialog box, click OK or Print (depending on
the application).

16
Beyond the basics
Maintaining your printer
Troubleshooting
Appendix
Index
Steps to basic printing
Beyond the basics
You can use your printer for:
Printing photos
Printing on both sides of a sheet of paper
Printing photos
You can print quality photos with the black and color cartridge
combination that came with your printer. However, for the best
possible photo quality, replace the black cartridge with a photo
cartridge. For help replacing the black cartridge, see
page 26
.
Step One: Load the photo paper
Load up to 25 sheets of photo paper (or photo cards) against the
right side of the sheet feeder. For help, see
page 7
.

Beyond the basics
17
Printing beyond the basics
Beyond the basics
Maintaining your printer
Troubleshooting
Appendix
Index
Steps to basic printing
Step Two: Customize the printer software for printing
photos
1Open the printer driver. For help, see
page 9 .
2Adjust the Document Color settings:
a
Click the
Color tab.
b
Select
Natural
Color.
Color FeaturesPage Setup
Document Color Shading (Halftone) Hot Spot Help View the print options you selected.
Auto
Vivid Color
Natural Color
Auto
Matrix
Air Brush
OK
Color Appearance
Color Black
Cancel Help
Brightness / Contrast
Brightness
Contrast
Current Settings
Item
Paper Size
Media Type
Paper Source
Print Quality
Orientation
Copies
Letter (8.5 x 11 in.)
Plain Paper
Automatic Paper Feed
Normal
Portrait
1
Setting
Lexmark Z52 Series ColorFine Properties

Beyond the basics
18
Printing beyond the basics
Beyond the basics
Maintaining your printer
Troubleshooting
Appendix
Index
Steps to basic printing 3Customize the settings for printing photos:
a
Click the
Page Setup
tab.
d
Select High
or Maximum.
c
Select
Glossy/Photo
Paper.
e
Click OK.
b
Select the
Paper Size
.
Hot Spot Help
Current Settings
Item Setting
(1-99) Collate Copies
OK Cancel
Paper Size
Media Type
Paper Source
Print Quality
Orientation
Copies
Letter (8.5 x 11 in.)
Glossy/Photo Paper
Automatic Paper Feed
High
Portrait
1
Help
1
Custom Paper Size
Media Type:
Print Quality Orientation/Order
Portrait
Reverse Order Printing
Draft
High
Glossy/Photo Paper
Normal Landscape
Click this to select the type of print
media you are using.
Page Setup Color Features
Lexmark Z52 Series ColorFine Properties
Letter (8.5 x 11 in.)
Copies
Paper Size
Maximum

Beyond the basics
19
Printing beyond the basics
Beyond the basics
Maintaining your printer
Troubleshooting
Appendix
Index
Steps to basic printing
Step Three: Print your photos
Note
: For the best possible photo quality, print with a photo and
color cartridge combination in your printer. To replace the black
cartridge with a photo cartridge, see
page 26
.
1From your application’s File menu, click Print.
2From the Print dialog box, click OK or Print (depending on
the application).
3When you have finished printing your photos, reinstall the
black print cartridge.
Printing on both sides of a sheet of paper
Your Lexmark printer lets you print on both sides of a sheet of paper.
Besides saving paper, this feature is helpful when you want to print
tablets.
Step One: Load the paper
Load up to 100 sheets of paper against the right side of the sheet
feeder. For help, see
page 4
.

Beyond the basics
20
Printing beyond the basics
Beyond the basics
Maintaining your printer
Troubleshooting
Appendix
Index
Steps to basic printing
Step Two: Customize the printer software for your two-
sided print job
For help opening the printer driver, see
page 9
.
1Select the paper size and orientation:
aClick the Page Setup tab.
bSelect a Paper Size.
cSelect Portrait or Landscape Orientation.
2Click the Features tab.
Note
: The orientation you select in step 1 is reflected in the graphics
on the Features tab.
When you select Landscape
orientation, these graphics
display:
When you select Portrait
orientation, these graphics
display:
Long Edge Short Edge Long Edge Short Edge
