AIR CONDITIONER
Copyright © 2020 - 2021 LG Electronics Inc. All Rights Reserved
TYPE: WALL MOUNTED
Original instruction
MFL69780814
Rev.04_072621
EN ENGLISH
DE DEUTSCH
IT ITALIANO
PT PORTUGUÊS
ES ESPAÑOL
OWNER’S MANUAL
Read this owner's manual thoroughly before operating the
appliance and keep it handy for reference at all times.
LG Electronics Inc. Single Point of Contact (EU/UK) & EU Importer:
LG Electronics European Shared Service Center B.V.
Krijgsman 1, 1186 DM Amstelveen, The Netherlands
2 / 206
1 / 2042 / 206

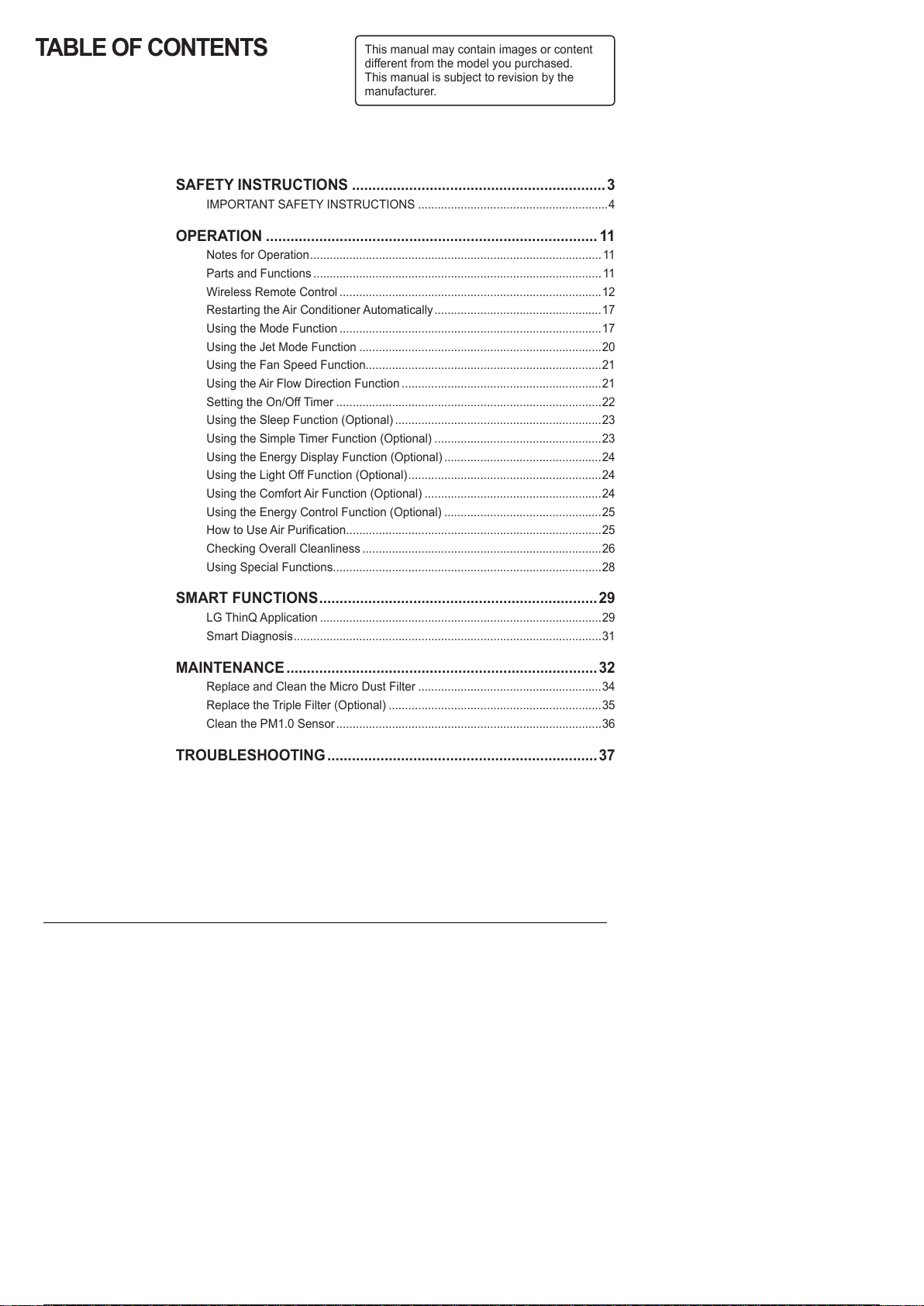

TABLE OF CONTENTS This manual may contain images or content
different from the model you purchased.
This manual is subject to revision by the
manufacturer.
SAFETY INSTRUCTIONS ..............................................................3
IMPORTANT SAFETY INSTRUCTIONS ..........................................................4
OPERATION ................................................................................. 11
Notes for Operation.........................................................................................11
Parts and Functions ........................................................................................ 11
Wireless Remote Control ................................................................................12
Restarting the Air Conditioner Automatically...................................................17
Using the Mode Function ................................................................................17
Using the Jet Mode Function ..........................................................................20
Using the Fan Speed Function........................................................................21
Using the Air Flow Direction Function .............................................................21
Setting the On/Off Timer .................................................................................22
Using the Sleep Function (Optional) ...............................................................23
Using the Simple Timer Function (Optional) ...................................................23
Using the Energy Display Function (Optional) ................................................24
Using the Light Off Function (Optional)...........................................................24
Using the Comfort Air Function (Optional) ......................................................24
Using the Energy Control Function (Optional) ................................................25
How to Use Air Purification..............................................................................25
Checking Overall Cleanliness .........................................................................26
Using Special Functions..................................................................................28
SMART FUNCTIONS....................................................................29
LG ThinQ Application ......................................................................................29
Smart Diagnosis..............................................................................................31
MAINTENANCE............................................................................32
Replace and Clean the Micro Dust Filter ........................................................34
Replace the Triple Filter (Optional) .................................................................35
Clean the PM1.0 Sensor.................................................................................36
TROUBLESHOOTING..................................................................37
3 / 206
2 / 2043 / 206

3
EN
SAFETY INSTRUCTIONS
The following safety guidelines are intended to prevent unforeseen risks
or damage from unsafe or incorrect operation of the appliance.
The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as
described below.
This symbol is displayed to indicate matters and operations
that can cause risk. Read the part with this symbol carefully
and follow the instructions in order to avoid risk.
WARNING
This indicates that the failure to follow the instructions can cause
serious injury or death.
CAUTION
This indicates that the failure to follow the instructions can cause the
minor injury or damage to the product.
The following symbols are displayed on indoor and outdoor units. (for
R32)
This symbol indicates that this appliance uses a flammable
refrigerant. If the refrigerant is leaked and exposure to an
external ignition source, there is a risk of fire.
This symbol indicates that the Operation Manual should be
read carefully.
This symbol indicates that a service personnel should be
handling this equipment with reference to the Installation
Manual.
This symbol indicates that information is available such as the
Operating Manual or Installation Manual.
4 / 206
3 / 2044 / 206

4
EN

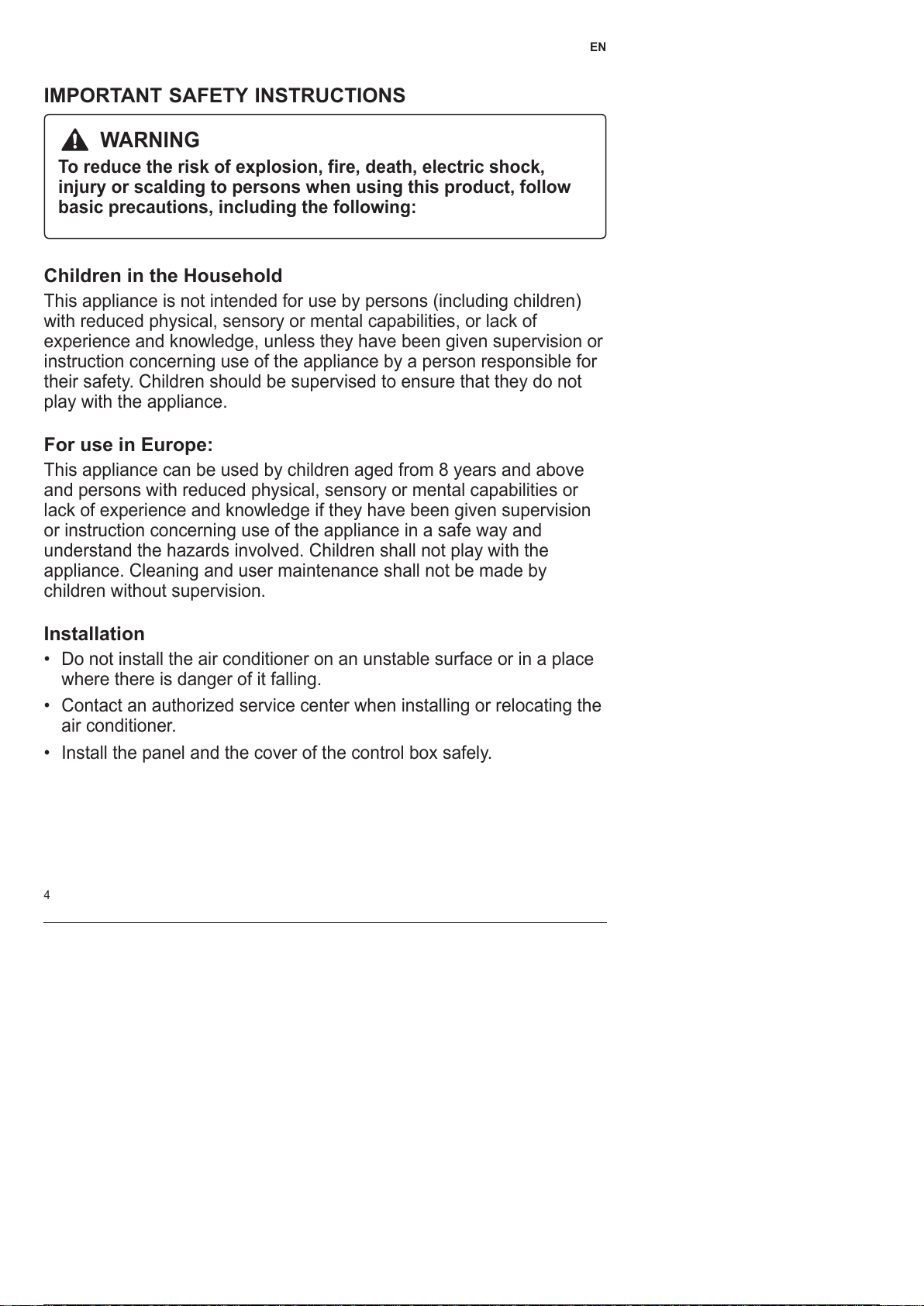

IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of explosion, fire, death, electric shock,
injury or scalding to persons when using this product, follow
basic precautions, including the following:
Children in the Household
This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for
their safety. Children should be supervised to ensure that they do not
play with the appliance.
For use in Europe:
This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by
children without supervision.
Installation
• Do not install the air conditioner on an unstable surface or in a place
where there is danger of it falling.
• Contact an authorized service center when installing or relocating the
air conditioner.
• Install the panel and the cover of the control box safely.
5 / 206
4 / 2045 / 206

5
EN
• Do not install the air conditioner in a place where flammable liquids or
gases such as gasoline, propane, paint thinner, etc., are stored.
• Make sure that the pipe and the power cable connecting the indoor
and outdoor units are not pulled too tight when installing the air
conditioner.
• Use standard circuit breaker and fuse that conform to the rating of the
air conditioner.
• Do not input air or gas into the system except with the specific
refrigerant.
• Use non-flammable gas (nitrogen) to check for leak and to purge air;
using compressed air or flammable gas may cause fire or explosion.
• The indoor/outdoor wiring connections must be secured tightly,
and the cable should be routed properly so that there is no force
pulling the cable from the connection terminals. Improper or loose
connections can cause heat generation or fire.
• Install dedicated electric outlet and circuit breaker before using the air
conditioner.
• Do not connect the ground wire to a gas pipe, a lightning rod, or a
telephone ground wire.
• Keep any required ventilation openings clear of obstruction. (for R32)
• Means for disconnection must be incorporated in the fixed wiring in
accordance with the wiring rules.
• Do not install the unit in potentially explosive atmospheres.
Operation
• Be sure to use only those parts listed in the service parts list. Never
attempt to modify the equipment.
• Make sure that children do not climb on or hit the outdoor unit.
• Dispose of the batteries in a place where there is no danger of fire.
• Use only the refrigerant specified on the air conditioner label.
6 / 206
5 / 2046 / 206

6
EN
• Cut off the power supply if there is any noise, smell, or smoke coming
from the air conditioner.
• Do not leave flammable substances such as gasoline, benzene, or
thinner near the air conditioner.
• Contact an authorized service center when the air conditioner is
submerged by flood waters.
• Do not use the air conditioner for an extended period of time in a
small place without proper ventilation.
• In the event of a gas leak (such as Freon, propane gas, LP gas, etc.)
ventilate sufficiently before using the air conditioner again.
• To clean the interior, contact an authorized service center or dealer.
Using harsh detergents may cause corrosion or damage to the unit.
• Be sure to ventilate sufficiently when the air conditioner and a heating
appliance such as a heater are used simultaneously.
• Do not block the inlet or outlet of air flow.
• Do not insert hands or other objects through the air inlet or outlet
while the air conditioner is operating.
• Make sure that the power cable is neither dirty, loose, nor broken.
• Never touch, operate, or repair the air conditioner with wet hands.
• Do not place any objects on the power cable.
• Do not place a heater or other heating appliances near the power
cable.
• Do not modify or extend the power cable. Scratches or peeling
insulation on the power cables may result in fire or electric shock, and
should be replaced.
• Cut off the power supply immediately in the event of a blackout or a
thunderstorm.
7 / 206
6 / 2047 / 206

7
EN
• Take care to ensure that power cable could not be pulled out or
damaged during operation.
• Do not touch refrigerant pipe, water pipe and any internal parts while
the unit is operating or immediately after operation.
Maintenance
• Do not clean the appliance by spraying water directly onto the
product.
• Before cleaning or performing maintenance, disconnect the power
supply and wait until the fan stops.
Technical Safety
• Installation or repairs made by unauthorized persons can pose
hazards to you and others.
• Any person who is involved with working on or breaking into a
refrigerant circuit should hold a current valid certificate from an
industry-accredited assessment authority, which authorizes their
competence to handle refrigerants safely in accordance with an
industry recognized assessment specification. (for R32)
• Servicing shall only be performed as recommended by the equipment
manufacturer. Maintenance and repair requiring the assistance of
other skilled personnel shall be carried out under the supervision of
the person competent in the use of flammable refrigerants. (for R32)
• The information contained in the manual is intended for use by a
qualified service technician who is familiar with the safety procedures
and equipped with the proper tools and test instruments.
• Failure to read and follow all instructions in this manual can result
in equipment malfunction, property damage, personal injury and/or
death.
8 / 206
7 / 2048 / 206

8
EN

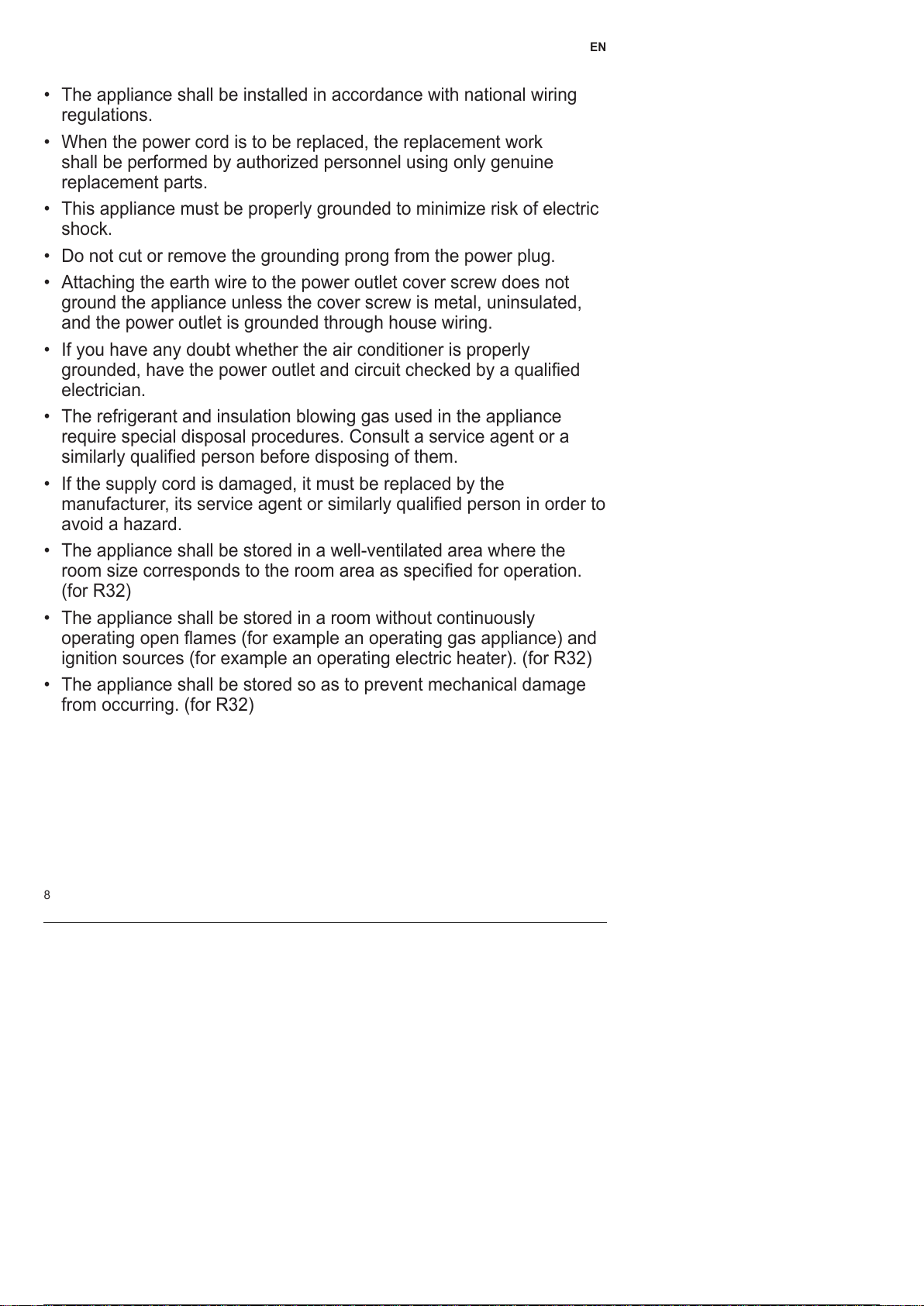

• The appliance shall be installed in accordance with national wiring
regulations.
• When the power cord is to be replaced, the replacement work
shall be performed by authorized personnel using only genuine
replacement parts.
• This appliance must be properly grounded to minimize risk of electric
shock.
• Do not cut or remove the grounding prong from the power plug.
• Attaching the earth wire to the power outlet cover screw does not
ground the appliance unless the cover screw is metal, uninsulated,
and the power outlet is grounded through house wiring.
• If you have any doubt whether the air conditioner is properly
grounded, have the power outlet and circuit checked by a qualified
electrician.
• The refrigerant and insulation blowing gas used in the appliance
require special disposal procedures. Consult a service agent or a
similarly qualified person before disposing of them.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified person in order to
avoid a hazard.
• The appliance shall be stored in a well-ventilated area where the
room size corresponds to the room area as specified for operation.
(for R32)
• The appliance shall be stored in a room without continuously
operating open flames (for example an operating gas appliance) and
ignition sources (for example an operating electric heater). (for R32)
• The appliance shall be stored so as to prevent mechanical damage
from occurring. (for R32)
9 / 206
8 / 2049 / 206

9
EN
CAUTION
To reduce the risk of minor injury to persons, malfunction, or
damage to the product or property when using this product,
follow basic precautions, including the following:
Installation
• Do not install the air conditioner in an area where it is directly
exposed to sea wind (salt spray).
• Install the drain hose properly for the smooth drainage of water
condensation.
• Exercise caution when unpacking or installing the air conditioner.
• Do not touch the leaking refrigerant during installation or repair.
• Transport the air conditioner with two or more people or use a forklift.
• Install the outdoor unit such that it is protected from direct sunlight.
Do not place the indoor unit in a place where it is directly exposed to
sunlight via the windows.
• Safely dispose of packing materials such as screws, nails, plastic bag
or batteries using proper packaging after installation or repair.
• Install the air conditioner in a place where the noise from the outdoor
unit or the exhaust fumes will not inconvenience the neighbors.
Failure to do so may result in conflict with the neighbors.
Operation
• Remove the batteries if the remote control is not to be used for an
extended period of time.
10 / 206
9 / 20410 / 206

10
EN

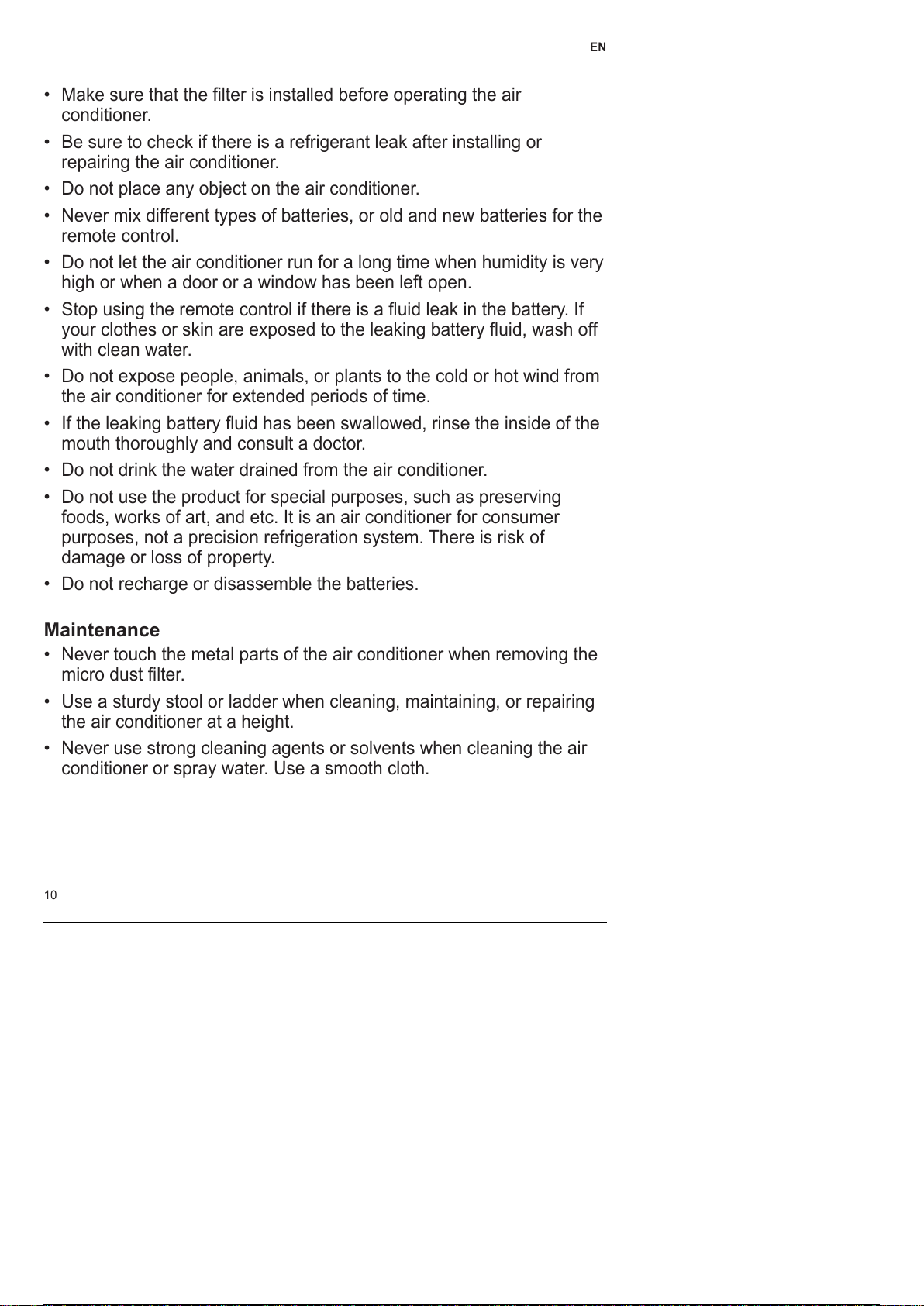

• Make sure that the filter is installed before operating the air
conditioner.
• Be sure to check if there is a refrigerant leak after installing or
repairing the air conditioner.
• Do not place any object on the air conditioner.
• Never mix different types of batteries, or old and new batteries for the
remote control.
• Do not let the air conditioner run for a long time when humidity is very
high or when a door or a window has been left open.
• Stop using the remote control if there is a fluid leak in the battery. If
your clothes or skin are exposed to the leaking battery fluid, wash off
with clean water.
• Do not expose people, animals, or plants to the cold or hot wind from
the air conditioner for extended periods of time.
• If the leaking battery fluid has been swallowed, rinse the inside of the
mouth thoroughly and consult a doctor.
• Do not drink the water drained from the air conditioner.
• Do not use the product for special purposes, such as preserving
foods, works of art, and etc. It is an air conditioner for consumer
purposes, not a precision refrigeration system. There is risk of
damage or loss of property.
• Do not recharge or disassemble the batteries.
Maintenance
• Never touch the metal parts of the air conditioner when removing the
micro dust filter.
• Use a sturdy stool or ladder when cleaning, maintaining, or repairing
the air conditioner at a height.
• Never use strong cleaning agents or solvents when cleaning the air
conditioner or spray water. Use a smooth cloth.
11 / 206
10 / 20411 / 206

11
EN

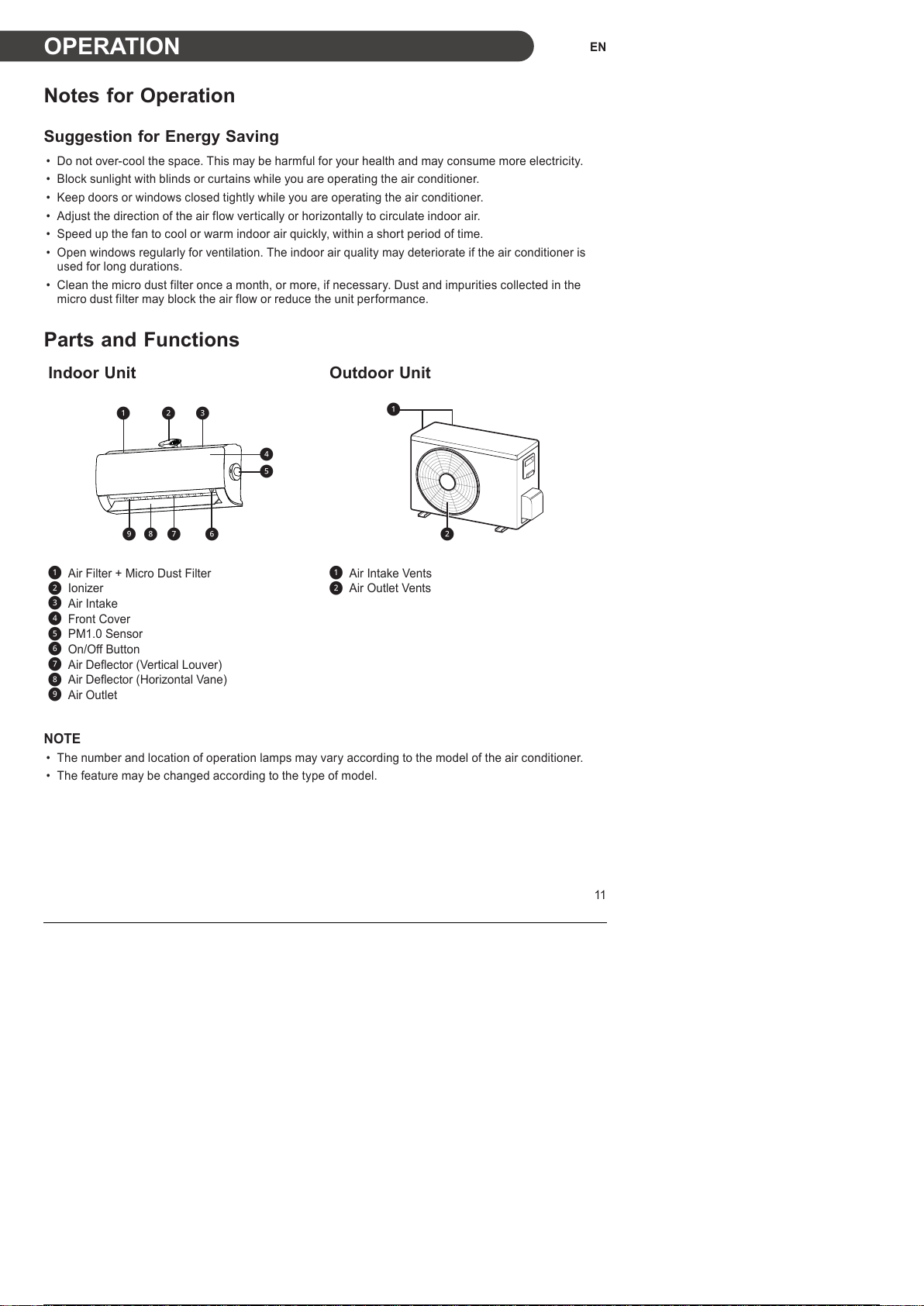

OPERATION
Notes for Operation
Suggestion for Energy Saving
• Do not over-cool the space. This may be harmful for your health and may consume more electricity.
• Block sunlight with blinds or curtains while you are operating the air conditioner.
• Keep doors or windows closed tightly while you are operating the air conditioner.
• Adjust the direction of the air flow vertically or horizontally to circulate indoor air.
• Speed up the fan to cool or warm indoor air quickly, within a short period of time.
• Open windows regularly for ventilation. The indoor air quality may deteriorate if the air conditioner is
used for long durations.
• Clean the micro dust filter once a month, or more, if necessary. Dust and impurities collected in the
micro dust filter may block the air flow or reduce the unit performance.
Parts and Functions
Indoor Unit Outdoor Unit
abc
d
e
fghi
a
b
aAir Filter + Micro Dust Filter aAir Intake Vents
bIonizer bAir Outlet Vents
cAir Intake
dFront Cover
ePM1.0 Sensor
fOn/Off Button
gAir Deflector (Vertical Louver)
hAir Deflector (Horizontal Vane)
iAir Outlet
NOTE
• The number and location of operation lamps may vary according to the model of the air conditioner.
• The feature may be changed according to the type of model.
12 / 206
11 / 20412 / 206

12
EN
Wireless Remote Control
Inserting Batteries
If the display screen of the remote control begins
to fade, replace the batteries. Insert AAA (1.5 V)
batteries before using the remote control.
1 Remove the battery cover.
2 Insert the new batteries and make sure that
the + and - terminals of the batteries are
installed correctly.
Installing the Remote Control
Holder
To protect the remote control, install the holder
where there is no direct sunlight.
1 Choose a safe and easily accessible location.
2 Fix the holder by fastening 2 screws firmly with
a screwdriver.
Operating Method
Point the remote control towards the signal
receiver at the right side of the air conditioner to
operate it.
NOTE
• The remote control may operate other
electronic devices if it is directed towards them.
Make sure to point the remote control towards
the air conditioner signal receiver.
• For proper operation, use a soft cloth to clean
the signal transmitter and receiver.
• In case of a function not provided in the
product, no buzzer sound occurs from the
product when a button for such function on the
remote control is pressed except for Air Flow
Direction (
SWING
), Energy Display (
kW [3 s]
), Air
Purification function ( ).
13 / 206
12 / 20413 / 206

13
EN

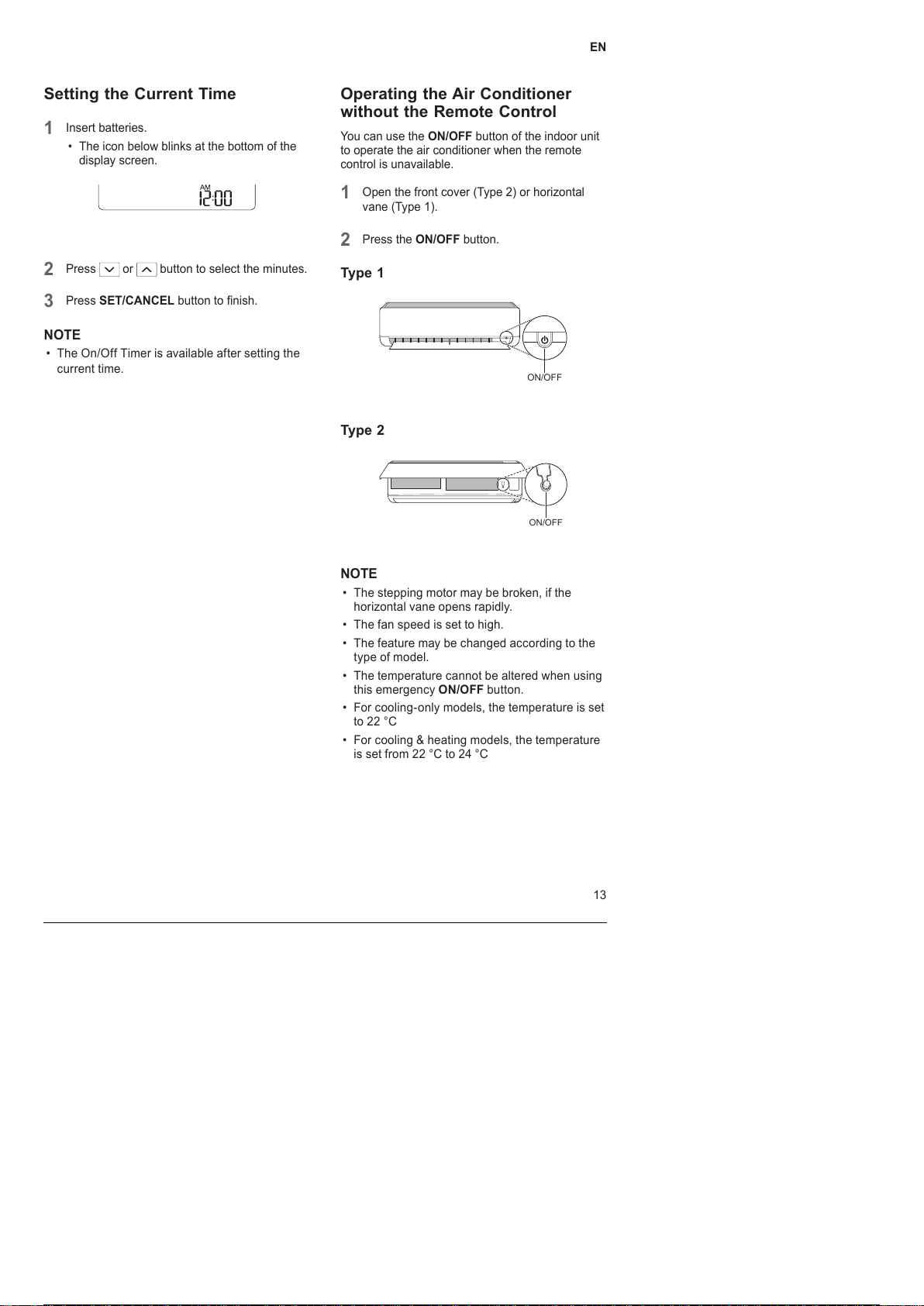

Setting the Current Time
1 Insert batteries.
• The icon below blinks at the bottom of the
display screen.
2 Press or button to select the minutes.
3 Press SET/CANCEL button to finish.
NOTE
• The On/Off Timer is available after setting the
current time.
Operating the Air Conditioner
without the Remote Control
You can use the ON/OFF button of the indoor unit
to operate the air conditioner when the remote
control is unavailable.
1 Open the front cover (Type 2) or horizontal
vane (Type 1).
2 Press the ON/OFF button.
Type 1
ON/OFF
Type 2
ON/OFF
NOTE
• The stepping motor may be broken, if the
horizontal vane opens rapidly.
• The fan speed is set to high.
• The feature may be changed according to the
type of model.
• The temperature cannot be altered when using
this emergency ON/OFF button.
• For cooling-only models, the temperature is set
to 22 °C
• For cooling & heating models, the temperature
is set from 22 °C to 24 °C
14 / 206
13 / 20414 / 206

14
EN
Using Wireless Remote Control
You can operate the air conditioner more conveniently with the remote control.
SWING
kW [3 s]
LIGHT [3 s]
DIAGNOSIS [5 s]
ROOM TEMP [3 s]
SWING
SET UP
PM
SENSOR
JET
MODE
MODE
TEMP
FAN
SPEED
FUNC.
TIMER CANCEL
SET
CANCEL
*
*
*
RESET
a
b
a
Button
b
Display
Screen
Description
Available Function
Single
Split Multi
-
To turn on/off the air
conditioner. O O
To adjust the desired
room temperature in
cooling, heating or auto
changeover mode.
O O
MODE
To select the cooling
mode. O O
To select the heating
mode. O O
To select the
dehumidification mode. O O
To select the fan mode. O O
To select the auto
changeover/auto
operation mode.
O O
JET
MODE
To change room
temperature quickly. O O
FAN
SPEED
To adjust the fan
speed. O O
SWING
SWING
To adjust the air flow
direction vertically or
horizontally.
O O
NOTE
• * buttons may be changed according to the type of model.
• When connected to the Multi Outdoor unit, the Energy Display, Energy
Control, Silent and Smart Diagnosis function may not be supported.
15 / 206
14 / 20415 / 206

15
EN
SWING
kW [3 s]
LIGHT [3 s]
DIAGNOSIS [5 s]
ROOM TEMP [3 s]
SWING
SET UP
PM
SENSOR
JET
MODE
MODE
TEMP
FAN
SPEED
FUNC.
TIMER CANCEL
SET
CANCEL
*
*
*
RESET
a
b
a
Button
b
Display
Screen
Description
Available Function
Single
Split Multi
TIMER
To turn on/off
air conditioner
automatically at
desired time.
O O
SET/
CANCEL
-
To set/cancel the
special functions and
timer.
O O
CANCEL
-
To cancel the timer
settings. O O
-
To adjust time. O O
LIGHT [3 s] -
To set the brightness
of the display on the
indoor unit.
O O
ROOM
TEMP [3 s]
To display the room
temperature. O O
*COMFORT
AIR
To adjust the air flow to
deflect wind. O O
kW [3 s] -
To set whether or not
to display information
regarding energy.
O X
*ENERGY
CTRL
To bring the effect of
the power saving. O X
DIAGNOSIS
[5 s]
-
To conveniently
check maintenance
information of a
product.
O X
PM
SENSOR
-
To check indoor dust
status. O O
*AIR
PURIFY
-
The Ion generator uses
millions of ions to help
improve indoor air
quality.
O O
16 / 206
15 / 20416 / 206

16
EN
SWING
kW [3 s]
LIGHT [3 s]
DIAGNOSIS [5 s]
ROOM TEMP [3 s]
SWING
SET UP
PM
SENSOR
JET
MODE
MODE
TEMP
FAN
SPEED
FUNC.
TIMER CANCEL
SET
CANCEL
*
*
*
RESET
a
b
a
Button
b
Display
Screen
Description
Available Function
Single
Split Multi
FUNC.
To reduce noise from
outdoor units. O X
To remove moisture
generated inside the
indoor unit.
O O
RESET -
To initialize the remote
control settings. O O
NOTE
• Some functions may not be supported, depending on the model.
• * buttons may be changed according to the type of model.
• Press the SET/CANCEL button to operate the selected FUNC.
17 / 206
16 / 20417 / 206

17
EN
Restarting the Air
Conditioner Automatically
When the air conditioner is turned on again after
a power failure, this function restores the previous
settings.
Disabling Auto Restart
1 Open the front cover (Type 2) or horizontal
vane (Type 1).
2 Press the ON/OFF button and hold it for 6
seconds, then the unit will beep twice and the
lamp will blink twice 4 times.
• To re-enable the function, press the ON/
OFF button and hold it for 6 seconds. The
unit will beep twice and the lamp will blink
4 times.
Type 1
ON/OFF
Type 2
ON/OFF
NOTE
• The feature may be changed according to the
type of model.
• If you press and hold the ON/OFF button for
3 – 5 seconds, instead of 6 seconds, the unit
will switch to the test operation. In the test
operation, the unit blows out strong cooling
air for 18 minutes and then returns to factory
default settings.
Using the Mode Function
This function allows you to select the desired
function.
Cooling Mode
Auto Changeover Mode / Auto
Operation(AI) Mode
Dehumidification Mode
Heating Mode
Fan Mode
Cooling Mode
1 Turn the appliance on.
2 Press MODE button repeatedly to select the
Cooling Mode.
• is displayed on the display screen.
3 Press or button to set the desired
temperature.
18 / 206
17 / 20418 / 206

18
EN

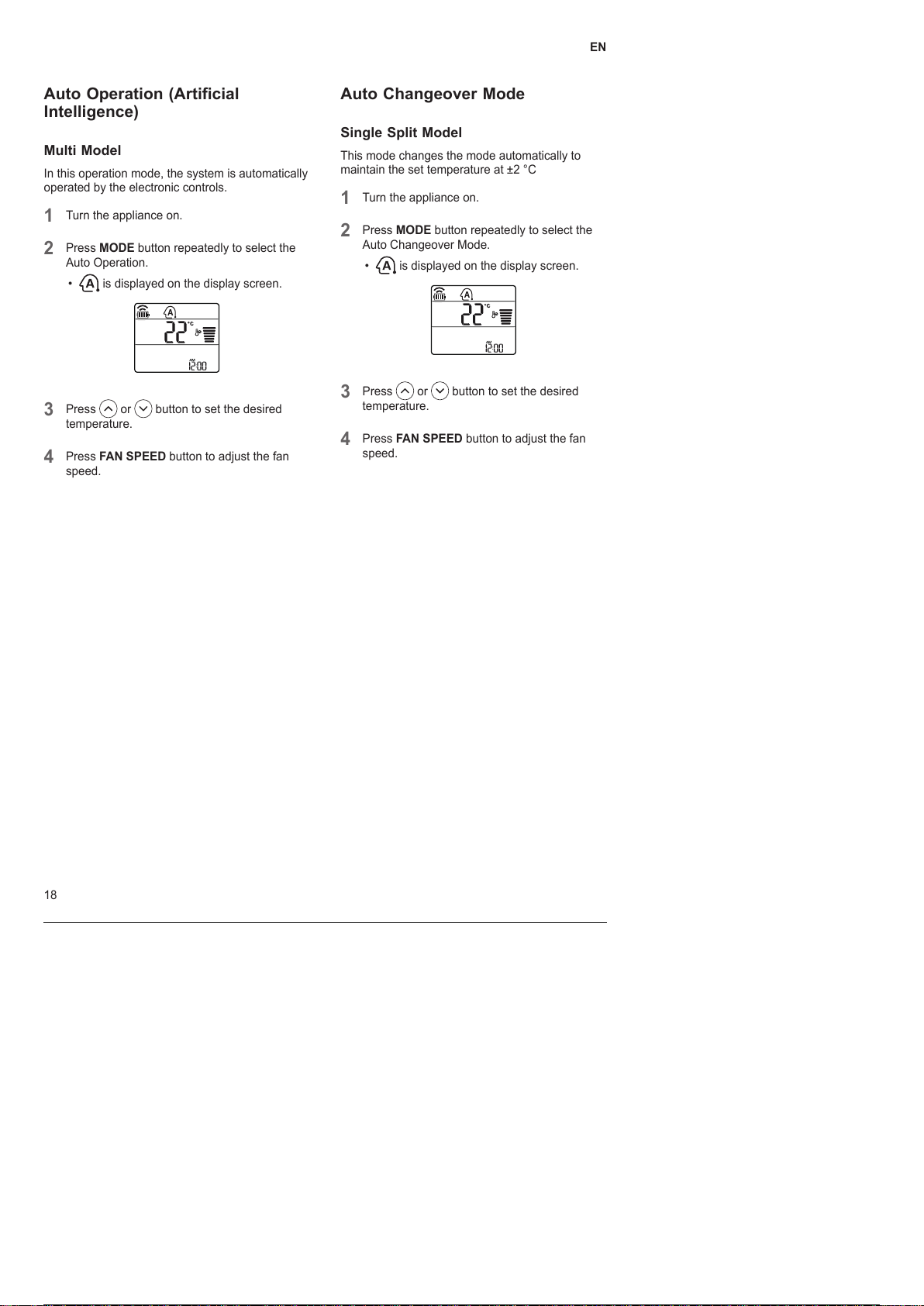

Auto Operation (Artificial
Intelligence)
Multi Model
In this operation mode, the system is automatically
operated by the electronic controls.
1 Turn the appliance on.
2 Press MODE button repeatedly to select the
Auto Operation.
• is displayed on the display screen.
3 Press or button to set the desired
temperature.
4 Press FAN SPEED button to adjust the fan
speed.
Auto Changeover Mode
Single Split Model
This mode changes the mode automatically to
maintain the set temperature at ±2 °C
1 Turn the appliance on.
2 Press MODE button repeatedly to select the
Auto Changeover Mode.
• is displayed on the display screen.
3 Press or button to set the desired
temperature.
4 Press FAN SPEED button to adjust the fan
speed.
19 / 206
18 / 20419 / 206

19
EN
Dehumidification Mode
This mode removes excess moisture from a highly
humid environment or during the rainy season,
in order to prevent mildew from setting in. This
mode adjusts the room temperature and the fan
speed automatically to maintain the optimal level
of humidity.
1 Turn the appliance on.
2 Press MODE button repeatedly to select the
Dehumidification Mode.
• is displayed on the display screen.
NOTE
• In this mode you cannot adjust the room
temperature, it is adjusted automatically.
• The room temperature is not displayed on the
display screen.
• In the dehumidification mode, compressor and
indoor fan may not operate when the room
temperature is below 24 °C
Heating Mode
1 Turn the appliance on.
2 Press MODE button repeatedly to select the
Heating Mode.
• is displayed on the display screen.
3 Press or button to set the desired
temperature.
NOTE
• will be displayed on the indoor unit when
defrosting is operating.
• Furthermore, this indication will be displayed
on the indoor unit:
−When preheating is operating.
−When the room temperature has been
reached to the set temperature.
20 / 206
19 / 20420 / 206
