OWNER'S MANUAL
WINDOW TYPE ROOM AIR CONDITIONER
• Please read carefully and thoroughly this manual
before operating this unit.
• Contact the authorized SVC man for repair or
maintenance of this unit.
• Contact the installer for installation of this unit.
• The appliance is not intended for use by young children or
infirm persons without supervision.
• Young children should be supervised to ensure that they do
not play with the appliance.
MODELS : LWC1260ACG/ LWC1260BCG
LWC1260PCG
LWC0960AHG/ LWC0960PHG
LWC1260AHG/ LWC1260PHG
LWC1262ACG/ LWC1262BCG
LWC1262PCG
LWC1262AHG/ LWC1262PHG
ENGLISH .....................P.1 - P.12
ITALIANO..................P.13 - P.24
ESPAÑOL ..................P.25 - P.36
FRANÇAIS.................P.37 - P.48
DEUTSCH..................P.49 - P.60
ENGLISH ITALIANO ESPAÑOL FRANÇAIS DEUTSCH
Prior to installation, this air-conditioning unit must be
submitted for approval by the utility service which
provides electricity (EN 61000-3 Norm).

SAFETY PRECAUTIONS
2ENGLISH
Before operating, please read the following "Safety precautions" carefully.
To prevent injury to the user or other people and properties damage, the following instructions must be followed.
■Incorrect operation due to ignoring of instruction will cause harm or damage, the seriousness is classified by
the following indications.
■The items to be followed are classified by the following symbols.
Warning :This indication shows the possibility of causing death or serious injury.
Caution : This indication shows the possibility of causing injury or damage to
properties only.
Symbol(with white background) denotes item that is PROHIBITED from
doing.
Symbol(with white background) denotes item that is COMPULSORY to
be carried out.
TABLE OF CONTENTS
SAFETY PRECAUTIONS..........................................................................................2
FEATURES................................................................................................................5
OPERATING..............................................................................................................6
FUNCTION.........................................................................................................6~8
HOW TO INSERT BATTERIES ..............................................................................8
VENTILATION ........................................................................................................9
TO CONTROL AIR DIRECTION ............................................................................9
AIR FILTER CLEANING.......................................................................................10
HOW TO COMBINE FRONT GRILLE WITH CABINET.......................................10
INSTALLATION .......................................................................................................11
BEFORE REQUESTING SERVICE.........................................................................12

ENGLISH 3
ENGLISHENGLISH

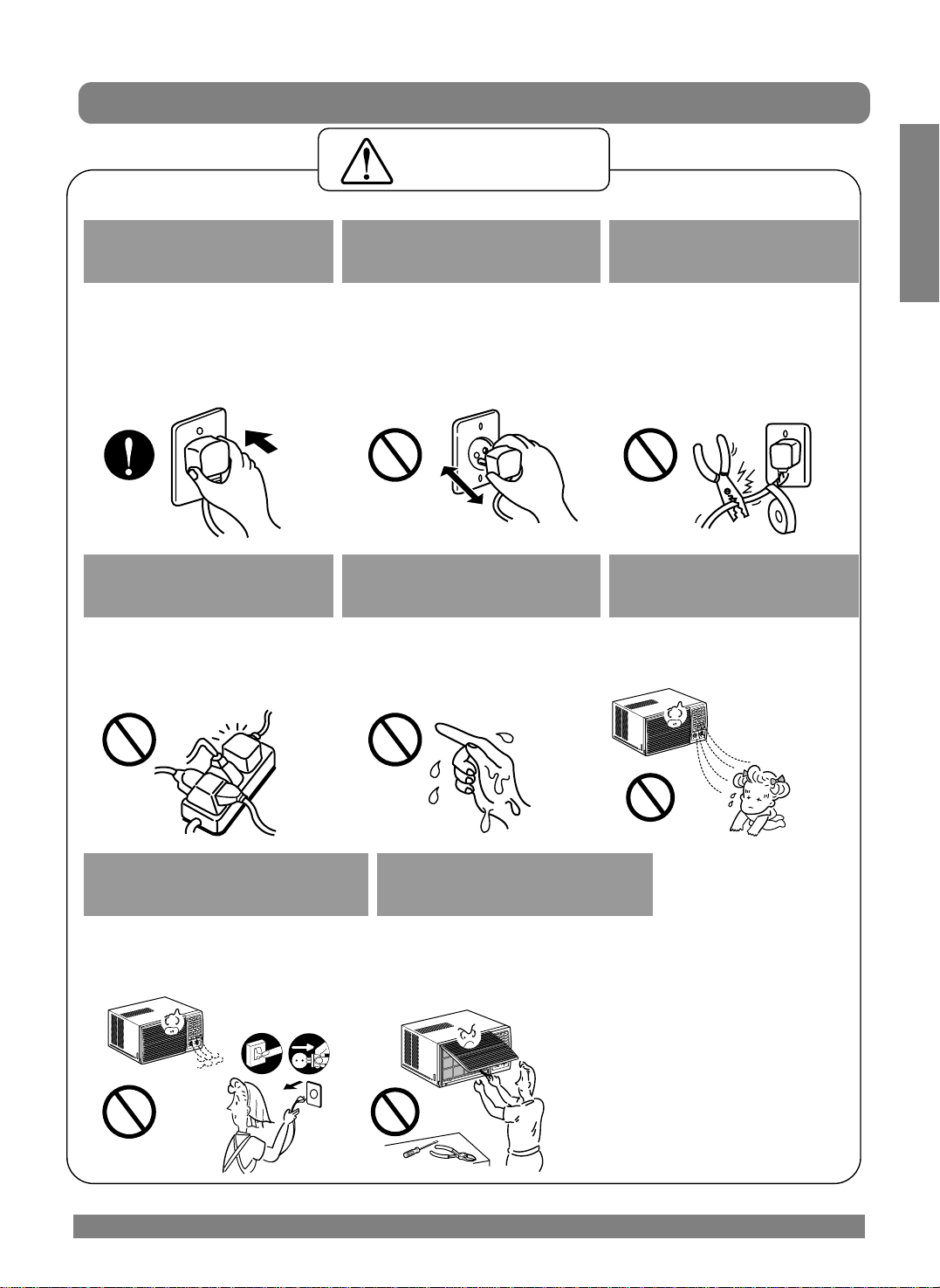

Plug in the power plug
properly.
• Otherwise, it will cause electrical
shock or fire due to heat
generation or electrical shock.
Do not operate or stop the unit
by inserting or pulling out the
power plug.
• It will cause electrical shock or fire
due to heat generation.
Do not damage or use an
unspecified power cord.
• It will cause electrical shock or fire.
• If the supply cord is damaged, it
must be replaced by a special cord
or assembly available from the
manufacturer or its service agent.
Do not modify power cord
length or to share the single
outlet with other appliances.
• It will cause electrical shock or fire
due to heat generation.
Do not operate with wet hand.
• It may cause electrical shock.
Do not expose the skin to cool air
directly for long time.
• This could damage your health.
When an abnormality (smell of burning, etc) occurs,
stop the air conditioner, and disconnect the power plug
or turn off the breaker .
• If the unit continues to be operated in
an abnormal condition, it may cause a
fire, trouble, etc. In this case, consult
your dealer.
Repair or relocation should not be
done by the customer.
• If this is done in correctly, it may cause
a fire, electric shock, injury by dropping
of the unit, water leakage, etc. Consult
your dealer.
WARNING
Operation precautions

4ENGLISH
When the air filter is to be
removed, do not touch the
metalparts of the unit.
• It may cause an injury.
Do not clean the air
conditioner with water.
•Water may enter the unit and
degrade the insulation. It may
cause an electric shock.
Ventilate well when used
together with a stove, etc.
• An oxygen shortage may occur.
When the unit is to be
cleaned, switch off, and turn
off the breaker.
• Since the fan rotates at high speed
during operation, it may cause an
injury.
Do not put a pet or house
plant where will be exposed to
direct air flow.
• This could injure the pet or plant.
Do not use for special
purposes.
• Do not use this air conditioner to
preserve precision devices, food,
animal, plants and art objects.
It may cause deterioration of
quality, etc.
Do not operate switches
with wet hands
.
• It may cause an electric shock.
Do not apply an insecticide
or flammable spray.
• It may cause a fire or deformation
of the cabinet.
Do not put a stove, etc. where
is exposed to direct air flow.
• It may cause imperfect
combustion.
CAUTION

ENGLISH
ENGLISH 5
ENGLISH
FEATURES

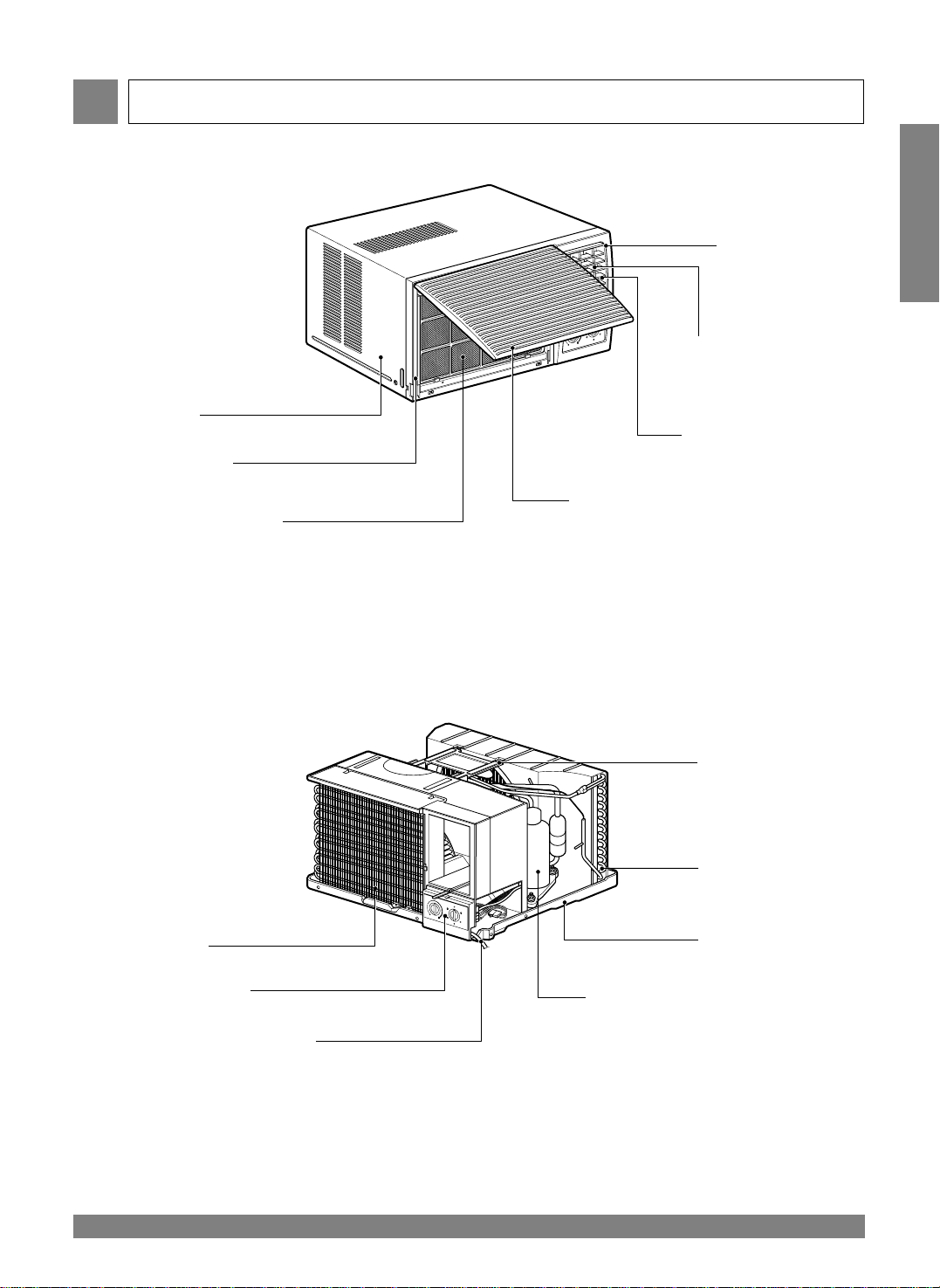

CABINET
FRONT GRILLE
AIR FILTER
EVAPORATOR
CONTROL BOARD
POWER CORD
BRACE
BASE PAN
COMPRESSOR
CONDENSER
AIR DISCHARGE
AIR INTAKE
(INLET GRILLE)
VERTICAL AIR
DEFLECTOR
(HORIZONTAL LOUVER)
HOROZONTAL AIR DEFLECTOR
(VERTICAL LOUVER)

FUNCTION
OPERATING
6ENGLISH
• THERMOSTAT
Thermostat will automatically control the
temperature of the room. Select the right side
for lower room temperature. The temperature is
selected by turning the knob to the desired
position.
The middle position of arc is a normal setting
for average conditions.
• AUTO SWING
ON ( ): Air swing is operated while
OPERATION knob is set to the
COOL position.
OFF ( ): Stops the operation of air swing.
• OPERATION
O : Turns the air conditioner off.
: Permits the medium fan speed operation
without cooling.
: Permits the low fan speed operation
without cooling.
: Permits cooling with the high fan speed
operation.
: Permits cooling with the medium fan
speed operation.
: Permits cooling with the low fan speed
operation.
o o
When the air conditioner has been performing its cooling operation and is turned off or set to the
fan position, wait at least 3 minutes before resetting to the cooling operation again.
CAUTION

ENGLISH 7
ENGLISH
• THERMOSTAT
Turn the thermostat control to the desired
setting. The centrol position is a normal setting
for average conditions. You can change this
setting, if necessary, in accordance with your
temperature preference.
The thermostat automatically controls cooling
or heating, but the fan runs continuously
whenever the air conditioner is in operation. If
the room is too warm, turn the thermostat
control clockwise. If the room is too cool, turn
the thermostat control anticlockwise.
• HEATER LAMP
When the unit sets heating operation condition,
the green lamp is lighted.
When the frost settles on the heat exchanger of
the outside, defrosting is made automatically
and the green lamp is unlighted.
The unit may give a "hiss" and the fan motor
stopes for 1 to 10 minutes.
• OPERATION
O : Turns the air conditioner off.
: Permits the low fan speed operation
without cooling(heating).
: Permits cooling with the low fan speed
operation.
: Permits cooling with the high fan speed
operation.
: Permits heating with the low fan speed
operation.
: Permits heating with the high fan speed
operation.
Thermostat
Warmer Cooler
Heater
Operation

8ENGLISH
POWER BUTTON
Operation starts, when this button is pressed and stops when you press the button again.
OPERATION MODE SELECTION BUTTON
Select Cooling, Heating, or Fan mode with this button.
ON/OFF TIMER BUTTON
Set the time of starting and stopping operation.
The timer is set by 1 hour.
FAN SPEED SELECTOR
Select the pan speed. Cooling Model: 3 steps{High[FF33] ➔Low[FF11] ➔Med[FF22] ➔High[FF33]...}
Heating Model: 2 steps{High[FF22] ➔Low[FF11]] ➔High[FF22]...}
ROOM TEMPERATURE SETTING BUTTON
Control the room temperature within a range of 16°C to 30°C. The room temperature will be adjusted by 1°C
30 min., and by 2°C 1 hour later.
AUTO RESTART SWITCH
In failure of electric power, if the switch is set to "ON", the unit runs as previous setting operation when
power returns.
SIGNAL RECEIVER
•STORAGE
The remote control may be stored mounted on a wall.
6
6
HOW TO INSERT BATTERIES
3
5
2
1
3
4 4
5
2
1
1
6
7
54
2 3
1
6
7
54
2 3
7
7
Remove the cover from the back of the
remote controller.
Insert the two batteries.
•Be sure that the (+) and (-) directions are
correct.
•Be sure that both batteries are new.
Re-attach the cover.
•Do not use rechargeable batteries,
such batteries differ from standard
dry cells in shape, dimensions, and
performance.
•Remove the batteries from the
remote controller if the air
conditioner is not going to be used
for an extended length of time.
REMOTE CONTROL

ENGLISH 9
ENGLISH

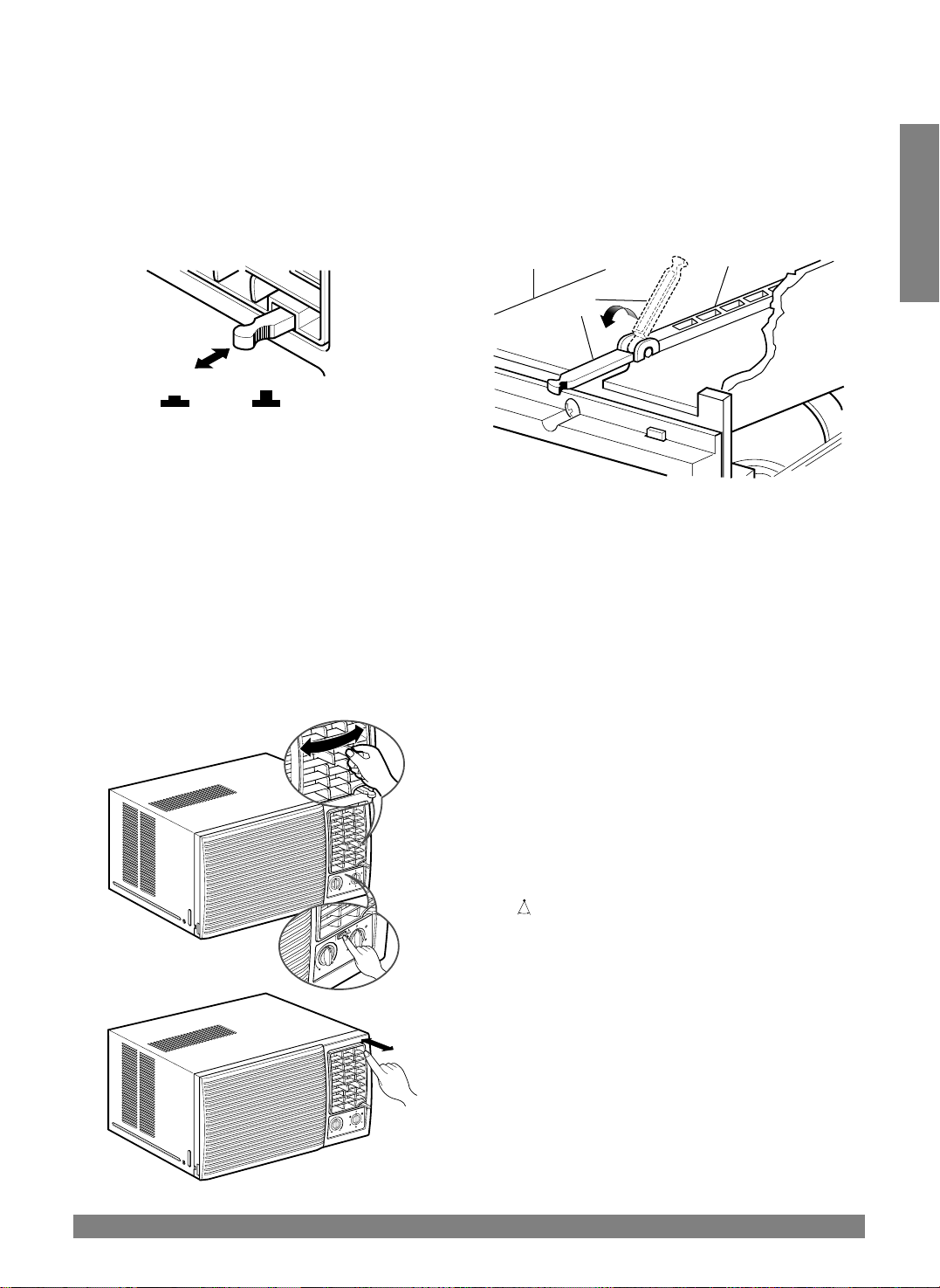

VENTILATION
The ventilation lever must be in the CLOSE position in order to maintain the best cooling conditions.
When fresh air is necessary in the room, set the ventilation lever to the OPEN position.
The damper is opened and room air is exhausted.
NOTE: Before using the ventilation feature, make
a ventilaiton kit. First, pull down part Ⓐ
to Ⓑhorizontal line with part Ⓑ.
The direction of air can be controlled whenever you want to cool by adjusting the horizontal louver
and the vertical louver.
•HORIZONTAL AIR DIRECTION CONTROL
The horizontal air direction is adjusted by
moving the vertical louver right or left.
•AUTO SWING MODELS
To control horizontal direction of air flow, set to
the (ON) position the air-swing switch and the
air flow will be swept horizontally by the
automatic air-swing system.
If you want to stop the air flow from moving,
switch off the air swing switch at the desired
position of the vane.
•VERTICAL AIR DIRECTION CONTROL
The vertical air direction is adjusted by adjusting
the horizontal louver forward or backward.
TO CONTROL AIR DIRECTION
CLOSE VENT OPEN
Part Ⓐ
Part Ⓑ

10 ENGLISH

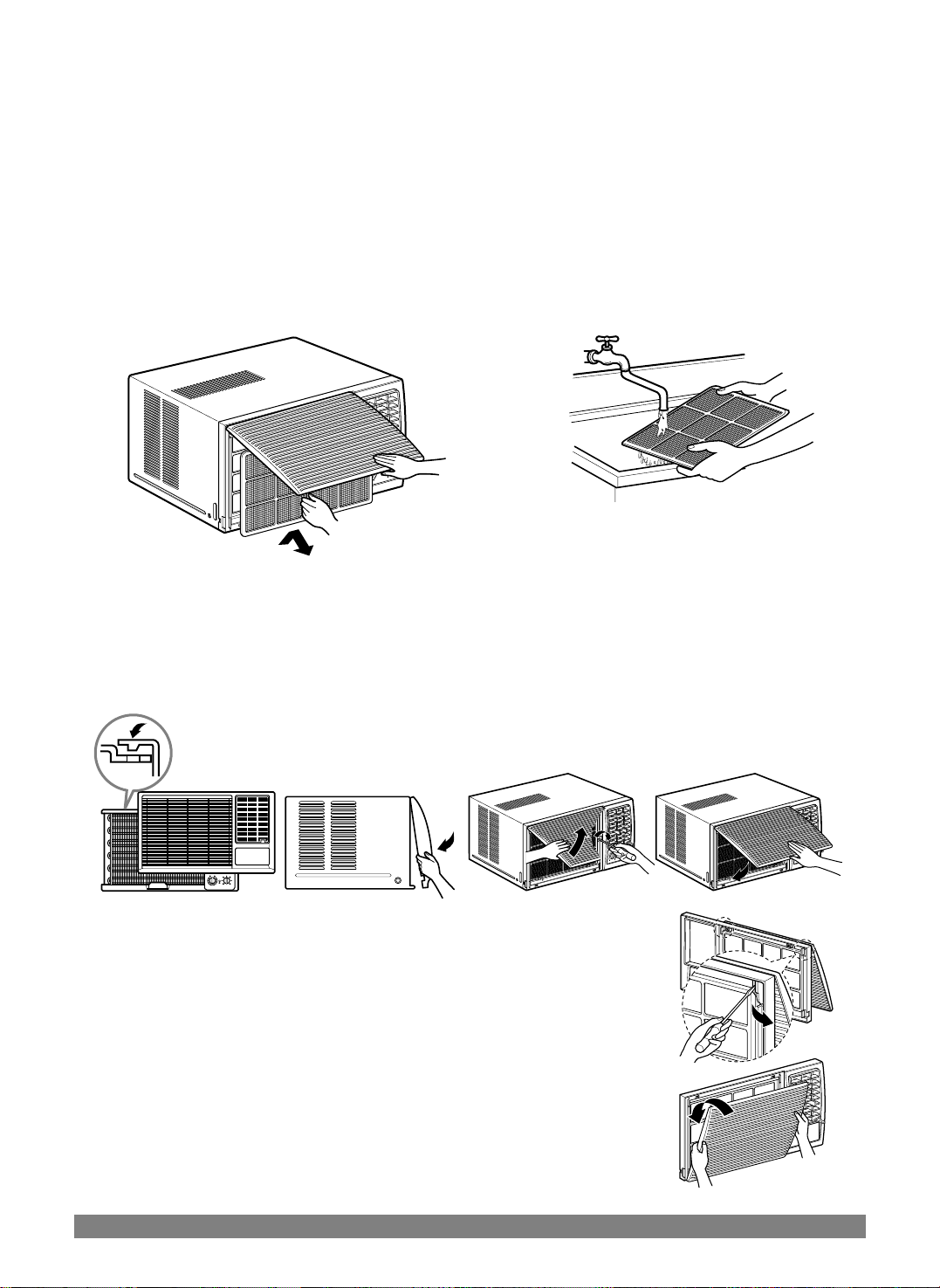

AIR FILTER CLEANING
The air filter should be checked at least twice a month to see if cleaning is necessary. Trapped
particles in the filter will build up and block the airflow. This reduces the cooling capacity and also
causes an accumulation of frost on the cooling coils.
1. Open the inlet grille upward by pulling out the bottom of the inlet grille.
2. Remove the air filter from the front grille assembly by pulling the air filter up slightly.
3. Wash the filter using lukewarm water below 40°C(104°F).
4. Gently shake the excess water from the filter completely. Replace the filter.
HOW TO COMBINE FRONT GRILLE WITH CABINET
USE THE REVERSIBLE INLET GRILLE
1. Pull down front grille from the cabinet top.
2. Push front grille's tips toward the cabinet in
order to insert front grille's tabs into the
cabinet.
3. Open the inlet grille.
4. Tighten the screw through the front grille.
5. Close inlet grille.
1. If you want to pull out the filter upward, open the inlet grille
slightly.
Turn inside out the front grille.
Disassemble the inlet grille from the front grille with separating
the hinged part by inserting a "—" type screw-driver tip. Rotate
the inlet grille 180 degrees and insert the hooks into the lower
holes of front grille. Then, insert the filter.
2. If you want to pull out the filter downward, use the reversible
inlet grille without change.(The grille is already assembled for
that way.)

ENGLISH 11
ENGLISH
INSTALLATION

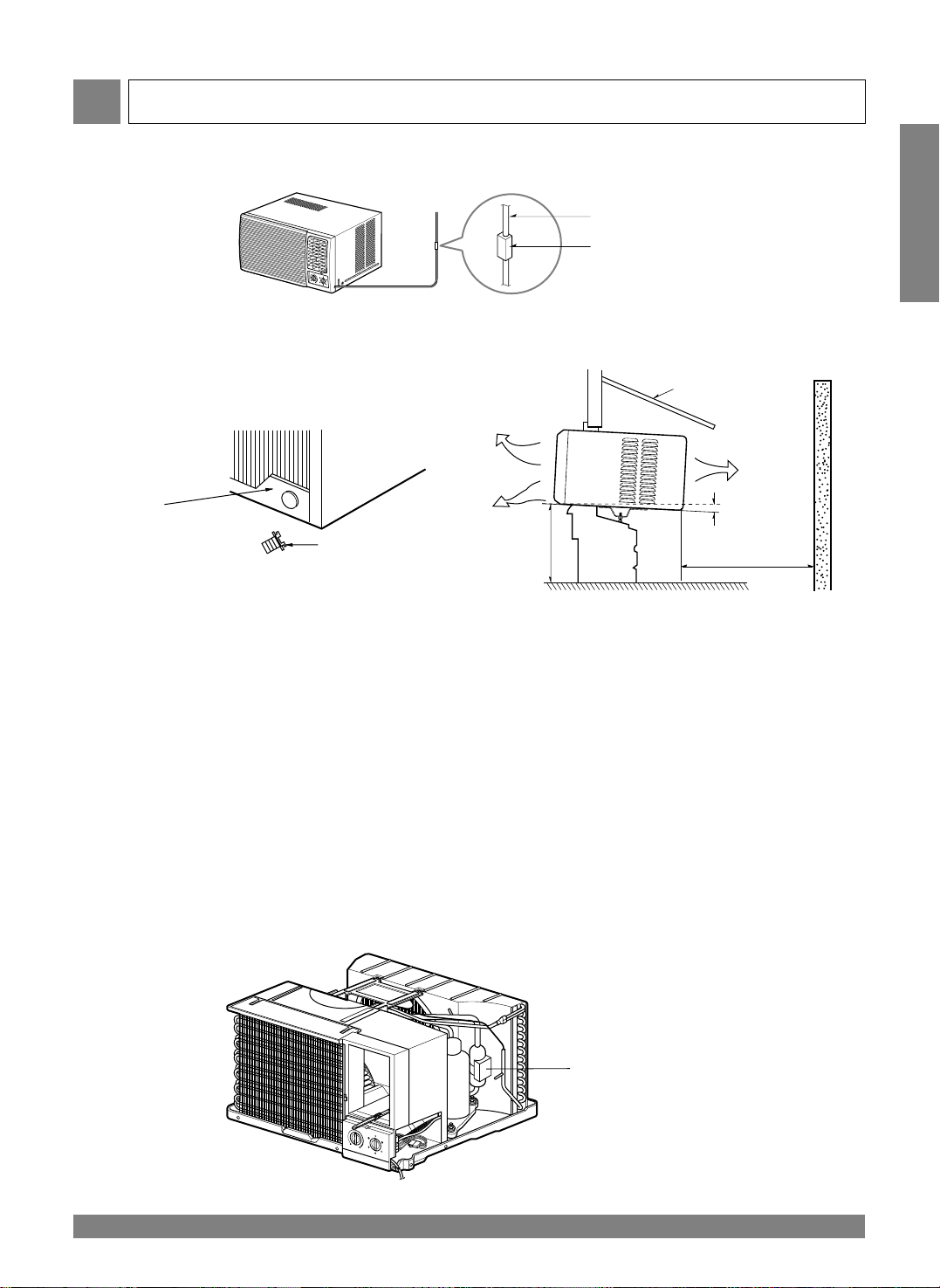

1. To avoid vibration and noise, make sure the unit is installed securely and firmly.
2. Install the unit where the sunlight does not shine directly on the unit.
If the unit receives direct sunlight, build an awning to shade the cabinet.
3. There should be no obstacle, like a fence, within 50cm which might restrict heat radiation from the
condenser.
4. Install the unit a little obliquely outward not to leak the condensed water into the room (about
10mm)
5. Install the unit with its bottom portion 70-150cm above the floor level.
6. The power cord must be connected to an independent circuit. The green wire must be grounded.
7. Connect the drain tube to the base pan hole.
Plastic hose or equivalent may be connected to the drain tube.
NOTE
Before installing the Air Conditioner back into the case, remove the white styrofoam shipping block
from the compressor.
70~150cm
BASE PAN
DRAIN TUBE
COOLED AIR
AWNING
HEAT RADIATION
ABOUT 10mm
OVER 50cm
FENCE
Remove white
styrofoam block.
If a power plug is not to be used, provide a circuit breaker between power source and the unit as
shown below.
Main power source
Circuit Breaker
Use a circuit breaker or time
delay fuse.

12 ENGLISH
BEFORE REQUESTING SERVICE
When you find something wrong with your room air conditioner, please check carefully referring to the
following items. If you can't find out the causes of trouble, get into contact with your dealer.
A. WHEN THE AIR CONDITIONER
CANNOT OPERATE;
1. Is the air conditioner plugged into the
receptacle properly?
2. Is there a local power failure?
Try another electrical product.
3. Has the air conditioner been accidentally
switched off?
4. Is the circuit overloaded by other devices on
the same line?
5. At cooling condition:
Is the thermostat set too high temperature
(the lowest number position of the pannel)
compared with the temperature of indoor?
B. AIR CONDITIONER RUNS, BUT
DOES NOT COOL SUFFICIENTLY;
1. Is the operation switch set properly?
2. Is the thermostat control set properly to
provide the desired temperature?
3. Are there too many people than the usual
number in the room?
4. Is the air circulation impeded by drapes,
furniture etc., or by an improper louver
setting?
5. Are the doors or windows open, or is there an
unusual heat source in the room?
6. Is the ventilation damper closed for maximum
cooling?
7. Is the filter clean so that it will not obstruct the
air flow?
HOW TO ATTACH DRAIN PAN
The air conditioner employs a proper drain method whereby the condensate water (moisture removed
from the air) is drained to the outside.
In very humid weather, (and for reverse cycle models in the reverse mode) excessive condensate
water removed from the air may cause some water to collect. To remove this excess water you can
install the drain pan as detailed below.

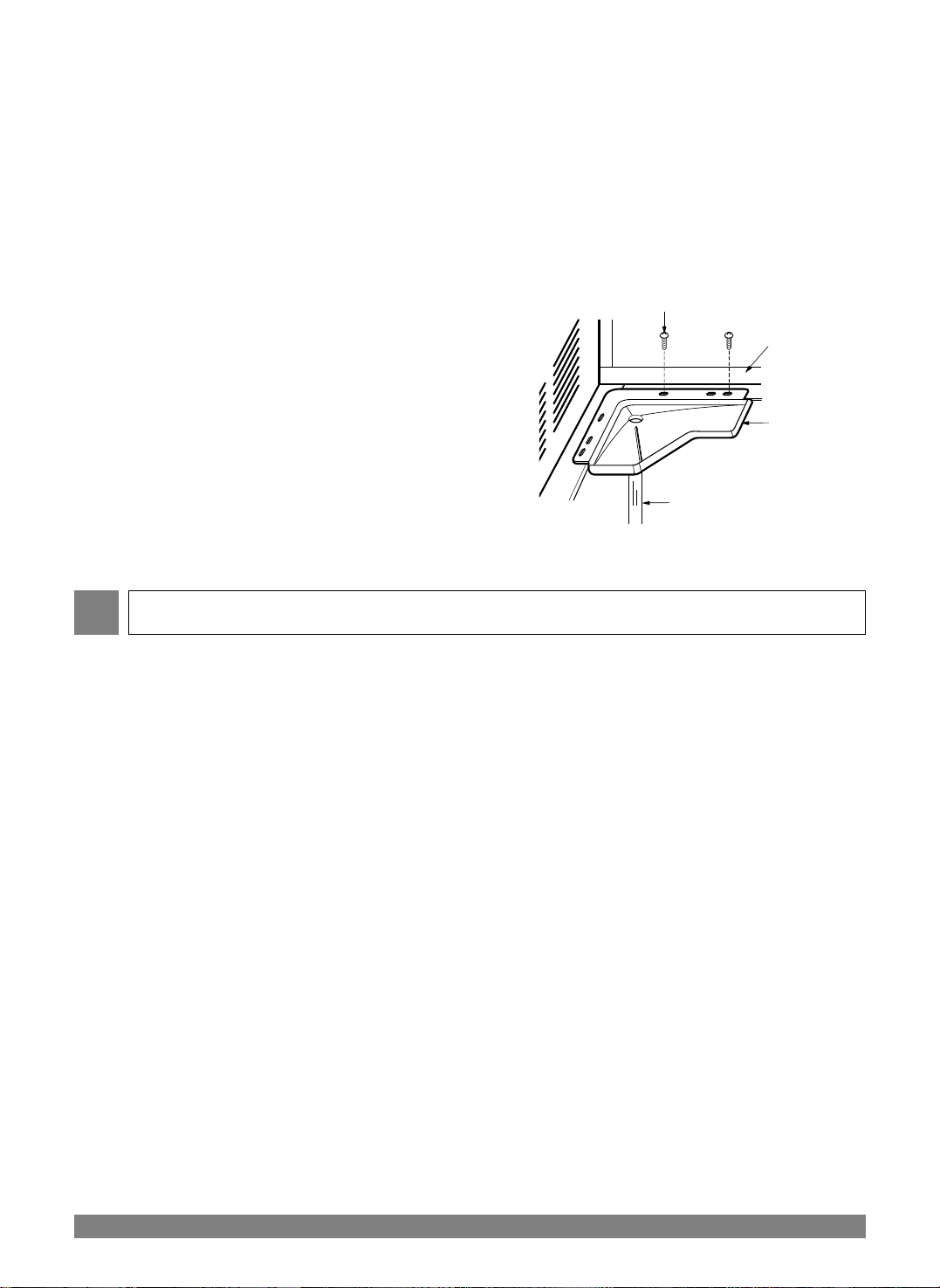

1. Take the drain pan which is located in the air discharge
or on the barrier.
2. Remove the hole rubber from the base-pan(for some
models).
3. Install the drain pan to the left corner of the cabinet
with 4 (or 2) screws.
4. Connect the drain hose to the outlet located at the
bottom of the drain pan.
You can purchase the drain hose or tubing locally to
satisfy your particular needs.
(Drain hose is not supplied)
CABINET
DRAIN PAN
SCREW
DRAIN HOSE
NOTE
SPLASH PROOF: The outdoor side of this appliance is splash proof and the indoor side is ordinary.

P/NO.: 3828A20049B Printed in Korea
