LG LC6000 User manual

LG
Window-Type Air Conditioner
OWNER'S MANUAL
LG
website http://www.lgservice.com
e-mail http://www.lgeservice.com/techsup.html
ENGLISH ESPAÑOL
IMPORTANT
Please read through this manual. It contains valuable
information about your air conditioner.This manual may
help save time and money by explaining proper air
conditioner maintenance and preventing improper use.
PRECAUTIONS
Pay close attention to precautions in order to prevent
potential hazards and damage from misuse or improper
installation. LG is not responsible for any damages
caused by misuse of the air conditioner.
MODELS: LC6000, LC8000
LC1000, LC1200

2Room Air Conditioner
FORYOUR RECORDS
Write the model and serial numbers here:
Model #
Serial #
You can find them on a label on the side of each unit.
Dealer's Name
Date Purchased
■Staple your receipt to this page in the event you need it
to prove date of purchase or for warranty issues.
READ THIS MANUAL
Inside you will find many helpful hints on how to use and
maintain your air conditioner properly. Just a little preventive
care on your part can save you a great deal of time and
money over the life of your air conditioner.
You'll find many answers to common problems in the chart
of troubleshooting tips. If you review our chart of
Troubleshooting Tips first, you may not need to call for
service at all.
PRECAUTION
•Contact the authorized service technician for repair
or maintenance of this unit.
• Contact the installer for installation of this unit.
•The air conditioner is not intended for use by young
children or invalids without supervision.
•Young children should be supervised to ensure that
they do not play with the air conditioner.
• When the power cord is to be replaced, replacement
work shall be performed by authorized personnel only
using only genuine replacement parts.
• Installation work must be performed in accordance
with the National Electric Code by qualified and
authorized personnel only.
Safety Precautions..........................3
Prior to Operation ...........................7
Introduction ....................................8
Electrical Safety .............................9
Installation ....................................11
Operating Instructions .................16
Maintenance and Service ............18
Window-Type Air Conditioner Owner’s Manual
TABLE OF CONTENTS

Owner’s Manual 3
ENGLISH

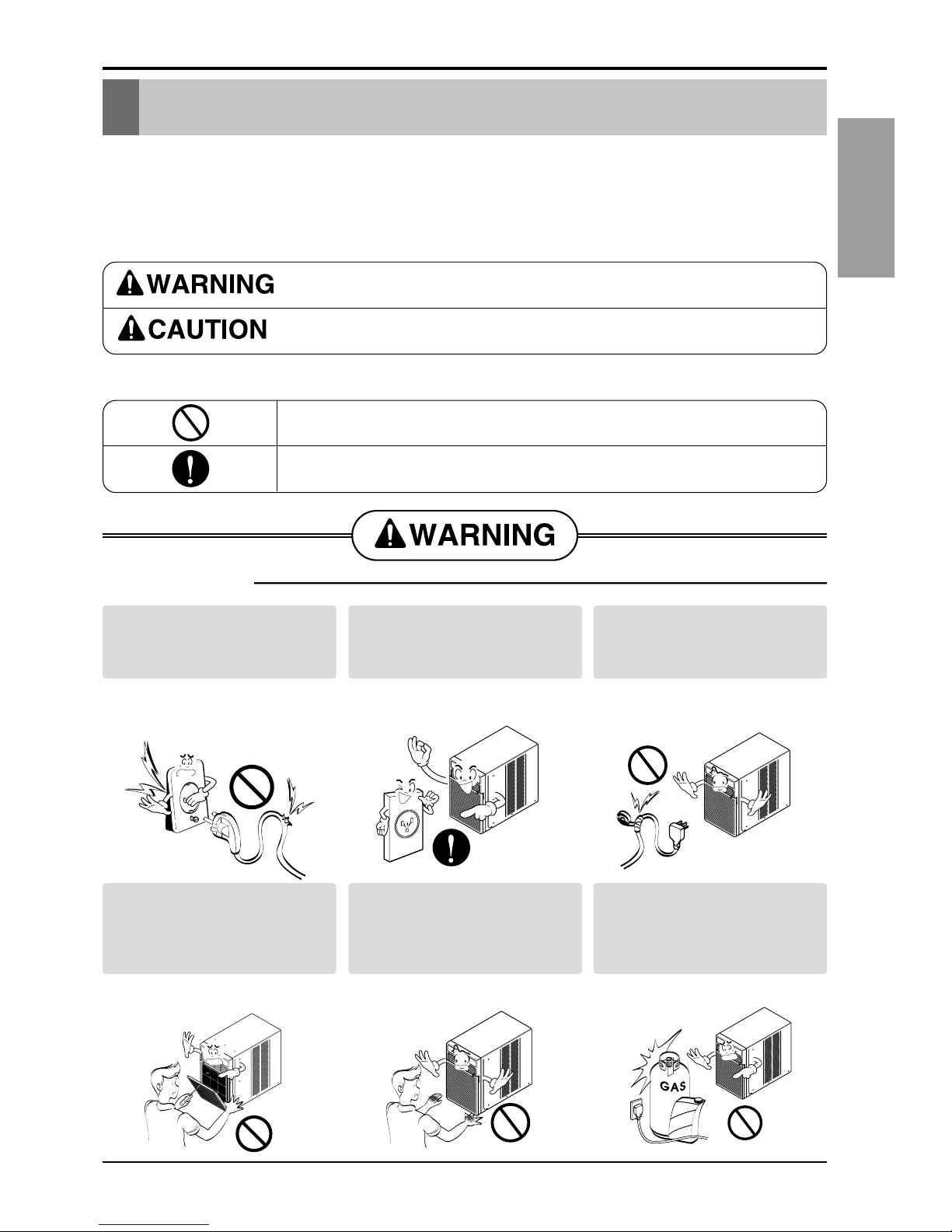

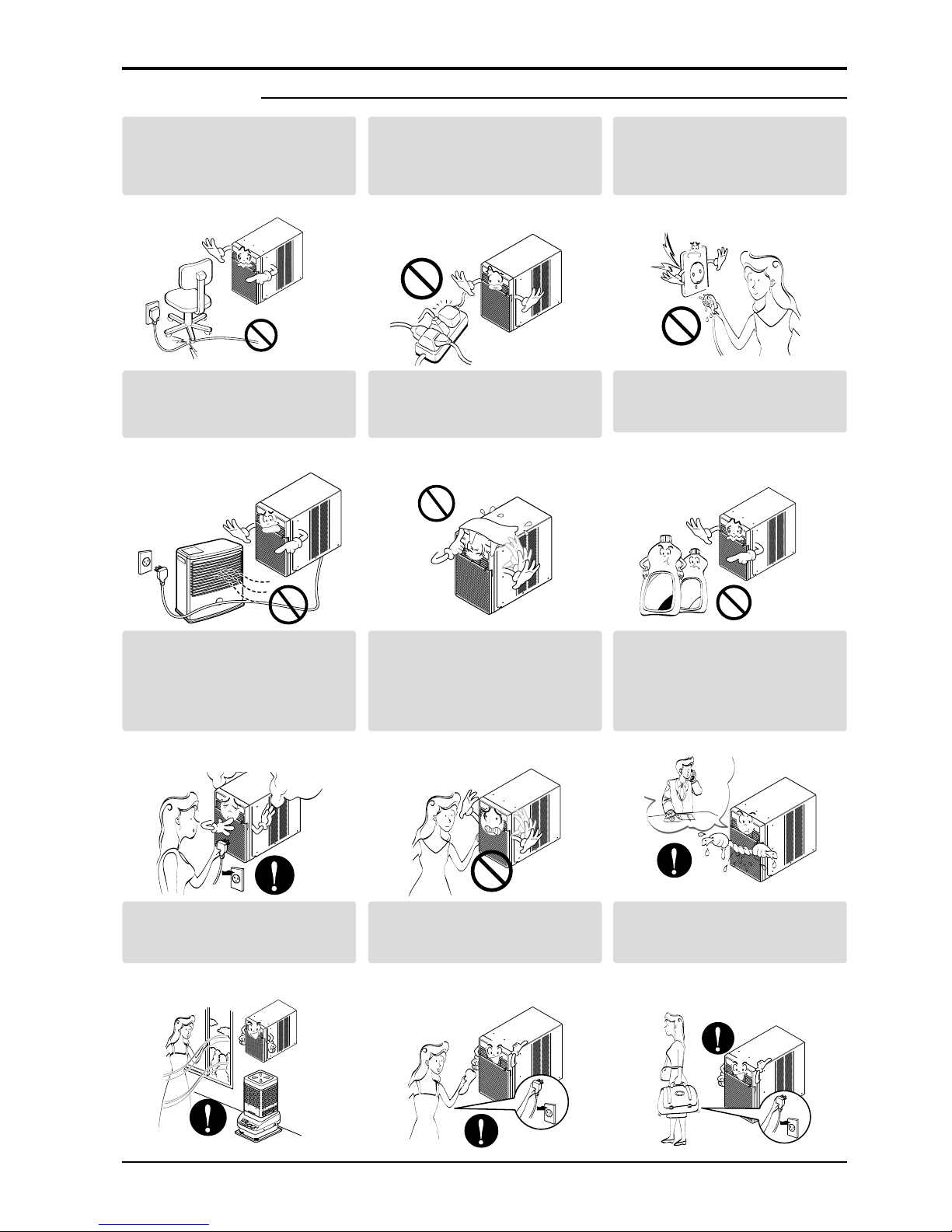

Safety Precautions
To prevent injury to the user or other people and property damage, the following instructions
must be followed.
■Incorrect operation due to ignoring instruction will cause harm or damage.The seriousness
is classified by the following indications.
■Meanings of symbols used in this manual are as shown below.
This symbol indicates the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage to properties only.
■Installation
Be sure not to do.
Be sure to follow the instruction.
Safety Precautions
Don’t use a power cord, a
plug or a loose socket which
is damaged.
• Otherwise, it may cause a
fire or electrical shock.
Always plug into a grounded
outlet.
• Otherwise, it may cause a
fire or electrical shock.
Do not modify or extend the
power cord length.
• It will cause electric shock or
fire due to heat generation.
Do not disassemble or
modify products.
• It may cause failure and
electric shock.
Be caution when unpacking
and installing.
• Sharp edges may cause
injury.
Do not use the power cord near
flammable gas or combustibles
such as gasoline, benzene,
thinner, etc.
• It may cause explosion or
fire.
Gasolin

4Room Air Conditioner
Safety Precautions
■Operation
Do not place the power cord
near a heater.
• It may cause fire and electric
shock.
Do not allow water to run
into electric parts.
• It will cause failure of machine
or electric shock.
Use a soft cloth to clean. Do
not use wax, thinner, or a
strong detergent.
• The appearance of the air
conditioner may deteriorate,
change color, or develop
surface flaws.
Wax
Thinner
Ventilate the room well when
using this appliance
together with a stove, etc.
• An oxygen shortage may
occur.
Turn off the power and
breaker firstly when
cleansing the unit.
• Since the fan rotates at high
speed during operation, it may
cause injury.
Turn off the main power
switch when not using it for
a long time.
• Prevent accidental startup and
the possibility of injury.
Unplug the unit if strange
sounds, odors, or smoke
come from it.
• Otherwise it may cause fire
and electric shock accident.
Do not open the suction
inlet grill of the product
during operation.
• Otherwise, it may electrical
shock and failure.
If water enters the product, turn
off the the power switch of the
main body of appliance. Contact
service center after taking the
power-plug out from the socket.
Do not place heavy object
on the power cord and take
care so that the cord should
not be pressed.
• There is danger of fire or
electric shock.
Do not share the outlet with
other appliances.
• It will cause electric shock or
fire due to heat generation.
Take the power plug out if
necessary, holding the head
of the plug and do not touch
it with wet hands.
• Otherwise, it may cause a
fire or electrical shock.

Owner’s Manual 5
ENGLISH
Safety Precautions
■Installation

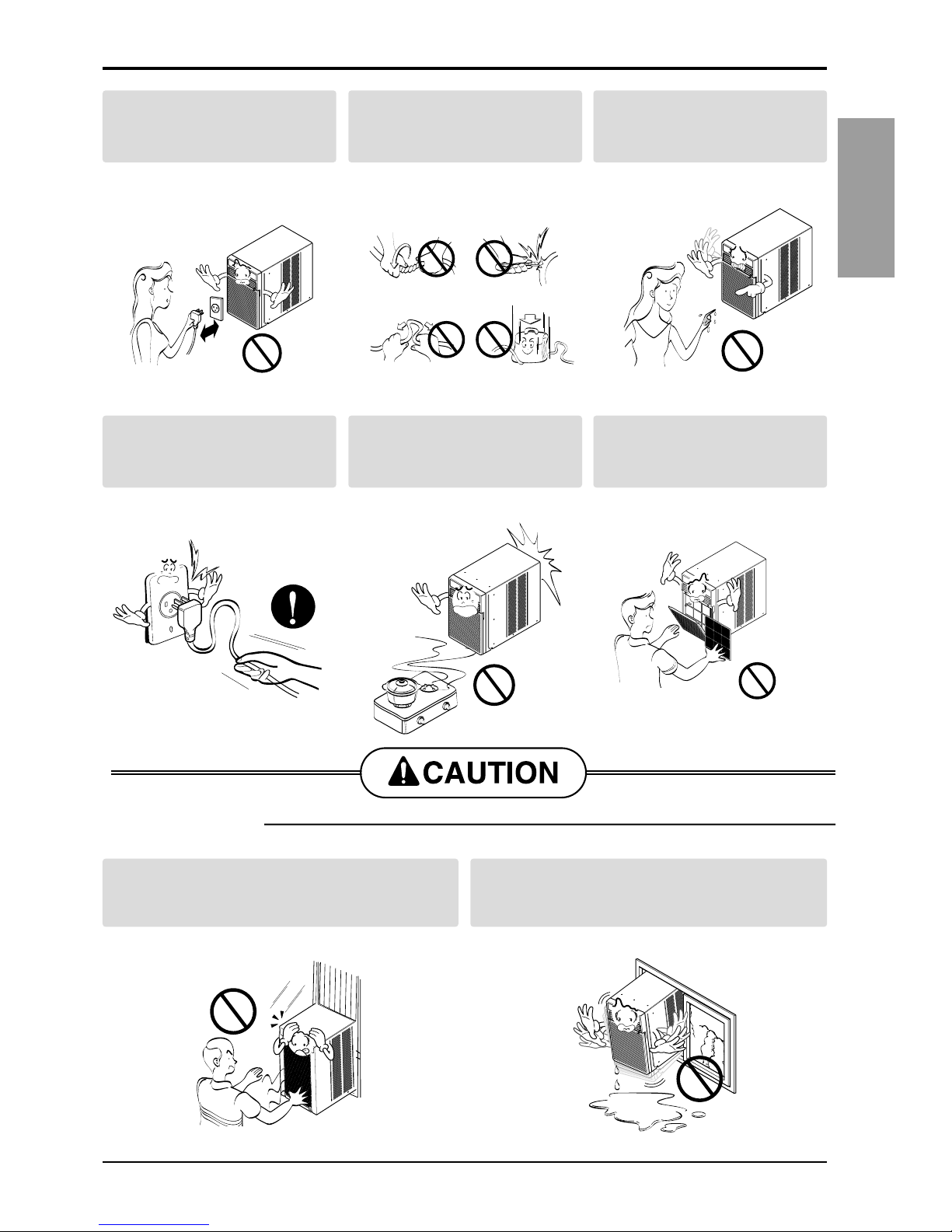

Do not operate or stop the
unit by inserting or pulling
out the power plug.
• It will cause electric shock or
fire due to heat generation.
Do not damage or use an
unspecified power cord.
• It will cause electric shock or
fire.
Do not operate with wet
hands or in damp
environment.
• It will cause electric shock.
Hold the plug by the head
when taking it out.
• It may cause electric shock
and damage.
When gas leaks, open the
window for ventilation
before operating the unit.
• Otherwise, it may cause
explosion, and a fire.
Never touch the metal parts
of the unit when removing
the filter.
• They are sharp and may
cause injury.
Install the product so that the noise or hot
wind from the outdoor unit may not cause
any damage to the neighbors.
• Otherwise, it may cause dispute with the
neighbors.
Keep level parallel in installing the product.
• Otherwise, it may cause vibration or water
leakage.

6Room Air Conditioner
Safety Precautions
■Operation
Be cautious not to touch the
sharp edges when
installing.
• It may cause injury.
Avoid excessive cooling and
perform ventilation
sometimes.
• Otherwise, it may do harm
to your health.
Do not insert the hands or
bars through the air inlet or
outlet during operation.
• Otherwise, it may cause
personal injury.
Do not put a pet or house
plant where it will be
exposed to direct air flow.
• It may cause injury.
Do not block the inlet or
outlet of air flow.
• It may cause product failure.
Use a soft cloth to clean. Do
not use wax, thinner, or a
strong detergent.
• The appearance of the air
conditioner may deteriorate,
change color, or develop
surface flaws.
Do not step on the
indoor/outdoor unit and do
not put anything on it.
• It may cause an injury
through dropping of the unit
or falling down.
Always insert the filter
securely.
Clean it every two weeks.
• Operation without filters will
cause failure.
Do not drink water drained
from air conditioner.
• It contains containments and
will make you sick.

Owner’s Manual 7
ENGLISH
Prior to Operation
1. Contact an installation specialist for installation.
2. Plug in the power plug properly.
3. Use a dedicated circuit.
4. Do not use an extension cord.
5. Do not start/stop operation by plugging/unplugging the power cord.
6. If the cord/plug is damaged, replace it with only an authorized replacement
part.
1. Being exposed to direct airflow for an extended period of time could be
hazardous to your health. Do not expose occupants, pets, or plants to direct
airflow for extended periods of time.
2. Due to the possibility of oxygen deficiency, ventilate the room when used
together with stoves or other heating devices.
3. Do not use this air conditioner for non-specified special purposes (e.g.
preserving precision devices, food, pets, plants, and art objects). Such usage
could damage the items.
1. Do not touch the metal parts of the unit when removing the filter. Injuries can
occur when handling sharp metal edges.
2. Do not use water to clean inside the air conditioner. Exposure to water can
destroy the insulation, leading to possible electric shock.
3. When cleaning the unit, first make sure that the power and breaker are turned
off.The fan rotates at a very high speed during operation.There is a
possibility of injury if the unit’s power is accidentally triggered on while
cleaning inner parts of the unit.
For repair and maintenance, contact your authorized service dealer.
Prior to Operation
Preparing for Operation
Usage
Cleaning and Maintenance
Service

8Room Air Conditioner
Introduction
Introduction
This symbol alerts you to the risk of electric shock.
This symbol alerts you to hazards that could cause harm to the
air conditioner.
This symbol indicates special notes.
NOTICE
WARNING: This appliance should be installed in accordance with
national wiring regulations.This guide acts as a guide to help to
explain product features.

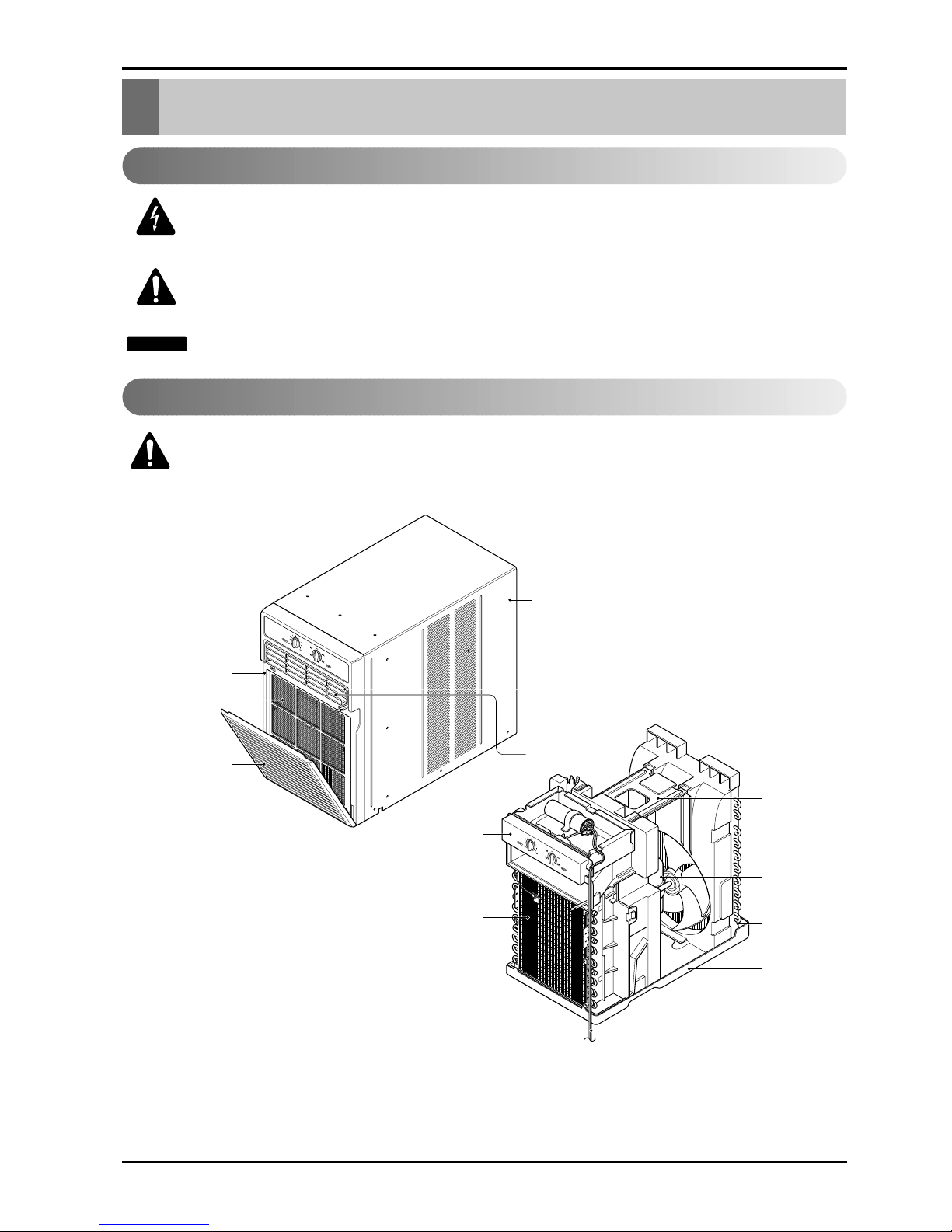

CABINET
AIR DISCHARGE
VERTICAL AIR DEFLECTOR
(HORIZONTAL LOUVER)
CONTROL BOARD
CONDENSER
COMPRESSOR
EVAPORATOR
POWER CORD
BASE PAN
BRACE
SIDE LOUVER
FRONT GRILLE
AIR FILTER
AIR INTAKE
(INLET GRILLE)
Symbols Used in this Manual
Features

Owner’s Manual 9
ENGLISH
Electrical Safety
WARNING: This appliance must be properly grounded.
The power cord of this appliance is equipped with a three-prong grounding plug.
To minimize the risk of electric shock, use the plug with a standard three-slot
grounding wall power outlet. If the power outlet does not include a grounding slot,
have a qualified electrician replace the outlet before you use the room air
conditioner.
WARNING: Do not cut or remove the grounding prong from the power
plug.
WARNING: Attaching the adapter ground terminal to the wall
receptacle cover screw does not ground the appliance unless the
cover screw is metal and not insulated, and the wall receptacle is
grounded through the house wiring.
WARNING: If you have any doubt whether the air conditioner is
properly grounded, have the wall receptacle and circuit checked by a
qualified electrician.
Preferred method
Ensure proper ground
exists before use
Electrical Safety

10 Room Air Conditioner
Electrical Safety
We strongly discourage the use of an adapter due to potential safety hazards.
For temporary connections, use only a UL-listed adapter, available from most
local hardware stores. Ensure that the large slot in the adapter is aligned with
the large slot in the receptacle for a proper polarity connection.
To disconnect the power cord from the adapter, use one hand on each to avoid
damaging the ground terminal. Avoid frequently unplugging the power cord as
this can lead to eventual ground terminal damage.
WARNING: Never use the appliance with a broken adapter.
We strongly discourage the use of an extension cord due to potential safety
hazards. For temporary situations, use only CSA certified and UL listed 3-wire
grounded extension cords, rated 15 A, 125 V.
Temporary method
Adapter Plug
Receptacle Cover
Metal Screw
Temporary Use of an Adapter
Temporary Use of an Extension Cord

Installation
Owner’s Manual 11
ENGLISH
Installation
Window Requirements
Installation Parts
8
7
910
3
12
11
16 17
1
6
13
15
4
14
2
5
21" min.
40 1/2" max.
15 1/2"
min.
21 1/2" min.
15 1/2" min.
16 1/2" max.
Horizontal sliding window Casement window
NO. NAME OF PARTS QTY
1 Curtain 1
2 Curtain Frame 1
3 Upper Guide 1
4 Side Guide 2
5 Support Bracket 1
6Bracket 1
7 Leveling Bolt & Nut 1
8 Bolt 2
9 Nut 2
10 Washer 2
11 Side Guide seal 1
12 Foam Seal Strip 1
13 Window Track Seal 1
14 Window Locking Bracket 1
15 Screw (Type A) 9
16 Screw (Type B) 3
17 Screw (Type C) 8
1.These instructions are for a horizontal sliding
or a casement window.
2.The electrical outlet must be within reach of
the power cord.
For installation in a casement window, the
window frame assembly and the side of the
building must be adequate to support the weight
of the air conditioner.

12 Room Air Conditioner
Installation
How to Install the Unit
1.To prevent vibration and noise, make sure the
unit is installed securely and firmly
2. Install the unit where the sunlight does not
shine directly on the unit.
3.The outside of the cabinet must extend outward
for at least 14" and there should be no
obstacles, such as a fence or wall, within 20"
from the back of the cabinet because it will
prevent heat radiation of the condenser.
Restriction of outside air will greatly reduce the
cooling efficiency of the air conditioner.
All side louvers of the cabinet must remain exposed to the outside of the structure.
4. Install the unit at a slight incline so the back is slightly lower than the front(about 1/4").
This will force condensed water to flow to the outside.
5. Install the unit with the bottom about 30"~60" above the floor level.
NOTICE
About 1/4"
30"~60"
Awning
Cooled air
Fence
Over 20"
Heat
radiation

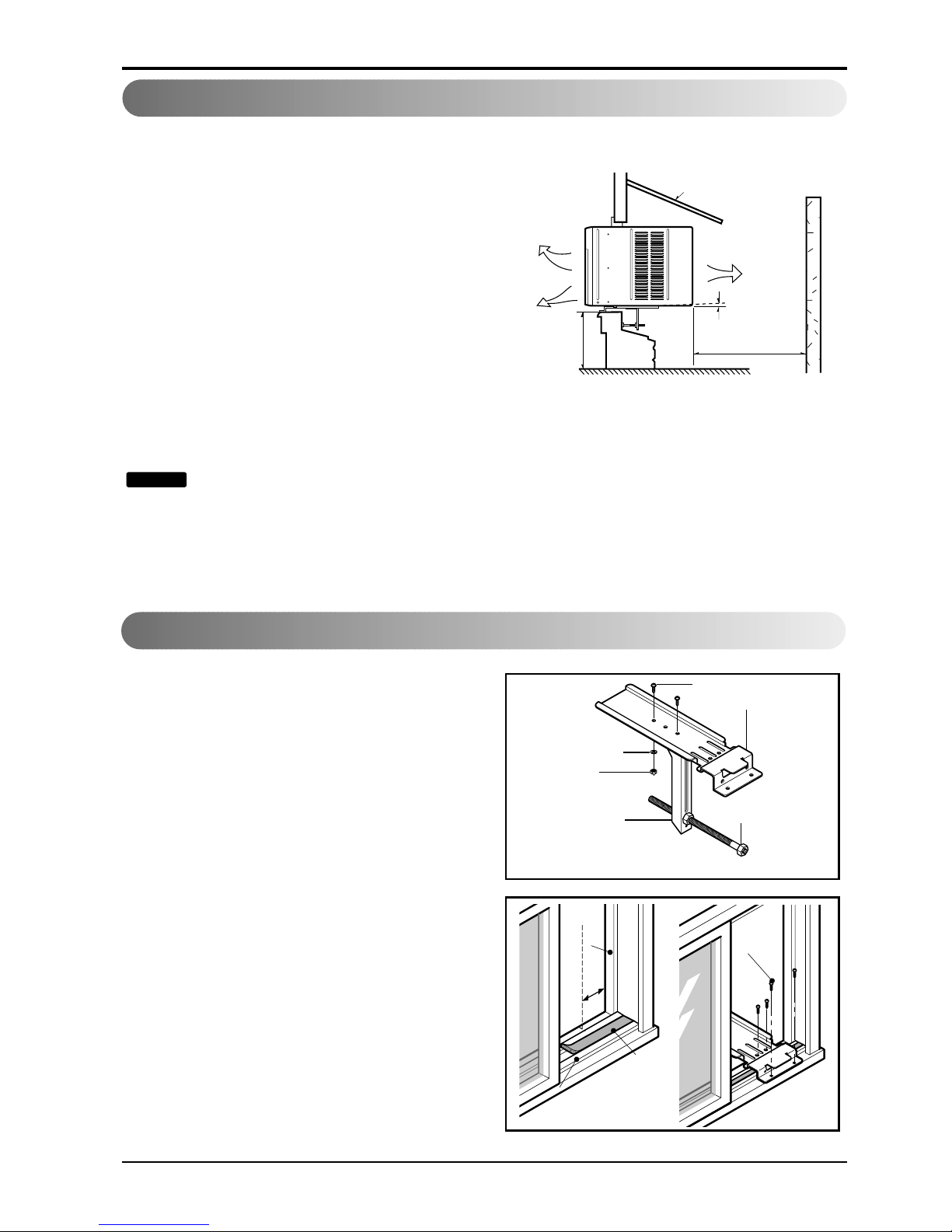

Horizontal Sliding Window Installation
1. Loosely attach the Support Bracket to the
bottom of Bracket using Bolts, Washer, and
Nuts. Attach the Leveling Bolt and Nut. (Fig. 1)
2. Remove protective backing from Window
Track Seal and apply seal to window track.
(Fig.2)
3. Measure and lightly mark a line 8-1/4 inches
from window jamb. Center the Support
Bracket assembly on the window track and
fasten with 4 Type C screws.(Fig. 2)
81/4inchesinches81/4inches
WindoWindow JambWindow Jamb
WindoWindow TrackWindow Track
WindoWindow Track
Seal
Window Track
Seal
Bracket
Support Bracket
Nut
Washer
Leveling Bolt & Nut
Bolt
Type C screwType C screw
Fig. 1
Fig. 2

Owner’s Manual 13
ENGLISH
Installation
4. Put the Support Bracket against the outside
wall and tighten the Bolts on top of the
Bracket. Adjust the Leveling Bolt so that the
air conditioner will be installed with a very
slight tilt (about 1/4") downward toward the
outside for proper drainage.
Tighten the nut. (Fig. 3)
DO NOT drill a hole in the bottom of
the base pan.The air conditioner is
designed to operate with the bottom
of the base pan approximately half-full
of water.
5. Fasten Side Guides to the sides of the Air
Conditioner using 3 Type A screws per Guide.
Start with first screw at middle of Guide.
(Fig. 4)
6. Fasten Upper Guide on the top of the Air
Conditioner using 3 Type A screws. (Fig. 4)
7. Measure height of window opening from top
of Bracket assembly as shown Fig. 5.
Subtract 20-3/4 inches. Mark this
measurement on Curtain and cut the Curtain.
(Fig. 5)
8. Slide Curtain into Curtain Frame. Slide
Curtain Frame assembly into side Guides of
the Air Conditioner cabinet. Make sure
Curtain is firmly enclosed on all sides by the
Frame. (Fig. 6)
NOTICE
81/4inches
Window Jamb
Window Track
Window Track
Seal
Type C screw
About
1
/ 4 "
Outside Wall
Fastening Side Guides
Upper Guide
Side Guide
Fig. 3
Fig. 4
Frame Curtain
Curtain
Type B screw
Fig. 5
Fig. 6

14 Room Air Conditioner
Installation
9. Cut side Guide seal into 2 equal lengths.
Remove protective backing and apply it to the
rear side of cabinet Side Guides, starting just
below Curtain Frame assembly. Pinch off
excess length so seal is even with the bottom
of side Guide. (Fig. 7)
10. Place Air Conditioner in window opening. It
should sit on Bracket assembly so that
Curtain Frame and cabinet Side Guides are
against top and side window jambs. Mate
front of Bracket with Base Guide attached to
the bottom of base pan.
11. Drill 1/8 inch holes in window track through
the existing holes on Base Guide. Screw 4
Type C screws through the holes. (Fig. 8)
12. If this is a casement window installation,
proceed to Casement Window Installation. If
not, slide inner window sash firmly against
side of the cabinet.
13. Drill 1/8 inch hole in window jamb to align
with the existing holes in the Curtain Frame.
Attach Curtain Frame to window frame with
2 Type B screws. (Fig. 8)
Apply weather seal
to side guides
just below edge of
Curtain Frame .
Type B screype B screwType B screw
Base pan
Base pan
Base pan
Br
Br
acketBracket
Windo
Windo
w
w
Trac
ac
kWindow Track
Base Guide
Base Guide
Base Guide
Type C screw
Fig. 7
Fig. 8
Check all seals and plug any
remaining air gaps with a suitable
weatherproof caulk.
14. If this is a casement window installation,
proceed to Casement Window Installation.
If not, stuff the Foam Seal Strip between the
vertical sash and the window glass. (Fig. 9)
15. Attach the L Bracket with a Type B screw.
(Fig. 9)
NOTICE
Foam seal strip
Window
locking
bracket
Fig. 9

Owner’s Manual 15
ENGLISH
Installation
Installing the Power cord
A
Power cord
Screw (Type A)
Power cord
B
Screw (Type A)
You can choose between the two methods below according to your preference and window sill
shape.
•Fasten the stopper using Type A screw, and
pass the power cord through slit "A". •Fasten the stopper using left screw hole, and rotate properly to pass the power cord through
slit "B".
Using slit "A" Using slit "B"
Casement Window Installation
1. Installation procedure is the same as that described in steps 1 through 11 and step 13 of the
Horizontal Sliding Window installation.
2. If the window opening is wider than 15-3/4 inches you will need to install a filler panel. Make this
panel from 3/4 inch thick wood and run it the full length of the window.
Attach it securely to the window frame and paint it to protect it from the weather.
3. Since styles and sizes of casement windows vary widely, it is advisable to have the air conditioner
installed by someone skilled in this type of installation.
Electrical Data
Use of extension cords
Because of potential safety hazards, we strongly discourage the use of an extension cord. However,
if you wish to use an extension cord, use a CSA certified/UL-listed 3-wire (grounding) extension
cord, rated 15A, 125V.
Do not under any
circumstances cut
or remove the
grounding prong
from the plug.
Line Cord Plug Use Wall Receptacle Power Supply
Power supply cord with
3-prong grounding plug Standard 125V, 3-wire grounding receptacle rated 15A, 125V AC
Use 15 AMP, time
delay fuse or circuit
breaker.

16 Room Air Conditioner
Operating Instructions
Operating Instructions
Controls
When the air conditioner has been performing its cooling operation and is turned off or set to the fan
position, wait at least 3 minutes before resetting to the cooling operation again.
NOTICE
•FOR NORMAL COOLING
1.Turn the MODE Knob to the HI COOL
setting from the LOW COOL setting.
2. Set the TEMP control to the desired
temperature mark (5the mid-point is a good
starting position).
If the room temperature is not satisfactory
after a reasonable time, adjust the control to
a cooler or warmer setting, as appropriate.
•FOR QUIETER OPERATION
1.Turn the MODE Knob to the LOW COOL
setting.
2. Set the TEMP control as needed.
•FOR MAXIMUM COOLING
1.Turn the MODE Knob to the HI COOL
setting.
2. Set the TEMP control to the highest
temperature mark ( ).
- Turns air conditioner off.
- Med speed fan operation without cooling.
- Low speed fan operation without cooling.
- Cooling with high speed fan operation.
- Cooling with med speed fan operation.
- Cooling with low speed fan operation.
This automatically controls the temperature of the indoor air.
Turn the knob so that arrow point to the higher number for greater
cooling. Point the arrow to the lower number for more moderate cooling.
(i.e. the higher number the greater cooling)

Owner’s Manual 17
ENGLISH
Operating Instructions
Additional Features

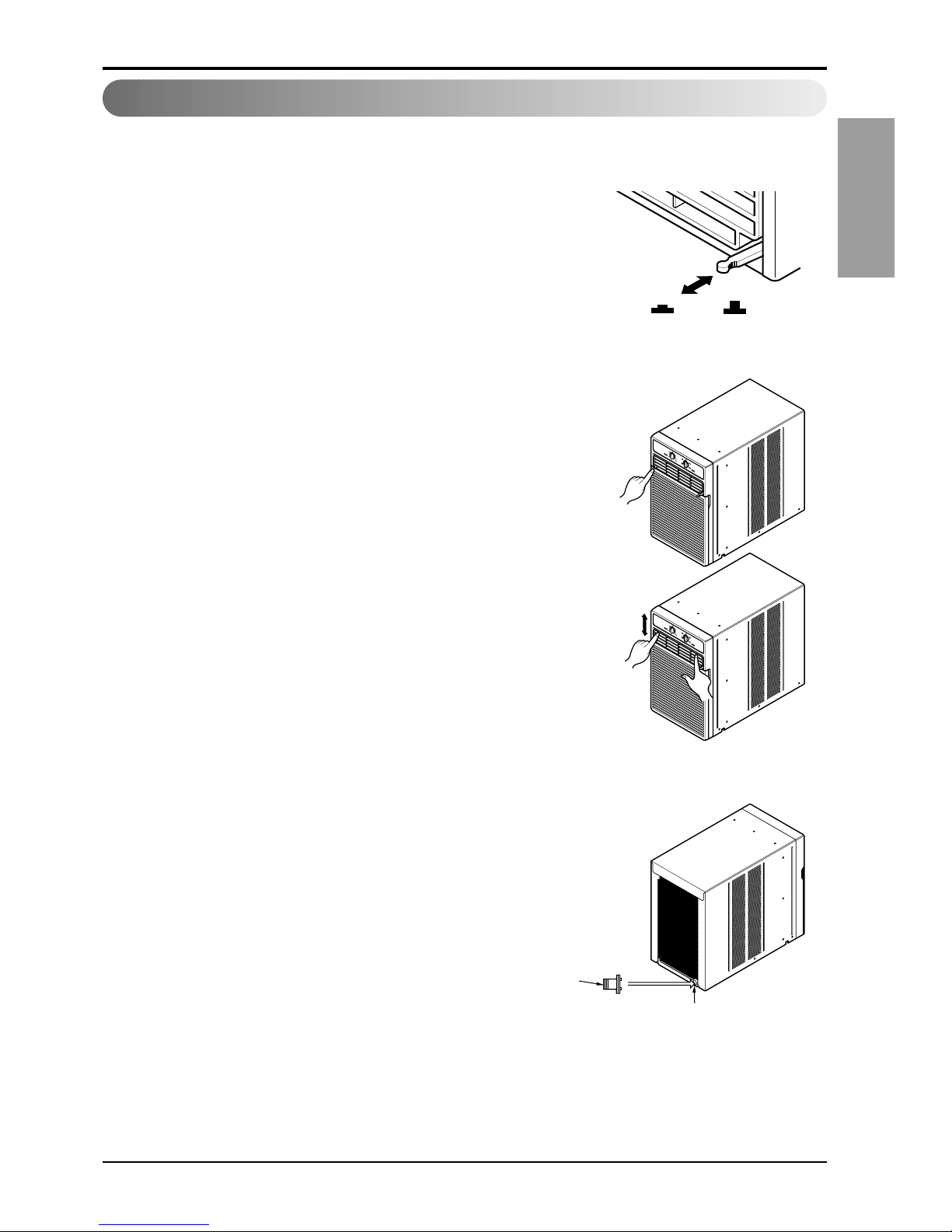

Drain Pipe
In humid weather, excess water may cause the BASE
PAN to overflow and be splashed on the side louver.
To drain the water, remove the DRAIN CAP and
secure the DRAIN PIPE to the rear hole of the BASE
PAN.
Ventilation
The ventilation lever must be in the CLOSE position in order to
maintain the best cooling conditions.
When fresh air is necessary in the room, set the ventilation
lever to the OPEN position.
When the damper is opened and room air is exchanged with
external air.
Air Direction
The direction of air can be controlled wherever you want to cool
by adjusting the horizontal louver and the vertical louver.
•HORIZONTAL AIR-DIRECTION CONTROL
The horizontal air direction is adjusted by
rotating the vertical louver right or left.
•VERTICAL AIR-DIRECTION CONTROL
The vertical air direction is adjusted by rotating the horizontal
louver forward or backward.
VENTCLOSE OPEN
Drain pipe
Drain cap

18 Room Air Conditioner
Maintenance and Service
Maintenance and Service
TURN THE AIR CONDITIONER OFF AND REMOVE THE PLUG FROM THE POWER OUTLET.
Air Filter Cleaning
The air filter behind the front grille should be checked and cleaned at least once every 2 weeks or
more often if necessary.
To remove:
1. Open the inlet grille downward by pulling out the top of the inlet grille.
2. Remove the air filter from the front grille assembly by pulling the air filter up slightly.
3. Clean the filter with warm, soapy water below 40°C (104°F).
4. Rinse and gently shake the water from the filter and let it dry before replacing it.
CAUTION: DO NOT operate the air conditioner without a filter because dirt and lint
will clog it and reduce performance.
Before using the air conditioner secure the front grille with two
screws enclosed with the owner’s manual.
1. Open the inlet grille downward and remove the air filter.
2. Fasten the front grille with screws.
3. Reinstall the air filter.
4. Close the inlet grille.
NOTICE
Inlet Grille

Owner’s Manual 19
ENGLISH
Problem
■The air conditioner is unplugged.
■The fuse is blown/circuit breaker is
tripped.
■Power failure.
■Airflow is restricted.
■The TEMP Control may not be set
high enough.
■The air filter is dirty.
■The room may have been hot.
■Cold air is escaping.
■Cooling coils have iced up.
■Ice blocks the air flow and stops
the air conditioner from cooling the
room.
Air
conditioner
does not start
Air
conditioner
does not cool
as it should
Air
conditioner
freezing up
•Make sure the air conditioner plug is pushed
completely into the outlet.
•Check the house fuse/circuit breaker box and
replace the fuse or reset the breaker.
•If power failure occurs, turn the mode control
to Off.When power is restored, wait 3 minutes
to restart the air conditioner to prevent tripping
of the compressor overload.
•Make sure there are no curtains, blinds, or
furniture blocking the front of the air
conditioner.
•
Turn the knob to a higher number.
The highest setting provides maximum cooling.
•Clean the filter at least every 2 weeks.
See the care and maintenance section.
•When the air conditioner is first turned on you
need to allow time for the room to cool down.
•Check for open furnace floor registers and
cold air returns.
•Set the air conditioner's vent to the closed
position.
•See Air Conditioner Freezing Up below.
•Set the mode control at High Cool with the
high temperature mark 1 or 2.
What To DoPossible Causes
Troubleshooting
Normal Operation
Maintenance and Service
•You may hear a pinging noise caused by water being picked up and thrown against the
condenser on rainy days or when the humidity is high.This design feature helps remove
moisture and improve efficiency.
•You may hear the thermostat click when the compressor cycles on and off.
•Water will collect in the base pan during high humidity or on rainy days.The water may overflow
and drip from the outdoor side of the unit.
•The fan may run even when the compressor does not.
Troubleshooting Tips
Save time and money! Review the chart below first and you may not need to call for service.

20 Room Air Conditioner
Memo
