LG ARUN Series User manual

System
Outdoor Unit
SERVICE MANUAL
(Exploded View)
MODEL : ARUN Series
ARUV Series
CAUTION
Before Servicing the unit, read the safety precautions in General SVC manual.
Only for authorized service personnel.
Internal Use Only
http://biz.lgservice.com
R410A

Copyright ©2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 2 -
1. Specifications ...............................................................................3
2. Function ......................................................................................15
3. Dimensions .................................................................................16
4. Piping Diagrams .........................................................................20
5. Wiring Diagrams.........................................................................26
6. Exploded View ............................................................................32
7. COMP and COMP Wire Part List ..............................................41
ARUN/ARUV Series

Copyright ©2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 3 -
1. Specification
Specification
1.1 Heat Pump(460V)
Notes:
1. Capacities are based on the following conditions:
Cooling * Indoor temp. 27°C[80.6°F]DB/ 19°C[66.2°F]WB
* Outdoor temp. 35°C[95°F]DB/ 24°C[75.2°F]WB
* Interconnecting Piping Length 7.5m(24.6ft)
* Level Difference of Zero
Heating * Indoor temp. 20°C[68°F]DB/ 15°C[59°F]WB
* Outdoor temp. 7°C[44.6°F]DB/ 6°C[42.8°F]WB
* Interconnecting Piping Length 7.5m(24.6ft)
* Level Difference of Zero
2. Capacities are net capacities
3. Due to our policy of innovation some specifications may be changed without prior notification
4. EEV : Electronic Expansion Valve
Heat Pump(460V)
Conversion Formula
kcal/h= kW x 860
Btu/h = kW x 3412
cfm = m3/min x 35.3
l/s = CMM x 1000/60
HP(Equivalent horsepower) Unit
Model Combination Unit
Independent Unit
Capacity Cooling kW
kcal/h
Btu/h
Heating kW
kcal/h
Btu/h
Power Input Cooling kW
Heating kW
Current Cooling A
Heating A
COP Cooling
Heating
Casing Color
Heat Exchanger
Compressor Type
Piston Displacement cm3/rev
Number of Revolution r.p.m
Motor OutputÅ~Number W
Starting Method
Oil Type
Oil Charge L
Fan Type
Motor Output x Number W
Air Flow Rate(High) cmm
cfm
Drive
Discharge Side / Top
Pipe Connctions Liquid Pipes mm(inch)
Gas Pipes mm(inch)
Dimensions(W x H x D) mm
inch
Net Weight kg
Ibs
Transmission Cable
Refigerant Refigerant name
Charge kg
Control
Power Supply Ø,V,Hz
810 12 1416
ARUN80DT2 ARUN100DT2 ARUN120DT2 ARUN140DT2 ARUN160DT2
ARUN80DT2 ARUN100DT2 ARUN120DT2 ARUN140DT2 ARUN160DT2
22.4 28.0 33.6 39.2 44.8
19300 24,100 28,900 33,700 38,500
76400 95,900 114,700 133,800 152,900
25.2 31.5 37.8 44.1 50.4
21700 27,100 32,500 37,900 43,300
86000 107,500 129,000 150,500 172,000
5.28 7.16 9.08 11.85 14.00
5.73 7.33 9.05 10.60 12.40
8.28 11.23 14.25 18.59 21.97
8.99 11.50 14.20 16.63 19.45
4.24 3.91 3.70 3.31 3.20
4.4 4.30 4.18 4.16 4.06
Warm Gray Warm Gray Warm Gray Warm Gray Warm Gray
Gold fin Gold fin Gold fin Gold fin Gold fin
DC Scroll DC Scroll DC Scroll DC Scroll DC Scroll
52 52+73.4 52+73.4 52+81.6 52+81.6
3600 3,600+3,495 3,600+3,495 3,600+3,481 3,600+3,481
5,356x1 (5,356+5,800)x1 (5,356+5,800)x1 (5,356+6,400)x1 (5,356+6,400)x1
Direct On Line Direct On Line Direct On Line Direct On Line Direct On Line
FVC68D(PVE) FVC68D(PVE) FVC68D(PVE) FVC68D(PVE) FVC68D(PVE)
3300 5600 5600 5600 5600
Propeller fan Propeller fan Propeller fan Propeller fan Propeller fan
350 x 2 350 x 2 350 x 2 350 x 2 350 x 2
190 190 190 190 190
6700 6,700 6,700 6,700 6,700
DC INVERTER DC INVERTER DC INVERTER DC INVERTER DC INVERTER
TOP TOP TOP TOP TOP
9.52(3/8) 9.52(3/8) 12.7(1/2) 12.7(1/2) 12.7(1/2)
19.05(3/4) 22.2(7/8) 28.58(1 1/8) 28.58(1 1/8) 28.58(1 1/8)
1280x1607x730 1280x1607x730 1280x1607x730 1280x1607x730 1280x1607x730
50.4x63.3x28.7 50.4x63.3x28.7 50.4x63.3x28.7 50.4x63.3x28.7 50.4x63.3x28.7
240 285 285 285 285
529 628 628 628 628
CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C
R410A R410A R410A R410A R410A
88 8 88
EEV EEV EEV EEV EEV
3, 460, 60 3, 460, 60 3, 460, 60 3, 460, 60 3, 460, 60

Copyright ©2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 4 -
Specification
Notes:
1. Capacities are based on the following conditions:
Cooling * Indoor temp. 27°C[80.6°F]DB/ 19°C[66.2°F]WB
* Outdoor temp. 35°C[95°F]DB/ 24°C[75.2°F]WB
* Interconnecting Piping Length 7.5m(24.6ft)
* Level Difference of Zero
Heating * Indoor temp. 20°C[68°F]DB/ 15°C[59°F]WB
* Outdoor temp. 7°C[44.6°F]DB/ 6°C[42.8°F]WB
* Interconnecting Piping Length 7.5m(24.6ft)
* Level Difference of Zero
2. Capacities are net capacities
3. Due to our policy of innovation some specifications may be changed without prior notification
4. EEV : Electronic Expansion Valve
Heat Pump(460V)
Conversion Formula
kcal/h= kW x 860
Btu/h = kW x 3412
cfm = m3/min x 35.3
l/s = CMM x 1000/60
HP(Equivalent horsepower) Unit
Model Combination Unit
Independent Unit
Capacity Cooling kW
kcal/h
Btu/h
Heating kW
kcal/h
Btu/h
Power Input Cooling kW
Heating kW
Current Cooling A
Heating A
COP Cooling
Heating
Casing Color
Heat Exchanger
Compressor Type
Piston Displacement cm3/rev
Number of Revolution r.p.m
Motor OutputÅ~Number W
Starting Method
Oil Type
Oil Charge L
Fan Type
Motor Output x Number W
Air Flow Rate(High) cmm
cfm
Drive
Discharge Side / Top
Pipe Connctions Liquid Pipes mm(inch)
Gas Pipes mm(inch)
Dimensions(W x H x D) mm
inch
Net Weight kg
Ibs
Transmission Cable
Refigerant Refigerant name
Charge kg
Control
Power Supply Ø,V,Hz
18 20 22 24
ARUN180DT2 ARUN200DT2 ARUN220DT2 ARUN240DT2
ARUN100DT2 ARUN120DT2 ARUN140DT2 ARUN160DT2
ARUN80DT2 ARUN80DT2 ARUN80DT2 ARUN80DT2
50.4 56.0 61.6 67.2
43300 48,200 53,000 57,800
172000 191,100 210,200 229,300
56.7 63.0 69.3 75.6
48800 54,200 59,600 65,000
193500 225,000 236,500 258,000
12.44 14.36 17.13 19.28
12.61 14.33 15.88 17.68
16.51 19.53 23.87 27.25
16.78 19.48 21.91 24.73
4.05 3.90 3.60 3.49
4.5 4.40 4.36 4.28
Warm Gray Warm Gray Warm Gray Warm Gray
Gold fin Gold fin Gold fin Gold fin
DC Scroll DC Scroll DC Scroll DC Scroll
(52+73.4)+52 (52+73.4)+52 (52+81.6)+52 (52+81.6)+52
(3,600+3,495)+3,600 (3,600+3,495)+3,600 (3,600+3,481)+3,600 (3,600+3,481)+3,600
(5,356+5,800)x1+5,356 (5,356+5,800)x1+5,356 (5,356+6,400)x1+5,356 (5,356+6,400)x1+5,356
Direct On Line Direct On Line Direct On Line Direct On Line
FVC68D(PVE) FVC68D(PVE) FVC68D(PVE) FVC68D(PVE)
5600+3300 5600+3300 5600+3300 5600+3300
Propeller fan Propeller fan Propeller fan Propeller fan
350 x 4 350 x 4 350 x 4 350 x 4
380 380 380 380
13400 13,400 13,400 13,400
DC INVERTER DC INVERTER DC INVERTER DC INVERTER
TOP TOP TOP TOP
15.88(5/8) 15.88(5/8) 15.88(5/8) 15.88(5/8)
28.58(1 1/8) 28.58(1 1/8) 28.58(1 1/8) 34.9(1 3/8)
(1280Å~1607Å~730)*2 (1280Å~1607Å~730)*2 (1280Å~1607Å~730)*2 (1280Å~1607Å~730)*2
(50.4x63.3x28.7)*2 (50.4x63.3x28.7)*2 (50.4x63.3x28.7)*2 (50.4x63.3x28.7)*2
285+240 285+240 285+240 285+240
628+529 628+529 628+529 628+529
CVV-SB 1.25Å~2C CVV-SB 1.25Å~2C CVV-SB 1.25Å~2C CVV-SB 1.25Å~2C
R410A R410A R410A R410A
8+8 8+8 8+8 8+8
EEV EEV EEV EEV
3, 460, 60 3, 460, 60 3, 460, 60 3, 460, 60

Copyright ©2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 5 -
Specification
Heat Pump(460V)
Notes:
1. Capacities are based on the following conditions:
Cooling * Indoor temp. 27°C[80.6°F]DB/ 19°C[66.2°F]WB
* Outdoor temp. 35°C[95°F]DB/ 24°C[75.2°F]WB
* Interconnecting Piping Length 7.5m(24.6ft)
* Level Difference of Zero
Heating * Indoor temp. 20°C[68°F]DB/ 15°C[59°F]WB
* Outdoor temp. 7°C[44.6°F]DB/ 6°C[42.8°F]WB
* Interconnecting Piping Length 7.5m(24.6ft)
* Level Difference of Zero
2. Capacities are net capacities
3. Due to our policy of innovation some specifications may be changed without prior notification
4. EEV : Electronic Expansion Valve
Conversion Formula
kcal/h= kW x 860
Btu/h = kW x 3412
cfm = m3/min x 35.3
l/s = CMM x 1000/60
HP(Equivalent horsepower) Unit
Model Combination Unit
Independent Unit
Capacity Cooling kW
kcal/h
Btu/h
Heating kW
kcal/h
Btu/h
Power Input Cooling kW
Heating kW
Current Cooling A
Heating A
COP Cooling
Heating
Casing Color
Heat Exchanger
Compressor Type
Piston Displacement cm3/rev
Number of Revolution r.p.m
Motor OutputÅ~Number W
Starting Method
Oil Type
Oil Charge L
Fan Type
Motor Output x Number W
Air Flow Rate(High) cmm
cfm
Drive
Discharge Side / Top
Pipe Connctions Liquid Pipes mm(inch)
Gas Pipes mm(inch)
Dimensions(W x H x D) mm
inch
Net Weight kg
Ibs
Transmission Cable
Refigerant Refigerant name
Charge kg
Control
Power Supply Ø,V,Hz
26 28 30 32
ARUN260DT2 ARUN280DT2 ARUN300DT2 ARUN320DT2
ARUN140DT2 ARUN140DT2 ARUN160DT2 ARUN160DT2
ARUN120DT2 ARUN140DT2 ARUN140DT2 ARUN160DT2
72.8 78.4 84.0 89.6
62600 67,400 72,200 77,100
248400 267,500 286,600 305,700
81.9 88.2 94.5 100.8
70400 75,900 81,300 86,700
279500 301,000 322,500 343,900
21.16 23.08 25.85 28
19.73 21.45 23 24.8
33.2 36.21 40.56 43.93
30.96 33.65 36.09 38.91
3.44 3.40 3.25 3.20
4.15 4.11 4.11 4.06
Warm Gray Warm Gray Warm Gray Warm Gray
Gold fin Gold fin Gold fin Gold fin
DC Scroll DC Scroll DC Scroll DC Scroll
(52+81.6)+(52+73.4) (52+81.6)+(52+73.4) (52+81.6)*2 (52+81.6)*2
(3,600*2 +3,495+3,481) (3,600*2 +3,495+3,481) (3,600+3,481)*2 (3,600+3,481)*2
(5,356+6,400)+(5,356+5,800) (5,356+6,400)+(5,356+5,800) (5,356+6,400)x2 (5,356+6,400)x2
Direct On Line Direct On Line Direct On Line Direct On Line
FVC68D(PVE) FVC68D(PVE) FVC68D(PVE) FVC68D(PVE)
5600+5600 5600+5600 5600+5600 5600+5600
Propeller fan Propeller fan Propeller fan Propeller fan
350 x 4 350 x 4 350 x 4 350 x 4
380 380 380 380
13400 13,400 13,400 13,400
DC INVERTER DC INVERTER DC INVERTER DC INVERTER
TOP TOP TOP TOP
19.05(3/4) 19.05(3/4) 19.05(3/4) 19.05(3/4)
34.9(1 3/8) 34.9(1 3/8) 34.9(1 3/8) 34.9(1 3/8)
(1280x1607x730)*2 (1280x1607x730)*2 (1280x1607x730)*2 (1280x1607x730)*2
(50.4x63.3x28.7)*2 (50.4x63.3x28.7)*2 (50.4x63.3x28.7)*2 (50.4x63.3x28.7)*2
285*2 285*2 285*2 285*2
628*2 628*2 628*2 628*2
CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C
R410A R410A R410A R410A
8+8 8+8 8+8 8+8
EEV EEV EEV EEV
3, 460, 60 3, 460, 60 3, 460, 60 3, 460, 60

Copyright ©2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 6 -
Specification
Cooling(460V)
Notes:
1. Capacities are based on the following conditions:
Cooling * Indoor temp. 27°C[80.6°F]DB/ 19°C[66.2°F]WB
* Outdoor temp. 35°C[95°F]DB/ 24°C[75.2°F]WB
* Interconnecting Piping Length 7.5m(24.6ft)
* Level Difference of Zero
Heating * Indoor temp. 20°C[68°F]DB/ 15°C[59°F]WB
* Outdoor temp. 7°C[44.6°F]DB/ 6°C[42.8°F]WB
* Interconnecting Piping Length 7.5m(24.6ft)
* Level Difference of Zero
2. Capacities are net capacities
3. Due to our policy of innovation some specifications may be changed without prior notification
4. EEV : Electronic Expansion Valve
Conversion Formula
kcal/h= kW x 860
Btu/h = kW x 3412
cfm = m3/min x 35.3
l/s = CMM x 1000/60
HP(Equivalent horsepower) Unit
Model Combination Unit
Independent Unit
Capacity Cooling kW
kcal/h
Btu/h
Power Input Cooling kW
Current Cooling A
COP Cooling
Casing Color
Heat Exchanger
Compressor Type
Piston Displacement cm3/rev
Number of Revolution r.p.m
Motor OutputÅ~Number W
Starting Method
Oil Type
Oil Charge L
Fan Type
Motor Output x Number W
Air Flow Rate(High) cmm
cfm
Drive
Discharge Side / Top
Pipe Connctions Liquid Pipes mm(inch)
Gas Pipes mm(inch)
Dimensions(W x H x D) mm
inch
Net Weight kg
Ibs
Transmission Cable
Refigerant Refigerant name
Charge kg
Control
Power Supply Ø,V,Hz
810 12 1416
ARUV80DT2(E) ARUV100DT2(E) ARUV120DT2(E) ARUV140DT2(E) ARUV160DT2(E)
ARUV80DT2(E) ARUV100DT2(E) ARUV120DT2(E) ARUV140DT2(E) ARUV160DT2(E)
22.4 28.0 33.6 39.2 44.8
19300 24,100 28,900 33,700 38,500
76400 95,900 114,700 133,800 152,900
5.28 7.16 9.08 11.85 14.00
8.28 11.23 14.25 18.59 21.97
4.24 3.91 3.70 3.31 3.20
Warm Gray Warm Gray Warm Gray Warm Gray Warm Gray
Gold fin Gold fin Gold fin Gold fin Gold fin
DC Scroll DC Scroll DC Scroll DC Scroll DC Scroll
52 52+73.4 52+73.4 52+81.6 52+81.6
3600 3,600+3,495 3,600+3,495 3,600+3,481 3,600+3,481
5,356x1 (5,356+5,800)x1 (5,356+5,800)x1 (5,356+6,400)x1 (5,356+6,400)x1
Direct On Line Direct On Line Direct On Line Direct On Line Direct On Line
FVC68D(PVE) FVC68D(PVE) FVC68D(PVE) FVC68D(PVE) FVC68D(PVE)
3300 5600 5600 5600 5600
Propeller fan Propeller fan Propeller fan Propeller fan Propeller fan
350 x 2 350 x 2 350 x 2 350 x 2 350 x 2
190 190 190 190 190
6700 6,700 6,700 6,700 6,700
DC INVERTER DC INVERTER DC INVERTER DC INVERTER DC INVERTER
TOP TOP TOP TOP TOP
9.52(3/8) 9.52(3/8) 12.7(1/2) 12.7(1/2) 12.7(1/2)
19.05(3/4) 22.2(7/8) 28.58(1 1/8) 28.58(1 1/8) 28.58(1 1/8)
1280x1607x730 1280x1607x730 1280x1607x730 1280x1607x730 1280x1607x730
50.4x63.3x28.7 50.4x63.3x28.7 50.4x63.3x28.7 50.4x63.3x28.7 50.4x63.3x28.7
240 285 285 285 285
529 628 628 628 628
CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C
R410A R410A R410A R410A R410A
88 8 88
EEV EEV EEV EEV EEV
3, 460, 60 3, 460, 60 3, 460, 60 3, 460, 60 3, 460, 60
1.2 Cooling only(460V)

Specification
Copyright ©2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 7 -
Cooling(460V)
Notes:
1. Capacities are based on the following conditions:
Cooling * Indoor temp. 27°C[80.6°F]DB/ 19°C[66.2°F]WB
* Outdoor temp. 35°C[95°F]DB/ 24°C[75.2°F]WB
* Interconnecting Piping Length 7.5m(24.6ft)
* Level Difference of Zero
Heating * Indoor temp. 20°C[68°F]DB/ 15°C[59°F]WB
* Outdoor temp. 7°C[44.6°F]DB/ 6°C[42.8°F]WB
* Interconnecting Piping Length 7.5m(24.6ft)
* Level Difference of Zero
2. Capacities are net capacities
3. Due to our policy of innovation some specifications may be changed without prior notification
4. EEV : Electronic Expansion Valve
Conversion Formula
kcal/h= kW x 860
Btu/h = kW x 3412
cfm = m3/min x 35.3
l/s = CMM x 1000/60
HP(Equivalent horsepower) Unit
Model Combination Unit
Independent Unit
Capacity Cooling kW
kcal/h
Btu/h
Power Input Cooling kW
Current Cooling A
COP Cooling
Casing Color
Heat Exchanger
Compressor Type
Piston Displacement cm3/rev
Number of Revolution r.p.m
Motor OutputÅ~Number W
Starting Method
Oil Type
Oil Charge L
Fan Type
Motor Output x Number W
Air Flow Rate(High) cmm
cfm
Drive
Discharge Side / Top
Pipe Connctions Liquid Pipes mm(inch)
Gas Pipes mm(inch)
Dimensions(W x H x D) mm
inch
Net Weight kg
Ibs
Transmission Cable
Refigerant Refigerant name
Charge kg
Control
Power Supply Ø,V,Hz
18 20 22 24
ARUV180DT2(E) ARUV200DT2(E) ARUV220DT2(E) ARUV240DT2(E)
ARUV100DT2(E) ARUV120DT2(E) ARUV140DT2(E) ARUV160DT2(E)
ARUV80DT2(E) ARUV80DT2(E) ARUV80DT2(E) ARUV80DT2(E)
50.4 56.0 61.6 67.2
43300 48,200 53,000 57,800
172000 191,100 210,200 229,300
12.44 14.36 17.13 19.28
16.51 19.53 23.87 27.25
4.05 3.90 3.60 3.49
Warm Gray Warm Gray Warm Gray Warm Gray
Gold fin Gold fin Gold fin Gold fin
DC Scroll DC Scroll DC Scroll DC Scroll
(52+73.4)+52 (52+73.4)+52 (52+81.6)+52 (52+81.6)+52
(3,600+3,495)+3,600 (3,600+3,495)+3,600 (3,600+3,481)+3,600 (3,600+3,481)+3,600
(5,356+5,800)x1+5,356 (5,356+5,800)x1+5,356 (5,356+6,400)x1+5,356 (5,356+6,400)x1+5,356
Direct On Line Direct On Line Direct On Line Direct On Line
FVC68D(PVE) FVC68D(PVE) FVC68D(PVE) FVC68D(PVE)
5600+3300 5600+3300 5600+3300 5600+3300
Propeller fan Propeller fan Propeller fan Propeller fan
350 x 4 350 x 4 350 x 4 350 x 4
380 380 380 380
13400 13,400 13,400 13,400
DC INVERTER DC INVERTER DC INVERTER DC INVERTER
TOP TOP TOP TOP
15.88(5/8) 15.88(5/8) 15.88(5/8) 15.88(5/8)
28.58(1 1/8) 28.58(1 1/8) 28.58(1 1/8) 34.9(1 3/8)
(1280x1607x730)*2 (1280x1607x730)*2 (1280x1607x730)*2 (1280x1607x730)*2
(50.4x63.3x28.7)*2 (50.4x63.3x28.7)*2 (50.4x63.3x28.7)*2 (50.4x63.3x28.7)*2
285+240 285+240 285+240 285+240
628+529 628+529 628+529 628+529
CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C
R410A R410A R410A R410A
8+8 8+8 8+8 8+8
EEV EEV EEV EEV
3, 460, 60 3, 460, 60 3, 460, 60 3, 460, 60
E : Anti-Corrosion Model

Specification
Copyright ©2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 8 -
Cooling(460V)
Notes:
1. Capacities are based on the following conditions:
Cooling * Indoor temp. 27°C[80.6°F]DB/ 19°C[66.2°F]WB
* Outdoor temp. 35°C[95°F]DB/ 24°C[75.2°F]WB
* Interconnecting Piping Length 7.5m(24.6ft)
* Level Difference of Zero
Heating * Indoor temp. 20°C[68°F]DB/ 15°C[59°F]WB
* Outdoor temp. 7°C[44.6°F]DB/ 6°C[42.8°F]WB
* Interconnecting Piping Length 7.5m(24.6ft)
* Level Difference of Zero
2. Capacities are net capacities
3. Due to our policy of innovation some specifications may be changed without prior notification
4. EEV : Electronic Expansion Valve
Conversion Formula
kcal/h= kW x 860
Btu/h = kW x 3412
cfm = m3/min x 35.3
l/s = CMM x 1000/60
HP(Equivalent horsepower) Unit
Model Combination Unit
Independent Unit
Capacity Cooling kW
kcal/h
Btu/h
Power Input Cooling kW
Current Cooling A
COP Cooling
Casing Color
Heat Exchanger
Compressor Type
Piston Displacement cm3/rev
Number of Revolution r.p.m
Motor OutputÅ~Number W
Starting Method
Oil Type
Oil Charge L
Fan Type
Motor Output x Number W
Air Flow Rate(High) cmm
cfm
Drive
Discharge Side / Top
Pipe Connctions Liquid Pipes mm(inch)
Gas Pipes mm(inch)
Dimensions(W x H x D) mm
inch
Net Weight kg
Ibs
Transmission Cable
Refigerant Refigerant name
Charge kg
Control
Power Supply Ø,V,Hz
26 28 30 32
ARUV260DT2(E) ARUV280DT2(E) ARUV300DT2(E) ARUV320DT2(E)
ARUV140DT2(E) ARUV140DT2(E) ARUV160DT2(E) ARUV160DT2(E)
ARUV120DT2(E) ARUV140DT2(E) ARUV140DT2(E) ARUV160DT2(E)
72.8 78.4 84.0 89.6
62600 67,400 72,200 77,100
248400 267,500 286,600 305,700
21.16 23.08 25.85 28
33.2 36.21 40.56 43.93
3.44 3.40 3.25 3.20
Warm Gray Warm Gray Warm Gray Warm Gray
Gold fin Gold fin Gold fin Gold fin
DC Scroll DC Scroll DC Scroll DC Scroll
(52+81.6)+(52+73.4) (52+81.6)+(52+73.4) (52+81.6)*2 (52+81.6)*2
(3,600*2 +3,495+3,481) (3,600*2 +3,495+3,481) (3,600+3,481)*2 (3,600+3,481)*2
(5,356+6,400)+(5,356+5,800) (5,356+6,400)+(5,356+5,800) (5,356+6,400)x2 (5,356+6,400)x2
Direct On Line Direct On Line Direct On Line Direct On Line
FVC68D(PVE) FVC68D(PVE) FVC68D(PVE) FVC68D(PVE)
5600+5600 5600+5600 5600+5600 5600+5600
Propeller fan Propeller fan Propeller fan Propeller fan
350 x 4 350 x 4 350 x 4 350 x 4
380 380 380 380
13400 13,400 13,400 13,400
DC INVERTER DC INVERTER DC INVERTER DC INVERTER
TOP TOP TOP TOP
19.05(3/4) 19.05(3/4) 19.05(3/4) 19.05(3/4)
34.9(1 3/8) 34.9(1 3/8) 34.9(1 3/8) 34.9(1 3/8)
(1280x1607x730)*2 (1280x1607x730)*2 (1280x1607x730)*2 (1280x1607x730)*2
(50.4x63.3x28.7)*2 (50.4x63.3x28.7)*2 (50.4x63.3x28.7)*2 (50.4x63.3x28.7)*2
285*2 285*2 285*2 285*2
628*2 628*2 628*2 628*2
CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C
R410A R410A R410A R410A
8+8 8+8 8+8 8+8
EEV EEV EEV EEV
3, 460, 60 3, 460, 60 3, 460, 60 3, 460, 60
E : Anti-Corrosion Model

Copyright ©2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 9 -
Specification
1.3 Heat Pump(220V)
Notes:
1. Capacities are based on the following conditions:
Cooling * Indoor temp. 27°C[80.6°F]DB/ 19°C[66.2°F]WB
* Outdoor temp. 35°C[95°F]DB/ 24°C[75.2°F]WB
* Interconnecting Piping Length 7.5m(24.6ft)
* Level Difference of Zero
Heating * Indoor temp. 20°C[68°F]DB/ 15°C[59°F]WB
* Outdoor temp. 7°C[44.6°F]DB/ 6°C[42.8°F]WB
* Interconnecting Piping Length 7.5m(24.6ft)
* Level Difference of Zero
2. Capacities are net capacities
3. Due to our policy of innovation some specifications may be changed without prior notification
4. EEV : Electronic Expansion Valve
Heat Pump(220V)
Conversion Formula
kcal/h= kW x 860
Btu/h = kW x 3412
cfm = m3/min x 35.3
l/s = CMM x 1000/60
HP(Equivalent horsepower) Unit
Model Combination Unit
Independent Unit
Capacity Cooling kW
kcal/h
Btu/h
Heating kW
kcal/h
Btu/h
Power Input Cooling kW
Heating kW
Current Cooling A
Heating A
COP Cooling
Heating
Casing Color
Heat Exchanger
Compressor Type
Piston Displacement cm3/rev
Number of Revolution r.p.m
Motor OutputÅ~Number W
Starting Method
Oil Type
Oil Charge L
Fan Type
Motor Output x Number W
Air Flow Rate(High) cmm
cfm
Drive
Discharge Side / Top
Pipe Connctions Liquid Pipes mm(inch)
Gas Pipes mm(inch)
Dimensions(W x H x D) mm
inch
Net Weight kg
Ibs
Transmission Cable
Refigerant Refigerant name
Charge kg
Control
Power Supply Ø,V,Hz
810 12 1618
ARUN80BT2 ARUN100BT2 ARUN120BT2 ARUN160BT2 ARUN180BT2
ARUN80BT2 ARUN100BT2 ARUN120BT2 ARUN80BT2 ARUN100BT2
ARUN80BT2 ARUN80BT2
22.4 28.0 33.6 44.8 50.4
19300 24,100 28,900 38,500 43,300
76400 95,900 114,700 152,900 172,000
25.2 31.5 37.8 50.4 56.7
21700 27,100 32,500 43,300 48,800
86000 107,500 129,000 172,000 193,500
6.2 7.8 10.8 12.40 14.00
7 8.8 11.1 14.00 15.80
24.8 28.30 32.60 49.60 53.10
26.2 27.70 28.60 52.40 53.90
3.61 3.59 3.11 3.61 3.60
3.6 3.58 3.41 3.60 3.59
Warm Gray Warm Gray Warm Gray Warm Gray Warm Gray
Gold fin Gold fin Gold fin Gold fin Gold fin
DC Scroll DC Scroll DC Scroll DC Scroll DC Scroll
38.3+59.8 38.3+59.8 38.3+59.8 (38.3+59.8)*2 (38.3+59.8)*2
3,600+3,500 3,600+3,500 3,600+3,500 (3,600+3,500)x2 (3,600+3,500)x2
(4,130+5,280)x1 (4,130+5,280)x1 (4,130+5,280)x1 (4,130+5,280)x2 (4,130+5,280)x2
Direct On Line Direct On Line Direct On Line Direct On Line Direct On Line
FVC68D(PVE) FVC68D(PVE) FVC68D(PVE) FVC68D(PVE) FVC68D(PVE)
5600 5600 5600 5600 5600*2
Propeller fan Propeller fan Propeller fan Propeller fan Propeller fan
350 x 2 350 x 2 350 x 2 350 x 4 350 x 4
190 190 190 380 380
6700 6,700 6,700 13,400 13,400
DC INVERTER DC INVERTER DC INVERTER DC INVERTER DC INVERTER
TOP TOP TOP TOP TOP
9.52(3/8) 9.52(3/8) 12.7(1/2) 12.7(1/2) 15.88(5/8)
19.05(3/4) 22.2(7/8) 28.58(1 1/8) 28.58(1 1/8) 28.58(1 1/8)
1280x1607x730 1280x1607x730 1280x1607x730 (1280x1607x730)*2 (1280x1607x730)*2
50.4x63.3x28.7 50.4x63.3x28.7 50.4x63.3x28.7 (50.4x63.3x28.7)*2 (50.4x63.3x28.7)*2
285 285 285 285+285 285+285
628 628 628 628+628 628+628
CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C
R410A R410A R410A R410A R410A
8 8 8 8+8 8+8
EEV EEV EEV EEV EEV
3, 220, 60 3, 220, 60 3, 220, 60 3, 220, 60 3, 220, 60

Specification
Copyright ©2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 10 -
Notes:
1. Capacities are based on the following conditions:
Cooling * Indoor temp. 27°C[80.6°F]DB/ 19°C[66.2°F]WB
* Outdoor temp. 35°C[95°F]DB/ 24°C[75.2°F]WB
* Interconnecting Piping Length 7.5m(24.6ft)
* Level Difference of Zero
Heating * Indoor temp. 20°C[68°F]DB/ 15°C[59°F]WB
* Outdoor temp. 7°C[44.6°F]DB/ 6°C[42.8°F]WB
* Interconnecting Piping Length 7.5m(24.6ft)
* Level Difference of Zero
2. Capacities are net capacities
3. Due to our policy of innovation some specifications may be changed without prior notification
4. EEV : Electronic Expansion Valve
Heat Pump(220V)
Conversion Formula
kcal/h= kW x 860
Btu/h = kW x 3412
cfm = m3/min x 35.3
l/s = CMM x 1000/60
HP(Equivalent horsepower) Unit
Model Combination Unit
Independent Unit
Capacity Cooling kW
kcal/h
Btu/h
Heating kW
kcal/h
Btu/h
Power Input Cooling kW
Heating kW
Current Cooling A
Heating A
COP Cooling
Heating
Casing Color
Heat Exchanger
Compressor Type
Piston Displacement cm3/rev
Number of Revolution r.p.m
Motor OutputÅ~Number W
Starting Method
Oil Type
Oil Charge L
Fan Type
Motor Output x Number W
Air Flow Rate(High) cmm
cfm
Drive
Discharge Side / Top
Pipe Connctions Liquid Pipes mm(inch)
Gas Pipes mm(inch)
Dimensions(W x H x D) mm
inch
Net Weight kg
Ibs
Transmission Cable
Refigerant Refigerant name
Charge kg
Control
Power Supply Ø,V,Hz
20 22 24 26 28
ARUN200BT2 ARUN220BT2 ARUN240BT2 ARUN260BT2 ARUN280BT2
ARUN100BT2 ARUN120BT2 ARUN120BT2 ARUN100BT2 ARUN100BT2
ARUN100BT2 ARUN100BT2 ARUN120BT2 ARUN80BT2 ARUN100BT2
ARUN80BT2 ARUN80BT2
56 61.6 67.2 72.8 78.4
48200 53,000 57,800 62,600 67,400
191100 210,200 229,300 248,400 267,500
63 69.3 75.6 81.9 88.2
54200 59,600 65,000 70,400 75,900
225000 236,500 258,000 279,500 301,000
15.6 18.60 21.60 20.20 29.40
17.6 19.90 22.20 22.80 31.00
56.6 60.90 65.20 49.60 93.50
55.4 56.30 57.20 52.40 84.90
3.59 3.31 3.11 3.60 2.67
3.58 3.48 3.41 3.59 2.85
Warm Gray Warm Gray Warm Gray Warm Gray Warm Gray
Gold fin Gold fin Gold fin Gold fin Gold fin
DC Scroll DC Scroll DC Scroll DC Scroll DC Scroll
(38.3+59.8)*2 (38.3+59.8)*2 (38.3+59.8)*2 (38.3+59.8)*3 (38.3+59.8)*3
(3,600+3,500)x2 (3,600+3,500)x2 (3,600+3,500)x2 (3,600+3,500)x3 (3,600+3,500)x3
(4,130+5,280)x2 (4,130+5,280)x2 (4,130+5,280)x2 (4,130+5,280)x3 (4,130+5,280)x3
Direct On Line Direct On Line Direct On Line Direct On Line Direct On Line
FVC68D(PVE) FVC68D(PVE) FVC68D(PVE) FVC68D(PVE) FVC68D(PVE)
5600*2 5600*2 5600*2 5600*3 5600*3
Propeller fan Propeller fan Propeller fan Propeller fan Propeller fan
350 x 4 350 x 4 350 x 4 350 x 6 350 x 6
380 380 380 570 570
13400 13,400 13,400 20,100 20,100
DC INVERTER DC INVERTER DC INVERTER DC INVERTER DC INVERTER
TOP TOP TOP TOP TOP
15.88(5/8) 15.88(5/8) 15.88(5/8) 19.05(3/4) 19.05(3/4)
28.58(1 1/8) 28.58(1 1/8) 34.9(1 3/8) 34.9(1 3/8) 34.9(1 3/8)
(1280x1607x730)*2 (1280x1607x730)*2 (1280x1607x730)*2 (1280x1607x730)*3 (1280x1607x730)*3
(50.4x63.3x28.7)*2 (50.4x63.3x28.7)*2 (50.4x63.3x28.7)*2 (50.4x63.3x28.7)*3 (50.4x63.3x28.7)*3
285+285 285+285 285+285 285+285+285 285+285+285
628+628 628+628 628+628 628+628+628 628+628+628
CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C
R410A R410A R410A R410A R410A
8+8 8+8 8+8 8+8+8 8+8+8
EEV EEV EEV EEV EEV
3, 220, 60 3, 220, 60 3, 220, 60 3, 220, 60 3, 220, 60

Specification
Copyright ©2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 11 -
Notes:
1. Capacities are based on the following conditions:
Cooling * Indoor temp. 27°C[80.6°F]DB/ 19°C[66.2°F]WB
* Outdoor temp. 35°C[95°F]DB/ 24°C[75.2°F]WB
* Interconnecting Piping Length 7.5m(24.6ft)
* Level Difference of Zero
Heating * Indoor temp. 20°C[68°F]DB/ 15°C[59°F]WB
* Outdoor temp. 7°C[44.6°F]DB/ 6°C[42.8°F]WB
* Interconnecting Piping Length 7.5m(24.6ft)
* Level Difference of Zero
2. Capacities are net capacities
3. Due to our policy of innovation some specifications may be changed without prior notification
4. EEV : Electronic Expansion Valve
Heat Pump(220V)
Conversion Formula
kcal/h= kW x 860
Btu/h = kW x 3412
cfm = m3/min x 35.3
l/s = CMM x 1000/60
HP(Equivalent horsepower) Unit
Model Combination Unit
Independent Unit
Capacity Cooling kW
kcal/h
Btu/h
Heating kW
kcal/h
Btu/h
Power Input Cooling kW
Heating kW
Current Cooling A
Heating A
COP Cooling
Heating
Casing Color
Heat Exchanger
Compressor Type
Piston Displacement cm3/rev
Number of Revolution r.p.m
Motor OutputÅ~Number W
Starting Method
Oil Type
Oil Charge L
Fan Type
Motor Output x Number W
Air Flow Rate(High) cmm
cfm
Drive
Discharge Side / Top
Pipe Connctions Liquid Pipes mm(inch)
Gas Pipes mm(inch)
Dimensions(W x H x D) mm
inch
Net Weight kg
Ibs
Transmission Cable
Refigerant Refigerant name
Charge kg
Control
Power Supply Ø,V,Hz
30 32 34 36
ARUN300BT2 ARUN320BT2 ARUN340BT2 ARUN360BT2
ARUN100BT2 ARUN120BT2 ARUN120BT2 ARUN120BT2
ARUN100BT2 ARUN100BT2 ARUN120BT2 ARUN120BT2
ARUN100BT2 ARUN100BT2 ARUN100BT2 ARUN120BT2
84 89.6 95.2 100.8
72200 77,100 81,900 86,700
286600 305,700 324,800 343,900
94.5 100.8 107.1 113.4
81300 86,700 92,100 97,500
322500 343,900 365,400 386,900
23.4 26.40 29.40 32.40
26.4 28.70 31.00 33.30
84.9 89.20 93.50 97.80
83.1 84.00 84.90 85.80
3.59 3.39 3.24 3.11
3.58 3.51 3.45 3.41
Warm Gray Warm Gray Warm Gray Warm Gray
Gold fin Gold fin Gold fin Gold fin
DC Scroll DC Scroll DC Scroll DC Scroll
(38.3+59.8)*3 (38.3+59.8)*3 (38.3+59.8)*3 (38.3+59.8)*3
(3,600+3,500)x3 (3,600+3,500)x3 (3,600+3,500)x3 (3,600+3,500)x3
(4,130+5,280)x3 (4,130+5,280)x3 (4,130+5,280)x3 (4,130+5,280)x3
Direct On Line Direct On Line Direct On Line Direct On Line
FVC68D(PVE) FVC68D(PVE) FVC68D(PVE) FVC68D(PVE)
5600*3 5600*3 5600*3 5600*3
Propeller fan Propeller fan Propeller fan Propeller fan
350 x 6 350 x 6 350 x 6 350 x 6
570 570 570 570
20100 20,100 20,100 20,100
DC INVERTER DC INVERTER DC INVERTER DC INVERTER
TOP TOP TOP TOP
19.05(3/4) 19.05(3/4) 19.05(3/4) 19.05(3/4)
34.9(1 3/8) 34.9(1 3/8) 34.9(1 3/8) 41.3(1 5/8)
(1280x1607x730)*2 (1280x1607x730)*2 (1280x1607x730)*2 (1280x1607x730)*2
(50.4x63.3x28.7)*2 (50.4x63.3x28.7)*2 (50.4x63.3x28.7)*2 (50.4x63.3x28.7)*2
285+285 285+285 285+285 285+285
628+628 628+628 628+628 628+628
CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C
R410A R410A R410A R410A
8+8 8+8 8+8 8+8
EEV EEV EEV EEV
3, 220, 60 3, 220, 60 3, 220, 60 3, 220, 60

Specification
Copyright ©2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 12 -
Notes:
1. Capacities are based on the following conditions:
Cooling * Indoor temp. 27°C[80.6°F]DB/ 19°C[66.2°F]WB
* Outdoor temp. 35°C[95°F]DB/ 24°C[75.2°F]WB
* Interconnecting Piping Length 7.5m(24.6ft)
* Level Difference of Zero
Heating * Indoor temp. 20°C[68°F]DB/ 15°C[59°F]WB
* Outdoor temp. 7°C[44.6°F]DB/ 6°C[42.8°F]WB
* Interconnecting Piping Length 7.5m(24.6ft)
* Level Difference of Zero
2. Capacities are net capacities
3. Due to our policy of innovation some specifications may be changed without prior notification
4. EEV : Electronic Expansion Valve
Cooling (220V)
Conversion Formula
kcal/h= kW x 860
Btu/h = kW x 3412
cfm = m3/min x 35.3
l/s = CMM x 1000/60
HP(Equivalent horsepower) Unit
Model Combination Unit
Independent Unit
Capacity Cooling kW
kcal/h
Btu/h
Power Input Cooling kW
Current Cooling A
COP Cooling
Casing Color
Heat Exchanger
Compressor Type
Piston Displacement cm3/rev
Number of Revolution r.p.m
Motor OutputÅ~Number W
Starting Method
Oil Type
Oil Charge L
Fan Type
Motor Output x Number W
Air Flow Rate(High) cmm
cfm
Drive
Discharge Side / Top
Pipe Connctions Liquid Pipes mm(inch)
Gas Pipes mm(inch)
Dimensions(W x H x D) mm
inch
Net Weight kg
Ibs
Transmission Cable
Refigerant Refigerant name
Charge kg
Control
Power Supply Ø,V,Hz
810 12 1618
ARUV80BT2(E) ARUV100BT2(E) ARUV120BT2(E) ARUV160BT2(E) ARUV180BT2(E)
ARUV80BT2(E) ARUV100BT2(E) ARUV120BT2(E) ARUV80BT2(E) ARUV100BT2(E)
ARUV80BT2(E) ARUV80BT2(E)
22.4 28.0 33.6 44.8 50.4
19300 24,100 28,900 38,500 43,300
76400 95,900 114,700 152,900 172,000
6.2 7.8 10.8 12.40 14.00
24.8 28.30 32.60 49.60 53.10
3.61 3.59 3.11 3.61 3.60
Warm Gray Warm Gray Warm Gray Warm Gray Warm Gray
Gold fin Gold fin Gold fin Gold fin Gold fin
DC Scroll DC Scroll DC Scroll DC Scroll DC Scroll
38.3+59.8 38.3+59.8 38.3+59.8 (38.3+59.8)*2 (38.3+59.8)*2
3,600+3,500 3,600+3,500 3,600+3,500 (3,600+3,500)x2 (3,600+3,500)x2
(4,130+5,280)x1 (4,130+5,280)x1 (4,130+5,280)x1 (4,130+5,280)x2 (4,130+5,280)x2
Direct On Line Direct On Line Direct On Line Direct On Line Direct On Line
FVC68D(PVE) FVC68D(PVE) FVC68D(PVE) FVC68D(PVE) FVC68D(PVE)
5600 5600 5600 5600 5600*2
Propeller fan Propeller fan Propeller fan Propeller fan Propeller fan
350 x 2 350 x 2 350 x 2 350 x 4 350 x 4
190 190 190 380 380
6700 6,700 6,700 13,400 13,400
DC INVERTER DC INVERTER DC INVERTER DC INVERTER DC INVERTER
TOP TOP TOP TOP TOP
9.52(3/8) 9.52(3/8) 12.7(1/2) 12.7(1/2) 15.88(5/8)
19.05(3/4) 22.2(7/8) 28.58(1 1/8) 28.58(1 1/8) 28.58(1 1/8)
1280x1607x730 1280x1607x730 1280x1607x730 (1280x1607x730)*2 (1280x1607x730)*2
50.4x63.3x28.7 50.4x63.3x28.7 50.4x63.3x28.7 (50.4x63.3x28.7)*2 (50.4x63.3x28.7)*2
285 285 285 285+285 285+285
628 628 628 628+628 628+628
CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C
R410A R410A R410A R410A R410A
8 8 8 8+8 8+8
EEV EEV EEV EEV EEV
3, 220, 60 3, 220, 60 3, 220, 60 3, 220, 60 3, 220, 60
1.4 Cooling only(220V)
E : Anti-Corrosion Model

Specification
Copyright ©2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 13 -
Notes:
1. Capacities are based on the following conditions:
Cooling * Indoor temp. 27°C[80.6°F]DB/ 19°C[66.2°F]WB
* Outdoor temp. 35°C[95°F]DB/ 24°C[75.2°F]WB
* Interconnecting Piping Length 7.5m(24.6ft)
* Level Difference of Zero
Heating * Indoor temp. 20°C[68°F]DB/ 15°C[59°F]WB
* Outdoor temp. 7°C[44.6°F]DB/ 6°C[42.8°F]WB
* Interconnecting Piping Length 7.5m(24.6ft)
* Level Difference of Zero
2. Capacities are net capacities
3. Due to our policy of innovation some specifications may be changed without prior notification
4. EEV : Electronic Expansion Valve
Cooling (220V)
Conversion Formula
kcal/h= kW x 860
Btu/h = kW x 3412
cfm = m3/min x 35.3
l/s = CMM x 1000/60
HP(Equivalent horsepower) Unit
Model Combination Unit
Independent Unit
Capacity Cooling kW
kcal/h
Btu/h
Power Input Cooling kW
Current Cooling A
COP Cooling
Casing Color
Heat Exchanger
Compressor Type
Piston Displacement cm3/rev
Number of Revolution r.p.m
Motor OutputÅ~Number W
Starting Method
Oil Type
Oil Charge L
Fan Type
Motor Output x Number W
Air Flow Rate(High) cmm
cfm
Drive
Discharge Side / Top
Pipe Connctions Liquid Pipes mm(inch)
Gas Pipes mm(inch)
Dimensions(W x H x D) mm
inch
Net Weight kg
Ibs
Transmission Cable
Refigerant Refigerant name
Charge kg
Control
Power Supply Ø,V,Hz
20 22 24 26 28
ARUV200BT2(E) ARUV220BT2(E) ARUV240BT2(E) ARUV280BT2(E) ARUV280BT2(E)
ARUV100BT2(E) ARUV120BT2(E) ARUV120BT2(E) ARUV100BT2(E) ARUV100BT2(E)
ARUV100BT2(E) ARUV100BT2(E) ARUV120BT2(E) ARUV80BT2(E) ARUV100BT2(E)
ARUV80BT2(E) ARUV80BT2(E)
56 61.6 67.2 72.8 78.4
48200 53,000 57,800 62,600 67,400
191100 210,200 229,300 248,400 267,500
15.6 18.60 21.60 20.20 29.40
56.6 60.90 65.20 49.60 93.50
3.59 3.31 3.11 3.60 2.67
Warm Gray Warm Gray Warm Gray Warm Gray Warm Gray
Gold fin Gold fin Gold fin Gold fin Gold fin
DC Scroll DC Scroll DC Scroll DC Scroll DC Scroll
(38.3+59.8)*2 (38.3+59.8)*2 (38.3+59.8)*2 (38.3+59.8)*3 (38.3+59.8)*3
(3,600+3,500)x2 (3,600+3,500)x2 (3,600+3,500)x2 (3,600+3,500)x3 (3,600+3,500)x3
(4,130+5,280)x2 (4,130+5,280)x2 (4,130+5,280)x2 (4,130+5,280)x3 (4,130+5,280)x3
Direct On Line Direct On Line Direct On Line Direct On Line Direct On Line
FVC68D(PVE) FVC68D(PVE) FVC68D(PVE) FVC68D(PVE) FVC68D(PVE)
5600*2 5600*2 5600*2 5600*3 5600*3
Propeller fan Propeller fan Propeller fan Propeller fan Propeller fan
350 x 4 350 x 4 350 x 4 350 x 6 350 x 6
380 380 380 570 570
13400 13,400 13,400 20,100 20,100
DC INVERTER DC INVERTER DC INVERTER DC INVERTER DC INVERTER
TOP TOP TOP TOP TOP
15.88(5/8) 15.88(5/8) 15.88(5/8) 19.05(3/4) 19.05(3/4)
28.58(1 1/8) 28.58(1 1/8) 34.9(1 3/8) 34.9(1 3/8) 34.9(1 3/8)
(1280Å~1607x730)*2 (1280x1607x730)*2 (1280x1607x730)*2 (1280x1607x730)*3 (1280x1607x730)*3
(50.4x63.3x28.7)*2 (50.4x63.3x28.7)*2 (50.4x63.3x28.7)*2 (50.4x63.3x28.7)*3 (50.4x63.3x28.7)*3
285+285 285+285 285+285 285+285+285 285+285+285
628+628 628+628 628+628 628+628+628 628+628+628
CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C
R410A R410A R410A R410A R410A
8+8 8+8 8+8 8+8+8 8+8+8
EEV EEV EEV EEV EEV
3, 220, 60 3, 220, 60 3, 220, 60 3, 220, 60 3, 220, 60
E : Anti-Corrosion Model

Specification
Copyright ©2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 14 -
Notes:
1. Capacities are based on the following conditions:
Cooling * Indoor temp. 27°C[80.6°F]DB/ 19°C[66.2°F]WB
* Outdoor temp. 35°C[95°F]DB/ 24°C[75.2°F]WB
* Interconnecting Piping Length 7.5m(24.6ft)
* Level Difference of Zero
Heating * Indoor temp. 20°C[68°F]DB/ 15°C[59°F]WB
* Outdoor temp. 7°C[44.6°F]DB/ 6°C[42.8°F]WB
* Interconnecting Piping Length 7.5m(24.6ft)
* Level Difference of Zero
2. Capacities are net capacities
3. Due to our policy of innovation some specifications may be changed without prior notification
4. EEV : Electronic Expansion Valve
Cooling (220V)
Conversion Formula
kcal/h= kW x 860
Btu/h = kW x 3412
cfm = m3/min x 35.3
l/s = CMM x 1000/60
HP(Equivalent horsepower) Unit
Model Combination Unit
Independent Unit
Capacity Cooling kW
kcal/h
Btu/h
Power Input Cooling kW
Current Cooling A
COP Cooling
Casing Color
Heat Exchanger
Compressor Type
Piston Displacement cm3/rev
Number of Revolution r.p.m
Motor OutputÅ~Number W
Starting Method
Oil Type
Oil Charge L
Fan Type
Motor Output x Number W
Air Flow Rate(High) cmm
cfm
Drive
Discharge Side / Top
Pipe Connctions Liquid Pipes mm(inch)
Gas Pipes mm(inch)
Dimensions(W x H x D) mm
inch
Net Weight kg
Ibs
Transmission Cable
Refigerant Refigerant name
Charge kg
Control
Power Supply Ø,V,Hz
30 32 34 36
ARUV300BT2(E) ARUV320BT2(E) ARUV340BT2(E) ARUV360BT2(E)
ARUV100BT2(E) ARUV120BT2(E) ARUV120BT2(E) ARUV120BT2(E)
ARUV100BT2(E) ARUV100BT2(E) ARUV120BT2(E) ARUV120BT2(E)
ARUV100BT2(E) ARUV100BT2(E) ARUV100BT2(E) ARUV120BT2(E)
84 89.6 95.2 100.8
72200 77,100 81,900 86,700
286600 305,700 324,800 343,900
23.4 26.40 29.40 32.40
84.9 89.20 93.50 97.80
3.59 3.39 3.24 3.11
Warm Gray Warm Gray Warm Gray Warm Gray
Gold fin Gold fin Gold fin Gold fin
DC Scroll DC Scroll DC Scroll DC Scroll
(38.3+59.8)*3 (38.3+59.8)*3 (38.3+59.8)*3 (38.3+59.8)*3
(3,600+3,500)x3 (3,600+3,500)x3 (3,600+3,500)x3 (3,600+3,500)x3
(4,130+5,280)x3 (4,130+5,280)x3 (4,130+5,280)x3 (4,130+5,280)x3
Direct On Line Direct On Line Direct On Line Direct On Line
FVC68D(PVE) FVC68D(PVE) FVC68D(PVE) FVC68D(PVE)
5600*3 5600*3 5600*3 5600*3
Propeller fan Propeller fan Propeller fan Propeller fan
350 x 6 350 x 6 350 x 6 350 x 6
570 570 570 570
20100 20,100 20,100 20,100
DC INVERTER DC INVERTER DC INVERTER DC INVERTER
TOP TOP TOP TOP
19.05(3/4) 19.05(3/4) 19.05(3/4) 19.05(3/4)
34.9(1 3/8) 34.9(1 3/8) 34.9(1 3/8) 41.3(1 5/8)
(1280x1607x730)*2 (1280x1607x730)*2 (1280x1607x730)*2 (1280x1607x730)*2
(50.4x63.3x28.7)*2 (50.4x63.3x28.7)*2 (50.4x63.3x28.7)*2 (50.4x63.3x28.7)*2
285+285 285+285 285+285 285+285
628+628 628+628 628+628 628+628
CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C CVV-SB 1.25x2C
R410A R410A R410A R410A
8+8 8+8 8+8 8+8
EEV EEV EEV EEV
3, 220, 60 3, 220, 60 3, 220, 60 3, 220, 60
E : Anti-Corrosion Model

Copyright ©2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 15 -
Functions
2. Functions
O : Applied X : Not applied - : No reation
Option : Model name & price are different according to options, and assembled in factory with main unit
Accessory : Installed at field, ordered and purchased separately by the corresponding model name,
supplied with separated package.
O : Applied X : Not applied - : No reation
Option : Model name & price are different according to options, and assembled in factory with main unit
Accessory : Installed at field, ordered and purchased separately by the corresponding model name,
supplied with separated package.
Category Function Single Unit Series Unit
Defrost/ Deicing O O
High pressure switch O O
Phase protection O O
Restart delay(3-minutes) O O
Self diagnosis O O
Soft start O O
Trial operation O O
Auto operation(Artificial intelligence) O O
Auto restart operation O O
Network Solution(LGAP) O O
Power Distribution Indicator(PQNUD1S00) O O
Other Thermistor - -
Reliability
Convenience
CAC network
Function
Category Device PLUS II
Network Solution(LGAP) O
Simple Central Controller PQCSB101S0
Power Distribution Indicator(PDI) PQNUD1S00
CAC Network Cool/Heat Selector(Outdoor Unit) PRDSBM
Dry contact(Indoor Unit) PQDSB
AC Smart PQCSW320A0E
ACP PQCPA11A0E/B11A0E
AC Manager PQCSS520A0E
LONWORKS Gateway (BNU-LW) PQNFB16A1
BACnet Gateway (BNU-BAC) PQNFB17B0
Program LG MV Option
Y branch Accessory
Other Header branch Accessory
Air Guide PQAGA
Refrigerant Charging Kit PRAC1

Copyright ©2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 16 -

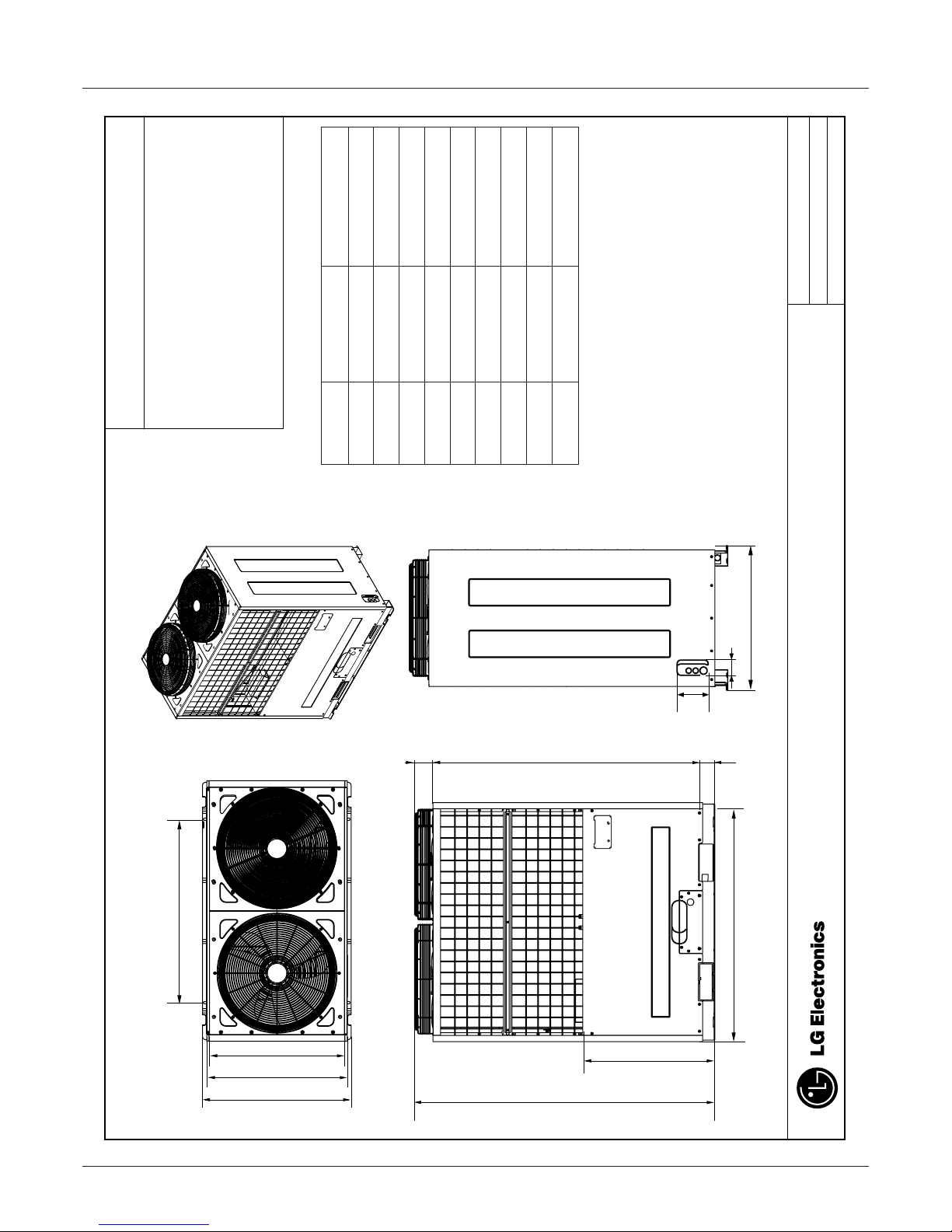

76, Seongsan-dong, Changwon City, Gyeongnam,
641-713, Korea www.lge.com/airconditioner

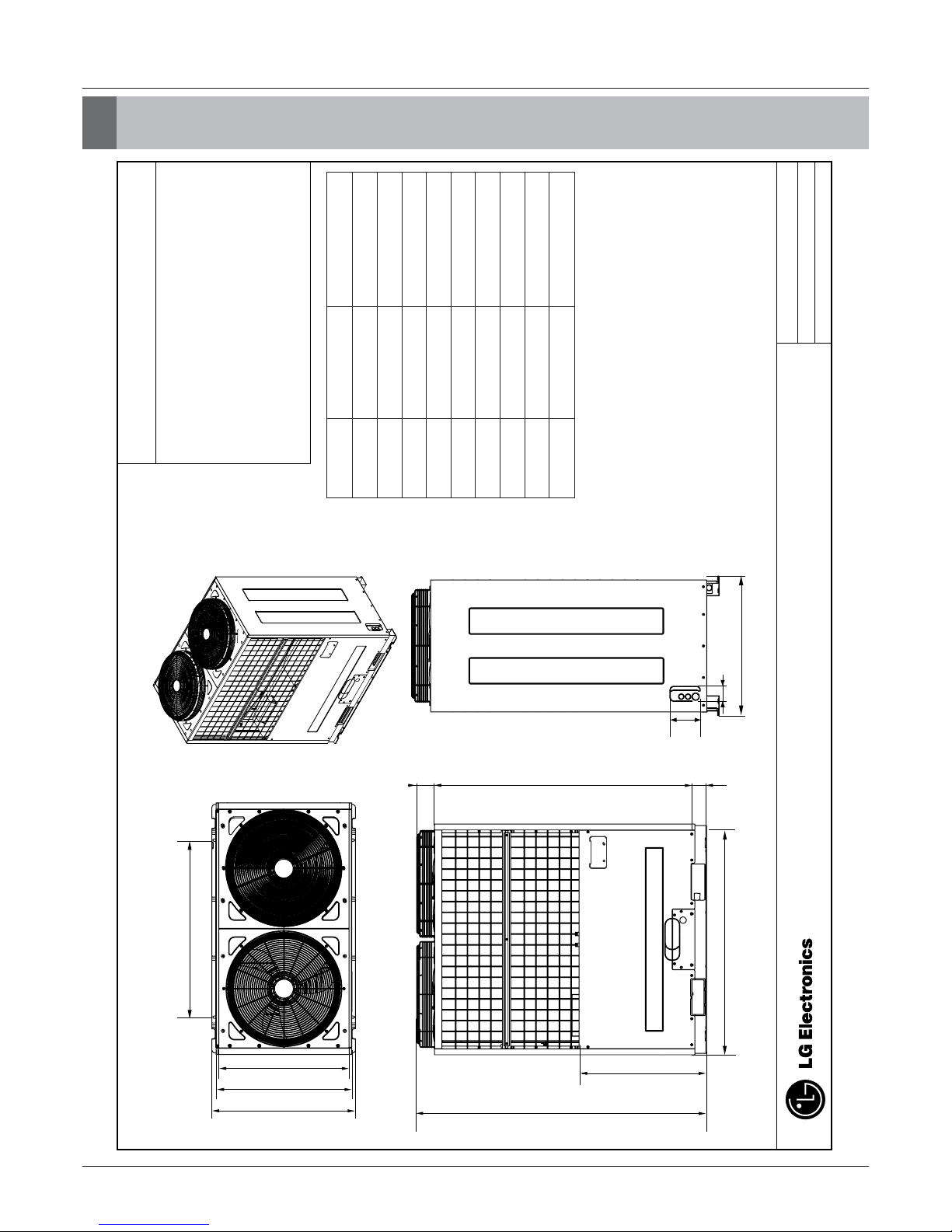

CHASSIS CODE: UW
Outdoor Unit(460V)
W mm(inch)
H mm(inch) D mm(inch)
L1 mm(inch) L2 mm(inch) L3 mm(inch) L4 mm(inch) L5 mm(inch) L6 mm(inch) L7 mm(inch)
L4
L3
L2
D
H
L5
L1 L6
WL7 D
60(2.4)
160(6.4)
1280(50.4) 1607(63.3)
730(28.7)
1427(56.1)
692(27.2) 670(26.3) 900(35.4) 704(27.7)
99(3.9) 82(3.2)
ARUV80DT2(E) ARUV100DT2(E) ARUV120DT2(E) ARUV140DT2(E) ARUV160DT2(E)
<Cooling Only>
ARUN80DT2 ARUN100DT2 ARUN120DT2 ARUN140DT2 ARUN160DT2
<Heat Pump>
3. Dimensions
Dimensions

Copyright ©2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 17 -

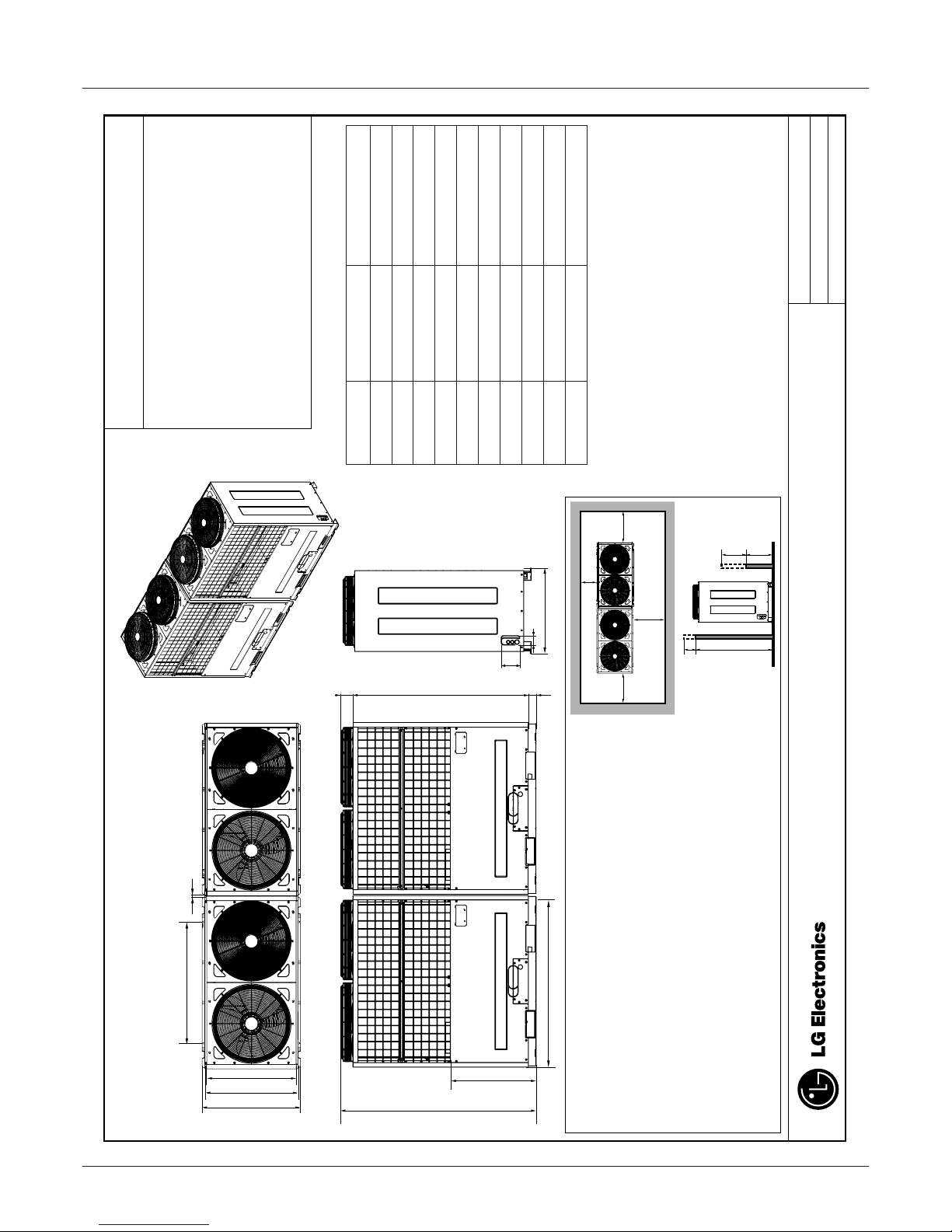

Dimensions
76, Seongsan-dong, Changwon City, Gyeongnam,
641-713, Korea www.lge.com/airconditioner
CHASSIS CODE: UW
Outdoor Unit(460V)
W mm(inch) 1280(50.4) H mm(inch) 1607(63.3) D mm(inch) 730(28.7) L1 mm(inch) 1427(56.1) L2 mm(inch) 692(27.2) L3 mm(inch) 670(26.3) L4 mm(inch) 900(35.4) L5 mm(inch) 10(0.4) L6 mm(inch) 704(27.7) L7 mm(inch) 99(3.9) L8 mm(inch) 82(3.2)
L5
H
L6
L1 L7
WL8
D
60(2.4)
160(6.4)
L4
L3
L2
D
Notes: 1. Height of walls in case of pattern1:
Front side:1500mm, Suction side:500mm
2. If the above wall heights are exceeded, then h1/2 and h2/2 should be added to the front and
suction side service spaces respectively as shown in the following figure.
3. When installing the units, the most appropriate pattern should be selected from those shown.
In order to obtain the best fit in the space available, always bear in mind the need to leave enough room for a person to pass between units and wall and for the air to circulate freely. Your layout should take into account the possibility of short circuits.
4. The Units should be installed to leave sufficient space in front for the on site refrigerant piping
work to be carried out comfortably.
1500mm
500mm
h2
h1
Front side
Suction side
Front side
250mm or more
900mm or more
250mm or more
250mm or more
ARUV180DT2(E) ARUV200DT2(E) ARUV220DT2(E) ARUV240DT2(E) ARUV260DT2(E) ARUV280DT2(E) ARUV300DT2(E) ARUV320DT2(E)
<Cooling Only>
ARUN180DT2 ARUN200DT2 ARUN220DT2 ARUN240DT2 ARUN260DT2 ARUN280DT2 ARUN300DT2 ARUN320DT2
<Heat Pump>

Copyright ©2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 18 -
Dimensions
76, Seongsan-dong, Changwon City, Gyeongnam,
641-713, Korea www.lge.com/airconditioner
CHASSIS CODE: UW
Outdoor Unit(220V)
ARUV80BT2(E) ARUN80BT2 ARUV100BT2(E) ARUN100BT2 ARUV120BT2(E) ARUN120BT2
W mm(inch)
H mm(inch) D mm(inch)
L1 mm(inch) L2 mm(inch) L3 mm(inch) L4 mm(inch) L5 mm(inch) L6 mm(inch) L7 mm(inch)
L4
L3
L2
D
H
L5
L1 L6
WL7 D
60(2.4)
160(6.4)
1280(50.4) 1607(63.3)
730(28.7)
1427(56.1)
692(27.2) 670(26.3) 900(35.4) 704(27.7)
99(3.9) 82(3.2)
<Cooling Only> <Heat Pump>

Copyright ©2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 19 -
76, Seongsan-dong, Changwon City, Gyeongnam,
641-713, Korea www.lge.com/airconditioner
CHASSIS CODE: UW
Outdoor Unit(220V)
ARUV160BT2(E) ARUN160BT2 ARUV180BT2(E) ARUN180BT2 ARUV200BT2(E) ARUN200BT2 ARUV220BT2(E) ARUN220BT2 ARUV240BT2(E) ARUN240BT2 ARUV280BT2(E) ARUN260BT2 ARUV280BT2(E) ARUN280BT2 ARUV300BT2(E) ARUN300BT2 ARUV320BT2(E) ARUN320BT2 ARUV340BT2(E) ARUN340BT2 ARUV360BT2(E) ARUN360BT2
W mm(inch) 1280(50.4) H mm(inch) 1607(63.3) D mm(inch) 730(28.7) L1 mm(inch) 1427(56.1) L2 mm(inch) 692(27.2) L3 mm(inch) 670(26.3) L4 mm(inch) 900(35.4) L5 mm(inch) 10(0.4) L6 mm(inch) 704(27.7) L7 mm(inch) 99(3.9) L8 mm(inch) 82(3.2)
L5
H
L6
L1 L7
WL8
D
60(2.4)
160(6.4)
L4
L3
L2
D
Notes: 1. Height of walls in case of pattern1:
Front side:1500mm, Suction side:500mm
2. If the above wall heights are exceeded, then h1/2 and h2/2 should be added to the front and
suction side service spaces respectively as shown in the following figure.
3. When installing the units, the most appropriate pattern should be selected from those shown.
In order to obtain the best fit in the space available, always bear in mind the need to leave enough room for a person to pass between units and wall and for the air to circulate freely. Your layout should take into account the possibility of short circuits.
4. The Units should be installed to leave sufficient space in front for the on site refrigerant piping
work to be carried out comfortably.
1500mm
500mm
h2
h1
Front side
Suction side
Front side
250mm or more
900mm or more
250mm or more
250mm or more
<Cooling Only> <Heat Pump>
Dimensions

Copyright ©2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes LGE Internal Use Only
- 20 -
4. Piping Diagrams
Piping Diagrams
4.1.1 3Ø 460V
Cooling Operation
EEV EEV
ss
Liquid Injection
Accumulator
ss
Inverter
Comp
ss
Check valve
EEV
Soleno id valve
SVC Valve
Indoor HEX Indoor HEX
Fan
Indoor Unit Indoor Unit
Outdoor Unit
HEX Temperature
Sensor
Outdoor
Temperature
Sensor
High Press ure
Sensor
4-Way Valve
Outdoor
EEV
Sub-cooling Circuit
Outlet Temperature
Sensor
Sub-cooling Circuit
Inlet Temperature
Sensor
Sub-Cooling EEV
Plate Type HEX
Liquid Pipe Temp. Sensor
Comp
Disc harge
Temperature
Sensor
Suction
Temperature
Sensor
Low
Pressure
Sensor
Liquid Pipe
Gas Pipe
High Temp. High Pressure Gas
High Temp. High Pressure Liqu id
Low Temp. Low Pressure Gas
Oil
Separator
Outdoo r Uni t
Pressure Sensor
Pressure Switch
Temperature Sensor
Hot Gas
Valve
Remarks
Strainer
DCDC
Fan Fan
DCDC
Fan
4.1 Heat Pump Model
