LG AS-W096E1G0 Product guide

5RMA2-01A
Inverter Single
(50Hz/R410A)

2008 Product Data 1
Contents Page
1. Models line up.........................................................................................4
2. Nomenclature..........................................................................................6
3. Features & Benefits................................................................................8
4. Specifications .......................................................................................19
5. Dimensions ...........................................................................................31
6. Wiring diagrams ...................................................................................43
7. Refrigerant cycle diagram....................................................................57
8. Capacity tables .....................................................................................62
9. Capacity coefficient factor...................................................................76
10. Operation range..................................................................................78
11. Air flow and temperature distributions(reference data)..................79
12. Sound level..........................................................................................82
12. Remote controller ...............................................................................88
14. Installation...........................................................................................91
Inverter Single-50Hz(R410A)

22008 Product Data
Test condition of international standard
CLASSIFICATION KSC ISO ARI AHAM AS SSA
9306 5151 210/240 1861.1 385
Indoor DB°C(°F) 27.0 27.0 26.7(80) 26.7(80) 27.0 29.0
Cooling WB°C(°F) 19.5 19.0 19.4(67) 19.4(67) 19.0 19.0
Capacity Outdoor DB°C(°F) 35.0 35.0 35.0(95) 35.0(95) 35.0 46.0
WB°C(°F) 24.0 24.0 23.9(75) 23.9(75) 24.0 24.0
Indoor DB°C(°F) 20.0 20.0 21.1(70) 21.1(70) 20.0 21.0
Heating WB°C(°F) 15.0 15.0 15.6(60) 15.6(60) 15.0 15.5
Capacity Outdoor DB°C(°F) 7.0 7.0 8.3(47) 8.3(47) 7.0 7.0
WB°C(°F)) 6.0 6.0 6.1(43) 6.1(43) 6.0 6.0
Indoor DB°C(°F) 32.0 32.0 26.7(80) 32.2(90) 32.0 29.0
Maximum WB°C(°F) 23.0 23.0 19.4(67) 22.8(73) 23.0 19.0
Cooling
Outdoor DB°C(°F) 43.0 43.0 46.1(115) 43.3(110) 43.0 54.0
Operating WB°C(°F) 26.0 26.0 23.9(75) 25.6(78) 26.0 24.0
Indoor DB°C(°F) 27.0 27.0 26.7(80) 26.7(80) - -
Maximum WB°C(°F) 19.0 19.0 19.4(67) 22.8(73) - -
Heating
Outdoor DB°C(°F) 21.0 24.0 23.9(75) 23.9(75) - -
Operating WB°C(°F) 15.0 18.0 18.3(65) 18.3(65) - -
Enclosure Indoor DB°C(°F) 27.0 27.0 26.7(80) 26.7(80) 27.0 27.0
Sweat / WB°C(°F) 24.0 24.0 23.9(75) 23.9(75) 24.0 24.0
Condensate Outdoor DB°C(°F) 27.0 27.0 26.7(80) 26.7(80) 27.0 27.0
Disposal WB°C(°F) 24.0 24.0 23.9(75) 23.9(75) 24.0 24.0
Freeze-up/ Indoor DB°C(°F) 21.0 21.0 19.4(67) 21.1(70) 21.0 21.0
Low WB°C(°F) 15.0 15.0 13.9(57) 15.6(60) 16.0 16.0
Temperature Outdoor DB°C(°F) 21.0 21.0 19.4(67) 21.1(70) 21.0 21.0
WB°C(°F) 15.0 15.0 13.9(57) 15.6(60) 16.0 16.0
KS : Korea Standard AS : Australia Standard
ISO : International Standard Organization SSA : Saudi Arabian Standard
ARI : Airconditioning and Refrigeration Institute
AHAM : Association of Home Appliance Manufacturers

2008 Product Data 3
General Description
Split type of Air conditioners are known by the category name of Wall Mounted Type of units.These units can be
easily installed in a small space and have exceptional Cooling capacity.Designed for Low-noise operation,it
ensures a pleasant air conditioned environment.
LG Offers various types of units to its customers to suit for the best application and requirement.The following
are the important categories offered by LG :
1) General Wall Mounted Type Units : Units with Simplicity in design.
2) Art Cool Units : A new concept of cooling introduced by LG in the field of Air Conditioning.
3) Inverter Units : These units are capable of minimising the Power consumption with the unique inverter
technology.
Some of the Important Features of these units are listed below :
1) Providing Health to the Customers : By having the Filters such as Plasma Filter which is capable of removing
the Micro Organisms up to 0.1 microns.
2) Long Term Money Saving : By providing Features such as Gold Fin, Auto Clean etc. to maintain the same
performance for the years.
3) Best Comfort : With Features such as Sleep Mode,Timer,Auto Restart etc.
The Units are available with many standard and optional features which gives our Customers the free choice to
select the unit of their own desire.For details refer to the Detailed specification followed after this description.
LG Electronics Inc.
Air Conditioning Division

42008 Product Data

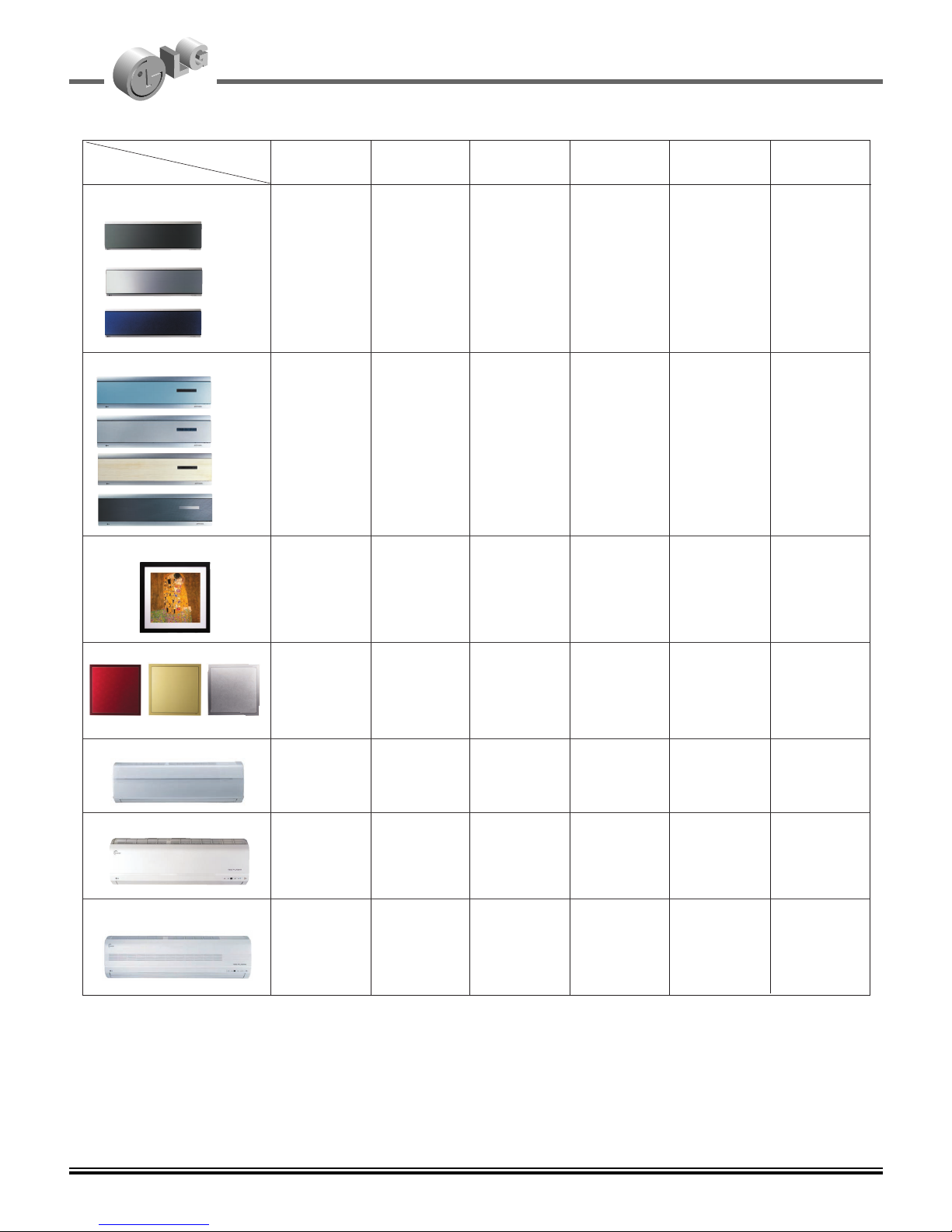

1. Models Line up
kW (kBtu/h)
Indoor Type
ART COOL
ART COOL Mirror
ART COOL Mirror
*Mirror
*Silver
*Blue
AS-W096E*H2
[C09AW* NE2]
AS-W126E*H2
[C12AW* NE2]
AS-W1868*H1
[C18AW* N81]
AS-W2468*H1
[C24AW* N81]
AS-W126ADR0
[S12AA NA0]
AS-W096E1G0
[S09AW1 NE0]
AS-W126E1G0
[S12AW1 NE0]
AS-W1865DH2
[S18AW N52]
AS-W0964GG1
[S09AM N41G]
AS-W1264GG1
[S12AM N41G]
AS-W1865GG1
[S18AM N51G]
AS-W2465DH2
[S24AW N52]
AS-W096U*H1
[C09AW* NU1]
AS-W126U*H1
[C12AW* NU1]
AS-W1863*H3
[C18AW* N33]
AS-W2463*H3
[C24AW* N33]
AS-W096F1G2
[A09AW1 NF2]
AS-W126F1G2
[A12AW1 NF2]
AS-W096F*G2
[A09AW* NF2]
AS-W126F*G2
[A12AW* NF2]
AS-W306DGM0
[S30AW ND0]
AS-W366DGM0
[S36AW ND0]
2.63(9) 3.51(12) 5.28(18) 7.03(24) 8.79(30) 10.55(36)
Wall Mounted Type
Wall Mounted Type
ART COOL
Wall Mounted Type
Red
*Mirror
*Blue
*Metal
*White
Wood
Gold Silver
AS-W096ADR0
[S09AA NA0]
1.1 Indoor Unit
* denotes the color or the picture used on the front grille of the unit (refer to the Nomenclature section)

2008 Product Data 5
1. Models Line up

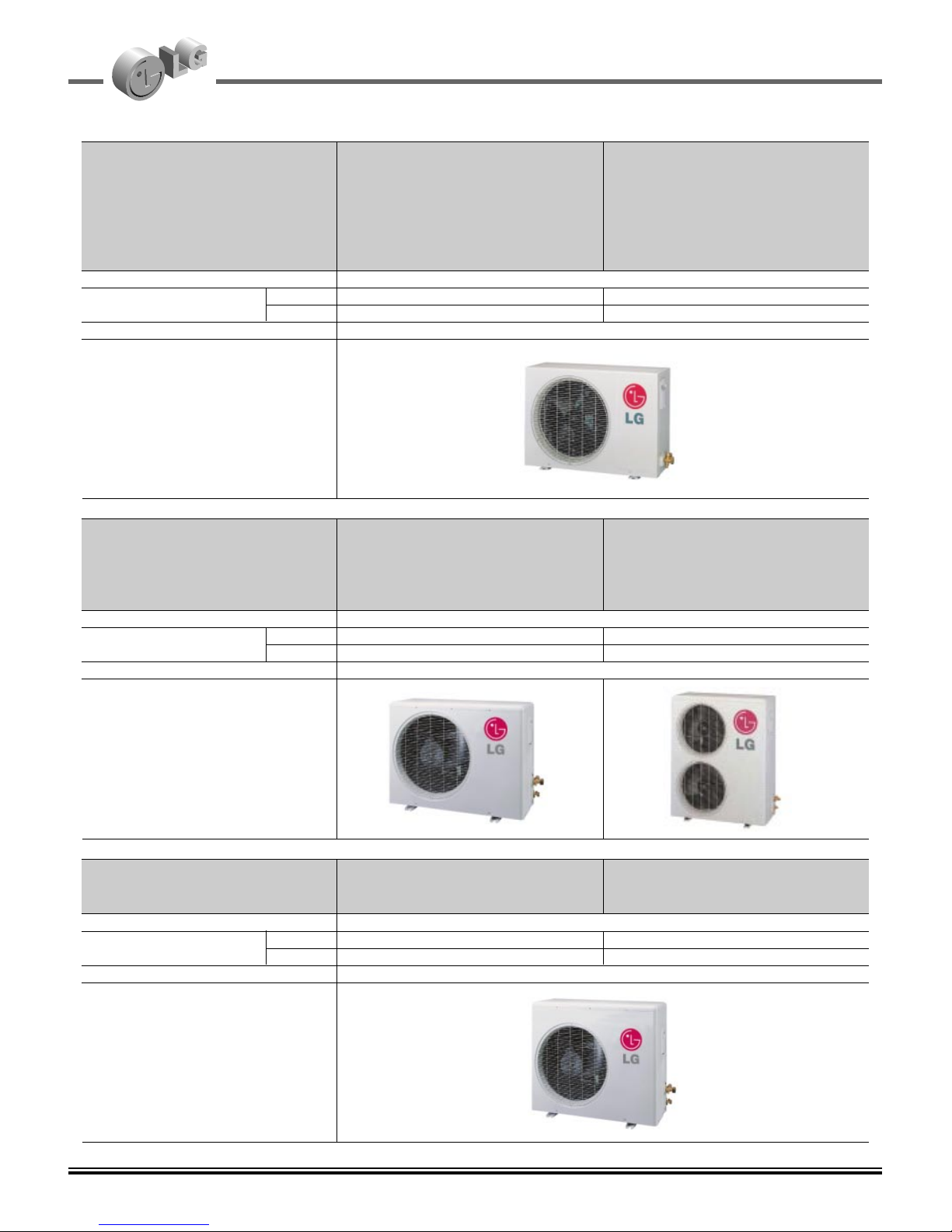

1.2 Outdoor Unit
Heat pump
AS-W0964GG1[S09AM N41G]
AS-W096ADR0 [S09AA NA0]
AS-W096E*H2[C09AW* NE2]
AS-W096E1G0[S09AW1 NE0]
AS-W096F1G2[A09AW1 NF2]
AS-W096F*G2 [A09AW* NF2]
AS-W096U*H1[C09AW* NU1]
AS-W1264GG1[S12AM N41G]
AS-W126ADR0 [S12AA NA0]
AS-W126E1G0[S12AW1 NE0]
AS-W126E*H2 [C12AW*NE2]
AS-W126F1G2 [A12AW1 NF2]
AS-W126F*G2 [A12AW* NF2]
AS-W126U*H1[C12AW* NU1]
No. of connectable indoor units Max.1
Total capacity index of connectable kW 2.64 3.52
indoor units kBtu/h 9 12
Power supply 1ø, 220-240V, 50Hz
Chassis
Heat pump
AS-W1865DH2[S18AW N52]
AS-W1863*H3[C18AW* N33]
AS-W1868*H1 [C18AW* N81]
AS-W1865GG1[S18AM N51G]
AS-W2463*H3[C24AW* N33]
AS-W366DGM0[S36AW ND0]
No. of connectable indoor units Max.1
Total capacity index of connectable kW 5.28 10.55
indoor units kBtu/h 18 36
Power supply 1ø, 220-240V, 50Hz
Chassis
Heat pump
AS-W2465DH2[S24AW N52]
AS-W2468*H1 [C24AW* N81] AS-W306DGM0[S30AW ND0]
No. of connectable indoor units Max.1
Total capacity index of connectable kW 7.03 8.79
indoor units kBtu/h 24 30
Power supply 1ø, 220-240V, 50Hz
Chassis

62008 Product Data
2. Nomenclature
Code Type Code of Model Meaning
1 Production Center, A~Z L: Chang-won R22
Refrigerant A: Chang-won R410A
2 Product Type A~Z S: Split Type Air Conditioner
3 Cooling/Heating/Inverter A~Z C: Cooling only
H: Heat pump
X: C/O + E/Heater
Z: H/P + E/Heater
V: AC Inverter C/O
N: AC Inverter H/P
Q: DC Inverter C/O
W: DC Inverter H/P
4, 5 Capacity 0~9 Cooling/Heating Capacity
Ex. "09" →9,000 Btu/h
6 Electric Range 1~9 1: 115V/60Hz,
A~Z 2: 220V/60Hz
3: 208-230V/60Hz
5: 200-220V/50Hz
6: 220-240V/50Hz
7: 110V, 50/60Hz
7 Chassis A~Z Name of Chassis
8 Look A~Z ART COOL models
B : Blue C : Cherry K : Mecca 1 : The Kiss(SF chassis)
W: White D : Wood R : Mirror 2 : The Sunset(SF chassis)
M: Metal Q : Quran 3 : London Bridge(SG chassis)
General Wall Mounted models
D –Look ( Panel Type)
G –Look ( Grille Type)
Glory Look :- (a) F –Look (Blue color)
(b) H –Look (Gold)
(c) J –Look (Silver)
9, 10 Function A~Z
11 Serial No. 1~9 LG Model Development Serial No.
12 - 345678910
A Basic
BBasic+4Way
CPlasma Filter
DPlasma Filter+4 Way
ETele+LCD
FTele+LCD+Nano plasma+4Way
G NBF F+(A/changeove)+A/clean+Low A
H NBF F+(A/changeove)+A/clean+4way+Low A
ITele+LED+4way
JInternet
KPlasma F+4Way+Oxygen generator
LNBF F+(A/changeove)+A/clean
MNBF F+(A/changeove)+A/clean+4way
NNBF F+(A/changeove)+A/clean+PTC
PNBF F+(A/changeove)+Autoclean+4way+PTC
QNBF F+(A/changeove)+A/clean+4way+Low A+PTC
RNegative ion+A/Clean
S(Nano)Plasma+Negative ion+A/Clean
T4way+(Nano)Plasma F+Negative ion+A/Clean
U
Nano Plasma F+4Way+(A/changeove)+A/clean+Oxygen generator
V 4way+(Nano)Plasma F+Negative ion+A/Clean+Oxygen generator
W Dry contact
Y Basic + Low A
AS W0964GG1

2008 Product Data 7
2. Nomenclature

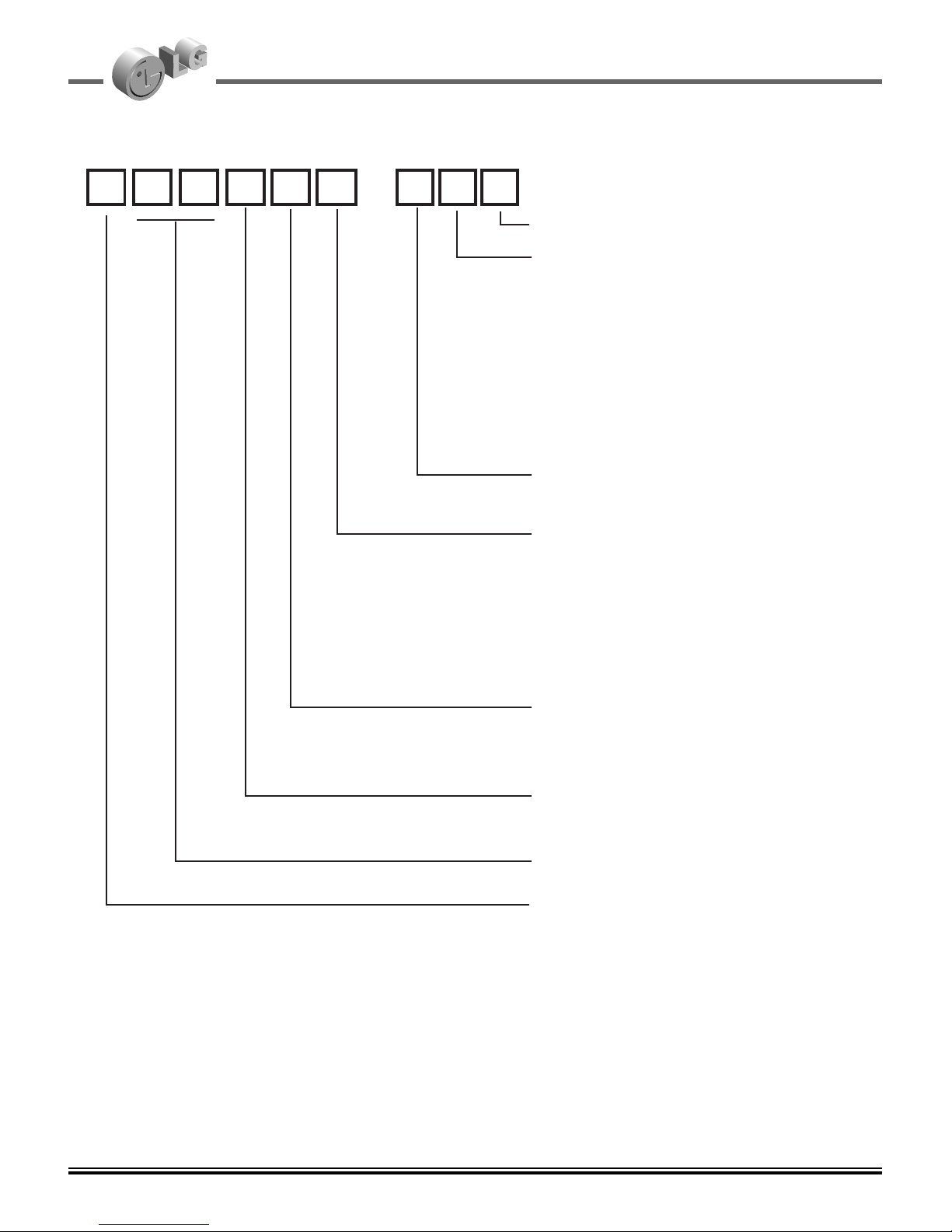

• Europe Model Number
C09AWM N1
Development sequence
Chassis
For ART COOL type
E : SE chassis
F : SF chassis
U : SU chassis
8 : S8 chassis
For Wall mounted type
D : SD chassis
4 : S4 chassis
5 : S5 chassis
Indicator for unit type
N : Indoor
Color of the Panel
(only ART COOL Models)
M : Metal (Silver)
R : Mirror (Black)
B : Blue
D : Wood
W : White
Type of Operation
W : DC inverter Deluxe
N : DC inverter Normal
Type of Refrigerant
A : R410A
Cooling / Heating Capacity (kBtu/h)
Model Type
A : ART COOL Panel type
C : ART COOL Mirror type
S : Wall mounted type
N

82008 Product Data
Environmental concern 2008
As the concern for environment increases day by day, EC Directive made it a regulation to put an indication on all
air conditioning products. With the information regarding energy-saving, customers will easily understand products
considering the environment.
Customers will have to purchase the products considering the energy label to meet their needs. Energy label
shows the energy consumption of the unit classified with 7 different colors.
LG Air Conditioners are environment-friendly and future-oriented.
LG air conditioners are environment-friendly and future-oriented.
To reduce freon gas, a prime ozone destroyer, we adopted an alternative refrigerant R-410A, and neo plasma
air-purifying system for powerful sterilization for health-conscious customers. Also, ARTCOOL series with
outstanding designs have received International Forum Design Award and Reddot Design Award.
These air-conditioners have improved air flow innovatively to realize world’s lowest noise, and provide a more
pleasant and convenient indoor environment.
3. Features & Benefits

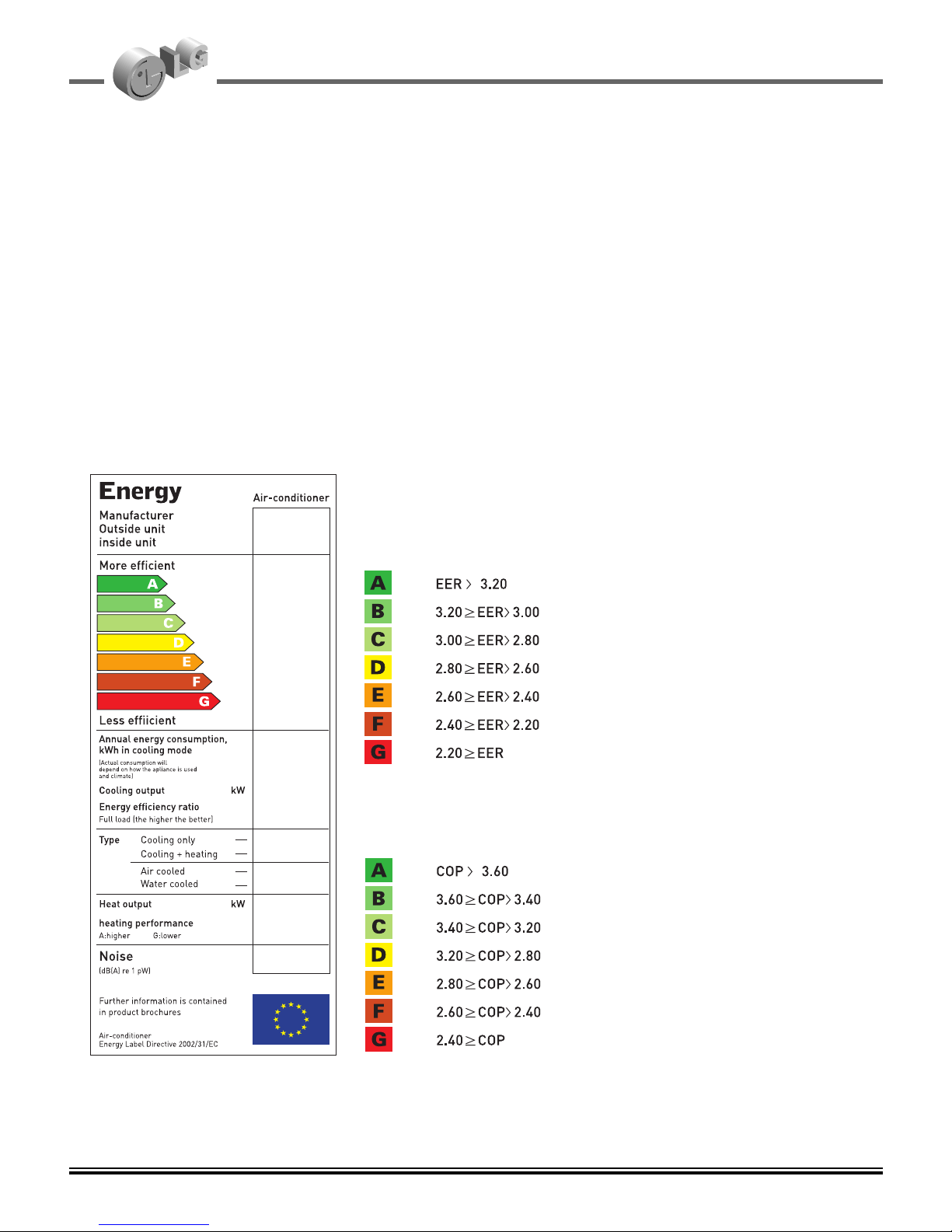

Energy Efficiency Class of
The Unit In Cooling Mode :
Energy Efficiency Class of
The Unit In Heating Mode :

2008 Product Data 9
3. Features & Benefits

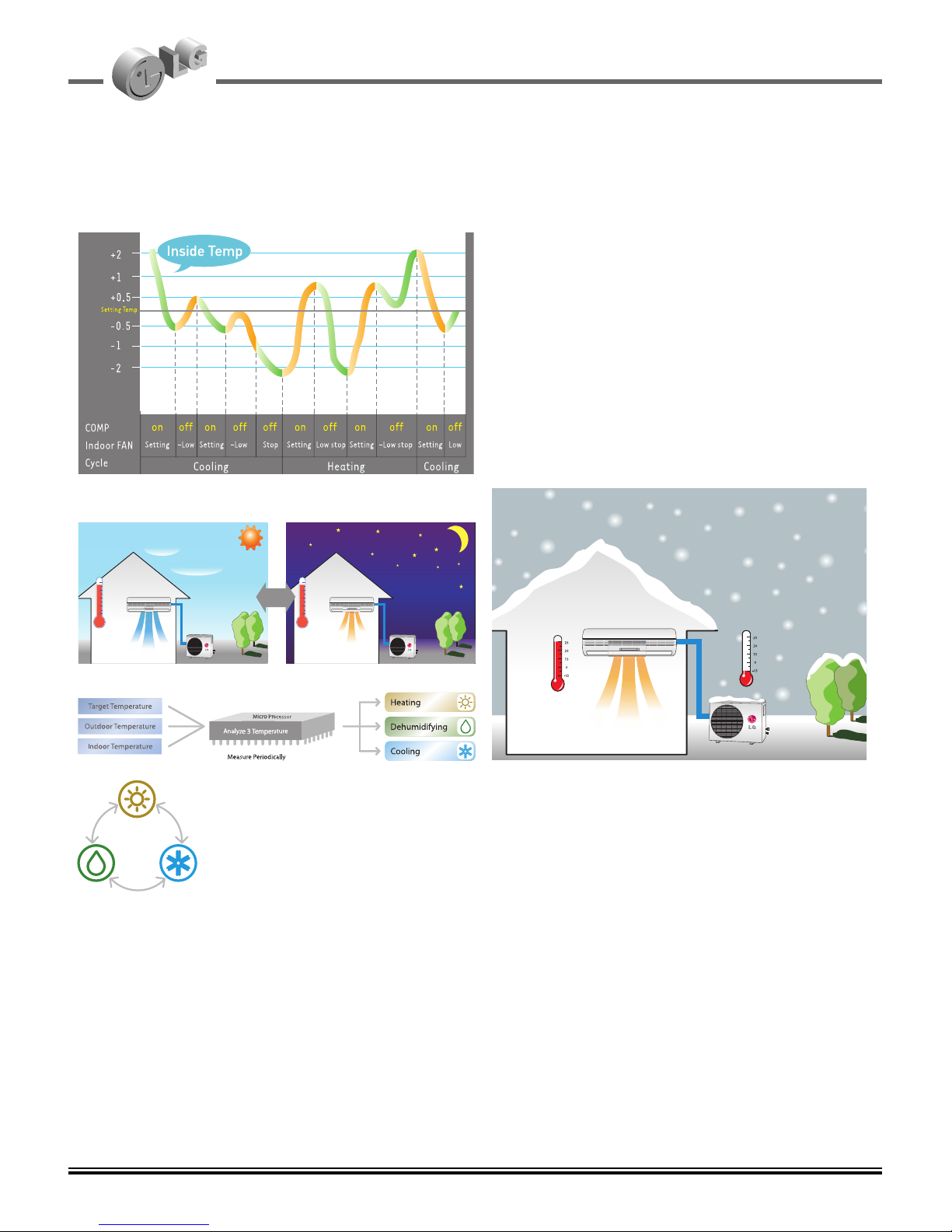

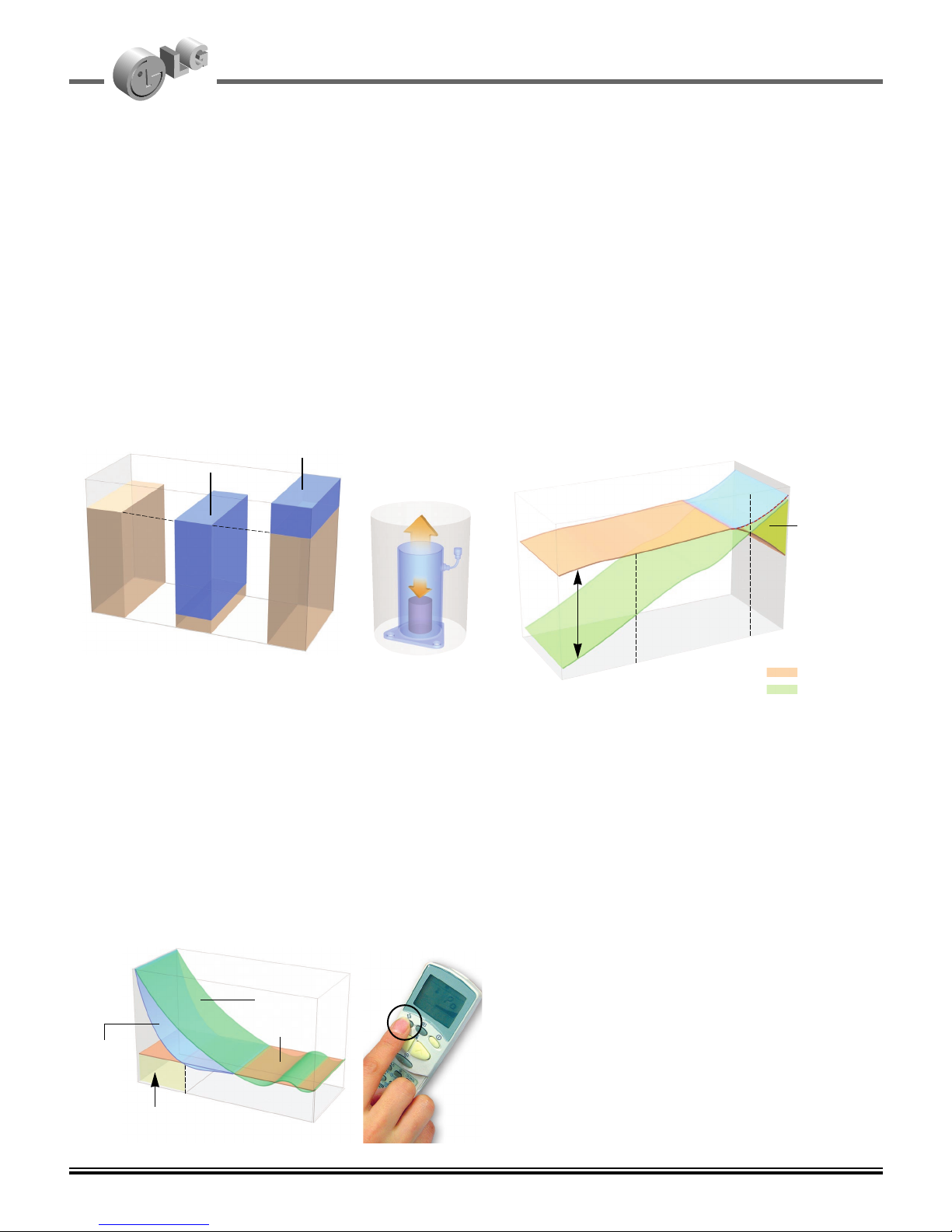

DC Inverter?
You may have heard the excitement about Inverter technology, LG Inverters are the pinnacle of energy efficiency
due to the innovative operation. Rather than using a constant speed compressor, the LG Inverter system uses a
variable speed compressor, which means the Cooling or Heating capacity of the Air Conditioning can be varied to
suit Indoor conditions.
This makes the LG Inverter Units more economical & efficient to operate, produce less noise than standard
counterparts and contain most superior features on the market. All LG Inverter units have the major benefits
including premium features like
Save 44%
Conventional
Conventional
Inverter
Inverter
Economical
■Energy Saving
Unlike ordinary Conventional air conditioners, inverter
air conditioners can control the speed of compressors
to adjust cooling and heating.
When indoor temperatures reach your desired levels,
inverter air conditioners can operate their compressors
at low speeds and maintain desired temperatures, thus
saving you electricity cost by about 44% compared to
conventional.
■Recouping the Initial Investment Cost
Though the initial purchase price is a little higher, in
case you use an inverter air conditioner in the long
term, you can reduce electricity cost to save on the
whole investment and management costs.
Money
Year
1Year
Energy
Saving
Energy Saving!
Low Noise!
Powerful
Cooling & Heating!
