LG ATNH24GPLE2 User manual

SINGLE ZONE
Heat pump 60Hz/R410A
6CSL0-01B (Replaces 6CSL0-01A)

SINGLE ZONE
• General Information
• Indoor Units
• Outdoor Units
• Design and installation

SINGLE ZONE
Introduction
Preface
New era brings more sophisticated and advanced buildings which in turn demands specialized and optimized direct expan-
sion air conditioning systems. Also energy efficiency, environment friendly, low noise and low maintenance cost are the fea-
tures which are essential for these systems.
As a part of vertical integration LG makes all the key components in house, which gives an edge to LG to make better and
latest technology products with best quality in optimized time.
SINGLE ZONE systems with are equipped with DC inverter technology and R410A refrigerant is perfect solution to various
installation locations.
LG SINGLE ZONE system consists of a single common outdoor unit for single indoor unit, such as ceiling cassette.
This Engineering product data book incorporates information about the product itself, its installation and designing for
SINGLE ZONE system.
The comprehensive study of this book will improve your knowledge about the system and its application in details.
LG Electronics Inc.
Air Conditioning & Energy Solution Company

SINGLE ZONE
Step by step SINGLE ZONE system selection process (reference)
(1) Calculate or obtain the maximum heat load for the area(s) to be air conditioned
(2)
(3)
(4)
1. Air conditioners should not be installed in areas where corrosive gases, such as acid gas
or alkaline gas, are produced.
2. If the outdoor unit is installed close to the sea shore, direct exposure to the sea breeze
should be avoided and choose an outdoor unit with anti-corrosion treatment.
CAUTION
Selection of the control system
Control wiring method
Description of devices
Electrical wiring
Electrical characteristics
Field wiring
Indoor unit specifications
Outdoor unit specifications
Capacity coefficient factor
Air flow and temperature distributions

SINGLE ZONE
Part 1 General information
1. Model Line up
2. Nomenclature
3. Individual Control System

General Information of
Outdoor Units
SINGLE ZONE
Heat pump 60Hz/R410A _ 1
1. Model Line up
1.1 Indoor Units
1.2 Outdoor Units
Nominal Capacity
Btu/h 24,000 42,000
kW 7.03 12.3
Model Names AUUW24GD2
[LUU247HV]
AUUW42GD2
[LUU427HV]
Power supply 208/230V, 1Ø, 60Hz
Chassis
Category Type Chassis
Model Name
Capacity, Btu/h(kW)
24,000 (7.03) 42,000 (12.3)
Ceiling
cassette 4way
TP ATNH24GPLE2
[LCN247HV]
TM ATNH42GMLE2
[LCN427HV]

General Information of
Outdoor Units
SINGLE ZONE
2_ Heat pump 60Hz/R410A
2. Nomenclature
A T N H 2 4 G P L E 2
Serial number
Functions
E : Elevation grille
Look
L : Basic
Chassis name
Electric ratings (Volts, Phase, Freq)
G : 220-240V, 1Ø, 50Hz
208/230V, 1Ø, 60Hz
Nominal cooling capacity in kBtu/h
24 : 24kBtu/h
42 : 42kBtu/h
Model type
H : Heat Pump
Indicates that this is a indoor unit for R410A
ATN : Ceiling cassette type indoor unit
A U U W 2 4 GD2
Model Type
D : Standard Inverter
Serial number
Electric ratings (Volts, Phase, Freq)
G : 220-240V, 1Ø, 50Hz
208/230V, 1Ø, 60Hz
Indicates that this is a
R410A outdoor unit
SINGLE ZONE
Model type
W : Inverter heat pump
Nominal cooling capacity in kBtu/h
24 :
42 :
24kBtu/h
42kBtu/h
2.1 Indoor Units (Global)
2.2 Outdoor Units (Global)

General Information of
Outdoor Units
SINGLE ZONE
Heat pump 60Hz/R410A _ 3
3. Individual Control System
3.1 Control systems (standard)
These controllers will be provided with the respective indoor units.
Type Individual controller Applicable model
Wired remote controller Ceiling cassette
PQRCVSL0QW

SINGLE ZONE
Part 2 Product data
nIndoor units
nOutdoor units

SINGLE ZONE
nIndoor units
Ceiling cassette 4-way
1.1 List of functions
1.2 Specifications
1.3 Dimensions
1.4 Piping diagrams
1.5 Wiring Diagrams
1.6 Air flow and temperature distributions (reference data)
1.7 Sound levels
1.8 Controller

Indoor Units
Heat pump 60Hz/R410A _ 1
1. Ceiling cassette 4-way
SINGLE ZONE
Note
1. * : These functions need to connect the wired remote controller.
O : Applied X : Not applied
Accessory model name : Installed at field, ordered and purchased separately by the corresponding model name, supplied with separate package.
Category Functions ATNH24GPLE2 [LCN247HV]
ATNH42GMLE2 [LCN427HV]
Air flow
Air supply outlet 4
Airflow direction control (left & right) X
Airflow direction control (up & down) Auto
Auto swing (left & right) X
Auto swing (up & down) O
Airflow steps (fan/cool/heat) 4 / 5 / 4
Chaos wind(auto wind) O
Jet cool/heat O / X
Swirl wind O
Air purifying
Triple filter (Deodorizing) X
Plasma air purifier PTPKM0
Allergy Safe filter X
Long-life prefilter (washable / anti-fungus) O
Installation
Drain pump O
E.S.P. control* X
Electric heater X
High ceiling operation* O
Auto Elevation Grille* PTEGM0
Reliability
Hot start O
Self diagnosis O
Soft dry operation O
Convenience
Auto changeover O
Auto cleaning X
Auto operation(artificial intelligence) X
Auto Restart O
Child lock* O
Forced operation O
Group control* O
Sleep mode O
Timer(on/off) O
Timer(weekly)* O
Two thermistor control* O
Individual
control
Wired remote controller O
Deluxe wired remote controller PQRCUDS0 / PQRCUDS0B / PQRCUDS0S
Simple wired remote controller PQRCVCL0Q / PQRCVCL0QW
Simple Wired remote controller(for hotel use) PQRCHCA0Q / PQRCHCA0QW
Wireless remote controller PQWRHDF0
CAC network
function
General central controller (Non LGAP) X
Network Solution(LGAP) O
Dry contact PQDSA(1) / PQDSB(1)/PQDSBC / PQDSBNGCM1
PI 485(for Indoor Unit) X
Special
function kit
Zone controller X
CTI(Communication transfer interface) X
Electronic thermostat X
Others Remote temperature sensor PQRSTA0
Telecom shelter controller X
1.1 List of functions

Indoor Units
2_ Heat pump 60Hz/R410A
1. Ceiling cassette 4-way
SINGLE ZONE
1.2 Specifications
Notes :
1. Wiring cable size must comply with the applicable local and national code.
2. Due to our policy of innovation some specifications may be changed without notification.
3. Sound Level Values are measured at Anechoic chamber.
Therefore, these values can be increased owing to ambient conditions during operation.
4. Acceptable operating voltage: 187V-253V
Model Name ATNH24GPLE2
[LCN247HV]
ATNH42GMLE2
[LCN427HV]
Power Supply V, Ø, Hz
Power Input W
Running Current A
Casing Color -
Dimensions Body W x H x D mm
W x H x D inch
Net Weight Body kg (lbs)
Heat
Exchanger
(Row x Column x Fins per
inch) x No. -
Face Area m2(ft2)
Fan
Type -
Air Flow Rate H / M / L m3/min
H / M / L ft3/min
Fan Motor Type -
Output W x No.
Dehumidification Rate
l /h (pts/h)
Sound Pressure Level H / M / L dB(A)
Sound Power Level dB(A)
Piping
Connections
Liquid mm(inch)
Gas mm(inch)
Drain (O.D. / I.D.) mm(inch)
Safety Devices -
-
Power and Communication Cable (included Earth) No. x mm2(AWG)
Decoration Panel
Model Name -
Casing Color -
Dimensions W x H x D mm
W x H x D inch
Net weight kg (lbs)
208/230, 1, 60
60
0.60
-
840 × 204 × 840
33-1/16 x 8-1/32 x 33-1/16
20.5 (45.2)
(2 x 8 x 19) x 1
0.35 (3.77)
Turbo Fan
17.0 / 15.0 / 13.0
600 / 530 / 459
BLDC
60 x 1
2.4 (5.1)
38 / 36 / 34
57
Ø 9.52 (3/8)
Ø 15.88 (5/8)
Ø
32.0(1-1/4) / 25.0(31/32)
Fuse
Thermal Protector for Fan Motor
4C x 0.75 (18)
PT-UMC
Morning Fog
950 × 25 × 950
37-13/32 x 31/32 x 37-13/32
5.0 (11.0)
208/230, 1, 60
120
1.00
-
840 × 288 × 840
33-1/16 x 11-11/32 x 33-1/16
24.6 (54.2)
(2 x 12 x 21) x 1
0.53 (5.65)
Turbo Fan
30.0 / 28.0 / 26.0
1,060 / 989 / 918
BLDC
124 x 1
3.6 (7.7)
46 / 44 / 40
65
Ø 9.52 (3/8)
Ø 15.88 (5/8)
Ø
32.0(1-1/4) / 25.0(31/32)
Fuse
Thermal Protector for Fan Motor
4C x 0.75 (18)
PT-UMC
Morning Fog
950 × 25 × 950
37-13/32 x 31/32 x 37-13/32
5.0 (11.0)

Indoor Units
Heat pump 60Hz/R410A _ 3
1. Ceiling cassette 4-way
SINGLE ZONE

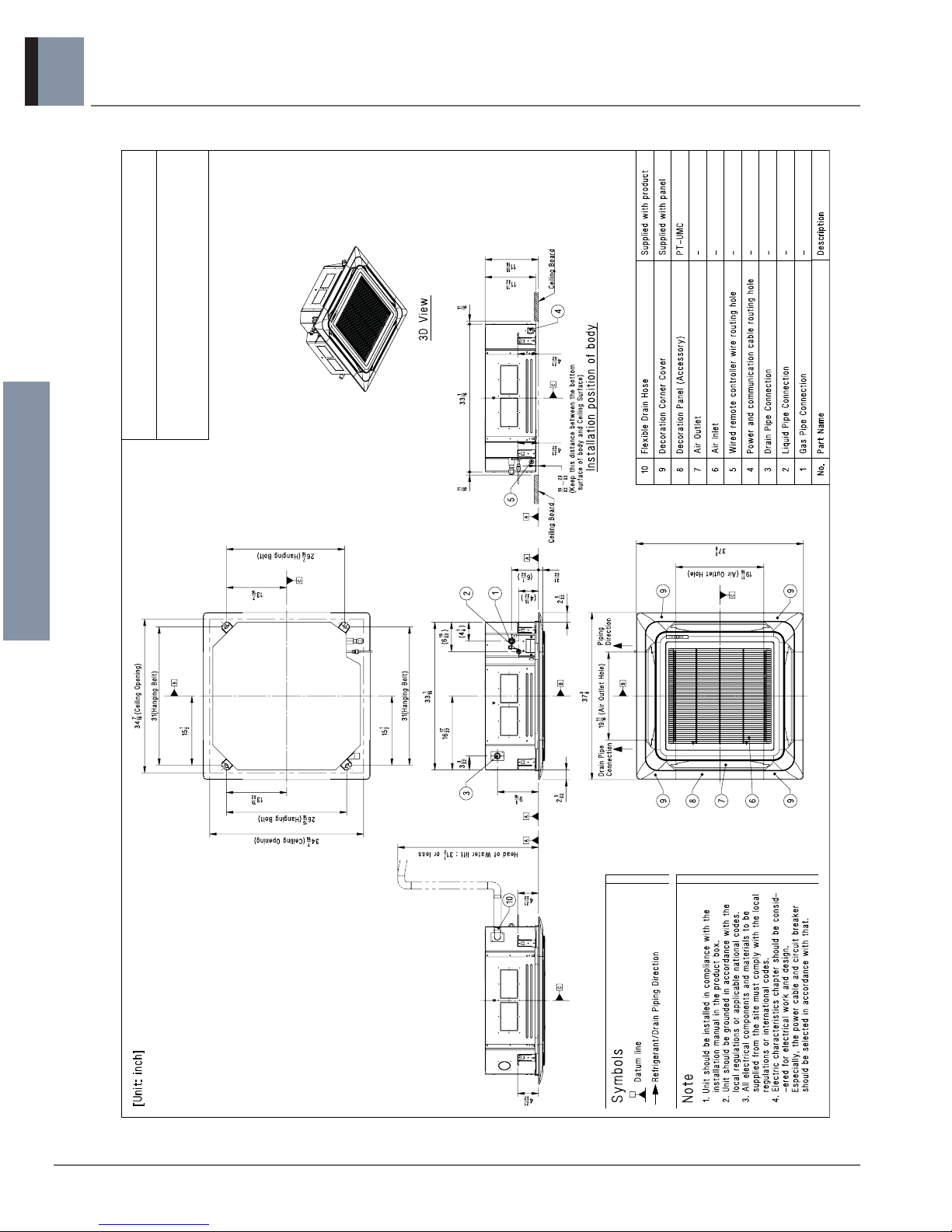

1.3 Dimensions
TP Chassis
ATNH24GPLE2 [LCN247HV]

Indoor Units
4_ Heat pump 60Hz/R410A
1. Ceiling cassette 4-way
SINGLE ZONE

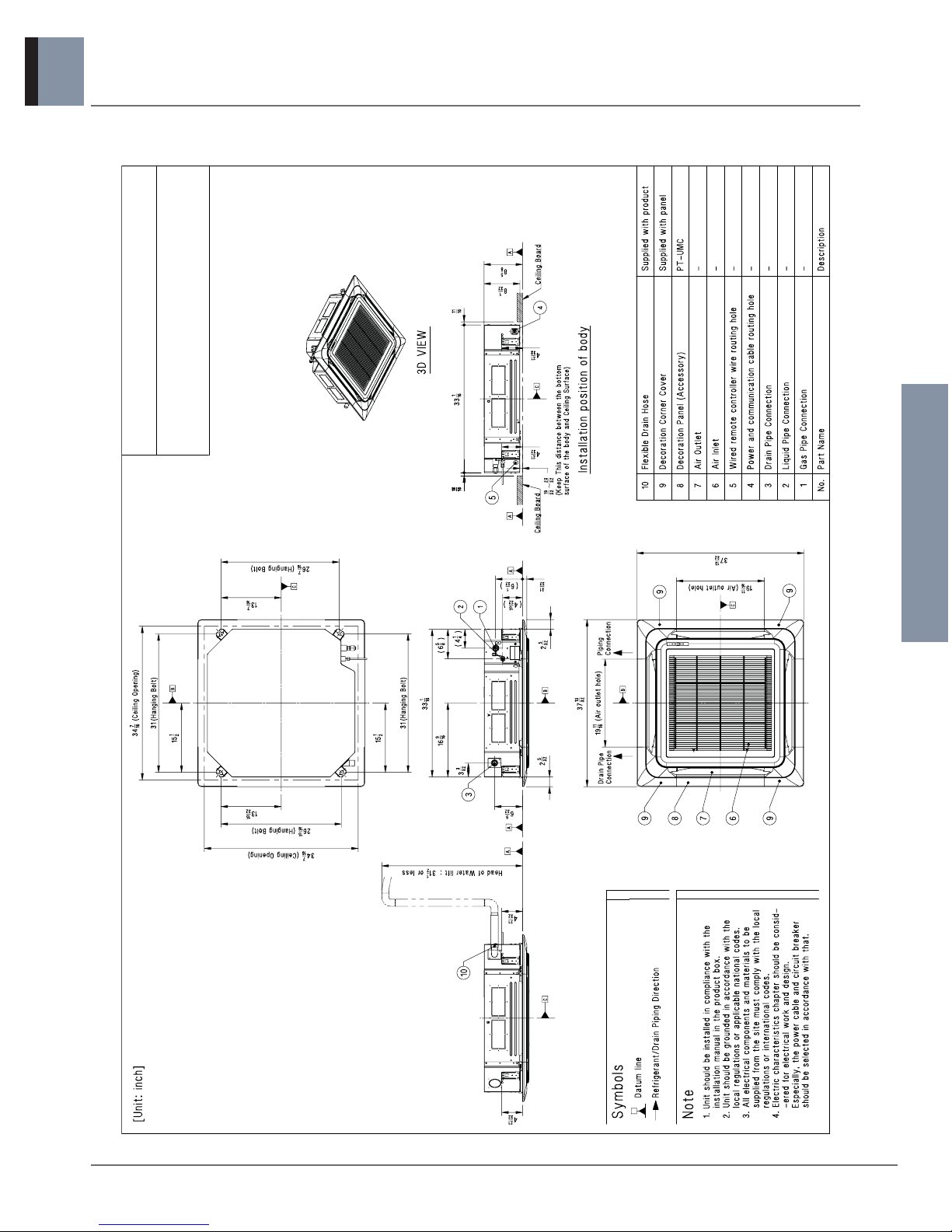

TM Chassis
ATNH42GMLE2 [LCN427HV]

Indoor Units
Heat pump 60Hz/R410A _ 5
1. Ceiling cassette 4-way
SINGLE ZONE
1.4 Piping diagrams
Heat exchanger Gas pipe connection port
(flare connection)
Liquid pipe connection port
(flare connection)
Turbo fan
Cooling
Heating
M
Thermistor for
suction air
temperature
Thermistor for
Evaporator
outlet temperature
Thermistor for
Evaporator inlet
temperature
nRefrigerant pipe connection port diameters
[Unit:mm(inch)]
Description PCB Connector
Thermistor for suction air temperature CN-ROOM
Thermistor for evaporator inlet temperature CN-PIPE / IN
Thermistor for evaporator outlet temperature CN-PIPE / OUT
Model Gas Liquid
ATNH24GPLE2 [LCN247HV]
Ø15.88(5/8) Ø9.52(3/8)
ATNH42GMLE2 [LCN427HV]

Indoor Units
6_ Heat pump 60Hz/R410A
1. Ceiling cassette 4-way
SINGLE ZONE
Models : ATNH24GPLE2 [LCN247HV] / ATNH42GMLE2 [LCN427HV]
1.5 Wiring diagrams


Indoor Units
Heat pump 60Hz/R410A _ 7
1. Ceiling cassette 4-way
SINGLE ZONE
Models : ATNH24GPLE2 [LCN247HV]
Cooling Heating
Discharge angle: 40°
Air velocity [ft/s]
Teftperature [°F]
9ft
7ft
3ft
0ft
13ft10ft10ft13ft 7ft7ft 3ft3ft 0ft
9ft
7ft
3ft
13ft10ft10ft13ft 7ft7ft 3ft3ft 0ft
9ft
7ft
3ft
0ft
13ft10ft10ft13ft 7ft7ft 3ft3ft 0ft
9ft
7ft
3ft
0ft
13ft10ft10ft13ft 7ft7ft 3ft3ft 0ft
6.6
6.6
4.6 4.6
3.3
3.3
Discharge angle: 50°
Air velocity [ft/s]
Teftperature [°F]
91
91
86 86
81
81
75
75
72
72
75
75
6.6 6.6
3.3
3.3
1.6
1.6
68
6464
68
72
72
73
73

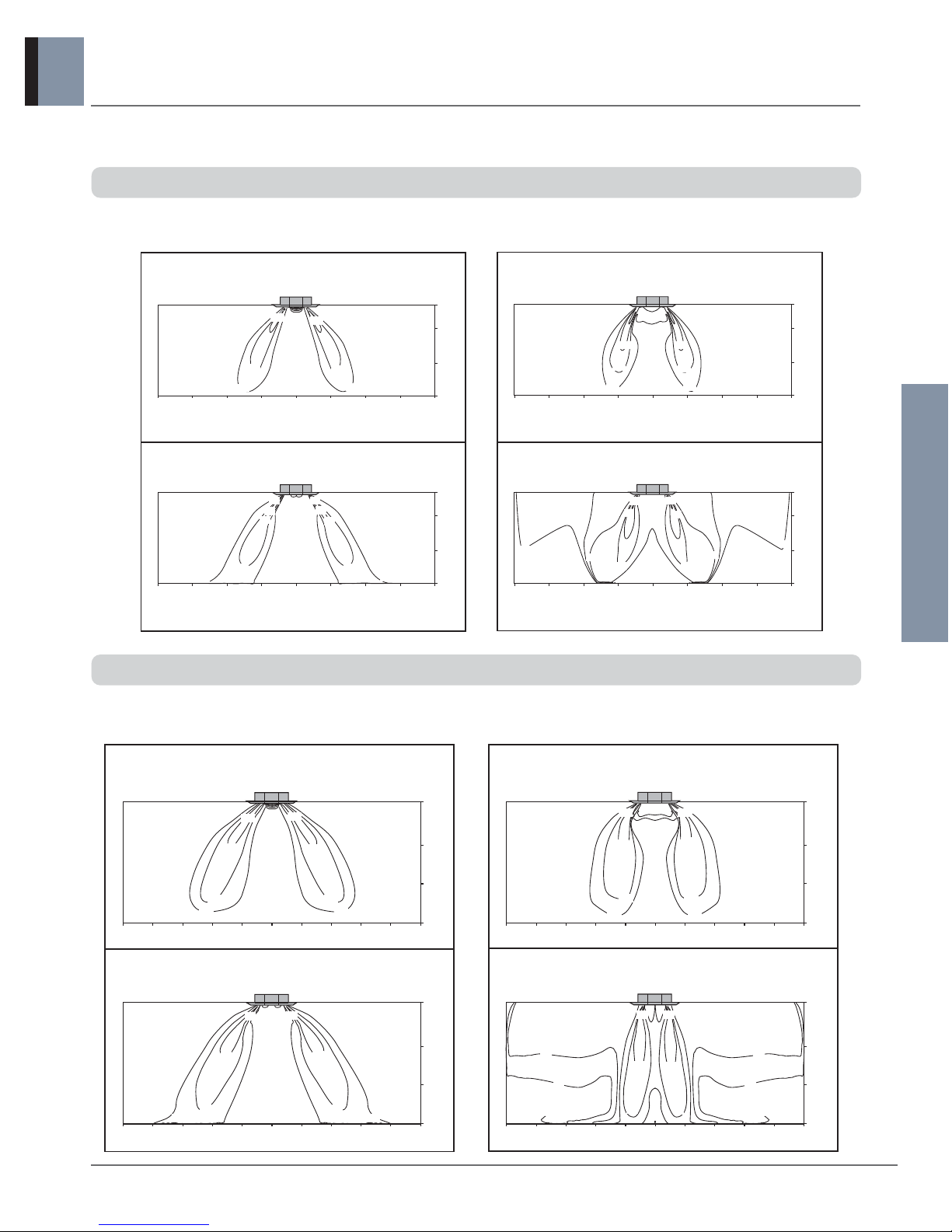

1.6 Air flow and temperature distributions (reference data)
Models : ATNH42GMLE2 [LCN427HV]
Cooling Heating
Discharge angle: 40°
Air velocity [ft/s]
Teftperature [°F]
13.1
13.1
9.8
9.8
6.6
6.6
3.3
3.3
Discharge angle: 50°
Air velocity [ft/s]
Teftperature [°F]
10.5ft
0ft
13ft 16ft10ft16ft 7ft3ft3ft 0ft
7ft
3ft
10ft 7ft13ft
10.5ft
13ft 16ft10ft16ft 7ft3ft3ft 0ft
7ft
3ft
10ft 7ft13ft
10.5ft
13ft 16ft10ft16ft 7ft3ft3ft 0ft
7ft
3ft
10ft 7ft13ft
10.5ft
13ft 16ft10ft16ft 7ft3ft3ft 0ft
7ft
3ft
10ft 7ft13ft
75
91 91
75
81 81
86 86
72
72
13.113.1
9.8 9.8
6.6
6.6
3.3
3.3
64
64
68
68
72
72 75
75

Indoor Units
8_ Heat pump 60Hz/R410A
1. Ceiling cassette 4-way
SINGLE ZONE

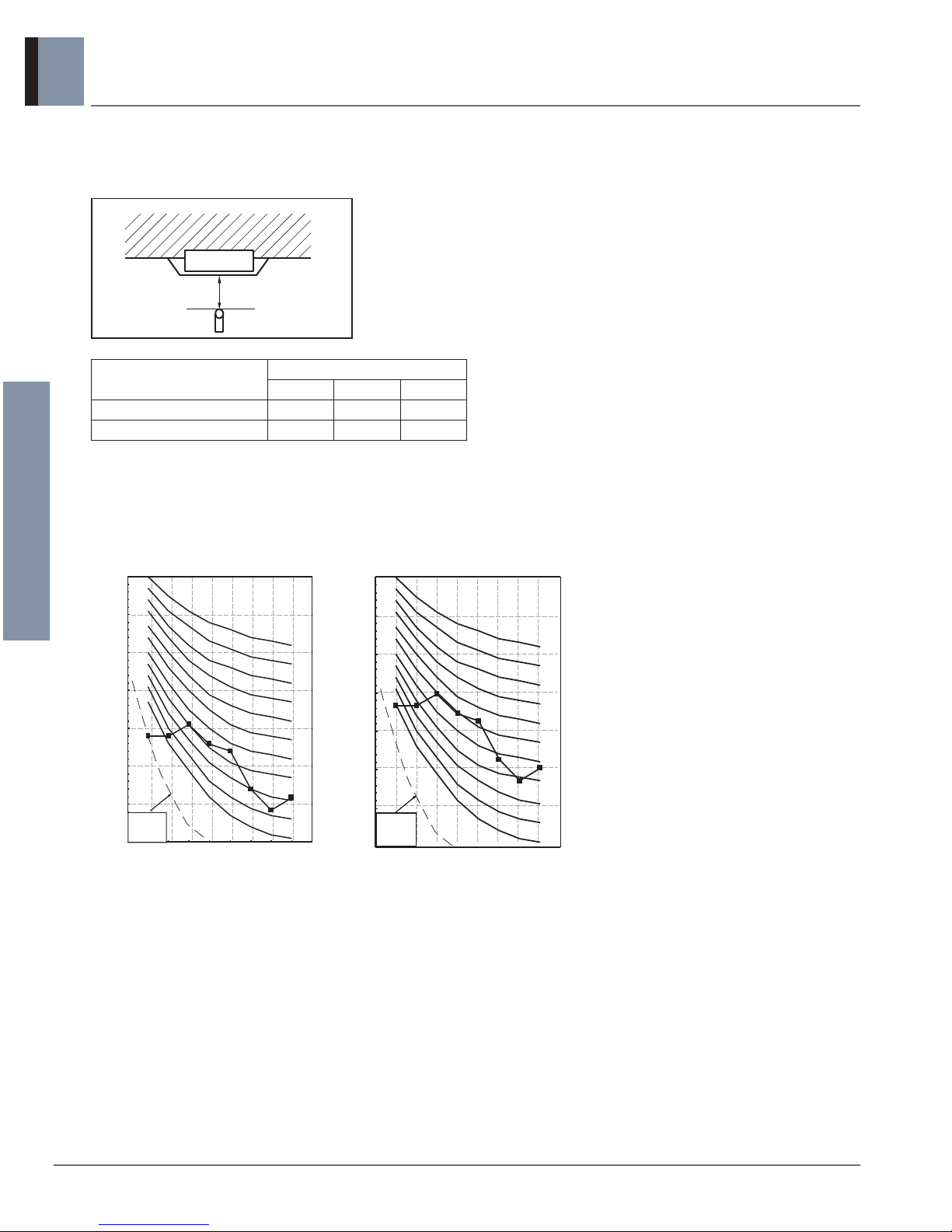

1.7 Sound levels
4.9ft
Ceiling
Octave Band Center Frequency (Hz)
Octave Band Sound Pressure Level (0dB = 20μPa)
10
20
30
40
50
60
70
80
63 125 250 500 1000 2000 4000 8000
NC-15
NC-20
NC-25
NC-30
NC-35
NC-40
NC-45
NC-50
NC-55
NC-60
NC-65
Approximate
Hearing
Threshold
Octave Band Center Frequency (Hz)
Octave Band Sound Pressure Level (0dB = 20μPa)
10
20
30
40
50
60
70
80
63 125 250 500 1000 2000 4000 8000
NC-15
NC-20
NC-25
NC-30
NC-35
NC-40
NC-45
NC-50
NC-55
NC-60
NC-65
Approximate
Hearing
Threshold
Overall
Sound pressure level
ATNH24GPLE2 [LCN247HV] ATNH42GMLE2 [LCN427HV]
Notes:
- Sound measured at 4.9ft away from the center of the unit.
- Data is valid at free field condition.
- Data is valid at nominal operation condition.
- Reference accoustic pressure 0dB=20μPa.
- Sound level will vary depending on a range of factors such as
the construction(acoustic absorption coefficient) of particular
room in which the equipment is installed.
- The operating conditions are assumed to be standard.
Model
Sound pressure Levels [dB(A)]
H M L
ATNH24GPLE2 [LCN247HV] 38 36 34
ATNH42GMLE2 [LCN427HV] 46 44 40

Indoor Units
Heat pump 60Hz/R410A _ 9
1. Ceiling cassette 4-way
SINGLE ZONE
1.8 Controller
Wired remote controller
Model name : PQRCVSL0QW (White Color_Supplied) / PQRCVSL0 (Black Color_Accessory)
Note :
hDisplay temperature can be different from actual room temperature if the remote controller is installed at the place where
sun-rays are falling directly or the place nearby heat source.
hThe actual product can be different from above contents depending upon model type.
hWhen using simultaneous operation system, whenever press remote controller button, system will approximately operate
after 1~2 minutes.
1
4
5
7
11
10
9
82
3
6
13
12
Please attach the inform label inside of the door.
Please choose proper language depend on your
country.
14
15
OPERATION INDICATION SCREEN
SET TEMPERATURE Button
FAN SPEED Button
ON/OFF Button
OPRATION MODE SELECTION Button
WIRELESS REMOTE CONTROLLER RECEIVER
• Some products don't receive the wireless signals.
AIR FLOW Button
SUBFUNCTION Button
FUNCTION SETTING Button
VENTILATION Button
RESERVATION
UP,DOWN,LEFT,RIGHT Button
• To check the indoor temperature, press
button.
ROOM TEMPERATURE Button
SETTING/CANCEL Button
EXIT Button
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
h Some functions may not be operated and displayed depending on the product type.

SINGLE ZONE
nOutdoor units
DC Inverter SINGLE ZONE
1. Power supply
2. List of functions
3. Specifications
4. Dimensions
5. Piping diagrams
6. Wiring diagrams
7. Capacity tables
8. Capacity coefficient factor
9. Operation range
10. Electrical characteristics
11. Field wiring diagram
12. Sound levels
