LG LB-B2156QC2 User manual

MFL62760203
1800-180-3575
(Toll Free)
www.lg.com/in/support
[e-mail]
CALL CLICK
www.facebook.com/lgindiapage
www.twitter.com/LGIndiaTweets
Regd. Office : LG Electronics India Pvt. Ltd., A Wing (3rd Floor), D-3, District Center, Saket, New Delhi - 110017
To know more about LG, visit www.lg.com
For Corporate/Instutional enquiries,
please write to [email protected]om
CALL CENTER
AIR
CONDITIONER
TYPE : LOW STATIC HIDE AWAY TYPE AIR CONDITIONER
Please read this manual carefully before operating
your set and retain it for future reference.
For single duct low static models

F or Your Records
R
ead This Manual
CAUTION
2
Low Static Hide Away Type Air Conditioner Owner's Manual
TABLE OF CONTENTS
Write the model and serial numbers here:
Model #
Serial #
You can find them on a label on the side of each unit.
Dealer's Name
Date Purchased
Inside you will find many helpful hints on how to use
and maintain your air conditioner properly. Just a little
preventive care on your part can save you a great
deal of time and money over the life of your air
conditioner.
You'll find many answers to common problems in the
chart of troubleshooting tips. If you review our chart of
Troubleshooting Tips first, you may not need to call
for service at all.
• Contact the authorized service technician for repair
or maintenance of this unit.
• Contact the installer for installation of this unit.
• The air conditioner is not intended for use by young
children or invalids without supervision.
• Young children should be supervised to ensure that
they do not play with the air conditioner.
• When the power cord is to be replaced, replacement
work shall be performed by authorized personnel
only.
• Installation work must be performed in accordance
with the national wiring standards by authorized
personnel only.
Page no.
1. Safety Precautions
2. Operating Instructions
3. Care and Maintenance
4.
Before you call for service
3
6
18
21

WARNING
WARNING
WARNING
CAUTION
Never Do This
Always Do This
WARNING
WARNING
Precautions
Safety
Precautions
3
To prevent injury and property damage, follow these instructions.
Incorrect operation due to ignoring instructions will cause harm or damage, the seriousness of which is
indicated by the following symbols.
n Do not install, remove and reinstall the unit by yourself.
• Improper installation will cause water leakage, electrical shock, or fire. Please consult
authorized dealer or specialist for the installation work. Please note fault caused by improper
installation is not covered by warranty.
• Unit must be installed in an easily accessible area. Any additional cost required to hire a
special equipment to service the unit will be the responsibility of the customer.
Do not damage or use an
unspecified power cord.
• It will cause electrical shock or fire.
• If the supply cord is damaged, it must be
replaced by the manufacturer or its
service agent or a similarly qualified
person in order to avoid a hazard.
Do not operate switches
with wet hands.
• It may cause electrical shock.
Plug in the power plug
properly.
• Otherwise, it will cause
electrical shock or fire due to
heat generation.
Do not operate or stop the
unit by inserting or pulling
out the power plug.
• It will cause electrical shock or
fire due to heat generation.
Do not insert your finger or
stick, etc. into the air inlet/air
outlet.
• Since the fan rotates at high
speed, this may cause an injury
or damage the unit.
Do not expose the skin to
cool air directly for a long
time.
• This could damage your health.
When an abnormality (smell of burning, etc)
occurs, stop the air conditioner, and
turn off the breaker.
• If the unit continues to be operated in an abnormal
condition, it may cause a fire, trouble, etc. In this
case, consult your dealer.
Repair or relocation should not be done by the
customer.
• If this is done in correctly, it may cause a fire,
electric shock, injury by dropping of the unit, water
leakage, etc. Consult your dealer.
This symbol shows the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage to property.
Installation precautions

CAUTION
CAUTION
4
CAUTION
CAUTION
Do not clean the air
conditioner with water.
l Water may enter the unit and
degrade the insulation. It may
cause an electric shock.
Ventilate well when used
together with a stove, etc.
l An oxygen shortage may occur.
When the unit is to be
cleaned, switch off, and turn
off the breaker.
l Since the fan rotates at high
speed during operation, it may
cause an injury.
Do not put a stove, etc.
where is exposed to direct
air flow.
l It may cause imperfect
combustion.
When the unit is not going to
be used for a long time, turn
off the breaker.
l It may cause an injury.
Do not step on the outdoor
unit and do not put anything
on it.
l It may cause an injury through
dropping or falling down.
Do not operate for a long
time in high humidity, e.g.
leaving a door or window
open.
l In the cooling mode, if it is
operated in a room with high
humidity (80%r.h. or more) for a
long time, water condensed in
the air conditioner may drop and
may wet and spoil furniture, etc.
Do not step onto an unstable
bench when
attaching/detaching the
panel.
l It may case an injury, etc. by
falling down.
Do not use for special
purposes.
l Do not use this air conditioner to
preserve precision devices, food,
animal, plants and art objects.
It may cause deterioration of
quality, etc.
If the supply cord is damaged, it
must be replaced by a special cord
or assembly available from the
manufacturer of its service agent.
l If will cause electrical shock or
fire.
When the air filter is to be
removed, do not touch the
metal parts of the indoor unit.
l It may cause an injury.
• Contact the authorized Service technician for repair or maintenance of this unit.
• Contact the installer for installation of this unit.
• The air conditioner is not intended for use by young children or infirm persons without
supervision.
• Young children should be supervised to ensure that they do not play with the air conditioner.

Wide LCD Wired Remote Controller (Optional)
5

8. Operating Instructions
A) Indoor Unit, Outdoor Unit
Wired Remote
Controller (Optional)
Operation Indication Lamps
Wireless Remote Receiver & Controller
(Standard)
6
LG
COMP POWER
FILTER
TIMER
ON/OFF
4
2
5
3
1
Signal Recepter
LG
COMP POWER
FILTER
TIMER
ON/OFF
Forced Operation : Use the ON/OFF button when remote control is not available.
TIMER : Lights up during timer operation.
Signal Receptor : Receives the signal from remote control (signal receiving sound:
switch on)
one long beep)
FILTER SIGN : Lights up after 240 hours from the time of first power on operation.
1
2
3
4
COMP
ON/OFF
: Lights up during outdoor operation (i.e. when compressor
: Lights up during system operation.
5
6
Part Function Before After
SW LED Error Display
-Operation LED –1st digit error # Error
-Clean filter LED –10thdigit error # Error
-ReservationLED –100th digit error # Error
-Comp LED –LED OFF
Display flash control
-Errordisplay order : Repeat 1
st digit # à10th digit # à100thdigit #
display
-Central Controller address display order : Repeat Indoor unit # àGroup #
display
-Repeat 0.5s OFF + 0.5s ON Toggle in 1s cycle
-1 cycle OFF after # display is completed
Ex) When CH121 is displayed
0.5s
COMP Power
Timer Filter
6

B) Remote Control Preparation
Outdoor Unit
Air Intake
(side, rear) Connecting Wire
Drain Hose
Power Wire
Connection Tube
Air Outlet
Vents
Cooling model: Low static Type Air Conditioner for cooling
7

Cooling Mode

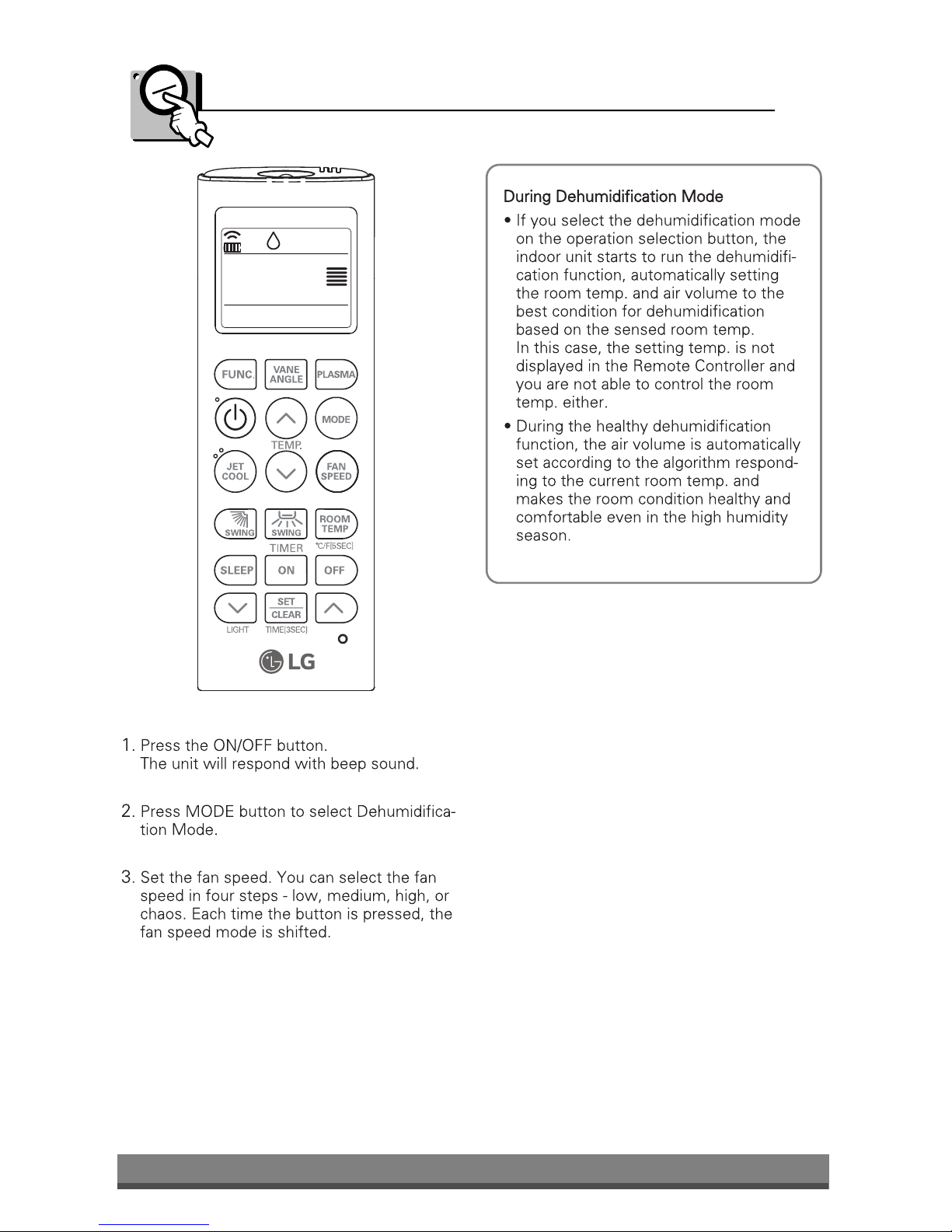

Dehumidification mode
Operation Mode
Fan Mode
Auto Operation Mode
C) Remote Control Operations
8

Installer Setting - How to enter installer setting mode
9

Installer Setting - Installer Setting Code Table
10
