LG LP0817WSR User manual

ENGLISH ESPAÑOL
P/NO : COV34636802
Rev.0
www.lg.com
Copyright © 2016 - 2017 LG Electronics Inc. All Rights Reserved.
Read this owner's manual thoroughly before operating
the appliance and retain it for future reference.
TYPE : PORTABLE AIR CONDITIONER
MODEL : LP0817WSR
LP1017WSR
LP1217GSR
LP1417SHR
LP1417GSR
LP1417WSRSM
COV34636802 2017. 8. 4. 오전 9:07 페이지 1

2
.................................8
........................................10
...................................................................12
........................................7
...........................................................6
......................................3
...........................................14
.............................15
..............................15
........................16
....................17
................19
......................................................21
........................23
.....................................................24
..............................................24
.......................................25
........................................26
............................28
TABLE OF CONTENTS
Important Safety Instructions
Electrical Safety
Before Using the Air Conditioner
Control Panel and Remote
Operation
Installation in Vertical-Sliding Windows
Installation in Horizontal-Sliding Windows
Heating Drainage
Emptying the Water Collection Tank
.................................13
Using Smart ThinQ Application
SMART FUNCTIONS
COV34636802 2017. 8. 3. 오후 1:33 페이지 2

SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
WARNING
Installation
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and
follow all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or injure you and others.
All safety messages will follow the safety alert symbol and either the word WARNING or CAUTION.
WARNING
If you do not follow instructions, it could result in death or serious injury.
CAUTION
If you do not follow instructions, it could result in minor or moderate injury or damage to the
product.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury,
and tell you what may happen if the instructions are not followed.
To reduce the risk of explosion, fire, death, electric shock, injury or scalding to persons when using this product,
follow basic precautions, including the following:
• Before use, the appliance must be properly installed as described in this manual.
• Connect to a properly rated, protected, and sized power circuit to avoid electrical overload.
• Always plug into a grounded outlet.
• Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.
• When installing or moving the appliance, be careful not to pinch, crush, or damage the power cord.
• Do not modify or extend the power cord.
• Do not disassemble or modify the product.
• Adhere to all industry recommended safety procedures including the use of long-sleeved gloves and safety
glasses.
• Use care when unpacking and installing. The edges of the product may be sharp.
• Disconnect the power cord or circuit breaker before installing or servicing the appliance.
• Keep packaging materials out of the reach of children. These materials can pose a suffocation risk to
children.
• Store and install the product where it will not be exposed to temperatures below freezing or exposed to
outdoor weather conditions.
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
ENGLISH
3
COV34636802 2017. 8. 3. 오후 1:33 페이지 3

4
SAFETY INSTRUCTIONS
Operation
• Use this appliance only for its intended purpose.
• Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has
missing or broken parts, including a damaged cord or plug.
• Repair or immediately replace all power cords that have become frayed or otherwise damaged. Do not use a
cord that shows cracks or abrasion damage along its length or at either end.
• Do not run cord under carpets or mats where it could be stepped on and damaged.
• Keep the cord out from under heavy objects like tables or chairs.
• Do not place the power cord near a heat source.
• Do not use an adaptor or plug the product into a shared outlet.
• If you detect a strange sound, a chemical or burning smell, or smoke coming from the appliance, unplug it
immediately, and contact an LG Electronics Customer Information Center.
• Never unplug the appliance by pulling on the power cord. Always grip the plug firmly and pull straight out
from the outlet.
• Do not grasp the power cord or touch the appliance controls with wet hands.
• If water enters the product, turn off the power at the main circuit, then unplug the product and call for service.
• If the product has been submerged, contact an LG Electronics Customer Information Center for instructions
before resuming use.
• Unplug the product when unused for long periods.
• Unplug the product before cleaning.
• In the event of a gas leak (propane gas, etc.) do not operate this or any other appliance. Open a window or
door to ventilate the area immediately.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning the use of the appliance by a person responsible for their safety.
• Do not tamper with controls.
• The interior of the product must only be cleaned by an authorized service center or a dealer.
• Do not use solvent-based detergent on the product. Doing so can cause corrosion or damage, product
failure, electrical shock, or fire.
COV34636802 2017. 8. 3. 오후 1:33 페이지 4

ENGLISH
5
SAFETY INSTRUCTIONS
CAUTION
Operation
To reduce the risk of minor injury to persons, malfunction, or damage to the product or property when using this
product, follow basic precautions, including the following:
• This appliance is not intended for use as a precision refrigeration system. Do not use it for special purposes
such as maintaining pets, food, precision machinery, or art objects.
• Make sure the air inlet and outlet are free from obstructions.
• Use a soft cloth to clean the appliance. Do not use waxes, thinners, or harsh detergents.
• Do not step on or place heavy objects on top of the appliance.
• Do not operate the appliance without the filter securely installed.
• Clean the filter every two weeks.
• Do not drink water drained from the appliance.
• If the batteries leak onto your clothes or skin, remove contaminated clothing and rinse skin thoroughly with
soap and water. Do not use the remote if the battery has leaked.
• If the battery or the liquid inside it are ingested, do not induce vomiting or give food or drink. Contact a
physician immediately.
COV34636802 2017. 8. 3. 오후 1:33 페이지 5

6
SAFETY INSTRUCTIONS

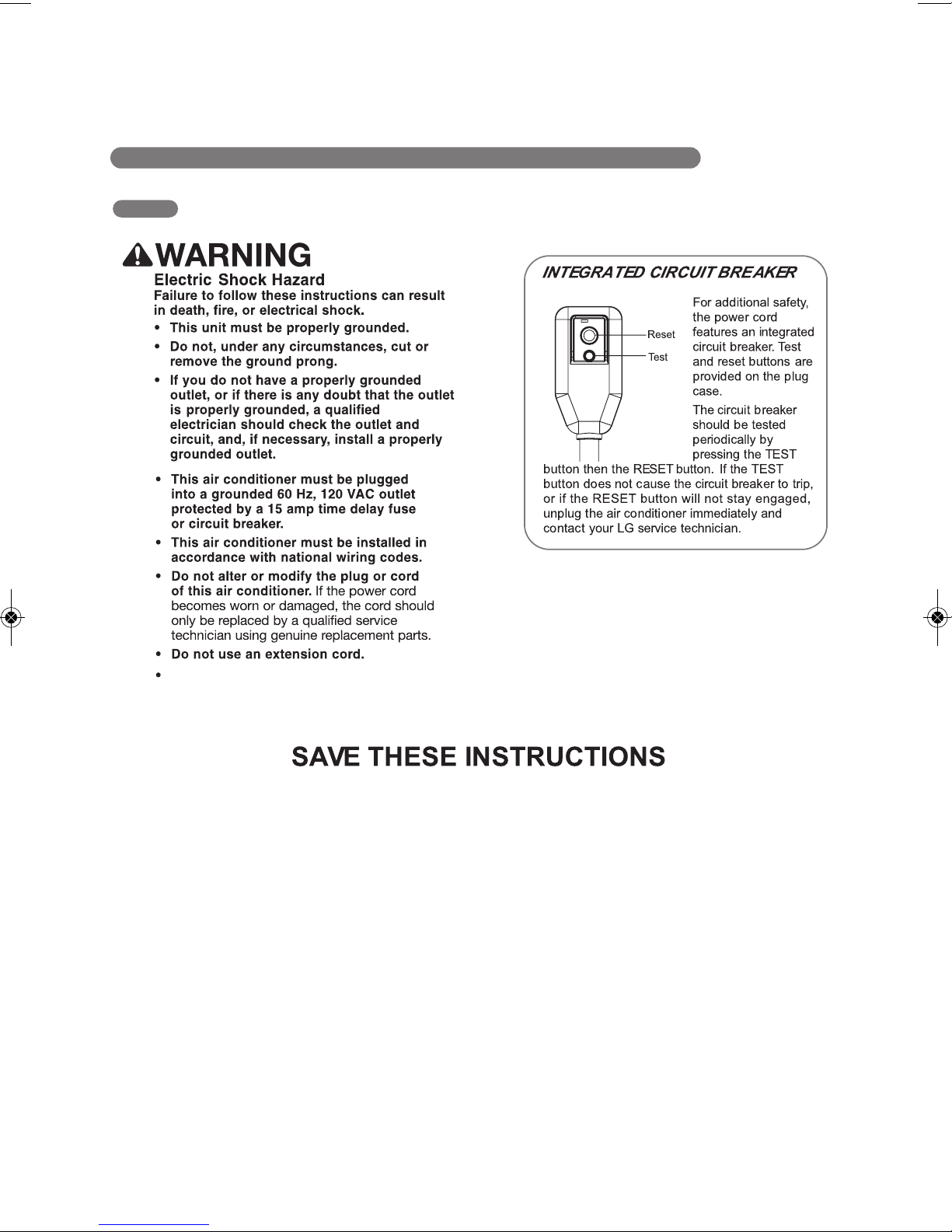

ELECTRICAL SAFETY
Do not use an adapter with this appliance.
COV34636802 2017. 8. 3. 오후 1:33 페이지 6

ENGLISH
7
temperature, and
using the bottom drain port.
COV34636802 2017. 8. 3. 오후 1:33 페이지 7

8
BEFORE USING THE AIR CONDITIONER
Doing so
are
they do
place the appliance near
COV34636802 2017. 8. 3. 오후 1:33 페이지 8

ENGLISH
9
BEFORE USING THE AIR CONDITIONER
the

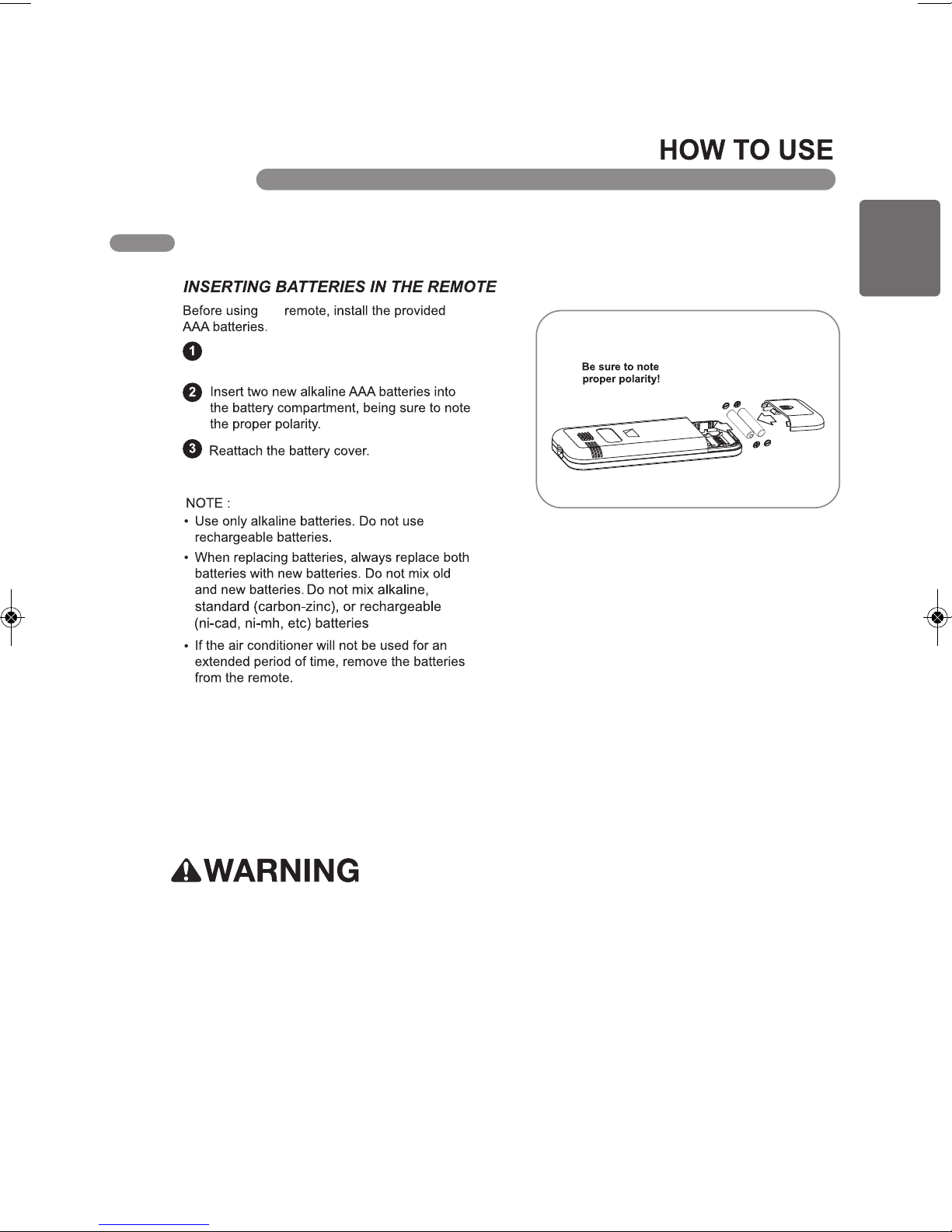

Press and slide to remove the battery cover
on the back of the remote.
• If the batteries leak onto your clothes or skin, remove contaminated clothing and rinse skin
thoroughly with soap and water. Do not use the remote if the battery has leaked.
• If the battery or the liquid inside it are ingested, do not induce vomiting or give food or drink. Contact
a physician immediately.
COV34636802 2017. 8. 3. 오후 1:33 페이지 9

10
Operation of functions is the same when using the
remote or the control panel, unless otherwise stated.
The remote and the control panel are not in sync.
For best results when using the remote, remember
to check that all desired settings are correct on the
remote as well as on the control panel.
NOTE:
The remote sensor is located on the front panel of
the air conditioner. Point the remote from anywhere
at the sensor.
The remote may not work if the sensor is in bright
light or if there is not a clear path between the
remote and the sensor.
Some functions may not be supported, depending
on the model.
Turns the air conditioner on and off.
A chime sounds to confirm you have turned it on or off.
Press this button repeatedly to toggle through and select
the operating mode. Modes include Cool, Dry (dehumidi-
fy), Fan, and Heat. An LED illuminates to indicate the
selected mode. The default mode is Cool. See the
Operation section for more information.
NOTE: Press and hold the Mode button on the remote for
3 seconds to switch the temperature display from degrees
Celsius (°C) to degrees Fahrenheit (°F).
Press repeatedly to toggle the fan speed between High
and Low settings. An LED illuminates to indicate the
selected fan speed. The fan speed can be changed in the
Cool, Fan, and Heat modes. The fan speed is preset in the
Dry mode. After pressing the button, there is a brief delay
before the fan motor changes speed.
Use the timer function to set the air conditioner to turn on
or off at a desired time. The timer function can only be set
using the remote. See the Operation section for more
information.
COV34636802 2017. 8. 3. 오후 1:33 페이지 10

ENGLISH
11
one-degree
one-hour increments.
runs the compressor until
cycles the compressor
SLEEP mode can be used with any of the four modes.
This function gives you a more comfortable environment
for sleep.
The appliance will stop operation automatically after
operating for 8 hours.
The fan speed is automatically set to Low.
This function can only be activated from the remote.
Sets the air discharge louvers to open and shut,
circulating the air more effectively through the room.
This function can only be set from the remote.
If the louvers do not move properly, unplug and plug in
the power cord.
LED display shows the set temperature, fan speed, or
the selected TIMER delay.
LEDs illuminate to indicate the active Mode, fan speed,
and other settings. An E5 error code displays when the
water drain tank needs to be emptied.
If you use the Heat mode, you must install the drain
hose. (See pages 21-22 for more information.) If only
the Cool mode is used, the drain hose is not needed.
DRAIN PUMP (Optional)
COV34636802 2017. 8. 3. 오후 1:33 페이지 11

12
HOW TO USE
OPERATION
MODES
COOL( )
Compressor runs and cools the room. Use the ƞ.Ơ
and FAN buttons to set the desired temperature and
fan speed. The desired temperature can be set from
60°F to 86°F (16°C to 30°C) in one-degree
increments.
FAN( )
Fan circulates air but compressor does not run. Use
the FAN button to set the desired fan speed to either
High or Low.
DRY( )
Use the Dry mode to remove humidity from the room
without additional cooling. The fan speed is preset
and cannot be adjusted.
HEAT( ) (Optional)
Compressor runs and heats the room. Use the ƞ.Ơ
and FAN buttons to set the desired temperature and
fan speed. The desired temperature can be set from
60°F to 86°F (16°C to 30°C) in one-degree
increments.
TIMER
Use the Timer function to turn the air conditioner
ON/OFF automatically.
Setting the Air Conditioner to Turn ON
1. Plug in the air conditioner and use the remote to
power it ON.
2. Use the remote to set the desired mode,
temperature, fan speed, etc.
3. Use the remote to power OFF the air conditioner.
4. Press TIMER on the remote and use the ƞ.Ơ
buttons to set the desired delay time until the air
conditioner turns ON. The delay time can be set
from 0 to 24 hours in one-hour increments.
5. Press TIMER again to enter the delay time. The
TIMER LED on the air conditioner illuminates, and
the delay time appears on the remote and in the
control panel.
6. To cancel the Timer function, press TIMER on the
remote.
Setting the Air Conditioner to Turn OFF
1. Plug in the air conditioner and use the remote to
power it ON.
2. Use the remote to set the desired mode,
temperature, fan speed, etc.
3. Press TIMER on the remote and use the ƞ.Ơ
buttons to set the desired delay time until the air
conditioner turns OFF. The delay time can be set
from 0 to 24 hours in one-hour increments.
4. Press TIMER again to enter the delay time. The
TIMER LED on the air conditioner illuminates, and
the delay time appears on the remote. The delay
time appears briefly in the control panel and is then
replaced by the set temperature.
5. To cancel the Timer function, press TIMER on the
remote.
COV34636802 2017. 8. 3. 오후 1:33 페이지 12

ENGLISH
13
SMART FUNCTIONS
Using Smart ThinQ Application (on some models)
Installing Smart ThinQ
Search for the LG Smart ThinQ application from the
Google Play Store or Apple App Store on a smart
phone. Follow instructions to download and install the
application.
Product Registration
1Run the LG Smart ThinQ application on a smart
phone.
2Create an account and sign in.
3Select Register.
4Select Air conditioner.
5Follow the instructions on the smart phone.
Wi-Fi Function
•For appliances with the logo
Communicate with the appliance from a smart phone
using the convenient smart features.
Using the Application
1Select the appliance in the application and
connect it to a Wi-Fi network.
2Select the menu on the upper right side to
access settings and features.
Firmware Update
Keep the appliance performance updated.
Settings
Allows you to set various options on the appliance
and in the application.
NOTE
•To verify the Wi-Fi connection, check that Wi-Fi
icon on the control panel is lit.
•LG Smart ThinQ is not responsible for any network
connection problems or any faults, malfunctions, or
errors caused by network connection.
•The machine supports 2.4 GHz Wi-Fi networks
only.
•If the appliance is having trouble connecting to the
Wi-Fi network, it may be too far from the router.
Purchase a Wi-Fi repeater (range extender) to
improve the Wi-Fi signal strength.
•The Wi-Fi connection may not connect or may
be interrupted because of the home network
environment.
•The network connection may not work properly
depending on the internet service provider.
•The surrounding wireless environment can make
the wireless network service run slowly.
•The application is subject to change for appliance
improvement purposes without notice to users.
•Functions may vary by model.
Open Source Software Notice
Information
To obtain the source code under GPL, LGPL, MPL,
and other open source licenses, that is contained in
this product, please visit http://opensource.lge.com.
In addition to the source code, all referred license
terms, warranty disclaimers and copyright notices are
available for download.
LG Electronics will also provide open source code
to you on CD-ROM for a charge covering the cost
of performing such distribution (such as the cost of
media, shipping, and handling) upon email request
to [email protected]. This offer is valid for three
(3) years from the date on which you purchased the
product.
COV34636802 2017. 8. 4. 오전 9:03 페이지 13

14
Lock Nut
(Optional)
Drain Pipe
(Optional)
Flexible Vent Hose DiffuserMounting
Bracket
COV34636802 2017. 8. 3. 오후 1:33 페이지 14

ENGLISH
15

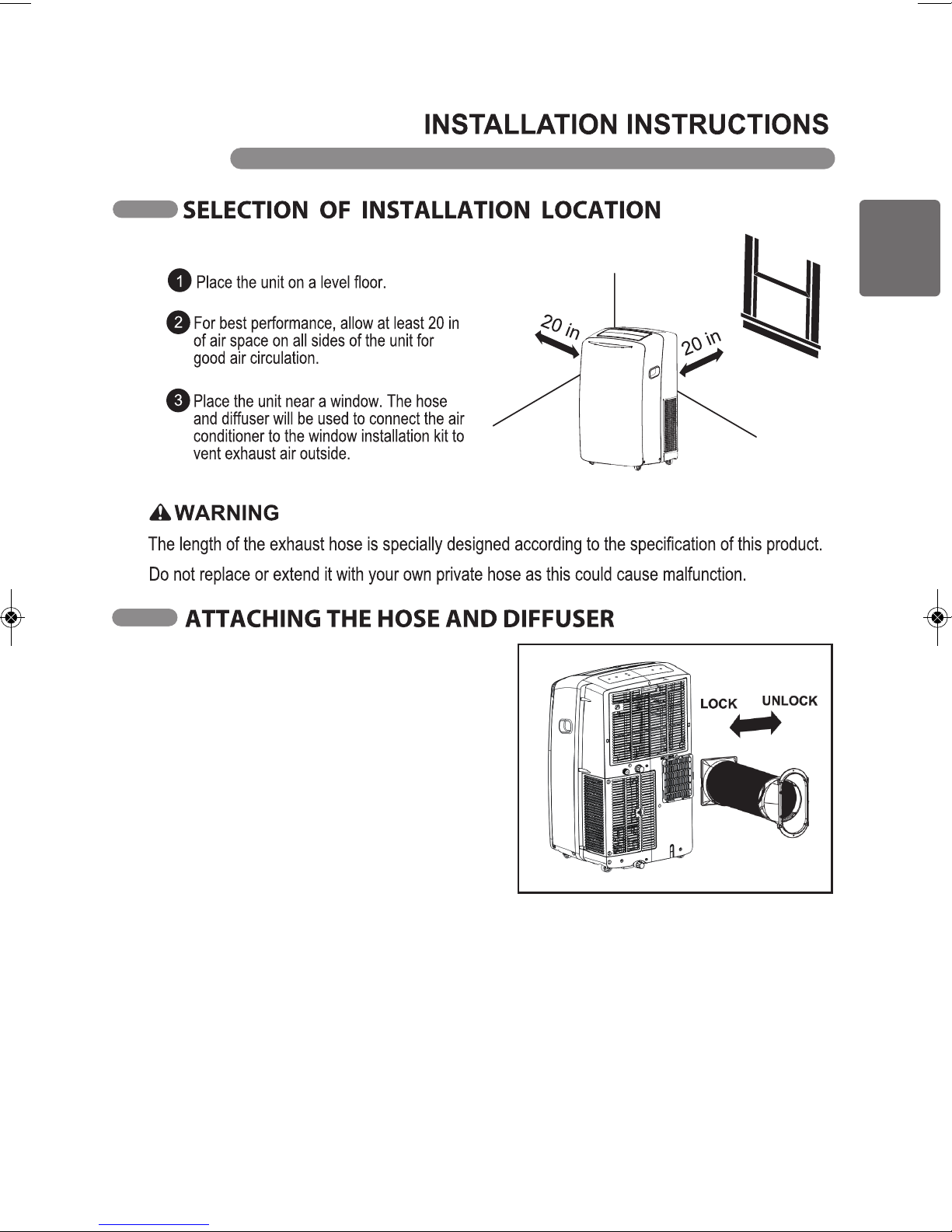

Assembling the Mounting Bracket, Diffuser, and
Vent Hose
1. Use a pliers to extend the first four or five
accordioned folds at both ends of the vent hose.
2. To attach the mounting bracket to one end of the
vent hose, insert the extended folds on one side
of the vent hose between the ridges inside one
side of the mounting bracket.
3. Use a pliers to pull the folds on the opposite side
of the vent hose up and between the ridges
inside the opposite side of the mounting bracket.
4. Tug the mounting bracket to make sure it is
securely attached to the vent hose.
5. To attach the diffuser to the other end of the vent
hose, use a Phillips screwdriver to remove the
four screws holding the grill on the end of the
diffuser. Set the grill and screws aside.
6. Insert the vent hose in the round end of the
diffuser in the same manner as assembling the
hose to the mounting bracket. (See steps 2 and
3.)
7. Tug the diffuser to make sure it is securely
attached to the vent hose.
8. Reattach the grill on the diffuser, using the four
screws removed in step 5.
Attach the hose assembly onto the back of
the air conditioner by inserting the edges of
the mounting bracket behind the tabs at the
top and bottom and sliding the mounting
bracket to the left until it snaps into place.
COV34636802 2017. 8. 3. 오후 1:33 페이지 15

16
INSTALLATION INSTRUCTIONS
WINDOW VENT PANEL AND EXTENSIONS
The window installation kit allows you to install the air conditioner in most vertical-sliding windows 18” to
50” wide, or horizontal-sliding windows from 18” to 50” high.
1. Select the panels required based on the window
opening, as shown above.
2. If the installation requires 2 or 3 panels, assemble
the panels to the proper length and fix them in
place with 1 type A screw.
For window openings from 19” to 26”, use the
window vent panel (Panel A) and an extension
panel (Panel B).
For window openings from 27” to 34”, use the
window vent panel (Panel A) and an extension
panel (Panel C).
Window opening
Fig. a Fig. b
Fig. c Fig. d
COV34636802 2017. 8. 3. 오후 1:33 페이지 16

INSTALLATION INSTRUCTIONS
INSTALLATION IN VERTICAL-SLIDING WINDOWS
NOTE : The window installation kit can be used with vertical-sliding windows between 18” and 50” wide.
Cut the foam seal A (adhesive type) & C
(adhesive type-shorter) to the proper length,
and attach them to the window sash and frame.
Install the security bracket with a type B
screw as shown, it desired.
ENGLISH
17
COV34636802 2017. 8. 3. 오후 1:33 페이지 17

18
INSTALLATION INSTRUCTIONS
INSTALLATION IN VERTICAL-SLIDING WINDOWS
Insert the diffuser into the opening in the vent
panel and slide it to lock it into place.
Align the tabs on the diffuser with the slots in the vent
panel. Insert the diffuser into the opening in the vent
panel and slide the diffuser to lock the tabs in place.
Insert the type C screw in the hole in the diffuser to
prevent the diffuser from sliding out of the vent
opening.
Slot
(1) Insert
(2) Slide
COV34636802 2017. 8. 3. 오후 1:33 페이지 18

INSTALLATION INSTRUCTIONS
INSTALLATION IN HORIZONTAL-SLIDING WINDOWS
NOTE : The window installation kit can be used with horizontal-sliding windows between 18” and 50” tall.
Cut the foam seal A (adhesive type) & C
(adhesive type-shorter) to the proper length,
and attach them to the window sash and frame.
ENGLISH
19
COV34636802 2017. 8. 3. 오후 1:33 페이지 19

20
INSTALLATION IN HORIZONTAL-SLIDING WIDOWS
INSTALLATION INSTRUCTIONS

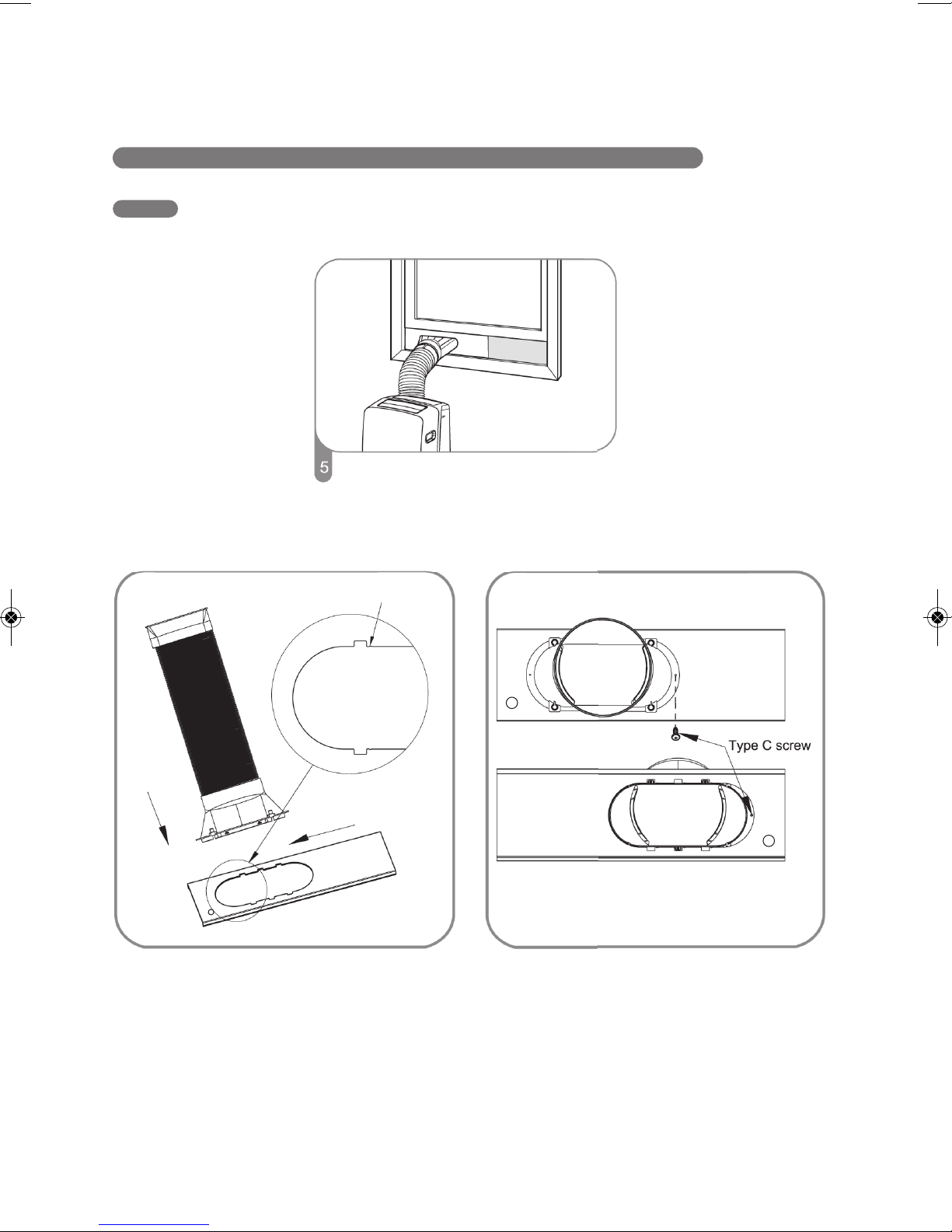

Insert the diffuser into the opening in the vent
panel and slide it to lock it into place.
Align the tabs on the diffuser with the slots in the vent
panel. Insert the diffuser into the opening in the vent
panel and slide the diffuser to lock the tabs in place.
Insert the type C screw in the hole in the diffuser to
prevent the diffuser from sliding out of the vent
opening.
COV34636802 2017. 8. 3. 오후 1:33 페이지 20
