LG Universal System Air Conditioner User manual

LG
Universal System
Air Conditioner
SERVICE MANUAL
LG
CAUTION
website http://www.lgservice.com
e-mail http://www.lgeservice.com/techsup.html
• BEFORE SERVICING THE UNIT, READ THE SAFETY
PRECAUTIONS IN THIS MANUAL.
• ONLY FOR AUTHORIZED SERVICE PERSONNEL.

2Universal System Air Conditioner
TABLE OF CONTENTS
Safety Precautions...................................................................................................3
I. Indoor Units
Introduction....................................................................................................................................8
Ceiling Cassette 4-way................................................................................................................10
Ceiling Suspended......................................................................................................................28
Ceiling concealed Duct................................................................................................................44
II. Outdoor Units
Introduction..................................................................................................................................65
MPS Inverter Single A(AUUW-C/R410A)....................................................................................67
III. Troubleshooting Guide
Self-diagnosis Function...............................................................................................................75
Cycle Troubleshooting Guide.......................................................................................................81
Electronic Parts Troubleshooting.................................................................................................82
General Information.....................................................................................................................87
IV. Electronic Control Device
Ceiling Cassette Type................................................................................................................107
Ceiling Duct Type ......................................................................................................................108
Ceiling Suspended....................................................................................................................109
Outdoor Unit..............................................................................................................................110
V. Schematic Diagram
Ceiling Cassette Type................................................................................................................113
Ceiling Duct Type ......................................................................................................................114
Ceiling Suspended....................................................................................................................115
VI. Functional Description
Ceiling Cassette Type................................................................................................................118
Ceiling Duct Type ......................................................................................................................120
Ceiling & Floor...........................................................................................................................126
Outdoor Units
VII. Explode View and Replacement Parts List
Indoor Units...............................................................................................................................139
Outdoor Units............................................................................................................................148
Panel Assembly, Front...............................................................................................................152

Safety Precautions
Service Manual 3
Safety Precautions
To prevent injury to the user or other people and property damage, the following instructions must
be followed.
■Incorrect operation due to ignoring instruction will cause harm or damage. The seriousness is
classified by the following indications.
■Meanings of symbols used in this manual are as shown below.
This symbol indicates the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage to properties only.
■Installation
Be sure not to do.
Be sure to follow the instruction.
Do not use a defective or under-
rated circuit breaker. Use this
appliance on a dedicated circuit.
• There is risk of fire or electric
shock.
Always ground the product.
• There is risk of fire or electric
shock.
Install the panel and the cover
of control box securely.
• There is risk of fire or electric
shock.
Always install a dedicated cir-
cuit and breaker.
• Improper wiring or installation may
cause fire or electric shock
Use the correctly rated break-
er or fuse.
• There is risk of fire or electric
shock.
Do not modify or extend the
power cable.
• There is risk of fire or electric
shock.

Safety Precautions
4Universal System Air Conditioner
■Operational
Do not install, remove, or re-
install the unit by yourself
(customer).
• There is risk of fire, electric shock,
explosion, or injury.
Be cautious when unpacking
and installing the product.
• Sharp edges could cause injury.
Be especially careful of the case
edges and the fins on the con-
denser and evaporator.
For installation, always con-
tact the dealer or an
Authorized Service Center.
• There is risk of fire, electric shock,
explosion, or injury.
Do not install the product on a
defective installation stand.
• It may cause injury, accident, or
damage to the product.
Be sure the installation area
does not deteriorate with age.
• If the base collapses, the air condi-
tioner could fall with it, causing
property damage, product failure,
and personal injury.
Do not let the air conditioner
run for a long time when the
humidity is very high and a
door or a window is left open.
• Moisture may condense and wet or
damage furniture.
Do not touch(operate) the
product with wet hands.
• There is risk of fire or electrical
shock.
Do not place a heater or other
appliances near the power
cable.
• There is risk of fire or electric
shock.
Do not let electric parts of the
product get wet.
• There is risk of fire, failure of the
product, or electric shock.

Safety Precautions
Service Manual 5
■Installation
Do not open the inlet grill of the product during
operation. (Do not touch the electrostatic filter,
if the unit is so equipped.)
• There is risk of physical injury, electric shock, or prod-
uct failure.
Be cautious that water could not enter the
product.
• There is risk of fire, electric shock, or product damage.
Always check for gas (refrigerant) leakage after
installation or repair of product.
• Low refrigerant levels may cause failure of product.
Install the drain hose to ensure that water is
drained away properly.
• A bad connection may cause water leakage.
Do not store or use flammable gas or com-
bustibles near the product.
• There is risk of fire or failure of product.
If strange sounds, or small or smoke comes
from product. Turn the breaker off or discon-
nect the power supply cable.
• There is risk of electric shock or fire.
Gasolin

Safety Precautions
6Universal System Air Conditioner
Keep level even when installing the product.
• To avoid vibration or water leakage.
Use two or more people to lift and transport
the product.
• Avoid personal injury.
Use a soft cloth to clean. Do not use harsh
detergents, solvents, etc.
• There is risk of fire, electric shock, or damage to the
plastic parts of the product.
Do not touch the metal parts of the product
when removing the air filter. They are very
sharp!
• There is risk of personal injury.
Donotsteponorputanytingontheproduct.
(outdoor units)
• There is risk of personal injury and failure of product.
Do not insert hands or other objects through
the air inlet or outlet while the product is oper-
ated.
• There are sharp and moving parts that could cause
personal injury.
90˚
Wax
Thinner
■Operational

I. Indoor Units
Introduction.......................................................................................................8
Ceiling Cassette 4-way...................................................................................10
Ceiling & Floor ................................................................................................28
Ceiling Concealed Duct..................................................................................44
Service Manual 7

• Models List
Type Refrigerant Chassis
name 36,000
(10.6) 42,000 (12.3) 48,000 (14.1) 60,000 (17.6)
Ceiling Cassette
4-Way R410A TD ATNH366DLFC ATNH426DLFC ATNH486DLFC ATNH606DLFC
VK AVNH366KLAC
AVNH366KLA1 ---
VL -AVNH426LLFC AVNH486LLFC AVNH606LLFC
BG ABNH366GLAC - - -
BR - ABNH426RLAC ABNH486RLAC ABNH606RLAC
Nominal capacity[(Btu/h(kW)] Power
Supply
Model name
Indoor Unit
1Ø, 220-
240V,
50Hz
Ceiling Suspended
R410A
R410A
Ceiling Concealed
Duct
8Universal System Air Conditioner
Introduction
Introduction

• Model Number Nomenclature
Indoor unit
Decoration panel(For Ceiling Cassette Models)
A T N H 4 8 6 D L FC
Serial Number
Functions
A : Basic B : Low Ambient
C : Plasma Filter E : Elevation Grille
F : Elevation Grille + Plasma Filter
H : Plasma Filter + Low Ambient
L : Nano Plasma M : Nano Plasma + Elevation Grille
Look
L : Basic
Chassis Name
Electrical Ratings
6:1Ø,220V~240V,50Hz 8:3Ø,380V~415V,50Hz
Nominal CoolingCapacity in Btu/h
Ex) 18 -> 18,000 Btu/h, 48 -> 48,000 Btu/h
Model Type
C : Cooling Only H : HeatPump
Indicates that this is a indoor unit for R410A
ATN : Ceiling cassette type indoor unit
ABN : Ceiling concealed duct type indoor unit
AVN : Convertible type indoor unit
P T - H EC
Functions
A : Basic C : Plasma Air Purifier
E : Elevation Grille F : Elevation Grille + Plasma Air Purifier
Indoor Unit Chassis
D : D Chassis E : E Chassis F : F Chassis
Model Type
C : Cooling Only H : Heat Pump
Decoration Panel of Ceiling Cassette Type Indoor Unit
Service Manual 9
Introduction

10 Universal System Air Conditioner
Ceiling Cassette 4-way
Contents
1. Features & Benefits ..............................................................................11
2. List of Functions....................................................................................15
3. Specifications........................................................................................16
4. Dimensional Drawings ..........................................................................17

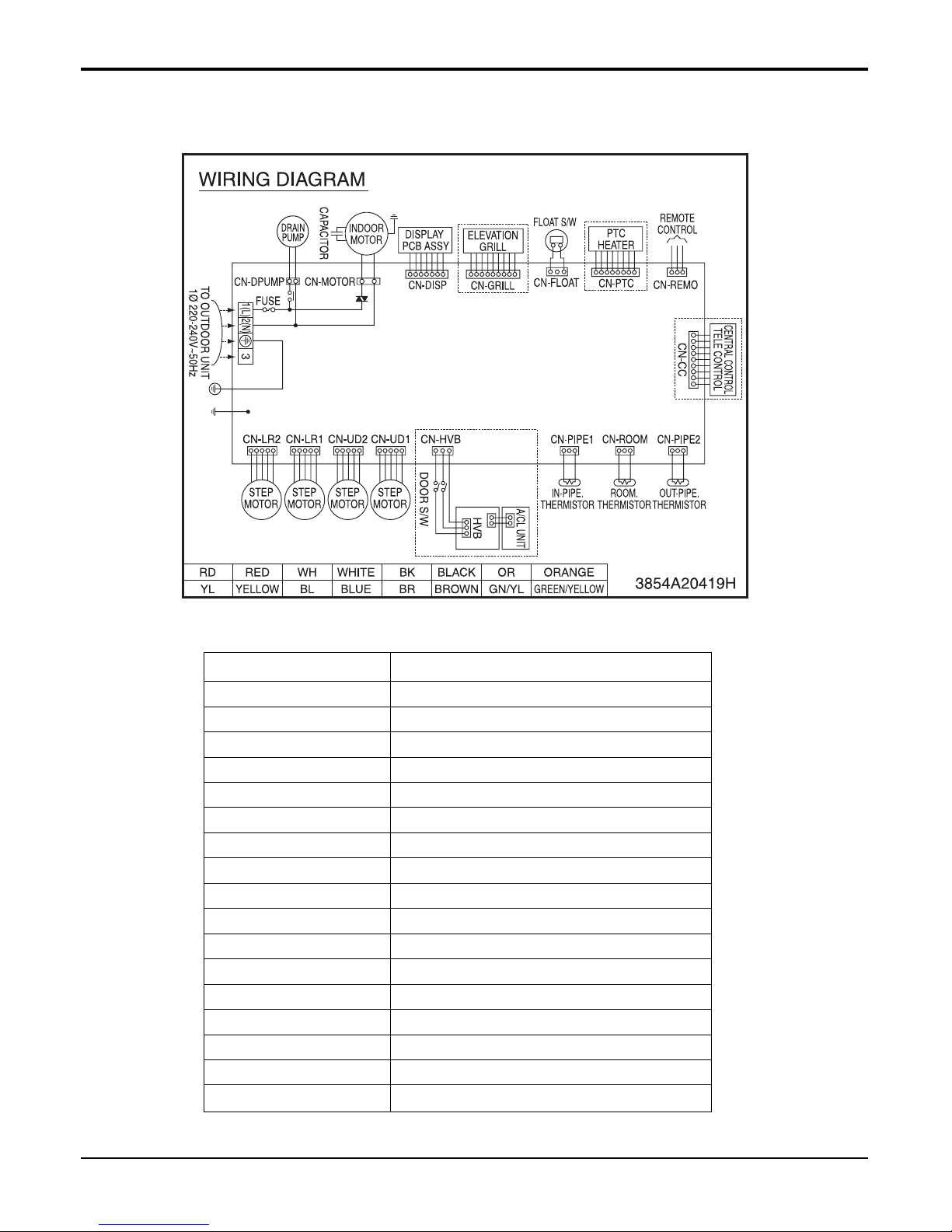

5. Wiring Diagrams ...................................................................................18
6. Piping Diagrams....................................................................................19
7. Operating Instructions...........................................................................20
8. Installation.............................................................................................22
9. Accessories ..........................................................................................27
Ceiling Cassette 4-way
(R410A·Indoor Units)
ATNH-DL
Ceiling Cassette 4-way

(18k Btu/h model)
■Convenience
•Auto elevation grille(Accessory)
•Tele control(Optional)
•LCD wired remote control
•Group control
•Central control(Accessory)
•Weekly progam
■Cleanness
•Plasma air purifying system
•Hygienic and easy to clean filter
■Easy Installation
•Compact design & easy installation
•High ceiling corresponding operation
•High head drain pump(700mm)
■Comfort & Reliability
•Low noise with 3-dimensional turbo fan
•2-Thermistor control(Main body & Remote control)
•Zero stanby power consumption
•Jet cool
•Swirl swing
•Space control
Compact Design and Easy Installation
Only about 269mm height in the ceiling is sufficient for
installation space.
A smaller size than a Textile(600X600) is very conve-
nient for installation.
Low Noise with 3-dimensional
turbo fan
The most advanced low-noise design.
The adoption of turbo-fan and round type heat
exchanger provides the quietest operation.
Hygienic and Easy-to-Clean Filter
Washable and anti bacteria filter is adopted.
It is easy to open grille and replace clean filter.
Service Manual 11
Ceiling Cassette 4-way
1. Features & Benefits

12 Universal System Air Conditioner
Ceiling Cassette 4-way

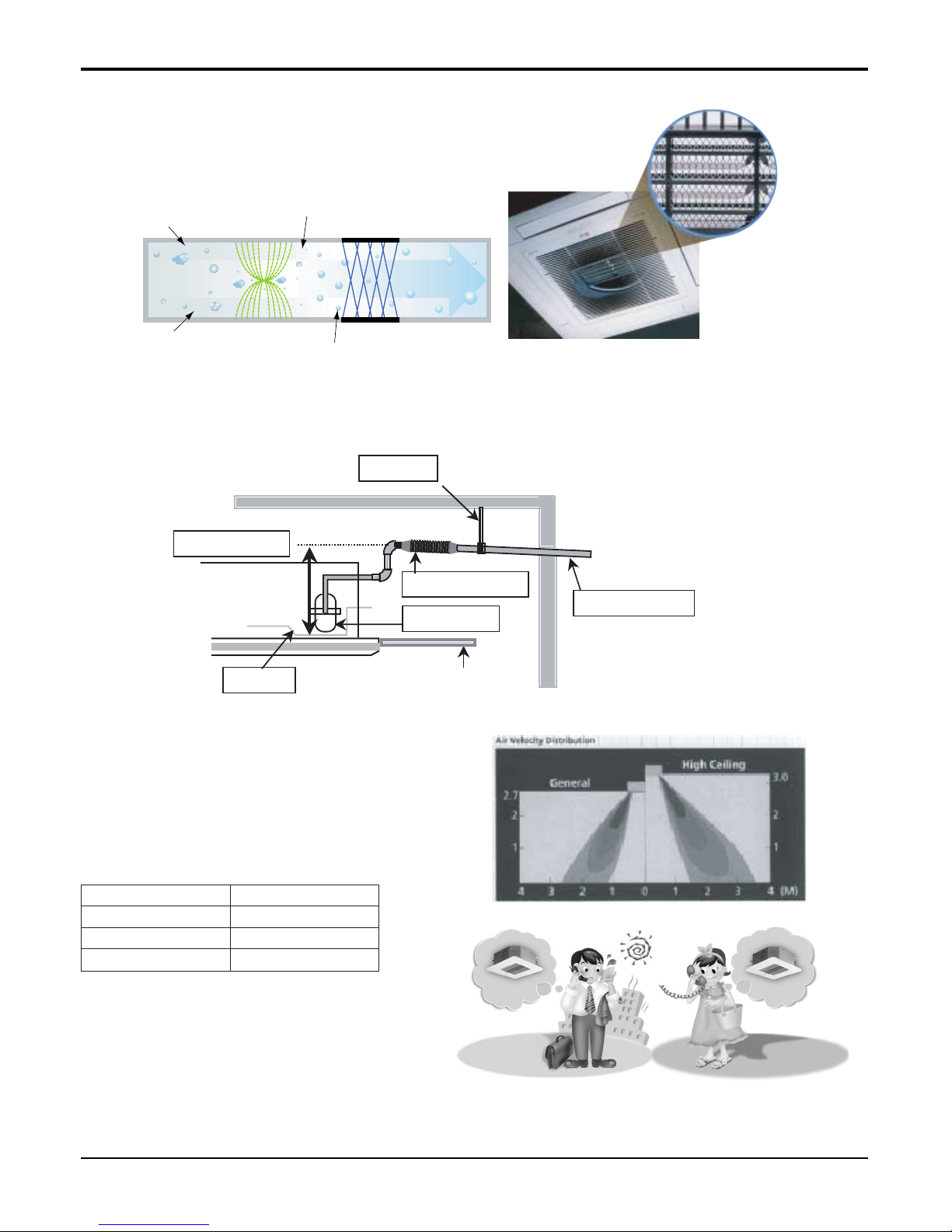

Ceiling Board
Drain Pan
Maximum 700mm
Drain Pump
Flexible drain hose
Pipe fixture
Slope 1/50~1/100
Hard Tube(ex.PVC)
+
+
+
+
Polluted Air Purified fresh Air
+4.8KV discharge
Ionizer Photo-Catalyst Coated Mesh
Dust particles
Odour
Dust electrode discharge
Odour molecule
Generating plasma
Plasma Air Purifying System
The PLASMA Air Purifying Function not only removes micro-
scopic contaminants and dust, but also removes house
mites, pollen, and pet fur helps to prevent allergic diseases
like asthma.
High Head Drain Pump(700mm)
Built-in Drain Pump drains out water automatically.
A standard drain-head height of up to 700 mm is possible, creating the ideal solution for perfect water drainage.
High-Ceiling Corresponding Operation
According to the height of the installation, it provides vari-
ability of indoor fan motor rpm. If the height of installation is
low then you can adjust low rpm of indoor fan motor. On
the other hand if the height of the installation is high you
can adjust high rpm of indoor fan motor. Selection of
speed can be done by slide switch at the back of the LCD
wired remote.
Tele Control (Accessory)
- It provides you ease of control. Air conditioner
can be switched on/off by the telephone. It
saves time & energy.
ON
ONON OFF
ON OFF OFFOFF
In Advance by Telephone
Before Coming Home...
In case of Going out
Without Turning off the
Air Conditioner...
Over than 3.3mHigh Ceiling
2.7~3.3mStandard
Ceiling HeightSwitch selection
Less than 2.7mLow Ceiling

Child Lock Function
-It prevents the children or others from tampering
with the control buttons. Unit can be controlled by
the wireless remote controller. This can be easily set
by pressing timer key & Min key simultaneously.
After child lock is set, pressing any key will display
CL on the LCD for 3 seconds and all the keys will be
ineffective.
Auto Elevation Grille(Accessory)
-Auto Elevation Grille is automatically down to height
of max. 3.1 m. So it enables to install the Indoor unit
at high ceiling space. And Auto Elevation Grille
makes you cleaning the filter easily.
CHILD LOCK
-Display
71
Vane 2
Swirl Swing(New)4- Open(Conventional)
Swirl Swing(New)4- Open(Conventional)
2.4% 4.8%100% Improved
Comparison of Air Flow Types
Comparison of Floor
Temp. Distribution(20°C)
Vane 1 Close OpenOpen
Open
Open
Open
Close CloseOpen
Vane 3 Close Open Close CloseOpen
OpenOpen Close CloseOpen
Vane 2
OpenOpen
Time
Close CloseOpen
Vane 4
Vane 1
Vane 3
Vane 2
Time
Vane 4
Vane 3
Vane 4
Vane 1
Swirl Swing
- It is the function for comfort cooling/heating operation.
- The diagonal two louvers are opened the
more larger than the other louvers.
After one minute, it is opposite.
Space Control
Vanes angle can be controlled by pair, considering its
installation environment.
- For example direct drafts can be annoying, leading
to discomfort and reduced productivity vane control
helps to eliminate this problem.
- Easily controlled by wired remote control.
- Air Flow can be controlled easily regarding any
space environment.
Service Manual 13
Ceiling Cassette 4-way

14 Universal System Air Conditioner
Ceiling Cassette 4-way
Weekly Program
- On/Off schedule of operation for a period of ONE
week.
No need to turn the unit On/OFF manually during
working days. On/Off time is scheduled in micom of
the wired remote control.
Auto Restart Operation
- Whenever there is electricity failure to the unit, and after resumption of the power, unit will start in the same
mode prior to the power failure. Memorized condition are on / off condition, operating mode (cooling/heating),
set temperature and fan speed.The unit will memorize the above conditions and start with same memorized
condition.
Two Thermistor Control
- There may be a significant difference between the temperature taken at the installed product and indoor tem-
perature. Two thermistor control provides option to control temperature by referring any of the two tempera-
tures. With the help of the slide switch at the back of the LCD wired remote controller, selection of the desired
thermistor for controlling the unit can be done. One thermistor is in the Indoor unit & the other one is in the
LCD wired remote.
Group Control
- It enables to control as much as 16 units with the
help of one wired remote controller. All the units will
follow same setting of temperature & other sub func-
tions.
Central Control(Accessory)
- It enables to control 16 x 8 = 128 units with the help
of 8 controllers. All units can be put on and off from
one Central Room.For Setting Temperature, Fan
Speed and other sub functions, access the respec-
tive LCD wired remote controller of each unit.
❈Sub PI485(with wire assembly) should be pur-
chased as optional.
Operation Time Table (Example)
Mon Tue Wed Thu Fri Sat Sun
OFF
Setting
Temp.
On
Off
25°C25°C25°C25°C25°C
09:00
12:00
08:00
17:00
09:00
12:00
08:00
12:00
09:00
12:00
10mm 10mm
12 16........
........
Main
PCB
Controller
# 1
Controller
# 2
Controller
# 8
M
1
Sub
1
M
2
Sub
2
M
16
Sub
16
M
17
Sub
17
M
18
Sub
18
M
128
Sub
128

Service Manual 15
Ceiling Cassette 4-way
2. List of Functions
Note: Group control is not available for 4 way cassette which is connected with synchro models.
Sleep mode is available only in case of using wireless remote controller.
•O: Applied, •X: Not applied, •- : No relation,
•Option: Model name & price are different according to options, and assembled in factory with main unit.
•Accessory: Installed at field, ordered and purchased separately by the corresponding model name, supplied with separate package.
Air supply outlet
Airflow direction control (left & right)
Airflow direction control (up & down)
Auto swing (left & right)
Air flow Auto swing (up & down)
Airflow steps(Fan / Cool / Heat)
CHAOS swing
CHAOS wind (Auto wind)
Jet cool (Power wind)
Swirl wind
Deodorizing filter
Air purifying Plasma air purifier
Prefilter(Washable / Anti-fungus)
Drain pump
Installation E.S.P. control
Electric heater (Operation)
High ceiling operation
Hot start
Reliability Self diagnosis
Soft dry operation
Auto changeover
Auto cleaning
Auto operation(Artificial intelligence)
Auto restart operation
Child lock
Convenience Forced operation
Group control
Sleep mode
Timer (On/Off)
Timer (weekly)
Two thermistor control
Standard wired remote controller
Deluxe wired remote controller
Individual control Simple wired remote controller
Wired remote controller(for hotel use)
Wireless remote controller(simple)
Wireless LCD remote controller
General central control(Non LGAP)
Dry contact
CAC network function Simple central control(LGAP)
PDI(Power Distribution Indicator)
PI485
Special function kit CTIE
Zone control
Others Thermistor
4444
----
Auto Auto Auto Auto
XXXX
OOOO
3/4/3 3/4/3 3/4/3 3/4/3
XX
----
OOOO
OOOO
----
OOOO
OOOO
OOOO
----
----
OOOO
OOOO
OOOO
OOOO
OOOO
XXXX
XXXX
OOOO
OOOO
OOOO
OOOO
XXXX
OOOO
OOOO
OOOO
OOOO
XXXX
XXXX
XXXX
AHWRHD AHWRHD AHWRHD AHWRHD
XXXX
XXXX
PQDSB PQDSB PQDSB PQDSB
OOOO
PQNUD1S00 PQNUD1S00 PQNUD1S00 PQNUD1S00
PMNFP14A0 PMNFP14A0 PMNFP14A0 PMNFP14A0
XXXX
XXXX
AQTTA AQTTA AQTTA AQTTA
FunctionCategory
ATNH366DLFC
[UT36 NDC]
ATNH426DLFC
[UT42 NDC]
ATNH486DLFC
[UT48 NDC]
ATNH606DLFC
[UT60 NDC]

16 Universal System Air Conditioner
Ceiling Cassette 4-way
3. Specifications
Conversion Formula
kW = Btu/h ×0.0002931
kcal/h = Btu/h ×0.252
CFM = CMM ×35.3
Power Supply Ø/V/Hz
Cooling Capacity kW
Btu/h
Heating Capacity kW
Btu/h
Current Nominal running current A
Fan Motor Type
Fan Type
Motor Output x Number of Unit
Air Flow Rate cmm
(H/M/L) cfm
Capacitor µF/Vac
Drive
Coil Row x Column x FPI mm
Dimensions Body mm(inch)
(WxHxD) Decorative Panel mm
Weight Body kg(lbs)
Decorative Panel kg(lbs)
Air Filter
Sound Level (H/M/L) dB(A)+3
Piping Liquid mm(inch)
Connections Gas mm(inch)
Drain(OD/ID) mm
Dehumidification Rate l/h
Safety devices
Temperature Sensor
Referigerant
Referigerant Control
Connectable outdoor unit
Power and transmission interunit cable No.x mm2
Model ATNH366DLFC
[UT36 NDC]
ATNH426DLFC
[UT42 NDC]
ATNH486DLFC
[UT48 NDC]
ATNH606DLFC
[UT60 NDC]
Indoor unit type Ceilling Cassette - 4way
1 / 220 ~240 / 50 1 / 220 ~240 / 50 1 / 220 ~240 / 50 1 / 220 ~240 / 50
9.5 11.9 12.9 14.2
32,500 40,500 44,000 48,500
10.8 13.3 14.5 15.9
37,000 45,500 49,500 54,500
0.76 1.2 1.5 1.8
Induction Induction Induction Induction
Turbo Fan Turbo Fan Turbo Fan Turbo Fan
52.5*1 55*1 58.5*1 107*1
25 / 23 / 21 29 / 26 / 23 30 / 28 / 26 34 / 32 / 30
883 / 812 / 742 1023 / 918 / 812 1059 /988 / 918 1200 / 1130 / 1059
4/440 6/400 6/400 6/400
Direct Drive Direct Drive Direct Drive Direct Drive
2R x 12C x 21 2R x 12C x 21 2R x 12C x 21 2R x 12C x 21
840*288*840(33.1*11.3*33.1) 840*288*840(33.1*11.3*33.1) 840*288*840(33.1*11.3*33.1) 840*288*840(33.1*11.3*33.1)
950*30*950(37.4*1.2 *37.4) 950*30*950(37.4*1.2 *37.4) 950*30*950(37.4*1.2 *37.4) 950*30*950(37.4*1.2 *37.4)
32(70.4) 32(70.4) 32(70.4) 32(70.4)
5(11) 5(11) 5(11) 5(11)
Long life filter Long life filter Long life filter Long life filter
40 / 38 / 36 42 / 40 / 38 43 / 41 / 39 50 / 47 / 43
6.35 (1/4) 9.52 (3/8) 9.52 (3/8) 9.52 (3/8)
15.88(5/8) 19.05(3/4) 19.05(3/4) 19.05(3/4)
32 / 25 32 / 25 32 / 25 32 / 25
4 4.5 5.5 6.5
Fuse, Thermal protector for fan motor
Thermistor Thermistor Thermistor Thermistor
R-410A R-410A R-410A R-410A
LEV LEV LEV LEV
Single A Single A Single A Single A
4*0.75 4*0.75 4*0.75 4*0.75
Note :
1. Capacities are based on the following conditions:
Cooling: - Indoor Temperature 27°C(80.6°F) DB /19°C(66.2°F) WB
- Outdoor Temperature 35°C(95°F) DB /24°C(75.2°F) WB
Heating: - Indoor Temperature 20°C(68°F) DB / 15°C(59°F) WB
- Outdoor Temperature 7°C(44.6°F) DB / 6°C(42.8°F) WB
Piping Length - Interconnecting Piping Length 7.5m
- Level Difference of Zero.
2. Cooling/heating capacity of indoor unit can be different when it is connected to other type outdoor.

Service Manual 17
Ceiling Cassette 4-way
288
950
950
290
210.5
180
52
140
40
110
30
90 90
110
840
785
840
678
840 Unit size
840 Unit size
672 (Hanging bolt)
101.5101.5
875 (Ceiling opening)
875 (Ceiling opening)
785(Hanging bolt) 45
45
Unit:mm
4
1
2
3
950
950
5
6
30
Number Name Descripition
1 Liquid pipe connection 36k:ø6.35, 42/48/60k: ø9.52 flare
2 Gas pipe connection 36k:ø15.88, 42/48/60k: ø19.05flare
3 Drain pipe connection
4 Power supply connection
5 Air discharge grille
6 Air suction grille
(unit : mm)
4. Dimensional Drawings
ATNH-DL

18 Universal System Air Conditioner
Ceiling Cassette 4-way
CONNECTOR NUMBER LOCATION
CN-POWER AC POWER SUPPLY
CN-MOTOR BLDCFANMOTOROUTPUT
CN-D/PUMP DRAIN PUMP OUTPUT
CN-DISP DISPLAY
CN-FLOAT FLOAT SWITCH INPUT
CN-PTC PTC HEATER INUT
CN-REMO REMOTE CONTROL
CN-GRILL GRILL CONTROL
CN-CC CENTRAL CONTROL
CN-PIPE2 DISCHARGE PIPE SENSOR
CN-ROOM ROOM SENSOR
CN-PIPE1 PIPE SENSOR
CN-HVB AIR CLEANER
CN-UD1 STEP MOTOR
CN-UD2 STEP MOTOR
CN-LR1 STEP MOTOR
CN-LR2 STEP MOTOR
5. Wiring Diagrams

Service Manual 19
Ceiling Cassette 4-way
Refrigerant pipe connection port diameter
Model Gas Liquid
[unit: mm(inch)]
Heat Exchanger
Turbo Fan
lndoor unit
:Heating
:Cooling
: Thermistor
6. Piping Diagrams
ATNH366DLFC 15.88(5/8) 6.35(1/4)
ATNH426DLFC
ATNH486DLFC 19.05(3/4) 9.52(3/8)
ATNH606DLFC

20 Universal System Air Conditioner
Ceiling Cassette 4-way
7. Operating Instructions
1. Operation display
Displays the operation conditions.
2. On/Off Button
Operation starts when this button is pressed, and
stops when the button is pressed again.
3. Set Temperature Button
Used to set the temperature when the desired tem-
perature is obtained.
4. FAN Operation Button
Used to circulate room air without cooling or heating.
5. Fan Speed (Jet Cool Button: 4 way)
Used to set the desired fan speed or select Jet cool
mode.
6. Operation Mode Selection Button
Used to select the operation mode.
•Auto Operation Mode
•Cooling Operation Mode
•Soft Dry Operation Mode
•Heating Operation Mode(except cooling model)
7. Auto Swing Button
Used to swing up and down.
8. Room Temperature Checking Button
Used to check the room temperature.
9. Plasma Air Clean Button (optional)
10. Timer Cancel Button
Used to cancel the timer.
11. Timer Set Button
Used to set the timer when the desired time is
obtained.
12. Week Button
Used to set a day of the week.
13. Program Button
Used to set the weekly timer.
14. Holiday Button
Used to set a holiday of the week.
15. Time Set Button
Used to set the time of the day and change the time
in the weekly timer Function.
16. Set and Clear Button
Used to set and clear the weekly timer.
17. Swirl Button (4 way)
Used to select swirl mode.
Jet Cool Button (1 way)
18. Reset Button
Used to set the current time and clear the setting
time.
❈ Display temperature can be different from actual room temperature if the remote controller is installed
at the place where sun-rays are falling directly or the place nearby heat source.
Timer Cancel
Program Week
Hour Min
Holiday
Set/Clr
RESET
Plasma
ZONE
1234
Operation unit
Humidify JET
AUTO
AUTO SWING OPERATION FAN SPEED
Program set
SUB FUNCTION SET TEMP
Room Temp
HI
MED
LO
Heater
Defrost
Filter
Preheat
Out door
Time
Timer
On
Set no. Time
Off
01 03 05 07 09 11 13 15 17 19 21 23
3
10
12
14
15
11
13
18
16
2
1Heat Pump Model
Cooling Model
5
4
6
8
9
7
17
■Name and Function of Remote Controller
