INSTALLATION MANUAL
AIR CONDITIONER
• Please read this installation manual completely before installing the product.
• Installation work must be performed in accordance with the national wiring
standards by authorized personnel only.
• Please retain this installation manual for future reference after reading it
thoroughly.
TYPE : WALL MOUNTED
www.lg.com
ENGLISH FRANÇAIS ESPAÑOL

2Room Air Conditioner
Room Air Conditioner Installation Manual
TABLE OF CONTENTS
Safety Precautions .........................3
Introduction .....................................9
Symbols Ued in This Manual......9
Features .......................................9
Installation .....................................10
Installation Parts ........................10
Installation Tools ........................10
Installation Map..........................11
Confirm The Refrigerant ...........12
Select The Best Location .........13
Piping Length And Elevation.....14
How To Mount Installation Plate ..15
Drill a Hole In The Wall .............15
Flaring Work...............................16
Connecting The Piping..............17
Connection Of The Drain Hose ...22
Connection Of Piping -Outdoor ...22
Connection Of The Cable .........23
Checking The Drainage ............25
Forming The Piping...................26
Air Purging .................................27
Air Purging With Vacuum Pump .27
Charging.....................................29
Test Running .................................30
Installation guide
at the seaside ................................31
❏ Installation plate
❏Four type "A" screws
❏Connecting cable
❏Pipes: Suction line
Evaporator line
(Refer to page 13)
❏Insulation materials
❏Additional drain pipe
(
Outer Diameter .........15.5mm(0.61in))
❏Two type "B" screws
Installation
Requirements Required Parts Required Tools
❏Level gauge
❏Screwdriver
❏Electric drill
❏Hole core drill(ø65mm(2.55in))
❏Flaring tool set
❏Specified torque wrenches
4.2kg.m, 6.6kg.m
(different depending on model No.)
(Refer to page 17)
❏Spanner .....................Half union
❏A glass of water
❏Screw driver
❏Hexagonal
wrench(4mm(0.16in))
❏Gas Leak Detector
❏Vacuum pump
❏Manifold Gauge
❏Owner's manual
❏Thermometer
❏Remote Control Holder

Installation Manual 3
ENGLISH
IMPORTANT!
Please read this instruction sheet completely before installing the product.
This air conditioning system meets strict safety and operating standards. As the installer or service person,
it is an important part of your job to install or service the system so it operates safely and efficiently.
CAUTION : Improper installation, adjustment, alteration, service or maintenance can void the warranty.
The weight of the condensing unit requires caution and proper handling procedures when lifting
or moving to avoid personal injury. Use care to avoid contact with sharp or pointed edges.
Safety Precautions
• Always wear safety eye wear and work gloves when installing equipment.
• Never assume electrical power is disconnected. Check with meter and equipment.
• Keep hands out of fan areas when power is connected to equipment.
• R-410A causes frostbite burns.
• R-410A is toxic when burned.
NOTE TO INSTALLING DEALER: The Owners Instructions and Warranty are to be given to the owner
or prominently displayed near the indoor Furnace/Air Handler Unit.
When wiring:
Electrical shock can cause severe personal injury or death. Only a qualified,
experienced electrician should attempt to wire this system.
• Do not supply power to the unit until all wiring and tubing are completed or reconnected and checked.
• Highly dangerous electrical voltages are used in this system. Carefully refer to the wiring diagram and these
instructions when wiring. Improper connections and inadequate grounding can cause accidental injury or death.
• Ground the unit following local electrical codes.
• Connect all wiring tightly. Loose wiring may cause overheating at connection points and a possible fire hazard.
When transporting:
Be careful when picking up and moving the indoor and outdoor units. Get a partner to help, and
bend your knees when lifting to reduce strain on your back. Sharp edges or thin aluminum fins on
the air conditioner can cut your finger.
When installing...
... in a wall: Make sure the wall is strong enough to hold the unit's weight.
It may be necessary to construct a strong wood or metal frame to provide added support.
... in a room: Properly insulate any tubing run inside a room to prevent "sweating" that can cause
dripping and water damage to wall and floors.
... in moist or uneven locatinons: Use a raised concrete pad or concrete blocks provide a solid,
level foundation for the outdoor unit. This prevents water damage and abnormal vibration.
... in an area with high winds: Securely anchor the outdoor unit down with bolts and a metal
frame. Provide a suitable air baffle.
... in a snowy area(for Heat Pump Model): Install the outdoor unit on a raised platform that is
higher than drifting snow. Provide snow vents.
When connecting refrigerant tubing
• Keep all tubing runs as short as possible.
• Use the flare method for connecting tubing.
• Check carefully for leaks before starting the test run.
When servicing
• Turn the power OFF at the main power box(mains) before opening the unit to check or repair
electrical parts and wiring.
• Keep your fingers and clothing away from any moving parts.
• Clean up the site after you finish, remembering to check that no metal scraps or bits of wiring have
been left inside the unit being serviced.
WARNING
WARNING
•
• Refer to local code for all wiring size.
Installation or repairs made by unqualified persons can result in hazards to you and others.
Installation MUST conform with local building codes or, in the absence of local codes, with the National Electrical
Code NFPA 70/ANSI C1-1993 or current edition and Canadian Electrical Code Part1 CSA C.22.1.
• The information contained in the manual is intended for use by a qualified service technician familiar with safety
procedures and equipped with the proper tools and test instruments.
• Failure to carefully read and follow all instructions in this manual can result in equipment malfunction, property
damage, personal injury and/or death.
Wall Mounted Mini-Split System
Single Zone
INSTALLATION INSTRUCTIONS

4Room Air Conditioner
Safety Precautions

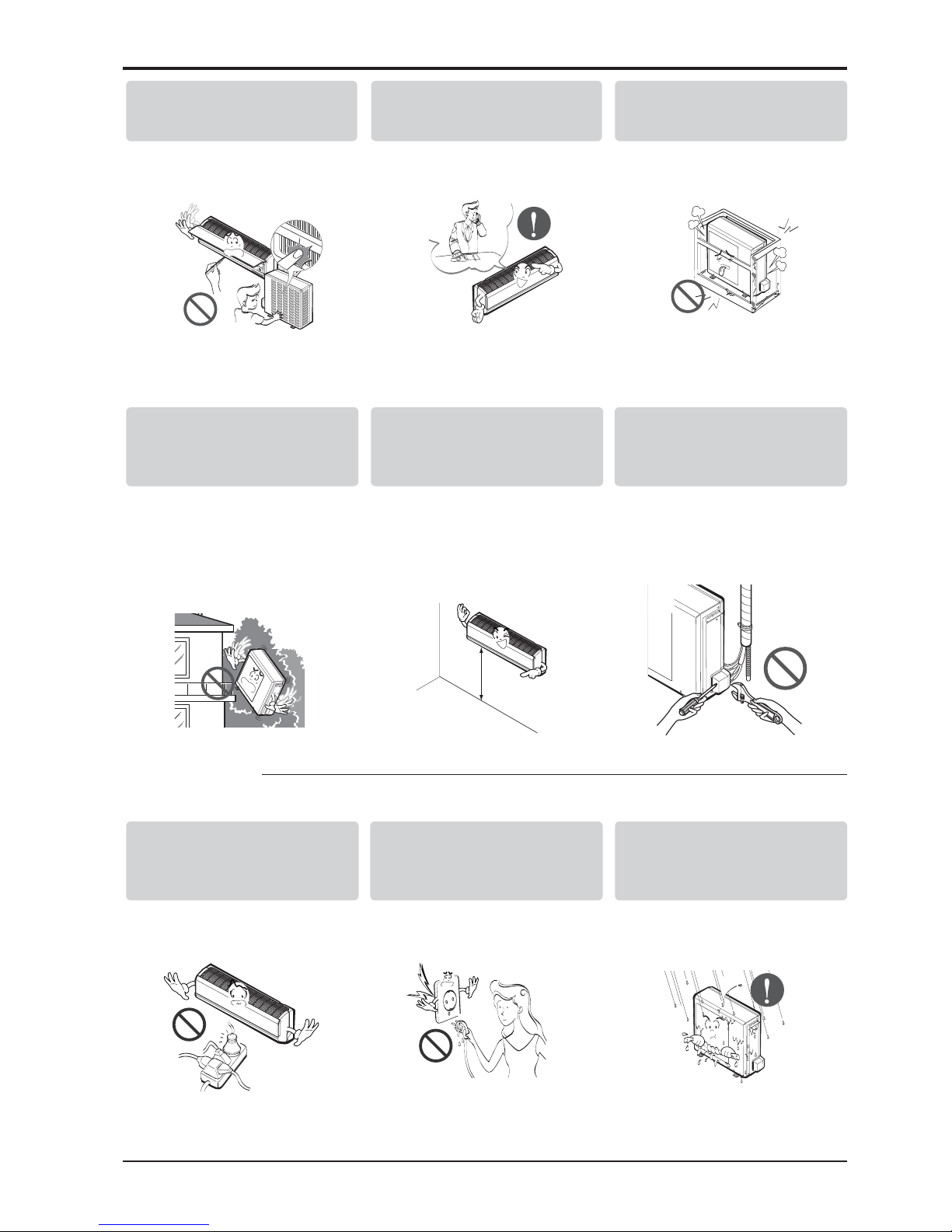

■Operation
Be cautious when unpacking and
installing the product.
• Shape edges could cause injury. Be
especially careful of the sharp edges.
For installation, always contact
the dealer or an Authorized
Service Center.
• There is risk of fire, electric shock,
explosion, or injury.
Do not install the product on a
defective installation stand.
• It may cause injury, accident, or
damage to the product.
Be sure the installation area
does not deteriorate with age.
• If the base collapses, the air
conditioner could fall with it, causing
property damage, product failure, and
personal injury.
Install the indoor unit on the wall
where the height from the floors
more then 2.4m(8ft).
• There are sharp moving parts that
could cause personal injury.
Do not handle the pipe by
yourself(customer)
• High-Pressure refrigent may cause
personal injury.
Use a dedicated outlet for this
appliance.
• There is risk of fire or electric shock.
Grasp the plug to remove the
cord from the outlet. Do not
touch it with wet hands.
• There is risk of fire or electric shock.
Do not allow water to run into
electric part.
• There is risk of fire, failure of the
product, and/or electric shock.
2.4m(8ft)

Installation Manual 5
ENGLISH

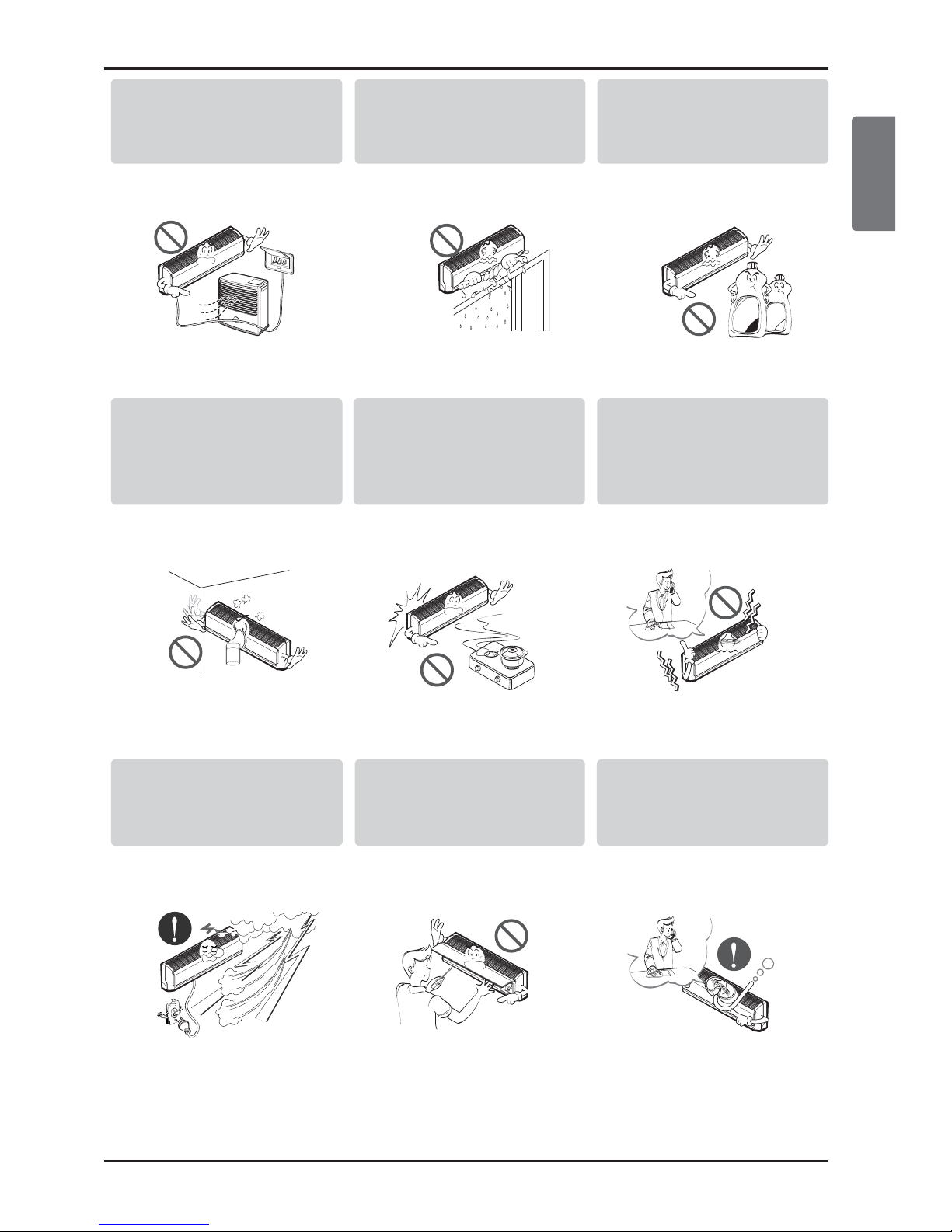

Safety Precautions
Do not place a heater or other
appliances near the power cable.
• There is risk of fire, failure of the product,
and/or electric shock.
Do not let the air conditioner run
for a long time when the
humidity is very high and a door
or a window is left open.
• Moisture may condense and wet or
damage furnishings.
Do not store of use flammable
gas or combustibles near the air
conditioner.
• There is risk of fire or product failure.
Do not use the product in a
tightly closed space for a long
time.
• Oxygen deficiency could occur.
• Some ventilation by opeing window
is necessary for the fresh air.
When flammable gas leaks, turn off
the gas and open a window for
ventilation before turning the product
on. Do not use the telephone or turn
switches on or off.
• There is risk of explosion or fire.
Unplug the unit if strange
sounds odors or smoke comes
from it.
• There is risk of fireproduct failure and/or
electric shock.
Stop operation and close any
window in storm or hurricane.
before the hurricane arrives.
• There is risk of property damage,
failure of product, or electric shock.
Do not open the inlet grill of the
product during operation. (Do
not touch the electrostatic filter,
if the unit is so equipped.)
• There is risk of physical injury, electric
shock, or product.
When the product is soaked
(flooded or submerged), contact
an Authorized Service Center.
• There is risk of electrical shock.
Wax
Thinner

6Room Air Conditioner
Safety Precautions
■Installation
Always check for gas(refrigerant)
leakage after installation or
repair of product.
• Low refrigerant levels may cause
product failure.Install the drain
hose to ensure that water is
drained away properly.
• A bad connection may cause water
leakage.
Keep level even when installing
the product.
• To avoid vibration or water leakage.
90˚
Take care to ensure that nobody could step on or
fall onto the outdoor unit.
• There could result in personal injury and product damage.
Do not insert hands or other objects through the air
inlet or outlet while the air conditioner is plugged
in.
• There are sharp and moving parts that could cause
personal injury.
Ventilate the product from time
to time when operating it
together with a stove, etc.
• There is risk of fire or electrical shock.
Unplug the appliance before
performing cleaning or
maintenance.
• There is risk of electric shock.
When the product is not be used
for a long time disconnect the
power supply plug or turn off the
breaker.
• There is risk of product damage or
failure, or unintended operation.

Safety Precautions
Installation Manual 7
ENGLISH
■Operation
Do not install the product where
the noise or hot air from the
outdoor unit could damage the
neighborhoods.
• It may cause a problem for your
neighbors.
Use two or more people to lift
and transport the air conditioner
• Avoid personal injury.
Do not install the product where
it will be exposed to sea wind
(salt spray) directly.
• It may cause corrosion in the product.
Corrosion, particularly on the
condenser and evaporator fins, could
cause product malfunction or
inefficient operation.
Do not direct airflow at room
occupants.
• This could damage your health.
Do not use the product for special
purposes, such as preserving
foods, works of art, etc. It is a
consumer air conditioner, not a
precision refrigeration system.
• There is risk of damage or loss of
property.
Do not block the inlet or outlet of
air flow.
• It may cause product failure.
Use a soft cloth to clean.
Do not use harsh detergents,
solvents, etc.
• There is risk of fire, electric shock
or damage to the plastic parts of the
product.
Do not touch the metal parts of
the product when removing the
air filter. They are very sharp!
• There is risk of personal injury.
Do not step on or put anything
on the product. (outdoor unit)
• There is risk of personal injury and
failure of product.

8Room Air Conditioner
Safety Precautions
■Disuse
Always insert the filter securely. Clean the filter
every two weeks or more often if necessary.
• A dirty filter reduces the efficiency of the air conditioner and
could cause product malfunction or damage.
Do not drink the water drained from the unit.
• It is not sanitary and could cause serious health issues.
Do not recharge or disassemble
the batteries. Do not dispose of
batteries in a fire.
• They may burn or explode.
If the liquid from the batteries
gets onto your skin or clothes,
wash it well with clean water.
Do not use the remote if the
batteries have leaked.
• The chemicals in batteries could
cause burns or other health hazards.
If you eat the liquid from the
batteries, brush your teeth and
see doctor. Do not use the
remote if the batteries have
leaked.
• The chemicals in batteries could
cause burns or other health hazards.
Use a firm stool or ladder when cleaning or
maintaining the air conditioner.
• Be careful and avoid personal injury.
Replace all the batteries in the remote.
• There is risk of fire or explosion.

Installation Manual 9
Introduction
This symbol alerts you to the risk of electric shock.
This symbol alerts you to hazards that may cause harm to
the air conditioner.
This symbol indicates special notes.
NOTICE
Introduction
Symbols Used In This Manual
Features
Air Inlet Vents
Air Outlet Vents
Connecting
Wires
Piping
Drain Hose
Base Plate
Air Outlet
Vents
Air Inlet
Vents
Piping
Connecting
Wires
Drain Hose
Signal Receptor
Base Plate
Front Panel
Air Inlet
Air Filter
ENGLISH

10 Room Air Conditioner
Installation
Type "A" screw (6 EA) Type "A" screw (8 EA)
Type "B" screw Type "B" screw
Remote control holderRemote control holder
Type 1 Type 2
Installation plate Installation plate
Figure FigureName
Screw driver
Electric drill
Measuring tape, Knife
Hole core drill
Spanner
Torque wrench
Ohmmeter
Hexagonal wrench
Ammeter
Gas-leak detector
Thermometer,
Horizontal meter
Flaring tool set
Name
Installation Parts
Installation Tools
Installation
Read carefully, and then follow step by step.

Installation Manual 11
ENGLISH
Installation
Installation Map
Installation parts you should purchase.
Vertical Air deflector
Air Discharge
Forced Operation Button
Operation Indication Lamps/
Signal Receptor Vinyl tape(Wide)
• Apply after carrying out a
drainage test.
• To carry out the drainage
test, remove the air filters
and pour water into the heat
exchanger.
Saddle
Gas side piping
Liquid side piping
Additional drain pipe
Drain Hose
Base Plate
Air Inlet Vents
Connecting cable
Installation Plate
Sleeve
Bushing-Sleeve
Putty(Gum Type Sealant)
Bend the pipe as closely
on the wall as possible,
but be careful that it
doesn't break.
NOTICE
NOTE: refrigerant line wall thickness must be at least 0.8 mm (0.031 inch)
Air Outlet Vents

Installation
1. Check the quality label on the indoor and outdoor unit.
2. Make certain that the refrigerant is R-410A.
THIS PRODUCT CONTAINS R-410A REFRIGERANT
1) Different compressor oil
- R-410A(Polyol ester) / R-22(Mineral).
- Do not mix the existing mineral oil.
- Do not apply used pipe, tools and gauges covered with the existing mineral oil.
2) Absorption of moisture
-Compressorʼs oil has the high absorption rate of moisture.
3) Composition
- R-410A(R32:R125=50:50wt%).
NOTE: Never mix with other refrigerants
4) High pressure.
- 1.6 times higher than R-22.
- High Pressure refrigerant may cause personal injury.
Do not handle the pipe by yourself (customer) High-pressure refrigerant may cause personal injury.
- manifold gauge ,charging and any piping tools must be dedicated to R-410A systems.
NOTICE
Confirm The Refrigerant
12 Room Air Conditioner
Example : Split type 12,000 Btu/h
120
100
100%
100%70%50%30%0%
70% 50% 30% 0%
100
93 89 84
76
80
60
40
20
0
R-410A
R-22
Boiling Pt.( °C) Vapor pressure(25°C)(kg f/cnf) Vapor density(25°C)(kg/m
2
)
R-410A -51.4 15.9 64
R-22 -40.8 9.6 44.4

Installation Manual 13
Installation
Outdoor unit
1. If an awning is built over the unit to prevent
direct sunlight or rain exposure, make sure
that heat radiation from the condenser is not
restricted.
2. Ensure that the space around the back and
sides is more than 30cm(11.8in). The front of
the unit should have more than 70cm(27.6in)
of space.
3. Do not place animals and plants in the path
of the warm air.
4. Take the air conditioner weight into account
and select a place where noise and vibration
are minimum.
5. Select a place so that the warm air and noise
from the air conditioner do not disturb
neighbors.
Rooftop Installations
If the outdoor unit is installed on a roof structure, be sure to level the unit. Ensure the roof structure
and anchoring method are adequate for the unit location. Consult local codes regarding rooftop
mounting.
If the outdoor unit is installed on roof structures or walls, this may result in excessive noise and
vibration, and may be also classed as non serviceable installation.
Indoor unit
1. Do not have any heat or steam near the unit.
2. Select a place where there are no obstacles
in front of the unit.
3. Make sure that condensation drainage can
be conveniently routed away.
4. Do not install near a doorway.
5. Ensure that the space around the left and
right of the unit is more than 30cm(11.8in).
The unit should be installed as high on the
wall as possible, allowing a minimum of
20cm(7.9in) from ceiling.
6. Use a stud finder to locate studs to prevent
unnecessary damage to the wall.
Select The Best Location
Install the indoor unit on the wall where the height from the floors more than 1.5meters(4.9ft).
A minimum pipe run of 7.5meters(24.6ft) is required to minimize vibration and excessive noise.
More than
200mm(7.9in)
More than
300mm(11.8in)
More than
300mm(11.8in)
More than 2400mm(8ft)
More than
300mm(11.8in)
More than
300mm(11.8in)
More than
600mm(23.6in)
More than
600mm(23.6in)
More than
700mm(27.6in)
ENGLISH

14 Room Air Conditioner
Installation
Piping Length And Elevation
• Capacity is based on standard length and maximum allowance length is on the basis of
reliability.
• Oil trap should be installed every 5~7meters (16.4~23.0ft).
In case more than 5m(16.4ft)
Outdoor unit
Indoor unit
A
B
Outdoor unit
Indoor unit
A
B
A
Oil trap
Outdoor unit
Indoor unit
B
5.27(18k) Ø12.7(1/2") Ø6.35(1/4") 7.5(25) 15(49) 20(65) 20(0.22)
Pipe Size
Capacity
kW(Btu/h) Suction Evap
Standard
Length m(ft)
Max. Elevation
Ⓑm(ft)
Max. length
Ⓐm(ft)
Additional Refrigerant
g/m(oz/ft)

Installation Manual 15
ENGLISH
Installation

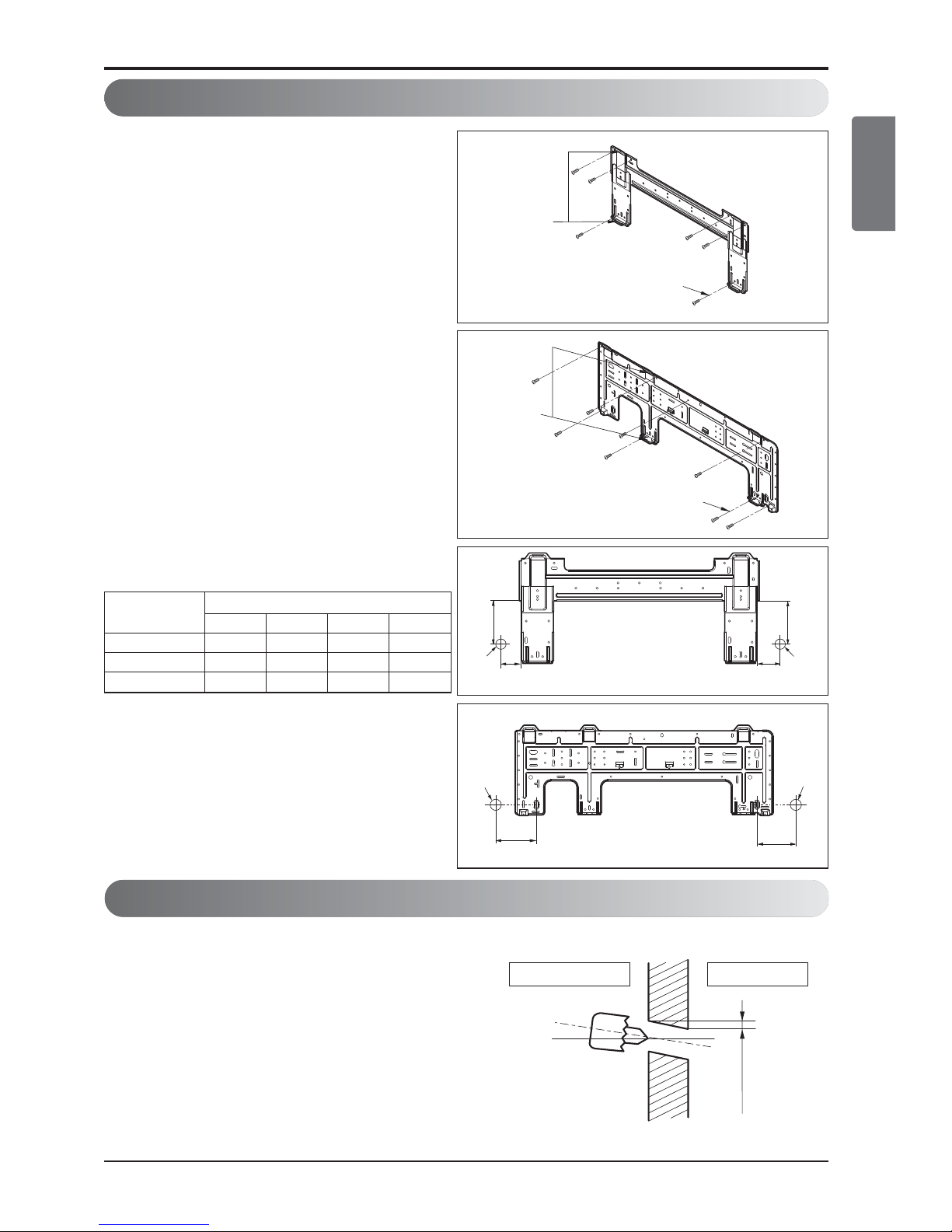

How To Mount Installation Plate
• Drill the piping hole with a ø65mm(2.55in)
hole core drill. Drill the piping hole at either
the right or the left with the hole slightly
slanted to the outdoor side.
Drill a Hole In The Wall
5-7mm
(0.2~0.3")
Indoor
WALL
Outdoor
The wall you select should be strong and
solid enough to prevent vibration
1. Mount the installation plate on the wall
with
type "A" screws. If mounting the unit on a
concrete wall, use anchor bolts.
• Mount the installation plate horizontally by
aligning the centerline using a level.
2. Measure the wall and mark the centerline.
It is also important to use caution
concerning the location of the installation
plate-routing of the wiring to power outlets
is through the walls typically. Drilling the
hole through the wall for piping
connections must be done safely.
Chassis
Hook
Installation Plate
Type “A”
Installation plate
Left rear piping Right rear piping
Ø65mm
(Ø2.55in)
Ø65mm
(Ø2.55in)
DB
A
C
ABCD
S4 55(2.17) 105(4.13) 65(2.56) 105(4.13)
SE 70(2.76) 110(4.33) 90(3.54) 110(4.33)
S5/S8 100(3.94) 122(4.80) 240(9.45) 122(4.80)
CHASSIS
(Capacity)
Distance (mm)(in)
<Type 1>
<Type 1>
<Type 1>
Installation plate
Left rear piping Right rear piping
Ø65mm
(Ø2.55in)
133mm
(5.24in)
Ø65mm
(Ø2.55in)
100mm
(3.94in)
<Type 2>
Chassis
Hook
Installation Plate
Type “A”
<Type 2>

16 Room Air Conditioner
Installation
Flaring Work
Cut the pipes and the cable.
1. Use the piping kit accessory or the pipes
purchased locally.
2. Measure the distance between the indoor and
the outdoor unit.
3. Cut the pipes a little longer than measured
distance.
4. Cut the cable 1.5m(59.1in) longer than the
pipe length.
Burrs removal
1. Completely remove all burrs from the cut cross
section of pipe/tube.
2. Put the end of the copper tube/pipe in a
downward direction as you remove burrs in
order to avoid dropping burrs into the tubing.
Putting nut on
• Remove flare nuts attached to indoor and
outdoor unit, then put them on pipe/tube having
completed burr removal.
(not possible to put them on after flaring work)
Flaring work
• Carry out flaring work using flaring tool as
shown below.
Main cause for gas leakage is due to defect in flaring work. Carry out correct flaring work in the
following procedure.
mm inch mm
Ø6.35 1/4 1.1~1.3
Ø9.52 3/8 1.5~1.7
Ø12.7 1/2 1.6~1.8
Ø15.88 5/8 1.6~1.8
Outside diameter A
Copper
pipe
90° Slanted Uneven Rough
Bar
Copper pipe
Clamp handle Red arrow mark
Cone
Yoke
Handle
Bar
"A"
Pipe
Reamer
Point down
Firmly hold copper pipe in a Bar in the
dimension shown in the table above.
Flare nut
Copper tube

Installation Manual 17
ENGLISH
Installation
Indoor
1. Prepare the indoor unit's piping and drain hose for installation through the wall.
2. Remove the plastic tubing retainer(see the
illustration by) and pull the tubing and drain
hose away from chassis.
3. Replace only the plastic tubing holder 1, not
the holder 2 in the original position.
Route the indoor tubing and the drain hose in
the direction of rear left.
Insert the connecting cable into the indoor unit
from the outdoor unit through the piping hole.
• Do not connect the cable to the indoor unit.
• Make a small loop with the cable for easy
connection later.
Tape the tubing, drain hose and the connecting
cable. Be sure that the drain hose is located at the
lowest side of the bundle. Locating at the upper side
can cause drain pan to overflow inside the unit.
NOTE: If the drain hose is routed inside the room,
insulate the hose with an insulation material* so that
dripping from "sweating"(condensation) will not
damage furniture or floors.
*Foamed polyethylene or equivalent is
recommended.
Indoor unit installation
• Hook the indoor unit onto the upper portion of
the installation plate.(Engage the three hooks
of the rear top and rear lower of the indoor
unit with the upper edge and lower edge of the
installation plate.) Ensure that the hooks are
properly seated on the installation plate by
moving it left and right.
Connecting the Piping
For left rear piping
Drain pipe
Connecting
cable
1 2
Installation plate
Spacer
Indoor unit
80mm
Connecting The Piping

18 Room Air Conditioner
Installation
Wrap the insulation material around the
connecting portion.
• Overlap the connection pipe insulation material
and the indoor unit pipe insulation material. Bind
them together with vinyl tape so that there is no
gap.
Route the indoor tubing and the drain hose to
the required piping hole position.
Plastic bands Insulation material
Connection pipe
Flare nut
Indoor unit tubing
Torque wrench
Spanner (fixed)
Vinyl tape(narrow)
Adhesive
Drain pipe
Indoor unit drain hose
• When extending the drain hose at the indoor unit,
install the drain pipe.
• Tighten the flare nut with a wrench.
• Wrap the area which accommodates the rear
piping housing section with vinyl tape.
For right rear piping
Connecting the pipings to the indoor unit
and drain hose to drain pipe.
• Put a couple drops of refrigerant oil on the face of
the flare before assembling taking care not to
add any contaminants.
• Align the center of the pipings and sufficiently
tighten the flare nut by hand.
Indoor unit tubing Flare nut Pipings
Drain hose
Vinyl tape(narrow)
Connection
pipe
Connecting cable
Vinyl tape
(wide) Wrap with vinyl tape
Indoor
unit pipe
Pipe
• Bundle the piping and drain hose together by
wrapping them with vinyl tape over the range
within which they fit into the rear piping housing
section.
Wrap with vinyl tape
Drain hose
Pipe
Vinyl tape(wide)
Ø6.35 1/4 1.8~2.5
Ø9.52 3/8 3.4~4.2
Ø12.7 1/2 5.5~6.6
Ø15.88 5/8 6.3~8.2
Outside diameter
mm inch
Torque
kgf·m

Installation Manual 19
ENGLISH
Installation
Insert the connecting cable into the indoor unit.
• Don't connect the cable to the indoor unit.
• Make a small loop with the cable for easy
connection later.
Tape the drain hose and the connecting cable.
• Connecting cable
Connecting the pipings to the indoor unit and
the drain hose to drain pipe.
• Put a couple drops of refrigerant oil on the face of
the flare before assembling taking care not to add
any contaminants
• Align the center of the pipings and sufficiently
tighten the flare nut by hand.
• Tighten the flare nut with a wrench.
Indoor unit tubing Flare nut Pipings
Torque wrench
Indoor unit tubing
Spanner (fixed)
Connection pipe
Flare nut
Indoor unit installation
• Hook the indoor unit onto the upper portion of
the installation plate.(Engage the three hooks of
the rear top and rear lower of the indoor unit with
the upper edge and lower edge of the installation
plate.) Ensure that the hooks are properly
seated on the installation plate by moving it left
and right.
Wrap the insulation material around the
connecting portion.
• Overlap the connection pipe heat insulation and the
indoor unit pipe heat insulation material. Bind them
together with vinyl tape so that there is no gap.
Plastic bands Insulation material
Vinyl tape
Adhesive
Drain hose
Indoor unit drain hose
(narrow)
• When extending the drain hose at the indoor unit,
install the drain pipe.
Connecting
pipe
Connecting cable
Tape
Drain hose
Drain hose
Connecting
Ø6.35 1/4 1.8~2.5
Ø9.52 3/8 3.4~4.2
Ø12.7 1/2 5.5~6.6
Ø15.88 5/8 6.3~8.2
Outside diameter
mm inch
Torque
kgf·m

20 Room Air Conditioner
Installation
Reroute the pipings and the drain hose
across the back of the chassis.
Reroute the pipings and the drain hose
across the back of the chassis.
Drain hose Vinyl tape(narrow)
Pipe
Wrap with
vinyl tape(wide)
• Bundle the piping and drain hose together by
wrapping them with cloth tape over the range within
which they fit into the rear piping housing section.
Piping for
passage through
piping hole
Drain hose
Connecting
• Wrap the area which accommodates the rear
piping housing section with vinyl tape.
Vinyl tape(narrow)
Connection
pipe
Connecting cable
Indoor
unit piping
Pipe
Vinyl tape
(wide) Wrap with vinyl tape
