LG LWC1011ACG User manual

Room Air Conditioner
SERVICE MANUAL
MODEL:
LWC1011ACG LWC1012ACG
LWC1211ACG LWC1212ACG
LWC1213AAG LWC1213ACN
LWC1213PAG LWC1031NCP/N/E
LWC1032ACG LWC1031SCG
LWC1031ACG LWC1232ACG/M/N
LWC1233ACG LWC1232PCG/M/N
LWC1233PCG LWC1232NCP/N
LWC1232SCG LWC1032PCG/TAS
LWC1232QCG/TAS LWC1232AAG
LWC123CGAA1 LWC123CGMJ1
LWC123CSAA1 LWC123CSMK1
LWC123CNAA1 LWC123CNMK1
CAUTION
- BEFORE SERVICING THE UNIT, READ THE "SAFETY
PRECAUTIONS" IN THIS MANUAL.
- ONLY FOR AUTHORIZED SERVICE.
All manuals and user guides at all-guides.com
all-guides.com

—2—
POWER SUPPLY
COOLING CAPACITY (Btu/h)
INPUT (W)
RUNNING CURRENT (A)
E.E.R (BTU/W.h)
INDOOR (°C)
OUTDOOR (°C)
REFRIGERANT (R-22) CHARGE
EVAPORATOR
CONDENSER
FAN, INDOOR
FAN, OUTDOOR
FAN SPEEDS, FAN / COOLING
FAN MOTOR
OPERATION CONTROL
ROOM TEMP. CONTROL
AIR DIRECTION CONTROL
CONSTRUCTION
COMPRESSOR
PROTECTOR FAN MOTOR
ELECTRIC HEATER
POWER CORD
DRAIN SYSTEM
NET WEIGHT (lbs/kg)
OUTSIDE DIMENSION (inch)
(W x H x D) (mm)
1ø, 208~230V, 60Hz
10,000 12,000
1,020 970 1,000
4.9 4.6
9.8 12.0
26.7(DB)* 19.4(WB)**
35(DB)* 23.9(WB)**
510g (18 OZ) 390g (13.8 OZ)
2 ROW 13 STACKS LOUVERED-FIN TYPE
2 ROW 17 STACKS, LOUVERED-FIN TYPE
BLOWER TURBO
PROPELLER TYPE FAN WITH SLINGER-RING
2/3 3/3 2/3
6 POLES
ROTARY SWITCH WIRELESS REMOCON ROTARY SWITCH
THERMOSTAT THERMISTOR THERMOSTAT
VERTICAL LOUVER (RIGHT & LEFT)
HORIZONTAL LOUVER (UP & DOWN)
SLIDE IN-OUT CHASSIS
OVERLOAD PROTECTOR
INTERNAL THERMAL PROTECTOR
FUSE LINK, BIMETAL THERMOSTAT
(3 WIRE WITH GROUDING)
ATTACHMENT PLUG (CORD-CONNECTED TYPE)
DRAIN PIPE OR SPLASHED BY FAN SLINGER
90/41 95/43 97/44
235/8x 1431/32 x 225/16
600 x 380 x 567
LWC1031ACG,
LWC1032ACG
LWC1031NCN/P,
LWC1031SCG
LWC1032PCG,
LWC1032TAS LWC123CNAA1
MODEL
ITEMS
OPERATING
CONDITION
* DB:Dry Bulb
** WB:Wet Bulb
1. SPECIFICATIONS
• MODELS : LWC1031ACG/LWC1032ACG/LWC1031NCN/P, LWC1031SCG, LWC1032PCG/TAS, LWC123CNAA1
2 ROW 16 STACKS
LOUVERED-FIN TYPE
2 ROW 18 STACKS
LOUVERED-FIN TYPE
All manuals and user guides at all-guides.com

—3—
POWER SUPPLY
COOLING CAPACITY (Btu/h)
INPUT (W)
RUNNING CURRENT (A)
E.E.R (BTU/W.h)
INDOOR (°C)
OUTDOOR (°C)
REFRIGERANT (R-22) CHARGE
EVAPORATOR
CONDENSER
FAN, INDOOR
FAN, OUTDOOR
FAN SPEEDS, FAN / COOLING
FAN MOTOR
OPERATION CONTROL
ROOM TEMP. CONTROL
AIR DIRECTION CONTROL
CONSTRUCTION
COMPRESSOR
PROTECTOR FAN MOTOR
ELECTRIC HEATER
POWER CORD
DRAIN SYSTEM
NET WEIGHT (lbs/kg)
OUTSIDE DIMENSION (inch)
(W x H x D) (mm)
1ø, 208~230V, 60Hz
12,000
1,220 1,210 1,000
5.5 5.7 4.6
9.8 12.0
26.7(DB)* 19.4(WB)**
35(DB)* 23.9(WB)**
390g(13.8 Oz)/555g (19.5 OZ)
560g (19.7 OZ) 390g (13.8 OZ)
2 ROW 13 STACKS LOUVERED-FIN TYPE
2 ROW 17 STACKS, LOUVERED-FIN TYPE
BLOWER TURBO
PROPELLER TYPE FAN WITH SLINGER-RING
2/3 3/3
6 POLES
ROTARY SWITCH WIRELESS REMOCON
THERMOSTAT THERMISTOR
VERTICAL LOUVER (RIGHT & LEFT)
HORIZONTAL LOUVER (UP & DOWN)
SLIDE IN-OUT CHASSIS
OVERLOAD PROTECTOR
INTERNAL THERMAL PROTECTOR
FUSE LINK, BIMETAL THERMOSTAT
(3 WIRE WITH GROUDING)
ATTACHMENT PLUG (CORD-CONNECTED TYPE)
DRAIN PIPE OR SPLASHED BY FAN SLINGER
97/44
235/8x 1431/32 x 225/16
600 x 380 x 567
LWC1232ACG/AAG,LWC1233ACG
LWC123CGAA1, LWC123CSAA1
LWC1232PCG/M, LWC1232NCP/N, LWC1232SCG,
LWC1233PCG, LWC123CGMJ1, LWC123CSMK1
LWC1232QCG/TAS LWC123CNMK1
MODEL
ITEMS
OPERATING
CONDITION
* DB:Dry Bulb
** WB:Wet Bulb
• MODELS : LWC1232ACG/AAG, LWC1233ACG, LWC1232PCG/M, LWC1232NCP/N, LWC1232SCG, LWC1233PCG,
LWC1232QCG/TAS, LWC123CGAA1, LWC123CSAA1, LWC123CGMJ1, LWC123CSMK1, LWC123CNMK1
2 ROW 16 STACKS
LOUVERED-FIN TYPE
2 ROW 18 STACKS
LOUVERED-FIN TYPE
All manuals and user guides at all-guides.com

—4—
TEMPERATURE SETTING
•This button can automatically control the temperature of the room.
The temperature can be set within a range of 60°F to 86°F by 1°F.(16˚C to 30˚C by 1˚C)
Select the lower number for lower temperature of the room.
FAN SPEED
•Everytime you push this button it is set as follows. {High(F3) →Low(F1) →Med(F2) →High(F3)...}.
POWER
•To turn the air conditioner ON, push the button. To turn the air conditioner OFF, push the button again.
•This button takes priority over any other buttons.
•When you first turn it on, the air conditioner is on the High cool mode and the temp. at 72°F(22˚C).
MODE
•Everytime you push this button, it will toggle between Cool, Fan and Dry.
AUTO SWING (Optional)
•The vertical louver swings horizontally by the automatic system and stops when you press
the button again.
ON/OFF TIMER
•Remote controller
Precaution: The Remote Controller will not function properly if strong light strikes the sensor window of the air conditioner or
if there are obstacles between the Remote Controller and the air conditioner.
1
2
3
4
5
6
1
2
3
4
5
6
1
4
5
3
6
2
- STOPPING OPERATION
•Everytime you push this button, when the air conditioner is operating, timer is set as follows. (1Hour
→2Hours →3Hours →4Hours →5Hours →6Hours →7Hours →8Hours →9Hours →10Hours →
11Hours →12Hours →Cancel)
•The Setting Temperature will be raised by 2°F(1°C) 30min. later and by 2°F(1°C) after another 30 min.
- STARTING OPERATION
•Everytime you push this button, when the air conditioner is not operating, timer is set as follow.
(1Hour →2Hours →3Hours →4Hours →5Hours →6Hours →7Hours →8Hours →9Hours
10Hours →11Hours →12Hours →Cancel)
FAN SPEED
•Everytime you push this button it is set as follows.
{High(F3)
→ Low(F1) → Med(F2) → High(F3)...}.
REMOCON SIGNAL RECEIVER
MODE
•Everytime you push this button, it will toggle
between Cool, Fan and Dry.
POWER
•To turn the air conditioner ON, push the button.
To turn the air conditioner OFF, push the button again.
•This button takes priority over any other buttons.
•When you first turn it on, the air conditioner is on the
High cool mode and the temp. at 72°F(22˚C)
TEMPERATURE SETTING
•This button can automatically control the temperature
of the room. The temperature can be set within a range
of 60°F to 86°F by 1°F.(16˚C to 30˚C by 1˚C)
Select the lower number for lower temperature of the room.
AUTO RESTART SWITCH
In failure of electric power, if the switch is set to "ON",
the unit runs unit runs as previous setting operation
when power returns.
ON/OFF TIMER
•Everytime you push this button, timer is set as follows.
(1Hour
→ 2Hours → 3Hours → 4Hours → 5Hours → 6Hours → 7Hours
→
8Hours → 9Hours → 10Hours → 11Hours → 12Hours → Cancel)
•The Setting Temperature will be raised by 2°F(1˚C) 30min.
later and by 2°F after another 30 min.
AUTO SWING (Optional)
The vertical louver swings horizontally by the automatic
system and stops when you press the button again.
2. COOLING ONLY MODEL WITH REMOTE CONTROL AND TOUCH TYPE
•DISPLAY
All manuals and user guides at all-guides.com

—5—
3. WIRING DIAGRAM
1
6
4
5
2
7
3
9
8
1
6
4
5
2
7
3
9
8
MOTOR
RD
BK
BL BL
BK
RD
BR
BR
BLBR BL
OR(BR)
BK
RDRD
BK
OR(BR)
YL
F
C
H
CAPACITOR
PTC
R
C
COMP. TRANS-
FORMER
SYNC.
MOTOR
S
RD
THERMISTOR
BK
OR(BR)
BK(BR)
POWER INPUT
(Plain)
CN-TH1
RY-LO
RY-MED
RY-SYNC
CN-SYNC
CN-DISP1CN-DISP2
DISPLAY P.W.B ASSY
RY-COMP
ZNR01J
MAIN P.W.B ASSY
FUSE 250V/2A
43
RY-HI
GN(GN/YL)
WH(BL)
(Ribbed)
YL
OLP
WH(BL)
POWER INPUT
BK(BR)
(Ribbed) (Plain)
GN/YL
(GN)
GN/YL(GN)
THERMISTOR
BK BK
BL
RD
BL
RD
CN-TH1
YL YL
OR(BR) OR(BR)
OR(BR) SYNC
MOTOR
RY-LO
RY-HI
CN-WORK
CN-SYNC CN-DISP
DISPLAY P.W.B ASM
RY-SYNC
250V/T2A
(115V/T2A)
TRANS
FORMER
ZNR
RY-COMP
MAIN P.W.B ASM
BK
BK
BR
BR
RD
BL BL
OLP
RD
MOTOR
CAPACITOR
F
R
S
COMP.
C
C
H
3854AR2330P
WIRING DIAGRAM
RY-MID
FUSE
RD
BK
PTC
43
S: Service Parts
N: Non Service Parts
1 POWER CORD ASSY 1 S
2 MOTOR ASSY 1 S
3 COMPRESSOR 1 S
4 MAIN P.W.B ASSY 1 S
5 DISPLAY P.W.B ASSY 1 S
6 THERMISTOR 1 S
7 CAPACITOR 1 S
8 CONNECTOR ASSY 1 S
9 OVERLOAD PROTECTOR 1S
LOCATION
NO.
DESCRIPTION
RE-
MARKS
Q'TY
PER SET
•MODELS :
LWC1031NCP/N, LWC1232PCG/M,
LWC1233PCG, LWC1232NCP/N
•MODELS : LWC1032PCG, LWC1232QCG
LWC123CGMJ1, LWC123CSMK1
LWC123CNMK1
All manuals and user guides at all-guides.com

—6—
1
6
4
5
2
7
3
9
8
10
WIRING DIAGRAM
MOTOR
RD
BK
BL BL
BK
RD
BR
BR
BLBR BL
OR(BR)
BK
RDRD
BK
OR(BR)
YL
F
C
H
CAPACITOR
PTC
R
C
COMP. TRANS-
FORMER
SYNC.
MOTOR
S
RD
THERMISTOR
BK
OR(BR)
BK(BR)
POWER INPUT
(Plain)
CN-TH1
RY-LO
RY-MED
RY-SYNC
CN-SYNC
CN-DISP1CN-DISP2
DISPLAY P.W.B ASSY
RY-COMP
ZNR01J
MAIN P.W.B ASSY
FUSE 250V/T2A
43
RY-HI
GN(GN/YL)
WH(BL)
(Ribbed)
YL
OLP
RD
ION
H.V.B GN
(GN/YL)
COMP.
MOTOR
WH(BL)
POWER INPUT
(Plain)
GN(GN/YL)
BK(BR)
(Ribbed)
WIRING DIAGRAM 3854AR3563A
BL
BL
RD
BK
R
C
S
YL
YL
RD
BK
BL
RD
ROTARY SWITCH
BK
BL
L7
1
8
6
4
2
H
M
OR(BR)
OR(BR)
BL
RD
BK
THERMOSTAT
CAPACITOR
P.T.C
RD
BK
F
C
H
BR(YL)
OLP
2
7
4
3
1
56
S: Service Parts
N: Non Service Parts
1 POWER CORD ASSY 1 S
2 MOTOR ASSY 1 S
3 COMPRESSOR 1 S
4 MAIN P.W.B ASSY 1 S
5 DISPLAY P.W.B ASSY 1 S
6 THERMISTOR 1 S
7 CAPACITOR 1 S
8 CONNECTOR ASSY 1 S
9 OVERLOAD PROTECTOR 1S
10 H.V ASSY 1 S
LOCATION
NO.
DESCRIPTION
RE-
MARKS
Q'TY
PER SET
S: Service Parts
N: Non Service Parts
1 POWER CORD ASSY 1 S
2 MOTOR ASSY 1 S
3 COMPRESSOR 1 S
4 THERMOSTAT 1 S
5 CAPACITOR 1 S
6 OVERLOAD PROTECTOR 1S
7 ROTARY SWITCH 1 S
LOCATION
NO.
DESCRIPTION
RE-
MARKS
Q'TY
PER SET
LWC1031SCG, LWC1232SCG
LWC1232AAG, LWC123CGAA1, LWC123CSAA1
LWC123CNAA1
All manuals and user guides at all-guides.com
all-guides.com

—7—
4. SCHEMATIC DIAGRAMS
•MODELS : LWC1031NCP/N, LWC1232PCG/M, LWC1232NCP/N, LWC1233PCG, LWC1032PCG/TAS,
LWC1232QCG/TAS, LWC123CGMJ1/CSMK1/CNMK1
All manuals and user guides at all-guides.com

—8—
•MODELS : LWC1031SCG, LWC1232SCG
All manuals and user guides at all-guides.com

—9—
5. COMPONENTS LOCATION
5.1 FOR MAIN P.C.B ASM
•MODELS :
LWC1031NCP/N, LWC1232NCN/P, LWC1232PCG/M, LWC1233PCG, LWC1032PCG/TAS,
LWC1232QCG/TAS
•MODELS : LWC1031SCG, LWC1232SCG
All manuals and user guides at all-guides.com

—10—

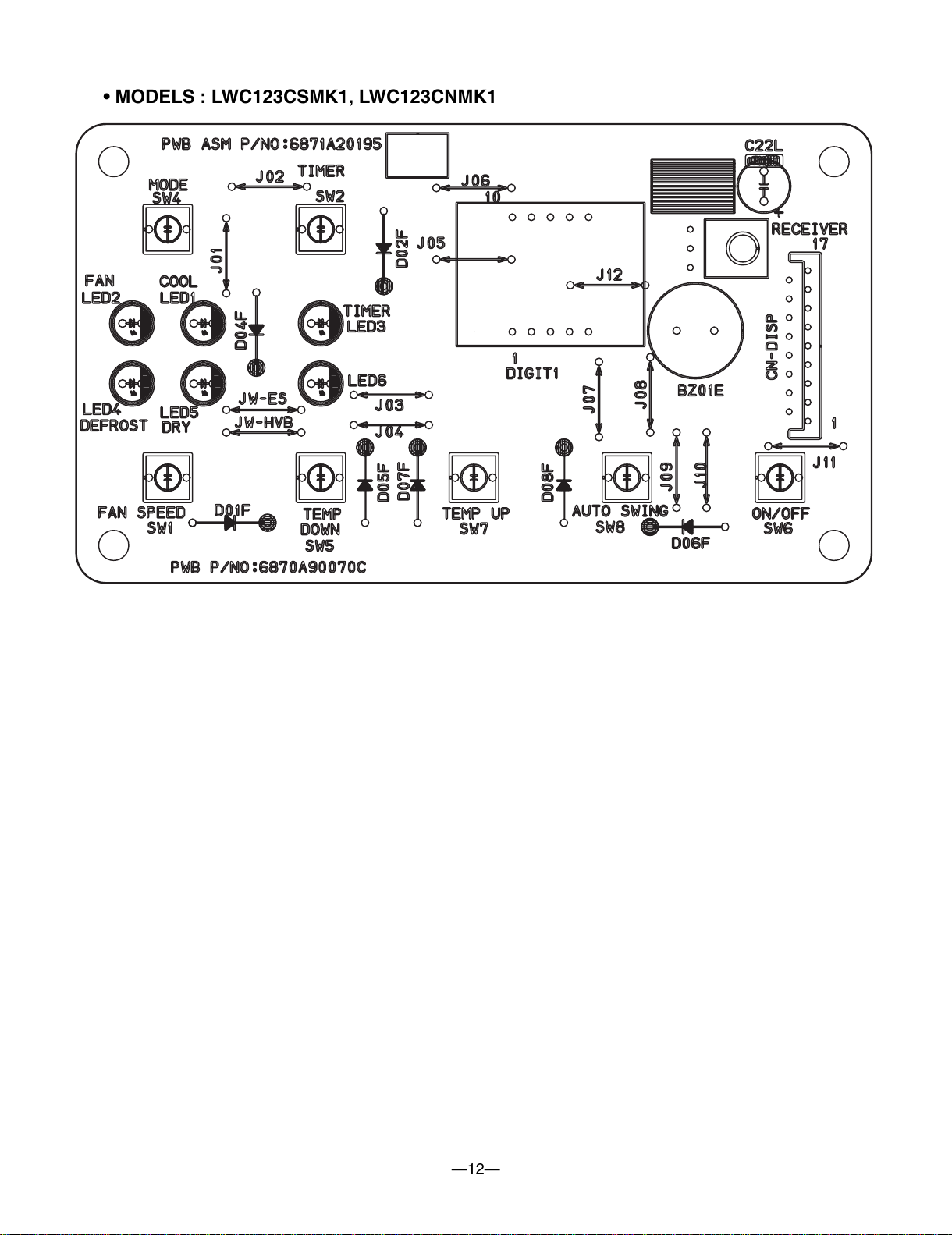

•MODELS : LWC123CSMK1, LWC123CNMK1
5.2 COMPONENTS LOCATION (OF DISPLAY P.C.B ASM)
•MODELS : LWC123CGMJ1
B
All manuals and user guides at all-guides.com

—11—
5.3 FOR DISPLAY P.C.B ASM
•MODELS : LWC1031NCP/N, LWC1232NCN/P, LWC1232PCG/M, LWC1232PCG,
LWC1031SCG, LWC1232SCG
•MODELS : LWC123CGMJ1
All manuals and user guides at all-guides.com
all-guides.com

—12—
•MODELS : LWC123CSMK1, LWC123CNMK1
All manuals and user guides at all-guides.com

—13—

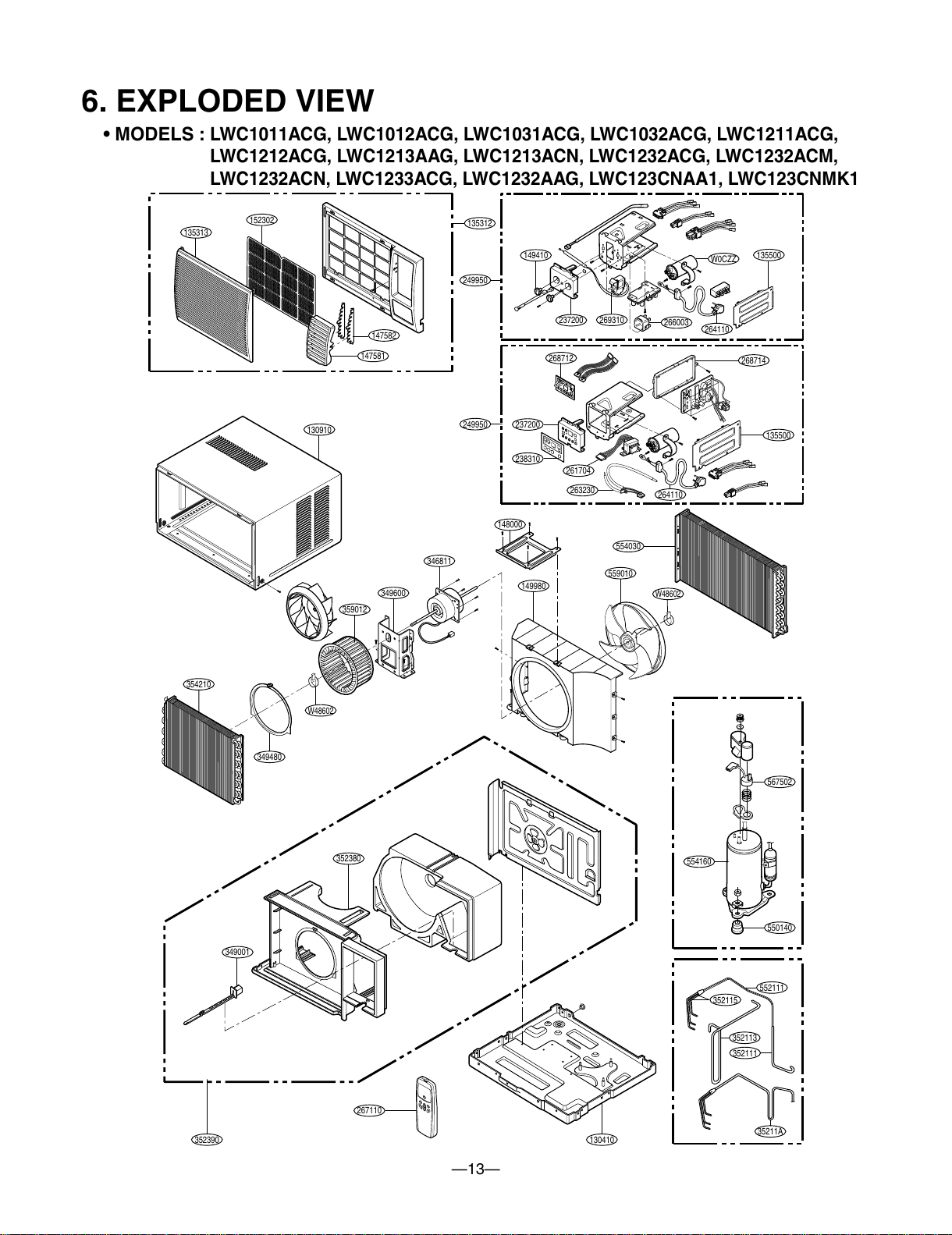

6. EXPLODED VIEW
•MODELS : LWC1011ACG, LWC1012ACG, LWC1031ACG, LWC1032ACG, LWC1211ACG,
LWC1212ACG, LWC1213AAG, LWC1213ACN, LWC1232ACG, LWC1232ACM,
LWC1232ACN, LWC1233ACG, LWC1232AAG, LWC123CNAA1, LWC123CNMK1
354210
559010
149980
130910
148000
359012
349480
W48602
W48602
349600
346811
554030
130410352390
349001
352380
267110
152302
147582
147581
135313
552111
352115
352111
352113
35211A
567502
554160
550140
135312
249950
249950
149410 135500
237200 264110
269310 266003
268712
264110
268714
135500
237200
238310
263230
261704
W0CZZ
All manuals and user guides at all-guides.com

—14—

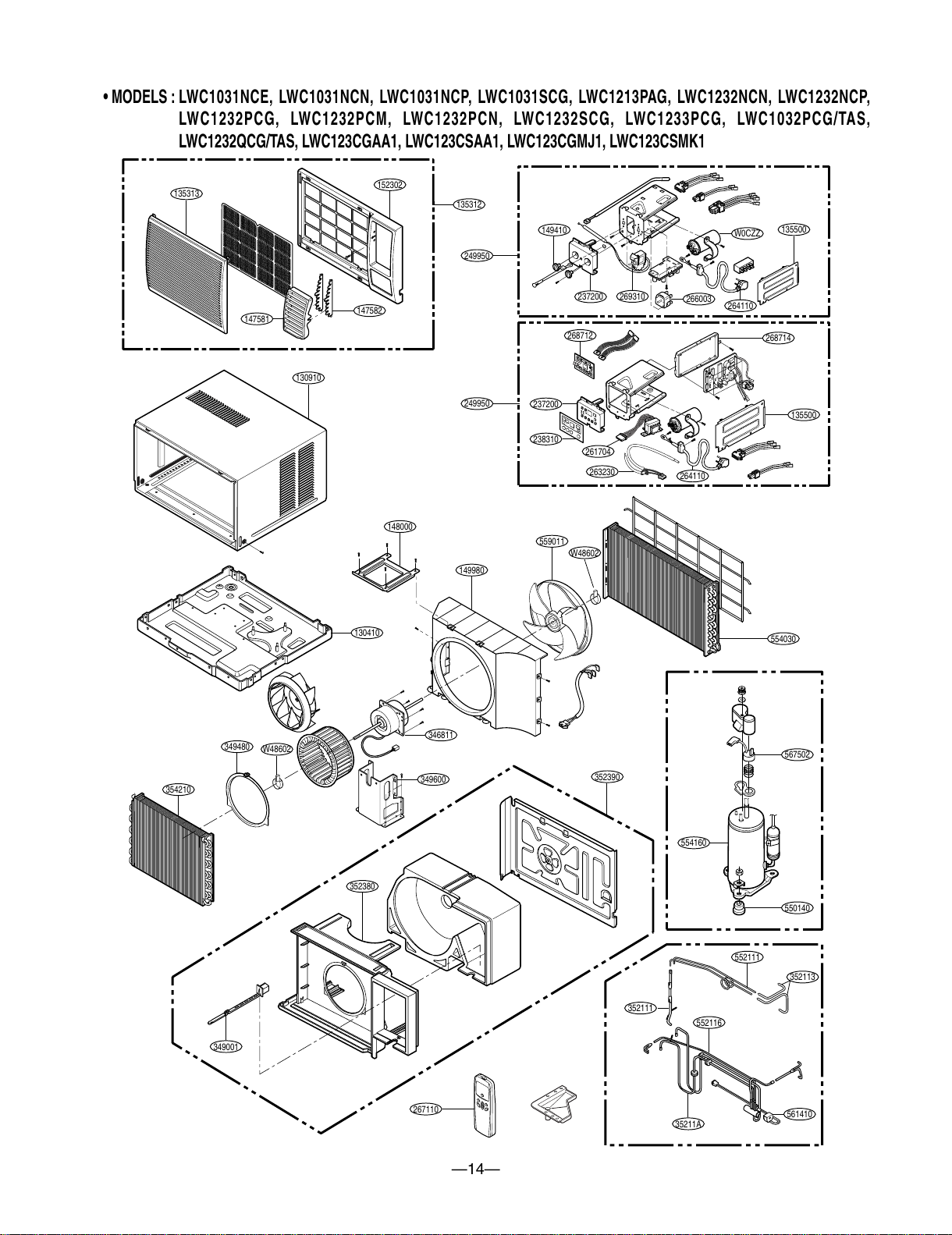

•MODELS : LWC1031NCE, LWC1031NCN, LWC1031NCP, LWC1031SCG, LWC1213PAG, LWC1232NCN, LWC1232NCP,
LWC1232PCG, LWC1232PCM, LWC1232PCN, LWC1232SCG, LWC1233PCG, LWC1032PCG/TAS,
LWC1232QCG/TAS, LWC123CGAA1, LWC123CSAA1, LWC123CGMJ1, LWC123CSMK1
130910
135313 152302
552111
35211A
552116
349480
149980
559011
W48602
148000
352390
W48602
349001
352380
349600
130410
346811
554030
135312
147582
147581
567502
550140
561410
352113
352111
554160
267110
354210
249950
249950
149410 135500
237200 264110
269310 266003
268712
264110
268714
135500
237200
238310
263230
261704
W0CZZ
All manuals and user guides at all-guides.com

—15—
130410 3041AR1524F BASE ASSY, SINGLE 1 1 1 1 R
130910 3091AR2286G CABINET ASSY, SINGLE 1 1 1 1 R
135312 3531A20009A GRILLE ASSY, FRONT(SINGLE) 1 1 1 1 R
135313 3530AR1634A GRILLE ASSY, INLET 1 1 1 1 R
135500 3551A30029A COVER ASSY, CONTROL(SINGLE)
11 1
R
3550AR7032A 1
137215 3721A30007C PANEL ASSY, CONTROL 111 R
3720A10003c 1
147581 5990AR6191A LOUVER, HORIZONTAL 1 1 1 1 R
147582 4758AR7308A LOUVER, VERTICAL 1 1 1 1 R
148000 4810AR7029A BRACE 1 1 1 1 R
149410 4941A30005B KNOB ASSY 1 1 1 R
149980 4998AR1496A SHROUD 1 1 1 1 R
152302 5231AR1152A FILTER(MECH), A/C 1 1 1 1 R
238310 3831A20004Z ESCUTCHEON 1 R
4995AR6048W 1 1 R
249950 4995A20113E CONTROL BOX ASSY, SINGLE 1
4995A20064L 1
261704 6170A20001A TRANSFORMER, POWER 1 R
3H03671A 1 R
264110 2H00677R POWER CORD ASSY 1
2H00677G 1 1
266003 2H00598E SWITCH, ROTARY 1 1 1 R
267110 6711A20018P REMOTE CONTROLLER ASSY 1 R
268712 6871A20118K PWB(PCB)ASSY, DISPLAY 1 R
268714 6871A20078A PWB(PCB)ASSY, MAIN 1 R
269310 2H01109L THERMOSTAT ASSEMBLY 1 1 1 R
346811 4681A20009D MOTOR ASSY, AC 11 1 R
4681A20009L 1
349001 4900AR7024A DAMPER, VENTILATION 1 1 1 1 R
349480 4948AR7034A ORIFICE 1 1 1 1 R
349600 4960AR6165A MOUNT, MOTOR 1 1 1 1 R
352111 5211AR7059D TUBE ASSY, CONNECTOR 11 1 R
5211AR7059B 1
352113 5211AR2930E TUBE ASSY, DISCHARGE SINGLE 1111R
352115 5210AR7183C TUBE ASSY, EVAPORATOR IN 11 1 R
5210AR7183B 1
35211A 5211AR6071B TUBE ASSY, SUCTION SINGLE 11 R
5211AR6071C 1 1
352380 5238AR1499A AIR GUIDE 1 1 1 1 R
352390 5239AR1523A AIR GUIDE ASSY 1 1 1 1 R
354210 5421AR2910C EVAPORATOR ASSY, FIRST 1 1 1 1 R
359012 5834AR1495A FAN ASSY, BLOWER 1 1 1 1 R
LOCATION
NO.
PART NO. DESCRIPTION
QUANTITY
LWC1031ACG LWC1031SCG LWC1012ACG LWC1032ACG
REMARKS
7. REPLACEMENT PARTS LIST
All manuals and user guides at all-guides.com

—16—
550140 4830AR4335A ISOLATOR, COMP 33 3 R
4H00982C 3
552101 5424AR3411P TUBE, CAPILLARY 11 1 R
3H01675S 1
552111 5425AR7133C TUBE, CAPILLARY BEND 11 1 R
5425AR7133E 1
554030 5403AR2921A CONDENSER ASSY, FIRST 11 R
5403AR2921B 1 1
554160 5416A20012E COMPRESSOR 11 1 R
5416A20012B 1
559010 5900AR1173A FAN ASSY, AXIAL 1 1 1 1 R
567502 6750U-L039A O.L.P 11 1 R
6750U-L049A 1
W0CZZ 6120AR2194B CAPACITOR, DRAWING 11 1 R
6120AR2194K 1
W48602 3H02932B CLAMP, SPRING 1 1 1 1 R
LOCATION
NO.
PART NO. DESCRIPTION QUANTITY
LWC1031ACG LWC1031SCG LWC1012ACG LWC1032ACG
REMARKS
All manuals and user guides at all-guides.com
all-guides.com

—17—
130410 3041AR1524F BASE ASSY, SINGLE 1 1 1 1 R
3091A20008B 1 1
130910 3091AR2286G CABINET ASSY, SINGLE 1 R
3091AR2286F 1
3531A20043J 1
135312 3531A20043K GRILLE ASSY, FRONT(SINGLE) 1R
3531A20009F 1
3531A20010G 1
3530A10034C 1
135313 3530AR1634B GRILLE, INLET 1R
3530AR1635A 1
3530AR1396A 1
135500 3550AR7032A COVER, CONTROL(INDOOR) 1 R
135510 3551A30029A COVER ASSY, CONTROL(SINGLE) 111 R
3720AR2509A 1 1
137215 3720A10003A PANEL, CONTROL 1 R
3721A30007X 1
4758AR2196C 1
147581 4758AR2196A LOUVER, HORIZONTAL 1R
5990AR6191A 1
5990AR6191C 1
4758AR3307C 1
147582 4758AR3307A LOUVER, VERTICAL 1 R
4758AR7308A 1 1
148000 4810AR7029A BRACE 1 1 1 1 R
149410 4941A30005B KNOB ASSY 1R
4941A30005C 1
149980 4998AR1496A SHROUD 1 1 1 1 R
152302 5231AR1152C FILTER(MECH), A/C 1 1 R
5231AR1152A 1 1
238310 3831A20019B ESCUTCHEON 1R
3831A20004Y 1 1
4995A20113Y 1
249950 4995A20113G CONTROL BOX ASSY, SINGLE 1R
4995A20113F 1
4995A20064K 1
261704 6170A20006A TRANSFORMER, POWER 1 1 1 R
263230 6323A20003D THERMISTOR ASSY 1 1 1 R
3H03671D 1
264110 3H03671A POWER CORD ASSY 1 1 R
2H00677R 1
266003 2H00598E SWITCH, ROTARY 1 R
6711A20035L 1
267110 6711A20018V REMOTE CONTROLLER ASSY 1 R
6711A20019J 1
LOCATION
NO.
PART NO. DESCRIPTION QUANTITY
LWC1031NCE LWC1031NCN LWC1031NCP LWC1011ACG
REMARKS
All manuals and user guides at all-guides.com

—18—
268712 6871A20118N PWB(PCB) ASSY, DISPLAY 1 1 1 R
268714 6871A10013V PWB(PCB) ASSY, MAIN 1 1 1 R
269310 2H01109L THERMOSTAT ASSY 1 R
346811 4681A20009D MOTOR ASSY, AC 111 R
4681A20009L 1
349001 4900AR7024A DAMPER, VENTILATION 1 1 1 1 R
349480 4948AR7034A ORIFICE 1 1 1 1 R
349600 4960AR6165A MOUNT, MOTOR 1 1 1 1 R
352111 5211AR7059D TUBE ASSY, CONNECTOR 111 R
5211AR7059B 1
352113 5211AR2930E TUBE ASSY, DISCHARGE SINGLE 1111R
352115 5210AR7183C TUBE ASSY, EVAPORATOR IN 111 R
5210AR7183B 1
5211AR6071D 1 1
35211A 5211AR6071C TUBE ASSY, SUCTION SINGLE 1 R
5211AR6071B 1
352380 5238AR1499A AIR GUIDE 1 1 1 1 R
352390 5239AR1523A AIR GUIDE ASSY 1 1 1 1 R
354210 5421AR2910C EVAPORATOR ASSY, FIRST 1 1 1 1 R
359010 5834AR1495A FAN ASSY, BLOWER 1 1 1 1 R
550140 4830AR4335A ISOLATOR, COMP 333 R
4H00982C 3
552101 5424AR3411P TUBE, CAPILLARY 111 R
3H01675S 1
552111 5425AR7133C TUBE, CAPILLARY BEND 111 R
5425AR7133E 1
554030 5403AR2921A CONDENSER ASSY, FIRST 1 1 1 1 R
554160 5416A20012E COMPRESSOR 111 R
5416A20012B 1
559010 5900AR1173A FAN ASSY, AXIAL 1 1 1 1 R
567502 6750U-L039A O.L.P 111 R
6750U-L049A 1
W0CZZ 6120AR2194B CAPACITOR, DRAWING 111 R
6120AR2194K 1
W48602 3H02932B CLAMP, SPRING 1 1 1 1 R
LOCATION
NO.
PART NO. DESCRIPTION QUANTITY
LWC1031NCE LWC1031NCN LWC1031NCP LWC1011ACG
REMARKS
All manuals and user guides at all-guides.com

—19—
130410 3041A20012R BASE ASSY,SINGLE 1 1 1 R
130910 3091AR2286H CABINET ASSY,SINGLE 1 1 1 R
135312 3531A20009Q GRILLE ASSY,FRONT(SINGLE) 11 R
3531AR2743Z 1
135313 3530AR1634A GRILLE ASSY,INLET 11 R
3530AR1396A 1
135500 3550AR7032A COVER,CONTROL(INDOOR) 1 1 1 R
3721A30007C 1
137215 3721AR2932A PANEL ASSY,CONTROL 1 R
3720A10003A 1
147581 5990AR6191A LOUVER,HORIZONTAL 11R
4758AR2196A 1
147582 4758AR7308A LOUVER,VERTICAL 11 R
4758AR3307A 1
148000 4800A10001A BRACE 1 1 1 R
149410 4941A30005B KNOB ASSY 1R
4941AR3368A 1
149980 4998AR1496A SHROUD 1 1 1 R
152302 5231AR1152A FILTER(MECH),A/C 1 1 1 R
238310 3831A20031B ESCUTCHEON 1 R
4995A20064G 1
249950 4995A20095R CONTROL BOX ASSY,SINGLE 1 R
4995A20113U 1
261704 6170A20006B TRANSFORMER,POWRE 1 R
263230 6323A20003D THERMISTOR ASSY 1 R
264110 2H00677S POWER CORD ASSY 1 1 1 R
266003 2H00598E SWITCH,ROTARY 1 1 R
267110 6711A20034M REMOTE CONTROLLER ASSY 1 R
268712 6871A20195F PWB(PCB) ASSY DISPLAY 1 R
268714 6871A20188B PWB(PCB) ASSY MAIN 1 R
269310 2H01109L THERMOSTAT ASSEMBLY 1 1 R
346811 4681A20027H MOTOR ASSY,SINGLE 1 1 1 R
349001 4900AR7024B DAMPER,VENTILATION 1 1 1 R
349480 4948A10005A ORIFICE 1 1 1 R
349600 4960A20005A MOUNT,MOTOR 1 1 1 R
352111 5211AR7059B TUBE ASSY,CONNECTOR 1 1 1 R
352113 5211AR2930A TUBE ASSY,DISCHARGE SINGLE 111R
352115 5211A20131D TUBE ASSY,EVAPORATOR IN 1 1 1 R
35211A 5211A20228A TUBE ASSY,SUCTION SINGLE 1 1 1 R
352380 5238A20001A AIR GUIDE 1 1 1 R
352390 5239AR1523K AIR GUIDE ASSY 1 1 1 R
354210 5421AR2910E EVAPORATOR ASSY,FIRST 1 1 1 R
359012 5900A20002B FAN,TURBO 1 1 1 R
LOCATION
NO.
PART NO. DESCRIPTION QUANTITY
LWC1213AAG LWC1213ACN LWC1213PAG
REMARKS
All manuals and user guides at all-guides.com

—20—
550140 4830AR4335A ISOLATOR,COMP 3 3 3 R
552101 3H02633H TUBE,CAPILLARY 1 1 1 R
552111 5211A20020S TUBE ASSY,CAPILLARY 1 1 1 R
554030 5403AR2921B CONDENSER ASSY,FIRST 11 R
5403AR2921A 1
554160 2520UKPC2CA COMPRESSOR SET 1 1 1 R
559010 5900AR1173A FAN ASSY,AXIAL 1 1 1 R
567502 6750U-L029A O.L.P 1 1 1 R
W0CZZ 0CZZA20001M CAPACITOR,DRAWING 1 1 1 R
W48602 3H02932B CLAMP,SPRING 1 1 1 R
LOCATION
NO.
PART NO. DESCRIPTION QUANTITY
LWC1213AAG LWC1213ACN LWC1213PAG
REMARKS
All manuals and user guides at all-guides.com
