LG ESS Home 10 User manual

ENGLISH
https://www.lg.com/global/business/ess/residential/dc-8-10
OWNER’S MANUAL
Energy Storage
System
Please read this manual carefully before installing
your set and retain it for future reference.
MODEL
LG ESS Home 10 (D010KE1N211)
LG ESS Home 8 (D008KE1N211)
29/04/2019
Copyright © 2019 LG Electronics Inc. All Rights Reserved.
*MFL71429401*

Getting Started
2
Getting Started
1
Safety Information
IMPORTANT : THIS PRODUCT SHOULD NOT BE USED FOR ANY PURPOSE OTHER THAN THE
PURPOSE DESCRIBED IN THIS INSTALLATION MANUAL.
WARNING Indicates a potentially dangerous situation. Death or serious
injury may result if appropriate precautions are not taken.
yThere is high possibility of electric shock or serious burns due to the high voltages in power
conditioning circuits.
yHigh voltages on AC and DC cables. Risk of death or serious injury due to electric shock.
yA potentially hazardous circumstance such as excessive heat or electrolyte mist may occur due to
improper operating conditions, damage, misuse and/or abuse.
y_mnxuwtizhymf{jutyjsynfqifsljwxzhmfxijfymtwxjwntzxnsozw~g~Ņwj0mnlm{tqyfljxtw
explosion if appropriate precautions are not read or fully understood.
yOtstyuqfhjņfrrfgqjtwutyjsynfqq~j}uqtxn{jtgojhyxsjfwymjuwtizhy/
yDo not place any kind of objects on top of the product during operation.
yAll works on the PV modules, power conditioning system, and battery system must be carried out
g~vzfqnŅjiujwxtssjqtsq~/
yElectrical installations must be done in accordance with the local and national electrical safety
standards.
yWear rubber gloves and protective clothing (protective glasses and boots) when working on high
voltage/high current systems such as PCS and battery systems.
yThere is a risk of electric shock. Do not remove cover. There is no user serviceable parts inside.
]jkjwxjw{nhnslytvzfqnŅjifsifhhwjinyjixjw{nhjyjhmsnhnfs/
yElectrical shock hazard. Do not touch uninsulated wires when the product cover is removed.
yIn the event of fault, the system must not be restarted. Product maintenance of repairs must be
ujwktwrjig~vzfqnŅjiujwxtssjq0twujwxtssjqkwtrfsfzymtwnjixzuutwyhjsyjw/
yIf the connected batteries are not LG battery, not only the batteries but also the PCS is not
guaranteed by LG Electronics.

Getting Started 3
Getting Started
1
CAUTION Indicates a situation where damage or injury could occur. If
it is not avoided, minor injury and/or damage to property
may result.
yThis product is intended for residential use only and should not be used for commercial or
industrial.
yBefore testing electrical parts inside the system, it takes at least 10-minute standby period of
time to complete discharging the system.
yThe contents included in this box are power conditioning system and its accessories, and the
entire weight is very heavy. Serious injury may occur due to the heavy weight of the package with
PCS and accessories. Therefore, special care must be taken in handling. Make sure to have at least
two persons deliver and remove the package.
yDo not use the damaged, cracked or frayed electrical cables and connectors. Protect the electrical
cables from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door
or walked upon. Periodically examine the electrical cables of your product, and if its appearance
indicates damage or deterioration, discontinue use of this product, and have the cables replaced
|nymfsj}fhywjuqfhjrjsyufwyg~fvzfqnŅjiujwxtssjq/>
yEnsure that you connect the earth ground wire to prevent possible electric shock. Do not try to
ground the product by connecting it to telephone wires, lightning rods or gas pipes.
y_mjuwtizhyxmtzqistygjj}utxjiyt|fyjw"iwnuunsltwxuqfxmnsl-fsisttgojhyxŅqqji|nym
liquids, such as vases, should be placed on the product.
y_tuwj{jsyŅwjtwjqjhywnhxmthpmffwi0itstyj}utxjymnxuwtizhyntsytwfnstwrtnxyzwj/
yDo not block any ventilation openings. Ensure reliable operation of the product and protect it
from over heating. The openings shall never be blocked by placing any object on this product.
yThe temperature of metal enclosure may be high during operation.
yIn order to avoid radio-interference, all accessories (like a energy meter) intended for connection
to the product shall be suitable for use in residential, commercial and light-industry areas. Usually
ymnxwjvznwjrjsynxkzqŅqqjinkymjjvznurjsyhtruqnjx|nymymjhqfxxMqnrnyxtkPYGGBDD/
yThe product must be disposed of according to local regulations.
yThe electrical installation of this unit must only be performed by LGE service person or trained
nsxyfqqjw0vzfqnŅjiytnsxyfqq[N^/
yIf the AC circuit breaker is turned off and the PCS is not operated for a long time, the battery may
be overdischarged.
yConnect the DC+ and DC- cables to the correct DC+ and DC- terminals on the product.
yDanger of damaging the PCS by overload. Only connect the proper wire to DC terminal block.
Refer to the installation wiring diagram for details.
yDo not step on the product or the product package. The product may be damaged.
yOtstyinxutxjtkgfyyjwnjxnsfŅwj/_mjgfyyjwnjxrf~j}uqtij/
yDo not open or damage batteries. Released electrolyte is harmful to the skin and eyes. It may be
toxic.

Getting Started
4
Getting Started
1
yA battery can present a risk of electrical shock and high short-circuit current. The following
precautions should be observed when working on batteries.
a) Remove watches, ring, or other metal objects.
b) Use tools with insulated handles.
c) Wear rubber gloves, boots and glasses
d) Do not lay tools or metal parts on top of battery.
yDo not leave the ESS in the Fault standby state for a long time because of the battery discharge
may occur during the long standby state.
yIf the battery fault occurs immediately after starting PCS it means Battery failure. Check the
battery SOC also voltage and fault information, and turn off the power of the ESS until service
action is taken.
yIf the battery SOC is low the battery may charge from the grid for self-protection. (Emergency
Charging) This function is to prevent shutdown of the ESS, deep discharge and failure of the
Battery. An Emergency Charge is not an ESS fault.
NOTE Indicates a risk of possible damage to the product.
yBefore making connections, please make sure the PV array open circuit voltage is within 1000 V.
Otherwise the product could be damaged.
yYj{jwzxjfs~xtq{jsyx0fgwfxn{jxtwhtwwtxn{jrfyjwnfqxythqjfsymnxuwtizhy/
yDo not store on or place against any objects to the product. It may cause serious defects or
malfunction.
yBefore making a connection, make sure the PV switch on this product is switched off.
yThis unit is designed to feed power to the public grid only. Do not connect this unit to an AC
source or generator. Connecting the product to external devices could result in serious damage to
your equipment.
yServing of batteries should be performed or supervised by LG service person or trained installer.
yThe battery does not discharged when the load is under the certain level.
yThis product can cause current with a DC component. Where a Residual Current-operated
protective (RCD) or monitoring (RCM) device is used for protection in case of direct or indirect
contact, only an RCD or RCM of Type A (or type B) is allowed on the supply side of this product.
yThis product is designed to be installed indoor use only. Do not install this product outdoor.
yThis document is for your reference only. Read the installation manual on the website below.
https://www.lg.com/global/business/ess/residential/dc-8-10
yPlease check the following website for warranty policy.
https://www.lg.com/global/business/ess/residential/dc-8-10

Table of Contents 5
1
2
3
4
Getting Started
Safety Information . . . . . . . . . . . . . . . . . . . . . . 2
Product Features. . . . . . . . . . . . . . . . . . . . . . . . 6
Name of Each Part . . . . . . . . . . . . . . . . . . . . . . 9
Front and Rear. . . . . . . . . . . . . . . . . . . . . . . . 9
LED Indications . . . . . . . . . . . . . . . . . . . . . .10
Bottom. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Operating
Connecting to a Mobile Device. . . . . . . . . . .12
Installing 'LG EnerVu Plus' App . . . . . . . .12
Connect via Home WLAN. . . . . . . . . . . . .13
Connect directly to ESS. . . . . . . . . . . . . . .14
About Main Screen . . . . . . . . . . . . . . . . . . . . .17
ESS Status Menu . . . . . . . . . . . . . . . . . . . . . .18
ESS Setting Menu . . . . . . . . . . . . . . . . . . . . .22
Language. . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Energy Device. . . . . . . . . . . . . . . . . . . . . . . .22
Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Quick Install Guide . . . . . . . . . . . . . . . . . . .23
Open source . . . . . . . . . . . . . . . . . . . . . . . . .24
Application information. . . . . . . . . . . . . . .24
Installer Settings . . . . . . . . . . . . . . . . . . . . .24
ESS Information Menu . . . . . . . . . . . . . . . . . .25
Energy Analysis . . . . . . . . . . . . . . . . . . . . . .25
System Information . . . . . . . . . . . . . . . . . .26
Using EnerVu
Using EnerVu system . . . . . . . . . . . . . . . . . . .27
Creating a New Account . . . . . . . . . . . . . .27
Checking EnerVu Activation. . . . . . . . . . .30
Overview of my EnerVu page. . . . . . . . . .31
Making a Statistical Graph . . . . . . . . . . . .33
Checking System Event. . . . . . . . . . . . . . .37
Making a Statistical Report . . . . . . . . . . .37
Transferring your system
to other owner. . . . . . . . . . . . . . . . . . . . . . .38
Appendix
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . .39
Cleaning the Product . . . . . . . . . . . . . . . . .39
Inspecting Regularly . . . . . . . . . . . . . . . . . .39
Contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Disposing the product . . . . . . . . . . . . . . . .40
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . .42
Open Source Software Notice
Information. . . . . . . . . . . . . . . . . . . . . . .43
Table of Contents

Getting Started
6
Getting Started
1
Product Features
This product is intended to store direct current (DC) electricity generated from photovoltaic (PV) to
the connected Lithium-Ion Battery, and convert direct current (DC) electricity from the connected
battery and PV to alternating current (AC) electricity and feed this into the power grid.
And, the battery supplies power to the household load in an emergency.
Data Line
Alternative Current
Direct Current
PV Module
Air Conditioning
Washing Machine
System boiler
OvenTVRefrigerator Heater
Battery
LED Lighting
Grid
Internet Cloud
PCS
Smart Phone
Battery
Energy Storage System
Energy
Meter
ABB
Smart
Meter
The electricity generated from a PV array can be stored to the connected battery or sold to energy
supply companies.
yDC-Coupled ESS
WRP^^hfsfhmnj{jmnlmjwx~xyjrjkŅhnjsh~izjytxnruqjwut|jwhts{jwxntsuwthjxx/
yThree-Phase Connection
3-phase connection secures phase balancing.
ySmart Management
With built-in Smart PMS, it analyses PV generation and load consumption and implements to
charge and discharge immediately. Also it monitors main system & battery conditions to maintain
its stable condition always.
yWeb-monitoring Service
Customers and installers can monitor their ESS with various devices such as PC, tablet or smart
phones.
yBackup Mode
In an emergency, the battery supplies power to the household load.

Getting Started 7
Getting Started
1
Abbreviations on this manual
Abbreviation Designation Explanation
ESS Energy Storage
System
Inverter system that stores energy into a battery and
uses it.
PCS Power Conditioning
System
A device intended to convert DC electricity generated
from PV system to AC electricity and feed it to
household appliances.
PV Photovoltaic Solar panel system that converts solar energy into
direct current electricity
SOC State of charge Current state of a battery
BMS Battery Management
System
Electronic system that manages a rechargeable
battery.
DC Direct Current -
AC Alternating Current -
DHCP Dynamic Host
NtsŅlzwfynts
Protocol
Standardized network protocol used on Internet
Protocol (IP) networks for automatic distributing
sjy|twphtsŅlzwfyntsufwfrjyjwx0xzhmfxT[
addresses for interfaces and services.
WLY WthfqLwjfYjy|twp Yjy|twpymfynsyjwhtssjhyxhtruzyjwx|nymnsf
limited area.
IP Internet Protocol A set of rules for sending data across a network

Getting Started
8
Getting Started
1
Glossary
Terms Explanation
Azimuth TsymjYtwymjwsmjrnxumjwj0ymjfnrzymfslqjnsinhfyjxg~mt|rzhm
degrees the module surface deviates from a full south aspect. In the
southern hemisphere, it indicates the deviation from a full north aspect.
The azimuth angle is counted with positive values within the range from
south (0°) to west (90°) and it counted with negative values within the
range from south (0°) to east (-90°).
Tilt angle The tilt angle indicates by how much degrees the tilt of the module surface
deviates from the horizontal.
PV module _mj[artizqjwjkjwxytfufsjqijxnlsjiytfgxtwgymjxzs>xwf~xfxf
source of energy for generating electricity.
PV array Technical device for the conversion of solar energy into electrical energy. All
serial and parallel installed and connected to PV modules of a PV system
are referred to as a PV array.

Getting Started 9
Getting Started
1
Name of Each Part

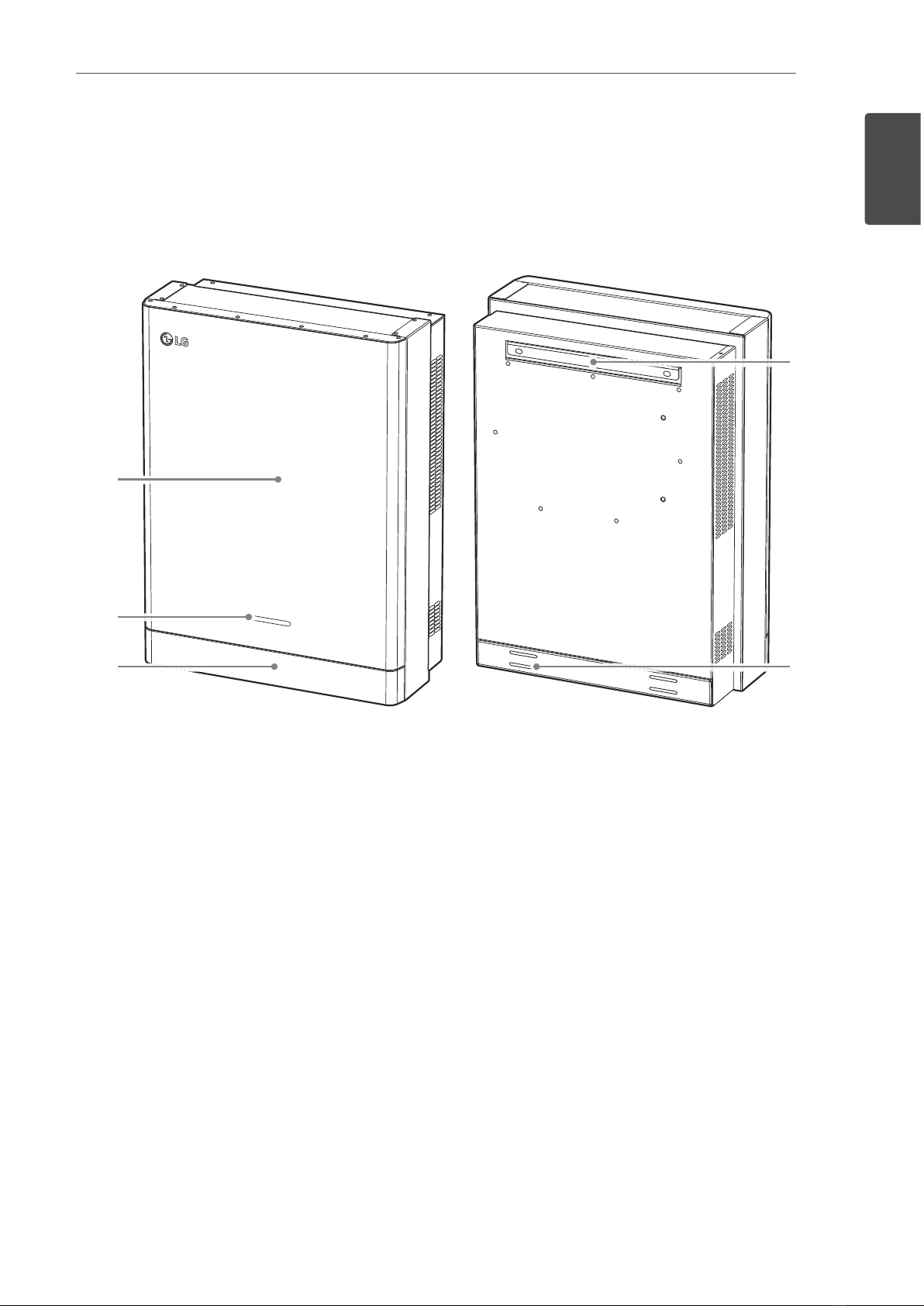

Front and Rear
A
B
CE
D
APCS body
BLED Indications
CLower Cover
DBracket connected part
EScrew holes for wall mounting

Getting Started
10
Getting Started
1

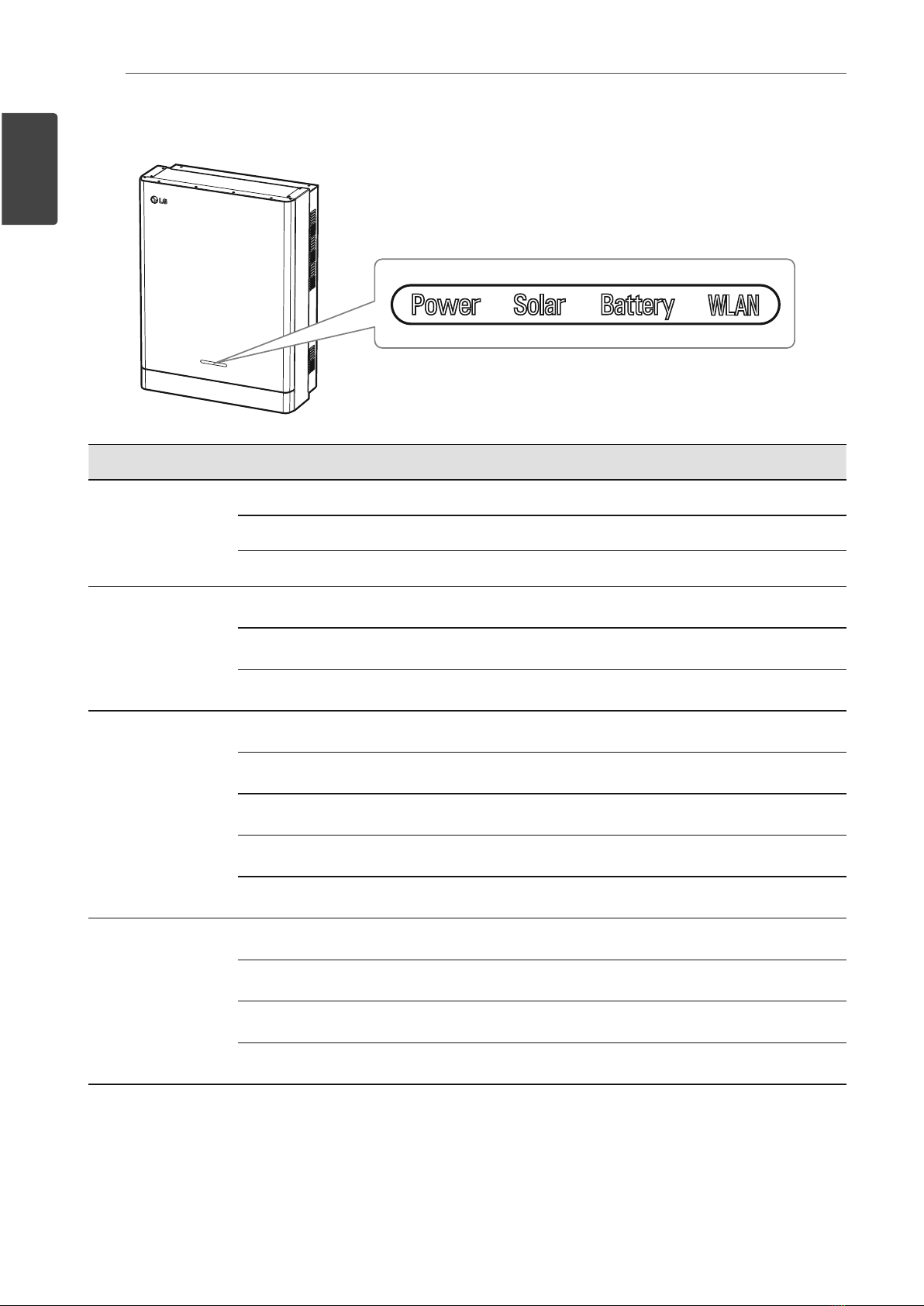

LED Indications
LED Color Description
Power
Off Grid is not connected.
White Grid is connected.
White (Blink) PCS Fault
Solar
Off Energy is not being generated.
Green Energy is being generated.
White (Blink) PCS Fault
Battery
Off Stand by
Green Battery is in charging
Blue Battery is in discharging
Red (Blink) Battery error
White (Blink) PCS Fault
WLAN
Off `suqzlljibWLYitslqj
Green Yjy|twphtssjhyji
Blue bWLYsjy|twphtssjhyji
Red (Blink) Yjy|twpinxhtssjhyji

Getting Started 11
Getting Started
1

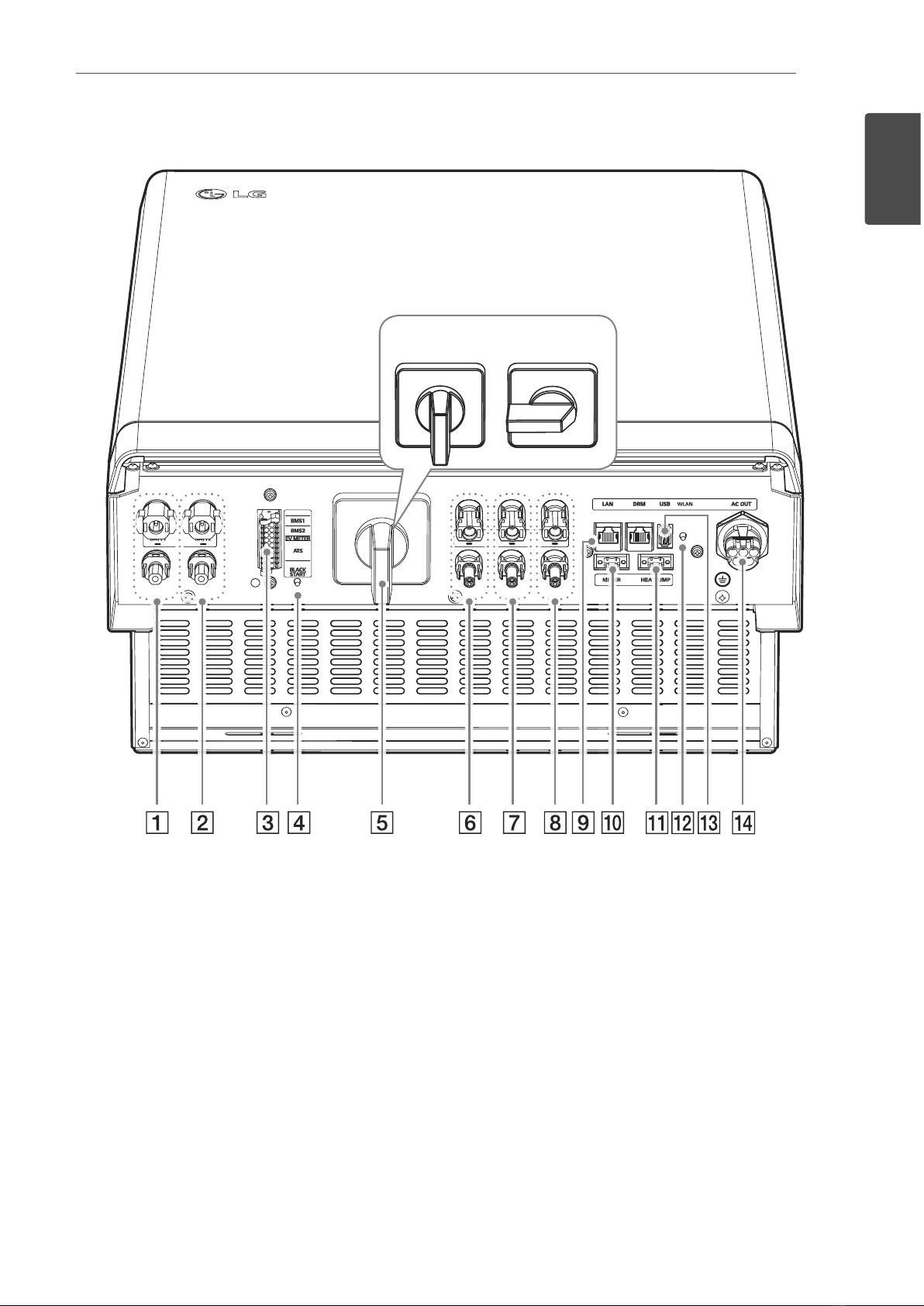

Bottom
ON
OFF
ABattery DC cable connectors 1
BBattery DC cable connectors 2
CCommunication terminals
DBlack start button
EPV switch (DC Disconnect)
FPV1(+ and -) connectors
GPV2 (+ and -) connectors
HPV3 (+ and -) connectors
IEthernet port
J bWLYitslqjutwy"`^My~uj-
KMeter connector
L Sjfyuzruhtssjhytw"Ytyxzuutwyji-
MWireless connection button
NAC grid cable connector

Operating
12
Operating
2
Connecting to a Mobile Device
To connect the system to a mobile device, the LG EnerVu Plus mobile application must be installed
ts~tzwrtgnqjij{nhj/^jfwhmfsiit|sqtfi=WRPsjwaz[qzx>fuuqnhfyntskwtrLuuqjLuuxytwjtw
Google Play store.
_thtssjhyytymjx~xyjrinwjhyq~0ymjbWLYitslqjrzxygjhtssjhyjiytymjx~xyjr/Xfpjxzwj
ymfyymjxzuuqnjibWLYitslqjnxhtssjhyjiytymjx~xyjr/
Installing 'LG EnerVu Plus' App
Ot|sqtfi=WRPsjwaz[qzx>tsymjLuuqjLuu^ytwjtwRttlqj[qf~^ytwj/
OR
LG EnerVu Plus
NOTE
yOjujsinsltsymjij{nhj0=WRPsjwaz[qzx>fuurf~sty|twp/
yLG EnerVu Plus app will be available in version of the software as follow;
-LsiwtniZ&^5Wtqqnutu"G/B-twqfyjw
-iOS O/S : iPhone 6 (9.0) or later

Operating 13
Operating
2
Connect via Home WLAN
Preparation
yTo connect the mobile device with the system via home network, the system must be connected
yt~tzwmtrjsjy|twp/Nmjhpymj!Yjy|twp.xjyynslrjsztsymjx~xyjr/
yYtyjymj^^TOtk~tzwmtrjsjy|twp/
A]zs=WRPsjwaz[qzx>fuuts~tzwrtgnqjij{nhj/
B_fu!Ntssjhy{nfStrjbWLY.nsymj
connection method selection screen.
CThe connection will automatically be proceeded
and main screen appears when the connection
is successful.

Operating
14
Operating
2
DIf the connection fails, a pop-up message
appears on the screen.
_fu!ZV.ytrt{jytymjbWLYxjqjhyntsrjsz
of the mobile device.
Select the SSID of your home network.
Connect directly to ESS
A]zs=WRPsjwaz[qzx>fuuts~tzwrtgnqjij{nhj/
BTknynxymjŅwxyynrjythtssjhyytymjx~xyjr0
connection method selection screen appears.
_fu!Ntssjhyinwjhyq~ytP^^.tuynts/

Operating 15
Operating
2
CPress and hold the wireless connection button
tsymjx~xyjrzsynq!bWLY.WPOnxqnlmyxns
blue.
Zs~tzwrtgnqjij{nhj0yfu!ZV.ytltytymj
next step.
NOTE
TkymjhtssjhyntsmfxstygjjsrfijktwG
rnszyjx0ymj!bWLY.WPOqnlmyxlwjjsfsi
ymjbWLYxnlsfqnxinxfgqji/
D]jfiymjlznifshjfsiyfu!ZV.ytinxuqf~
bWLYxjqjhyntsxhwjjs/
^jqjhyymj^^TO|mnhmxyfwyx|nym=WRPP^^>/
The password input screen appears.
NOTE

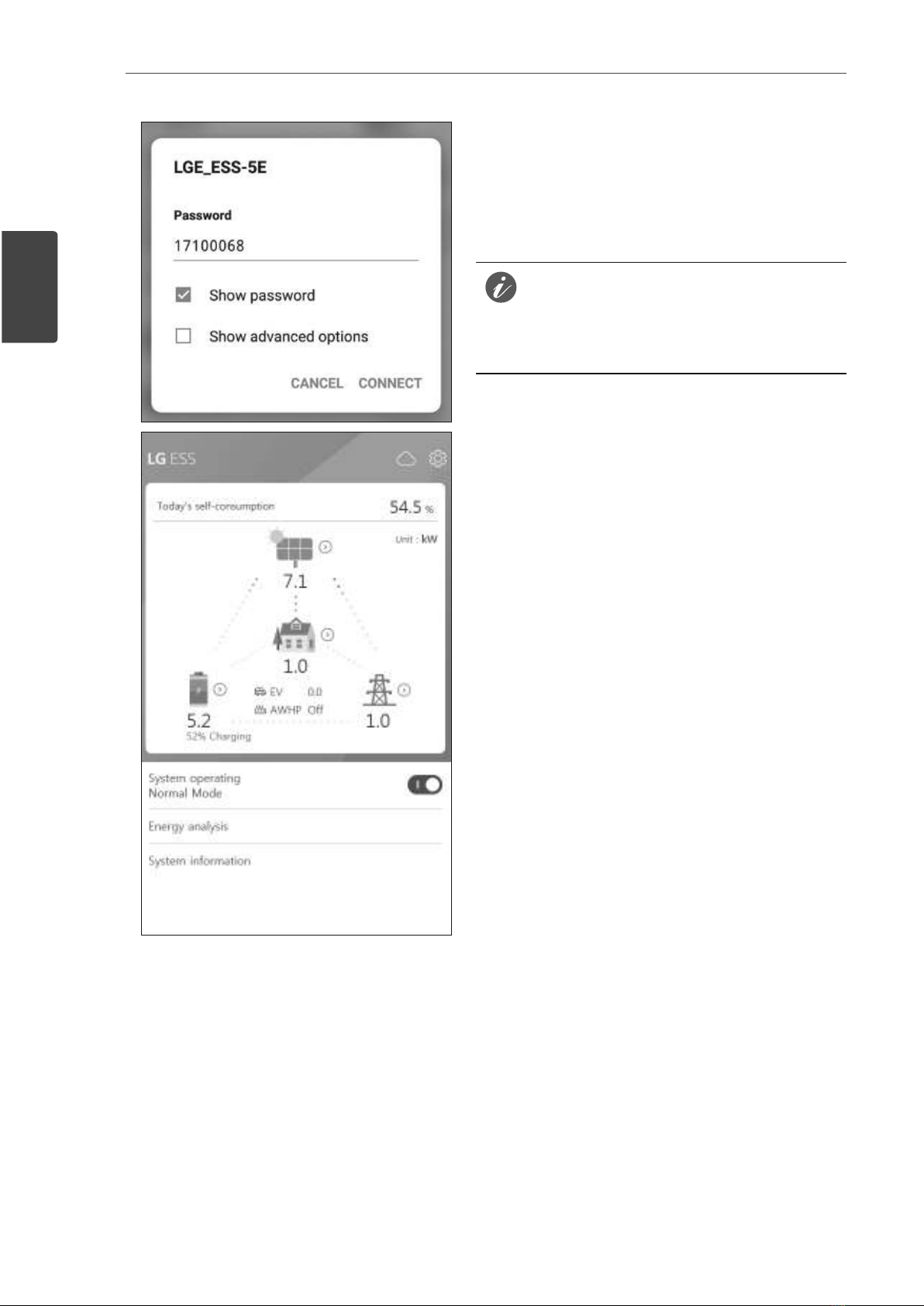

The last 2 characters of the SSID are the
same as the last 2 characters of the system
registration number.
Example :
SSID (LGE_ESS-5E)
]jlnxywfyntsYt/"WRPP^^
DE1710BKRH00685E)

Operating
16
Operating
2
ETsuzybWLYufxx|twinsymjufxx|twiŅjqiyt
connect to the system.
_mjbWLYufxx|twinxKinlnyszrgjwx/Qnsi
ymj=bWLYufxx|twi>uwnsyjinsymjqfgjq
outside of the PCS.
NOTE
If the connection failed, try after turning off
the mobile data option on your mobile device.
Android : If the connection is successful, main
xhwjjsfuujfwxfxxmt|snsymjŅlzwj/
iOS : If the connection is successful, run [LG
Psjwaz[qzx.fuuytinxuqf~ymjrfnsxhwjjsfx
xmt|snsymjŅlzwj/

Operating 17
Operating
2
About Main Screen
The main screen displays and indicates current ESS status in the ESS status menu area. And you
can check the several settings and information in the ESS setting menu and ESS Information menu
areas.
ESS Setting menu
yLanguage
yBattery
yEnergy Device
yQuick install guide
yOpen source
yApplication information
yInstaller Settings
EnerVu web page link
ESS Status menu
yLoad
yBattery
yEnergy Device
yPV
yGrid
yEnergy overview
yYtynhjqnxy
ySystem operating
ESS Information menu
yEnergy Analysis
ySystem information

Operating
18
Operating
2
ESS Status Menu
_mjrfnsxhwjjsinxuqf~xfsinsinhfyjxhzwwjsyP^^xyfyzxgwnjņ~/bmjs~tzxjqjhyfsfwjfnsinhfyji
above, it displays detailed information.
NOTE
yThe displayed values are not exact values. The values may differ from actual values.
yPlease turn on the AP again, if there is a problem at connection with AP.
ADisplays a notice list of system status.
When there is an error occurred, error code,
time and date are displayed on the list.
Refer to installation manual for more
information of messages.

Operating 19
Operating
2

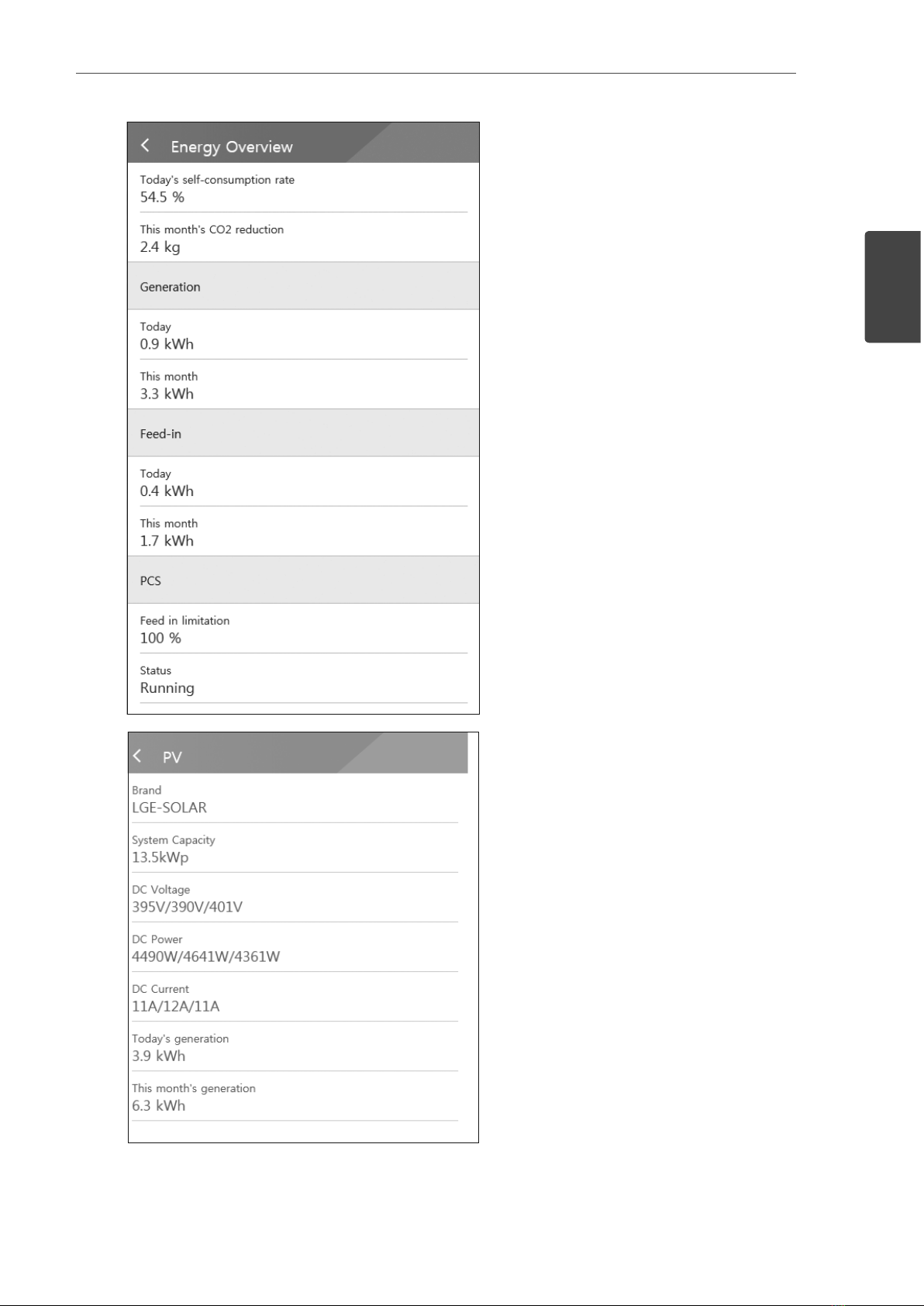

BOnxuqf~xymj!Psjwl~Z{jw{nj|.nsktwrfynts
on the screen.
Today’s self-consumption rate : Displays
rate of the consumed energy amount from
ESS today.
This month’s CO2 reduction : Displays
monthly amonut of CO2 reduction.
Generation: Displays generated energy
information.
Feed-in : Displays consumed energy
information.
PCS : Displays PCS information.
CDisplays generating status of the
htssjhyji[agwnjņ~/
The status values are the sum of PV1, PV2
and PV3.
Brand : PV Manufacturer (Default : LGE)
System Capacity : PV capability
DC Voltage : Current PV voltage
DC Power : Current PV power
DC Current : Current PV electric current
Today’s generation: Generated PV energy
today.

Operating
20
Operating
2

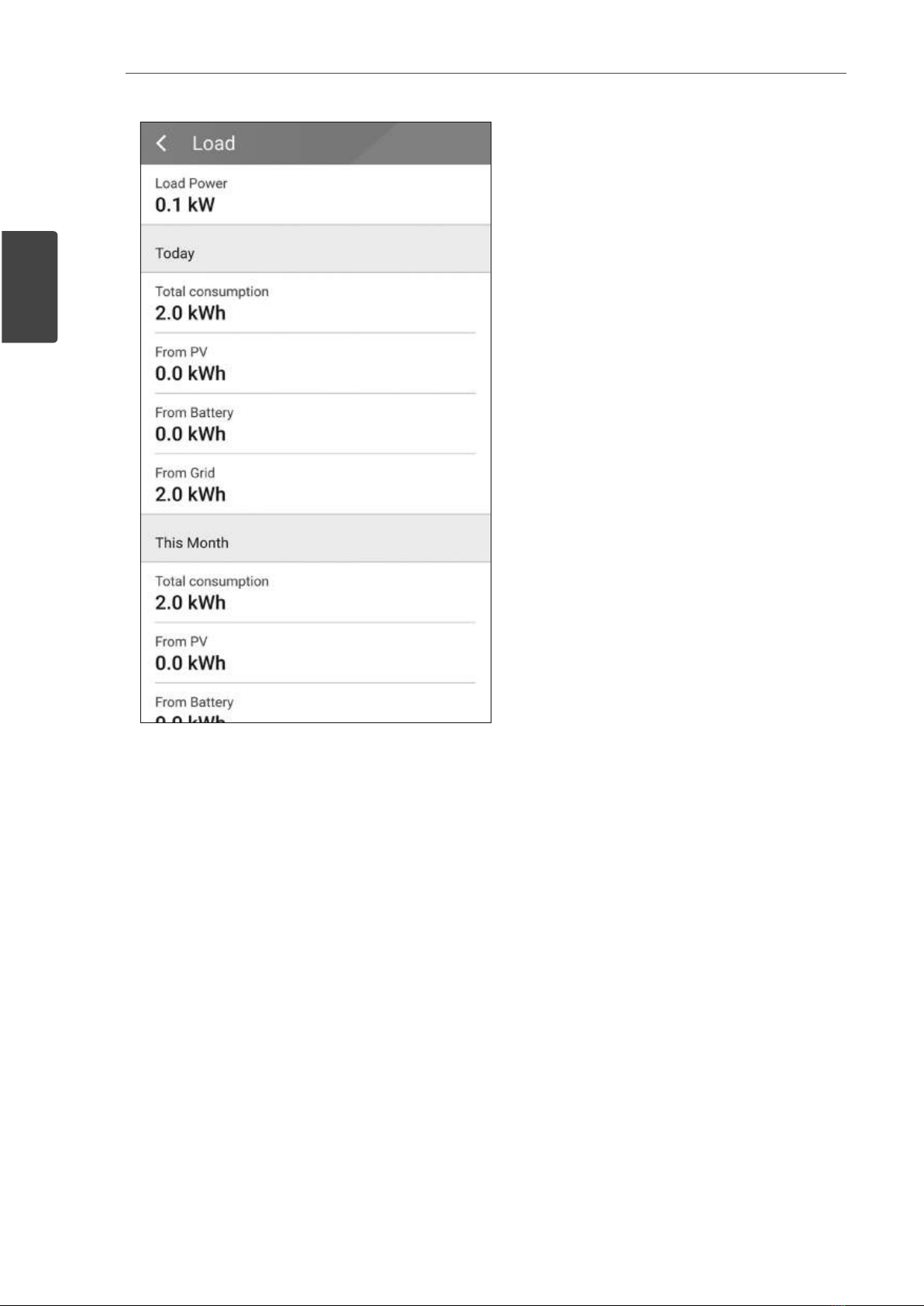

DDisplays detailed status of energy
consumed in household.
Load Power : Current power consumed in
household
Today
Total consumption : Amount of
consumed energy today
From PV : Amount of energy from PV to
household today
From Battery : Amount of energy from
the battery to household today
From Grid : Amount of energy from the
power grid to household today
This month
Total consumption : Amount of
consumed energy this month
From PV : Amount of energy from PV to
household this month
From Battery : Amount of energy from
the battery to household this month
From Grid : Amount of energy from the
power grid to household this month
