LG BLGRESU10HP User manual

INSTALLATION MANUAL
Residential
Battery unit
/04/2021
MODEL
LG ESS HBP 10H
(BLGRESU10HP)
LG Electronics strongly advises users to exercise due care in following LGE’s
product installation manual. A warranty claims are invalid if damage is caused
by human error, inconsistent with the installation manual.

ENGLISH
2
The information included in this manual is accurate at the time of publication.
However, this manual is subject to change without prior notice. In addition, the illustrations
instructions.
Please note the images shown are for illustration purposes only.
Contents

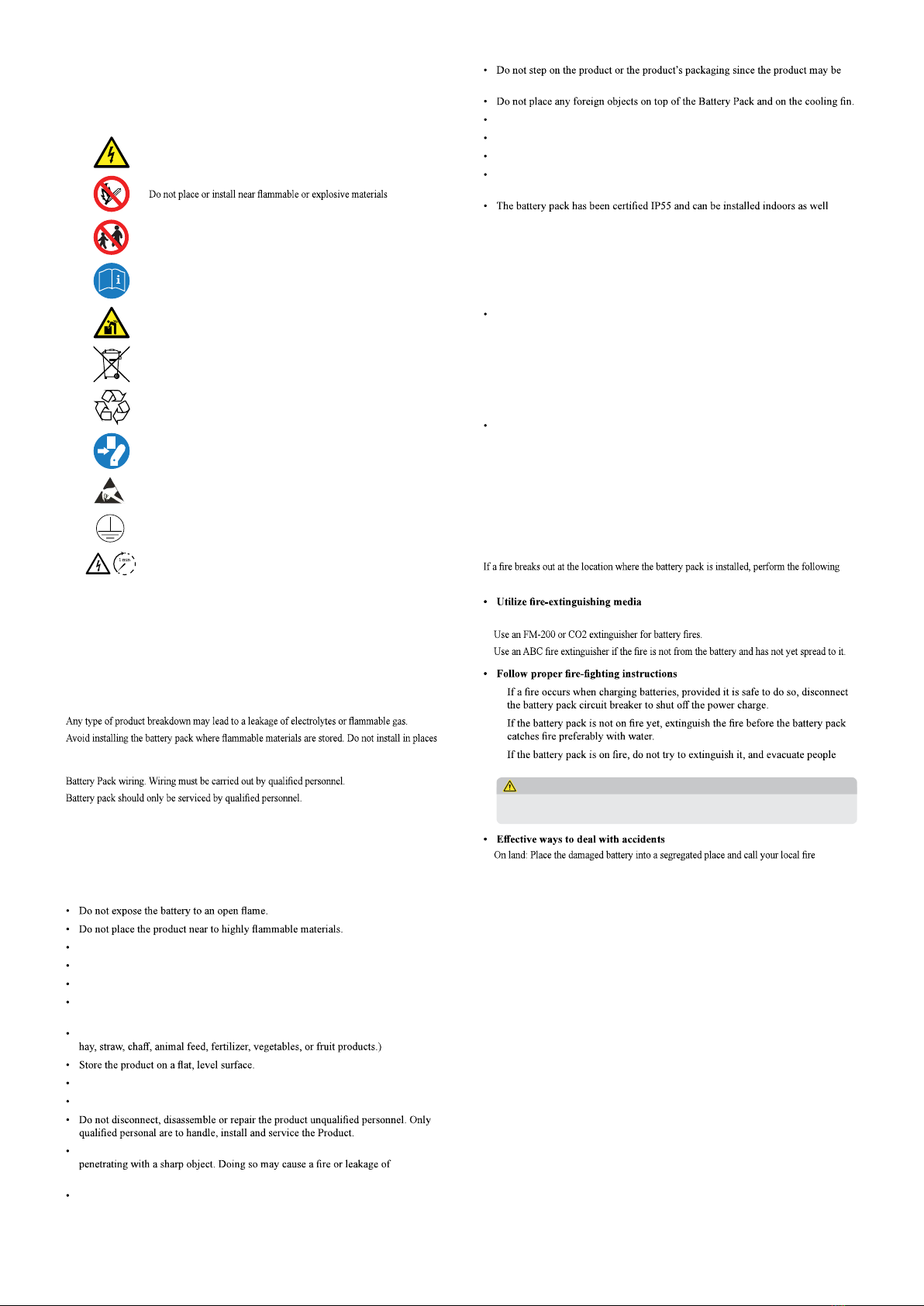

1 Safety
1.1 Symbols
1.2 Safety Instructions
1.2.1 General Safety Precautions
1.2.2 Battery Handling Guide
1.2.3 Response to Emergency Situations
1.3 Warning Label
2 Product Introduction
2.1 Technical Data
2.1.1 Dimensions and Weight
2.1.2 Performance
2.2 Features
2.3 Maintenance
3 Installation
3.1 Mechanical Requirements
3.1.1 Package Contents
3.1.2 Basic lifting guide
3.1.3 Unboxing the Package
3.1.4 Installation Location
3.1.5 Clearance
3.1.6 Tools & Safety Gear Required
3.1.7 Appearance and Dimensions
3.1.8 System Clearance
3.1.9 Installing the Battery Pack
3.2 Installation process for Remote Monitoring Device (RMD)
3.2.1 Prepare for installation using RMD
3.2.2 Installation via RMD
3.3 Cable Connections
3.3.2 Guide for cable connection and setting the DIP switch
3.3.3 Spring Terminal Blocks
4 Commissioning
4.1 LED Indicators
4.2 Powering On the Battery Pack
5 Troubleshooting
5.1 Troubleshooting Overview
5.1.1 Post-Installation Checklist
5.1.2 Troubleshooting Guidelines
6 Uninstallation & Return
6.1 Return/Replacement Instructions
6.1.1 Uninstallation
6.1.2 Contact Information
7. Appendix
7.1 Connection in BLG RESU10HP parallel battery system
7.1.1 Setting for communication termination resistor (About Section B)
7.2 RMD Applications
7.2.1 Battery Status check via RMD
7.2.2 BMS, DC/DC and RMD Update via RMD
7.2.3 Installation via RMD for web user

3
1 Safety
1.1 Symbols
Caution, risk of electric shock
Install the product out of reach of children
Read the instruction manual, in its entirety, before starting installation
and operation
Heavy weight may cause serious back injuries
Do not dispose of the product with household waste
Recyclable
Disconnect the equipment before carrying out maintenance or repair
Observe precautions for handling electrostatic-sensitive devices
Protective Class 1
Caution, risk of electric shock, energy storage timed discharge.
1.2 Safety Instructions
For safety reasons, installers are responsible for familiarizing themselves with the contents of
this document and all warnings before performing installation and servicing.
1.2.1 General Safety Precautions
Over-voltages or wrong wiring can damage the battery pack and cause combustion which can
be extremely dangerous.
where explosive gas or chemicals are present.
During installation of the battery, the utility grid and solar input must be disconnected from the
The electronics inside the battery pack are vulnerable to electrostatic discharge.
Be sure to be grounded before handling the battery pack.
Read the label with Warning Symbols and Precautions, which are visible under the Battery
Cover (see Section 1.3 Warning Label).
1.2.2 Battery Handling Guide
Do not expose or place near water sources such as downspouts or sprinklers.
Do not store or install the product in direct sunlight.
Do not install the product in an airtight enclosure or in an area without ventilation.
Do not install the product in living area of dwelling units or in sleeping units other
than within utility closets and storage or utility spaces.
Store in a cool and dry place. (Do not store in greenhouses or storage areas for
Store the product out of reach of children and animals.
Store the product in clean environment, free of dust, dirt and debris.
Do not damage the Product by dropping, deforming, impacting, cutting or
electrolytes.
Do not touch the product if liquid spills on it. There is a risk of electric shock.
Handle the battery wearing insulated gloves.
damaged.
Do not put the battery pack upside down on the ground.
Do not connect the power cables at terminal the block in the opposite direction.
Do not charge or discharge a damaged battery.
If the Product is installed in a garage or carport, ensure there is adequate clearance
from vehicles.
as outdoors. However, if installed outdoors, do not allow the battery pack to be
exposed to direct sunlight or water sources, as they may cause:
- Power limitation phenomena in the battery (with a resulting decrease in energy
production by the system).
- Premature wear of the electrical/electromechanical and mechanical components.
- Reduction in performance, performance warranty and possible damage of the battery
Do not connect any AC conductors or photovoltaic conductors directly to the
battery pack. These are only to be connected to the inverter.
1.2.3 Response to Emergency Situations
The Product includes internal fault mechanisms designed to prevent failures and subsequent
risk hazards. However, LG Electronics cannot guarantee safety performance of the Product is
ever exposed to abuse, damage or negligence.
If a user happens to be exposed to the internal materials of the battery cell due to
damage on the outer casing, the following actions are recommended.
In case of inhalation: Leave the contaminated area immediately and seek medical
attention.
In case of contact with eyes: Rinse eyes with running water for 15 minutes and
seek medical attention.
In case of contact with skin: Wash the contacted area with soap thoroughly and
seek medical attention.
In case of ingestion: Induce vomiting and seek medical attention.
countermeasures.
A respirator is not required during normal operation.
1.
2.
3.
from the premises immediately.
WARNING
There may be a possible explosion when batteries are heated above 150°C. When a
battery pack is burning, it will leak poisonous gases. Do not approach it.
department or service engineer.
In water: Stay out of the water and do not touch anything if any part of the battery, inverter,
or wiring is submerged.
Do not use the submerged battery again. Contact your service engineer for assistance.

4
1.3 Warning Label
Product/warning label and Battery Control Unit’s traceability label are behind the front cover.
The front cover opens by turning the front cover handle counterclockwise. Battery Modules’
traceability labels are attached to the side of the Battery Modules.
1
2-1
2-2
2-2
Handle
Turn counterclockwise
1. Product/Warning Label
2. Traceability label
2-1. Battery Control Unit 2-2. Battery Module
the following skills and experience:
(backup) systems
Knowledge of the dangers and risks associated with installing and using electrical
devices and acceptable mitigation methods
Knowledge of the installation of electrical devices
Knowledge of and adherence to this guide and all safety precautions and best
practices
: Knowledge of local installation standards
: Electrical license for battery installation required by the country or state
Repair the battery by disassembly is possible only at the LG Service Center or by
2 Product Introduction
2.1 Technical Data
2.1.1 Dimensions and Weight
BLG RESU10HP
Part Number TLB00983101
Width 504 mm (19.8”)
Height 817 mm (32.2”)
Depth 295 mm (11.6”)
Weight
1)
111 kg (244 lbs)
1) Battery pack weights may vary slightly.
2.1.2 Performance
Electrical Characteristics
Usable Energy
1)
9.6 kWh
Battery Capacity 64.1 Ah
Voltage Range 350 to 450 VDC
Absolute Max. Voltage 595 VDC
Max. Current (charging/discharging) 14.3A @ 350V
Max. Power (charging/discharging) 5 kW
Peak Power
2)
(only discharging) 7 kW for 10 sec.
Peak Current (only discharging) 20.9 A for 10 sec.
Communication Interface RS485/ CAN
DC Disconnect Circuit Breaker
Connection Method Spring Type Connector
User Interface LEDs for Normal and Fault Operation
Operating Conditions
Installation Location Indoor/Outdoor
Operating Temperature charge 14°F to 122°F (-10°C to 50°C)
discharge -4°F to 122°F (-20°C to 50°C)
Operating Temperature
(Recommended)
59°F to 86°F (15°C to 30°C)
Storage Temperature -22°F to 140°F (-30°C to 60°C), acceptable for 7
days in total
-4°F to 113°F (-20°C to 45°C), acceptable for the
-4°F to 86°F (-20°C to 30°C), acceptable for months
7~12
Humidity 5% to 95%
Altitude Max. 6,562 ft (2,000 m)
Cooling Strategy Natural Convection
Safety Cell
Battery
Pack
UL1642
CE / RCM / IEC 62619 / UL1973 /
IEC62477-1
Emissions FCC
Class 9
Transportation UN38.3
Ingress Rating IP55
1) Value for battery pack only. Maximal usable energy at the AC output may vary by condition,
2) Peak current excludes repeated short duration (less than 10 sec. of current pattern).
817 mm
(32.2”)
295 mm
(11.6")
504 mm
(19.8")

5

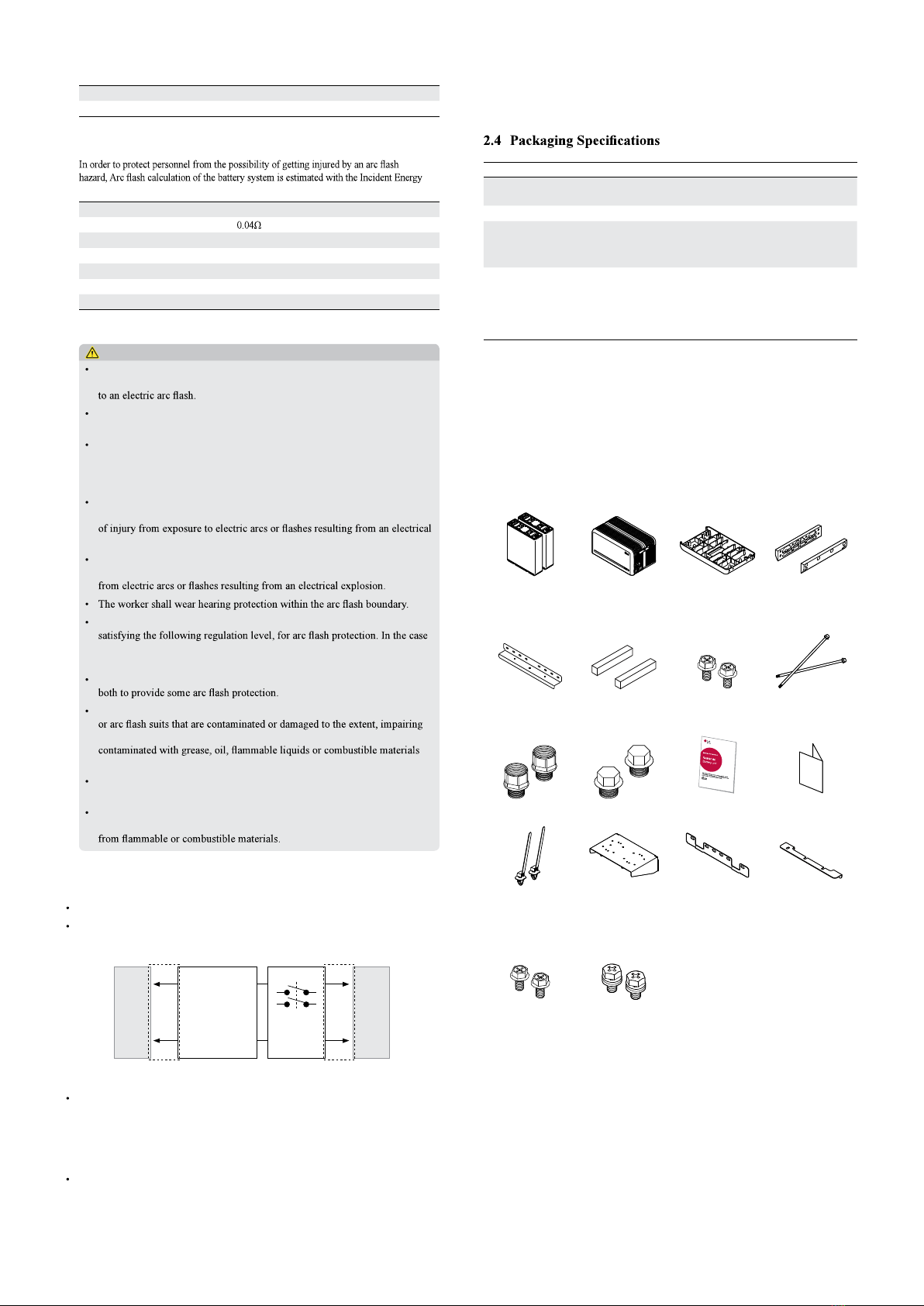

1. Short Circuit Current/Duration
Short Circuit Current 1.106 kA
Duration 0.97 ms
2. Arc Flash Protection Calculations
Calculations refer to Annex D of NFPA 70E.
Battery System Voltage 171.4V
Battery System Internal Resistance
Bolted Fault Current 1.106 kA
Arcing Current 0.553 kA
Clearing Time 792 us
Arc Flash Incident Energy 0.000088 Cal/cm
2
Working Distance 450 mm (18inches)
Battery system installers must wear PPE (Personal Protective Equipment) according to
NFPA 70E Article 130.
WARNING
When installing the battery system, the worker shall wear arc-rated clothing
in every occasions and places to protect him/her from any possible exposure
The arc-rated clothing worn by the worker must assure the worker’s
movement and visibility while covering all ignitable clothing.
The worker shall always wear the non-conductive safety helmet every
occasions and places to protect him/her from any danger of head injury
from electric shock or burns due to the contact with energized electrical
conductors or circuit parts resulting from electrical explosion.
The worker shall wear non-conductive protective equipment for the face,
neck, and chin at every occasion and location to protect him/her from danger
explosion.
The worker shall wear non-conductive protective equipment for the eyes at
every occasion and location to protect him/her from any danger of injury
The worker shall wear heavy-duty leather gloves or arc-rated gloves,
of wearing the rubber gloves for the shock protection, he/she shall wear
additional leather protectors above the gloves.
The worker shall wear heavy-duty leather footwear or dielectric footwear or
The worker shall inspect arc-rated apparel before every use. Work clothing
the protective qualities, shall not be used. Protective items that become
shall not be used.
The garment manufacturer’s instructions for care and maintenance of arc-
rated apparel shall be followed.
Arc-rated apparel shall be stored in a manner that prevents physical damage;
damage from moisture, dust, or other deteriorating agents; or contamination
2.2 Features
Compact energy storage unit for domestic photovoltaic system compatibility
Residential 400V DC battery pack system: Daily cycle and emergency back up
capability.
DC/DC
Circuit
Breaker
(600V)
+ +
- -
Circuit Breaker
Battery Inverter
Battery Power
Interface
Inverter Power
Interface
Protection devices included as follows:
- Inverter Power Interface for protection against overvoltage, overcurrent, external
short-circuit, reverse polarity, inrush current and over temp.
- Battery Power Interface for protection against internal short-circuit, overvoltage,
overcurrent, over temp and undervoltage.
Flexible installation: Indoors or Outdoors
2.3 Maintenance
BLG RESU10HP does not require maintenance during normal operation if properly installed
per the installation manual. In the event of fault, contact the regional service center.
Category Contents
Size (L×W×H) 720 mm
(28.3”)
845 mm
(33.3”)
910 mm
(35.8”) Outer Size
Qty/Box (ea) 1
Packaging
Materials
Box Corrugated Cardboard Disposable
Inner Corrugated Cardboard Disposable
Pallet Wood Disposable
Weight
Product 111 kg (244.7 lbs)
1 pack/box
(Battery Module (x2) + Battery
Control Unit + enclosed items)
Packaging 39 kg (86.0 lbs) Pallet (10.5kg) + Box (28.5kg)
Gross 150 kg (330.7 lbs) Product + Packaging
3 Installation
3.1 Mechanical Requirements
3.1.1 Package Contents
The following items are included in the package:
Battery Module A&B Battery Control Unit Module Connect
Plate
Module Support
BRKT (x2)
Standing Bracket
1 & 2
Spacer (x2) M6 x L10 Flange
Bolt (x18)
M5 × L200 Long
Flange Bolt (x6)
3/4"-1" Adapter (x2) Cap (x2) Manual Drill template
Cable ties (Optional)
Wall Mounting
Bracket Bottom
(Optional)
Wall Mounting
Bracket Top
(Optional)
Wall Mounting
Bracket Top Support
(Optional)
M6 x L10 Flange
Bolt (x3)
(Optional)
M8 x L15 Sems
Bolt (x8)

ENGLISH
6
3.1.2 Basic lifting guide
Refer to below guide for lifting and carrying the Battery Control Unit and Battery Modules
during installation.
Handling position
Installer A
Installer B
Battery Control Unit Battery Module
(1 installer)
Battery Module
(2 installers)
3.1.3 Unboxing the Package
1. Cut the packing strap and remove
the top lid.
2. Remove the sleeve.
3. Pull out the Battery Control Unit. and
the Spacers (x2).
4. Pull out the bundled items, including
the Module Connecting Plate.
B
5. Pull out Battery Module B.
A
6. Pull out Battery Module A.
7. (Optional) Pull out the parts for wall
mounting.
CAUTION
According to regional regulations, several people may be required for moving equipment.
3.1.4 Installation Location
Requirements:
The ambient temperature should be within the range of -4°F to 122°F (-20°C to
50°C).
The battery pack must be installed on level ground that can support its weight.
Product shall be installed indoors (ex. in a basement or a garage) or outdoors
under an eave and out of direct sunlight.
Recommendations:
The building should be designed to withstand earthquakes.
The area should be waterproof and properly ventilated. (IP55)
The product should be installed out of reach of children and animals.
CAUTION
If the ambient temperature is outside operating range, the battery pack will stop
operating to protect itself. The optimal temperature range for the battery pack to operate
Frequent exposure to harsh temperatures may deteriorate the performance and life of the
battery pack.

7
3.1.5 Clearance
the proper ventilation and installer convenience.
Ceiling
Floor
500 mm
(20")
300 mm
(12")
300 mm
(12")
Ceiling
Floor
500 mm
(20")
300 mm
(12")
300 mm
(12")
300 mm
(12")
<Standing type> <Wall Mounting type>
3.1.6 Tools & Safety Gear Required
Tools
The following tools are required to install the battery pack :
Precision screwdriver M5 torque wrench Inclinometer
Drill
(min. diameter 10 mm, 0.4")
Pencil or marker Tape measure
Safety Gear for Personal Protection
It is required to wear the following safety gears when handling the battery pack.
Insulated gloves Safety goggles Safety shoes
3.1.7 Appearance and Dimensions
Appearance
Proper handling and care are recommended as disassembly, change of color,
battery pack.
Pack appearance and dimensions
817 mm
(32.2”)
295 mm
(11.6")
504 mm
(19.8")
Color and materials
- Battery Module front/rear case:
metallic gray, steel
- Battery Control Unit cover &
Module Connect Plate: metallic gray,
aluminum
- LED cover: black, plastic
3.1.8 System Clearance
pack and inverter should be in accordance with the installation guide manual of the inverter.
NOTE
An external DC isolator may be installed within the clearance zone. Minimum clearances
may be greater according to local regulations.
500mm
(20") 300mm
(12")
300mm
(12")
Inverter
Ceiling
Floor
500mm
(20") 300mm
(12")
300mm
(12")
300mm
(12")
Inverter
Ceiling
Floor
<Standing type> <Wall Mounting type>
3.1.9 Installing the Battery Pack
3.1.9.1 Standing Type
CAUTION
power cable to the battery pack.
Install the battery pack through the following steps:
Area2Area1
Ex) If min. clearance is 200 mm,
Wall Ok
Ok
203 mm
305 mm
1. Place the Drill template to the wall
where the battery pack will be
installed. After that, drill holes on the
position marked on the Drill template.
* Recommended fastener count:
1(Area1)/1(Area2)
* Recommended fastener diameter/
length: 10mm/40mm Min.
* Fastener separation should observe
the regional building code.
* Check “BLG RESU10HP
Standing” on the middle side of
Drill Template before drilling.
Front
Wall
direction
2. Place a spacer to the position marked
on the Drill template. After that, place
the Module connect plate in contact
with the Spacer and align center lines.
* Pay attention to the direction of
the Spacer. Refer to left image for
correct orientation.
*
* Be careful not to damage the
aluminum foil attached on the
bottom of Module connect plate
during handling.

8
Standing bracket 1
3.
Standing bracket 1 on the wall.
Battery Module B
Label
Wall
Battery Module Direction
4. Place Battery Module B on the rear
side of Module Connect plate.
* The side without bolts is the front
of the Battery Module.
*
battery pack is of B. Label is
attached on the left side of Battery
Module.
Battery Module A
Label
Battery Module B
Battery Module A
TOP VIEW
Rear
Front
Wall
5. Place Battery Module A on the front
side of Module Connect plate. The
Rear side of each Battery Module
should face each other. After that,
remove the Spacer between the wall
and Battery Module.
*
Battery pack is of A. Label is
attached on the left side of Battery
Module.
Module Support BRKT
6. Assemble Module Support BRKTs
using 6 bolts each.
* Tighten the M6 Flange Bolts (x12)
with a torque of 5N·m.
Battery Control Unit
Battery Modules
7. Remove bubble wrap from
connectors of Battery Control Unit
and the warning label of Battery
Modules.
Spacer
Spacer
TOP VIEW
8. Place the spacers on the position
marked with label on Battery
Modules.
Battery Control Unit
9. Place the Battery Control Unit on
top of the spacers, and align with the
Battery Module.
* Be careful not to break the
connector between the spacers and
the Battery Control Unit.

9
Sensing connector Power connector
“Click!” TPA
10. Connect the power and sensor
connectors on the right and left sides
(2 each). Assemble the connectors
until you hear a “Click”. After that,
lock the power connector by pressing
TPA (Terminal Position Assurance).
Handle
LED power indicator
LED fault indicator
11. Check the operation of the battery
pack by following the steps below.
1) Hold and turn the handle
counterclockwise.
2) Open the front cover and turn on
the circuit breaker switch.
3) If there are no problems with the
assembly process or the product
itself, the LED power indicator will
turn on. Sixty (60) seconds later,
the LED fault indicator will blink
(due to a lack of communication
with the inverter, not due to a
product defect).
Then, close the front cover and turn
the handle counterclockwise.
* If you experience any problems
at this stage, go to Section 5
Troubleshooting.
12. Double-check the alignment of the
Battery Control Unit.
Remove a spacer
Grab
here
Remove another one in
the same way Settle slowly
Lift (just few mm)
13. Remove one spacer by lifting one
side of the Battery Control Unit. After
that, remove the other spacer in the
same way.
* Be careful not to pull on the cables
by lifting the Battery Control Unit
too high. Doing so may cause
damage to the cables or cause the
unit to disconnect.
* Before setting down the Battery
Control Unit, the cable connection
should be checked once more.

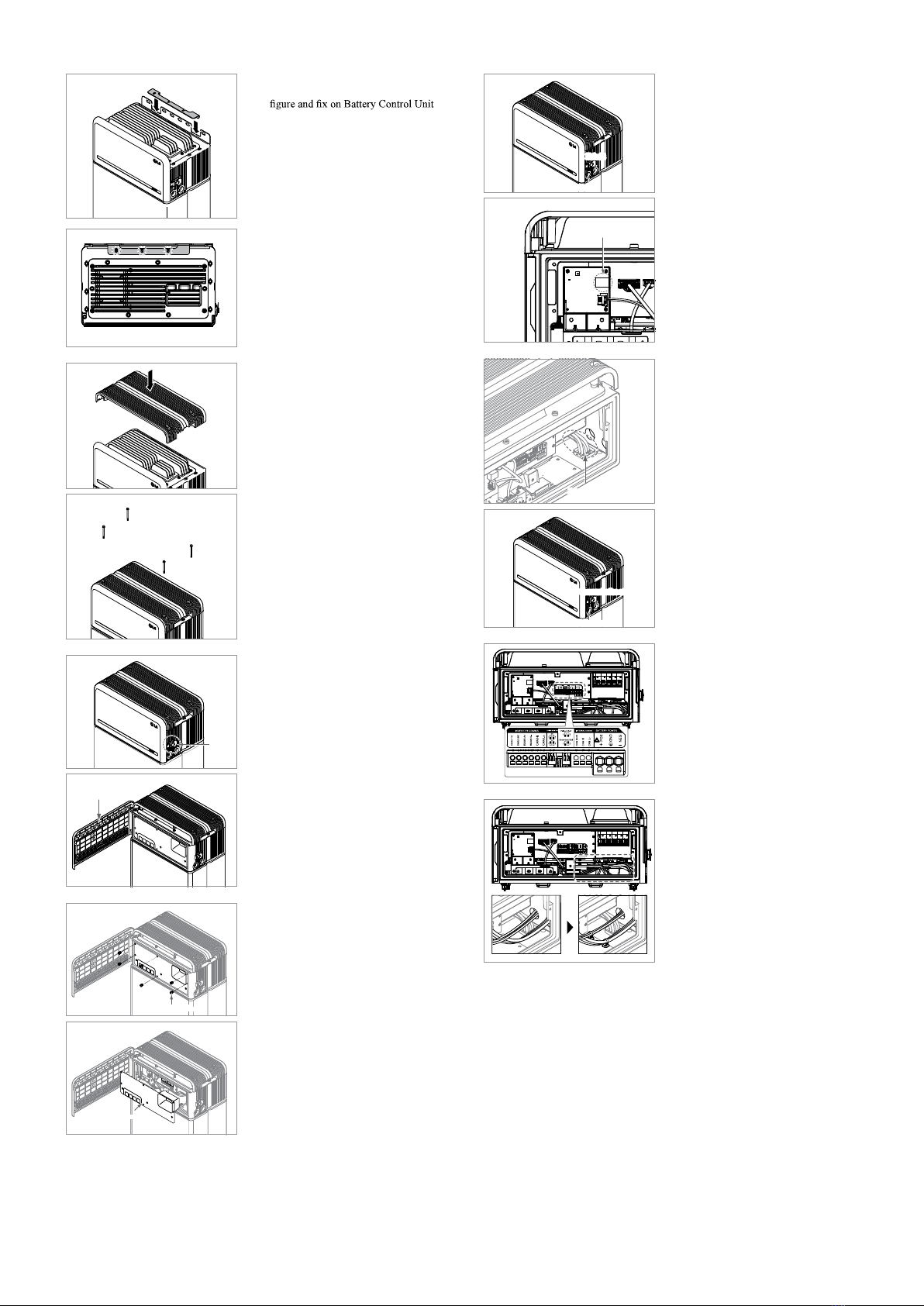

14. Realign the Battery Control Unit.
M5xL65 Flange Bolt
Top Cover
15. Loosen 4 bolts and remove the Top
Cover.
M5xL200 Flange long Bolt
16.
a torque of 5N·m.
* While assembling, open the front
cover and check that all M5 Flange
long bolts are placed accordingly.
17. Move the Battery pack to set the right
position for assembly of the Standing
bracket.
Standing bracket 2
18.
onto the wall.

10
19. Re-attach the top cover.
* Tighten the M5xL65 Flange Bolt
(4ea) with a torque of 5N·m.
Handle
Front Cover
20. Open the front cover.
* Hold the handle and turn it
counterclockwise.
M5 PH Bolt 6ea
Front Protection Cover
21. Loosen 6 bolts and remove the Front
Protection Cover.
* Be careful not to drop the bolts into
the pack at this stage.
Connector for
Ethernet cable
Hole #2
Hole #1
22. Assemble the adapter or cap
according to regional regulations.
Insert the RMD ethernet cable
through Hole #2 and connect the
cable. Then proceed to Section 3.2
Installation for Remote Monitoring
Device (RMD).
Internal cable
Hole #2 Communication cable
Hole #1 Power cable
23. Assemble the adapter or cap
according to regional regulations.
Then insert the power and
communication cables through the
holes from outside of the pack.
* Arrange the internal cable as
required to avoid blocking the holes
for external cables.
24. Connect the cables according to their
application.
* Refer to Section 3.3 Cable
Connections.
25. Arrange the power cables and
communication cables separately
using cable ties.
M5 PH Bolt 6ea
Front Protection Cover
26. Re-attach the Front Protection Cover
with M5 PH bolt 6ea.
Handle
27. Close the front cover.
* Hold the handle and turn it
clockwise.
* Make sure the Front Cover is
closed.

11
3.1.9.2 Wall Mounting Type (Optional)
Wall
1. Place the Drill template to the wall
where the battery pack will be
installed. After that, drill holes on the
position marked on the Drill template.
* The number of fastener should
observe the regional building code.
LGES recommends the use of at
least 8 fasteners for Wall Mounting
Bracket Bottom and 2 fasteners for
Wall Mounting Bracket Top.
* Check “LG HBP 10H Wall
Mounting (Optional)” on the
middle side of Drill Template
before drilling.
2. Fix the Wall Mounting Bracket
Bottom and Wall Mounting Bracket
Top on the wall.
Top View
Front
Rear
Bottom View
Wall
Wall
3.
Plate on the Wall Mounting Bracket
Bottom using eight (8) M6 Flange
Bolts.
* Tighten the M6 Flange Bolts with a
torque of 5Nm.
Battery
Module B
Label
Battery Module Direction
Wall
4. Place Battery Module B on the rear
side of Module Connect plate.
* The side without bolts is the front
of the Battery Module.
*
battery pack is of B. Label is
attached on the left side of Battery
Module.
Battery Module A
Label
Battery Module B
Battery Module A
TOP VIEW
Rear
Front
Wall
5. Place Battery Module A on the front
side of Module Connect plate. The
Rear side of each Battery Module
should face each other.
*
Battery pack is of A. Label is
attached on the left side of Battery
Module.
Module Support BRKT
6. Assemble Module Support BRKTs
using 6 bolts each.
* Tighten the M6 Flange Bolts (x12)
with a torque of 5N·m.
Battery Control Unit
Battery Modules
7. Remove bubble wrap from
connectors of Battery Control Unit
and the warning label of Battery
Modules.
Spacer
Spacer
TOP VIEW
8. Place the spacers on the position
marked with label on Battery
Modules.

12
Battery Control Unit
9. Place the Battery Control Unit on
top of the spacers, and align with the
Battery Module.
* Be careful not to break the
connector between the spacers and
the Battery Control Unit.
Sensing connector Power connector
“Click!” TPA
10. Connect the power and sensor
connectors on the right and left sides
(2 each). Assemble the connectors
until you hear a “Click”. After that,
lock the power connector by pressing
TPA (Terminal Position Assurance).
Handle
LED power indicator
LED fault indicator
11. Check the operation of the battery
pack by following the steps below.
1) Hold and turn the handle
counterclockwise.
2) Open the front cover and turn on
the circuit breaker switch.
3) If there are no problems with the
assembly process or the product
itself, the LED power indicator will
turn on. Sixty (60) seconds later,
the LED fault indicator will blink
(due to a lack of communication
with the inverter, not due to a
product defect).
Then, close the front cover and turn
the handle counterclockwise.
* If you experience any problems
at this stage, go to Section 5
Troubleshooting.
12. Double-check the alignment of the
Battery Control Unit.
Remove a spacer
Grab
here
Remove another one in
the same way Settle slowly
Lift (just few mm)
13. Remove one spacer by lifting one
side of the Battery Control Unit. After
that, remove the other spacer in the
same way.
* Be careful not to pull on the cables
by lifting the Battery Control Unit
too high. Doing so may cause
damage to the cables or cause the
unit to disconnect.
* Before setting down the Battery
Control Unit, the cable connection
should be checked once more.
14. Realign the Battery Control Unit.
M5xL65 Flange Bolt
Top Cover
15. Loosen 4 bolts and remove the Top
Cover.
M5xL200 Flange long Bolt
16.
a torque of 5N·m.
* While assembling, open the front
cover and check that all M5 Flange
long bolts are placed accordingly.

13
TOP VIEW
17. Plate the Wall Mounting Bracket Top
Support in right plate as shown in
using three (3) M6 Flange Bolts
* Tighten the M6 Flange Bolts with a
torque of 5Nm.
18. Re-attach the top cover.
* Tighten the M5xL65 Flange Bolt
(4ea) with a torque of 5N·m.
Handle
Front Cover
19. Open the front cover.
* Hold the handle and turn it
counterclockwise.
M5 PH Bolt 6ea
Front Protection Cover
20. Loosen 6 bolts and remove the Front
Protection Cover.
* Be careful not to drop the bolts into
the pack at this stage.
Connector for
Ethernet cable
Hole #2
Hole #1
21. Assemble the adapter or cap
according to regional regulations.
Insert the RMD ethernet cable
through Hole #2 and connect the
cable. Then proceed to Section 3.2
Installation for Remote Monitoring
Device (RMD).
Internal cable
Hole #2 Communication cable
Hole #1 Power cable
22. Assemble the adapter or cap
according to regional regulations.
Then insert the power and
communication cables through the
holes from outside of the pack.
* Arrange the internal cable as
required to avoid blocking the holes
for external cables.
23. Connect the cables according to their
application.
* Refer to Section 3.3 Cable
Connections.
24. Arrange the power cables and
communication cables separately
using cable ties.

14
M5 PH Bolt 6ea
Front Protection Cover
25. Re-attach the Front Protection Cover
with M5 PH bolt 6ea.
Handle
26. Close the front cover.
* Hold the handle and turn it
clockwise.
* Make sure the Front Cover is
closed.

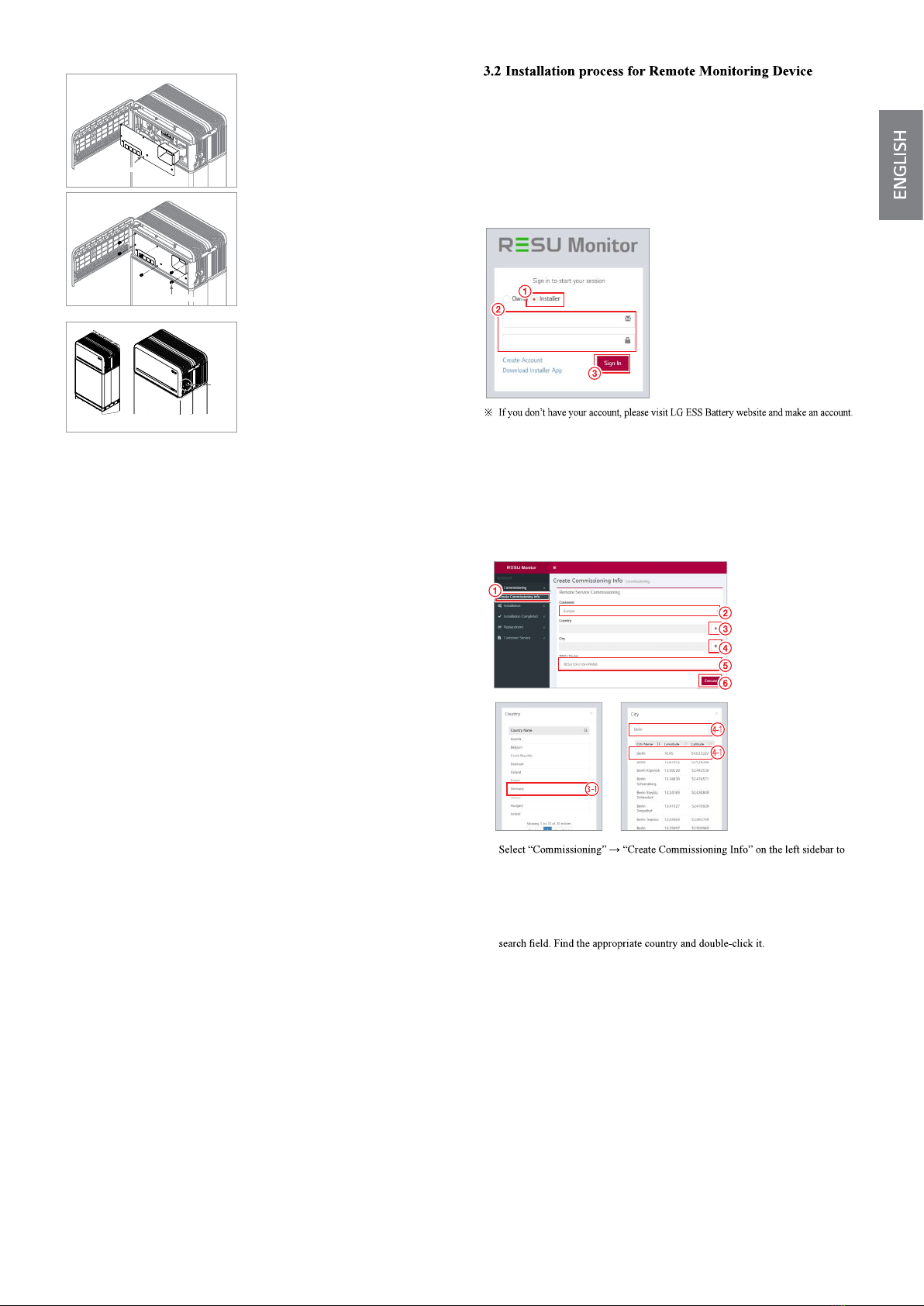

(RMD)
Remote monitoring device (RMD) is a remote device that can install and monitor a battery
pack through App. and web.
3.2.1 Prepare for installation using RMD
3.2.1.1 Installer Sign In
3.2.1.1.1 Visit https://resumonitor.lgensol.com
1. Select the “Installer”option.
2. Enter your ID and Password.
3. Click the “Sign In” button.
https://www.lgessbattery.com/us (in case of North America)
https://www.lgessbattery.com/au (in case of Australia)
https://www.lgessbattery.com/eu (in case of all EU-countries in general)
https://www.lgessbattery.com/de (in case of Germany)
https://www.lgessbattery.com/it (in case of Italy)
https://www.lgessbattery.com/es (in case of Spain)
3.2.1.2 Obtaining IoT Hub String
1.
access the commissioning information creation screen.
2. Select a continent (ex. Europe, North America, Oceania).
3. Click the “+” button to the right of “Country”, and double-click the appropriate
country from the drop-down list.
4. Click the “+” button to the right of “City”, and enter two (2) or more letters in the
5. Select the appropriate BLG RESU Model.
6. Click the “Execute” button to complete product registration. The device
connection string information will sent to the account e-mail address.

15

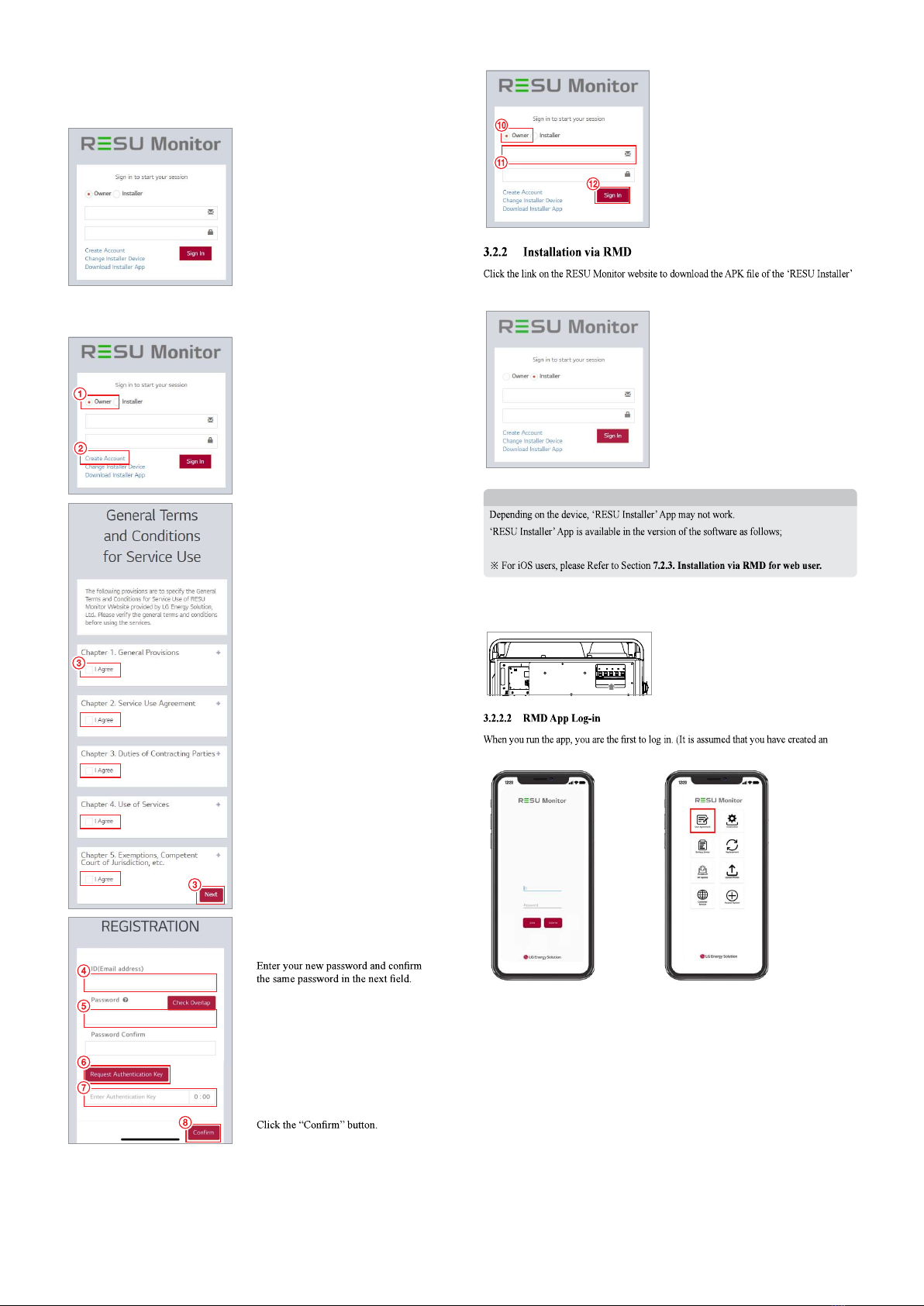

3.2.1.3 User Registration
3.2.1.3.1 Visit https://resumonitor.lgensol.com
3.2.1.3.2 Create an Owner account.
1. Select the “Owner” option.
2. Select “Create Account”.
3. Review the General Data Protection
Regulation (Privacy Policy) and check
“I Agree” to indicate consent. Click the
“Next” button to proceed to the next
step.
4. After entering your ID (e-mail address),
click the “Check Overlap” button to
check for duplicates.
5.
Password requirements: 10 to 25
characters long, including letters,
numbers, and special characters (!, #, $,
%, ^, &, +, =).
6. Click the “Request Authentication Key”
button to receive your authentication key
at the e-mail address you provided.
7. Enter your authentication key within 3
minutes to verify your account.
8.
9. Select the “Owner” option.
10. Enter your ID and Password.
11. Click the “Sign In” button.
App.
NOTE
- Android OS: Pie(9.0) or higher
3.2.2.1 Powering On the Product
To proceed with product installation, turn on the product.
* Open the front cover and turn on the
circuit breaker switch.
account in advance.)

16
3.2.2.3 User Agreement
1. Search the product which you will install.
2. Get the agreement of privacy policy for the customer.
3. If the customer agrees the privacy policy, have customer’s personal information.
For the RMD’s Wi-Fi direct connection, see below.
Search and access the SSID of the RMD AP from a device capable of supporting WLAN
Station functions (ex. smartphone).
RMD SSID has a structure of “RESU_(or RMD) + RMD WLAN STM MAC ADDRESS”.
For the devices below, the SSID of the RMD SoftAP is “RESU_44CBXXXC14F(or
RMD44CBXXXC14F)” . The password is 12345678(changeable).
When Wi-Fi connection is complete, click the “Next” button.
3.2.2.5 QR Code Scan
The QR code scanning method is as follows.
Select
Prime: Fixed at 2
FLEX: Select from 2 to 4
S/N of consecutive QR
codes are automatically
displayed(Maximun 5)
When the QR code registration is complete, click the “Next” button.
If the scanned serial number matches the actual serial number, it will proceed to the next
section.
There are three (3) QR codes: Battery Control Unit, Battery Module A, and Battery Module B.
1. Battery Control Unit QR Code
WallWall
2. Battery Module QR Code
3.2.2.6 External Internet Connection
“Next” button.)
3.2.2.6.1 Ethernet Connection (primary)
Connect the ethernet cable to a router with internet access.
For Ethernet use, it is enough to connect the cable. Since you have already connected the

17
3.2.2.6.2 Wi-Fi Connection
If you are using an ethernet connection and do not wish to use Wi-Fi, simply click the “Next”
button.
Scan AP( ): Wi-Fi-network currently available for connection is displayed in .
SSID( ): Enter the name of the Wi-Fi-network to connect(You can enter it manually without
going through .).
Password: Enter the password of the Wi-Fi-network to connect.
When internet connection is successful, click the “Next” button.
* In case the WLAN connection is unstable, enhance the signal by using a WLAN repeater.
Continent : Select your continent
Time Zone: Hour: Select your time zone.
RMD Power Save Timer: OFF(default)
RMD Operation Mode: Normal Mode(default)
Server Use: Choose whether the cloud server (external internet) will be used.
IoT Hub Connection String: Enter the unique string provided to you in order to access the
Azure IoT Hub (cloud server).
The string format is as follows:
HostName=emashub.azure-devices.net;DeviceId=XXXX;SharedAccessKey=OOOO=
* For more information on how to obtain strings, refer to Section 3.2.1.2 Obtaining IoT Hub
String.
Server Connection Check: Check the server connection.
Battery Status: Check if the product has diagnosed any issues.
When the server connection is complete, click the “Next” button.
Disable Wi-Fi in the same way that you connected Wi-Fi in Section 3.2.2.4 RMD Wi-Fi Direct
Connection
Disconnect Wi-Fi
When the server connection is complete, click the “Complete” button.
3.2.2.10 Connect to RESU Monitor to Check Product Registration
After product installation via RMD is complete, check if the product has been registered on the
server by selecting “RESU Monitor” below. (https://resumonitor.lgensol.com)
When you log-in, you can check
the product registration as shown
in the picture.

ENGLISH
18
3.3 Cable Connections
1
2
3
Section A Section B Section D Section E
Section C
1. Section A: Inverter communication ports including CAN/RS485 and enable lines
2. Section B: DIP switch for setting communication termination resistor.
3. Section C: DIP switch for setting primary/secondary packs.
4. Section D: Do not connect the internal communication ports
5. Section E: Battery power ports including positive/negative pole and ground
(POS: power terminal plus, NEG: power terminal minus, GND: ground)
3.3.2 Guide for cable connection and setting the DIP switch
1 2 3 4 5 6
1. Section A: Inverter communication
ports
a) First, connect the enable ground
wire to Terminal 2.
b) Connect the enable 12V positive
line to Terminal 1.
c) Select the method that matches the
inverter communication method
in the part marked. If the inverter
uses RS485, connect the RS485
(A+, B-) lines to Terminals 3 and 4.
If inverter uses the CAN method,
connect the CAN (high, low) lines
to Terminals 5 and 6.
and cable sheath for peeling.
2. Section B: DIP switch for setting
communication termination resistor
of primary/secondary packs
Lower the DIP switch (Communication
Termination resistor) all downwards for
single pack.
to the appendix about setting for
communication termination resistor.
3. Section C: DIP switch for setting
primary/secondary packs
Raise all DIP switch upward when
you want to use as a primary pack.
And also, when you want to use as a
secondary pack, lower the switch on
the right side only when viewed from
the front
1 2 3
4. Section E: Battery power port
a) Connect the ground wire to
Terminal 2.
b) Connect the negative line of the
power cable to Terminal 3.
c) Connect the positive line of the
power cable to Terminal 1.
Blocks when choosing the battery
power cable and cable sheath for
peeling.
3.3.3 Spring Terminal Blocks
1. Power terminal block
Max. cable length: 10 m
(35 ft)
Cable type: 4~10mm² (10~12
AWG)
DC 600V insulated
Pinning
Phoenix contact
PCB terminal block SPT
5/3-H-7,5-ZB
P/N: 1719202
( + )
GND
( - )
2. Communication terminal block
Max. cable length: 10 m
(35 ft)
Cable type: 0.2~1.5mm²
(18~22AWG)
Pinning
Phoenix contact
PCB terminal block SPT
2,5/6-H-5,0
P/N: 1991011
ENABLE 12V
ENABLE GND
RS485 A+
RS485 B-
CAN Hi
CAN Lo
terminal cable).
NOTE
the battery and/or inverter.

19
4 Commissioning
4.1 LED Indicators
The LED indicators on the front of the battery pack show its operational state as follows:
LED 1
(Power)
LED 2
(Charge)
LED 3
(Discharge)
LED 4
(Fault) Status
Power on (lnit)
- - - Ready
Normal
- - Charge
- - Discharge
- - Fault 1
- - Fault 2
(Every 10 s)
- - - Power-saving
- - - -
(Quickly)
- - - Updating
FW Update
-Update
Complete
- Update Failed
There are four LED indicators on the front of the battery packs to show its operating status.
1. Power On(Init) : Initialization for operating the battery
2. Ready : Battery is ready for operating normally.
3. Charge : Battery pack is charging.
4. Discharge :Battery pack is discharging.
5. Fault : Battery pack is warning state. Fault1 is blinking. Fault 2 is continuous. See
Section 5 Troubleshooting guide for detail condition.
6. Power saving : Battery stay in minimum self consumption power mode.
7. FW update : Battery is in update sequence. See the detail LED indication about
Updating, Update complete, Update failed.
4.2 Powering On the Battery Pack
Power on the battery through the following steps:
1. Open the front cover.
2. Ensure the circuit breaker switch is in the OFF position.
3. Turn on the circuit breaker.
4. Seconds after the circuit breaker switch is ON, four (4) LED indicators will light
up.
5.
successfully initialized. The LED power indicator on the front should be green.
6. Close the front cover.
7. Turn on the inverter.
CAUTION
Electronics or your distributor.
1.
2. Open the front cover.
3.
position.
4. Make sure that every LED indicator on the battery pack is OFF. (After 10
5. Close the front cover.
5 Troubleshooting
Check the LED indicators on the front to determine the state of the battery pack. A fault state
is triggered when certain conditions like voltage or temperature are beyond design limitations.
The battery pack’s BMS periodically reports its operating state to the inverter.
When the battery pack falls outside of prescribed limits, it enters a fault state. When a fault is
reported, the inverter immediately terminates operation.
Use the monitoring software on the inverter to identify what caused the fault state. The possible
warning messages are as follows:
Battery Overvoltage
Battery Undervoltage
Battery Over Temperature
Battery Under Temperature
Battery Discharge Overcurrent
Battery Charge Overcurrent
Battery Overcharge Power Limit
Battery Overdischarge Power Limit
BMS Internal Error
External Communication Error
Internal Communication Error
Battery Cell Deviation Voltage
Battery Pack Undervoltage
Battery Urgent Undervoltage
The fault state is cleared when the battery pack resumes normal operation. If battery pack is not
regional contact service point.
NOTE
For serious warnings, if no proper corrective action is taken by the inverter, the battery
pack’s circuit breaker will automatically trip to protect itself.
CAUTION
If the battery pack or the inverter indicates FAULT or fails to operate, contact LG
Electronics regional contact point or your distributor immediately.
Yes No
1. Visually check if the wiring matches the installation manual. (Section
3.3 Cable Connections.)
2. The circuit breaker is ON.
3. The battery LED power indicator is ON.
4. The inverter power is ON.
5.
1)
6. The inverter recognizes the battery.
2)
7. The battery is operational after installation.
7-1. The AC grid is connected.
7-2. The meter is installed.
7-3. Government approval is complete.
8. IF ANY ITEM IN #7 IS CHECKED AS "NO" OR IF THE INVERTER
NEEDS TO BE TURNED OFF, TURN OFF THE CIRCUIT
BREAKER.
3)

20
5.1.2 Troubleshooting Guidelines
If the battery LED power indicator is OFF
1.
2.
3. Unplug all the wires and reconnect. Check that the wiring on the battery has been
done correctly. Refer to Section 3.3 Cable Connections.
4. Turn on the circuit breaker.
5. Turn on the inverter.
6.
7. Disconnect the power cable connector.
8. Contact LG Electronics regional contact point.
1) Contact the inverter manufacturer.
2) Refer to the inverter installation manual or troubleshooting guidelines.
3) Refer to the Installation manual (3.3 Cable Connections) for the location of the battery. and
the Circuit Breaker.
If the LED power indicator is ON, but the battery is not charging or discharging
1.
troubleshooting guide for instructions.
2. Check the inverter’s battery settings. Refer to the inverter’s troubleshooting guide
for battery setup instructions.
3. If the battery is recognized, inverter setup has been completed successfully.
4. If the issue persists:
4-3. Unplug all wires and reconnect. Check that the wiring on the battery has been done
correctly. Refer to Section 3.3 Cable Connections.
4-4. Turn on the circuit breaker.
5.
circuit breaker
6. Contact LG Electronics regional service contact point.
LED Status Action
Power on
Charging
Discharging
If the LED fault indicator is ON
1. Check if the inverter recognizes the battery. Refer to the inverter’s troubleshooting
guide for battery setup instructions.
2.
company.
2-1. Send the fault ID to LG Electronics regional contact point.
2-3. Wait further instruction from LG Electronics.
3. If the inverter is not connected to the internet, check the inverter LCD to read the
battery’s fault ID. Refer to the inverter’s troubleshooting guide for instructions.
3-1. Send the fault ID to LG Electronics regional contact point.
3-3. Wait further instruction from LG Electronics.
LED Status Action
Fault
6 Uninstallation & Return
6.1 Return/Replacement Instructions
6.1.1 Uninstallation
Uninstall the battery pack in the following order:
M5 PH Bolt 6ea
Front Protection Cover
1. Switch the inverter OFF before
beginning uninstallation of the battery
pack.
2. Switch circuit breaker OFF and make
sure it is in the OFF position.
3. Open the front cover, loosen 6 bolts
and remove the Front Protection
Cover.
4. Disconnect the cables.
5. Re-attach the Front Protection Cover
with M5 PH bolt 6ea.
M5xL65 Flange Bolt
Top Cover
6. Loosen 4 bolts and remove the Top
Cover.
