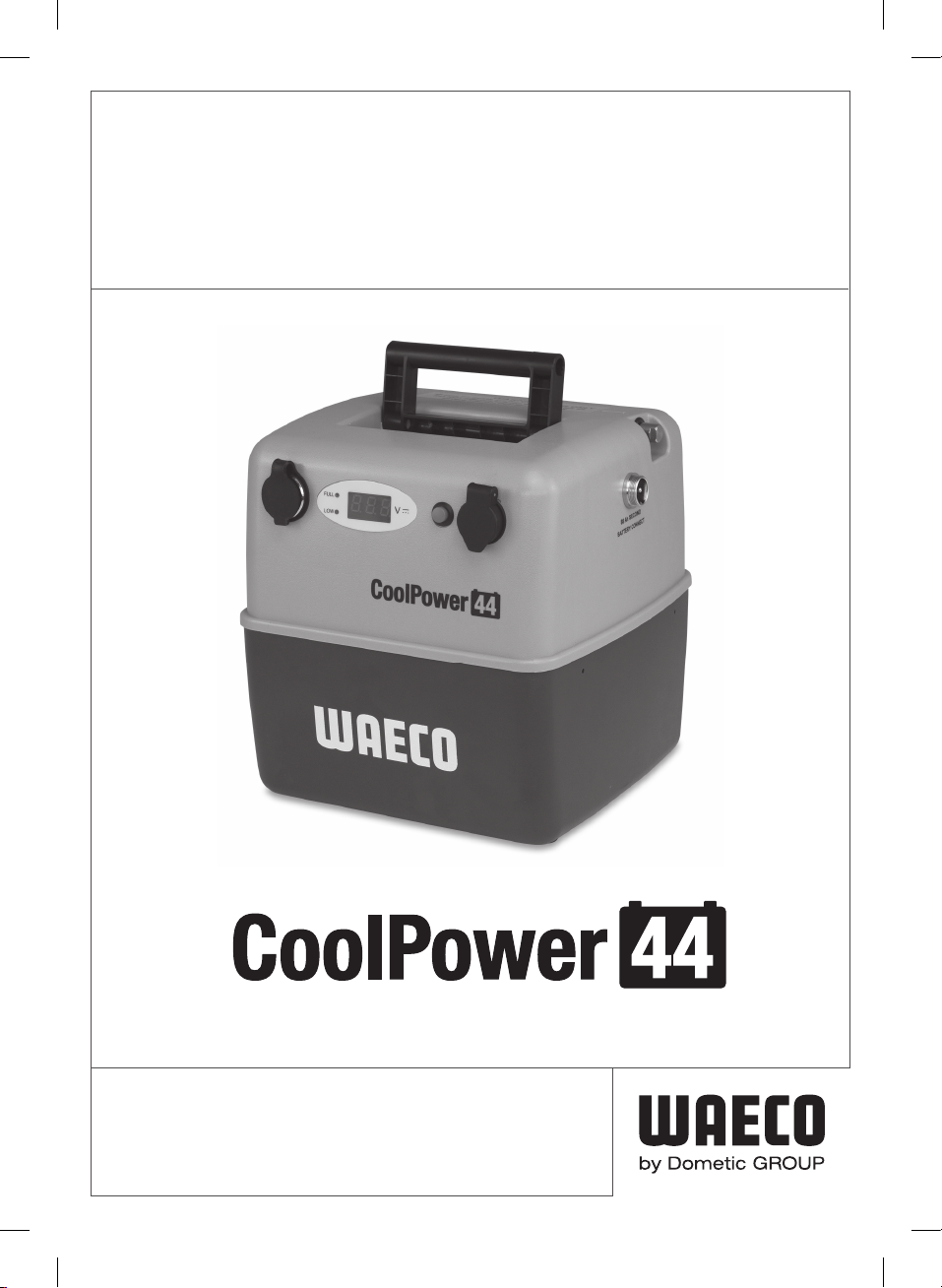

Dometic CoolPower44 RAPS44 User manual

OPERATION
MANUAL
Model: RAPS44

2
Operation manual

3
WAECO CoolPower 44
Please read instructions carefully before using your CoolPower44.
Keep instructions in a safe place for future reference.
Index
Before first use 4
Installation and operation 4
Fridge running time 4
Testing 5
Charging 5
Depth of discharge v’s battery life 6
Storage 6
Troubleshooting 7
Technical information 7

4
Operation manual
Before first use
Before using for the first time, charge your CoolPower44 using one of the methods
described in Charging (page 5).
Installation and operation
Your CoolPower44 is designed to run standing upright for stability and convenient
access to sockets and voltage display. However operation at any angle, from sideways
to upside down, is permissible. The internal cells are completely sealed and leak proof.
In vehicle
• Fit the charge lead screw terminal to the battery ‘CHARGE’ socket and plug the
other end into the vehicle 12 volt socket.
• If the WAECO heavy duty wiring kit, RAPS12R-U2 has been fitted to the vehicle
(recommended), connect the charge lead from the battery to heavy duty kit
socket.
• Plug your WAECO compressor fridge or other 12V appliance into one of the
front CoolPower sockets.
Stand alone
• Connect your WAECO compressor fridge or other 12V appliance into one of the
Front CoolPower sockets. To run your fridge for the longest possible time, make
sure your CoolPower is fully charged first (see Charging - page 5).
Fridge running time
Your CoolPower44 is designed to run portable compressor refrigerators up to 65 litres,
but will also run larger models for a limited time. Approximate run times are as follows:
Model Approximate run time* operating as:
Fridge Only Freezer Only Fridge/Freezer
CFX-28 to CFX-65 36-40 hrs 13-17 hrs n/a
CFX-65DZ n/a n/a 18 hrs
CF80 18 hrs 8 hrs n/a
* @ 32ºC ambient
Your fridge will run for longer than stated times in cooler ambient conditions.

5
WAECO CoolPower 44
Testing
Disconnect the charge lead and press the button on your CoolPower front panel
whilst your fridge is running.
Voltage
Your battery voltage will appear on the digital display. The precise remaining
capacity will vary depending on conditions such as ambient temperature, but as a
general guide will be as follows:
LED’s (on front panel)
A quick visual indication of the condition of your CoolPower can be obtained at a
glance. After disconnecting charging leads and pressing the test button:
Charging
In-car (12V)
• Plug the charge lead 2-pin screw connector into the ‘CHARGE’ socket on the
left hand side of your CoolPower. Then plug the 12 volt plug on the other end of
the charge lead either directly into your vehicle 12 volt socket, or (recommended)
into the WAECO RAPS12R-U2 heavy duty wiring kit socket pre-fitted to your
vehicle.
• When the CoolPower is accepting charge from your vehicle battery, the green
LED adjacent to the ‘CHARGE’ socket will illuminate.
240V mains
• Ensure the battery charger is suitable for 44Ah AGM batteries.
• Most multi-stage battery chargers up to 15A maximum should be suitable
Voltage Capacity
12.8V or more 80% - 100%
12.3V to 12.7V 40% - 80%
11.3V to 12.2V 20% - 40%
LED indicator Voltage Action Required
‘FULL’ green ON 12.8V or more None
Both OFF 11.4V to 12.7V Charging optional
‘LOW’ red ON 11.3V or less Must charge

6
Operation manual
•An automatic cut out charger must be used, otherwise irreparable
damage will occur and your warranty voided.
• Disconnect your fridge and DC charging lead from the battery.
• Before turning the battery charger on, connect the alligator clamps to the + and
- posts at the top of the CoolPower44, ensuring good contact. Now turn the
charger on.
• Charging times will vary depending on depth of battery discharge prior to
charging and the battery charger used.
• To test your battery after charging, disconnect the charger, wait 30 minutes and
then follow the procedure outlined in Testing (page 5).
Depth of discharge v’s battery life
• The depth of discharge (DOD) is the amount the battery is drained without charging.
For example, a remaining capacity of 20% equates to an 80% DOD.
• The service life is the number of times the battery will cycle from fully charged to a
given DOD. For a battery in continuous cycle service use, approximate service life
figures are as follows:
• Total battery life is a combination of service life and storage conditions when not in
use and is influenced by other variables. However as a general guideline you can
increase the life of your battery by not discharging any further than necessary before
charging.
Storage
All batteries benefit from periodic charging when not in use. Following this advice will
ensure optimum life from your CoolPower44. Self-discharge characteristics vary with
ambient temperature and age, but as a general guideline the battery should be fully
charged every 3-4 months.
DOD Service Life (# Cycles)
80 % 350
50 % 600
30 % 1,250

7
WAECO CoolPower 44
Troubleshooting
Problem Possible solution
Battery charge OK, no power to
fridge
Check all connections – ensure they are secure and clean
Check fuse located at rear of battery directly behind the socket
powering your fridge. If blown, replace with 15A 3AG fuse
Not fully charging in-car Check connections – ensure they are secure and clean
Is the WAECO RAPS12R-U2 heavy duty wiring kit fitted? If not, the
vehicle wiring may not be heavy enough to deliver adequate charging
current. Fit RAPS12R-U2 to vehicle
Technical Information (RAPS44)
Output sockets: 1 x 10A 12 volt, 1 x 15A ‘hella’ style (fused separately)
Fuses: 2 x 15A 3AG
Input sockets: 1 x 2-pin screw type (small) for DC charging
1 x 2-pin screw type (large) for 88Ah connection to second RAPS44
(not supplied – must be purchase separately)
Voltage test: Push button digital volts display
‘FULL’ LED (green) = 12.8V or more
‘LOW’ LED (red) = 11.3V or less
DC charging lead: 2.4m long, 2 pin screw connection battery end, 12 volt plug other end
Charge LED (green): Adjacent to screw socket. On when battery connected to in-car system
and accepting 12V charge from vehicle battery
AC charging: Multi-stage chargers up to 15A
Connection via + and – post terminals
Battery cells: 2 x 12V 22Ah(20 hr rate) deep cycle Absorbent Glass Mat (AGM)
Operating temp. range: -20 to +60ºC
Weight: 13.5 kg
Dimensions: W230 x H245 x D227mm
For further assistance call Dometic Technical assistance 1800 21 21 21.

151215
