LG BUEL011HBC1 User manual
INSTALLATION MANUAL
Residential Battery Unit
https://www.lg.com/global/business/ess/business-resources/download
Copyright © 2022 LG Electronics Inc. All Rights Reserved.
*MFL1199-00494-00
Rev. 01 21/04/2022
Model
BUEL011HBC1 (Pack*3+BCU+Enclosure)
BUEL015HBC1 (Pack*4+BCU+Enclosure)
• Please read this manual carefully before operating and retain it for future
reference.
Getting Started
2
Safety Information
For stable operation and periodic system updates, LG Electronics highly recommend the user
to subscribe to EnerVu and maintain connection.
WARNING
yThere is a high possibility of electric shock or serious burns due to the high voltages in the ESS.
yHigh voltages on DC cables. Do not short ciruit positive and negative conductors.
yA potentially hazardous circumstance such as excessive heat or electrolyte mist may occur due to
improper operating conditions, damage, misuse and/or abuse.
yThis product poses potential danger such as death or serious injury by re, high voltages, or
explosion if appropriate precautions are not read, fully understood, and followed.
yDo not place or install ammable or potentially explosive objects near the product or in explosive
atmospheres.
yDo not place objects of any kind on top of the product during operation.
yAll work on the ESS must be carried out by LG-certied service providers only.
yElectrical installations must be done in accordance with the local and national electrical safety
standards.
yWear rubber gloves and protective clothing (including protective glasses and boots) when working
on the ESS.
yThere is a risk of electric shock. Do not remove cover. There is no user serviceable parts inside. Refer
servicing to qualied and accredited service technician.
yIn the event of fault, try not to disassemble or repair the product. Product maintenance and repairs
must be performed by qualied electrician.
yDo not damage the unit in such ways as drop, deform, impact, cut or spearing with a sharp object. It
may cause electrolyte leakage or re.
yBreakdown of the unit may cause electrolyte leakage or ammable gas generation.
yWhen electrolyte leak out, avoid contact with eyes, skin or clothes. In event of accident, ush with
water and get medical help immediately.
yDo not sit or step on the product or the product package. It may cause serious injury or product
damage.
yDo not smoke or bring open flames near the product.
Getting Started
Getting Started
3
CAUTION
yThis product is intended for and should not be used for industrial.
ySerious injury may occur due to the heavy weight of the product. Therefore, special care must be
taken in handling. Make sure to have at least two persons deliver and move the package.
yDo not use any damaged, cracked, or frayed electrical cables or connectors. Protect the electrical
cables from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door,
or stepped on. Periodically examine the electrical cables of your product. If the appearance indicates
damage or deterioration, discontinue use of this product and have the cables replaced with an
exact replacement part by a qualied personnel.
yThe product should not be exposed to water (dripping or splashing) and no objects lled with
liquids, such as vases, should be placed on the product.
yThe product has IP Protection class 55. Please avoid installation in dusty or high humidity
environment.
yThe metal enclosure may heat to a high temperature during operation.
yThe product must be disposed of according to local regulations.
yConnect the DC+ and DC- cables to the correct DC+ and DC- terminals on the product.
yDo not place heavy objects on this product. It may cause deformation or fracture.
yMake sure the DC switch of this product is switched off before connecting.
yNever use any solvents, abrasives or corrosive materials to clean this product.
yKeep out of reach of children or animals.
yDo not put any object inside the product. It may cause fire, electric shock or serious injury.
yInstall the product on a at surface.
yThere should be no foreign object that could damage the bottom of the product.
Getting Started
4
NOTE
yNever use any solvents, abrasives or corrosive materials to clean this product.
yDo not store or place any objects on top of or against the product. It may cause serious malfunction
or other problems.
yThis unit is designed and operational for LG ESS PCS Home 8 (D008E1N211) and Home 10
(D010KE1N211) only. Do not connect this unit to a device which makes AC voltage such as an
AC power source or a generator. Connecting the product to external devices could result in serious
damage to your equipment.
yHandling of batteries should be performed or supervised by an LG service person or a qualieds
installer.
yThe battery does not discharged when the load is under the certain level.
yFor the latest ESS documents and full Limited Warranty , visit: https://www.lg.com/global/business/
ess/business-resources/download
y
Getting Started
5
First Aid Measures
The Product includes internal fault mechanisms designed to prevent failures and subsequent risk
hazards. However, LG Electronics cannot the guarantee safety performance of the Product if it is ever
exposed to abuse, damage, or negligence.
If a person is exposed to the internal materials of the battery cell due to damage on the outer casing,
the following actions are recommended.
-In case of inhalation: Leave the contaminated area immediately and seek medical attention.
-In case of contact with eyes: Rinse eyes with running water for 15 minutes and seek medical
attention.
-In case of contact with skin: Wash the contacted area with soap thoroughly and seek medical
attention.
-In case of ingestion: Induce vomiting and seek medical attention.
Fire Fighting Measures
Use metal re extinction powder or dry sand if only few cells are involved.
In case of large re, use large amount of water to extinguish or an Lithium re extinguisher to
extinguish.
May form hydrouoric acid if electrolyte comes into contact with water.
In case of re, the formation of the following ue gases cannot be excluded: Hydrogen uoride (HF),
Carbon monoxide and carbon dioxide.
If batteries are on charge, shut off power.
Wear self-contained breathing apparatus and protective suit.
The battery cell may catch re when heated above 130 °C (266 °F). When the battery pack is
burning, it will leak poisonous gases. Do not approach it.
WARNING
Effective way to deal with accidents
-On land: Place the damaged battery into a separate place and call your local re department or
service engineer.
-In water: Stay out of the water and do not touch the product if any part of the battery, inverter, or
wiring is submerged.
-Do not use the submerged battery again. Contact your service engineer for assistance.
Getting Started
6

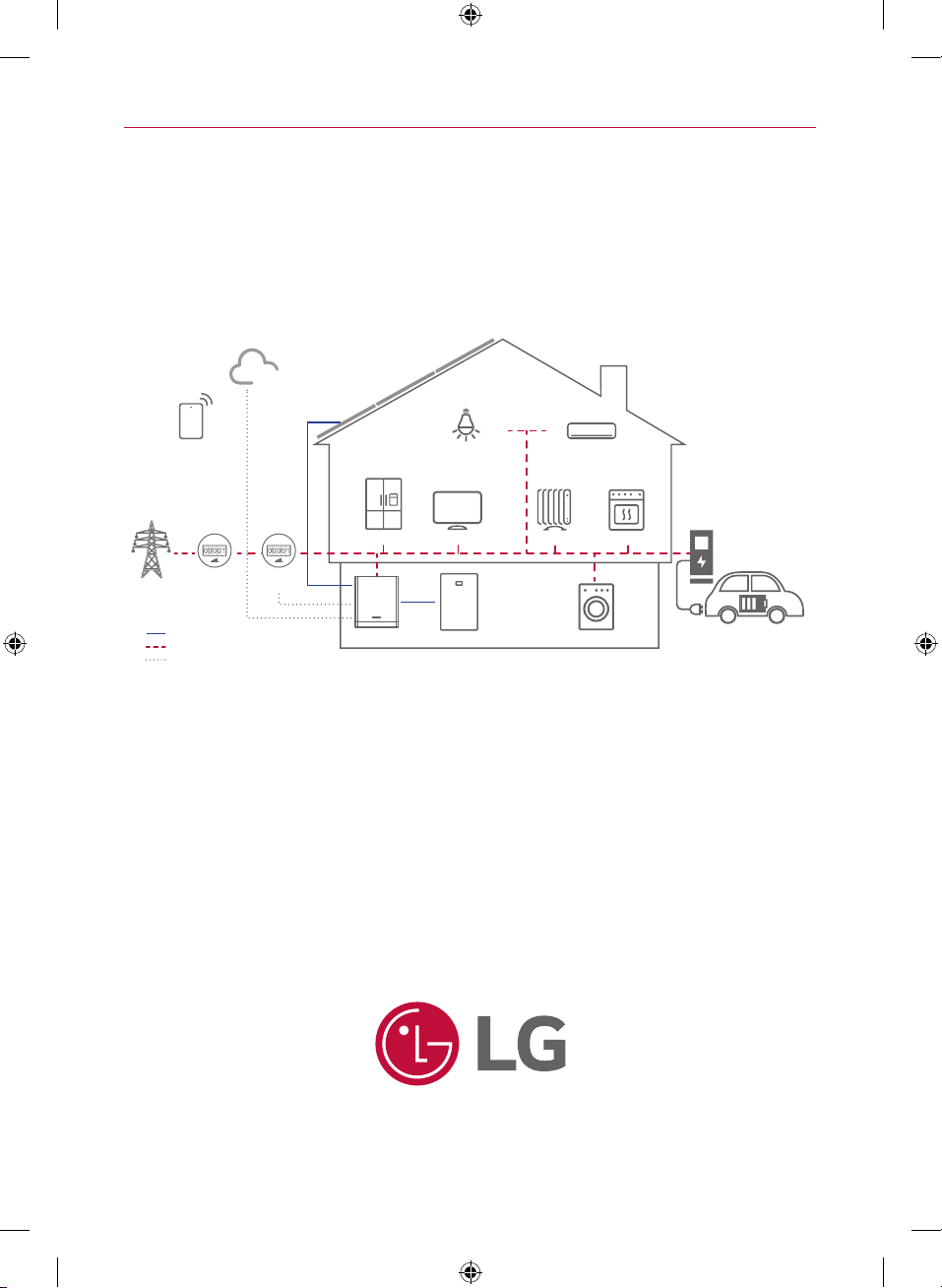

Product Features
This product is a Lithium-Ion Battery unit for the Energy Storage System. The direct current (DC)
electricity generated from photovoltaic (PV) generated is stored to the battery unit. The direct current
(DC) electricity on the battery unit is converted to alternating current (AC) electricity and feed this
into home load or power grid on the connected PCS.
Data Line
Alternative Current
Direct Current
PV Module
Air Conditioning
Washing Machine Electric Vehicles
OvenTVRefrigerator Heater
LED Lighting
Grid
ABB
Meter
Mobile Phone
Internet Clouda
ABB
Meter
PCS Battery Unit
Product Specifications
All specications and descriptions contained in this document are veried to be accurate at the time
of printing. However, since continuous improvement is a goal at LG Electronics, we reserve the right to
make product modications at any time.
The images provided in this document are for demonstration purposes only. Depending on product
version and market region, details may appear slightly different.
©2022 LG Electronics Inc. All rights reserved.
All information in this document is subject to copyright and other intellectual property rights of LG
Electronics Inc. and its licensors. This material may not be modied, reproduced or copied, in whole
or in part, without the prior written permission of LG Electronics Inc. and its licensors. Additional
information is available upon request. The following are trademarks or registered trademarks of LG
Electronics Inc. in the Europe and other countries:
7
Table of Contents
Getting Started
2
First Aid Measures .....................................................................5
6
11
Unpacking the battery unit ............................................................11
Contents of this product ..............................................................12
15
Front and Rear ........................................................................15
Connection parts......................................................................16
LED Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Installation
18
21
22
Installing battery modules .............................................................25
29
Appendix
35
Cleaning the Product ..................................................................35
Inspecting Regularly...................................................................35
Contact...............................................................................35
Disposing the product .................................................................36
Entsorgung Ihrer Altgeräte ............................................................37
38
41
46
Getting Started
8
Symbol Used on the Labels
The relevant equipment complies with the requirements in the EC
guidelines.
UL approval Recognized
Risk of Electric shock
This product should not be disposed of with other household waste.
Disposal regulations of the country should be observed.
Refer to the installation manual or operating manual.
Caution: risk of danger
Caution: hot surface
Caution: risk of electric shock, energy storage timed discharge
Caution: risk of electric shock
No open ame, open ignition source, or smoking
Wear protective glasses when working on the battery unit.
Install this product out of reach of children.
Read the instruction manual/booklet before starting work or before
operating equipment or machinery.
Take care when handling corrosive substances
Take care when handling explosive materials
Serious injury may occur due to the heavy weight of the product.
Observe precautions for handling electrostatic discharge sensitive devices.
Getting Started
9
Disconnect the machine or equipment before carrying out maintenance or
repair
Take care to avoid causing a re by igniting ammable material
Ensure adequate ventilation of the charging area and take care to avoid
coming in contact with acid.
In case of contact with acid material, immediately ush the area with
plenty of water. Get medical attention immediately. Wash contaminated
clothing before reuse with sufcient water.
Fire extinguishers must be used to put out ames.
Ensure the conductive terminals are matched to their corresponding
counterparts.
Getting Started
10
Abbreviations in this Manual
ESS Energy Storage System Inverter system that stores energy in a battery
and uses it.
PCS Power Conditioning
System
A device intended to convert AC/DC electricity to
charge and discharge the battery.
PV Photovoltaic A solar panel system that converts solar energy
into direct current electricity
SOC State of charge The current charge level of an rechargeable
battery relative to its capacity
BCU Battery Control Unit An electronic system that control a rechargeable
battery system for securing battery safety
BIC Battery Interface Circuit An electronic system that measures and monitors
a rechargeable battery status
DC Direct Current -
AC Alternating Current -
Getting Started
11
Unpacking

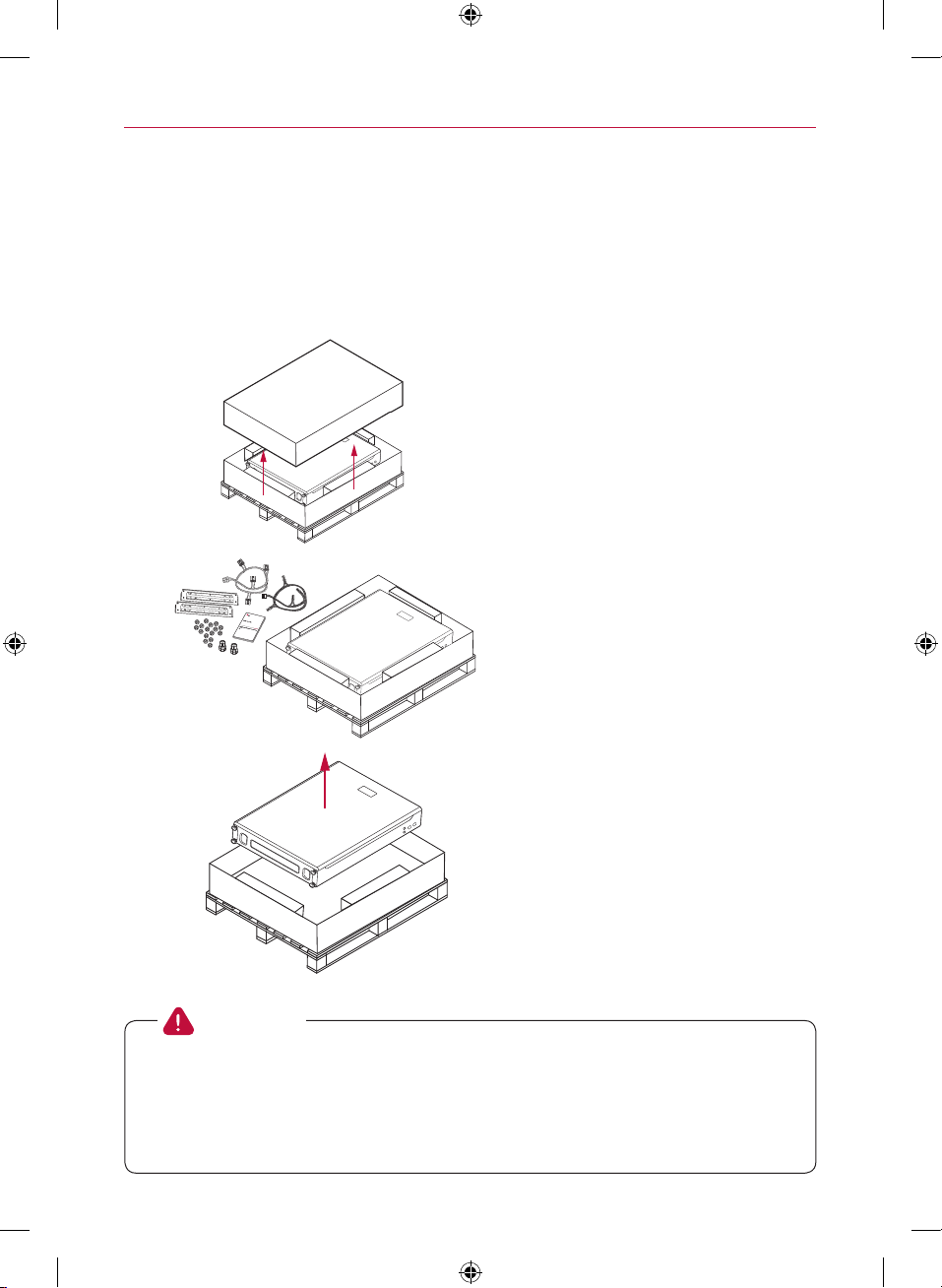

Unpacking the battery unit
Unpack the battery unit from its packaging.
aRemove the packing tape and open the box.
bTake out the all the accessories and
components.
cRemove the battery unit from the
packaging.
yWhen working on the battery installation, at least 2 people are needed for safe installation
and moving.
yThis product is heavy. Wear appropriate personal protective equipment (such as gloves and
protective footwear) when handling the unit. Only a sufcient number of trained movers
should lift the product.
WARNING
Getting Started
12
Contents of this product
Battery unit Installation Manual & Quick
Installation Guide Wall brackets
Battery module
(BUEL011HBC1 : 3EA,
BUEL015HBC1 : 4EA)
Power cable harness Communication cable harness
Nuts (17 EA) Cable glands (2 EA)
Getting Started
13
Additional Components for Installation
Wall mounting
yRefer to "Floor Standing Wall Mount".
yRecommended Screw : stainless steel screws with TX M8 x 50mm
yProper anchor to wall type
Communication
connection
yFollow the local code.
yCAT V (better CAT VI) with 4 x 2 x 0.4 mm² or 4 x 2 x 0.6 mm²
TWP Cable
yMinimum 300 V rated 3-conductor (twisted pair) or double-
insulated (with one twisted pair) shielded copper (Cu) cable.
Power connection
y600V Twisted Shielded Pair Cable (at least 3-pair cable is required)
yCable with minimum 1 x 6 mm² in the color black and red,
grounding green minimum 1 x 6 mm²
yMinimum 600 V rated copper (Cu) cable rated at 90°C
Getting Started
14
Required Tools
Insulated gloves Safety glasses Protective footwear Drill and drill bit
200 mm magnet bit
holder and T-Handle
torque wrench with
magnet hex socket
(M5, M6, M8)
Screw driver
Phillips (5 mm)
Flat head (6, 5, 4, 2 mm)
Hex wrench
(6 mm, 8 mm) Cutter
14
Inclinometer Tape measure Writing utensil Wire strippers (A)
Wire strippers (C) Wire cutter (B) Spanner (17 mm)
Recommended Tools
Lift equipment Wire strippers (B) RJ 45 Climping tool
Getting Started
15
Name of each part

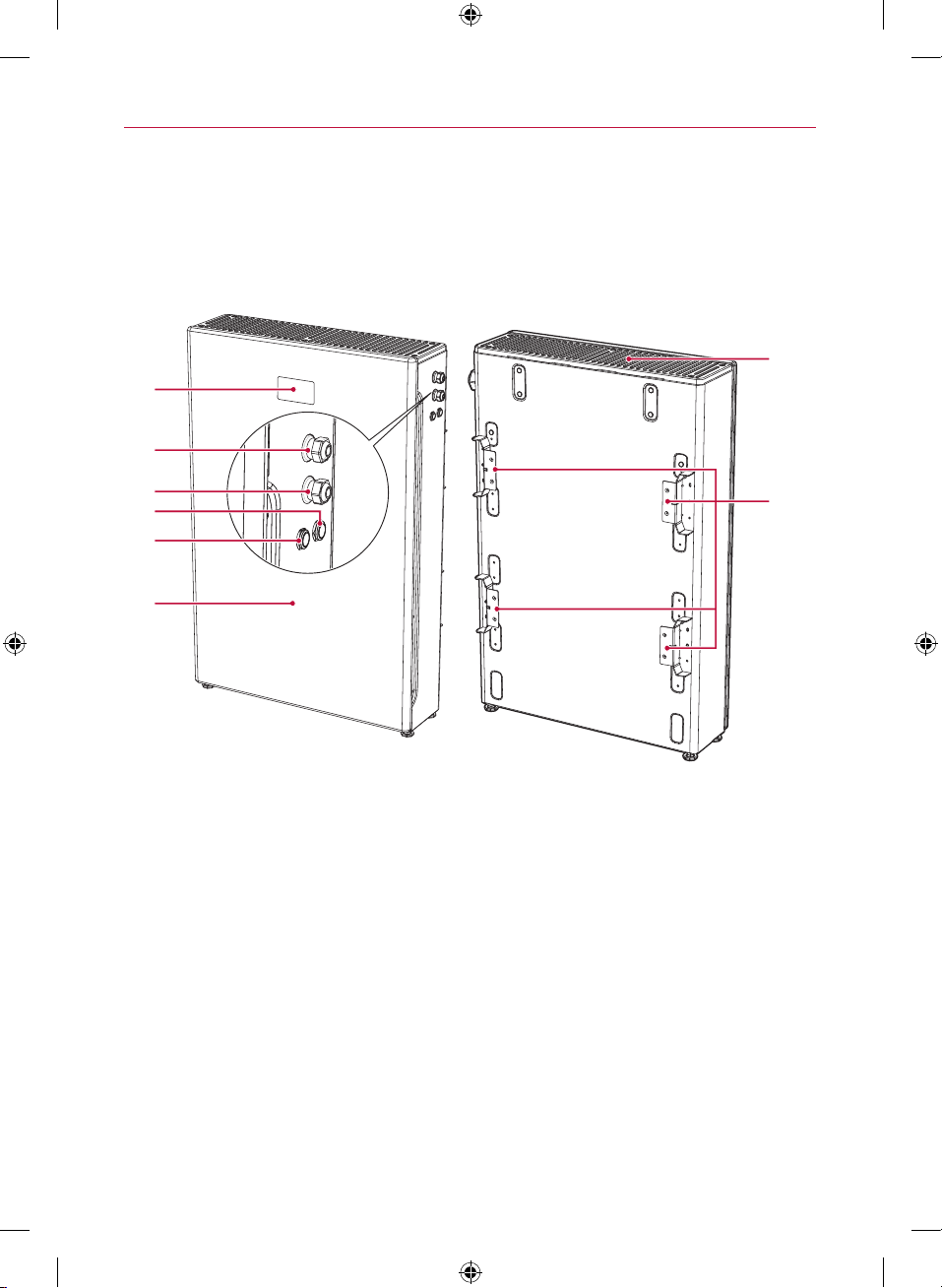

Front and Rear
a
b
c
D
E
F
G
H
aLED Indication
bCable gland (communication)
cCable gland (power)
DSTART (5s) button
EPOWER button
FFront cover
GTop cover
HWall bracket connected parts
Getting Started
16

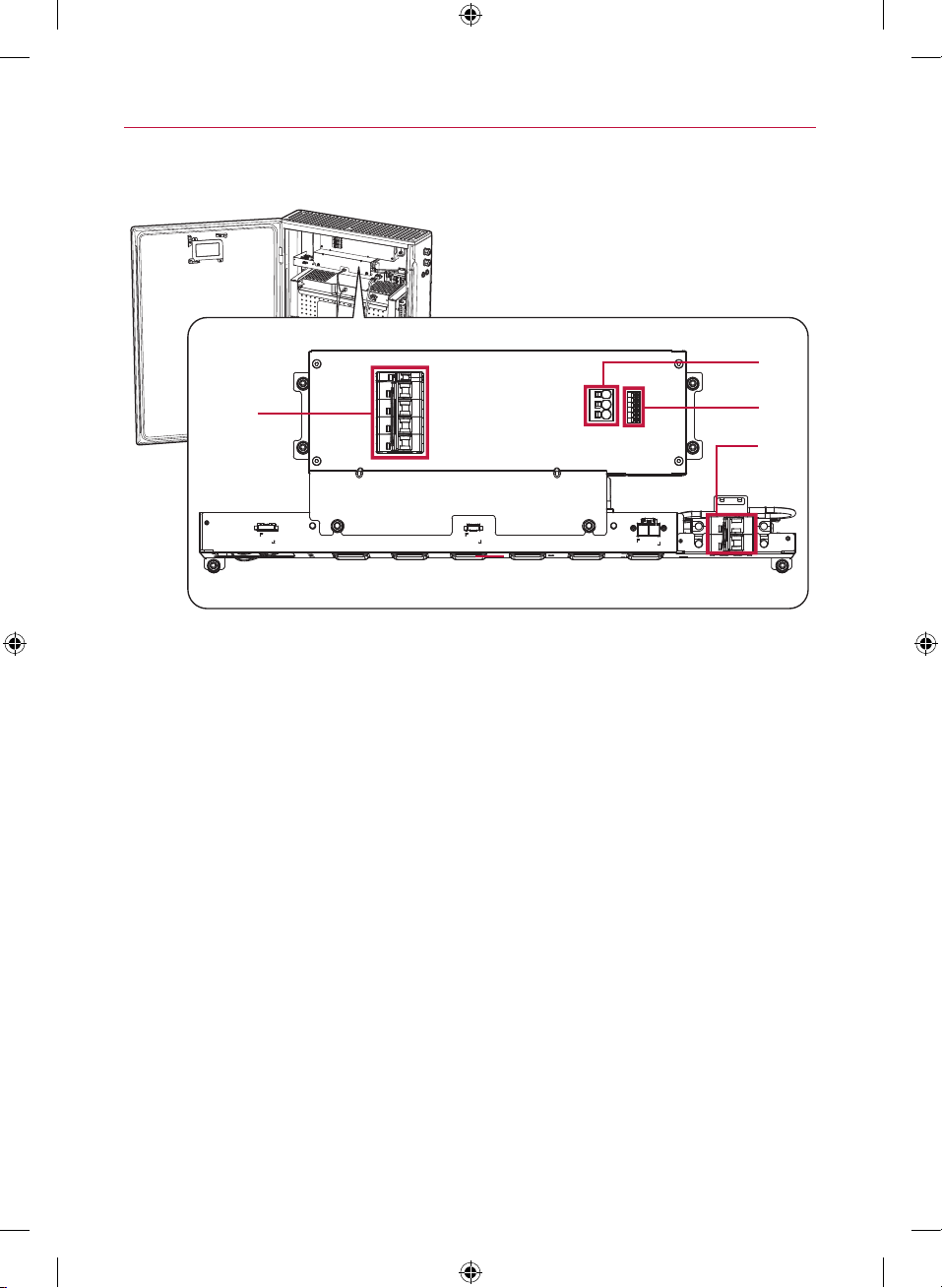

Connection parts
a
b
c
D
aCircuit breaker of PCS
bPower terminals (Positive, GND(Earth), Negative)
cCommunication terminal
DCircuit breaker of battery pack
Getting Started
17

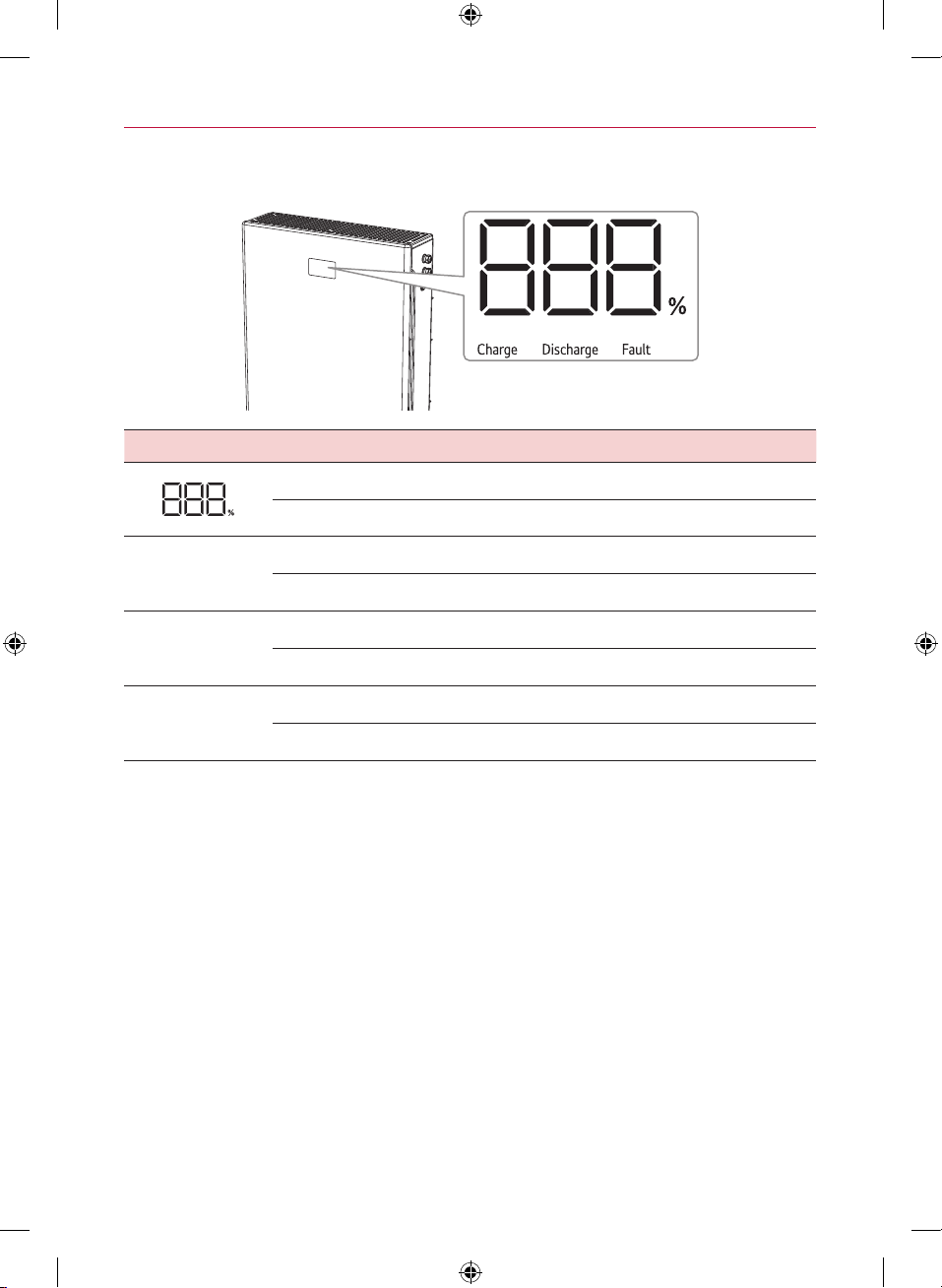

LED Indicators
Operating Fault
BAT. Charging Not operating
BAT. Discharging Not operating
Fault Normal
* Refer to "Error Codes and Messages" for more information.
Installation
18
Installation Location
yRead all of the instructions, cautions, and warnings for the battery unit and documentation
on other associated components.
yWear protective gloves when handling equipment. Sharp edges may cause personal injury.
yDispose of the packing materials safely.
-Packing materials, such as nails and other metal or wooden parts, may cause puncture
wounds or other injuries.
WARNING
yThe secondary short-circuit current rating is increased at the transfer connection point to
the public electricity supply system by the nominal current of the connected ESS PCS.
yExercise extreme caution when transporting the product. There is risk of the product falling
and causing physical injury.
yUse appropriate moving equipment to transport; make sure that the equipment is capable of
supporting the weight of the equipment.
CAUTION

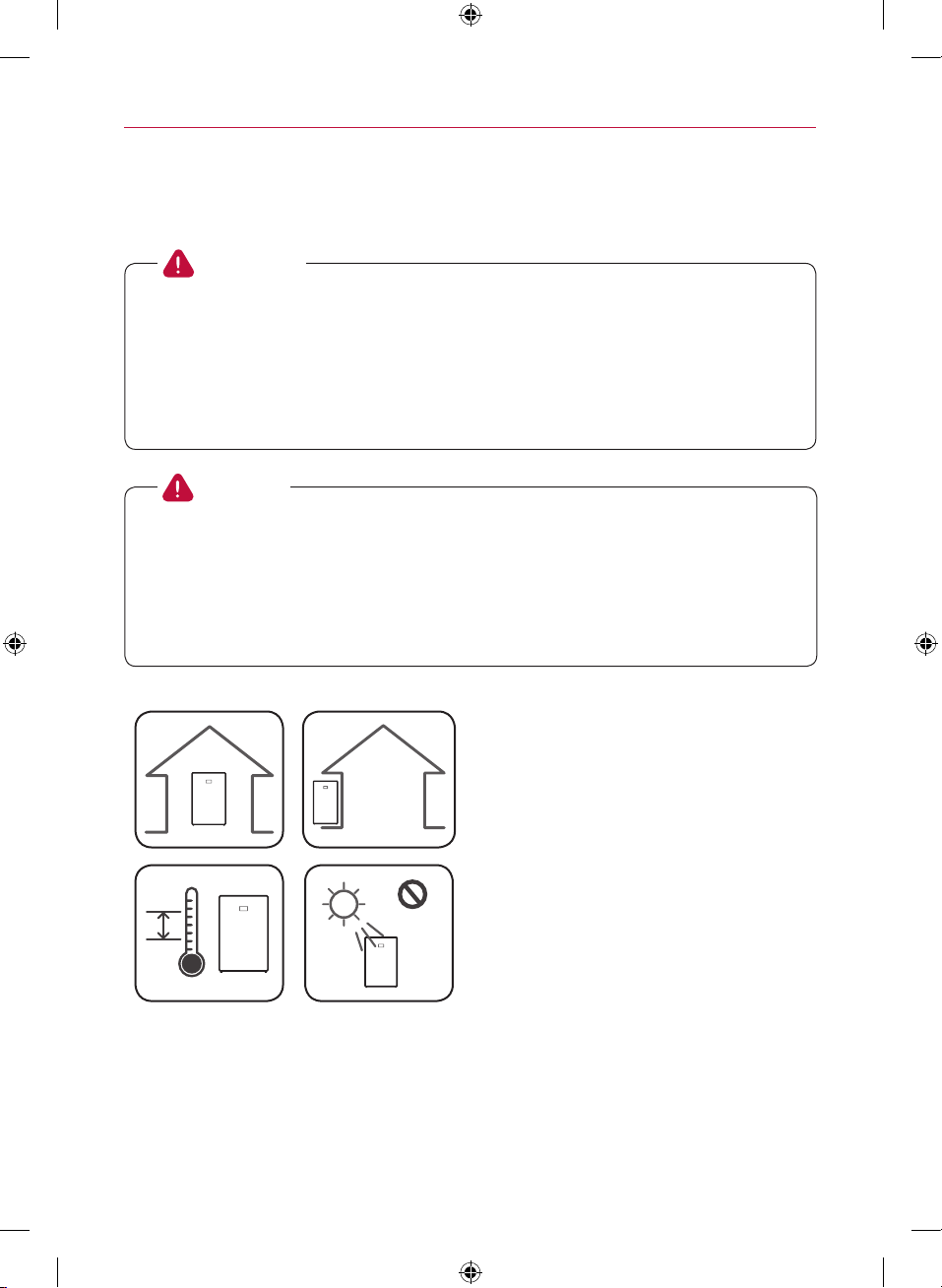

yThis product is designed to be installed for
indoor/outdoor use.
(45°C)
(-10°C)
yThe operating temperature range is from
-10°C to 45°C.
yDo not install this product in a location
exposed to the direct sunlight.
yInstall the product in a clean, cool room.
Installation
Installation
19
yThis product is designed to be installed on
the oor standing with a wall mounting. Wall
mounting is only for supporting purpose.
Do not use in case of the wall brackets are
used for wall mounting at higher level (without
oor standing) as safety concerns may arise.
yThe mounting surface must be able to support
the weight of this product.
(apprx. HBC 11H - 117Kg / HBC15H - 142kg)
yThe oor of installing location must be able to
support the weight of this product.
(apprx. HBC 11H - 117Kg / HBC15H - 142kg)
yDo not install the product on the ceiling.

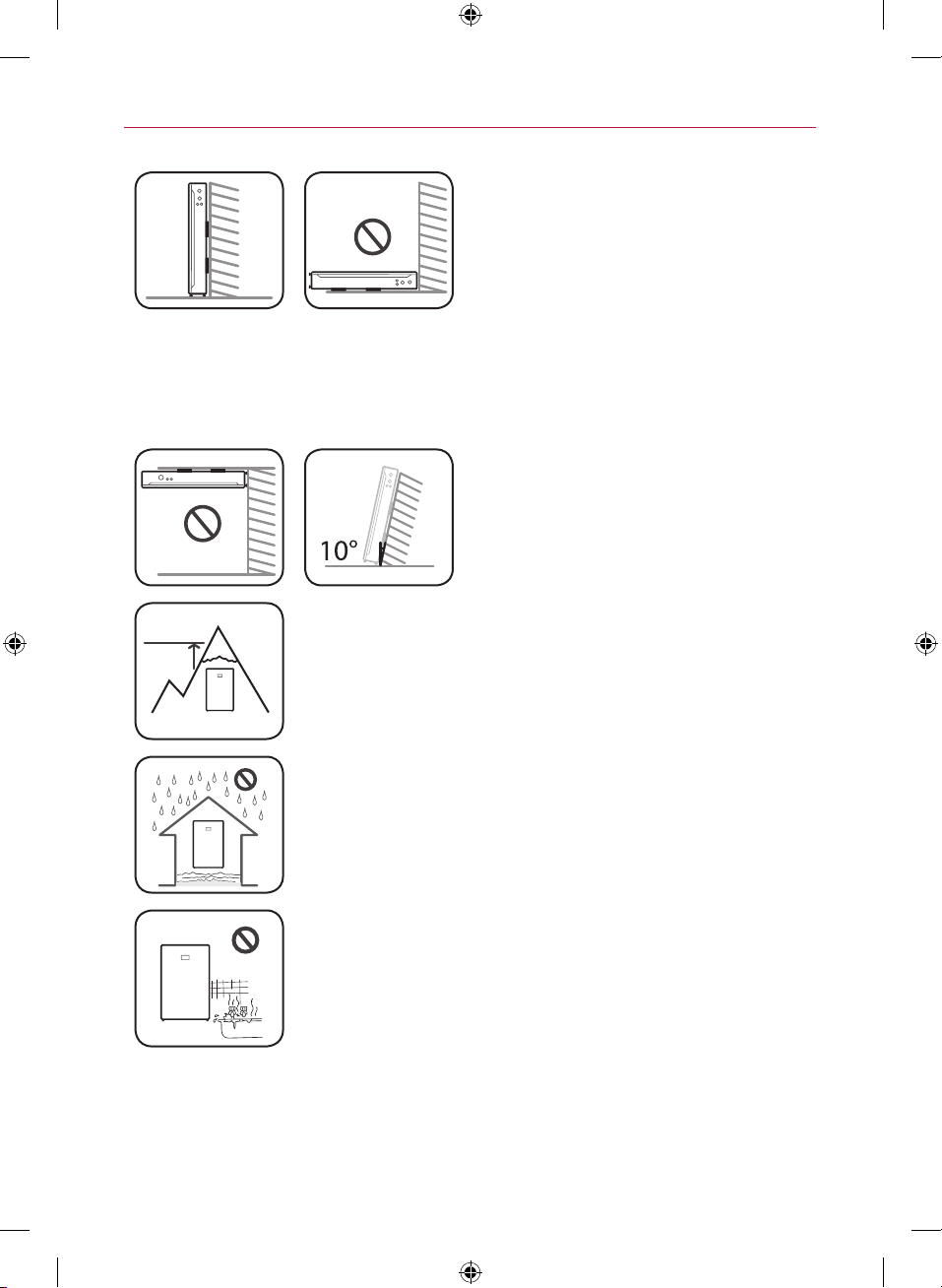

yDo not install the product widthwise or install
on a wall with a lean of more than 10 degrees.
yDo not install the product tilting forward.
3 000 m
yThis product must not be installed or used at altitudes above
3 000 m.
yDo not install this product in an area prone to ooding
> 95%
yDo not install this product in a highly humid area such as a bathroom.
yDo not install the product in an area with vibrations..
Installation
20

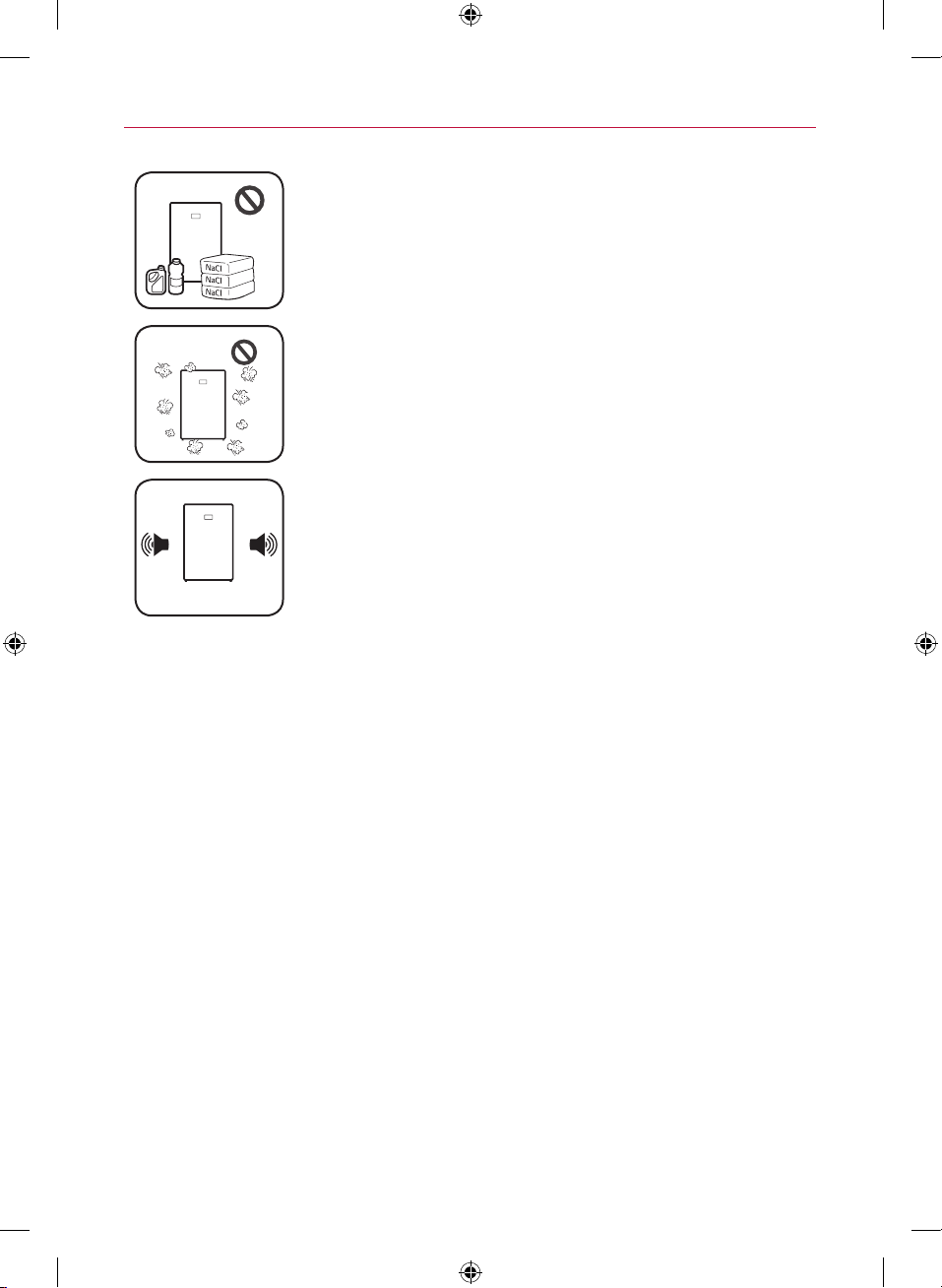

yDo not install this product in a place with ammonia, corrosive vapours,
acids or salts.
yInstall this product out of reach of children and animals.
yDo not install this product in places or environments subject to the
heavy build-up of dust.
yDo not block the air ventilation openings for cooling.
yWhen cleaning the air duct, shut off all of the systems including battery
unit.
yThis product generates some noise at times and should not be installed
close to living or sleeping areas.
yPlease consult the location with your installer when installing in places
subject to noise sensitivity.
This manual suits for next models
1
Table of contents
Languages:
Other LG Camera Accessories manuals
LG
LG CHEM RESU10H User manual
LG
LG HBP10H User manual
LG
LG LG ESS HB 7.0 User manual
LG
LG LGES-5048 Original operating instructions
LG
LG cam plus CBG-720 User manual
LG
LG ICR18650B3 Owner's manual
LG
LG Energy Solution RESU10H Prime User manual
LG
LG CAM Plus User manual
LG
LG AJ-LAH2 User manual
LG
LG RESU 10H User manual
