LG CAM Plus User manual

REV 2.0 EU
User guide
CAM Plus
CBG-700
Compatible with G5 worldwide except
Korea, Canada and AT&T-powered G5
www.lg.com
Any modications or changes to this manual due to typographical errors or inaccuracies
of stated information shall only be made by LG Electronics Inc.

Contact ofce for compliance of this product :
LG Electronics European Shared Service Center B.V.
Krijgsman 1, 1186 DM Amstelveen, The Netherlands

All rights reserved. LG Electronics Inc., 2016
Note: Please read all information carefully prior to
using the LG CAM Plus for best performance and to
prevent product damage.
ENGLISH
User guide
CAM Plus
CBG-700

2
The LG CAM Plus is a camera grip and extra battery that can be attached to the bottom of
your LG G5.
• With the LG CAM Plus, you can use your LG G5 like a digital camera. Use it to take
pictures by pressing the shutter button and zooming in and out. Half-press the shutter
button to use the half-shutter function.
• The LG CAM Plus is equipped with a 1200 mAh battery that can be used as an extra
battery when using the camera.
Product Overview

3
• Always use genuine products. Only use this product for the intended purpose.
• Using or connecting non-genuine products may shorten the product’s lifespan or cause an
explosion. Doing so may also damage the product and thereby voids the service warranty.
• If you insert a module that is not compatible with your service provider (for example, a
module bought from another service provider or in an area that is not covered by your
service provider), your device does not operate normally.
• Do not disassemble the product or allow it to be crushed. Doing so may cause electric
shock, short circuit or re.
• Applying heavy pressure to the product may damage it.
• Some functions of this product may be damaged, or its appearance may be altered or
impaired, if it is bent or crushed and not repaired correctly.
• To prevent damage, be careful not to drop the product on hard surfaces or subject it to
severe shock.
• Keep the product away from water, alcohol, benzene or other liquids.
• Do not use or store the product in extreme temperatures. Do not leave the product in
direct sunlight for long periods of time. Doing so may cause damage or an explosion.
• Do not use alcohol, benzene, thinners or detergents to clean the product. Doing so may
cause a re.
• Use a soft cloth to wipe the product.
• Do not place the product near metal objects, such as jewellery, keys, coins, nails, or clocks.
If the product short-circuits, there is a risk of explosion.
• Keep the product out of the reach of small children and pets. Do not put the product in
your mouth or subject it to severe shock. There is a risk of electric shock, explosion, or
suffocation.
Important Safety Information

4
• Do not connect or insert conductive materials (pieces of metal, pencil leads, etc.) into the
connectors.
• Do not cover or wrap the product with a blanket while using the product.
• The product may become hot after long periods of use. Avoid touching the product while
it is hot as it could cause a low-temperature burn.
• Do not dispose of the product as household waste. Doing so may cause a re or be
harmful to the environment.
• For your safety, do not remove this product’s battery.
• If you must replace the battery, take the device to your nearest authorised LG Electronics
service centre for assistance.
• The li-ion battery is hazardous component which can cause injury.
• Battery replacement by a non-qualied person can cause damage to your device.
• Do not replace the battery yourself. You could damage the battery, which may cause
overheating and injury. The battery must be replaced by an authorised service provider.
The battery should be recycled or disposed of separately from household waste.
• In case this product contains a battery incorporated within the product which cannot be
readily removed by end-users, LG recommends that only qualied professionals remove
the battery, either for replacement or for recycling at the end of this product’s working
life. To prevent damage to the product, and for personal safety, users should not attempt
to remove the battery but should contact LG Service Helpline, or an independent service
provider for advice.

5
• Removal of the battery will involve dismantling the product case, disconnection of the
electrical cables/contacts and careful extraction of the battery cell using specialised
tools. If you need to provide a qualied professional with instructions on how to remove
the battery safely, please visit http://www.lge.com/global/sustainability/environment/
take-back-recycling.

6
Product Components
• If there are any missing components, contact the retailer from whom you purchased the
product.
• Some items are subject to change without prior notice.
• The appearance and specications of the product are subject to change without prior
notice to improve performance.
LG CAM Plus User guide

7
Some functions may not be available depending on the product specications.
Product Description
MIC
Camera On/Off Key Zoom In/Out Key
USB PortSpeaker
Front
Side
Shutter Key Battery Level Indicator LED
Record Key

8
Connections
Inserting the Battery

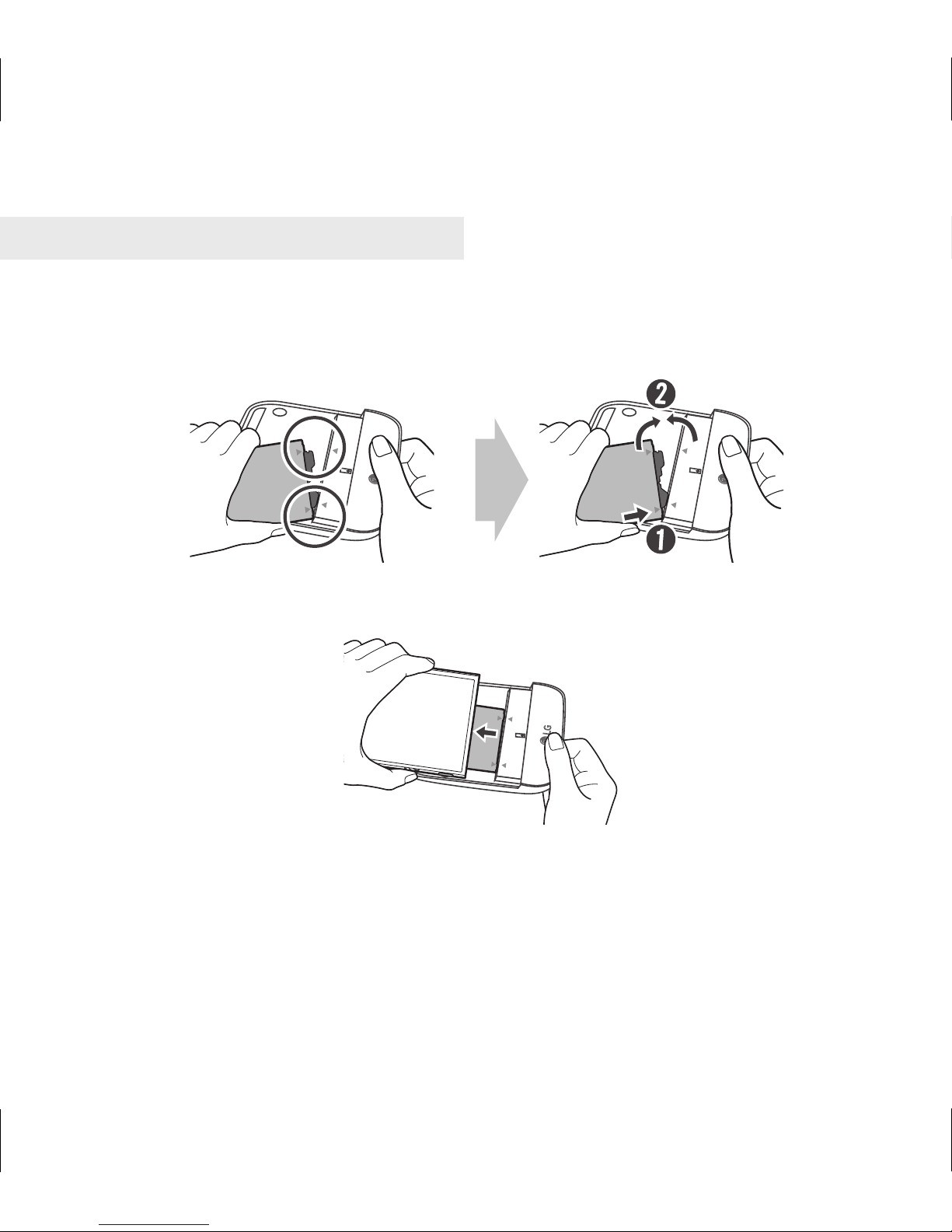

1 Align the arrows on both the battery and the module and rmly connect the battery
terminals to the module.
2 Align the battery with the lower edge and carefully slide the module back into the device.
• Never press the Module Eject Key when inserting the module into the device.
• When inserting the battery into the device, make sure the battery is attached to the
module.

9
Removing the Battery
1 Press the Module Eject Key to partly eject the module from the device.
Module
Module Eject Key
2 Grip the middle of the ejected module and pull it out.

10
3 Hold the battery and module with both hands and separate them from one another in an
outward arc (as indicated below) to disconnect the battery terminals.
• Do not detach the module while it is in use.
• Immediately attach the module to the main unit if it becomes loose or detached during
use.
• Be careful to not hurt your hands or ngers when attaching or detaching the module.
• Be careful to not be injured by the edges of the product or the module.
• Make sure the battery and the module are properly inserted. Otherwise, the product may
be damaged or fail to turn on.
• Failing to follow the instructions in this user guide may result in damage to the product.

11
Instructions
• This product will not operate normally if your G5 and LG CAM Plus are supported by
different countries or operators.
• The LG CAM Plus cannot be operated while the USB is connected (data communication
and charging are still available).
• If you press the Camera On/Off, Shutter or Recording buttons, the low-capacity battery
in the LG CAM Plus will charge your LG G5 for some time. The charging feature is not
available when the LG G5’s battery is completely empty (power off).
• OTG devices that are connected to the LG CAM Plus will not be recognised (OTG is not
supported).
• The product may not be compatible with camera apps available on online marketplaces.
LED Notications
• The LED light turns red when charging. It turns green when fully charged.
• After the LG CAM Plus is connected to the phone, the Battery Level Indicator LED will
turn red if the battery level is at 10% or less, and the LED will blink if the battery level is
at 5% or less. (The LED will remain off if it is at 11% or more.)
About Firmware Upgrades
• Firmware upgrades are available through CAM Plus Manager, which can be downloaded
and installed from Google Play™ Store (Supported OS: Android™ 6.0 [Marshmallow OS]
or above).
• Firmware upgrade is also available using the LG Friends Manager app.

12
Information about Burst Shot feature support
The following Burst Shot feature, which uses the LG CAM Plus, will be made available
through a future G5 software upgrade.
• Burst Shot
Take continuous shots to create moving photos.
Tap and hold on the Auto mode screen, or tap and hold the Shutter button on the
LG CAM Plus.
Continuous shots are taken at a fast speed while or the Shutter button is held down.

13
USB Type USB 2.0 (Type-C)
Battery Li-ion 1,200 mAh
Charging time Less than 200 minutes
Voltage 5 V ±10%, 9 V ±10%
Current consumption 25 mA (no Charging), 1 mA (Power Off)
Charging Consumption 500 mA
Output Consumption 500 mA
Audio Speaker and digital MIC
Sound pressure 1 m sound pressure 60 dB ↑(100%) (based on full charge)
Antenna GSM/CDMA, WCDMA, LTE™
LED Battery indicator
Operating temperature -20 °C– 40 °C
Dimensions/weight 73.9 mm X 61.4 mm X 15.9 mm / 55.4 g
Specicationsandfeatures

14
Disposal of your old appliance
1This crossed-out wheeled bin symbol indicates that waste electrical and
electronic products (WEEE) should be disposed of separately from the
municipal waste stream.
2Old electrical products can contain hazardous substances so correct disposal
of your old appliance will help prevent potential negative consequences for the
environment and human health. Your old appliance may contain reusable parts
that could be used to repair other products, and other valuable materials that
can be recycled to conserve limited resources.
3You can take your appliance either to the shop where you purchased the
product, or contact your local government waste office for details of your
nearest authorised WEEE collection point. For the most up to date information
for your country please see www.lg.com/global/recycling
Additional Information

15
Disposal of waste batteries/accumulators
1This symbol may be combined with chemical symbols for mercury (Hg),
cadmium (Cd) or lead (Pb) if the battery contains more than 0.0005% of
mercury, 0.002% of cadmium or 0.004% of lead.
2All batteries/accumulators should be disposed separately from the municipal
waste stream via designated collection facilities appointed by the government
or the local authorities.
3The correct disposal of your old batteries/accumulators will help to prevent
potential negative consequences for the environment, animal and human health.
4For more detailed information about disposal of your old batteries/
accumulators, please contact your city office, waste disposal service or the shop
where you purchased the product.

16
SUBJECT TO THE CONDITIONS OF THIS LIMITED WARRANTY, LG ELECTRONICS
WARRANTS THIS PRODUCT TO BE FREE FROM DEFECTS IN DESIGN, MATERIAL AND
WORKMANSHIP AT THE TIME OF ITS ORIGINAL PURCHASE BY A CONSUMER, AND
FOR A SUBSEQUENT PERIOD OF ONE (1) YEAR. SHOULD YOUR PRODUCT NEED
WARRANTY SERVICE, PLEASE RETURN IT TO THE DEALER FROM WHOM IT WAS
PURCHASED OR CONTACT YOUR LOCAL LG ELECTRONICS CONTACT CENTRE TO GET
FURTHER INFORMATION.
According to the regional service policies, Spain, Sweden, Czech Republic, Poland,
Greece, Portugal, Romania, Denmark, Slovakia, Turkey, Montenegro, Norway, Finland,
Iceland, Serbia and Bulgaria will now offer two-year warranties.
Limited Warranty

Všechna práva vyhrazena. LG Electronics Inc., 2016
Poznámka: Před použitím zařízení LG CAM Plus si
prosím pečlivě přečtěte všechny informace. Předejdete
tím případnému poškození a užijete si nejlepší výkon.
ČESKY
Uživatelská příručka
CAM Plus
CBG-700

2
Modul CAM Plus slouží jako rukojeť fotoaparátu a doplňková baterie, kterou lze připojit ke
spodní části telefonu G5.
• Díky modulu CAM Plus můžete telefon G5 používat jako digitální fotoaparát. Použijte
jej stejně jako fotoaparát k pořízení snímků stisknutím tlačítka spouště. Můžete rovněž
použít zoom. Stiskněte tlačítko závěrky do poloviny a využijte funkci automatického
zaostření.
• Modul CAM Plus je vybaven 1 200mAh baterií, kterou je možné použít jako doplňkovou
baterii při používání fotoaparátu.
Přehledproduktu
