LG CF360 User manual
Service Manual Model : CF360
Internal Use Only
Service Manual
CF360
Date: January, 2009 / Issue 1.0
- 3 -
Copyright © 2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
Table Of Contents
1. INTRODUCTION...............................................5
1.1 Purpose......................................................................5
1.2 Regulatory Information.................................................5
2. PERFORMANCE............................................... 7
2.1 System Overview.........................................................7
2.2 Usable environment.....................................................8
2.3 Radio Performance......................................................8
2.4 Current Consumption.................................................16
2.5 RSSI .........................................................................16
2.6 Battery Bar................................................................16
2.7 Sound Pressure Level ................................................17
2.8 Charging...................................................................18
3. TECHNICAL BRIEF......................................... 19
3.1 Digital Baseband (DBB) & Multimedia Processor .........19
3.2 Baseband Processor (BBP) Introduction ......................20
3.3 Audio Part.................................................................47
3.4 GPADC (General Purpose ADC) and AUTOADC2...........54
3.5 Charger control .........................................................55
3.6 Voltage Regulation.....................................................61
3.7 RF Technical Description............................................62
4. TROUBLE SHOOTING..................................... 73
4.1 Power ON Trouble......................................................73
4.2 USB Trouble ..............................................................74
4.3 SIM Detect Trouble ....................................................75
4.4 MicroSD card Trouble ................................................76
4.5 Keypad And Optical Joystick key Trouble.....................77
4.6 Camera Trouble.........................................................78
4.7 Main LCD Trouble......................................................79
4.8 Main & Key LED Trouble.............................................81
4.9 Slider ON/OFF Trouble................................................83
4.10 Audio Trouble Shooting ............................................85
4.11 Charger Trouble Shooting.........................................99
4.12 Checking Bluetooth Block ......................................102
4.13 RF Component ......................................................104
4.14 Procedure to check ...............................................105
4.15 Checking Common Power Source Block..................106
4.16 Checking VCXO Block ............................................112
4.17 Checking Front End Module Block ..........................116
4.18 Checking Front End Module Block input logic ..........118
4.19 Checking WCDMA Block ........................................129
4.20 Checking GSM Block .............................................142
4.21 Checking A-GPS Block...........................................154
5. DOWNLOAD.................................................157
5.1 LGDP2....................................................................157
5.2 Download................................................................159
6. BLOCK DIAGRAM........................................ 161
7. CIRCUIT DIAGRAM...................................... 163
8. BGA Pin Map ..............................................171
9. PCB LAYOUT ...............................................177
10. CALIBRATION............................................ 183
10.1 General Description ...............................................183
10.2 Environment..........................................................183
10.3 Calibration Environment .........................................184
10.4 Calibration Procedure ............................................184
10.5 Program Operation ................................................185
11. EXPLODED VIEW & REPLACEMENT
PART LIST ................................................. 189
11.1 EXPLODED VIEW ...................................................189
11.2 Replacement Parts ................................................191
11.3 Accessory .............................................................213
- 4 -
LGE Internal Use Only Copyright © 2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
- 5 -
Copyright © 2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
1. INTRODUCTION
1. INTRODUCTION
1.1 Purpose
This manual provides the information necessary to repair, calibration, description and download the
features of this model.
1.2 Regulatory Information
A. Security
Toll fraud, the unauthorized use of telecommunications system by an unauthorized part (for example,
persons other than your company’s employees, agents, subcontractors, or person working on your
company’s behalf) can result in substantial additional charges for your telecommunications services.
System users are responsible for the security of own system. There are may be risks of toll fraud
associated with your telecommunications system. System users are responsible for programming and
configuring the equipment to prevent unauthorized use. The manufacturer does not warrant that this
product is immune from the above case but will prevent unauthorized use of common-carrier
telecommunication service of facilities accessed through or connected to it. The manufacturer will not
be responsible for any charges that result from such unauthorized use.
B. Incidence of Harm
If a telephone company determines that the equipment provided to customer is faulty and possibly
causing harm or interruption in service to the telephone network, it should disconnect telephone
service until repair can be done. A telephone company may temporarily disconnect service as long as
repair is not done.
C. Changes in Service
A local telephone company may make changes in its communications facilities or procedure. If these
changes could reasonably be expected to affect the use of the phones or compatibility with the net
work, the telephone company is required to give advanced written notice to the user, allowing the user
to take appropriate steps to maintain telephone service.
- 6 -
LGE Internal Use Only Copyright © 2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
1. INTRODUCTION
D. Maintenance Limitations
Maintenance limitations on the phones must be performed only by the manufacturer or its authorized
agent. The user may not make any changes and/or repairs expect as specifically noted in this manual.
Therefore, note that unauthorized alternations or repair may affect the regulatory status of the system
and may void any remaining warranty.
E. Notice of Radiated Emissions
This model complies with rules regarding radiation and radio frequency emission as defined by local
regulatory agencies. In accordance with these agencies, you may be required to provide information
such as the following to the end user.
F. Pictures
The pictures in this manual are for illustrative purposes only; your actual hardware may look slightly
different.
G. Interference and Attenuation
A phone may interfere with sensitive laboratory equipment, medical equipment, etc. Interference from
unsuppressed engines or electric motors may cause problems.
H. Electrostatic Sensitive Devices
ATTENTION
Boards, which contain Electrostatic Sensitive Device (ESD), are indicated by the sign.
Following information is ESD handling:
• Service personnel should ground themselves by using a wrist strap when exchange system boards.
• When repairs are made to a system board, they should spread the floor with anti-static mat which is
also grounded.
• Use a suitable, grounded soldering iron.
• Keep sensitive parts in these protective packages until these are used.
• When returning system boards or parts like EEPROM to the factory, use the protective package as
described.
- 7 -
Copyright © 2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
2. PERFORMANCE
2. PERFORMANCE
2.1 System Overview
Item Specification
Shape GSM850/900/1800/1900 & WCDMA Band 2, 5 Slide type - Dual Mode
Handset
Size 100.8 × 48 × 16.9 mm
Weight 99.5g (with standard battery)
Power 900mAh Li-ion
Over 207 Min (WCDMA, Tx=12 dBm, Voice)
Over 219 Min (GSM, Tx=Max, Voice)
Over 375 hrs (WCDMA, DRX=2.56)
Over 409 hrs (GSM, Paging period=5)
Antenna Intenna type
Main LCD 2"(320x240), 262K TFT Color LCD
Main LCD BL White LED Backlight
Vibrator Yes (Coin Type)
Speaker Yes
MIC Yes (SMD Type)
Receiver Yes
Earphone Jack Yes
SIM Socket Yes(SIM Block Type) : 3.0V & 1.8V
Volume Key Push Type ( + , - )
Camera Key Push Type
External Memory Micro SD Socket
I/O Connect 5Pin
Talk Time
Standby Time
- 8 -
LGE Internal Use Only Copyright © 2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
2. PERFORMANCE
2.2 Usable environment
1) Environment
2) Environment (Accessory)
* CLA : 12~24V (DC)
2.3 Radio Performance
1) Transmitter – GSM Mode
Item Spec. Unit
Voltage 3.7 (Typ), 3.4 (Min), (Shut Down: 3.2V) V
Operating Temp. -20 ~ + 60 °C
Storage Temp. -30 ~ + 85 °C
Humidity max. 85 %
Item Spec. Min Typ. Max Unit
Power Available power 100 220 240 Vac
No
9k ~ 1GHz -39dBm
1G ~ 1710MHz -33dBm
1710M ~ 1785MHz -39dBm
1785M ~ 12.75GHz -33dBm
100k ~ 880MHz -60dBm 100k ~ 880MHz -60dBm
880M ~ 915MHz -62dBm 880M ~ 915MHz -62dBm
915M ~ 1000Mz -60dBm 915M ~ 1000MHz -60dBm
1G ~ 1.71GHz -50dBm 1G ~ 1.71GHz -50dBm
1.71G ~ 1.785GHz -56dBm 1.71G ~ 1.785GHz -56dBm
1.785G ~ 12.75GHz -50dBm 1.785G ~ 12.75GHz -50dBm
Item
1
DCS/PCSGSM850/900
Conducted
Spurious
Emission
-39dBm
-33dBm
MS allocated
Channel
100k ~ 1GHz
Idle Mode
1G ~ 12.75GHz
- 9 -
Copyright © 2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
2. PERFORMANCE
No
30M ~ 1GHz -36dBm
MS allocated 1G ~ 1710MHz -30dBm
Channel 1710M ~ 1785MHz -36dBm
Radiated 1785M ~ 4GHz -30dBm
Spurious 30M ~ 880MHz -57dBm 30M ~ 880MHz -57dBm
Emission 880M ~ 915MHz -59dBm 880M ~ 915MHz -59dBm
Idle Mode 915M ~ 1000Mz -57dBm 915M ~ 1000MHz -57dBm
1G ~ 1.71GHz -47dBm 1G ~ 1.71GHz -47dBm
1.71G ~ 1.785GHz -53dBm 1.71G ~ 1.785GHz -53dBm
1.785G ~ 4GHz -47dBm 1.785G ~ 4GHz -47dBm
2
0 ~ 100kHz +0.5dB 0 ~ 100kHz +0.5dB
200kHz -30dB 200kHz -30dB
250kHz -33dB 250kHz -31dB
Due to 400kHz -60dB 400kHz -33dB
Output RF modulation 600 ~ 1800kHz -66dB 600 ~ 1800kHz -60dB
Spectrum 1800 ~ 3000kHz -69dB 1800 ~ 6000kHz -60dB
3000 ~ 6000kHz -71dB ≥6000kHz -73dB
≥6000kHz -77dB
400kHz -19dB 400kHz -22dB
600kHz -21dB 600kHz -24dB
1200kHz -21dB 1200kHz -24dB
1800kHz -24dB 1800kHz -27dB
1
DCS/PCSGSM850/900
-36dBm
-30dBm
30M ~ 1GHz
1G ~ 4GHz
Item
Frequency Error ±0.1ppm ±0.1ppm
3 Phase Error ±5(RMS) ±5(RMS)
±20(PEAK) ±20(PEAK)
Condition TU50: ±100Hz TU50: ±150Hz
3dB below reference sensitivity 3dB below reference sensitivity
Frequency Error Under RA250: ±200Hz RA250: ±250Hz
TU3: ±150Hz TU1.5: ±200Hz
5Due to
Switching
transient
4
Multipath and Interference HT100: ±100Hz HT100: ±250Hz
- 10 -
LGE Internal Use Only Copyright © 2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
2. PERFORMANCE
No Item
800kHz
Power
control
Level
Power
(dBm) Tolerance
(dB)
Power
control
Level
Power
(dBm) Tolerance
(dB)
533±3030±3
631±3128±3
729±3226±3
827±3324±3
925±3422±3
10 23 ±3 5 20 ±3
11 21 ±3 6 18 ±3
12 19 ±3 7 16 ±3
13 17 ±3 8 14 ±3
14 15 ±3 9 12 ±4
15 13 ±3 10 10 ±4
16 11 ±5 11 8 ±4
179±5126±4
187±5134±4
195±5142±5
15 0 ±5
9Bursttiming
GSM850/900 DCS/PCS
Frequency offset
Intermodulation product should
be Less than 55dB below the
level of Wanted signal
Mask IN
Intermodulation
attenuation –7
8Transmitter
Output Power
Mask IN
- 11 -
Copyright © 2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
2. PERFORMANCE
2) Transmitter – WCDMA Mode
No Item Specification
1 Maximum Output Power Class3: +24dBm(+1/-3dB)
Class4: +21dBm(±2dB)
2 Frequency Error ±0.1ppm
3 Open Loop Power control in uplink ±9dB@normal, ±12dB@extreme
4 Inner Loop Power control in uplink
Adjust output (TPC command)
cmd 1dB 2dB 3dB
+1 +0.5/1.5 +1/3 +1.5/4.5
0 -0.5/+0.5 -0.5/+0.5 -0.5/+0.5
-1 -0.5/-1.5 -1/-3 -1.5/-4.5
group(10equal command group)
+1 +8/+12 +
5 Minimum Output Power -50dBm(3.84MHz)
6 Out-of-synchronization handling of output power Qin/Qout:DPCCH quality levels
Toff@DPCCH/lor:-22->-28dB
Ton@DPCCH/lor:-24->-18dB
7 Transmit OFF Power -56dBm(3.84M)
8 Transmit ON/OFF Time Mask ±25us
PRACH, CPCH, uplink compressed mode
9 Change of TFC
±25us
power varies according to the data rate
DTX: DPCH off
(minimize interference between UE)
10 Power setting in uplink compressed ±3dB(after 14slots transmission gap)
11 Occupied Bandwidth(OBW) 5MHz(99%)
12 Spectrum emission Mask
-35-15*(?f-2.5)dBc@?f=2.5~3.5MHz, 30k
-35-1*(?f-3.5)dBc@?f=3.5~7.5MHz, 1M
-39-10*(?f-7.5)dBc@?f=7.5~8.5MHz, 1M
-49 dBc@?f=8.5~12.5MHz, 1M
- 12 -
LGE Internal Use Only Copyright © 2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
2. PERFORMANCE
No Item Specification
13 Adjacent Channel Leakage Ratio(ACLR) 33dB@5MHz, ACP>-50dBm
43dB@10MHz, ACP>-50dBm
14 Spurious Emissions
*: additional requirement
-36dBm@f=9~150KHz, 1k BW
-36dBm@f=150KHz~30MHz, 10k
-36dBm@f=30~1000MHz, 100k
-30dBm@f=1~12.75GHz, 1M
-41dBm*@1893.5~1919.6MHz, 300k
-67dBm*@925~935MHz, 100k
-79dBm*@935~960MHz, 100k
-71dBm*@1805~1880MHz, 100k
15 Transmit Intermodulation -31dBc@5MHz, Interferer -40dBc
-41dBc@10MHz, Interferer -40dBc
16 Error Vector Magnitude(EVM) 17.5% (>-20dBm)
(@12.2k, 1DPDCH+1DPCCH)
17 Transmit OFF Power -15dB@SF=4, 768kbps,
multi-code transmission
3) Receiver - GSM Mode
No GSM850/900 DCS/PCS
1 -105dBm -105dBm
2 C/Ic=7dB C/Ic=7dB
3 Adjacent Channel 200kHz C/Ia1=-12dB C/Ia1=-12dB
Rejection 400kHz C/Ia2=-44dB C/Ia2=-44dB
4Wanted Signal: -98dBm
1’st interferer: -44dBm
2’st interferer: -45dBm
Wanted Signal: -96dBm
1’st interferer: -44dBm
2’st interferer: -44dBm
5Wanted Signal: -101dBm
Unwanted Signal: Depend on freq. Wanted Signal: -101dBm
Unwanted Signal: Depend on freq.
Blocking Response
(TCH/FS Class II, RBER)
Item
Sensitivity (TCH/FS Class II)
Co-Channel Rejection
(TCH/FS Class II, RBER,
TUhigh/FH)
Intermodulation Rejection
- 13 -
Copyright © 2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
2. PERFORMANCE
4) Receiver – WCDMA Mode
No Item Specification
1 Reference Sensivitivity Level -104.7dBm(3.84M)
2 Maximum Input Level -25dBm(3.84MHz)
-44dBm/3.84MHz(DPCH_Ec)
UE@+20dBm output power(class3)
3 Adjacent Channel Selectivity(ACS) 33dB
UE@+20dBm output power(class3)
-56dBm/3.84MHz@10MHz
UE@+20dBm output power(class3)
-44dBm/3.84MHz@15MHz
UE@+20dBm output power(class3)
-44dBm/3.84MHz@f=1870~1915 & 2005~2050
MHz, 809~854 & 909~954 MHz)
UE@+20dBm output power(class3)
-30dBm/3.84MHz@f=1845~1870 & 2050~2075
MHz, 784~809 & 954~979 MHz)
UE@+20dBm output power(class3)
-15dBm/3.84MHz@f=1~1845 & 2075~12750
MHz, 1~784 & 979~12750 MHz)
UE@+20dBm output power(class3)
6 Spurious Response -44dBm CW
UE@+20dBm output power(class3)
-46dBm CW@10MHz &
-46dBm/3.84MHz@20MHz
UE@+20dBm output power(class3)
-57dBm@f=9KHz~1GHz, 100k BW
-47dBm@f=1~12.75GHz, 1M
-60dBm@f=1850~1910MHz, 3.84MHz
-60dBm@f=1930~1990MHz, 3.84MHz
8 Spurious Emissions
4 In-bandBlocking
5 Out-bandBlocking
7 Intermodulation Characteristic
- 14 -
LGE Internal Use Only Copyright © 2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
2. PERFORMANCE
5) Bluetooth Mode
5.1) Transmitter
No It e m
1 OutPower
2 PowerDensity
3 Power Control
4 TX Output Spectrum -Frequency range
5 TX Output Spectrum -20dB Bandwidth
6 Tx Output Spectrum -Adjacent channel Po
7 Modulation Characteristics
8 Init. Carrier Freq. Tolerance
9 Carrier Frequency Drift
Freq.Range Operating Standby
30MHz~1GHz -36dBm -57dBm
Above 1GHz~12.75GHz -30dBm -47dBm
1.8~1.9GHz -47dBm -47dBm
5.15~5.3GHz -47dBm -47dBm
Power density < 20dBm per 100kHz EIRP
Option
2dB ≤step size ≤8dB
fmax & fmin @ below the level of -30dBm
(100khz BW) within 2.4GHz~2.4835GHz
10
1 slot : ≤± 25kHz
3 slot : ≤± 40kHz
5 slot : ≤± 40kHz
Maximum drift rate ≤20KHz/50usec
Specification
Out of Band Spurious Emissions
≤1MHz
≤-20dBm @ C/I = 2MHz
≤-40dBm @ C/I ≥3MHz
140kHz ≤delta f1 avg ≤175kHz
delta f2max ≥115kHz at least 99.9% of all deltaf2max
delta f2avg/deata f1avg≥0.8
≤±75KHz
Class 2 : -6~4dBm
5) Bluetooth Mode
5.1) Transmitter
- 15 -
Copyright © 2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
2. PERFORMANCE
5.2) Receiver
No It e m
1 Sensitivity single slot packets
2 Sensitivity multi slot packets
Interference Ratio
Co-Channel interference, C/I co-channel 11dB
Adjacent(1MHz)interference, C/I 1MHz 0dB
Adjacent(2MHz)interference, C/I 2MHz -30dB
Adjacent(≥3MHz)interference, C/I ≥3MHz -40dB
Adjacent(≥3MHz)interference to in band -9dB
mirror frequency, C/I image ±1MHz -20dB
interfering Signal Frequency Power Level
30MHz~2000MHz -10dBm
2000MHz~2400MHz -27dBm
2500MHz~3000MHz -27dBm
3000MHz~12.75GHz -10dBm
5 Intermodluation Performance
6MaximumInputLevel
BER ≤0.1%@wanted signal -67dBm
BER ≤0.1%@wanted signal -64dBm
static sinwave signal at f1=-39dBm
a BT modulated signal f2=-39dBm(payload PRBS15)
BER ≤0.1%@-20dBm
Specification
BER0.1%@-70dBm
BER≤0.1%@-70dBm
BER ≤0.1%@ (Low,Mid,High Frequency)
2405MHz, 2441MHz, 2477MHz
C/I performance
Blocking Characteristic
3
4
- 16 -
LGE Internal Use Only Copyright © 2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
2. PERFORMANCE
2.4 Current Consumption
(VT test : Speaker off, LCD backlight On)
2.5 RSSI
2.6 Battery Bar
Indication Voltage
BAR 3 (100%) : level full 4.17V 0.05V
BAR 3 (51%) -> 2 (22%) 3.75 0.05V
BAR 2 (22%) -> 1 (3%) 3.67 0.05V
BAR 1 (3%) -> Icon Blinking &
Alerting Sound 3.5 0.05V
POWER OFF 3.20 0.05V
GSM WCDMA
BAR 7 -912 =< RSSI -932 =< RSSI
BAR 5 -912 =< RSSI -932 =< RSSI
BAR 4 -962 =< RSSI -1012 =< RSSI
BAR 2 -1002 =< RSSI -1042 =< RSSI
BAR 1 -1032 =< RSSI -1072 =< RSSI
BAR 0 -1052 > RSSI -1112 > RSSI
180 mins
= 300mA
(900mAh battery
, TX = Level 5)
250 hours
= 3.60mA
(900mAh battery
,
Paging frame class6)
GSM
Only
/
180 mins
= 300mA
(900mAh battery
, TX = 13dBm,
low power mode )
250 hours
= 3.60mA
(900mAh battery
,
DRX cycle = 1..28)
WCDMA
Only
VTVoice CallStand by
- 17 -
Copyright © 2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
2. PERFORMANCE
2.7 Sound Pressure Level
No
NOM
MAX
NOM -1±3dB
MAX -15±3dB
NOM
MAX
NOM
MAX
5
6NOM
MAX
NOM -47dBPA under
MAX -36dBPA under
ANOM
CMAX
ONOM -1±3dB
UMAX -12±3dB
SNOM
TMAX
INOM
CMAX
13
14 NOM
MAX
NOM -45dBPA under
MAX -40dBPA under
SEND
REV.
SEND
REV.
SEND
REV.
SEND
REV.
Specification
1 Sending Loudness Rating (SLR) 8±3dB
Test Item
3 Side Tone Masking Rating (STMR)
2 Receiving Loudness Rating (RLR)
4 Echo Loss (EL) 40dB over
refer to TABLE 30.3
Receiving Distortion (RD) refer to TABLE 30.4
17dB over
8±3dB
-64dBm0p under
8 Idle Noise-Receiving (INR)
MS
7 Idle Noise-Sending (INS)
Sending Distortion (SD)
40dB over
Sending Distortion (SD) refer to TABLE 30.3
25dB over
refer to TABLE 30.4
15 Idle Noise-Sending (INS) -55dBm0p under
16 Idle Noise-Receiving (INR)
HEAD
SET
Receiving Distortion (RD)
17
TDMA NOISE
GSM: Power Level: 5
DCS: Power Level: 0
(Cell Power: -90 ~ -105dBm)
Acoustic(Max Vol.)
MS/HEADSET SLR: 8±3dB
MS/HEADSET RLR: -13±1dB/-15dB
(SLR/RLR: mid-Value Setting)
MS GSM
-62dBm under
DCS
Headset GSM
DCS
9 Sending Loudness Rating (SLR)
10 Receiving Loudness Rating (RLR)
11 Side Tone Masking Rating (STMR)
12 Echo Loss (EL)
- 18 -
LGE Internal Use Only Copyright © 2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
2. PERFORMANCE
2.8 Charging
·Normal mode: Complete Voltage: 4.2V
Charging Current: 500mA
·Await mode: In case of During a Call, should be kept 3.9V
(GSM: It should be kept 3.9V in all power level
WCDMA: It will not be kept 3.9V in some power level)
·Extend await mode: At Charging prohibited temperature(0C under or 45C over)
(GSM: It should be kept 3.7V in all power level
WCDMA: It will not be kept 3.7V in some power level)
- 19 -
Copyright © 2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only

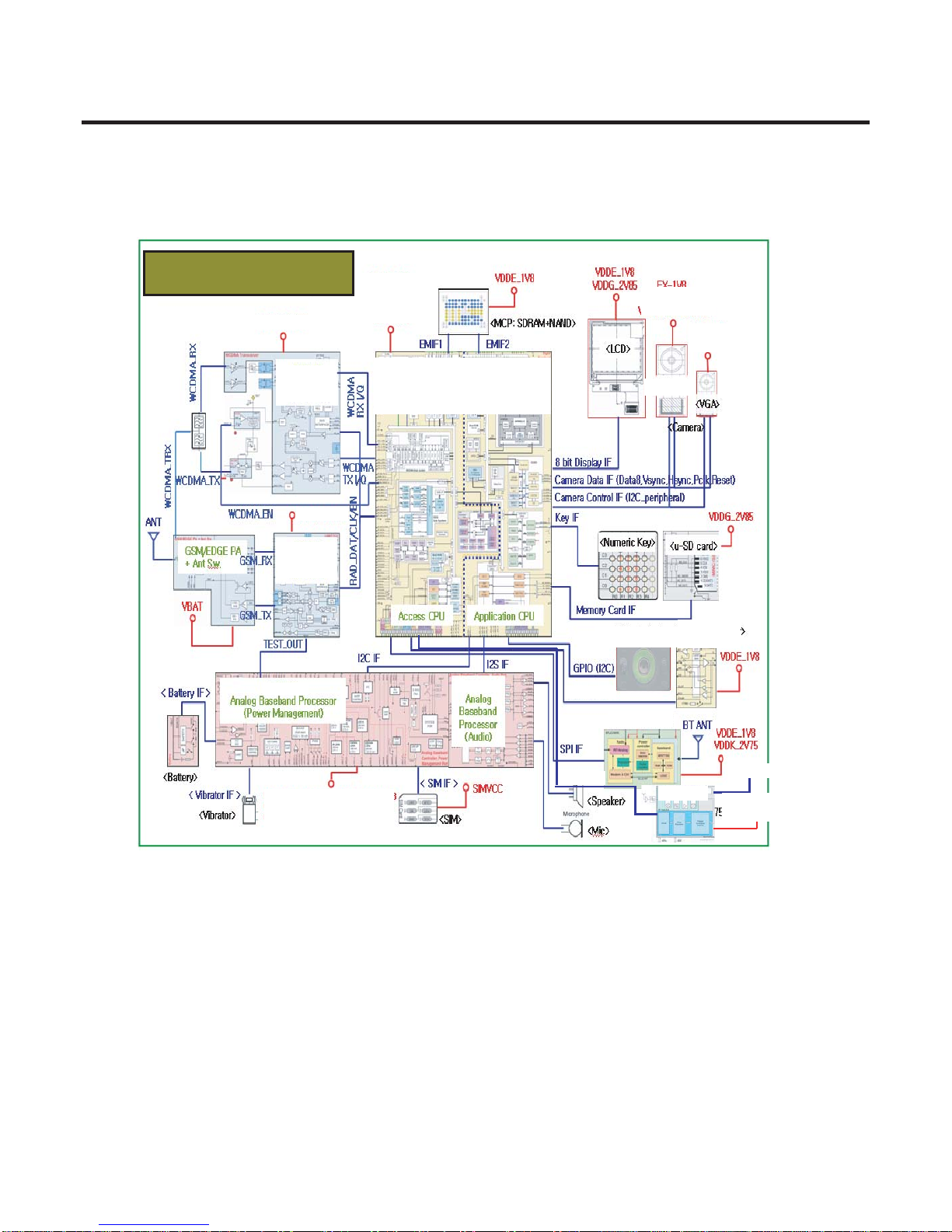

3. TECHNICAL BRIEF
3. TECHNICAL BRIEF
3.1 Digital Baseband (DBB) & Multimedia Processor
3.1.1 General Description
• Access subsystem
- Access Central Processing Unit (CPU) subsystem – ARM926, Joint Test Action Group (JTAG),
Embedded Trace Module (ETM), Instruction and Data (I&D)-cache, and I&D-TCM
- Access peripheral subsystems – Subscriber Identity Module (SIM) interface, IrDA®, Universal
Serial Bus (USB), Universal Asynchronous Receiver/Transmitter (UART), and so on
- Digital Signal Processor (DSP) subsystem – CEVA-X1620, JTAG, Static Random Access
Memory (SRAM), and Program Data Read Only Memory (PDROM)
- EDGE/GSM/GPRS (EGG) subsystem – EGG hardware accelerators
- WCDMA subsystem – WCDMA hardware accelerators
• Application subsystem
- Application CPU subsystem – containing ARM926, JTAG, ETM, I&D-cache, and I&D-TCM
- Application peripheral subsystems – I2C™, keypad, UART, and so on
- Graphics subsystem – XGAM subsystem
- Audio Processing Execution (APEX) and video encoder subsystems
In addition to the two subsystems above, there is also a test block, chip control block, and
a pad multiplexing block residing at the top level
yDSP
- The Digital Signal Processor Subsystem (DSPSUB) includes a DSP megacell, which
contains the DSP CPU together with a tightly coupled memory. The DSP is the Ceva-X
1620 core with a 64 KiB instruction RAM and a 64 KiB data RAM. It also contains debug
logic and interfaces. In addition to the megacell, the DSPSUB includes external memories,
peripheral units, and interfaces. The DSP megacell is clocked at 208 MHz.
- The DSPSUB includes an AHB master and an AHB slave interface. The AHB master
provides a direct access to the Internal Random Access Memory (IRAM) in the EGG core
through the AHB. The AHB slave interface allows the CPU and the DMA to access in the
program and data RAM residing in the DSPSUB.
yWCDMA subsystem
- The digital baseband controller WCDMA subsystem incorporate a WCDMA modem
- An interface to the WCMDA together with memory control and an internal single port
RAM. The WCDMA subsystem has three AHB slave interfaces.
- The Ericsson DB 3200 also includes HSDPA class 6 functionality.
- The WCDMA subsystem is handled and provided by Ericsson.
yXGAM subsystem
- The XGAM subsystem is a graphics acceleration module that provides hardware
support in the creation of visual imagery and the transfer of this data to a display.
The XGAM also provides support for connecting a Camera module. The visual data
could be graphics, still images, or video.
- The XGAM subsystem is handled and provided by Ericsson.
yOperation and Services
- I²C™ Interface
-SIMInterfaces
- General Purpose I/O (GPIO) Interface
- External Memory Interface that supports NAND, NOR, PSRAM, SDRAM,
-JTAG
-RTC
-ETM9
- 20 -
LGE Internal Use Only Copyright © 2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
3. TECHNICAL BRIEF
DB3200
Digital Baseband Processor
(Dual core)
<3 Mega>
<Bluetooth>
<Hall
Mouse>
<USB
Transceiver
>
CF360 Block Diagram
RF3300
WCDMA
Transceiver
AB3100 AB3100
RF3300
GSM/EDGE
Transceiver
VRAD_2V8
VRAD_2V
8
VDDF-2V5
VCORE
VDDD_2V6
5
VDDE_1V8
VDDA_2V8 / VDDD_2V65
VDDE_1V8 / VDIGRAD_1V8
VDDC_2V65 / VDDK_2V75
VDDH_VGA_1V5 / VDDF_2V5
VDDG_2V85 / VCORE
USB 1.1 IF
VDD_CAM_2V8
VDD_CAM_1V8
VDD_CAM_2V8
VDD_CAM_1V8
UART IF <A-GPS>
GPS
ANT
VDDE_1V8
VGPS_CORE_
VVGPS_1V8
VGPS_2V8
Figure 3-1-1 CF360 Block Diagram
- 21 -
Copyright © 2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
3. TECHNICAL BRIEF
3.1.2 External memory interface
RF calibration data, Audio parameters and battery calibration data etc are stored in flash
memory area.
A. CF360
y1Gb NAND flash memory + 512Mb SDRAM
Table 3- 1- 1. External Memory Interface Spec. of CF360
Figure 3- 1- 2. External Memory Configuration of CF360
yData Communication
- IrDA ® (SIR)
- UARTs (ACB, EDB (RS232))
-USB
yPackage
- 12 by 12 mm 376 balls, 0.5mm pitch TFBGA Production Package
Other manuals for CF360
7
Table of contents
Other LG Cell Phone manuals
