LG KM330 User manual

1
KM330/KM335
Service Manual
LG Electronics

2
Table Of Contents
1. INTRODUCTION…………..……....3
1.1 Purpose…………………………….…..3
1.2 Regulatory Information………….….…3
2. PERFORMANCE………….……....5
2.1 H/W Features……………..……..….…5
2.2 S/W Features………………..….….….6
3. TECHNICAL BRIEF………………18

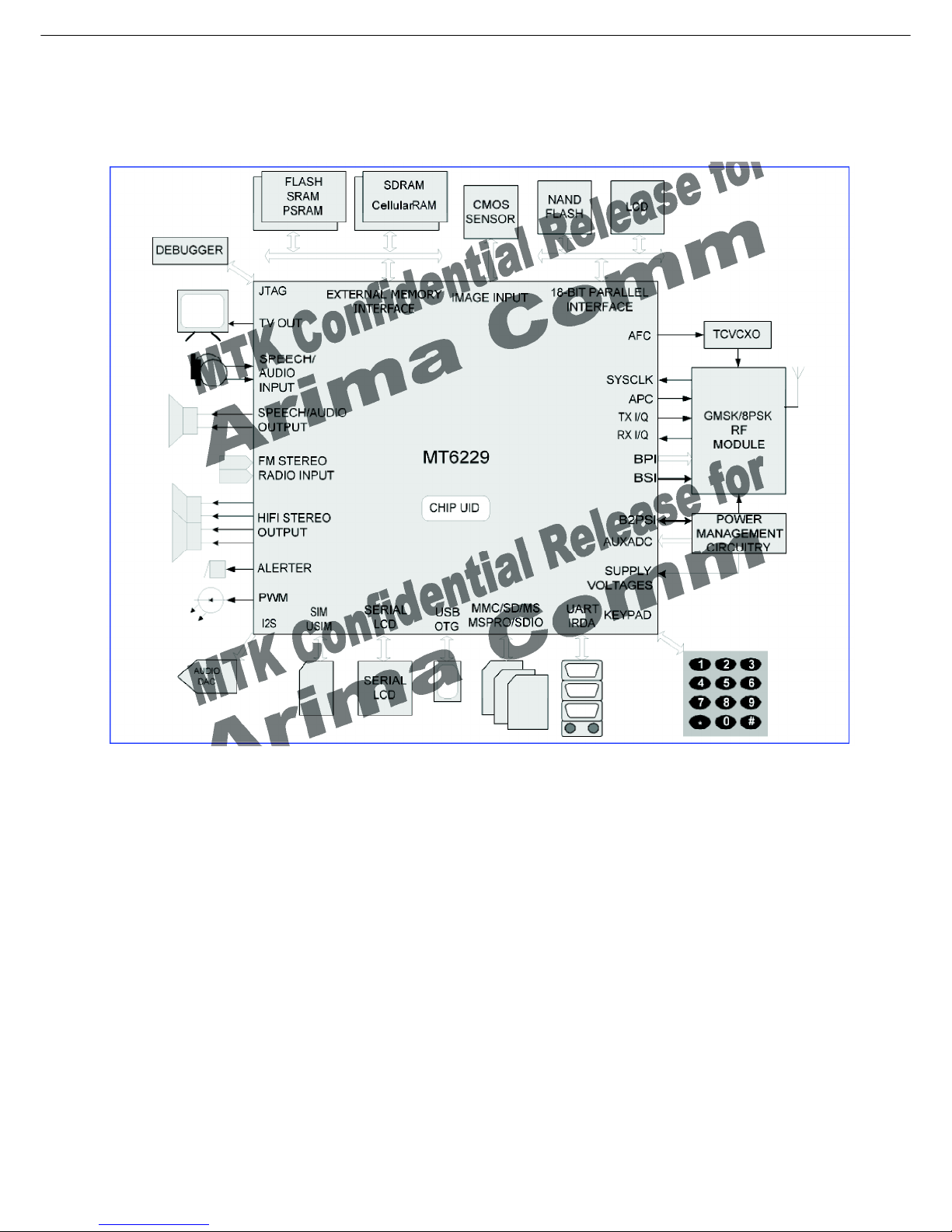

3.1 Digital Main Processor(MT6229 )….…..18
3.2 Power Amplifier Module(SKY77318).…..28
3.3 Transceiver Module(MT6139)………….29
3.4 Bluetooth Module (MT6601)..................31
3.5 PMIC (MT6318)………………..……..34
3.6 Memory Module (HYC0UGE0MF1P-5SH0E).36
3.7 FM/AM Radio Module………………..38
3.8 Antenna Switch Module (ESHS-B085TB).42
3.9 LCD Interface………………….……...43
3.10 SIM& Micro SD Card Interface…....45
3.11 KEYPAD Interface……………….….46
3.12 Battery Charging Block Interface....48
3.13 Audio Interface……………….……..49
3.14 Key LED Interface………..……...…50
3.15 Vibrator Interface….………………..51
3.16 Camera Interface……..…………….52
4. TROUBLE SHOOTING……..…...55
4.1 Power On Trouble……………………55
4.2 SIM Card Trouble…………………….58
4.3 Vibrator Trouble………………………60
4.4 Keypad Trouble….............................62
4.5 RTC Trouble………………………….63
4.6 Key Backlight Trouble……………….64
4.7 LCM Backlight Trouble………………67
4.8 LCM Trouble……………….…………68
4.9 Microphone Trouble………….……….70
4.10 Receiver Trouble…….…………...….71
4.11 Speaker Trouble……………………..74
4.12 HeadphoneTrouble…………….……76
4.13 RF Trouble……………….…………..84
5. DOWNLOAD………………...…….89
5.1Down load setup……….…….…………89
5.2 Download Process…………………….90
6. BLOCK DIAGRAM……………….94
7. CIRCUIT DIAGRMA……………...95
8. BGA IN PIN Check………..…...106
9. PCB LAYOUT……...…………...110
10.ENGINEERING MODE………..112
11. CALIBRATION…………………116
11.1 Test Equipment Setup…………….116
11.2 Calibration Steps………….………...117
12. STAND ALONE TEST…...…….160
12.1 Test Program Setting…….…………160
12.2 Rx Test……………………………….163
12.3 Tx Test……………………...………..166
13. EXPLODED VIEW&
REPLACEMENT PART LIST……..168
13.1 KM330 Exploded View…..…….168
13.2 KM335 Exploded View..….…....170
13.3 KM330 Replacement Part……….172
13.4 KM335 Replacement Part……....175

-3-
1. INTRODUCTION
1.1Purpose
This manual provides information necessary to repair, description and download the
features of this model.
1.2 Regulatory Information
A. Security
Toll fraud, the unauthorized use of telecommunications system by an unauthorized part (for
example, persons other than your company’s employees, agents, subcontractors, or
person working on your company’s behalf) can result in substantial additional charges for
your telecommunications services.
system users are responsible for the security of own system. There are may be risks of
toll fraud associated with your telecommunications system. System users are responsible
for programming and configuring the equipment to prevent unauthorized use .The
manufacturer dose not warrant that this product is immune from the above case but will
prevent unauthorized use of common-carrier telecommunications service of facilities
accessed through or connected to it.
The manufacturer will not be responsible for any charges that result from such
unauthorized use.
B. Incidence of Harm
If a telephone company determines that the equipment provided to customer is faulty and
possibly causing harm or interruption in service to the telephone network, it should
disconnect telephone service until repair can be done. A telephone company may
temporarily disconnect service as long as repair is not done.
C. Changes in Service
A local telephone company may make changes in its communications facilities or
procedure. If these changes could reasonably be expected to affect the use of the this
phone or compatibility with the network, the telephone company is required to give
advanced written notice to the user, allowing the user to take appropriate steps to maintain
telephone service.
D. Maintenance Limitations
Maintenance limitations on this model must be performed only by the manufacturer or its
authorized agent. The user may not make any changes and/or repairs expect as
specifically noted in this manual.
Therefore, note that authorized alternations or repair may affect the regulatory status of the
system and may void any remaining warranty.
E. Notice of Radiated Emissions
This model complies with rules regarding radiation and radio frequency emission as
defined by local regulatory agencies. In accordance with these agencies, you may be
required to provide information such as the following to the end user.

-4-
F. Pictures
The pictures in this manual are for illustrative purposes only; your actual hardware may
look slightly different.
G. Interference and Attenuation
Phone may interfere with sensitive laboratory equipment, medical equipment, etc.
Interference from unsuppressed engines or electric motors may cause problems.
H. Electrostatic Sensitive Devices
ATTENTION
Boards, which contain Electrostatic Sensitive Devices(ESD),are indicated by
the sign.
Following information is ESD handing:
. Service personnel should ground themselves by using a wrist strap when exchange
system boards.
.When repairs are made to a system board, they should spread the floor with anti-static mat
which is also grounded.
.Use a suitable, grounded soldering iron .
. Keep sensitive parts in these protective packages until these are used.
.When returning system boards or parts like EEPROM to the factory, use the protective
packages as described.

-5-
2. PERFORMANCE
2.1 H/W Features
Item Specifications
etc
Type Bar type
Antenna Type Internal (tri-Band)
Main Display 2.0” 320x240
GPRS Class 10
MMS Yes, 1.1
Camera 3.0M AF
Flash Light Yes
Battery (KM330) 900mAh Li-ion inner pack LG chemical -LGIP-430A
Battery (KM335) 1100mAh Li-ion inner pack Tocad/ LG chemical
- LGIP-530A
Audio player Yes MP3/AAC/AAC+/WMA
FM Receiver (KM330/KM335) Yes , US/Europe band support (87.5~108MHz)
AM Receiver (only KM335) Yes, world wide AM band (522 ~ 1710KHz)
MPEG4/H.263 Yes (support 3GP)
AAC Yes
AAC+ Yes LGE License
WMA Yes LGE License
3D Sound Yes
FM/AM as alarm Yes
Scheduled FM/AM recording Yes
MP4 for incoming call/ power on off
animation and screen saver Yes
Loud Speaker Yes
Audio player--real resuming Yes, for MP3 only
Video recording Yes
Memory Size 256Mb SDRAM + 1Gb NAND
Internal NAND 90M Bytes
Memory Card Micro SD Up to 8GB
Bluetooth Yes, version 2.0 W/O EDR.
USB Yes, USB 2.0 Full Speed
WAP Yes, 2.0
Java Yes
Status LED YES, white LED+5pcs
MPEG4 caller ID Yes
OTA Yes
Music Equalizer Yes
In flight mode Yes
Frequency Three Band (900/1800/1900)

-6-
2.2 S/W Features
2-2-1 System Specification
Item Target Specification
Form Factor Bar Type
KM330: 108.2*47.2*13.8
Size
KM335: 108.2*47.2*14.8
Weight KM330: 83g / KM335: 88g
Battery 3.7V, 900mAh Li-Ion / 1100mAh Li-ion
4 hrs 52 min @900mAh @GSM900 PCL 10 TBD
Talk Time
5 hrs 30 min @1100mAh @GSM900 PCL 10 TBD
KM330: 428 hrs@900mAh @ Paging period 9 TBD
Standby Time
KM335: 450 hrs@1100mAh @ Paging period 9 TBD
Antenna Embedded type
LCD 262Kcolor, 320x240 TFT
FM/AM Radio Yes,
Camera 3.0M pixel AF
Back Light White LED
Keypad Backlight Color White LED
Vibrator Yes
Loud Speaker Yes, Dual (13*18Φoval type 2 ea), out put : 0.8W over
Microphone Yes
Earphone Jack No
SIM Socket Yes, 1.8/3.0V
Volume Key Side key (up/down)
Travel Adaptor
Standard Battery (900mA, Li-Ion)
Stereo Headset with button (FM)
Basic Accessory
USB Data Cable
2-2-2 General Features
Function Target Specification
RSSI (7 Levels <<Off,0~2,4~5,7>>)
Battery Indicator (4 Level, 0~3)
Icons Indicator
Basic Display
Others reference to "Phone Personalization Setting"
Speech Codec FR/EFR/HR/AMR
Number of Keys: 24 Key (include 12 alphanumeric/number keys (0-9,#,*), 4 function
keys, 5 way navigation keys, 4 side keys)
Soft Function Keys : 2
Keypad
International Access (+)(long 0)
User Selectable and Customizable Profiles (7 profiles: General, Meeting, Outdoor,
Vibrate only, Headset, Silent, Bluetooth)
User Profile
(Audio Settings)
Auto-detect and activated profiles (1 profile: Headset)

-7-
Key Tone
Key Tone Volume (7 Level - 0 ~ 6, 0 for Mute)
Key tone setting (4 sets: Silent, Click, Keyboard Tone, Melody Tone, English/Russian
Human voice)
Ring Tone
Ring Tone Volume (7 Level - 0 ~ 6, 0 for Mute)
Built-in Ring Tone Pattern: 20
Customizable Ring Tone Link: 5
Intelligent Call Alert
Digits To Sound Synthesizing
Alert Type
6 Types - Ring, Vibration Only, Vibration and Ring, Ring after vibration, Light Only, Beep
Once
Power On Tone
Built-in Ring Tone Pattern: 5(include Silent)
Power Off Tone
Built-in Ring Tone Pattern: 5(include Silent)
Message Tone
Built-in Ring Tone Pattern: 11 (include Silent)
Warning Tone
Built-in Ring Tone Pattern: 1 (Only On/Off operation)
Error Tone
Built-in Ring Tone Pattern: 1 (Only On/Off operation)
Camp On Tone
Built-in Ring Tone Pattern: 1 (Only On/Off operation)
Connect Tone
Built-in Ring Tone Pattern: 1 (Only On/Off operation)
Status LED
Built-in Lighting Pattern: 2 (None, Pattern 1)
Charger-in Status LED
Built-in Lighting Pattern: 2 (None, Pattern 1)
Answer Mode
Any Key Answer
Auto (Only available for headset mode while headset plugged in)
Calendar - Month view onlyPersonal Information
Management
To do list - 6 fields (Date, Start time, End time, Note, Alarm, Repeat)
Alarm
3 sets of Alarm
4 major fields for each set - On/Off, Time, Repeat type, Audio option
World Clock
Cities list: China(52),IND(54),CIS(68) cities
Tools and Utilities
Daylight saving time support: activated by user selection

-8-
Home city set
Calculator
Addition, Subtraction, Multiplication, Division
Unit Converter
Weight, Length
Currency Converter
Health
BMI, Menstrual
Greeting Text
Shortcuts
Flight Mode
Time and Date Setting
Wallpaper
Screen Saver
Power On Animation
Power Off Animation
LCD Backlight
PLMN/Service Indicator (Display of PLMN Name/Service Provider Name from SIM)
Date Time Display
Own Number Display
Phone Personalization Setting
Restore Factory Default Setting
Security Phone Lock
Engine
T9
Support Language
Depends on customer and market requirement.
Total supported languages will be limited to memory condition.
Input Method
Predictive word input
3 embedded Java Games: Mini Game World, Chequered Flag, BackgammonGame
Settings:
BGM, Sound Effect, Vibration
2-2-3 GSM/GPRS Features
Function Target Specification
GPRS GPRS Multi slot Class 10
Data Service BS 24 - 26 (2400-9600 bit/s), asynchronous, non-transparent, UDI.
CSD rate up to 9.6K bit/s
Last Dialed Number : 40
Last Received Number : 40
Last Missed Number : 40
Call History
Scratch Pad Memory(Save an input number in call) : 1

-9-
Last Call Time
Total Dialed Call Time
Total Received Call Time
Last Call Cost
Total Cost
Max Cost
Call Cost
Price Per Unit
Last Sent (unit in Byte)
Last Received (unit in Byte)
All Sent (unit in Byte)
GPRS Counter
All Received (unit in Byte)
Call Swap
Call Retrieve
Automatic Redial
Speed Dialing
Call Management
Last Number Redial
Call Hold
Call Waiting
Calling Line Identity Presentation
Calling Line Identity Restriction
Connected Identification Restriction
Call Divert All voice Calls
Call Divert if unreachable
Call Divert if no answer
Call Divert if busy
Call Divert all data calls
Cancel all divert
Call Barring All Outgoing Calls
Call Barring All Outgoing International Calls
Call Barring All outgoing International except home
Call Barring All incoming Calls
Call Barring All incoming Calls when roaming
Multi-party Call (up to 7 calls, 5 in conference, 1 on held, 1 waiting)
Call Related Supplementary
Services
Line switching (Line1, Line2)
Call reminder (Off, Single, Periodic)
Closed User Group
Quick Search (Notice: Quick search function only works in Phonebook, SMS and MMS.
In other application, this phone supports regular search.)
Alpha Store and Recall
Access Phone Book in call
Copy & Move
Fixed Dial Number
Service Dial Number
Speed Dial Number
Phone Book
SOS Number

-10-
Entry : 1000 names (12 fields – Name, Mobile, Home, Company name, Email address,
Office number, Fax number, Birthday, Associate Picture, Associate Video, Associate
Sound, Caller group)
Caller Group-5 caller group- Friends, Family, VIP, Business, Others (6 fields – Name,
Ring, Picture, LED pattern, Video, Member list)
Own Numbers: User can change the own numbers of handset. (Sets of own numbers
depends on SIM)
vCard: (Edit, Send and Receive. 7 fields – Name, Mobile, Home, Company Name, Email
Address, Office Number, Fax Number)
Note: This phone doesn’t support phone number search.
SMS
Standard SMS
SMS Reply Path
SMS Delivery Report
Valid period (1 hour/12 hours/1 day/1 week/Maximum)
Message Type (Text, Fax, Page, Email) Message Indication Type refer to GSM
03.40
Basic text-only SMS as described in 3GPP TS 23.040 R5
Notice: This phone doesn’t support video ring tone via SMS
SMS Character Sets Support
GSM7
UCS-2
EMS
EMS Standard as described in 3GPP TS 23.040 R5 excluding WVG
EMS Text Format
Text Style : Normal, Bold, Italic, Underlined, Strikethrough
Text Alignment : Left, Right, Center
Text Size : Normal, Large, Small
EMS Image Support
1-bit small image 16x16 pixels black and white
1-bit large image 32x32 pixels black and white
1-bit variable image in single SMS packet
Extended black and white 1-bit image up to 255x255 pixels
Extended 6-bit image up to 255x255
Pre-defined animation
User-defined small animation 8x8 pixel 4-frame black and white
User-defined large animation 16x16 pixel 4-frame black and white
Pre-defined sound
User-defined i-Melody up to 128 bytes
LZSS compression algorithm
Re-use extended object
Object Distribution
Message
User Prompt Indicator

-11-
Hyperlink format element
Extended Object Distribution
Notice: This mobile doesn’t support Nokia smart message format (including WBMP),
only support *.ems format" Æsubject to Nokia smart message license
EMS Character Sets Support
GSM7
UCS-2
EMS Miscellaneous
SMS Concatenation ( 8 Segments for MT/MO)
SMS Compression
MMS
MMS Standard as described in 3GPP TS 23.140 V4.8.0
Extract media from Message
Insert Media into message
OTA provisioning partially support (Network Profile setting
Auto download mode
Manual download mode
Operator can pre-configure the delivery mode
MMS notification with icon or Pop-up message display)
MMS Message Format
MMS SMIL (A subset of SMIL descried in the MMS Conformance Document 1.2)
MMS Character Sets Support
US-ASCII
Unicode
ISO-8859-1
UTF-16
UTF-8
MMS Images Support
WBMP Wireless bitmap
GIF87
GIF89a
JPEG
MMS Sound Formats Support
WAV
AMR
MIDI
MP3
i-Melody
MMS Miscellaneous
Multipart binary MIME
Storage

-12-
Separated Inbox folder for SMS and MMS
Separated Outbox folder for SMS and MMS
Total 300 SMS in the storage of phone plus SIM including Inbox and Outbox (Phone
could supports 260sets SMS including Inbox and Outbox. The maximum SMS stored in
SIM are 40sets. It means the actual SMS quantities in Inbox and Outbox are among
(260 to300))
Total 100 MMS in the phone storage including Inbox, draft and Outbox
Notice: Total MMS count need depends on user memory space.
Common Operation
Write Message
Read Message
Edit Message
(For MMS, Edit only conformance messages, unknown media not supported, unknown
SMIL not supported)
Reply Message
Send Message (Support Multiple sending by a group: Max 300ea)
SMS Sorting (Sender, date)
Delete Message
Forward Message (Support Multiple sending by a group: Max 300ea)
Use Sender's Number
Message Templates
Extract media from Message (MMS/EMS)
Store Media (MMS/EMS)
Delete Media (MMS/EMS)
Read Cell Broadcast
Cell Broadcast Mode: Receive On/Off
Cell Broadcast Message Language
Cell Broadcast
Channel Setting
Automatic Network Selection
Manual Network Selection
Network Service Status
Preferred Network (User definition)
Network
GPRS connection mode selection: Always, When Needed
Common Operation
SIM Application Toolkit (Release 98 Class 2 certified)
Prepaid SIM operation
Security
PIN
SIM
Personalization (Service provider lock, Network lock)
DTMF SignalingDTMF
DTMF Enable & Disable

-13-
2-2-4 Multimedia Features
Function Target Specification
Image size:
320X240, 640X480, 1280X1024, 1600x1200, 2048x1536
Zoom: 1x ~ 4x
Image Quality:
High, Normal, Low
White Balance:
Auto, Daylight, Tungsten, Fluorescent, Cloud, Incandescence
Shot: Three Shot Sounds
EV: -4 ~+4
Screen Mode:
Auto, Night
Banding: 60Hz/50Hz
Effect settings: (Total 14 types)
Normal, Grayscale, Sepia, Sepia Green, Sepia Blue,
Color Invert, Gray Invert, Blackboard, Whiteboard,
Copper Carving, Blue Carving, Embossment, Contrast, Sketch
No. of the Stick Frames: 3
Frame 1, Frame 2, None
Stick Frame Only can be used while image size is 240WX320H
Storage Selection:
Phone, Memory card
(Only available when external memory card supported)
Camera
Delay timer:
Off/ 5/ 10/ 15 Sec
Thumbnail supported
Browse Style:
List, Matrix
View
Forward:
To Wallpaper, Phonebook, Screen Saver, Power On Display, Power Off Display, MMS, Bluetooth
Rename
Delete
Delete All
Sort:
By Name, Type, Time, Size, None
Image Viewer
Storage Selection:
Get list from Phone, Memory card
(Only available when external memory card supported)

-14-
Image Format Support
JPEG Baseline
GIF87a
GIF89a
WBMP
BMP
Play
Pause
Resume
Stop
Next
Previous
Storage Selection:
Get list from Phone, Memory card
(Only available when external memory card supported)
Auto-Generate Playlist
Skin: 2 skins
Repeat Mode:
Off, One Song, All Songs
Shuffle Play
Background Play
Equalizer Setting: 8 sets
Normal, Bass, Dance, Classical, Treble, Party, Pop, Rock
Volume Control:
31 level (0~30, 0 for Mute)
Playlist Edit:
Add, Remove, Remove All
Sound Format Support
MP3
AMR
MIDI
WAV
AAC
Play
Music Player
Pause
Stop
Speed Control:
X1, X2, X4, X8, X1/2
Video Player
Forward:
To Phonebook, Screen Saver, Power On Animation, Power Off Animation, MMS, Bluetooth

-15-
Rename
Delete
Delete All
Sort:
By Name, Type, Time, Size, None
Storage Selection:
Get list from Phone, Memory card
Volume Control:
7 level (0 ~ 6, 0 for Mute)
White Balance:
Auto, Daylight, Tungsten, Fluorescent, Cloud, Incandescence
EV: -4 ~+4
Night Mode:
On/Off
Banding: 60Hz/50Hz
Video Quality:
Fine, High, Normal, Low
File Size Limit:
No Limit, 95KB, 195KB, 295KB,
Record Time Limit:
No Limit, 15 sec, 30 sec, 60 sec
Record Audio:
On/Off
Encode Format:
MPEG4, H.263
Effect settings: (Total 14 types)
Normal, Grayscale, Sepia, Sepia Green, Sepia Blue,
Color Invert, Gray Invert, Blackboard, Whiteboard,
Copper Carving, Blue Carving, Embossment, Contrast, Sketch
Storage Selection:
Phone, Memory card
(Only available when external memory card supported)
Record
Pause
Resume Recording
Video Recorder
Stop

-16-
Storage Selection:
Phone, Memory card
(Only available when external memory card supported)
Encode Format:
WAV, AMR
Record
Pause
Resume Recording
Stop
Edit
Sound Recorder
Play
Save
Instrument Selection: 10 types
Piano, Guitar, Violin, Saxophone, Steel Drums, Flute, Harmonica, Trumpet, Music Box, Xylophone
Play Speed:
Fast, Normal, Slow
[Notice] Melody composer only support one instrument in one imelody file, so the last chosen
instrument will be used to play this imelody file
FM Frequencies: 87.5~108MHz / AM Frequencies: 522 ~ 1710KHz
Skin: 2 skins
Melody Compose
User definable Preset Channel List
Channel Auto Search
Background Play
Record
Record Format:
AMR, WAV
Record Storage:
Phone, Memory Card
(Only available when external memory card supported)
Preset Channel List generated by auto search
MIDP 2.0
FM/AM Radio
CLDC 1.0
JAVA
Memory Limit 2MB
Support JSR 139,118,120,135,185

-17-
2-2-5 Connectivity Features
Function Target Specification
WAP 2.0 Spec.
WAP Push OTA/Message
WAP Provisioning Service
CSD/GPRS data connection
Bookmark
Wireless Telephony Application (WTA) support:
Only Public WTA support, supported functions listing below -
* Make a telephone call
* Send a string of DTMF tones over an established voice connection
* Add an entry to the telephone book of the device
Support OTA push and push message
OTA Provisioning & OTA download
WAP
Supports WML, WCSS, XHTML mp
Google Google Searching
Version 2.0 w/o EDR
Bluetooth
Profile: GAP; SDAP; DUN; SPP; OPP; HSP; HFP; FTP; A2DP; AVRCP ;BPP
Mass Storage DeviceUSB
Virtual COM

-18-
3.TECHNICAL BRIEF
3.1 Digital Main Processor
Figure.3-1-1 MT6229 FUNCTIONAL BLOCK DIAGRAM

-19-
3.1.1 System Overview
MT6229 is a feature-rich and extremely powerful single-chip solution for high-end mobile
phones with GSM/GPRS and EDGE capability. Based on 32 bit ARM7EJ-STM RISC
processor, MT6229’s superb processing power along with high bandwidth architecture and
dedicated hardware support provides an unprecedented platform for high performance
EGPRS Class 12 MODEM and leading-edge multimedia applications. To sum up, MT6229
presents a revolutionary platform for multimedia-centric mobile devices along with an EDGE
capable modem.
Typical application diagram is shown in Figure3- 1.
Platform
MT6229 is capable of running the ARM7EJ-STM RISC processor at up to 104Mhz, thus
providing fast data processing capabilities. In addition to the high clock frequency, separate
CODE and DATA caches are also added to further improve the overall system efficiency. For
large amount of data transfer, high performance DMA (Direct MemoryAccess) with hardware
flow control is implemented, which greatly enhances the data movement speed while reducing
MCU processing load. Targeted as a media-rich platform for mobile applications, MT6229
also provides hardware security digital rights management for copyright protection. For further
safeguarding, and to protect manufacturer’s development investment, hardware flash content
protection is also provided to prevent unauthorized porting of software load.
Memory
To provide the greatest capacity for expansion and maximum bandwidth for data intensive
applications such as multimedia features, MT6229 supports up to 4 external state-of-the-art
devices through its 8/16-bit host interface. High performance devices such as Mobile RAM,
and Cellular RAM are supported for maximum bandwidth. Traditional devices such as
burst/page mode Flash, page mode SRAM, and Pseudo SRAM are also supported. For
greatest compatibility, the memory interface can also be used to connect to legacy devices
such as Color/Parallel LCD, and multi-media companion chip are all supported through this
interface. To minimize power consumption and ensure low noise, this interface is designed for
flexible I/O voltage and allows lowering of supply voltage down to 1.8V. The driving strength is
configurable for signal integrity adjustment. The data bus also employs retention technology
to prevent the bus from floating during turn over.
Multi-media
TheMT6229 multi-media subsystem provides connection to CMOS image sensor and
supports resolution up to 3M pixels.With its advanced image signal and data processing
technology, MT6229 allows efficient processing of image and video data. It also has built-in
JPEG CODEC and MPEG-4/H.263 CODEC, thus enabling real-time recording and playback
of high-quality images and video. Hardware MPEG4/H.263 accelerator supports playback in
VGAmode at 15fps, and encoding in CIF at 15fps. Videophone functionality is also provided.
Moreover, high quality de-blocking filter is provided to remove blocking artifacts in video
playback. GIF decoder and PNG decoder are implemented as well for fast image decoding.
MT6229 also supports TV-OUT capability, thus allowing the mobile handset to connect to TV
screen via NTSC/PAL connections. In addition to advanced image and video features,
MT6229 also utilizes high resolution DAC, digital audio, and audio synthesis technology to
provide superior audio features for all future multi-media needs.

-20-
Connectivity, and Storage
In order to take advantage of its incredible multimedia strengths, MT6229 incorporates
myriads of advanced connectivity and storage options for data storage and communication.
MT6229 supports UART, Fast IrDA, USB 1.1 Full Speed OTG, SDIO, Bluetooth and WIFI
Interface, and MMC/SD/MS/MS Pro storage systems. All these interfaces provide MT6229
users with the highest degree of flexibility in implementing solutions suitable for the targeted
application. To achieve a complete user interface, MT6229 also brings together all the
necessary peripheral blocks for a multi-media 2.75G phone. The peripheral blocks includes
the Keypad Scanner with the capability to detect multiple key presses, SIM Controller, Alerter,
Real Time Clock, PWM, Serial LCD Controller, and General Purpose Programmable I/Os.
Furthermore, to provide more configuration and bandwidth for multi-media products, an
additional 18-bit parallel interface is incorporated. This interface enables connection to LCD
panels as well as connection to NAND flash devices for additional multi-media data storage.
Audio
Using a highly integrated mixed-signal Audio Front-End, the MT6229 architecture allows for
easy audio interfacing with direct connection to the audio transducers. The audio interface
integrates D/A and A/D Converters for Voice band, as well as high resolution Stereo D/A
Converters for Audio band. In addition, MT6229 also provides Stereo Input and Analog Mux.
MT6229 supports AMR codec to adaptively optimize speech and audio quality. Moreover,
HE-AAC codec is implemented to deliver CD-quality audio at low bit rates. On the whole,
MT6229’s audio features provide a rich solution for multi-media applications.
Radio
MT6229 integrates a mixed-signal Baseband front-end in order to provide a well-organized
radio interface with flexibility for efficient customization. It contains gain and offset calibration
mechanisms, and filters with programmable coefficients for comprehensive compatibility
control on RF modules. This approach also allows the usage of a high resolution D/A
Converter for controlling VCXO or crystal, thus reducing the need for expensive TCVCXO.
MT6229 achieves great MODEM performance by utilizing 14-bit high resolution A/D
Converter in the RF downlink path. Furthermore, to reduce the need for extra external
current-driving component, the driving strength of some BPI outputs is designed to be
configurable.
Debug Function
The JTAG interface enables in-circuit debugging of software program with the ARM7EJ-S
core. With this standardized debugging interface, MT6229 provides developers with a wide
set of options in choosingARM development kits from different third party vendors. Power
Management MT6229 offers various low-power features to help reduce system power
consumption. These features include Pause Mode of 32KHz clocking at Standby State, Power
Down Mode for individual peripherals, and Processor Sleep Mode. In addition, MT6229 is also
fabricated in advanced low leakage CMOS process, hence providing an overall ultra low
leakage solution.
Package
The MT6229 device is offered in a 13mm×13mm, 314-ball, 0.65 mm pitch, TFBGA
package.
