LG 42LH4020.AEU User manual

1. Trim Size (Format) : 185 mm x 260 mm
2. Printing Colors : 1 Color (BLACK)
3. Stock (Paper) : Uncoated paper, 백상지 60 g/㎡
4. Printing Method : Off-set
5. Bindery : Saddle stitch
6. Language : EN (1)
7. Number of pages : 16 pages
Changes
3.
REV.
NO. MM/DD/YY SIGNATURE CHANGE NO. CHANGE CONTENTS
1
4
5
6
8
7
9
10
2
3
“This part contain Eco-hazardous substances (Pb, Cd, Hg, Cr6+, PBB, PBDE, etc.) within LG standard level,
Details should be followed Eco-SCM management standard[LG(56)-A-2524].
Especially, Part should be followed and controlled the following specification.
(1)Eco-hazardous substances test report should be submitted
when Part certification test and First Mass Production.
(2) Especially, Don’t use or contain lead(Pb) and cadmium(Cd) in ink.
N
O
T
E
S
(1) Origin Notification
* LGEIN : Printed in Indonesia * LGEWA : Printed in U.K. * LGEMA : Printed in Poland
* LGESP : Printed in Brazil * LGEMX : Printed in Mexico
* LGEND : Printed in China * LGEIL : Printed in India
* Other Oversea Factories : NON
Special Instructions3.
담 당 관리자
Model Description
MODEL BRAND
Printing Specification
Part No.
1.
2.
User’s Guide Specification
User’s Guide Specification
SUFFIX
32/37/42/47LH7000-ZA LG MFL41425833
(0904-REV03)
Product Name
EK 32/37/42/47LH70**
SHIN HJ
09.02.04
KIM JO
09.02.04
02/10/09 SHIN.H.J. S9-42817 Amended picture for Stand Rear Cover of LH70**
03/30/09 Shin Hye Jung S9-48133 Added LF2510-ZB & Changed Drawing for LU40 **
04/20/09 Shin Hye Jung S9-50428 Added 32/37/42LG2100-ZA models.

Pagination sheet
Pagination sheet P/NO. MFL41425833
Total pages : 16 pages
Front
Cover
(EN)
P/NO. 34…216

OWNER’S MANUAL
LCD TV
Please read this manual carefully before operating your TV.
Retain it for future reference.
Record the model number and serial number of the TV.
Refer to the label on the back cover and quote this
information.
To your dealer when requiring any service.
PP//NNOO::MMFFLL4411442255883333((00990044--RREEVV0033))
PPrriinntteeddiinnKKoorreeaa
An extended Owner’s Manual that contains informa-
tion on the advanced features of these LG TV sets is
located on the CD- ROM provided in an electronic
version.
To read these files, you will need to use a Personal
Computer (PC) equipped with a CD- ROM drive.
1199LLUU4400****
2222LLUU4400****
1199LLUU5500****
2222LLUU5500****
2266LLUU5500****
1199LLHH2200****
2222LLHH2200****
2266LLHH2200****
3322LLHH2200****
3377LLHH2200****
4422LLHH2200****
3322LLHH3300****
3377LLHH3300****
4422LLHH3300****
4477LLHH3300****
3322LLHH4400****
3377LLHH4400****
4422LLHH4400****
4477LLHH4400****
3322LLHH5500****
3377LLHH5500****
4422LLHH5500****
4477LLHH5500****
3322LLHH7700****
3377LLHH7700****
4422LLHH7700****
4477LLHH7700****
3322LLFF2255****
3377LLFF2255****
4422LLFF2255****
3322LLHH4499****
3377LLHH4499****
4422LLHH4499****
4477LLHH4499****
3322LLGG2211****
3377LLGG2211****
4422LLGG2211****
Trade Mark of the DVB Digital Video
Broadcasting Project (1991 to 1996)
IIDDNNuummbbeerr((ss))::6337 : 19LU4000
6423 : 19LU4010
6338 : 22LU4000
6424 : 22LU4010
6334 : 19LU5000
6428 : 19LU5010
6425 : 19LU5020
6335 : 22LU5000
6429 : 22LU5010
6426 : 22LU5020
6336 : 26LU5000
6430 : 26LU5010
6427 : 26LU5020
6200: 19LH2000
6437 : 19LH2010
6431 : 19LH2020
6201: 22LH2000
6438 : 22LH2010
6432 : 22LH2020
6202: 26LH2000
6439 : 26LH2010
6433 : 26LH2020
6203: 32LH2000
6440 : 32LH2010
6434 : 32LH2020
6204: 37LH2000
6441 : 37LH2010
6435 : 37LH2020
6205 : 42LH2000
6442 : 42LH2010
6436 : 42LH2020
6206 : 32LH3000
6451 : 32LH3010
6447 : 32LH3020
6443 : 32LH3030
6208: 37LH3000
6452 : 37LH3010
6448 : 37LH3020
6444 : 37LH3030
6209: 42LH3000
6453 : 42LH3010
6449 : 42LH3020
6445 : 42LH3030
6210: 47LH3000
6454 : 47LH3010
6450 : 47LH3020
6446 : 47LH3030
6211: 32LH4000
6467 : 32LH4020
6463 : 32LH4010
6212: 37LH4000
6468 : 37LH4020
6464 : 37LH4010
6213: 42LH4000
6469 : 42LH4020
6465 : 42LH4010
6214: 47LH4000
6470 : 47LH4020
6466 : 47LH4010
6484: 32LH5000
6455 : 32LH5020
6459 : 32LH5010
6485: 37LH5000
6456 : 37LH5020
6460 : 37LH5010
6486: 42LH5000
6457 : 42LH5020
6461 : 42LH5010
6487 : 47LH5000
6458 : 47LH5020
6462 : 47LH5010
6195: 32LH7000
6529 : 32LH7010
6475 : 32LH7020
6471 : 32LH7030
6196: 37LH7000
6479 : 37LH7010
6476 : 37LH7020
6472 : 37LH7030
6197: 42LH7000
6528 : 42LH7010
6477 : 42LH7020
6473 : 42LH7030
6198: 47LH7000
6480 : 47LH7010
6478 : 47LH7020
6474 : 47LH7030
6481 : 32LF2500
6618 : 32LF2510
6482 : 37LF2500
6617 : 37LF2510
6483 : 42LF2500
6616 : 42LF2510
6488 : 32LH4900
6489 : 37LH4900
6490 : 42LH4900
6491 : 47LH4900
6755 : 32LG2100
6756 : 37LG2100
6757 : 42LG2100
This product qualifies for ENERGY STAR in the “facto-
ry default (Home Use mode)” setting and this is the
setting in which power savings will be achieved.
Changing the factory default picture setting or
enabling other features will increase power consump-
tion that could exceed the limits necessary to qualify
for Energy Star rating.

2
SAFETY INSTRUCTIONS
ENGLISH
• Please read these safety precautions carefully before using the product.
• In this manual, the illustration may be somewhat different from your product because it is just example to help the instruction.
If you ignore the warning message, you may be seriously injured or there is a possibility of accident or death.
If you ignore the caution message, you may be slightly injured or the product may be damaged.
PPrreeccaauuttiioonniinnIInnssttaalllliinnggtthheePPrroodduucctt
WARNING
WARNING
CAUTION
Keep away from heat sources like electrical heaters.
- Electrical shock, fire, malfunction or deformation may occur.
If you can smell smoke or other odors or hear a strange
sound unplug the power cord and contact the service
center.
- If you continue to use without taking proper measures, elec-
trical shock or fire can occur.
Do not use the product in damp place such as a bath-
room or any place where it is likely to get wet.
- This may cause a fire or could give an electric shock.
Install the product on a flat and stable place that
has no risk of dropping the product.
- If the product is dropped, you may be injured or the
product may be broken.
Keep the product away from direct sunlight.
- The product can be damaged.
Do not place the product in a built-in installation
such as bookcase or rack.
- Ventilation required.
EElleeccttrriiccaallPPoowweerrRReellaatteeddPPrreeccaauuttiioonnss
Make sure to connect the power cable to the ground-
ed current.
- You may be electrocuted or injured.
Do not touch the power plug with wet hands.
Additionally, it the cord pin is wet or covered with
dust, dry the power plug completely or wipe dust off.
- You may be electrocuted due to excess moisture.
During a thunder or lightning storm, unplug the
power cable or signal cable.
- You may be electrocuted or a fire can break out.
Protect the power cord from physical or mechanical
abuse, such as being twisted, kinked, pinched, closed in
a door, or walked upon. Pay particular attention to plugs,
wall outlets, and the point where the cord exits the
appliance.
PPrreeccaauuttiioonnssiinnMMoovviinnggtthheePPrroodduucctt
Do not shock the product when moving it.
- You may be electrocuted or the product can be dam-
aged.
Make the panel face forward and hold it with both
hands to move.
- If you drop the product, the damaged product can
cause electric shock or fire. Contact with the service
center for repair.
Make sure to turn off the product.
Make sure to remove all cables before moving the
product.
- You may be electrocuted or the product can be dam-
aged.
PPrreeccaauuttiioonnssiinnUUssiinnggtthheePPrroodduucctt
Do not disassemble, repair or modify the product at
your own discretion.
- Fire or electric shock accident can occur.
- Contact the service center for check, calibration or
repair.
To reduce the risk of fire or electric shock, do not
expose this apparatus to rain or moisture.
Apparatus shall not be exposed to dripping or
splashing and no objects filled with liquids, such as
vases, shall be placed on the apparatus.
WARNING
WARNING
CAUTION
CAUTION
CAUTION
WARNING
Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power supply cord or plug
is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normal-
ly, or has been dropped.
IIMMPPOORRTTAANNTTIINNFFOORRMMAATTIIOONNTTOOPPRREEVVEENNTT““IIMMAAGGEEBBUURRNN
//BBUURRNN--IINN””OONNYYOOUURRTTEELLEEVVIISSIIOONNSSCCRREEEENN
- When a fixed image (e.g. logos, screen menus, video game, computer
display and teletext pages) is displayed on the television for an extend-
ed period it can become permanently imprinted on the screen. This
phenomenon is known as “image burn” or “burn-in”. Image burn is not
covered under the manufacturer’s warranty.
- In order to prevent image burn, avoid displaying a fixed image on your
television’s screen for a prolonged period (2 or more hours for LCD, 1
or more hours for Plasma).
- Image burn can also occur on the letterboxed areas of your television
if you use the 4:3 aspect ratio setting for an extended period.
As long as this unit is connected to the AC wall outlet, it is not dis-
connected from the AC power source even if you turn off this unit
by SWITCH.

3
ENGLISH
PREPARATION
Ensure that the following accessories are included with your TV. If an accessory is missing, please contact the
dealer where you purchased the TV.
■
Image shown may differ from your TV.
Owner’s Manual Batteries Remote Control
Power Cord
Polishing Cloth
Polishing cloth for
use on the screen.
This item is not included for all models.
* Lightly wipe any stains
or fingerprints on the
surface of the TV with
the polishing cloth.
Do not use excessive force.
This may cause scratching
or discolouration.
or
A
VMODE
VMODE
ENERGY
ENERGYSA
SA
VING VING
RETURN/ EXIT
MENU
Q.MENU INFO GUIDE
i
MUTE
MUTE
POWERPOWER
LIST LIST
Q.VIEW Q.VIEW
MARK
FAV
Cable management clip
(Only 32/37/42/47LH70**)
(Refer to p.10)
Stand rear cover
(Only 37/42/47LH70**)
(Refer to p.8)
(Only 47LH70**)
x 7
Protection Cover
(Except for 19/22LU40**, 19/22/26LU50**)
(Refer to p.11)
or
Cable Holder
(Only 19/22LU40**,
19/22/26LU50**)
(Refer to p.9)
Cable management clip
(Only 19/22LH20*
*
)
(Refer to p.9)
(Refer to p.7)
1-screw for stand fixing
(Only 26LU50**, 32/37/42LF25**,
32/37/42LG21**, 26/32/37/42LH20**,
32/37/42LH30**, 32/37/42LH40**,
32/37/42LH49**, 32/37/42LH50**,
32/37LH70**)
x 8

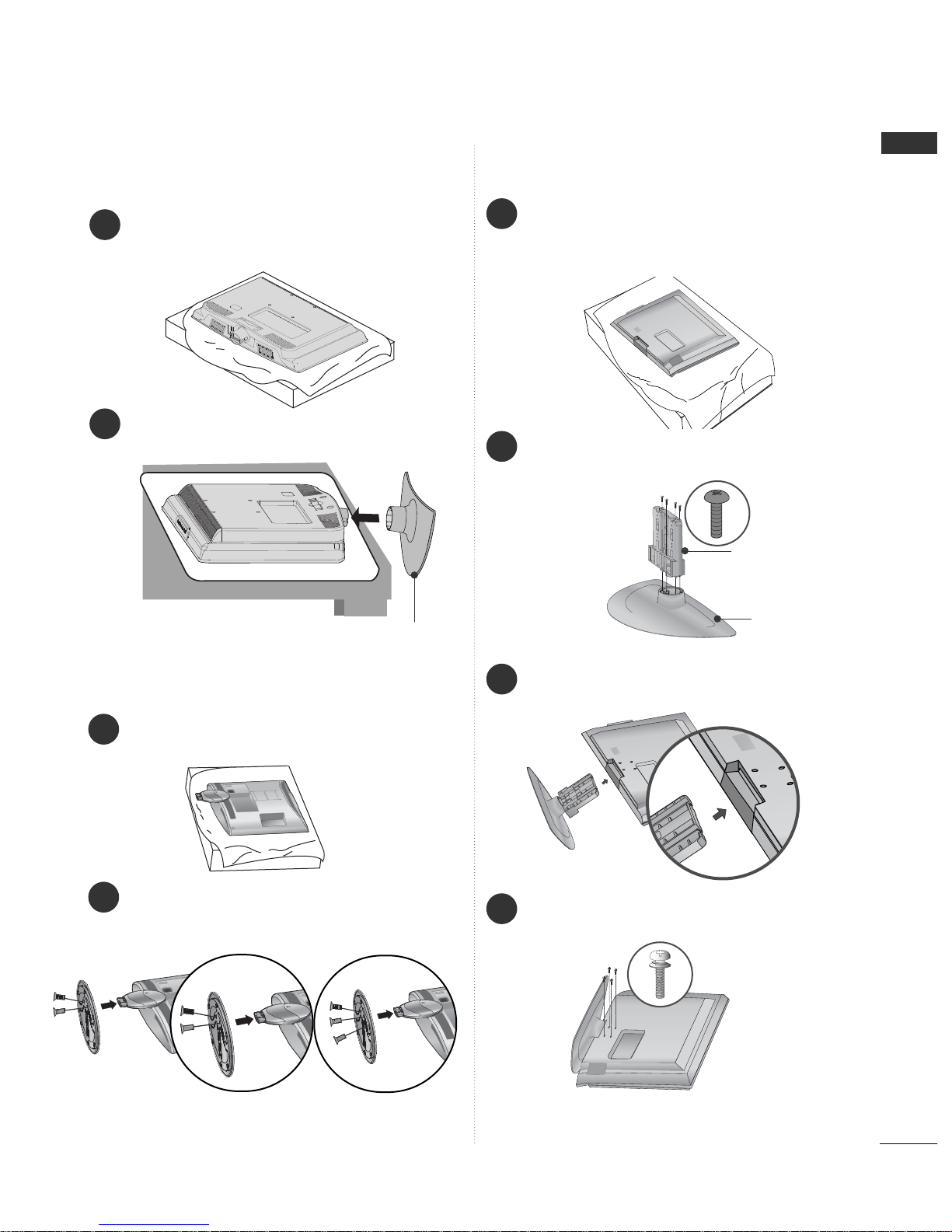

Bolts for stand assembly
(Refer to p. 4~6 )
(Only 32LH70**)
M4x20 M4x16
(Only 42LH70**)
x 3
M4x20 M4x16
x 4
(Only
19/22LU50**)
(Only
26LU50**)
x 2 x 3
Protective Bracket
and Bolt for Power Cord
(Only 32/37/42/47LH70*
*
)
(Refer to p.10)
USB extension cable
(Only 32/37/42/47LH70*
*
)
Make sure to use the provided
USB extension cable, Which is
specially designed for a slim fit.
x 8
M4x20
(Only 37LH70**)
Ferrite Core
( This item is not included for
all models.
)
(Only
32/37/42LF25**,
32/37/42LG21**,
26/32/37/42LH20**,
32/37/42/47LH30***,
32/37/42/47LH40***,
32/37/42/47LH49**,
32/37/42/47LH50**)
x 4
(Only
32/37/42LF25**,
32/37/42LG21** )
x 4
12mm 12mm
Use screws 12mm(+0.5/-0.5) long on the SET assembly side.
( Only 42/47LH70** )
Set assembly side
(without guide spacer)
Set assembly side
(with guide spacer)
Guide spacer
(Only
19/22LU40**)
x 5
Stand Rear Body
Cap
(Only
19/22LU40** )
(Refer to p.6)
