LG Smart AC User manual

Smart Inverter
Remote Control System
User’s Manual
WLAN Module for
LG Smart Air Conditioning Application
Model: PCRCUDT2/ PCRCUDT3
LG Smart AC
P/NO : MFL67891012

Thank you for using LG Smart AC.
If you read the user manual before using the product, you can will have a
better and longer use of the product.
* Please read this manual to use LG Smart AC safely and correctly.
TABLE OF CONTENTS
3SAFETY INSTRUCTIONS
4INTRODUCTION
5INSTALLATION
5WLAN MODULE INSTALL
6MOBILE APP INSTALL
6SIGNING UP FOR A MEMBERSHIP
8WLAN Connection
15 FINDING PASSWORD
16 REFERENCE FOR EACH FUNCTION
16 DATA GUIDE
17 A CHECK LIST BEFORE CALLING TO A
CUSTOMER SERVICE TO REPORT A
PROBLEM

Due to our policy of continuous product innovation, some specifications may change without notification.
“LG” is a registered trademark of LG Corp.
3
User Manual
SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
Always comply with the following precautions to avoid dangerous situations and ensure
peak performance of your product.
It can result in serious injury or death when the directions are ignored.
It can result in minor injury or product damage when the directions are ignored.
• Installation or repairs made by unqualified persons can result in hazards to you and
others.
• Appliance shall be installed in accordance with national wiring regulations.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
• The information contained in the manual is intended for use by a qualified service
technician familiar with safety procedures and equipped with the proper tools and
test instruments.
• Failure to carefully read and follow all instructions in this manual can result in
equipment malfunction, property damage, personal injury and/or death.
• When the power cord is to be replaced, replacement work shall be performed by
authorized personnel only using genuine replacement parts only.
Installation
• Make sure to check if there is a refrigerant leak after you install or repair the air condi-
tioner. Failure to do so may result in product failure.
• Install the drain hose properly for smooth drainage of condensed water. Failure to do
so may result in product failure.
• Keep level even when installing the product.
• Install the air conditioner where the noise from the outdoor unit or the exhaust gas
will not inconvenience the neighbors. Failure to do so may result in conflict between
neighbors.
• When transporting the equipment, there should be at least 2 or more people, or a
forklift.
It may result in serious injury.
• Do not install the air conditioner where it will be exposed to sea wind (salt spray) di-
rectly.
It may result in product failure.
• I.T.E.(Information Technology Equipment) regulation is not applied as the USB port in
WLAN module is only applicable to specific products(Air conditioner).
CAUTION
!
CAUTION
!
WARNING
!
WARNING
!
Este equipamento opera em caráter secundário,
isto é, não tem direito a proteção contra interferên-
cia prejudicial, mesmo de estações do mesmo
tipo, e não pode causar interferência a sistemas
operando em caráter primário.
0197
0197

Due to our policy of continuous product innovation, some specifications may change without notification.
“LG” is a registered trademark of LG Corp.
4
LG Smart AC
Symbols used in this Manual
This symbol alerts you to the risk of electric shock.
This symbol alerts you to hazards that may cause harm to the air conditioner.
This symbol indicates special notes.
Installation Parts Installation Tools
INTRODUCTION
!
!
Name Quantity Shape
WLAN
Module 1EA
Manual 1EA
Figure Name
Screw Driver
Support web page
If you want more information, Please visit to support web page.
http://au.smartthinq.com(Australia)
http://nz.smartthinq.com(New Zealand)
http://se.smartthinq.com(Sweden)
http://no.smartthinq.com(Norway)
http://fi.smartthinq.com(Finland)
http://br.smartthinq.com(Brazil)
http://mx.smartthinq.com(Mexico)
http://dk.smartthinq.com(Denmark)
http://sg.smartthinq.com(Singapore)
http://us.smartthinq.com(USA)

Due to our policy of continuous product innovation, some specifications may change without notification.
“LG” is a registered trademark of LG Corp.
5
User Manual
INSTALLATION
WLAN Module Install
* The feature can be changed according to a type of model.
1. Open the LG Smart AC box, and remove the module from the plastic wrapper.
2. Verify that indoor unit is turned off and power is cut off at the outdoor unit’s
input power circuit breaker.
3. Open the front panel of the indoor unit and remove the USB port plastic cap
(1) and insert WLAN module (2). Close front panel of unit.
4. Turn power on by turning back on through the power breaker and then turn in-
door unit on.
5. Optionally, place a WLAN module into each indoor unit as necessary before
proceeding.
※Other details, please refer to the Products manual.
• Avoid to install WLAN module in a place blocked by the wall.
• Router should be installed near the WLAN module.(When distance is far, communi-
cation becomes unstable and can be difficult to use)
• If there is the wall or a barrier between WLAN module and wireless router, commu-
nication will be not smooth. (It depends on wall construction or a barrier)
• Do not install WLAN module around high humidity and temperature place.
NOTE
!
1
2
CAP

Due to our policy of continuous product innovation, some specifications may change without notification.
“LG” is a registered trademark of LG Corp.
6
LG Smart AC
Mobile app installation
The mobile app can be downloaded from the Google play/App Store through Wi-Fi
or 3G/4G. (LG Smart AC)
Signing up for a membership
After signing up for a membership on the mobile app or Your own country web
page.(Please refer to the 4 page.)
Selected your country.
If you select a country,
it will change to that lan-
guage. After that, touch
the “Sign Up”
After checking and agreeing to each user agreement,
touch “Apply”.

Due to our policy of continuous product innovation, some specifications may change without notification.
“LG” is a registered trademark of LG Corp.
7
User Manual
Enter the user registration infor-
mation to sign up for the service,
and touch "NEXT"
A confirmation email has been sent to
your email address that you provided.
Please touch the “Apply” button.
Once you touch the “Confirm Email” button
on your email, signing up will be completed

Due to our policy of continuous product innovation, some specifications may change without notification.
“LG” is a registered trademark of LG Corp.
8
LG Smart AC
Before touch the “Continue” button, you have to set registration mode and set-
ting Wi-Fi. Point the remote control at the indoor unit, and press the Jet Mode
and Fan Speed buttons simultaneously for 3 seconds.
WLAN Connection
A function to register an air conditioner on the server before using the mobile app.
Selected your country. If you select a coun-
try, it will change to that language.
After that, Entering the E-mail and the
password. Then touch the “Sign In” button
When registering the product for the first
time, a pop-up will be activated. Once the
“Ok” button is touch, it will change to the
air conditioner registration screen.

Due to our policy of continuous product innovation, some specifications may change without notification.
“LG” is a registered trademark of LG Corp.
9
User Manual
Reference
* Remote Controller may appear slightly different, depending on your model.
• Instruction to set registration mode
• Press Mand on the remote control for 3
seconds simultaneously to set the registration
mode on the air conditioner.
• Once the registration mode is set, the Wi-Fi in-
dicator blinks on the display of the body.
• 5minutes after the setting, the registration
mode on the air conditioner gets cancelled au-
tomatically.
❈If the registration mode is canceled during the
product registration, re-execute the registra-
tion mode. Then, proceed with the registra-
tion.
• Tap a menu as follows.
- Screen standby : ▶→Settings →
WLAN .
- Active home screen : ▶→More →▶
→Settings →WLAN .
• Once the registration mode is set, the upper
lighting blinks on the display of the body.
• 5minutes after the setting, the registration
mode on the air conditioner gets cancelled au-
tomatically.
❈
If the registration mode is canceled during the
product registration, re-execute the registration
mode. Then, proceed with the registration.
18
°C
Set Temp

Due to our policy of continuous product innovation, some specifications may change without notification.
“LG” is a registered trademark of LG Corp.
10
LG Smart AC
CAUTION
• The Wi-Fi on smartphone must be turned on to start registering the product.
• If there is a problem with a connection, the ‘prevention of connection fail-
ing’ function in the advanced menu of the Wi-Fi setting in the smartphone
needs to be cancelled for some devices.
!
• Duct Setting – WLAN(Wireless LAN) Module Access Point mode
It is the function to operate WLAN (Wireless LAN) module connected to the
product in access point mode.
1Press button to appear
button on the screen.
2Press the button.
3Push the position of the button at the
third row of the fifth column on the
left figure for three(3) seconds.
4While WLAN module is operating in ac-
cess point mode, the term of 'AP' blinks
on the screen of cable remote control.
- It will take approx. five (5) seconds before
WLAN module operates in access point
mode.
- In the case WLAN module is not in-
stalled, the access point mode does not
work.

Due to our policy of continuous product innovation, some specifications may change without notification.
“LG” is a registered trademark of LG Corp.
11
User Manual
Reference
Registering the product for iPhone
• When the network is not stable or using an app for iPhone
- The app on an iPhone does not support the automatic connection of Wi-Fi.
- So, setting Wi-Fi by hand power. The way setting is as follows:
• How to set Wi-Fi
Touch the “Settings”
icon.
Press the home button
of iPhone.

Due to our policy of continuous product innovation, some specifications may change without notification.
“LG” is a registered trademark of LG Corp.
12
LG Smart AC
Touch the “Wi-Fi” menu.
After “Wi-Fi” on, select
the AP named “LGE_AC-
xx-xx-xx”
‘x’ represents numbers,
and they may be different
from the numbers on the
example screen.
Input the password
“lge12345”
and press the home
button of iPhone twice
Touch the
“LG Smart AC” icon

Due to our policy of continuous product innovation, some specifications may change without notification.
“LG” is a registered trademark of LG Corp.
13
User Manual
After complete setting reg-
istration mode and Wi-Fi
connection, touch the
“Continue” button

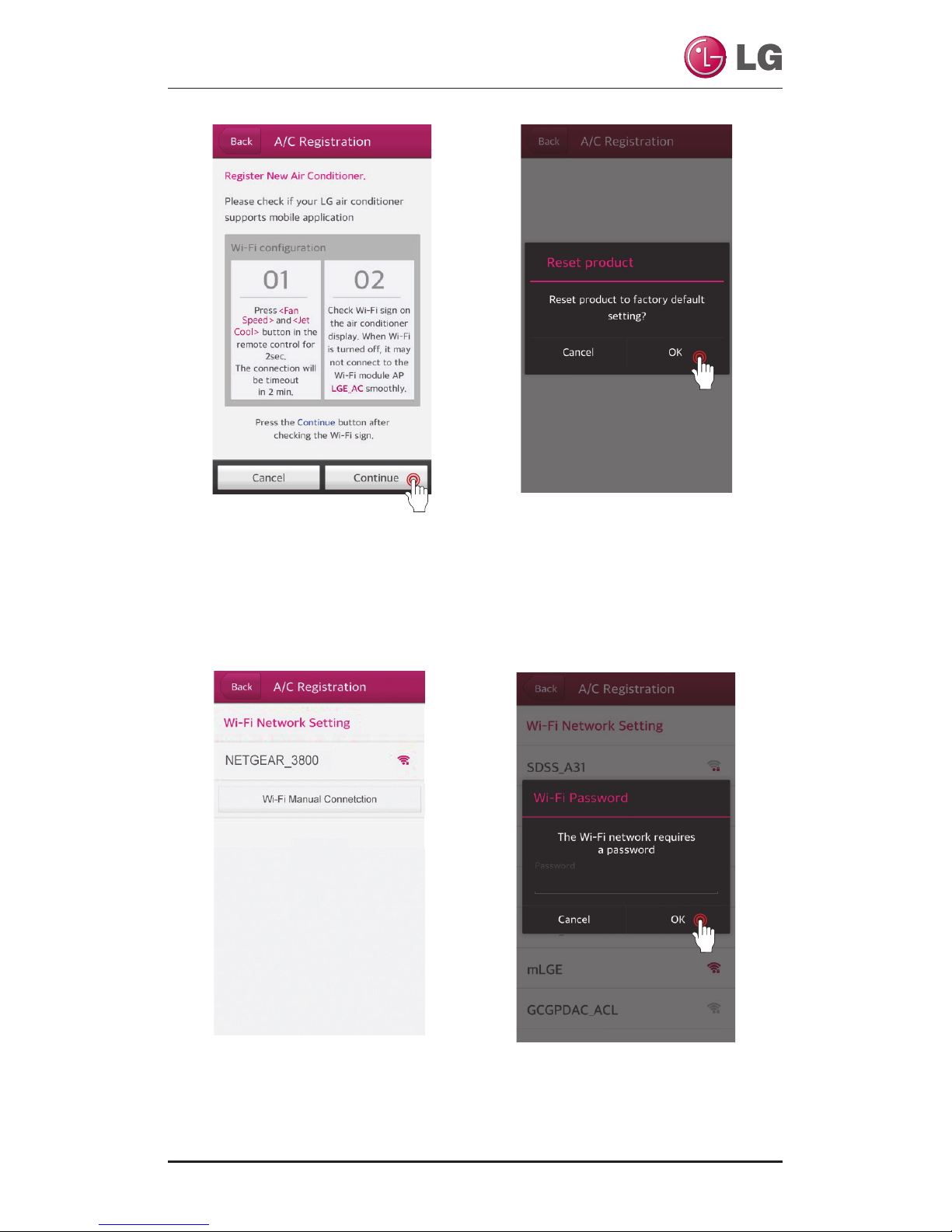

Once the product search
is complete, a pop-up to
ask initialization of the
product appears.
Touch the “OK” button
Please select a router that
you want to connect to.
Enter the password for the
router correctly, and then
touch the “OK” button.

Due to our policy of continuous product innovation, some specifications may change without notification.
“LG” is a registered trademark of LG Corp.
14
LG Smart AC

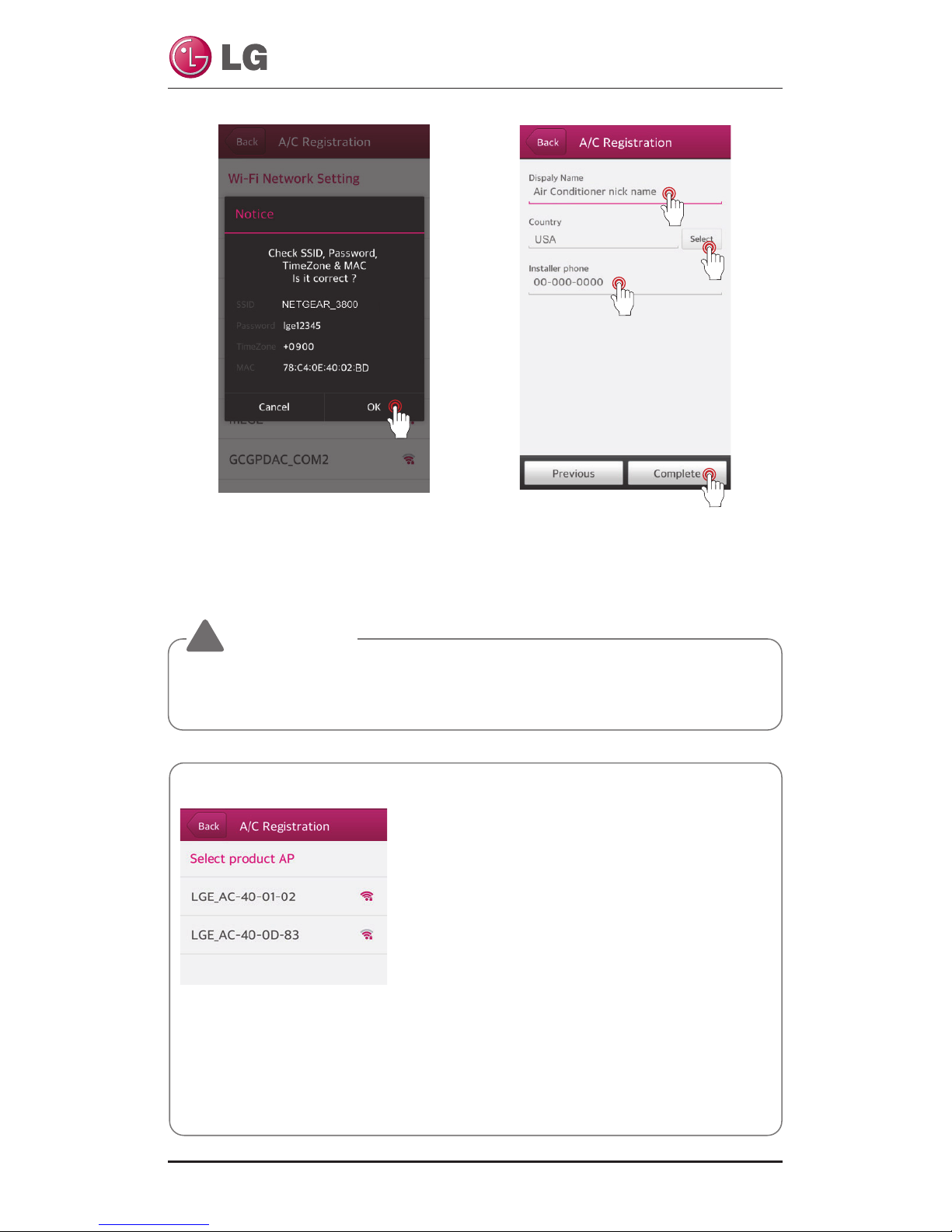

Please check the Mac Ad-
dress and Wi-Fi password.
Enter “Air Conditioner nickname”
and “Installer phone”, and then
touch the “Complete” button.
(Appropriate product name
must be selected correctly)
WARNING
!
If the router is WEP-open security method, you may fail to set up the network. After you
have changed to other security method of router, please register of product again.
Check the “Reset product” pop-up
1.
It must be initialized for exhibition air-conditioning, because it has the information.
2. When you first register, you must initialize.
3. Information that has been initialized:
- Specific ID of the Product
- Accumulated filter use
Reference
In case of more than two Product APs, turn on
only one
A/C that you want to register.

Due to our policy of continuous product innovation, some specifications may change without notification.
“LG” is a registered trademark of LG Corp.
15
User Manual
Finding password
The mobile app can be used after logging in.
Enter the E-mail ID on the
log in screen.
Touch the “Forgot Pass-
word?” button.
Temporary password will be
sent to the email address
that you provided when you
signed up.

Due to our policy of continuous product innovation, some specifications may change without notification.
“LG” is a registered trademark of LG Corp.
16
LG Smart AC
• Router Minimal Specification
Model Type : CISCO, APPLE, ASUS, D-LINK ,TP LINK, TRENDNET, ACTION-
TEC, NETGEAR, 2WIRE
* Specified model is optimized. A normal operation is not possible in the envi-
ronment that does not satisfy the minimal specifications.
* If using a sharing device having less coverage or egg (dongle type), you may
not connect the air conditioner smoothly.
• Notice
IFETEL: RCPLGPC13-1880
The operation of this equipment is subject to the following two conditions:
(1) It is possible that this equipment or device may not cause harmful interfer-
ence, and
(2) This equipment or device must accept any interference, including interfer-
ence that may cause undesired operation.
WARNING
!
This device is not available for laptop or similar portable system.
Main Function Function Details Main Function Remark
Favorite
A frequently used
function can be set as
Favorite to execute
the function
conveniently at any
time.
• As basic favorite, it provides type of
favorite as follows.
Desired air types can be saved
additionally.
- Quick cool wind can quickly cool the
indoor
❈Supported functions can be different depending on the models.
REFERENCE FOR EACH FUNCTION
DATA GUIDE
• Open source
If you would like to get the source code of GPL, LGPL, MPL, and others which
are developed with open source license and installed in this product,
please visit http://opensource.lge.com
In addition to the source code, indications of all applicable license contents, copy-
right, and no responsibility on warranty can be downloaded.
If you request the open source code of the software that is installed on this product
by sending email to [email protected] within 3 years of purchasing this product,
we will provide it in CD-ROM with a minimum cost of shipping and handling.

Due to our policy of continuous product innovation, some specifications may change without notification.
“LG” is a registered trademark of LG Corp.
17
User Manual
A CHECK LIST BEFORE CALLING TO A CUS-
TOMER SERVICE TO REPORT A PROBLEM
Main Function Function Details Remark
Can’t Sign in to the
LG Smart AC App.
• Did you connect to a
Wi-Fi that is set with
password?
• Did you confirm
from your email?
• Each common carrier has a router to give
services to only applicable members.
Use a different wireless router.
• Check your email and confirm the LG
Smart AC App.
Can’t sign up for
the
membership.
• Did you provide your
email address
correctly?
• You should provide email address in
[email protected] format correctly.
Can’t connect the
LG Smart AC App.
to the indoor unit.
• Is the indoor unit
turned off?
• Is the Wi-Fi signal
weak?
• Is the wireless router
that is connected to
the indoor unit turned
off?
• Is the LG Smart AC
App. not operating at
all?
• Is it disconnected
with the indoor unit
suddenly?
• Turn the indoor unit on.
• Move to a place where the Wi-Fi signal is
strong.
• Turn the router on.
• Turn off the Wi-Fi on smartphone and
turn it back on.
• Sign in the LG Smart AC App. again.
The indoor unit is
not
connecting to the
Wi-Fi.
• Isn’t the wireless
router turned off?
• Isn’t the internet
cable unplugged
from the wireless
router?
• Isn’t the wireless
router placed
distantly?
• Turn the wireless router on.
• Plug in the internet cable to the wireless
router.
• Install the wireless router near by the air
conditioner.

Due to our policy of continuous product innovation, some specifications may change without notification.
“LG” is a registered trademark of LG Corp.
18
LG Smart AC
Main Function Function Details Remark
A device is not
registering on the
indoor unit.
• Isn’t the wireless
router turned off?
• Isn’t the internet
cable unplugged
from the wireless
router?
• Isn’t the wireless
router placed
distantly?
• Did you sign up for
the membership
first?
• Turn the wireless router on.
• Plug in the internet cable to the wireless
router.
• Install the wireless router near by the air
conditioner.
• Sign up for the LG Smart AC App.
It is connected to
the Wi-Fi but not
operating.
• Is Wi-Fi indicator light
turned on the indoor
unit?
• Did you provide the
password of the
wireless router
correctly when
registering the device?
• When the Wi-Fi connection is not stable,
it may not operate properly.
• If the password of the wireless router is
not provided correctly when registering
the device, the Wi-Fi connection may not
operate properly. Provide the password
of the wireless router correctly
Can’t delete the
registered air
conditioner.
After signing in, more
than 2 selection list
of air conditioner
displays.
• 2 or more air conditioners can be registered
in one account, and the registered air
conditioners can be deleted on the web
site. (http://us.smartthinq.com)
- After logging in the mobile app, set the
applicable guide>able to confirm on page
39 of the LG Smart AC App. guide.
Previously
registered account
and information are
disappeared.
Check whether the
product is registered
with a new account.
• When the same product is registered
again with a new account, the previous
account and information will be all
initialized.
- The new account with the registered
product becomes a master.

Due to our policy of continuous product innovation, some specifications may change without notification.
“LG” is a registered trademark of LG Corp.
19
User Manual
Main Function Function Details Remark
Can’t sign up due to
duplicate IDs.
When signed up for
LG Electronics one or
more times.
• The membership sign up is managed by
LG Electronics enterprise wide. Thus, if
you have signed up already before, log in
with your account information and
register the product. When trying to sign
up with the same ID, a message stating
that the ID is used already will pop up.
- A service change is available on the web
page with the applicable ID.
Can’t control
Currently, another
user is controlling.
Check the indicator.
• The air conditioner controlling right is
given to the smartphone(account) which
logs in first. The air conditioner cannot be
controlled by multiple users at the same
time. After the user who has the
controlling right currently logs out, the
controlling is available to other accounts.
Network connection
is not smooth. Check
the indicator.
• Check the Wi-Fi connection status of the
smartphone.
Others The App. shut down
suddenly.
• The app may shut down once in a while
according to the memory maintenance of
the smartphone.
