Life Span C7000i User manual

Interactive Upright Cycle
Owners Manual
C7000i
v. 3.0
Made for
iPad (4th generation), iPad mini, iPad (3rd generation), iPad 2
iPhone 5, iPhone 4S, iPhone 4

Welcome to LifeSpan
PCE Health and Fitness
PO Box 981316
Park City, Utah 84098-1316
Phone: [phone] x4
Fax: [phone]
www.lifespanfitness.com
Neither PCE Health and Fitness nor its representatives can accept responsibility for any
damages or injury incurred as a result of information presented in this manual except under
the terms of the product warranty.
C7000i
Interactive Upright Cycle
Performance and durability are at the heart of each Pro series model, which include commercial
warranties that cover institutional use up to nine hours per day.
We start with a heavy gauge robotically welded steel frame, then add top of the line components like a
heavy-duty single piece crank, quality sealed bearings, and a commercial-grade brake system. The
results are bikes that deliver a smooth and consistent workout for every user that will last for years to
come.
To make the Pro series easy to use, we include our Intelli-KeyTM system that simply and easily steps the
user through the program set-up process. For motivation, we include a variety of pre-set programs,
including heart rate control programs. This gives your customers the programming variety they
appreciate.
Please read this manual thoroughly before assembly and operation of your LifeSpan Pro Series exercise
bike. It includes assembly and maintenance information, as well as a detailed operation guide.
To keep your exercise bike in optimal condition, please pay attention to the maintenance and cleaning
service technician. If service is required, please contact your authorized PCE Health and Fitness dealer. If
a question or problem arises that cannot be answered by your dealer, contact us:
3

Welcome
Limited Warranty
Important Safety Precautions

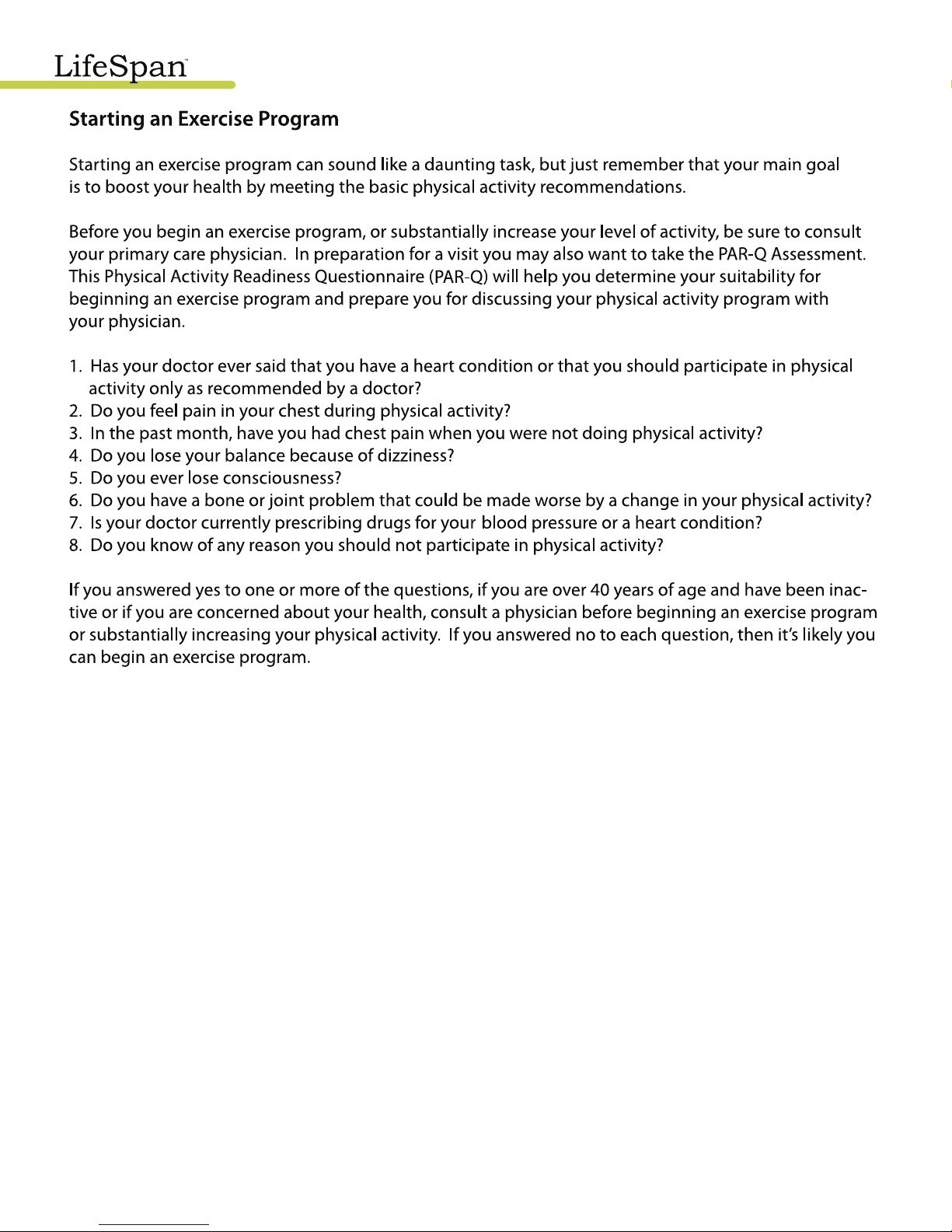

Starting an Exercise Program
Assembly Instructions
Display Console Overview
Operating Your Bike
Reading Your Heart Rate and Special Features
Program Overview
Leveling and Moving
Seat Adjustments
Engineering Mode, Troubleshooting
and Maintenance
Serial Number Information
3
5
6
7
8
9
18
20
23
24
30
31
32
36
Custom User Set Up Programs
21

Residential Commercial (9 hr/day)
and complete the form to request assistance,
or call 877-654-3837 x4 for a customer support agent.
The customer may be responsible to pay for the Service Technician’s travel time where travel in excess of
20 miles is required.
,
card received by
received registration
The LifeSpan C7000i Interactive Upright Cycle comes with the following warranty:
Lifetime
5 Years
2 Years
5 Years
2 Years
1 Year
as outline above
5
C7000i
Interactive Upright Cycle
Limited Commercial Use Warranty

Program Name, Date and Time,
Workout Time, Calories, RPM,
Distance, Heart Rate, Speed,
Resistance Level (Workload), Watts
Multi-Color LCD
Manual, Preset (17), User Set-up (2),
Heart Rate Control (2)
16 Rows by 20 Columns
16 Levels
4 Program Group Buttons for
Heart Rate Control, Healthy
Living, Sports Training, and
Weight Loss
Bluetooth
USB Charging Port Yes
2 USB ports automatically save your
exercise data and charge your
wireless mobile device
Hand-Grip Pulse and wireless Reciever
(chest strap is not included)
C7000i
Molded, contoured seat
Hybrid Self Generating
Self balancing
400 lbs
43” x 28” x 56”
Rear Mounted
Residential
Lifetime
5 Years
2 Years
Commercial
5 Years
2 Years
1 Year
Seat
Seat Adjustment
Resistance System
Pedals
Height - 19 positions
6
(Up to 9 hrs/day)

bike .
Important Safety Precautions
WARNING: READ ALL WARNING LABELS ON EQUIPMENT AS WELL AS THIS MANUAL PRIOR TO USE.
WARNING: Do not lean on or use the console as a handlebar. Do not use the console to pick up
or move the product.
Only trained personnel should service this equipment.
Do not place liquids on the unit except where there is a bottle holder or accessory tray.
C7000i
Interactive Upright Cycle

8

Item# Description
1 Main Frame
2
3
4
5
6
7
8
9
10
11
9
Front Support
Seat Post
Seat
Lower Console Mast Cover
Console Mast
Handlebar Assembly
Console
Storage Tray
Right Pedal
Left Pedal
9
Since your upright bike is a heavy piece of equipment it is recommended you use two people during
assembly and follow these assembly instructions to reduce any problems that could occur.
4
5
11
3
2
8
10
7
1
6
C7000i
Interactive Upright Cycle

Hardware
Located in hardware bag
M8*16L Bolt M8 Washer
8pcs 8pcs
#15 #16
M4*10L Screw
#8*5/8”L Screw
4pcs 2pcs
#21 #22
M8*55L Countersink Bolt
2pcs
#19
M8*35L Countersink Bolt
2pcs
#20
10
Pre-installed hardware
Hardware will need to be removed and re-installed during the installation process

A. Pull the seat post adjustment knob (M) and
Step 2: Seat Post Assembly
insert the seat post (3) into seat post
tube (L). The holes in the seat post should
be pointing toward the rear of the bike.
B. When the desired height is reached, release
the seat post adjustment knob (M) to allow
the locking pin to engage.
A. Place the seat (4) over the seat mount post (N).
Step 3: Seat Assembly
B. A
is centered with the upper console mast
bracket (C) and
lign the seat (4) so the front of the seat is
C. S
on each side of the seat mounting bracket (O)
under the seat (4).
ecurely tighten the pre-installed nut (23)
11
M
3
L
4
23
N
O
Note: In order to complete Step 4 and 5,
the seat post needs to be set to the highest
level. Adjust the seat post so the locking pin
clicks into the bottom hole.
Step 1: Remove Components from Box
B. Locate the hardware bag.
C7000i
Interactive Upright Cycle
C

C. Align the front support assembly (2) with the front main frame bracket (B).
Step 4: Front Support Assembly
D. Install two M8 bolts (15) and washers (16) through the top holes of the front main frame
bracket (B) and into the front support assembly (2).
Do not tighten bolts yet
2
E. Install two M8 bolts (15) and washers (16) through the middle holes of the front main
frame bracket (B) and into the front support assembly (2).
Do not tighten bolts yet
F. Install two M8 bolts (15) and washers (16) through the bottom holes of the front main
frame bracket (B) and into the front support assembly (2).
Do not tighten bolts yet
G.
two M8 top bolts and two M8 bottom bolts.
15
M8 (15)
16
16
15
B
15
16
A. Adjust the seat post so it is at the highest setting.
B. Tilt the bike back until it is resting on the seat and the rear support assembly (as shown below.)
12

B. Align the console mast (6) with the upper (C) and lower (D) console mast brackets.
Step 5: Console Upright Assembly
C. Connect the wire connector (E) coming from the console mast (6) to the wire
connector (F) coming from the lower main frame bracket (D) together and push the
excess wire up inside the console mast tube (6).
E. Place the bottom of the console mast (6) over the lower bracket (D) and into the
lower mast cover (5).
F. Install the two long M8 bolts (19) through the console mast (6) and into the upper console
mast bracket (C). Do not tighten the bolts yet.
G.
H.
Install the two shorter M8 bolts (15) and washers (16) through the lower console mast
cover (5) and console mast (6), into the lower console mast bracket (D).
Do not tighten the bolts yet.
6
5
1
5
6
19
C
D
15
F
E
19 15
13
the
G
16
main frame covers (G).
C7000i
Interactive Upright Cycle
A. Make sure the lower console mast cover (5) is installed on the cosole mast (6)
prior to making wire connections in step B.
D. 5

B. Align the handlebar assembly (7) with the handlebar bracket (H) on the console mast (6).
Step 6: Handlebar Assembly
C. Feed the wire harness connector from the top of the console mast (6) through the square
hole in the middle of the handlebar assembly (7). There should be three wire connectors
coming out the top of the handbar assembly.
D. Place the handlebar assembly (7) into the handlebar bracket (H) and align with bolt holes.
Be sure to pull any slack wiring through the handlebar assembly so the wire harness
does not get pinched.
E. Install two M8 bolts (20) through the handlebar assembly (7) into the handlebar bracket (H).
6
F. Securely tighten bolts.
H
20
14
A. Place bike upright on all four feet.
7

A. Align the console (8) with the console
mounting bracket (H). Connect the
two 2-pin connectors (J) coming from
the console to the two 2-pin
connectors (I) coming from the
handlebar assembly (7). Push any
excess wire into the opening in the
back of the console (8).
Note: It does not matter which
connectors plug into each other as
long as both connectors are
plugged in.
Step 7: Console Assembly
C. Place the console (8) onto the console
mounting bracket (H).
D. Install four M4 screws (21) through the
console mounting bracket (H)and into
the console (8). Once all four screws
are installed securely tighten them.
21
15
B. Connect the remaining 7-pin
connector from the console to the
7-pin connector from the handlebar
assembly (7).
Note: Tuck any excess wire into the
back of the console (8) and or into
the opening in the handlebar assembly (7).
C7000i
Interactive Upright Cycle
J
I
H
8
7

A. Identify which pedal goes on the right side and
which goes on the left side by locating the “R”
on the bolt of the right pedal (10) and the “L”on
the bolt of the left pedal (11).
Step 8: Right and Left Pedal Assembly
B. Hand tighten the right pedal into the right crank
arm (R) by turning clockwise.
C. Hand tighten the left pedal into the left
crank arm (Q)by turning counter clockwise. Be
careful not to cross thread the threads.
D. T
15mm wrench.
ighten both pedals with a
10
16
R
Q
11

A. Align the storage tray (9) with the holes in the console mast (6).
Step 9: Storage Tray Assembly
B. Install two #8 screws (22) through the storage tray (9) and into the console mast (6)
and securely tighten.
9
17
C7000i
Interactive Upright Cycle
Step 10: Setting Date and Time
program group
The screen will change to update Calender. Press ENTER
22
6
ENTER
ENTER

The C7000i comes with our innovative
Intelli-Key feature that will prompt you
through console operations by using
intelligent lights on the buttons that
pressed to continue operations.
Press the START button to begin a
Manual workout without having to set any
individual information. When the program
begins your workout time will start counting up
from 00:00 and you can manually adjust the
resistance using the UP and DOWN arrows.
If you need to temporarily stop your workout, press the
PAUSE button to PAUSE. To RESTART the workout, press the START
but
Note: Because this is a self-generator type bike, if it is not being pedaled, the console will shut
ton. After 1 minute of no activity the c
To RESET the console, press and hold the PAUSE button for 3 seconds.
The ENTER button is used to Select each piece of information needed during program setup,
including Program, Workout Level, Workout Time, and Your Weight. If you do not enter a
Weight, the system will use a default weight of 150lbs.
These buttons are used to modify the value of each selection entered during the setup
process and to change the workout resistance during use.
The C7000i has Program Group buttons. These are designed to help
you add variety to your exercise program while staying consistent with your exercise goals. To
buttons. These 4 buttons group the programs into Heart Rate Training, Healthy Living, Sports
Training, and Weight Loss. Depending on which button you select, there
are multiple programs in each. To look at the next program within each group just press the
Program Group button again to scroll to the next option.
Quickstart:
Pause:
Reset:
Enter:
Arrows:
Program Buttons:
18

19
Alpha Numeric Window: The C7000i comes with a 16 character alpha window that is used to show the
program name and set user functions like date and time.
Workout Feedback: The C7000i display window will simultaneously display the following workout
information:
The speed you are traveling in Miles Per Hour (this reading can be changed
to Kilometers by using the Engineering Mode.)
Estimated calories burned since the beginning of the workout
Number of Pedal Revolutions per minute
Your measured heart rate using the hand pulse sensors located on the handlebars
Total distance traveled in miles or kilometers since the beginning of the workout
T
Exercise workload using this common unit of measure
he workout time elapsed or the workout time remaining
Speed:
Calories:
RPM:
Pulse:
Distance:
T
Watts:
ime:
Misc. Information Display: The C7000i will also show the following information. This information will
be used as part of the USB feature to save your workout information on the date and time of your
workout.
The date is presented as the year / month / day below the program matrix.
The time of day is shown in the bottom center window when the console is not
in use.
Date:
Time:
Name/Sex/Height/Weight/Age: Used with your Interactive Health Partner Account,
read your name, sex, height, weight and age. Your
name will appear in the alpha display until a program
is selected. Your sex, height, weight and age will be
automatically used as necessary with selected programs.
(Continued)
C7000i
Interactive Upright Cycle

20
C7000i has
manual
your
console
C7000i bike.
You can also purchase a chest strap for a wireless heart rate readout.
