Life Span SP-880 User manual

NOTE: This manual may be subject to updates or changes. Up to date manuals are available through our website
Product may vary slightly from the item pictured due to model upgrades
Read all instructions carefully before using this product. Retain this owner’s manual for
future reference.
SP-880 OWNER’S MANUAL

2
SP-880
TABLE OF CONTENTS
1. IMPORTANT SAFETY INSTRUCTIONS 3
2. EXPLODED DIAGRAM 5
3. PARTS LIST 6
4. ASSEMBLY INSTRUCTION 8

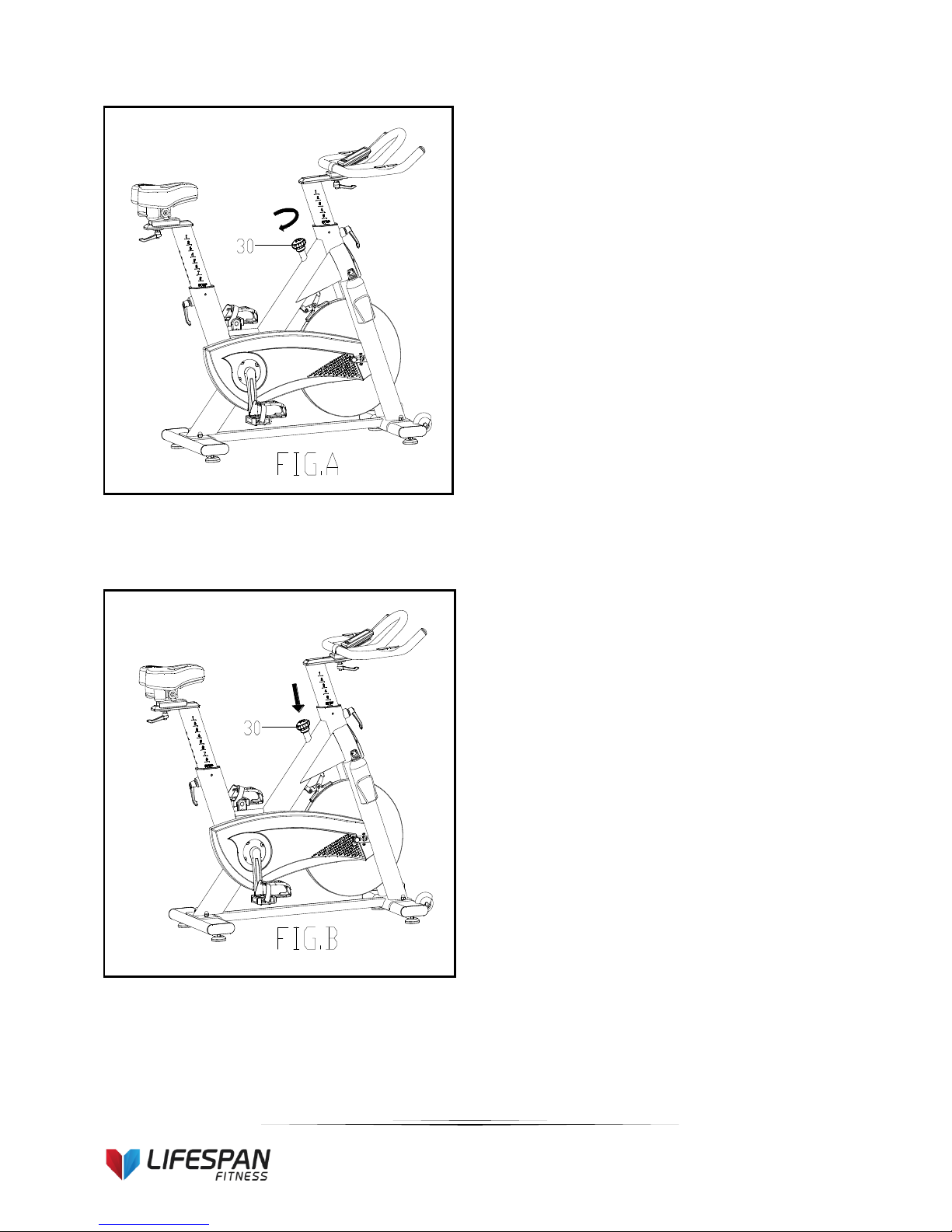

5. ADJUSTMENT INSTRUCTIONS 12
6. COMPUTER OPERATION 13
7. EXERCISE GUIDE 16
8. WARRANTY 18

3
SP-880
1. IMPORTANT SAFETY INSTRUCTIONS
WARNING - Read all instructions before using this machine.
It is important your machine receives regular maintenance to prolong its useful life. Failing to
regularly maintain your machine may void your warranty.
Please keep this manual with you at all times
a. It is important to read this entire manual before assembling and using the equipment. Safe and
effective use can only be achieved if the equipment is assembled, maintained and used properly.
Please note: It is your responsibility to ensure that all users of the equipment are informed of all
warnings and precautions.
b. Before starting any exercise program you should consult your doctor to determine if you have any
medical or physical conditions that could put your health and safety at risk, or prevent you from
using the equipment properly. Your doctor’s advice is essential if you are taking medication that
affects your heart rate, blood pressure or cholesterol level.
c. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular
heartbeat, and extreme shortness of breath, lightheadedness, dizziness or feelings of nausea. If
you do experience any of these symptoms, you should consult your doctor before continuing with
your exercise program.
d. Keep children and pets away from the equipment. This equipment is designed for adult use only.
e. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To
ensure safety, the equipment should have at least 0.5 meters of free space all around it.

4
SP-880
f. Before using the equipment, check that the nuts and bolts are securely tightened. If you hear any
unusual noises coming from the equipment during use and assemble, stop immediately. Do not
use the equipment until the problem has been rectified.
g. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may get
caught in the equipment or that may restrict or prevent movement.
h. This equipment is designed for indoor and family use only.
i. Care must be taken when lifting or moving the equipment so as not to injure your back.
j. Always keep this instruction manual and assembly tools at hand for quick reference.
k. The equipment is not suitable for therapeutic use.

5
SP-880
2. EXPLODED DIAGRAM

6
SP-880
3. PARTS LIST
NO NAME QUANTITY SPEC
1L PEDAL L 1 JD-304V（9/16"）L
1R PEDAL R 1 JD-304V（9/16"）R
2 END CAP3 4 120*40*35
3 BOLT 1 4 GB/T 12-1988 M10*55
4 REAR STABILIZER 1 WELDING
5 FLAT WASHER 4
GB/T 95-2002 10
6NUT 4 GB/T 802-1988 M10
7NUT 4
GB/T 41-2000 M8
8 BOLT 2 2 GB/T 5780-2000 M8*40
9 BEARING 4 608ZZ
10 VERTICAL SEAT POST 1 WELDING
11 BOLT 8 1 GB/T77-2007 M6*6
12 SEAT POST 1 WELDING
13 SEAT 1 DD-004
14 STOPPER 4 φ60*36/(M8X25)
15 FRONT STABILIZER 1 WELDING
16 MAIN FRAME 1 WELDING
17 HANDLEBAR POST 1 WELDING
18 HANDLE BAR 1 WELDING
19 L SHAPE KNOB 1 M10*25
20 FLAT WASHER 1 1 φ45*φ10.5*4
21 PLASTIC SLEEVE PCS 80*40
22 BOLT 3 4 GB/T 70.1-2000 M6*20
23 WASHER 4 GB/T 859-1987 6
24 FLAT WASHER 3
GB/T 95-2002 12
25 SCREW 5 2
GB/845-85 ST4.8X19
26 END CAP1 2 80*40*1.5
27 BOLT 1 4 GB/T 70.2-2000 M8*15
28 NUT 2 M12X1.25 H=8MM
29 CRANK END CAP 2 φ28*6.5
30 KNOB 1 φ60*86
31 NUT 7 GB/T 889.1-2000 M8
32 Twist The Fixings 1 φ20*34
33 LEFT CRANK 1 170*15
34 CRANK COVER 1 φ56*28
35 BEARING 2 6004ZZ
36 RIGHT CRANK 1 170*15
37 ADJUSTING METAL 1 φ1.5
38 NUT 2 M12X1.25

7
SP-880
NO NAME QUANTITY SPEC
39 FIXING BOLT 2 M6*54
40 NUT 2 GB/T 889.1-2000 M6
41 BOLT 6 10 GB/T 845-1985 ST4.2*19
42 L SHAPE KNOB 2 M16X30
43 SCREW 3 7
GB/845-85 ST4.8X13
44 OUTER CHAIN COVER 1 714*301*60
45 LITTLE CHAIN COVER 1 108*37*3 (7g)
46 AXIS 1 φ20*162
47 LONG FIXING TUBE 1 φ25*φ20.5*41
48 SHORT FIXING TUBE 1 φ25*φ20.5*9
49 INNER CHAIN COVER 1 454*288*6
50 BELT 1 5PK53
51 BELT WHEEL 1 φ200*24
52 FIXING NUT 1 16X16X5 (M10）
53 CLAMP SLEEVE 2 1 φ14*15
54 BRAKE PLATE 1 δ5
55 BOLT 7 1 GB/T 2672-2000 M6*30
56 PU WHEEL 2 φ69*23
57 NUT 2 M12X1.25 H=6
58 FRONT COVER 1 143*118*54
59 FIXING TUBE 1 φ16*φ12.1*35
60 BEARING 2 6001ZZ
61 FLYWHEEL 1 φ453*20(25KG)
62 FLYWHEEL SHAFT 1 φ12*160
63 FLAT WASHER 1
GB/T 95-2002 6
64 BOLT 2 1 GB/T 70.1-2000 M6*25
65 THE MOVABLE ROD 1 φ12.5*25
66 FIXING NUT 2 27*M20*1（5mm）
67 CLAMP SLEEVE 1 φ10*5.5
68 drawbar 1 φ12*132
69 WOOLLY BLOCK 1 112*22.5*10
70 BLOCK 1 115*39*25
71 SPRING 1 φ14*24
72 COMPUTER 1 JY-81477
73 BOLT 3 4 GB/T 5780-2000 M5*10
74 B0TTLE HOLDER 1 φ6
75 B0TTLE 1 φ73*215
76 PULSE 2 LT13
77 SCREW 5 2
GB/845-85 ST4.2X25
78 SENSOR 1 SR-202

8
SP-880
4. ASSEMBLY INSTRUCTIONS
STEP 1: PREPARATION
A. Before assembling make sure that you will have enough space around the item.
B. Use the present tooling for assembling.
C. Before assembling please check whether all needed parts are available (at the above of this
instruction sheet you will find an explosion drawing with all single parts (marked with numbers) which
this item consists of.

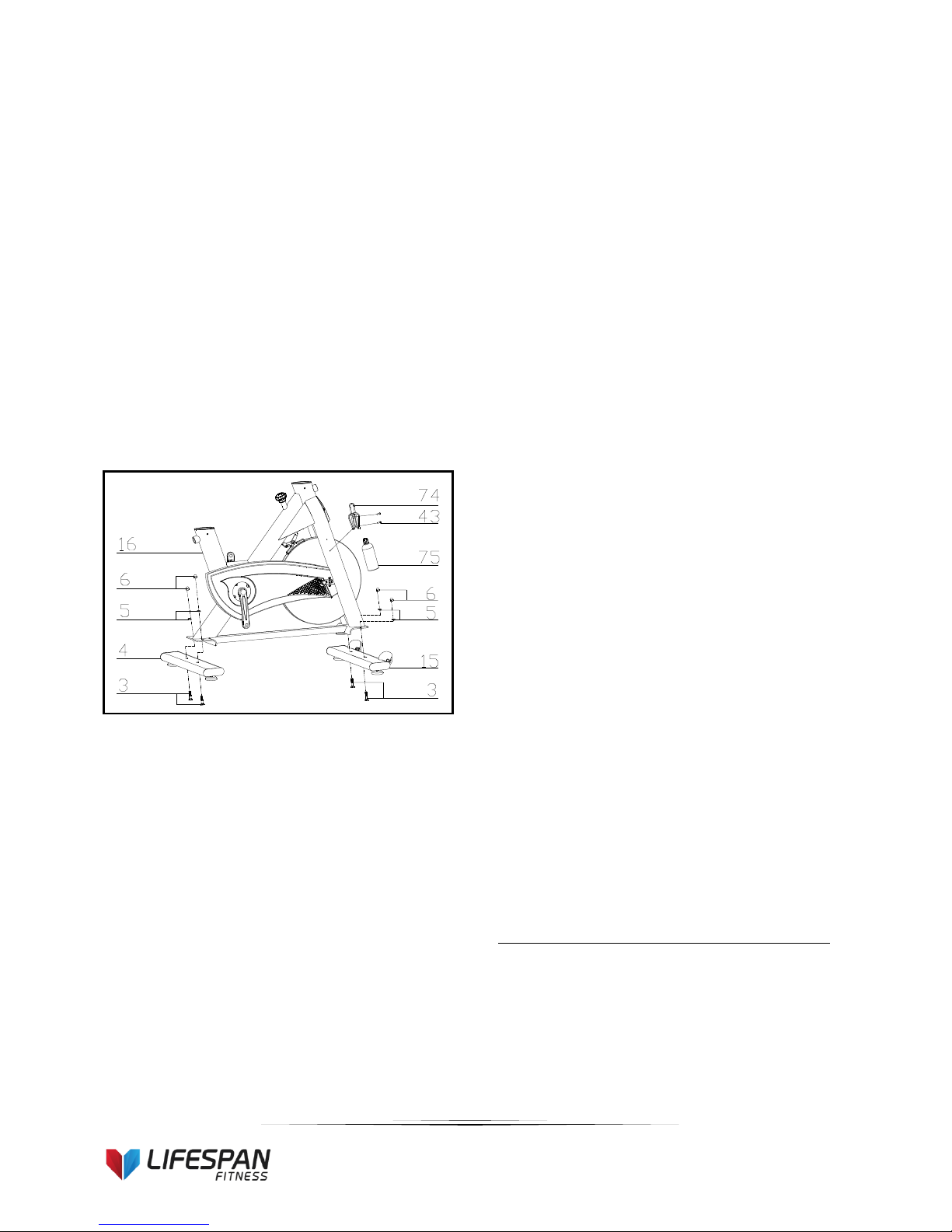

STEP 2:
1. Attach the Front Stabilizer (pt.15) to the
Main Frame (pt.16) using two sets of Ø8
Flat Washers (pt.5), M10 Domed Nut
(pt.6) and M10*55 Carriage bolt (3).
2. Attach the Rear Stabilizer (pt.4) to the
Main Frame (pt.16) using two sets of Ø10
Flat Washers (pt.5), M10 Domed Nut
(pt.6) and M10*55 Carriage bolt (3).
3. Secure the bottle holder (pt.74) to the
main frame (pt.16) with the screw (pt.43).
4. Slide the bottle (pt.75) into the bottle
holder (pt.74)

9
SP-880
STEP 3:
1. Slide the Vertical Seat Post (pt.10) into
the seat post housing on the main frame
(pt.16).
2. Slide the Seat Post (pt.12) into the
Vertical Seat Post (pt.10),then Secure
using a flat washer 1 (20) and L Shape
knob (19).You will have to slacken the
knurled section of the L Shape Knob
(pt.42) and pull the knob back to select
the desired height. Release the knob and
retighten the knurled portion.
3. Secure the Seat (pt.13) to the Seat Post
(pt.12) as shown, and tighten the bolts
around the screws under the seat.

10
SP-880

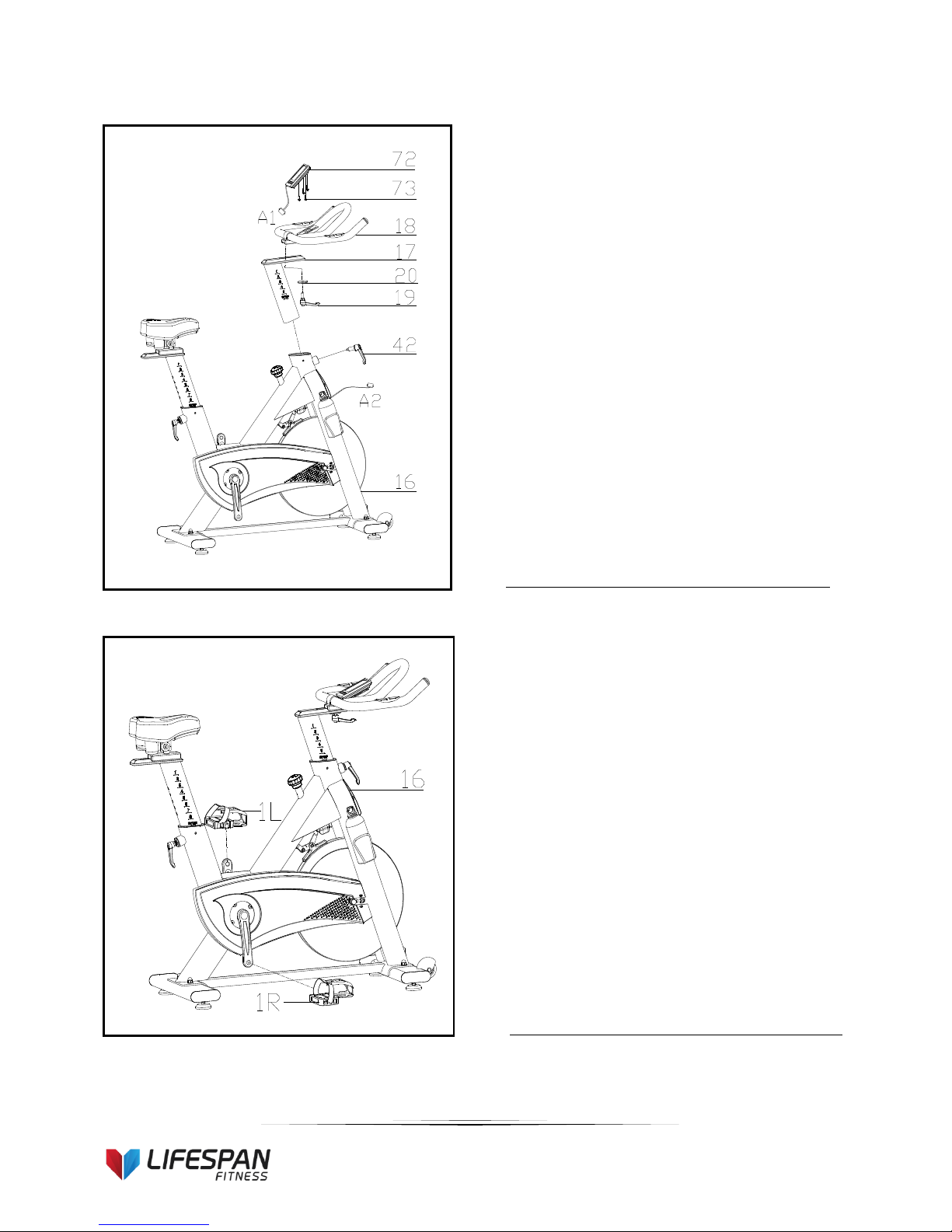

STEP 4:
STEP 5:
1. Slide the Handlebar Post (pt.17) into the
handlebar post housing on the main
frame (pt.16).
2. Follow the same procedure as in (STEP
3, 2) to secure the Handlebar (pt.18) with
a flat washer 1 (20) and L Shape knob
(19).
ATTENTION: ENSURE THE HANDLEBAR IS
SECURED TIGHTLY
3. Attach the Computer (pt.72) onto the
Computer Holder with bolt (pt.73). Then
connect the plug (A1&A2)
1. The Pedals (pt.1 L & pt.1 R) are marked
"L" and "R" - Left and Right. Secure them
to their appropriate crank arms. The right
crank arm is on the right- hand side of the
cycle as you sit on it.
Note that the Right pedal should be threaded on
clockwise and the Left pedal anticlockwise.
