Life Span TR7000i User manual

TR7000i/TR8000i
Treadmill
Owner’s Manual
For safe use and product knowledge, please
completely read this product OWNER’S MANUAL
iPhone 5S, iPhone 5C, iPhone 5, iPhone 4S, iPhone 4, iPad Air, iPad mini with retina
display, iPad (4th generation, iPad mini, iPad (3rd generation), iPad 2
Made for

“Made for iPhone” and “Made for iPad” mean that an electronic accessory has been designed to
connect specically to iPhone and iPad respectively, and has been certied by the developer to
meet Apple performance standards. Apple is not responsible for the operation of this device or its
compliance with safety and regulatory standards. Please note that the use of this accessory with
iPhone and iPad may aect wireless performance.
iPad and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries.
TREADMILL MODEL NUMBER - TR7000i/TR8000i
Made in Taiwan

1
TR7000i/TR8000i
Treadmill
Welcome to LifeSpan,
Congratulations on choosing the LifeSpan Pro Series for your tness or exercise area. Performance and durability are at
the heart of each Pro Series model, which include commercial warranties that cover institutional use up to nine hours per
day.
We start with a heavy gauge robotically welded steel frame, then add top-of-the-line components like a heavy-duty motor
and heavy duty deck. e results are treadmills that deliver a smooth and consistent workout for every user that will last
for years to come.
To make the Pro Series easy to use, we include our Intelli-KeyTM system that simply and easily steps the user through the
program set-up process. For motivation, we include a variety of pre-set programs, including heart rate control programs.
is gives your customers the programming variety they appreciate.
Please read this manual thoroughly before assembly and operation of your LifeSpan Pro Series treadmill. It includes
assembly and maintenance information, as well as a detailed operation guide.
To keep your treadmill in optimal condition, please pay attention to the maintenance and cleaning section of this manual.
Remember that some kinds of service should only be performed by a qualied service technician. If service is required,
please contact your authorized LifeSpan dealer. If a question or problem arises that cannot be answered by your dealer,
contact us:
U.S. and Canada:
P.O. Box 981316
Park City, Utah 84098-1316
Phone: [phone]
Fax: [phone]
www.lifespantness.com
International:
Contact your local distributor
or visit: www.lifespantness.com
Neither LifeSpan nor its representatives can accept responsibility for any damages or injury incurred as a
result of information presented in this manual except under the terms of the product warranty.

TR7000i/TR8000i
Treadmill
3
Welcome
Specications
Warranty Information
Important Safety Precautions
Grounding and Power Requirements
Assembly Instructions
Display Console Overview
Reading Your Heart Rate
Operating Your Treadmill
Innovative Features
Cleaning and Maintenance
Belt Tension and Alignment
Moving Your Treadmill
Troubleshooting
Engineering Mode
Test Mode
Table of Contents
1
4
6
7
9
10
20
22
23
26
27
28
29
30
31
32

4
Large 6.5” backlit LCD screen with scrolling alphanumeric messaging,
program prole, showing workout progress, and simultaneous display
of all readouts. Three additional LED displays with readouts for time,
speed, and incline
Program name, date and time, speed, incline, distance, calories, steps,
heart rate, and pace
Two heart rate control programs, and 17 programs grouped by
exercise motivation type for weight loss, healthy living, and sports
training
Yes
2 USB ports to automatically save your exercise data and charge your
wireless mobile device simultaneously
Wirelessly connect to your supported iPad or Android device for
additional console readouts and functionality.
Grip pulse and heart rate receiver
Book, magazine, and tablet computer holder
Button lighting system prompts users through program set-up and
operations
Magnetic safety clip, when detached, immediately turns o power,
bringing the treadmill to a gentle stop
Standard and metric settings
English
22”W x 62” L (56cm W x 157.5cm L)
3.5 HP Continuous Duty 220 VAC
Multi-ply polyester belt with PVC non-slip surface
1000 lbs. (453.6 kg) thrust
3.0” (7.5cm) crown rollers keep belt centered
0.5 - 12 MPH (0.8 - 20 KPH)
0 - 15
4 Variable Density Elastomers
1” (2.54cm) melamine laminated reversible deck medium-density
ber board
80.5” L x 33.25”W x 61” H (204.5cm L x 84.4cm W x 154.9cm H)
8” (20cm)
368 lbs. (167 kg)
400 lbs. (181.4 kg)
Specications (TR7000i)
Display:
Readouts:
Programs:
Quickstart:
USB Ports:
Bluetooth:
Heart Rate:
Media Holder:
Intelli-Key™:
Emergency Stop:
Units of Measure:
Language Support:
Belt Size:
Drive Motor:
Belt Type :
Incline Motor:
Rollers:
Speed:
Incline:
Deck Suspension:
Deck:
Dimensions:
Step-Up Height:
Max. User Weight:
Net Weight:
Gross Weight:

TR7000i/TR8000i
Treadmill
5
Large 6.5” backlit LCD screen with scrolling alphanumeric messaging,
program prole, showing workout progress, and simultaneous display
of all readouts. Three additional LED displays with readouts for time,
speed, and incline
Program name, date and time, speed, incline, distance, calories, avg.
heart rate, heart rate, and pace
Two heart rate control programs, reverse walking, and 17 programs
grouped by exercise motivation type for weight loss, healthy living,
and sports training
Yes
2 USB ports to automatically save your exercise data and charge your
wireless mobile device simultaneously
Wirelessly connect to your supported iPad or Android device for
additional console readouts and functionality.
Grip pulse and heart rate receiver
Book, magazine, and tablet computer holder
Button lighting system prompts users through program set-up and
operations
Magnetic safety clip, when detached, immediately turns o power,
bringing the treadmill to a gentle stop
Standard and metric settings
English
22”W x 60”L (56cm W x 152.4cm L)
5 HP Permanent Magnet AC
Multi-ply polyester belt with PVC non-slip surface
1000 lbs. (453.6 kg) thrust
3.0” (7.5cm) crown rollers keep belt centered
Forwards: 0.1 to 12 MPH / 0.2 to 20 KPH
Backwards: -0.1 to -3 MPH / -0.2 to -5KPH
3 decline - 12 incline
Independent shock absorbers
1” (2.54cm) melamine laminated reversible deck medium-density
ber board
89.7” L x 41”W x 20” H (230cm L x 105cm W x 51cm H)
9.5” (24cm)
500 lbs. (225 kg)
408 lbs. (185 kg)
454 lbs. (206 kg)
Specications (TR8000i)
Display:
Readouts:
Programs:
Quickstart:
USB Ports:
Bluetooth:
Heart Rate:
Media Holder:
Intelli-Key™:
Emergency Stop:
Units of Measure:
Language Support:
Belt Size:
Drive Motor:
Belt Type :
Incline Motor:
Rollers:
Speed:
Incline:
Deck Suspension:
Deck:
Dimensions:
Step-Up Height:
Max. User Weight:
Net Weight:
Gross Weight:

6
Warranty Information
The LifeSpan TR7000i/TR8000i Treadmill comes with the following limited warranty, valid in the US and Canada
only.
Residential Commercial
Treadmill Usage: - 6 hrs/day
Treadmill Frame: Lifetime 10 Years
Motor: Lifetime 5 Years
Parts: 5 Years 5 Years
Labor: 2 Years 1 Year
LifeSpan warrants that the equipment it manufactures is free from defects in materials and workmanship under
normal use and services. The periods above are based on the date of purchase. During these periods, LifeSpan
will repair or replace any defective part. Free labor is included on all parts that are not normally assembled or
replaced by the customer, within the labor period.
If within the time frames specied above, any part fails to operate properly, log on to our website at
www.lifespantness.com, click on Customer Support and complete the form to request assistance. Or call
877.654.3839 x4 for a Customer Support Agent.
LifeSpan reserves the right to make changes and improvements to our product without incurring any obligations
to similarly alter any product purchased. In order to insure our product warranty and to ensure the safe and
ecient operation of your LifeSpan product, only authorized parts can be used. The warranty is void if any parts
other than those provided by LifeSpan are used.
Exclusions and Limitations:
• This warranty does not apply to any defects caused by negligence, misuse, improper assembly, or
maintenance, accident, or “act of god.”
• This warranty does not apply to discoloration of paints or plastics.
• LifeSpan shall not be responsible for incidental or consequential damages.
• This warranty is nontransferable form the original owner.
Registration
You must register your LifeSpan product before a warranty claim can be processed. To complete your registration
online go to www.lifespantness.com and click on product registration or ll out the warranty card provided and
mail it today. Registration cards must be completed and sent to LifeSpan within 30 days of purchase to activate
the Product Warranty. Product Warranties are not valid unless the registration is properly completed and received
within 30 days.

TR7000i/TR8000i
Treadmill
7
Important Safety Precautions
When using exercise equipment, basic precautions should always be followed, including:
• Never drop or insert any object into any opening. If an object falls into an opening, turn the power
o and unplug the power cord from the outlet. Remove the object or call customer service.
• Never operate this treadmill if it has been damaged or even partially submersed in water.
• To reduce the risk of electric shock, unplug the treadmill from the wall outlet when not in use,
before performing any maintenance, or before moving the treadmill.
• Do not use outdoors or in areas of high humidity or extreme temperature changes.
• Do not lean against or climb on the treadmill.
• Wear shoes with high traction rubber soles. Do not wear shoes with heals, leather soles, cleats or
spikes.
• Do not operate where aerosol spray products are being used or where oxygen is being
administered.
• Never place the power cord under carpeting or place any object on top of the cord, this may pinch
or damage the cord causing re damage or personal injury.
• Use this exercise product for its intended use as described in this Owner’s Manual. Do not use
attachments that are not recommended by LifeSpan.
• Do not leave your treadmill running while not in use.
• Keep the treadmill on a solid surface, with the side rails and front a minimum of two feet (0.61m)
from any walls or furniture. Make sure that the area behind the treadmill remains completely clear
during use. A minimum of 4 feet (1.2m) of clearance is required for safety reasons.
4 feet
1.22m
2 feet
0.61m
eet
0.61m
Running
Surface
55” x 21”
138cm x 53cm
2 f

8
Children and Pets
• Keep children from playing on your treadmill at all times.
• When in use children and pets should be kept at least 10 feet (3m) away.
• This appliance can be used by children ages 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
Other Safety Tips
• Always consult a physician before beginning this or any exercise program.
• If you experience chest pains, nausea, dizziness or shortness of breath, stop exercising immediately
and consult your physician before continuing.
• Do not wear clothing or jewelry that might catch on any part of the treadmill.
• This treadmill is equipped with a safety key. Always clip the cord that is attached to the safety key to
a part of your clothing so the key will be pulled, stopping the treadmill, in case of emergency.
• Warning! Heart rate monitoring may be inaccurate. Over exercising may result in serious injury
or death. If you feel faint stop exercising immediately.
Note: Read all instructions and save for future use.
Caution:
• While walking or running always use the correct
ergonomic position.
• In case of emergency, grab on to the side hand
rails and place your feet on the side rails located
on each side of the running belt.
• Do not walk or run backwards on the treadmill,
always face forward while using the reverse
program.
• Allow the running belt to fully stop prior to
getting o the treadmill.

9
TR7000i/TR8000i
Treadmill
CORD SOCKET
SWITCH-
AC POWER
OVERLOAD
SWITCH
FIG. 1
FIG. 2
Grounding and Power Requirements
LifeSpan equipment must be grounded. Improper connection of the equipment’s grounding conductor
can result in the risk of electric shock. Check with a qualied electrician or service person if you are
in doubt as to whether the outlet is properly grounded. Do not modify the plug provided with the
product or use a ground plug adaptor to adapt to a non-grounded outlet. If the plug will not t in the
outlet, have the proper outlet installed by a qualied electrician.
An extension cord should not be used between the equipment and the wall outlet.
The unit should not be plugged into a GFI plug or on a GFI circuit. The unit may not work as it may trip
the GFI circuit.
This product should only be run on the proper power designed for this unit. To locate the proper power
outlet for your area please refer to FIG. 2 (example for the U.S. and Canada, these units require a 115 V
NEMA 5 - 15 non GFI circuit.)

10
Item# Description
1 Main Frame
2 Left Accessory Tray
3 Right
4 Left Support Post
5 Right Support Post
6 Motor Cover
7 Handlebar Assembly
8 Left Support Post Cover
9 Console Access Panel
10 Console
11 Bolts M8 x 55
12 Right Support Post Cover
Accessory Tray
3
2
5
10
9
4
11
1
8
12
6
7
11
Tools Required
Phillips Screwdriver
5 mm Allen Wrench
6 mm Allen Wrench
Optional Medical Handlebars
Assembly
At LifeSpan we strive to make our equipment easy to assemble and start using. Parts that can be preassembled
are always assembled and tested on the production line.
Prior to starting the assembly process take all of the parts out of the box, remove plastic bags and lay them out
on the oor to become familiar with the components.
Since your treadmill is a heavy piece of equipment it is recommended that you use two people during assembly
and follow these assembly instructions to reduce any problems that could occur.

11
TR7000i/TR8000i
Treadmill
Step 1: Unpacking Treadmill
A. Cut packaging straps and remove.
B. Remove the box top.
C. Remove small parts and packaging material and unwrap parts.
D. Cut corners of the bottom box and remove all packaging material to begin assembly. The treadmill can be
assembled in the box. No need to pick the treadmill up to remove it from box.
Note: All hardware, except for the handlebar attaching bolts (11), are pre-installed in the treadmill components.
Bolt (11) will be found in the hardware bag.
Step 2: Remove Motor Cover
A. Loosen (do not remove) the four screws (13) along the bottom edge of the motor cover (6).
B. Lift the motor cover straight up to remove.
6
13 13

12

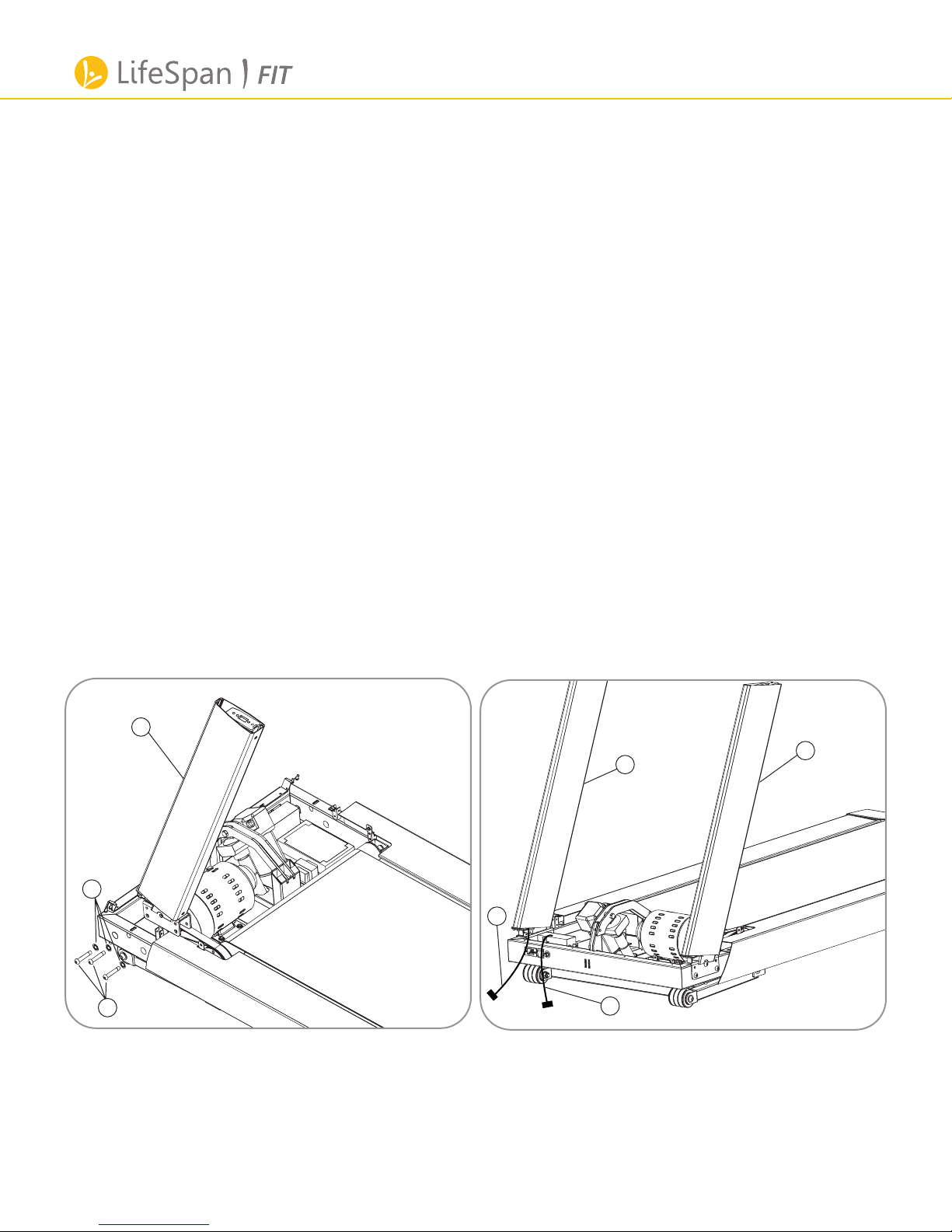

Step 3: Support Post Assembly
A. Remove the three bolts (14) and washers (15) from the bottom of the left upright (4).
B. Place the U shaped bracket on the bottom of the support post onto the main frame of the unit. Align the
three holes in the bracket with the holes in the frame. Install the three bolts (14) and washers (15) removed
in step 3-A. Do not tighten at this time.
C. Remove the three bolts (14) and washers (15) from the bottom of the right upright (5). Make sure the cable
(16) is not in the U-shaped bracket.
D. Place the U-shaped bracket on the bottom of the right support post (5) onto the main frame. Align the three
holes in the bracket with the holes in the frame. Install the three bolts (14) and washers (15) removed in step
3-C. Do not tighten at this time.
Note: Move cables 16 and 17 so they do not get pinched or damaged when installing upright.
E. Connect cable (16) coming from the bottom of the right support post to cable (17) coming from the
motor control board.
5
4
4
14
15
16
17

13
TR7000i/TR8000i
Treadmill
Step 4: Handlebar Set
A. Hold the handlebar set (7) above the upright posts (4 and 5). Feed the cable (16) from the right support post
(5) through the square hole on the right side of the handlebar set.
B. Place the handlebar set (7) onto the support post (4 and 5). Be careful not to pinch the cable (16) on the right
side.
C. Align the bolt holes in the handlebar set (7) to the holes in the upper end of the support posts (4 and 5).
D. Install the four bolts (11) from the hardware bag. Do not tighten the bolts until all four bolts have been
installed.
E. Tighten the three bolts (14) on the bottom of each support post installed in steps 3-B and 3-D.
F. Connect the cable (16) from the support post to the cable (18) inside of the handlebar set.
7
5
4
16
16
18
11
11

14
Step 5: Attach Console Set
A. Remove the two screws (23) from the access panel (9) and four screws (22) from the back of the console (10).
B. Place the console (10) face down on the handlebar set so the bottom of the console is just in front of the
wires coming from the console mount area.
C. Connect the 6-pin and 9-pin ribbon cables.
Note: Plug the ribbon cables together so that the gold lines in the ribbon are matching.
D. Connect the 7-pin connectors and the three remaining 2-pin connectors from the console to the
connectors coming from the console mount area.
Note: One of the 2-pin connector sets is dierent so match this set. For the other 2-pin connectors it
does not matter which 2 get plugged together.
E. Lift the console up and carefully push the excess wire into the handlebar assembly.
F. Place the console set onto the mounting bracket. Make sure none of the wires will be pinched when the
console is attached.
G. Align the screw holes on the back of the console with the holes on the mounting bracket and install the
four screws (22) removed in step 5-A.
10
7
10
7
22
9
23

15
TR7000i/TR8000i
Treadmill
Step 5: (Continued)
H. Attach the access panel (9) using the two
screws (23) removed in step 5-A.
Step 6: Attach Accessory Trays
A. Remove the screw (25) from the bottom of each accessory tray (2 and 3).
B. Before installing the right tray (3) make sure the cable inside of the handlebar set is pushed to the front of
the assembly so it will not be pinched when installing the tray.
C. Place the accessory trays (2 and 3) into place and install the screws (25) removed in step 6-A into the
bottom of the bottle holder.
3
25
25
2
9
23

16
Step 7: Medical Handlebar (optional)
(If not attaching the medical handlebars skip to step 8)
1. Un-package the Handlebars
A. Open carton, remove and un-package all components.
B. Check to be sure all components are present. The carton contains 1 left handlebar, 1 right handlebar and
a hardware kit.
The hardware kit includes:
1 - Left Handlebar End Cap
1 - Right Handlebar End Cap
4 - M6*15 Allen Bolts
8 - M8*20 Allen Bolts
8 - M8 Lock Washers
8 - M8 Flat Washers
2. Remove the Original Handlebar end caps (2) from the Pro Series Treadmill
A. Remove the two screws (1), located under the handlebar, holding the end cap on.
B. Use a small screw driver to remove the end caps (2).
3. The treadmill will need to be raised in the back or laid on its side in order to attach the medical handlebars. If
raising the back end up, it is good to have the back end at least one foot o the ground
Note: The assembly instructions are written as if the treadmill is raised in the back.
1
2

17
TR7000i/TR8000i
Treadmill

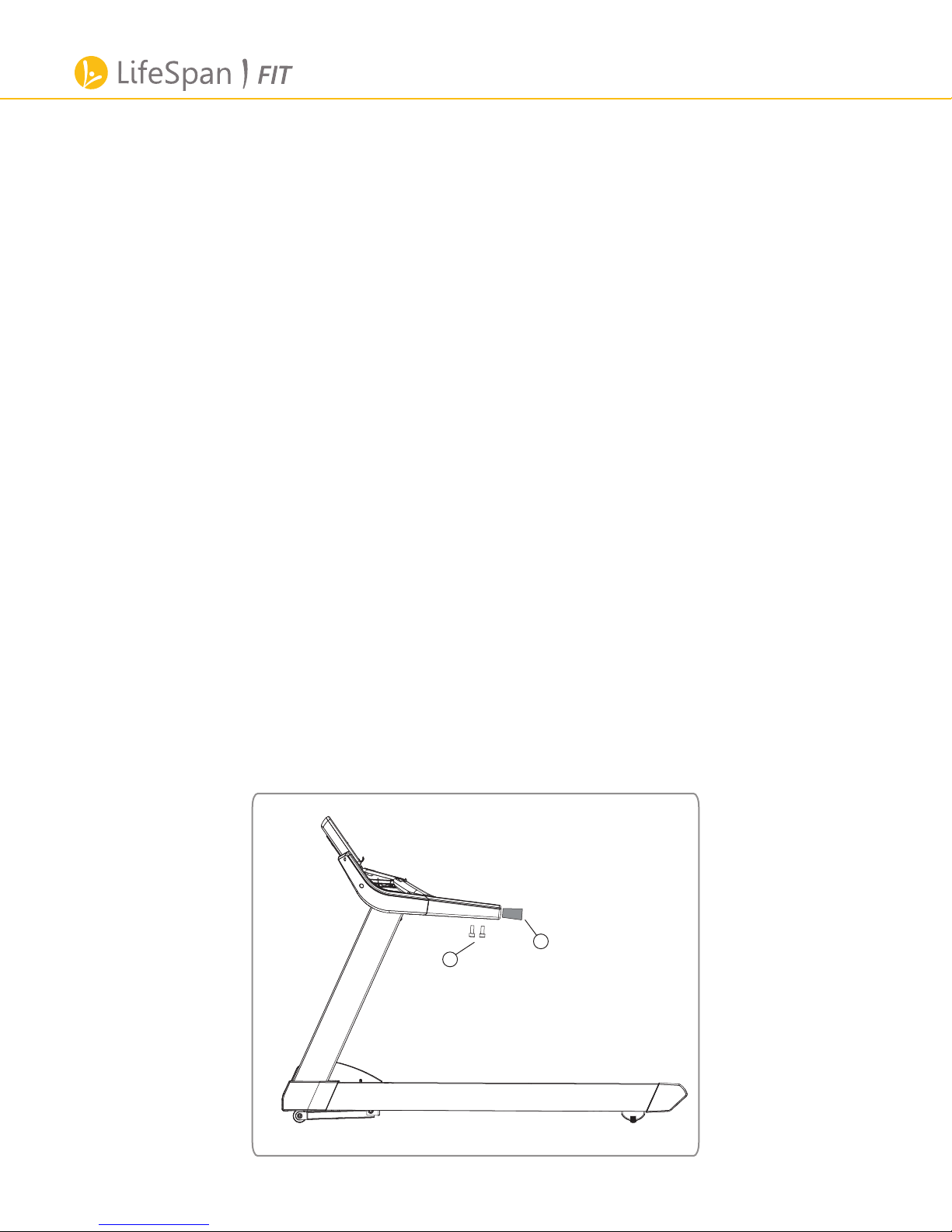

4. Install the Left and Right Handlebars
A. Slide the new left handlebar end cap (3) onto the left
handlebar (4) and the right end cap (5) onto the right
handlebar (6). (FIG. 1)
Note: The new left and right handlebar end caps are included in
the hardware pack. The screw threads in the end cap when installed
on the handlebars should be facing down. If not, the wrong end
cap is on the wrong handlebar.
B. Slide the bottom of the left handlebar (4) up under
the treadmill lower frame and slide the top of the
medical handlebar into the treadmill handlebar
frame. (FIG. 2)
C. Line the holes up in the treadmill handlebar frame
with the threads in the new end caps and loosely
install the two new M6*15 Allen head screws (7).
(FIG 2)
D. Align the holes in the medical handlebar frame with the
threaded holes in the treadmill base frame and loosely
install the two M8*20 bolts (8), two M8 lock washers (9)
and two M8 washers (10). (FIG. 2)
E. Install the two inside frame M8*20 bolts (8),two M8 locks
washers (9) and two M8 washers (10). (FIG. 3)
F. Repeat steps B-E for the right handlebar (6).
G. Tighten all hardware.
6
5
4
3
8
7
910
88
9
10
10
9
Figure 1
Figure 2
Figure 3

18
Step 8: Attach Lower Covers
A. Remove the screw (24a) from each of the right (12) and left (8) support post covers.
B. Remove screw (24b) from the inside of the motor compartment on both sides.
C. Loosen the four screws (26) on the bottom of the frame. Two on each side.
D. Slide the right upright cover (12) into place. Install the screw (24b) on the inside of the motor compartment
that was removed in step 8-B. Install screw (24a) that was removed in step 8-A.
E. Tighten the two screws (26) on the bottom of the frame from step 8-C.
F. Repeat steps 8-D and 8-E for left upright cover (8).
G. Once the two upright covers are installed, reinstall the motor cover that was removed in step 2 by placing
the motor cover (6) so the four screws (27) slide into the cutouts in the cover. Then tighten the screws.
Note: To tighten the four screws (26) on the bottom of the frame, it may be easier to start the treadmill
and raise the incline. This will give more space to get to the screws.
26
24a
24b
8
12
627
27
27
27

19
TR7000i/TR8000i
Treadmill
Step 9: Roll the treadmill out of the box
Carefully lift the treadmill up from the back and roll it out of the box.
Step 10: Plug the power cord in and turn the treadmill on
Step 11: Set date and time
To set the date and time of day on your console follow these steps:
1. Disengage and re-engage red Emergency stop safety key.
2. Press the STOP buttons for 3 seconds to initiate the date and time set up mode, press ENTER.
3. Press the UP / DOWN buttons to set the correct YEAR, press ENTER.
4. Press the UP / DOWN buttons to select the correct MONTH, press ENTER.
5. Press the UP / DOWN buttons to select the correct DAY, press ENTER.
6. Press the UP / DOWN buttons to set the HOUR, press ENTER.
7. Press the UP / DOWN buttons to set the MINUTES, press ENTER.

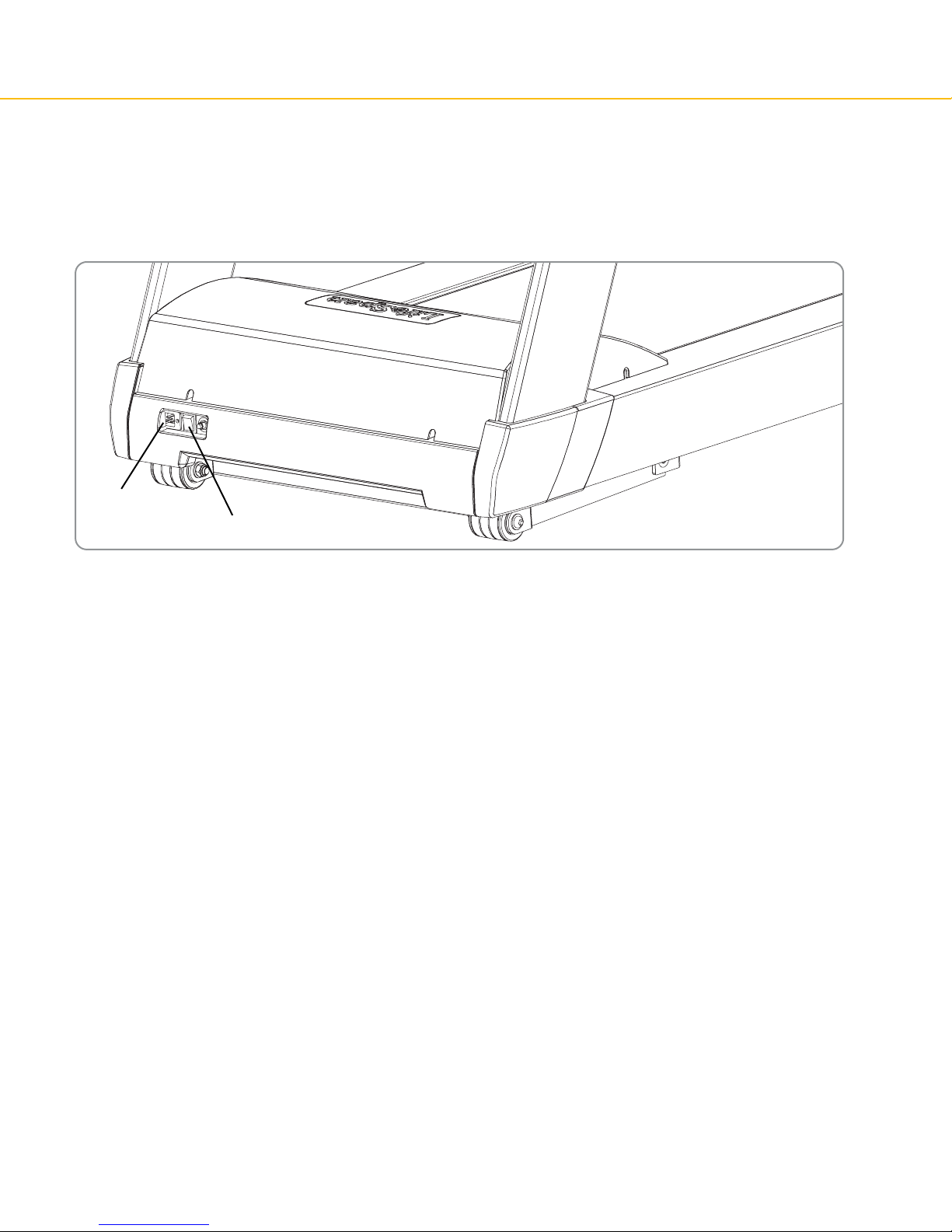

Power
Socket Power Switch
