LIFEPLUS ST02-P0-B0 User manual
ST02-P0-B0
E-mail: service@lifepluspro.com
Things To Be Best With Lifeplus
SODA MAKER
PRODUCT GUIDE
Thank you for choosing our soda maker.This user manual will provide you with
valuable information necessary for the proper care and maintenance of your new
product.
Please take a few moments to thoroughly read the instructions and familiarize
yourself with all the operational aspects of your new product.
SODA MAKERUSER MANUAL
Please take a few minutes to read
this manual carefully.
GENERAL INFORMATION PAGE4
Proper maintenance and operation of this
machine can provide better service.
INTRODUCTIONSECTION 1TABLE OF CONTENTSRECEIVING AND INSPECTION PAGE4
PRECAUTIONS FOR SAFE OPERATION PAGES6-7
SECTION 2TECHNICAL PARAMETERS PAGE8
SECTION 3SAFETY PRECAUTIONS PAGE9
PARTS & ACCESSORIES PAGE10
SECTION 4PRODUCT DIAGRAM PAGE11
PRECAUTIONS BEFORE INSTALLATION PAGES12-13
SECTION 5PRE-OPERATING INSTRUCTIONS PAGE13
SECTION 6INSTALLATION OF THE MACHINE PAGES14-18
OPERATING INSTRUCTIONS PAGES20
SECTION 7SECTION 8SECTION 9CLEANING AND MAINTENANCE PAGES21
TROUBLESHOOTING PAGE22-23

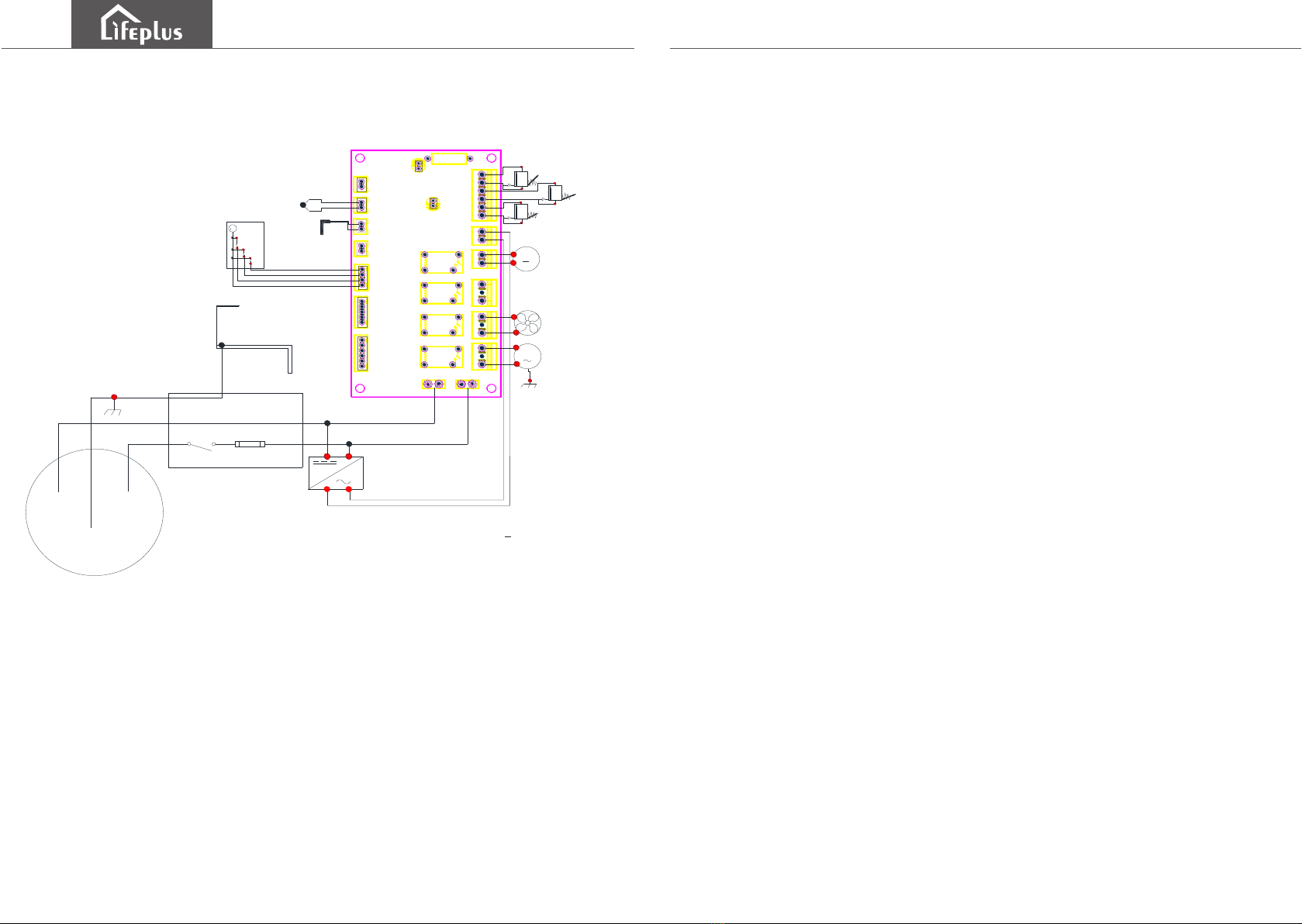

TCIRCUIT DIAGRAM FOR ALL RANGE OF MACHINES PAGE24
GENERAL INFORMATION1. The production of this appliance uses advanced production technology and skilled
processes, as well as the strict quality control, guarantees the excellent performance of
the appliance.
2. The core component of the ice maker "compressor" we use well-known brand product,
coupled with a reasonable configured refrigeration system, it makes refrigerant cooling
more reliable and lower energy consumption.
3. The metal spray shell is beautiful, corrosion-resistant and easy to clean.
4. The automatic microcomputer control system can make the ice making and harvest
process automatically. It has fault detection function, which makes it more convenient to
use and maintain.
RECEIVING AND INSPECTIONThank you for choosing our automatic ice maker, to protect your legitimate rights,
please note the following when sign for the receiving:
1. Whether the body of the appliance is in good condition;
2. Whether the accessories are complete.
During the transportation of the appliance, the refrigerant inside the compressor
is possible not injected into the refrigeration hose due to the dumps and handling.
Once the power resource is connected, the compressor may be damaged in a
short time. Therefore, after its receiving, it is strongly suggested the customers
to allow the appliance correctly located and “stay for 24 hours”, to allow the
refrigerant return to the compressor, and then to install and use it. WARNING DIAGRAMS AND OPERATING SAFETY INSTRUCTIONSATTENTION：Please stand your refrigerator upright for a minimum of 24 hours before using.
- 4 - - 5 -
PRECAUTIONS FOR SAFE OPERATION!
- 6 - - 7 -
AFTER RECEIVING THE PRODUCT, PLEASE BE SURE TO USE IT AFTER 24
HOURS, OTHERWISE IT WILL DAMAGE THE COMPRESSOR.
WARNING
WARNING
Do not use the soda dispenser outdoor. It may cause leakage or electric shock after
the soda maker is wet by rain.
Do not disassemble, repair or modify the soda maker without permission. Fire hazard
or personal injury may be caused by work errors without professors or professional
guidance.
Do not directly spray water on the soda maker, it may cause electric shock or short
circuit.
Do not locate the soda maker in a humid place or a place prone to splashing water, to
avoid the damage to the insulating material, so to prevent leakage or electric shock.
Do not earth the soda maker through a gas hose, a water main, a telephone line, or a
lightning rod.
Do not insert metallic materials such as wires into the air vents, passage or exhaust
vents of the soda maker, to avoid electric shock or personal injury due to accidental
movement of active parts.
Do not store explosive substances such as aerosol cans with a flammable propellant
in this appliance.
Do not connect this machine to an outlet having the electrical ratings below this
machine.
In case of any abnormality, be sure to turn off this machine, disconnect the plug and
make contact with the seller of your appliance.(Abnormal operation may result in a failure
of the unit, electric shock, fire, or the like.)
Never attempt to turn off this machine by disconnecting the plug.
To avoid accidents caused by electric shock, keep your hands dry when plugging or
unplugging.
Ac110-120 volt of alternating current is applied to this equipment. (110-120V-
alternating current)
Remove any dust from the blades of the power plug and insert the plug into outlet A
securely. (Wipe off the dust)
Clean surfaces Regularly that can come in contact with food and accessible drainage
systems.
Clean water tanks if they have not been used for 48 h; flush the water system connected
to a water supply if water has not been drawn for 5 days.
To avoid damages to the power cord, do not pinch the cord in a door.
The risk of electric shock, disconnect power before servicing unit.
The risk of electric shock-switch in off position does not de-energize all loads.
WARNING:
1.The risk of fire / flammable materials, taking care to avoid causing a fire by igniting
flammable material.
2.When positioning the appliance, ensure the supply cord is not trapped or damaged.
This appliance is intended to be used in household and similar applications such as
– staff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential type
environments;
– bed and breakfast type environments;
– catering and similar non-retail applications.
You are strongly requested to keep and ensure that the pressure of the
CO2 will be conformed to the specifications –Company will not be responsible
for any damage because of wrong operation of the machine.
Children shall not play with the appliance
Cautions
TECHNICAL PARAMETERSParameter
Voltage
Cooling system current
Sizes ( all in mm )
Ambient water capacity
Cold water capacity
Soda water capacity
Refrigerant
Climatic class
ST02-P0-B0
110-120V 60Hz
3A
W=170 H=370/443 L=450
No limitations
About 3 litter/hour temperature
less than 10 Deg. Celsius
About 4 litter per hour
R134a/55g
TSAFETY PRECAUTIONS1. The voltage of this appliance is: 120V~ / 60Hz. If the voltage is unstable or with large
fluctuation, please install a voltage regulator.
2. Make sure the appliance is earthed, and ensure effective earthing, as well as the
earth wire must not be connected to the water hose or gas hose.
3. In order to protect the compressor, do not start the appliance again within 5 minutes
after power off.
4. Do not connect other appliances to the same socket.
5. If the power cord is damaged, in order to avoid danger, it must be repaired or
replaced by professionals.
6. The electrical control system has a voltage of more than 36V. If maintenance is
required during using, please have it handled by a professional technician.
WARNING:
Do not operate the soda maker when there is a gas leak in its environment. Fire hazard
may occur due to sparks caused by unplugging or plugging or the start-stop controlled by
the temperature controller, the air source should be cut off first, and allow air to circulate.
- 8 - - 9 -
1
1
2
9
10
11
3
2
4
35
4
6
5
7
6
8
7
9
10
11
8
12
13
14
15
16
17
18
Top cover (POU or bottle)
LED display
Location of water taping or a Tapping head
Drip tray cover
Overflow of condensation water
Machine cover
Drip tray
Ventilation holes
Ice Water
Soda Water
Room Temperature Water
12
13
14
15
16
17
18
Ventilation holes
Machine locking bolts
Operational bottoms
Electricity inlet
Locking bolt
Water inlet ( 1/4" =6.35mm )
CO2 inlet ( 5/16" = 7.95 mm )
PARTS & ACCESSORIESCommercial SODA Maker
Instruction PRODUCT DIAGRAM- 10 - - 11 -
5/16 Manual Valve
for CO2
Water SinkPower Cable Waterway Tee
1/4 Manual Valve
for water
1/4" Water Hose Water Hose Connector
5/16"Air Hose
SODA MAKER
PRODUCT USE GUIDE
PRECAUTIONS BEFORE INSTALLATION- 12 - - 13 -
CORRECT OPERATION
When using the appliance for the first time or using it continuously, please follow
below rules!
1. Use an independent water source for the soda dispenser, and check regularly to
prevent low water, fluctuations, or blocked filters.
2. The soda maker should be kept away from heat sources, strictly forbidden to use it in
high or low temperature environment. Away from direct sunlight to avoid affecting the heat
dissipation of the appliance.
3. Do not wash the soda maker surfaces with water directly, which may cause short circuit
and leakage.
INSTALLATION LOCATION
Transporting and moving conditions:
When transporting, keep the tank as upright as possible, and the inclination does not
exceed 45 °maximum. Do not locate it upside down or horizontally. To operate the soda
dispenser properly and get the best performance, please locate the soda dispenser as
the following conditions mentioned. PRE-OPERATING INSTRUCTIONSBASE INSTALLATION:
1. Place the Soda machine in a firm and level position.
2. The Soda maker is not suitable for outdoor use. The normal use environment
temperature is 59℉- 86℉, and the water temperature is 50℉- 89℉. High temperature
will seriously decrease the ice making performance.
3. Soda Maker rely on air circulation to dissipate heat. Therefore, it need at least 6 in of
space between the front, back, left, and right of your Soda Machine and wall, good for
heat dissipation.
4. Assemble the drip tray.
Avoid sun and rain Good ventilation Placement should be stable
Operation of the Soda machine
In order to assure proper working CONDTIONS of the Soda machine, end customer need
to assure that ROOM temperature as the WATER INLET temperature will be between 59-
86 °F. Celsius. Any other temperatures not according the instructions
can damage
the machine

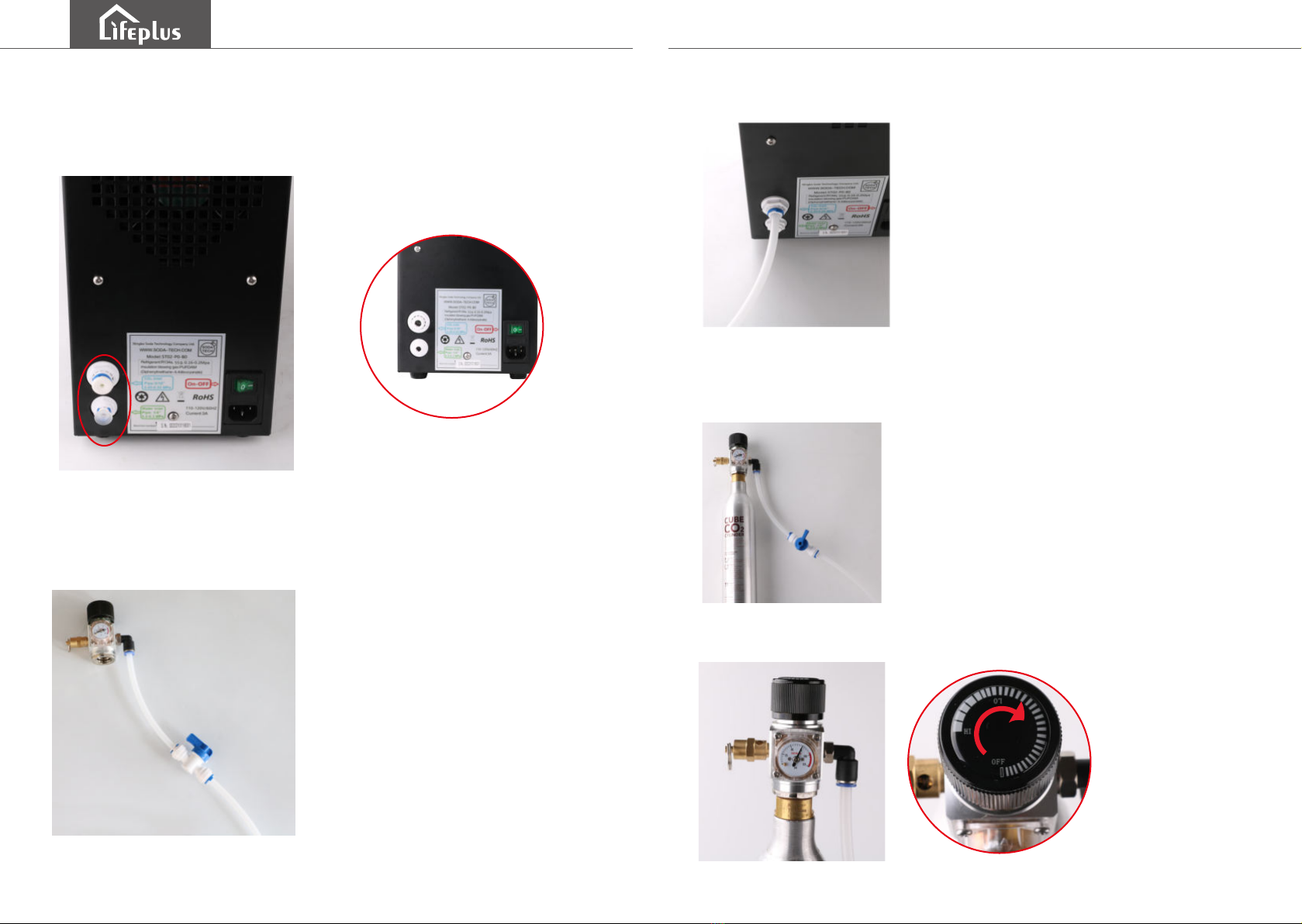

1. Disassemble the blue safety clip, press down the inlet, and then pull out the plug.
3. Connect 5/16 CO2 hose to the machine,than install the blue safety clip.
4. Turn the valve is on OFF position (Perpendicular to the hose), than assemble the CO2
regulator to the CO2 cylinder.
2. Take the 5/16 gas hose, cut as needed and assemble 5/16 manual valve (to control
the CO2 in and off). Assemble the hose to the CO2 Regulator.（CO2 Regulator is not
included).- 14 - - 15 -
INSTALLATION OF THE MACHINE[email protected] [email protected]
5. Turn the pressure to 75±5psi.
9. 10 seconds after water feed, open the CO2 gas.
8. Turn on the power and you can hear the machine start to work (you can hear the pump
feed the water into the system).

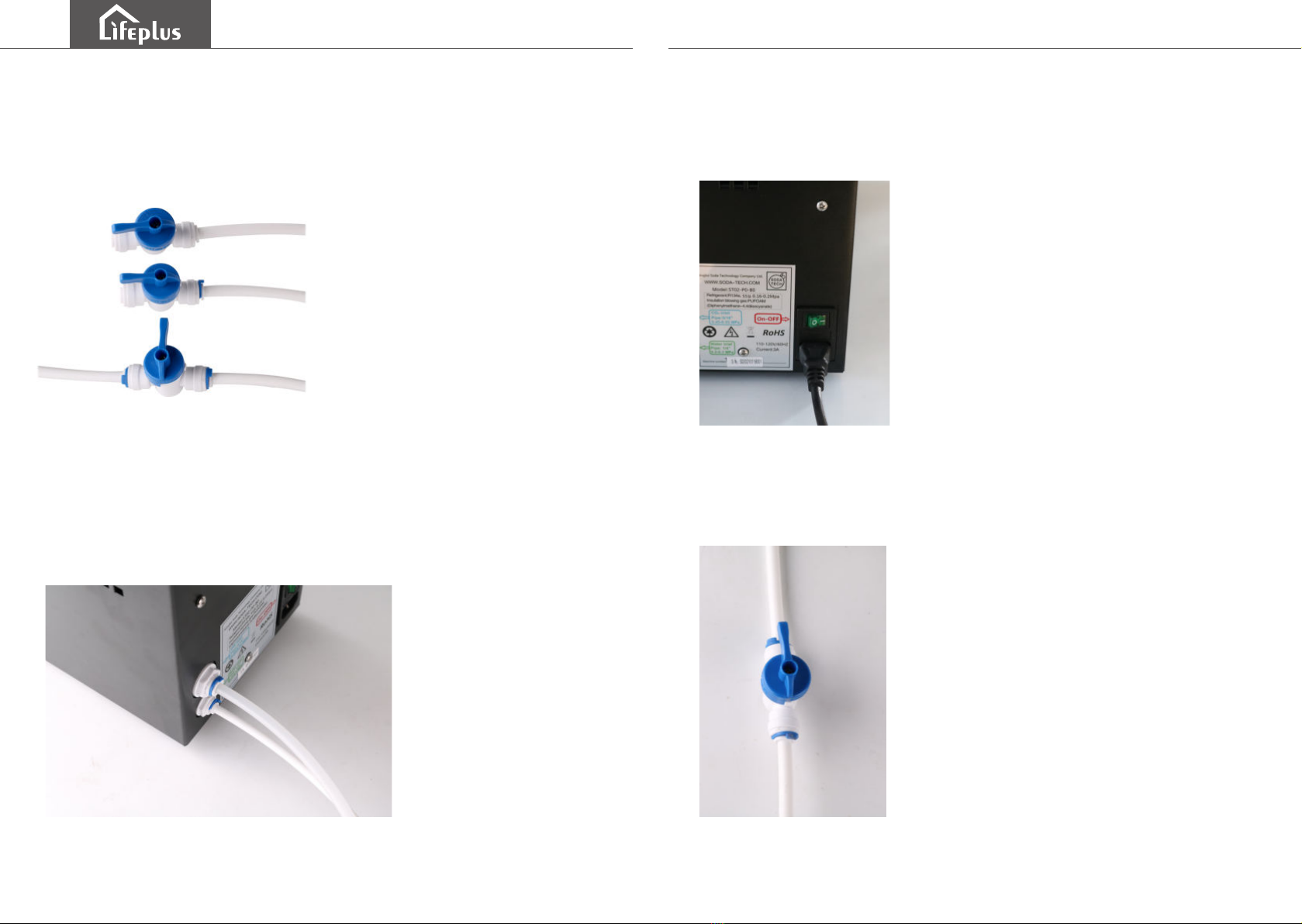

6. Cut a section of the 1/4 pipe, cut it off and install it on the valve, and install the blue
safety clip.Turn the 1/4 valve is on OFF position (Perpendicular to the hose).
7. Connect one end of the 1/4 water hose to the machine, and connected the other end
to the water purify system.
- 16 - - 17 -
INSTALLATION OF THE MACHINE[email protected] [email protected]
10. Waterway tee as spare parts to connect the water purifier.
11. Water tap connection port as spare parts.
- 18 - - 19 -
CYLINDER REPLACEMENT
Turn OFF the CO2 gas valve, CO2 Regulator's pressure turns to zero, turn the CO2
Regulator out of the CO2 cylinder and repeat steps 4 and 5 before continuing to use.
PRE-OPERATING INSTRUCTIONSCLEANING AND MAINTENANCEATTENTION：Please read all important instructions before using your soda machine.
1. Make sure the unit is in the OFF position before plugging the machine into the outlet.
2. Place machine on a level surface.
3. Check whether the power cord and the appearance of the product are intact.
CARBONATOR
1. All the carbonator pass 2MPa pressure test.
2. We have a safety valve on the carbonator, once the pressure is higher than 1.1-1.5
MPa, it will automatically open and release the pressure.
3. Cleaning of the carbonator: Clean before use; clean when no operation of the soda
water for a long time ( more than one week)
1. When the product is not used for a long time, please turn off the switch and pull out the
power plug.
2. Before cleaning and maintenance, turn off the machine and unplug the power cord.
3. When cleaning, use a soft cloth dipped in a small amount of water or kitchen detergent
to gently wipe the surface of the product.
4. It is strictly forbidden to clean with alcohol, gasoline, banana oil or toluene to prevent
the shell from turning yellow or corroding.
THE NOISE OF MACHINE
The machine runs 40-50dB during normal operation.
OPERATING INSTRUCTIONSPOWER
Step 1：Plug the power cord into the outlet.
Step 2：Turn on the power switch at the bottom right corner of the back of the product, the buzzer
will emit a beep, the function button lights will light up, and the product will stand by.
MODES
ICE WATER：Click the button to prepare ice water at 3-5°C, click again to stop.
SODA WATER：Click the button to prepare soda water at 3-5°C, click again to stop.
ROOM TEMPERATURE WATER：Click the button to prepare room temerature water, click again to stop.
- 20 - - 21 -
CIRCUIT DIAGRAM FOR ALL RANGE OF MACHINES[email protected] [email protected]
- 24 - - 25 -
CN8 CN11 CN9 CN3 CN4 CN2
R24
C11
C16
SL4 SL2 SL3 SL1
XB2
ACN
XB1
ACL
CN15 CN16 CN10 CN13 CN12 CN5 CN1
F1
K1
Main Switch
Main Power Socket
220-240V/50
110-120V/60
24VDC G1
M
MWater Pump
Water Level Control
NTC
V3 Soda Water
V1
V2
Cold Water
Ambient Water
Compressor
Fan
∽H1
K2
K3
K4
Key Pad
MAIN BOARD
Intermediate
Pedestal
Table of contents
