LifeShield Home Security User manual

Setup Guide

WELCOME TO LIFESHIELD®
Thank you for choosing LifeShield as your home security
system. We take the safety of your home and family very
seriously, and we are committed to giving you a fantastic
customer experience.
LifeShield was started as a way for consumers to have
state-of-the-art home protection at an affordable
cost. Today, we’re one of the fastest-growing security
companies in the industry.
At LifeShield, we pride ourselves on always being
technologically ahead-of-the-curve. In fact,
we were one of the first companies to offer free apps
for every mobile platform. Now with LifeView™, our full-
featured mobile interface, we’ve put complete control
of your security system in your hands. You won’t find
anything like it at any other security company.
LifeView allows you to instantly arm and disarm your system, change your system settings, store video
or still images from your security camera, find out your home’s current safety grade, and so much
more. We encourage you to log in to LifeView as soon as you get your system set up, so you can start
exploring these and other amazing, user-friendly features.
This guide will walk you through the easy set up of your LifeShield system. We’ve already customized
and tuned your system to your specifications, so everything should be ready to go when you open
the box. All you need to do as call to activate your system: 888-387-8521. As soon as you’re finished
setting up your system, it’s time to register with LifeView.
Again, thank you for becoming a LifeShield customer. We will continue to do everything we can to
make sure you, your home and your family are safe.
Sincerely,
Mike Hagan
President & CEO,
LifeShield, Inc.
Louis Stilp
Founder,
LifeShield, Inc.
1
REFFERAL CODE
MASTER CODE
SYSTEM COMPONENTS

2
INCLUDED WITH BOTH KITS
HOME ESSENTIAL KIT AND HOME ESSENTIAL KIT–CELLULAR READY
CELLULAR GATEWAY
HOME ESSENTIAL KIT–
CELLULAR READY ONLY
The Cellular Gateway connects your
LifeShield system and the monitoring
center via cellular network.
Put the Cellular Gateway near an outside
wall outlet on a high floor in your home.
SYSTEM COMPONENTS
SENSOR/MAGNET
SENSOR/MAGNET

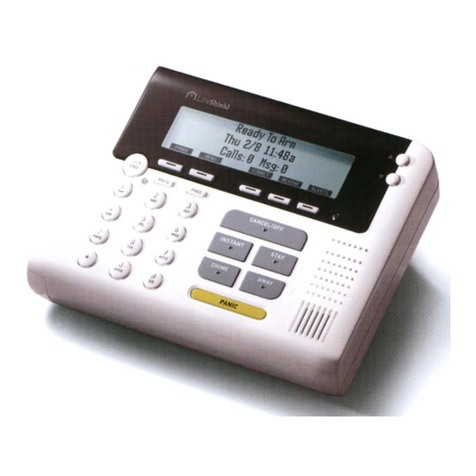

CONSOLE
KEYCHAIN REMOTE
IMPORTANT: FOLLOW STEPS IN EXACT ORDER. DON’T SKIP AHEAD.
Component Placement Suggestions:
The LifeShield home security system you are about to set up is wireless. To maximize wireless coverage, plan to place the components
throughout your home. Ideally, these components will be in different rooms on interior walls. A key consideration is making sure that all
Sensors are within approximately 30 feet of one or more of the main components (base/cellular gateway, console).
NOW IS A GOOD TIME TO PLAN YOUR COMPONENT PLACEMENT
CELLULAR GATEWAY
SENSOR CONSOLE
SENSOR
SENSOR
BASE
CELLULAR GATEWAY
HOME ESSENTIAL KIT–
CELLULAR READY ONLY
The
LifeShield system and the monitoring
center via cellular network.
Put the
HOME ESSENTIAL KIT AND HOME ESSENTIAL KIT–CELLULAR READY
BASE
HOME ESSENTIAL KIT ONLY
The Base connects your LifeShield system
and the monitoring center via the Internet.
Put the Base near your Internet modem/
router and near a wall outlet.
OR

E
B
Cellular Gateway
Back View
For ideal reception, put the Cellular Gateway near
an outside wall outlet on a high floor in your home
Remove the back cover of the Cellular Gateway
Plug the battery pack into the plug receptacle and
insert the battery into the battery compartment
Replace the back cover
Plug the Cellular Gateway into the lower electrical
outlet with the tab facing upward
Continue to Step 2
A
B
C
1B Connect Cellular Gateway
(Home Essential Kit-Celluar Ready )
Battery
Pack
D
E
C
F
IMPORTANT: FOLLOW STEPS IN EXACT ORDER. DO NOT SKIP AHEAD.
Connect Base (Home Essential Kit)
1A
Put the Base near your Modem/Router
Remove the stand by sliding the Table
Stand downward from the main body of
the Base
Insert the battery, then replace the Table
Stand by sliding upward onto the main
body of the Base
Insert the power adapter, plug fully into the
jack on the back of the Base. Then plug the
power adapter into the wall outlet.
Connect the Ethernet Cable between an
available port on your router and the back
of the Base
Continue to Step 2
A
B
C
E
E
(Optional)
Phone Cord
Base Back View
D
Ethernet Cable
Modem/Router
OPTIONAL: IF YOU CONNECT A PHONE CORD FROM THE SYSTEM BASE TO A TELEPHONE WALL JACK, YOU’LL
HAVE A BACK-UP PATH FOR ALARM COMMUNICATIONS IF YOUR INTERNET CONNECTION ISN’T FUNCTIONING.
+
-
B
Table Stand
C
D
F
If you ordered the Home Essential Kit start here, then proceed to Step 2.
If you ordered the Home Essential - Cellular Ready Kit start here, then proceed to Step 2.
3

4
H
G
Table Stand
Power Cord
Your Console has been preprogrammed with your system. No additional steps are necessary.
2Connect Console
E
F
B
Console Back View
Battery Compartment
APut the Console near a frequently used door, ideally in a
different room than the Base/Cellular Gateway
*BUT NO MORE THAN 100 FEET FROM THE
BASE/CELLULAR GATEWAY
Remove the battery compartment door
Plug the battery pack into the plug receptacle and insert
the battery into the battery compartment
Snap on the battery compartment door
Connect power adapter to the back of the Console
Route the power adapter cord through the channel
toward the top of the Console
Snap the table stand provided in the kit onto
the back of the Console
Plug the power adapter into nearby electrical
wall outlet that is not controlled by a switch
B
C
D
E
F
G
H
Wall Mounting
ASelect a wall location and use the mounting plate as a
template for marking the wall for placement.
NOTE: TO MOUNT THE CONSOLE ONTO AN EXISTING
TELEPHONE WALL PLATE (NOT INCLUDED) BEGIN AT STEP D).
Drill 3/16” holes and insert drywall anchors (provided) into the holes.
Screw the mounting screws into the anchors leaving the screws heads
exposed approximately 3/8” (may require adjustment to achieve a
tight fit)
Connect power adapter to the Console.
Route the power adapter cord through the channel of the wall
mounting plate.
Slide the Console with mounting plate onto the wall screws
or phone mounting plate.
Plug the power adapter into nearby electrical wall outlet that is not
controlled by a switch.
B
C
D
E
F
G
To mount the Console to a wall, complete the following steps:
Mark Spot
On The Wall
Optional: Connect to
the telephone line here
(not included)
A

5
SENSOR KIT CONTENTS
Sensor Bracket TapeBracket Magnet Magnet Tape
Magnet Spacer
(optional use)
Bracket Spacer
(optional use)
3
There are up to 3 preprogrammed sensors:*
 •MainDoor
 •2nd Door
 •Window1(ifincluded)
Once you have determined the appropriate location and
orientation for the Bracket and Magnet, attach them with
double-sided tape
A
B
*NOTE: WHEN POSSIBLE, PLACE THE BRACKET ON THE STATIONARY FRAME OF
DOOR OR WINDOW, AND PLACE THE MAGNET ON THE DOOR OR WINDOW ITSELF.
Double-Hung Window
Window Mounting
Various orientations between the Bracket and Magnet may be used
as long as 3/4" distance is not exceeded.* See Example in Figures 1-4
*NOTE: SPACERS IN BOTTOM TRAY MAY BE USED ON THE
BRACKET OR MAGNET TO ADJUST ALIGNMENT.
C
Figure 3.
Perpendicular Orientation
Figure 2.
Angled Orientation
Figure 1.
Level Orientation
C
Figure 4.
Perpendicular Orientation
Place Preprogammed Sensors
Magnet
A
Bracket
Door Mounting
3/4" spacing
B
Bracket
B
Magnet
*If you would like change any of the preprogrammed sensors see Step 4

6
Change Preprogrammed Sensors
or Add Additional Sensors
4
If you would like to change any of your preprogrammed sensors you can.
Just follow the steps below.
Squeeze & Hold
Metal Clip
A
Scroll
Buttons
Menu
B
C
PHNBK MENU CONNCT WEATHR ALERTS
Ready To Arm
Thu 2/8 11:48a
Remove the battery tab by squeezing and holding the metal spring clip where
the REMOVE tab folds around battery. The battery will spring upward. Carefully
remove the insulating tab from under the battery, then gently press the battery
back into the spring clip
A
For this step you will need your Console and Sensor: Using Console:
B
C
D
E
F
G
H
I
J
K
L
M
Press MENU
Scroll to Security Setup, press SELECT
Enter Master Code* (found in the front cover of this book)
Scroll to Sensors, press SELECT
On <Add New>, press SELECT
Scroll to the type of Sensor (Open/Close), press SELECT
Wait 5 seconds before clipping the Sensor into the Bracket.
You will then have 30 seconds to complete the setup
Clip the Sensor into the Bracket. The Console will beep when the system
finds the Sensor. This may take a few seconds
*IF “NO GCS HEARD SENSORS” IS DISPLAYED, THE SENSOR IS TOO FAR
FROM THE CLOSEST CONSOLE, BASE, OR CELLULAR GATEWAY.
Press OK
Edit Sensor Name (Optional. You can change the name now or at a later time)
•TochangetheSensor Name, press the DELETE key to remove the default name
•UsingthekeysonyourConsole keypad, type in the desired name
•PressOKwhencomplete
Sensor Placement: Scroll to Door or Window. Press OK
Alarm Type: Scroll to Stay & Away, Away Only, or Convenience. Press OK
N
O
Testing your Sensor:
With system disarmed, test your Sensor by opening the door or window.
Correct setup will generate a chime sound. If you don’t hear, a chime sound, see
troubleshooting in the User Manual
Repeat steps A-N for additional Sensors
Adding additional Sensors:
TO ADD ADDITIONAL SENSORS:
A
B
C
D
E
F
Press MENU on Console
Scroll to Security Setup on the screen, press SELECT
Enter Master Code* (found in the front cover of this book)
Scroll to Sensors
Select sensor to be modified
Use menu to select and change sensor attributes
TO CHANGE PREPROGRAMMED SENSORS
6*NOTE: WHEREVER MASTER CODE IS SHOWN PLEASE USE YOUR UNIQUE MASTER CODE FOUND IN THE FRONT COVER OF THIS BOOK

5Add Additional Keychain Remote(s)
If you have more than one Remote, you must create new
User Codes before those keychains can be added. The
LifeShield system can support up to 8 Users—1 Master
User, who is able to change System Settings—and 7
Normal Users, who are only able to Arm and Disarm
the system.
*FOR MULTIPLE KEYCHAINS, YOU MUST CREATE A
UNIQUE USER FOR EACH KEYCHAIN
User Codes can easily be added, changed or deleted
from the system Console. Here are the steps to add a
pregrogrammed Keychain Remote:
Scroll
Buttons
Menu
A
B
PHNBK MENU CONNCT WEATHR ALERTS
Ready To Arm
Thu 2/8 11:48a
Scroll
Buttons
Menu
PHNBK MENU CONNCT WEATHR ALERTS
Ready To Arm
Thu 2/8 11:48a
Keychain
Remote
A
B
C
D
E
F
Press Menu on Console
Scroll to Security Setup on the screen, press Select
Enter Master Code*
Scroll to Users
Select <Add New>
It defaults to User 1, use the delete button to erase default
username.
Enter desired name using keypad numbers, press OK.
Create a unique 4 digit arming code for this user, press OK
System will ask you to confirm <New User> add, press OK
*NOTE - IF YOU HAVE ADDITIONAL USERS TO CREATE
SELECT <ADD NEW> AND REPEAT.
Press the Button under Back (which displays on the Screen)
Scroll down to Keychains
Select <Add New>
Press all 3 Keychain buttons.
Select user to assign the Keychain to
G
NOTE: Your Keychain Remote is ready to go and preprogrammed for a Master User.
H
I
J
K
L
M
N
If you are ready to add additional keychain
remotes please continue with steps below:
7
*NOTE: WHEREVER MASTER CODE IS SHOWN PLEASE USE YOUR UNIQUE MASTER CODE FOUND IN THE FRONT COVER OF THIS BOOK

8
6Place Preprogammed Motion Sensor (if included)
Prepare Motion Sensor
A
B
Separate the Front and Back Covers of the Motion Sensor by pressing the
tab with your finger or the top of a pen (Figure A). Insert the battery.
Select the desired sensitivity. As shown in Figure B, place the jumper over
both pins for Normal Sensitivity, or place the jumper over just one pin for
High Sensitivity. In most cases, Normal Sensitivity is the recommended
setting. This can always be changed later if your experience shows the
Normal is not meeting your needs
Press
A
High
Normal
Sensitivity
BBattery
Sensitivity
Jumper
Tape For
Corner Mount
Tape For
Wall Mount
D
C
Place the Motion Sensor
Place the Motion Sensor following the location
recommendations (check marked locations) shown in Figure
C. Avoid the example locations marked with the “X” which are
household areas that typically cause false alarms, such as heat,
air conditioning, fans, or direct sunlight. The recommended
mounting height is 7.5 feet for both coverage and pet
immunity purposes
Apply the 3M adhesive tape in the locations shown in Figure D
for corner mounting or wall mounting
The rounded end of the Motion Sensor that has the release
tab is the bottom of the sensor, which should be closest to the
floor when installed properly.
C
D
E
E
Top
Bottom
Add Additional Motion Sensors
On the Handset or Console, press MENU.
Scroll to Security Setup, press SELECT
Enter the Master Code*
Scroll to Sensors, press SELECT.
Scroll to <Add New>, press SELECT.
Scroll to Motion, press SELECT.
Following the instructions displayed on the LCD screen:
- Wait 5 seconds
- If the display reads “Un-clip Sensor from Bracket”, insert the battery into the Motion Sensor.
- If the display reads “Insert Battery”, insert the battery into the Motion Sensor observing correct
polarity as shown in Figure B. (You will have 30 seconds to complete this step.)
A
G
B
C
D
E
F
When the Motion Sensor has successfully been added you will hear 4 fast confirmation beeps from the
LifeShield system. If there are no confirmation beeps, remove the battery from the Motion Sensor then
re-insert the battery into the Motion Sensor to cause another power-up registration message to be sent.
Once the Motion Sensor has been added to the LifeShield system:
Use the Edit feature to rename the device (if desired). Press DELETE to erase text
and the keypad keys to type new text.
Press OK, then press BACK until the Main Menu is displayed.
Re-attach the Front and Back Covers of the Motion Sensor.
H
I
J
*NOTE: WHEREVER MASTER CODE IS SHOWN PLEASE USE YOUR UNIQUE MASTER CODE FOUND IN THE FRONT COVER OF THIS BOOK

7Add Siren Detector (if included)
The Siren Detector works with your existing hazard detectors (smoke/fire alarms, carbon monoxide detector, or both) to send a signal to
the monitoring center whenever your hazard detector sounds. Mount the Siren Detector no more than 4” away from the targeted hazard
detector. For more product details and full specifications, see the User’s Manual or the Siren Detector Device Guide
A
B
C
D
E
Remove the Installation Template on the bottom of the Siren Detector box. Place next to the existing
hazard detector (Figure B) so the large curved side of the template rests against the outer edge
of the hazard detector. Using a pencil or pen, mark the location of the two screw hole openings in the
template on the ceiling. These marks will be used as a mounting location reference
Turn the Siren Detector over and press the Bracket release tab while gently pulling the bracket away
from the device
Attach the Siren Detector Bracket to the ceiling using either double sided tape or the provided
screws and wall anchors. Be sure the arrow on the inside of the bracket faces the hazard detector
Turn the Siren Detector over and locate the battery insulator tab by pulling it straight out.
Discard the tab
NOTE: AFTER REMOVING THE TAB, PRESS DOWN ON THE TOP OF THE
BATTERY TO BE SURE IT HAS NOT BEEN DISLODGED.
Align the Siren Detector with the Bracket and snap it on
Existing Hazard
Dectector
B
Installation
Template
See the User Manual for more detailed instructions and information about testing the Siren Detector.
DE
Add Siren Detector
Once the Siren Detector has been mounted, it must then be “added” to the
LifeShield System. For this step you’ll need your Console:
Press MENU on Console
Scroll to Security Setup, press SELECT
Enter the Master Code*
Scroll to Sensors, press SELECT
Scroll to <Add New>, press SELECT
Scroll to Siren Detector, press SELECT
Following the instructions displayed on the Console. Wait 5 seconds, then press the button on the Siren Detector
NOTE: ONCE THE SIREN DETECTOR IS “FOUND”, YOU’LL HAVE TO DO AN AUDIO TEST TO BE SURE IF THE SIREN FROM
THE TARGET HAZARD DETECTOR CAN BE DETECTED BY THE SIREN DETECTOR
Following the instructions displayed on the Console, press the “test” button on the hazard detector until the Console displays
“Siren Detector Added”, which indicates that the test has passed. If the test does not pass within 10 to 12 seconds of the siren
sounding, the hazard detector may not meet the requirements described earlier and may need to be replaced. If the test fails,
the LifeShield system will not permit the Siren Detector to be added
Once the Siren Detector has been added to the LifeShield system, use the Edit feature to rename the device (optional)
NOTE: PRESS DELETE TO ERASE TEXT AND USE THE KEYPAD KEYS TO TYPE IN A NEW NAME. ONCE YOU ARE SATISFIED
WITH THE ENTERED NAME, PRESS OK
Scroll down to select the type of hazard detector to which this Siren Detector will be associated (SMOKE/FIRE, CARBON
MONOXIDE or BOTH) and press SELECT. (NOTE: Not all smoke/carbon monoxide detectors are compatible with the siren
detector. If the siren for your current smoke/carbon monoxide detector sounds for 30 seconds and there is no pause in the
siren the Siren Detector should operate as intended.)
IMPORTANT: THE SELECTION YOU MAKE DURING THIS CONFIGURATION STEP WILL DETERMINE THE TYPE OF MESSAGE
THAT IS SENT TO THE MONITORING CENTER
Press OK to return to the Main Menu
F
G
H
I
J
K
L
M
N
O
P
9
*NOTE: WHEREVER MASTER CODE IS SHOWN PLEASE USE YOUR UNIQUE MASTER CODE FOUND IN THE FRONT COVER OF THIS BOOK

10
Add Outdoor Camera Model OC810 (if included)
8
The OC810 is an outdoor camera with built-in Infrared LEDs for night vision.
A
Wifi antenna must be installed
to use WiFi
Use rubber cover
for Ethernet plug
Use rubber cover
for power plug
A
B
C
D
E
First plug Ethernet cord into camera and router.
Wait for Power LED to stay solid
On console select Menu > Cameras > Add New
Once all cameras are found, press OK
Log in to LifeView and select Camera > Camera
Settings > Edit.
A. Enter SSID or Network Name, wireless
connection security type and password
*Entries are case sensitive, spelling and
spacing must be exact
Once Wifi* information has been saved wait
2 minutes before unplugging the power and
then Ethernet
After 2 minutes, plug power back into camera and
leave Ethernet unplugged. Once power light is solid
the camera is wireless and ready for final placement.
*If the camera works while connected to
the Ethernet but not wirelessly then the
WiFi* information must be verified. Repeat
step D if necessary.
TO USE
NOTES
Must be on same router as your LifeShield Base to
setup. After setup, plug into power where you like
Setup WiFi using camera Settings in LifeView,
disconnect Ethernet cable, then remove and
reconnect the power
Setup alerts in LifeView to take pictures when
sensors tigger
Live video per session is 5 minutes
If the camera works while connected to the Ethernet
but not wirelessly then the WiFi information must be
verified. Repeat step D if necessary.
F
To reset, insert paperclip into reset
button (next to power connector)
for at least 5 seconds and release
*Wireless, or WiFi, technology allows an electronic device to exchange
data wirelessly (using radio waves) over a computer network

11
9Add Indoor Camera Model RC8221 (if included)
The RC8221 is an indoor camera with built-in Infrared LEDs for night vision.
A
POWER
WPS
PRIVACY
RESET
POWER
NETWORK
POWE
PR
I
V
ACY
V
V
POWE
R
N
ETW
O
R
K
POWER
WPS
PRIVACY
RESET
POWER
NETWORK
POWE
PR
I
V
ACY
V
V
POWE
R
N
ETW
O
R
K
To reset, insert paperclip into
reset button (next to power
connector) for at least 5 seconds
and release
DO NOT use the WPS Button,
Micro SD Slot, or green wire
connector
*Wireless, or WiFi, technology allows an electronic
device to exchange data wirelessly (using radio
waves) over a computer network
A
B
C
D
E
First plug Ethernet cord into camera and router.
Wait for Power LED to stay solid
On console select Menu > Cameras > Add New
Once all cameras are found, press OK
Log in to LifeView and select Camera > Camera
Settings > Edit.
A. Enter SSID or Network Name, wireless
connection security type and password
*Entries are case sensitive, spelling and
spacing must be exact
Once Wifi* information has been saved wait
2 minutes before unplugging the power and
then Ethernet
After 2 minutes, plug power back into camera and
leave Ethernet unplugged. Once power light is solid
the camera is wireless and ready for final placement.
*If the camera works while connected to
the Ethernet but not wirelessly then the
WiFi* information must be verified. Repeat
step D if necessary.
TO USE
NOTES
Must be on same router as your LifeShield Base to
setup. After setup, plug into power where you like
Setup WiFi using camera Settings in LifeView,
disconnect Ethernet cable, then remove and
reconnect the power
Setup alerts in LifeView to take pictures when
sensors tigger
Live video per session is 5 minutes
If the camera works while connected to the Ethernet
but not wirelessly then the WiFi information must be
verified. Repeat step D if necessary.
F

10 Add Handset (if included)
Install the Handset and Charger
A
B
C
Open the Battery compartment
Insert the Battery plug into the two-pin jack,
and insert the Battery.
Replace the Battery cover
NOTE: USE ONLY THE LIFESHIELD
LS80 BATTERY PACK.
INSTALL BATTERY PACK
12
DO NOT use the WPS Button,
Micro SD Slot, or green wire
connector
- Connect the Charging Cradle power adapter to the bottom
of the Charging Cradle and to the electrical wall outlet.
CONNECT THE CHARGING CRADLE
Place the Handset in the Charging Cradle. When properly seated
on the cradle, the amber light on the front of the cradle will be illuminated.
NOTE: Immediately place the Handset in the Charging Cradle that came packed with the Handset. THE HANDSET MUST
BE CHARGED FOR AT LEAST 30 MINUTES PRIOR TO ATTEMPTING ANY SECURITY SYSTEM INSTALLATION. IT MUST BE
CHARGED FOR 2 HOURS BEFORE MAKING PHONE CALLS.
NOTE: THE PHONE SYSTEM COMES WITH VARIOUS SETTINGS PRE-DEFINED FROM THE FACTORY. SHOULD YOU WANT
TO CHANGE THESE SETTINGS, WE SUGGEST WAITING UNTIL AFTER YOU ACTIVATE YOUR SYSTEM. THESE SETTINGS
INCLUDE RING TONES, RING VOLUME, DISTINCTIVE RINGING, DISPLAY CONTRAST, ETC.
CHARGE THE HANDSET
* The system will allow a maximum of 8 Handset/Console
or Grid Extender combinations.
INSTALL
BATTERY PACK
* The system will allow a maximum of 8 Handset/Console
or Grid Extender combinations.
ADD THE HANDSET
- Attach Belt Clip
- Snap the Belt Clip onto the sides of the Handset
ADD THE HANDSET
Follow these steps for adding an additional Handset to a LifeShield system. Handsets packed with kits are pre-registered and
do not require these steps.
After the initial installation of the LifeShield System, devices may be added to enhance
access or performance.
The maximum number of devices that can be added to a LifeShield System is shown
in the table to the right. After the Handset and Charger are installed, use a Handset
or Console that is already registered on the System to add the new Handset.
ADD THE HANDSET TO YOUR LIFESHIELD SYSTEM
A
B
C
On an Existing Handset or Console, use the SCROLL and SELECT buttons to
navigate to GC or Handset (Menu/Security Setup/GCs or Handset/<Add New>)
Press the SELECT key to <Add New>. The system will begin searching for a new Handset.
On the new Handset, press the SEARCH key
The system display and audio signal will inform you the Handset is found.
You will then be given the option to edit the default name.
Use DELETE to erase the current name and replace with new text by using the keypad.
ADD THE HANDSET
D
E
F
* The system will allow a maximum of 8 Handset/Console
or Grid Extender combinations.
*NOTE: WHEREVER MASTER CODE IS SHOWN PLEASE USE YOUR UNIQUE MASTER CODE FOUND IN THE FRONT COVER OF THIS BOOK

Add Glassbreak Sensor (if included)
11
A
B
Remove the Glassbreak Sensor and related components from the box and physically install the device according to the
manufacturer’s printed instructions.
NOTE: It is important to follow the manufacturer’s printed instructions regarding (a) connecting the batteries, (b) adjusting the
sensitivity, (c) selecting the location and (d) mounting the device prior to moving on to the next step involving integration of
this device with your LifeShield system. Please note that it is not necessary to “Enroll” the device at this time.
Mount the Glassbreak Sensor to a flat surface and close the front cover.
INSTALL GLASSBREAK SENSOR
13
NOTE: A LifeShield system (including a Base and at least one Handset or Console) must be installed before a Glassbreak
Sensor can be added.
On the Handset or Console, press MENU.
Scroll to Security Setup, press SELECT and enter the Master Code.*
Scroll to Sensors, press SELECT.
Scroll to <Add New>, press SELECT.
Scroll to Glassbreak, press SELECT.
Following the instructions displayed on the LCD screen:
NOTE: WAIT 5 SECONDS THEN OPEN THE FRONT COVER OF THE GLASSBREAK SENSOR (“UN-CLIP SENSOR FROM
BRACKET”). (YOU WILL HAVE 30 SECONDS TO COMPLETE THIS STEP.)
When the Glassbreak Sensor has successfully been added you will hear 4 fast confirmation beeps from the LifeShield system.
If there are no confirmation beeps, check to make sure that the battery insulator tab has been removed and repeat the steps above.
Use the Edit feature to rename the device (if desired). (Press DELETE to erase text and the keypad keys to type new ones).
Press OK, then press BACK until the Main Menu is displayed.
Shut the front cover of the Glassbreak Sensor
ADD THE GLASSBREAK SENSOR TO THE LIFESHIELD SYSTEM
A
B
C
D
E
F
G
H
I
A
B
On the Handset or Console, press MENU.
Scroll to Utilities, press SELECT
Scroll to Test, press SELECT
Enter your Master Code*
Select System Test
Press the SKIP soft key to skip the Siren Test
Press the OK soft key on next screen for Starting Comm Test
Scroll to the name of the Sensor that you would like to test, and press SELECT
Tap strongly on the front cover of the Glassbreak Sensor
If the Glassbreak Sensor test is successful, the LCD screen will display “Sensor xxx Passed”. If these
words do not appear, return to “Add the Glassbreak Sensor to the LifeShield System”.
TEST THE GLASSBREAK SENSOR
Starting with the Glassbreak Sensor mounted to a flat surfacewith the front cover closed:
C
D
E
F
G
H
I
*NOTE: WHEREVER MASTER CODE IS SHOWN PLEASE USE YOUR UNIQUE MASTER CODE FOUND IN THE FRONT COVER OF THIS BOOK
Once the Glassbreak Sensor has been added to the LifeShield system:

14
12 Add Grid Extender (if included)
DETERMINE THE LOCATION
14
Place the Grid Extender in a location that is spread apart from the Console and Base. A
second floor location is a great place to install this, if you choose. Having these devices spread
throughout the home will maximize system coverage. A power outlet is required to operate the
Grid Extender.
AInstall Battery Pack
Open the Battery compartment.
1) Insert the Battery plug into the two-pin jack, and insert the Battery.
2) Replace the Battery cover.
Plug the Grid Extender into the electrical wall outlet.
INSTALL THE GRID EXTENDER
B
Follow these steps for adding an additional device to an existing system.
Devices packed with kits are pre-registered and do not require these steps.
After the initial installation of the LifeShield System, components may be
added to enhance access or performance. The maximum number of devices
that can be added to a LifeShield System are:
ADD THE GRID EXTENDER TO YOUR LIFESHIELD SYSTEM
After the hardware is installed, use a Handset or Console that is currently
registered on the System to follow the steps for adding the Grid Extender.
After installing the hardware, enter MENU on your Handset or Console.
Scroll to Security Setup and press SELECT.
Enter Master Code*
Scroll to GCs or Handsets and press SELECT.
Press the SELECT key to <Add New>. The system will begin searching
for the new Grid Extender you are adding.
On the Grid Extender, press and hold the center button until the green
light rapidly flashes.
The following messages will appear on the Handset or Console when the
system has found and added the Grid Extender.
Press OK when you have been informed that the GX has been added.
You will then be given the option to edit the default name
Use DELETE to erase the current name and replace with new text by
using the keypad.
Press OK when editing is complete.
A
B
C
D
E
F
G
H
I
J
* The system will allow a maximum of 8
Handset/Console or Grid Extender combinations.
CANCEL
GX Found
Please wait
60 Seconds
CANCEL OK
GX Added
* The system will allow a maximum of 8
Handset/Console or Grid Extender combinations.
CANCEL
GX Found
Please wait
60 Seconds
CANCEL OK
GX Added
* The system will allow a maximum of 8
Handset/Console or Grid Extender combinations.
CANCEL
GX Found
Please wait
60 Seconds
CANCEL OK
GX Added
A
B
*NOTE: WHEREVER MASTER CODE IS SHOWN PLEASE USE YOUR UNIQUE MASTER CODE FOUND IN THE FRONT COVER OF THIS BOOK
* The system will allow a maximum of 8
Handset/Console or Grid Extender combinations.
CANCEL
GX Found
Please wait
60 Seconds
CANCEL OK
GX Added
Flashing Light
Add Button
E
* The system will allow a maximum of 8
Handset/Console or Grid Extender combinations.
CANCEL
GX Found
Please wait
60 Seconds
CANCEL OK
GX Added
F

Add Smoke Sensor (if included)
13
15
ARemove the Smoke Sensor and related components from the box and physically install the
device according to the manufacturer’s printed instructions.
NOTE: It is important to follow the manufacturer’s printed instructions regarding placement
of the device (location), installation (mounting) and battery activation (including removal of
the battery tab insulator paper) prior to moving on to the next step involving integration of
this device with your LifeShield System.
Once the mounting bracket is secured to the ceiling, attach the Smoke Sensor into it.
INSTALL SMOKE SENSOR
B
ADD THE SMOKE SENSOR TO THE LIFESHIELD SYSTEM
On the Handset or Console, press MENU.
Scroll to Security Setup, press
SELECT and enter the Master Code*
Scroll to Sensors, press SELECT.
Scroll to <Add New>, press SELECT.
Scroll to Smoke Sensor, press SELECT.
Following the instructions displayed on the LCD screen: Wait 5 seconds then detach the Smoke
Sensor from the mounting bracket (“Un-clip Sensor from bracket”). (You will have 30 seconds to
complete this step.)
A
B
C
D
E
F
G
When the Smoke Sensor has successfully been added you will hear 4 fast confirmation beeps from the
LifeShield system. If there are no confirmation beeps, check to make sure that the battery insulator tab
has been removed, re-attach the Smoke Sensor to the mounting bracket and repeat the steps above
Once the Smoke Sensor has been added to the LifeShield system:
Use the Edit feature to rename the device (if desired). (Press DELETE to erase text and the
keypad keys to type new ones).
Press OK, then press BACK until the Main Menu is displayed.
Re-attach the Smoke Sensor to the mounting bracket.
H
I
J
TEST THE SMOKE SENSOR
On the Handset or Console, press MENU.
Scroll to Utilities, press SELECT
Scroll to Test, press SELECT
Enter your Master Code*
Select System Test
Press the SKIP soft key to skip the Siren Test
Press the OK soft key on next screen for Starting Comm Test
Scroll to the name of the Sensor that you would like to test, and press SELECT
On the Smoke Sensor, press the small Test button located on the front cover for at least 30 seconds
If the Smoke Sensor test is successful, the LCD screen will display “Sensor xxx Passed”. If these
words do not appear, return to “Add the Smoke Sensor to the LifeShield System”.
A
B
C
D
E
F
G
H
I
*NOTE: WHEREVER MASTER CODE IS SHOWN PLEASE USE YOUR UNIQUE MASTER CODE FOUND IN THE FRONT COVER OF THIS BOOK

16
14 Add Water & Temperature (if included)
16
D
E
C
A
B
Locate the Honeywell 5821 (red and white) box and remove the white wireless transmitter from the box.
Using a flat object such as a screwdriver, pry off the top cover of the transmitter and set aside
Press down on the mounting plate bracket release tab to remove (slide off) the mounting plate. Place the
mounting plate aside.
Reference the table below to determine the desired sensing type (Hot Temp, Cold Temp,
Warm Temp or Flood [water]). Using the tip of a paperclip (or similar object) push the white
(sliding) buttons of the DIP switch (see Figure A) into the configuration that corresponds to
the desired sensing type.
Follow the appropriate steps associated with the sensing type of the Sensor.
a. Temperature Sensor (Hot, Warm or Cold) sensing: Locate the mounting bracket where it will
be most suitable for Temperature Sensing (for example on a wall, ceiling, etc.). Using either
the supplied screws or double-faced adhesive tape, secure the mounting bracket to a flat
surface (wall or ceiling).
b. Flood (water) sensing:
i. Locate the water probe assembly (with wires attached as shown) and mount it near the
“baseline” surface (ex. floor) using the supplied double-faced tape or suitable wall mounting
screws (not supplied). It is recommended that the probe be mounted between 0 to 1/8” above
the baseline surface.
ii. Loop the free end of the Water Probe wire through the back of the wireless transmitter (as shown
in Figure A) and connect the wire pair to the loop terminal block by inserting the wires (individually)
into the loop terminals and tightening the screws.
iii. Determine the best location to install the mounting plate above the location where the Water
Probe has been installed, being careful not to position it too high (beyond the length of the wires
now connecting the water probe and wireless transmitter).
iv. Using either the supplied screws or double-faced adhesive tape, secure the mounting bracket
to a flat surface (wall or ceiling).
Install the CR123 battery (supplied) into the wireless transmitter noting the correct orientation of the
positive (+) and negative (-) ends.
Position the wireless transmitter over the mounting plate and slide the wireless transmitter securely
into place (until it “clicks”).
INSTALL THE SENSOR
F
G
On the Handset (or Console), Press MENU.
Scroll to Security Setup, press SELECT and enter the Master Code.
Scroll to Sensors, press SELECT.
Scroll to <Add New>, press SELECT.
Scroll to Environmental, press SELECT.
Once the Temperature and Flood (Water) Sensor is installed it must be “added” to
the LifeShield system in order to function. You will need a Handset (or Console) to add it.
Enter the Security menu on the Handset (or Console)
ADD THE SENSOR TO THE LIFESHIELD SYSTEM
A
B
C
D
E
*NOTE: WHEREVER MASTER CODE IS SHOWN PLEASE USE YOUR UNIQUE MASTER CODE FOUND IN THE FRONT COVER OF THIS BOOK
Continued on next page
Battery
Note: Do not re-attach
cover until you have
added this device to the
LifeShield System
D
Battery
Note: Do not re-attach
cover until you have
added this device to the
LifeShield System
ii

17
Add Water & Temperature cont. (if included)
14
17 *NOTE: WHEREVER MASTER CODE IS SHOWN PLEASE USE YOUR UNIQUE MASTER CODE FOUND IN THE FRONT COVER OF THIS BOOK
FFollowing the instructions displayed on the Handset (or Console), wait 5 seconds, then press and
release the red tamper switch button on the wireless transmitter (see Figure A).
ADD THE SENSOR TO THE LIFESHIELD SYSTEM CONTINUED
Use the Edit feature to rename the device (optional). NOTE: Press DELETE to erase text and use
the keypad keys to type in a new name. Once you are satisfied with the entered name, press OK.
Scroll down to select the type of condition to which this Sensor will be associated (Flood, Cold,
Warm or Hot) and press SELECT.
Press OK to return to the Main Menu.
Position the top cover in place over the wireless transmitter and snap it into place, being
careful not to pinch or cut the wires leading to the Water Probe (if the Sensor is set up for
Flood detection).
G
H
Once the Sensor has been added to the LifeShield system:
I
J
If the Sensor test is successful, the LCD screen will display “Sensor xxx Passed”. If
these words do not appear, return to “Add the Sensor to the LifeShield System”.
On the Handset (or Console), Press MENU
Scroll to Utilities, press SELECT.
Scroll to Test, press SELECT
Enter your Master Code
Select System Test
Press the SKIP soft key to skip the Siren Test
Press the OK soft key on next screen for Starting Comm Test
Scroll to the name of the Sensor that you would like to test, and press SELECT
Place the Water Probe directly into water (or alternately place a piece of wet cloth between the
probe legs) and wait at least three (3) minutes.
TESTING AS A FLOOD (WATER) SENSOR
A
B
C
D
E
F
G
H
I
TESTING AS A TEMPERATURE (HOT, COLD, WARM) SENSOR
The temperature sensing aspects of the Honeywell Model 5821 can be tested in the
same manner as above with the use of specialized equipment that is capable of
increasing or lowering the ambient temperature in the environment surrounding the
Sensor (as needed to result in activation).
Battery
Note: Do not re-attach
cover until you have
added this device to the
LifeShield System
J

18
DOWNLOAD THE FREE LIFEVIEW MOBILE APPS SO YOU’LL ALWAYS
HAVE ACCESS TO YOUR SYSTEM NO MATTER WHERE YOU ARE!
Download LifeView for
Apple iPhone
Download LifeView for
Android
SETUP COMPLETE To complete the activation process please call 888-387-8521.
Using Your LifeShield Security System
Now that you’ve set up and activated your system, you have a chance to find out how LifeShield
can fit into your everyday life. You can access your security system from your Console, Keychain
Remote, LifeView web application or LifeView mobile applications.
Using Your System:
1. Arming your system (p 19 & 20)
2. Disarming your system (p 20)
3. Panicking your system (p 20)
4. Responding to an alarm (p 21)

19
ARMING YOUR SYSTEM
Stay Arming—Home During the Day
Maybe you work at home, or you’re taking care of the kids during the day. This is the setting you want to use on your LifeShield
system. By activating Stay Arming, the system will ignore certain Sensors, like the Motion Sensor and Sensors on interior
doors. Arm the system using the STAY key. A silent Exit Delay and an audible Entry Delay is provided. You can arm your
system using one of the 4 devices: Console, Keychain Remote, LifeView Web Application, and LifeView Mobile Applications.
TO ARM
Using the Console
1. Press STAY on your Console and enter your Master Code*
2. The system is armed when the Exit Delay has expired
Using the Keychain Remote
1. Press and hold STAY on the Keychain Remote for 2 seconds
2. The system will respond with a light blink and beep letting you know the system is armed
Using the LifeView Web Application
1. Login to LifeView with your User Name and Password
2. Click Arm Stay
Using the Mobile Applications
1. Login to LifeView Application with your Username and Password
2. Click Stay
3. Enter Master Code*
Away Arming —Leaving Your Home
If you’re going to leave your home—even for a quick run to the store—or if no one is at home, arm the system using the AWAY key.
It will provide an audible Exit Delay. The Exit Delay beep will increase in frequency during the last 10 seconds of arming. You can arm
your system using one of the 4 devices: Console, Keychain Remote, LifeView Web Application, and LifeView Mobile Applications.
TO ARM
Using the Console
1. Press AWAY on your Console, and enter your Master Code*
2. The system is armed when the Exit Delay has expired
Note: If a door doesn’t open and close during the exit delay, the system will automatically switch the arming mode to STAY
Using the Keychain Remote
1. Press and hold AWAY on the Keychain Remote for 2 seconds
2. The system will respond with a light blink and beep, letting you know the system is armed
Using the LifeView Web Application
1. Login to LifeView Application with your User Name and Password
2. Click Arm Away
Using the LifeView Mobile Application
1. Login to LifeView with your Username and Password
2. Click Away
3. Enter Master Code*
*NOTE: WHEREVER MASTER CODE IS SHOWN PLEASE USE YOUR UNIQUE MASTER CODE FOUND IN THE FRONT COVER OF THIS BOOK
