Light Emotion PARBAR4 QUAD User manual

www.lightemotion.com.au
USER MANUAL
PARBAR4 QUAD
Please keep the manual carefully for future reference

Contents
I ntrod uction & Ca ution-------------------------------------------- P2
Silkscreen and safety instructions ---------------------------P3
Installation instruction--------------------------------------------- P5
Product specification/MENU Operation----------------------P6
Remote control--------------------'------------------------------------P7
Wireless foot controlier/DMX512table-----------------------P8
DMX con
nection ----------------------------------------------------- P9
DMX address setting ----------------------------------------------P10
Clearing and Maintenance--------------------------------------P10
warra
nty card--------------------------------------------------------P 11
- 1-

\

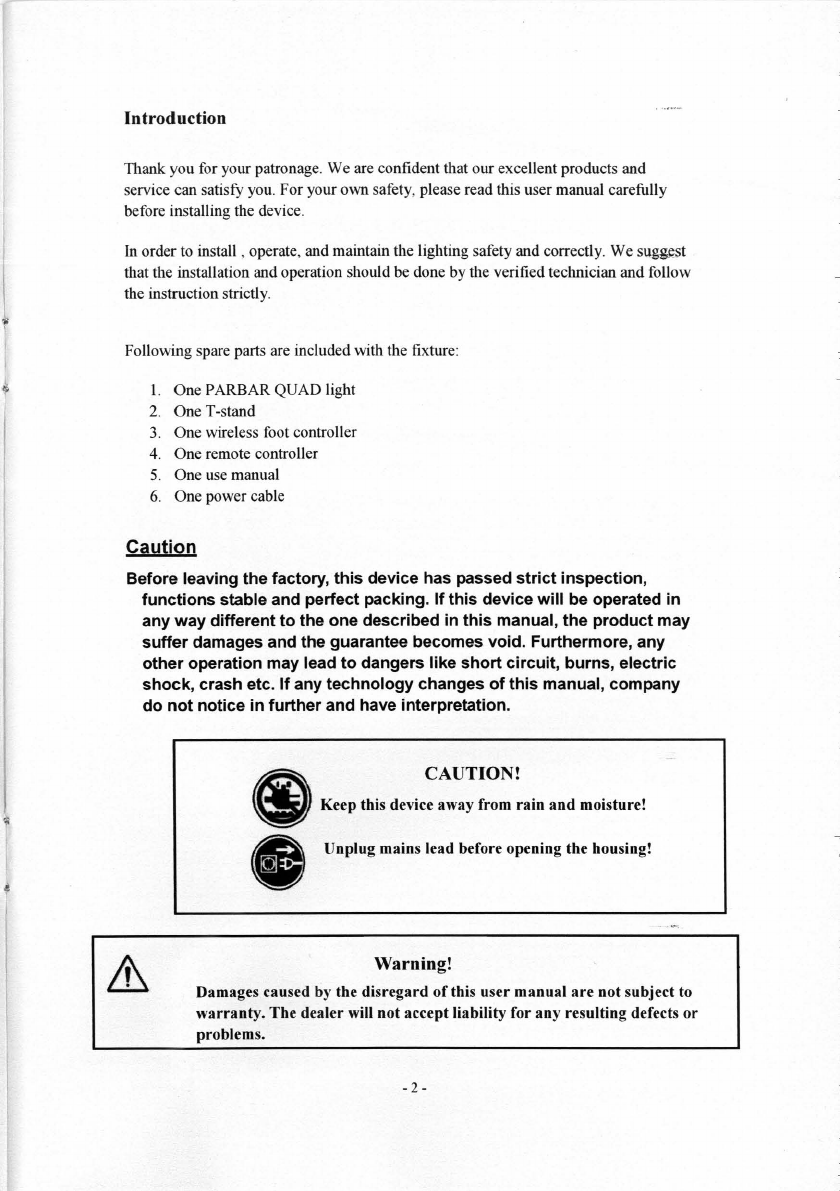

Introduction
Thank you for your patronage. We are confident that our excellent products and
service can satisfy
yo u. For your own safety, please read this user manual carefully
before installing the device.
In order to install , operate, and maintain the lighting safety and correctly. We sugSl<st
that the installation and operation should be done by the verified teclmician and follow
the instruction strictly.
Following spare parts are included with the fixture:
I.
One PARBAR QUAD light
2.
One T-stand
3.
One wireless foot contro ll er
4.
One remote controller
5. One u se manual
6.
One power cable
Caution
Before leaving the factory, this device has passed strict inspection,
functions stable and perfect packing. If this device will be operated in
any way different to the one described in this manual, the product may
suffer damages and the guarantee becomes void. Furthermore, any
other operation may lead to dangers like short circuit, burns, electric
shock, crash etc.
If any technology changes of this manual, company
do not notice in further and have interpretation.
•
•
CAUTION!
Keep this device away from rain and moisture!
Unplug
mains lead before opening the housing!
Warning!
Damages caused by the dis regard of this user manual are not subject to
warranty. The dealer will not accept liability for any resulting defects or
problems .
-2-

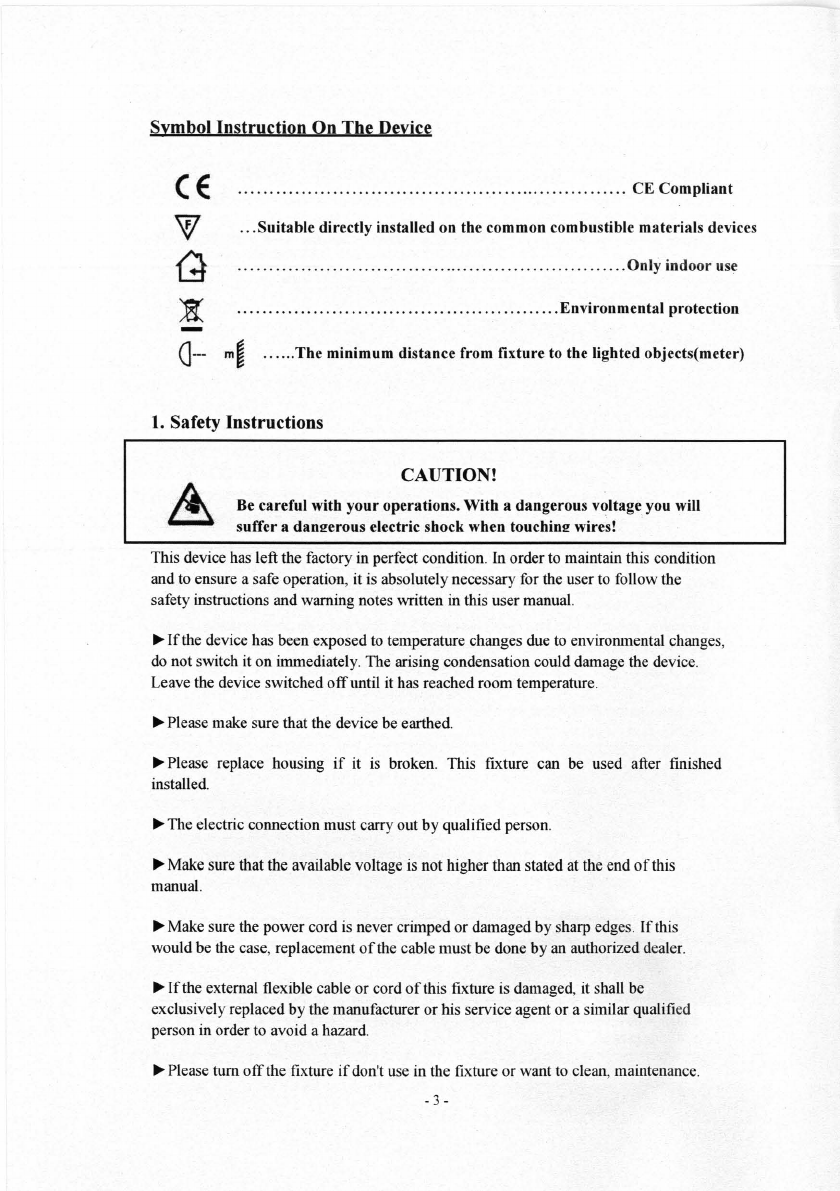

Symbol Instruction On The Device
CE ...... .. . ..... . .......... .. ..... . ... . .. .... .. ... .. .. ...... .... CE Compliant
W ... Suitable directly installed on the common combustible materials devices
G ............ .. .. ... ........ .. .. .. .. .... .... ..... .. ...... .. . .. .Only indoor use
:a: ... ... ..... . .. ... ........ .. .. .. . .... . .... . .. .. .. . .. Environmental protection
-
a-- m~ .... .. The minimum distance from fixture to the lighted objects(meter)
1. Safety Instructions
CAUTION!
Be careful with your operations. With a dangerous voltage you will
suffer a dan!!erous electric shock when touchin!! wires!
This device has left the factory in perfect condition. In order to maintain this condition
and to ensure a safe operation, it is absolutely necessary for the user
to follow the
safety instructions and warning notes written in this user manual.
~ If the device has been exposed to temperature changes due to environmental changes,
do not switch it on inunediately. The arising condensation could damage the device.
Leave the device switched
off until it has reached room temperature.
~ Please make sure that the device be earthed.
~ Please replace housing if it is broken. This fixture can be used after finished
installed.
~ The electric connection must carry out by qualified person.
~ Make sure that the available voltage is not higher than stated at the end of this
manual.
~ Make sure the power cord is never crimped or damaged by sharp edge s. If this
would be the case, replacement
of the cable must be done by an authorized dealer.
~ If the external flexible cable or cord of this fixture is damaged, it shall be
exclusively replaced by the manufacturer or his service agent or a similar qualified
person in order to avoid a hazard.
~ Please turn off the fixture if don't use in the fixture or want to clean, maintenance.
- 3-

CAU:TION!
Never toucbthe !l,eviceduring operationl
The housingmay heat up
CAUTION!
Neverlook directly intothe lightsource,
as sensitive persons may suffer an epileptic shock.
Please be aware that damages caused by manual modifications to the device are not
subject to warranty. Keep away from non-professionals.
General Gujdelines
~ This device is a lighting effect for professional use on stages, in discotheques,
theaters, etc., the device was designed for indoor use only.
~Thi s fixture is only allowed to be operated with the max alternating current which
stated in the technical specifications in the last page
ofthis manual.
~ The device can work continuously for eight hours. Lighting effects are not designed
for permanent operation. Consistent operation breaks may ensure that the device will
serve you for a long time without defects.
~ Handle with care, do not make the device by strong shocks.
~ While choosing the installation-spot, please make sure that the device is not exposed
to extreme heat, moisture or dust. Please don't project the beam onto combustible
substances.The minimum distance between light-output from the projector and the
illuminated surface must
be more than I meter.
~ Please do not in damp, overheat or dusty environment install and use the device. Do
not use light on fuel. The distance between the device and the projectile to keep at least
1 meter.
~ [fyou use the quick lock cam in hanging up the fixture, please make sure the quick
lock fasteners turned in the quick lock holes correctly,and add satety rope.
~ Operate the device on!y after having familiarized with its functions. Do not permit
operation
by persons not qualified for operating the device. Most damages are the
result
of unprofessional operation.
~ Please use the original packaging if the device is to be transported.
~ For safety reasons, please be aware that all modifications on the device are
forbidden.
~ Any installation and maintenance must by professional person.
-4-

~ If this device will be operated in any way different to the one described in this
manual, the product may suffer damages and the guarantee becomes void. Furthennore,
any other operation may lead
to short-circuit, burns, electric shock, lamp explosion,
crash, etc.

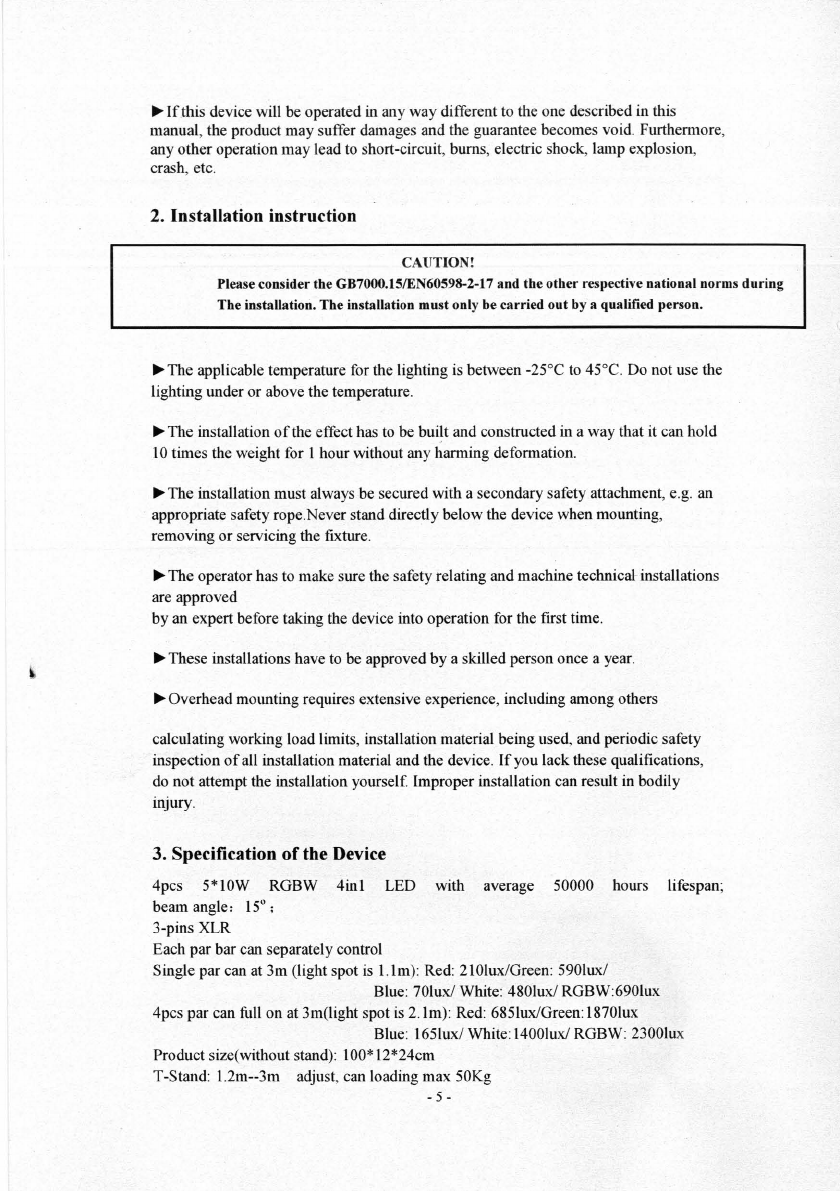

2. Installation instruction
CAUTION!
Please consider the GB7000.15IEN60598-2-17 and the other respective national norms
during
The installation. The installation must only be carried out by a qualified person.
~ The applicable temperature for the lighting is between -25°C to 45°C. Do not use the
lighting under or above the temperature.
~ The installation of the effect has to be built and constructed in a way that it can hold
10 times the weight for I hour without any harming defonnation.
~ The installation must always be secured with a secondary safety attachment, e.g. an
appropriate safety rope.Never stand directly below the device when mounting,
removing or servicing the fixture.
~ The operator has to make sure the safety relating and machine technical-installations
are approved
by an expert before taking the device into operation for the first time.
~ These installations have to be approved by a skilled person once a year.
~ Overhead mounting requires extensive experience, including among others
calculating working load limits, installation material being used, and periodic safety
inspection
of all installation material and the device. If you lack these qualifications,
do not attempt the installation yourself. Improper installation can result in bodily
injury.
3. Specification of the Device
4pcs 5*IOW RGBW 4inl LED with average 50000 hours lifespan;
beam angle: 15";
3-pins XLR
Each par bar can separately control
Single par can at
3m (light spot is l.lm): Red: 210Iux/Green: 5901ux/
Blue:
701ux / White: 480luxl RGBW:690Iux
4pcs
par can full on at 3m(light spot is 2.lm): Red: 685luxlGreen:1870lux
Blue: I651ux/ White: 1400luxl RGBW: 2300lux
Product size(without stand): 100*12*24cm
T-Stand: l.2m--3m adjust. can loading max 50Kg
- 5-

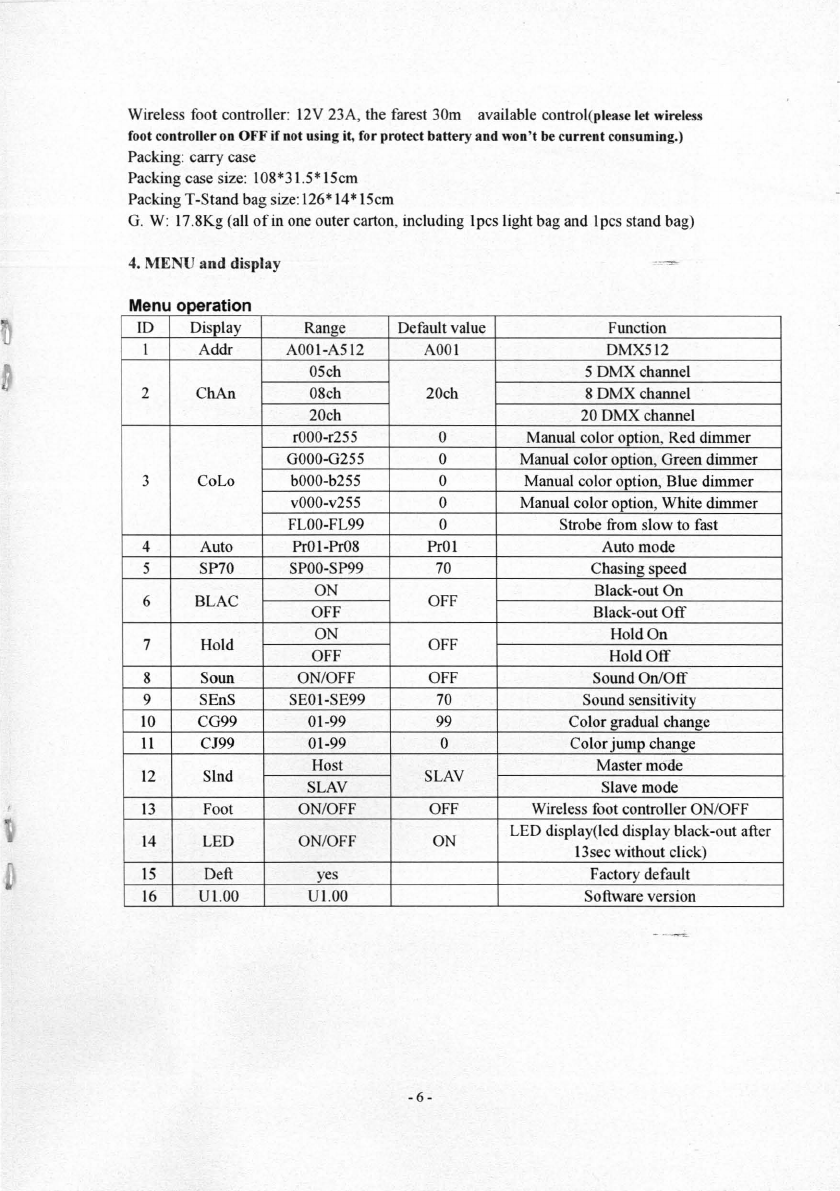

Wireless foot controller: 12V 23A , the farest 30m available control(please let wireless
foot controller
on OFF if not using it, for protect battery and won't be current consuming.)
Packing: carry case
Packing case size: 108*3\.5*15cm
Packing T-Stand bag size:126* 14* 15cm
G. W: 17 .8Kg (all of in one outer carton, including Ipcs light bag and Ipcs stand bag)
4.
MENU and display
Menu operation
ID Display Range Default value Function
I Addr AOOI-A512
AOOI DMX512
05ch 5 DMX channel
2
ChAn 08ch 20ch 8 DMX channel
20ch 20 DMX channel
rOOO-r255 0 Manual color option, Red dimmer
GOOO-G255
0 Manual color option, Green dimmer
3 CoLo
bOOO-b255 0 Manual color option, Blue dimmer
vOOO-v255
0 Manual color option, White dimmer
FLOO-FL99 0 Strobe from slow to fast
4 Auto PrOI-Pr08 PrOI Auto mode
5 SP70 SPOO-SP99 70 Chasing speed
6 BLAC ON OFF Black-out
On
OFF Black-out Off
7 Hold ON OFF Hold
On
OFF Hold Off
8 Soun ON/OFF OFF Sound On/Off
9 SEnS SEOI-SE99 70 Sound sensitivity
10 CG99
01-99 99 Color gradual change
11
CJ99 01-99 0 Color
jump change
12
Sind Host SLAV Master mode
SLAV Slave mode
13 Foot ON/OFF OFF Wireless foot controller ON / OFF
14 LED ON /OFF ON
LED display(led display black-out after
I3sec without click)
15 Deft yes Factory default
16 U\.OO U\.OO Software version
- 6-

Remote Control
•
_••
•••
•••
@@
--
8e
[D Display
I Stand By
2 DMX
3 Show I
4 Show 2
5 Show 3
6 Show 4
7 Show 5
8 Show 6
9 Show 7
10 Show 8
11 Led Color
12 LED Random
\3 Sound on
14 Laser color
15 Laser Random
16 Sound Off
17
Speed-
18 Speed
19
Speed+
Function
Power On/Off
Hold
Show 1
Show 2
Show 3
Show 4
Show 5
Show 6
Show 7
Show 8
LED color Jump
LED Color gradual change
Sound on
Hold
Hold
Sound
off
Showl-show8 speed increase
ShowI-show8 speed in middle(default)
Showl-show8 speed decrease
-7 -

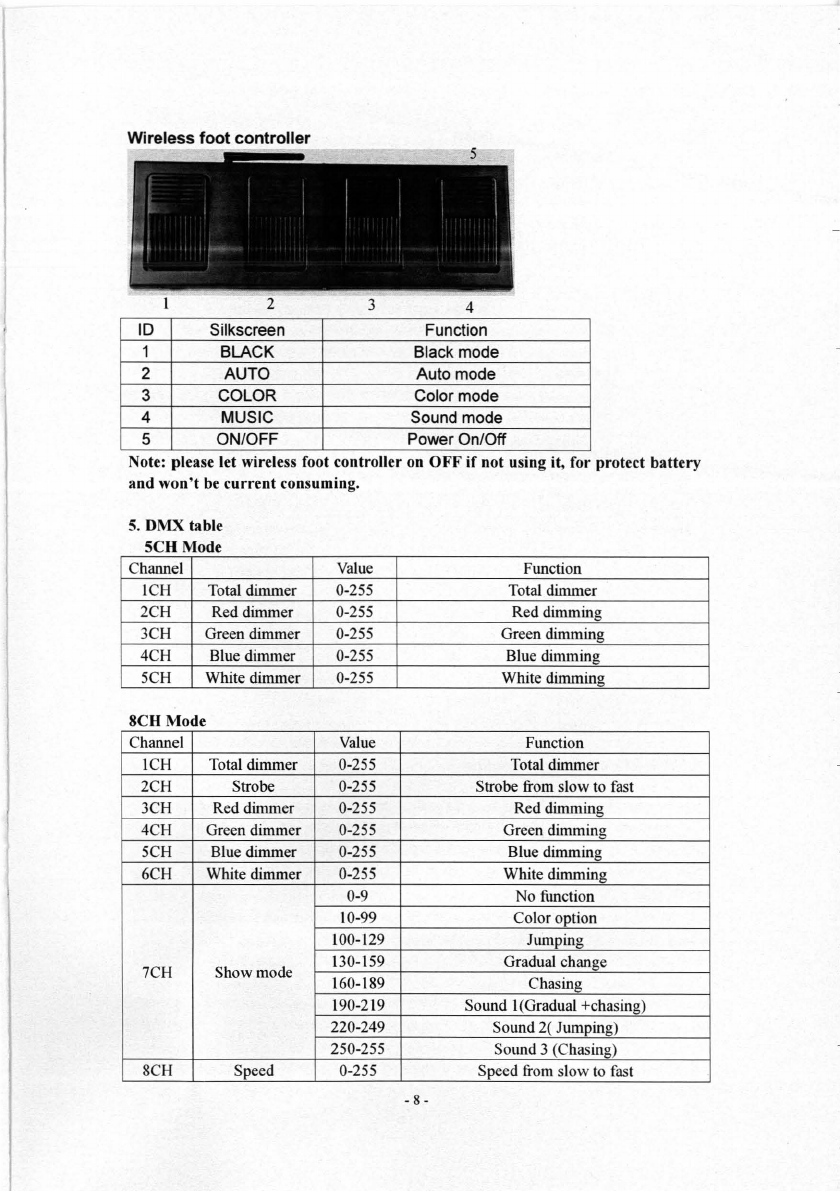

Wireless foot controller
2 3 4
ID Silkscreen Function
1 BLACK Black mode
2 AUTO Auto mode
3 COLOR Color mode
4 MUSIC Sound mode
5 ON/OFF Power On/Off
Note: please let wIreless foot controller on OFF If not uSlOg it, for protect battery
and won't be current consuming.
5. DMX table
scn Mode
Channel
ICH Total dimmer
2CH Red dimmer
3CH Green dimmer
4CH Blue dimmer
5CH White dimmer
8CH Mode
Channel
ICH Total dimmer
2CH Strobe
3CH Red dimmer
4CH Green dimmer
5CH Blue dimmer
6CH White dimmer
7CH Show mode
8CH Speed
Value Function
0-255 Total dimmer
0-255 Red dimming
0-255 Green dimming
0-255 Blue dimming
0-255 White dimming
Value Function
0-255 Total dimmer
0-255 Strobe from slow to fast
0-255 Red dimming
0-255 Green dimming
0-255 Blue dimming
0-255 White dimming
0-9 No function
10-99 Color option
100-129 Jumping
130-159 Gradual change
160-189 Chasing
190-219 Sound I(Gradual +chasing)
220-249 Sound 2( Jumping)
250-255 Sound 3 (Chasing)
0-255 Speed
from slow to fast
- 8-

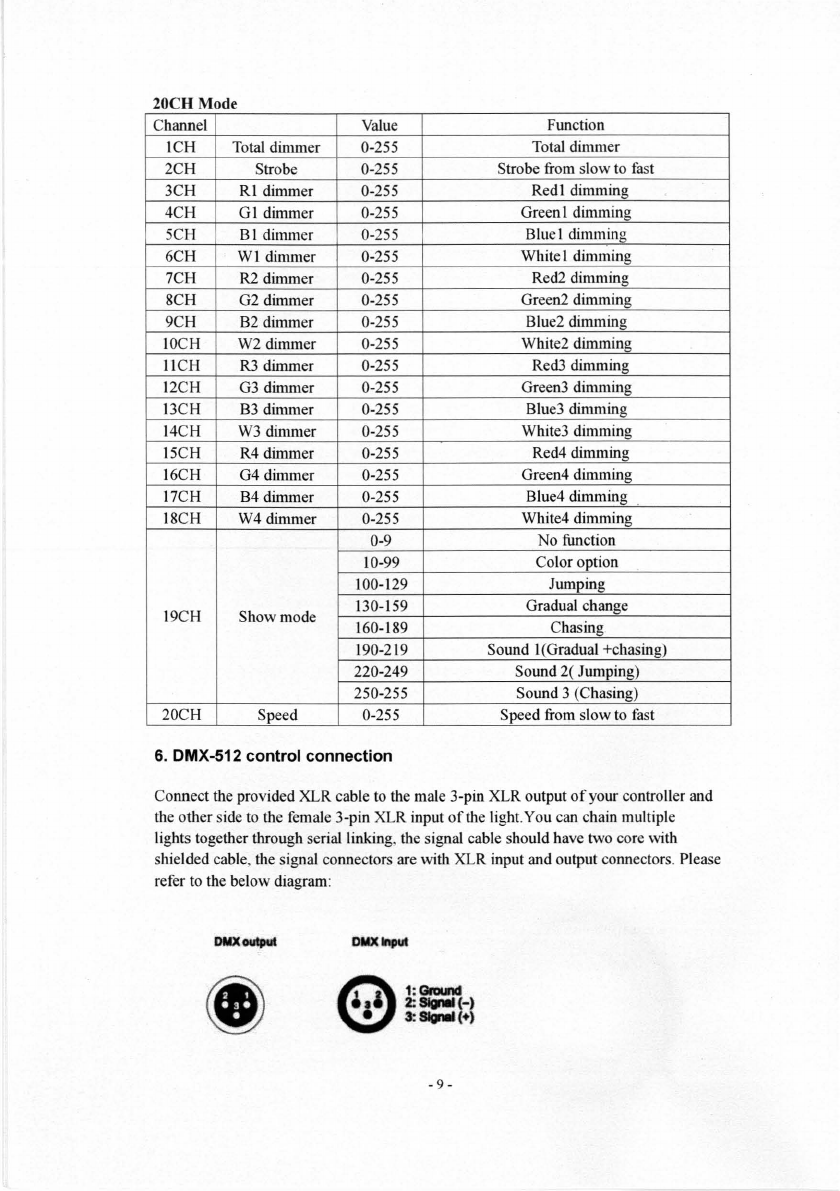

20CH Mode
Channel Value Function
ICH Total dimmer 0-255 Total dimmer
2CH Strobe 0-255 Strobe from slow to fast
3CH RI dimmer 0-255 RedI dimming
4CH
GI dimmer 0-255 Green I dimming
5CH
BI dimmer 0-255 Blue I dimming
6CH
WI dinmler 0-255 Whitel dimming
7CH R2 dimmer 0-255 Red2 dimming
8CH G2 dimmer 0-255 Green2 dimming
9CH
B2 dimmer 0-255 Blue2 dimming
lOCH W2 dimmer 0-255 White2 dimming
IlCH R3 dimmer 0-255 Red3 dimming
12CH
G3 dimmer 0-255 Green3 dimming
13CH
B3 dimmer 0-255 Blue3 dimming
14CH
W3 dimmer 0-255 White3 dimming
15CH R4 dimmer 0-255 Red4 dimming
16CH G4 dimmer 0-255 Green4 dimming
17CH B4 dimmer 0-255 Blue4 dimming
18CH W4 dinmler 0-255 White4 dimming
0-9 No function
10-99 Color option
100-129 Jumping
19CH Show mode 130-159 Gradual change
160-189 Chasing
190-219 Sound I(Gradual +chasing)
220-249 Sound 2( Jumping)
250-255 Sound 3 (Chasing)
20CH Speed 0-255 Speed from slow to fast
6. DMX-512 control connection
Connect the provided XLR cable to the male 3-pin XLR output of your controller and
the other side to the female 3-pin XLR input
of the light.You can chain multiple
lights together through serial linking. the signal cable should have two core with
shielded cable, the signal connectors are with XLR input and output connectors. Please
refer to the below diagram:
DMlCInput
•• , iSlpt(-)
@1
'Gnu!d
• 3: SIpt (+)
- 9-

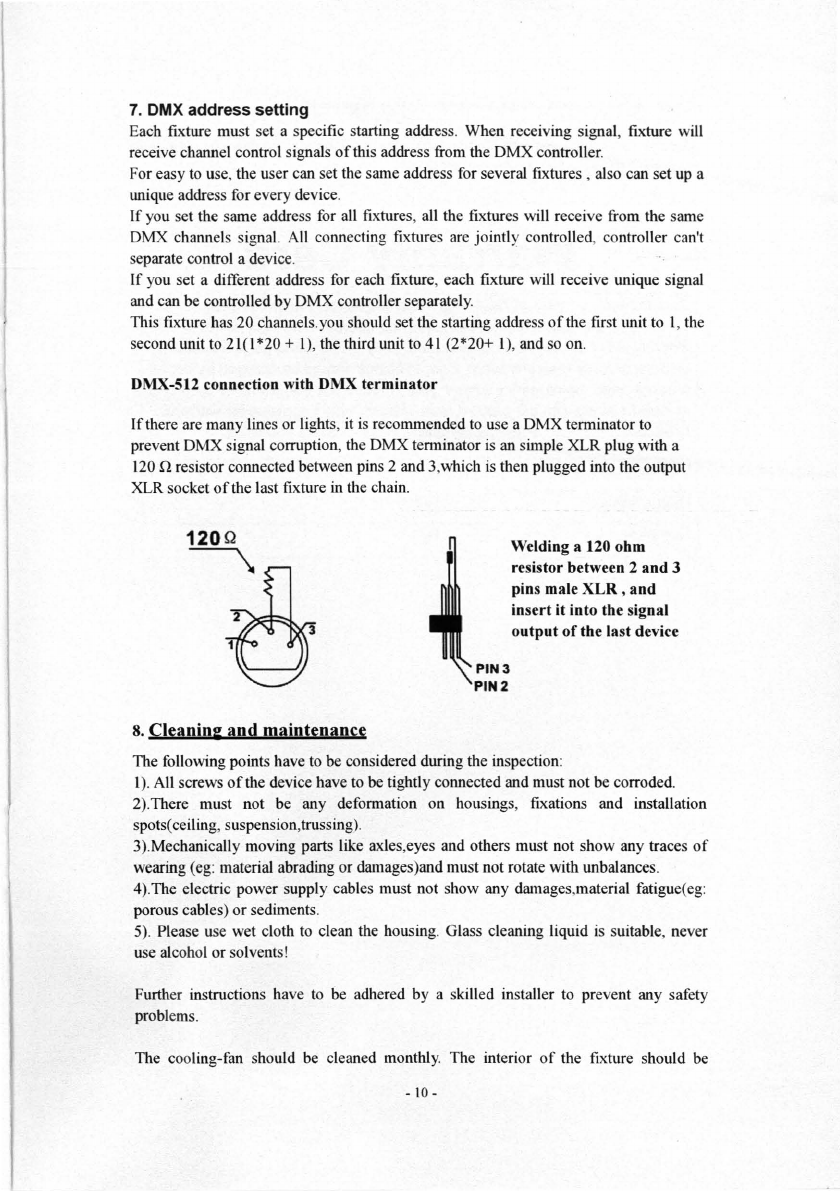

7. DMX address setting
Each fixture must set a specific starting address. When receiving signal, fixture will
receive channel control signals of this address from the DMX controller.
For easy
to use. the user can set the same address for several fixtures , also can set up a
unique address for every device.
If you set the same address for
all fixtures, all the fixtures will receive from the same
DMX channels signal. All connecting fixtures a re jointly controlled, controller can't
separate control a device.
If yo u set a different address for each fixture, each fixture will receive unique signal
and can be controlled by DMX controller separately.
This fixture has 20 channels.you should set the starting address
of the first lmit to I, the
second unit to 21 (1 *20 + I), the third unit to 41 (2 *20+ I), and so on.
DMX-S12 connection with DMX terminator
Ifthere are many lines or lights, it is recommended to use a DMX terminator to
prevent DMX signal corruption, the DMX tenninator is an simple XLR plug with a
120 n resistor connected between pins 2 and 3,which is then plugged into the output
XLR socket of the last fixture in the chain.
120Q
~
8. Cleaning and maintenance
PIN3
PIN2
Welding a 120 ohm
resistor between 2 and 3
pins male
XLR , and
insert it into the signal
output of the last device
The following points have to be considered during the inspection:
I). All screws of the device have to be tightly connected and must not be corroded.
2). There must not be any deformation on housings, fixations and installation
spots(ceiling, suspension,trussing).
3).Mechanically moving parts like axles,eyes and others must not show any traces of
wearing (eg: material abrading or damagesland must not rotate with unbalances.
4).The e le ctric power supply cables must not show any damages,material fatigue(eg:
porous cables) or sediments.
5) . Please use wet cloth to clean the housing. Glass cleaning liquid is suitable, never
use alcohol or solvents!
Further instructions have to be adhered by a skilled installer to prevent any safety
problems.
The c
oo ling-fan should be cleaned monthly. The interior of the fixture should be
- 10-

cleaned at least annually using a vacuum-cleaner or lin air-jet.
There are
no serv ic ea bl e parts inside the device. Maintenance and service operations
are o
nl y to be carried out by authorized dealer s.

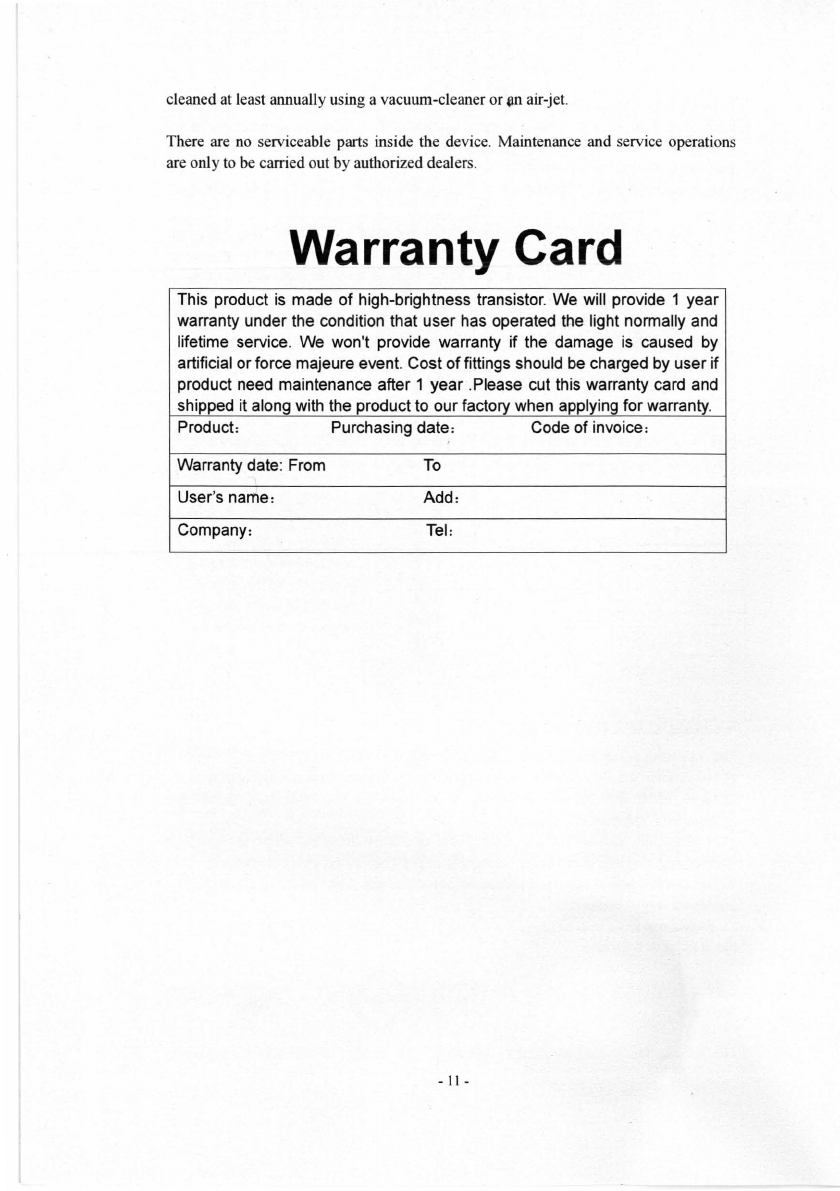

Warranty Card
This product is made of high-brightness transistor. We will provide 1 year
warranty under the condition that user has operated the light normally and
lifetime service. We won't provide warranty if the damage
is caused by
artificial or force majeure event. Cost of fittings should be charged by user if
product need maintenance after 1 year .Please cut this warranty card and
shipped it along with the product to our factory when applying for warranty.
Product: Purchasing date: Code of invoice:
Warranty date: From
To
User's name: Add:
Company:
Tel :
- II -
