Lightolier FS03 User manual

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • B0309
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Architectural Decorative FS03
Page 1 of 2 Vetro Pendant
2 3/8"
1 5/8"
17 1/8"
7 5/16"
7 5/16"
1
3
2
Features
1. Power Compartment: Die Cast and Machined
Aluminum Components. Brushed and Clear Lacquer Finish.
2. Primary Glass: Triplex Hand Blown Glass.
3. Decorative Glass Casing: A Conical Section of Frosted Hand Blown Glass,
Die Cast Aluminum Holder Ring and Stainless Steel Support Pins.
Lamping (by others)
Incandescent: 50W Max. T-4 Mini Can
Compact Fluorescent:
General Electric Osram/Sylvania Philips
(1) 13W Twin Tube 4-Pin Compact Fluorescent Lamp
N/A CF13DS/E/* N/A
(1) 13W Quad Tube 4-Pin Compact Fluorescent Lamp
F13DBX/*/EC04P CF13DD/E/* PL-C13W/*/4P/ALTO
Suspension
Cat. No Finish Description
SK01 Satin Aluminum Clear Metallic Straight Cord/cable, 120" Length, (10') with canopy
SK02 Satin Aluminum Clear Metallic Straight Cord/cable, 300" Length, (25') with canopy
ST01 Satin Aluminum 36" Length 3/8" Stem with canopy
ST02 Satin Aluminum 60" Length 3/8" Stem with canopy
CTC Satin Aluminum Close To Ceiling Kit with canopy
TM01 Satin Aluminum Silver Track Mounting Kit with Clear Metallic Straight Cord/Cable, 120" Length, (10') (120V only)
4 5/8"
3/8" Swivel Joint
3/8" Steel Tubing
4 5/8"
3"
3/8"
4 5/8"
1 1/2"
3 3/4"
3/8"
Close to Ceiling
Stem
Cable/Cord Track Mount
Order Information:
Spec ID Powerhead Inner Glass Outer Glass Suspension Kit Lamp Volts
FS03 PS13SA SG01 GLS02 *See suspensions below 4-Pin elect. Twin Tube 13W 120V
FS203 PS132SA SG01 GLS02 4-Pin elect. Twin Tube 13W 277V
FS03Q PS13QSA SG01 GLS02 4-Pin Quad Tube 13W 120V
FS203Q PS132QSA SG01 GLS02 4-Pin Quad Tube 13W 277V
IS03 PS50SA SG01 GLS02 T-4 Mini-Can 50W 120V
Must Order Powerhead and Glass separately. Suspension Kit must be ordered separately. Spec ID is for reference only.
Electrical
Lampholders: Incandescent E11 Base, Porcelain, Plated Copper
Alloy Screw Shell
Compact Fluorescent: 13W Twin: 2GX7 Base, High Impact Thermoset Polymer
with Brass Contacts.
13W Quad: G24Q-1 Base, High Impact Thermoset Polymer with Brass Contacts.
Ballasts: Fluorescent: Electronic 13 Watts TT 13 Watts QT
Voltage 120 277 120 277
Max. Watts 16 11 20 14
Max. Line Current (Amps) 0.136 0.08 0.174 0.114
Labels
cULus Listed. Suitable for Damp Locations.

Job Information Type:
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • B0309

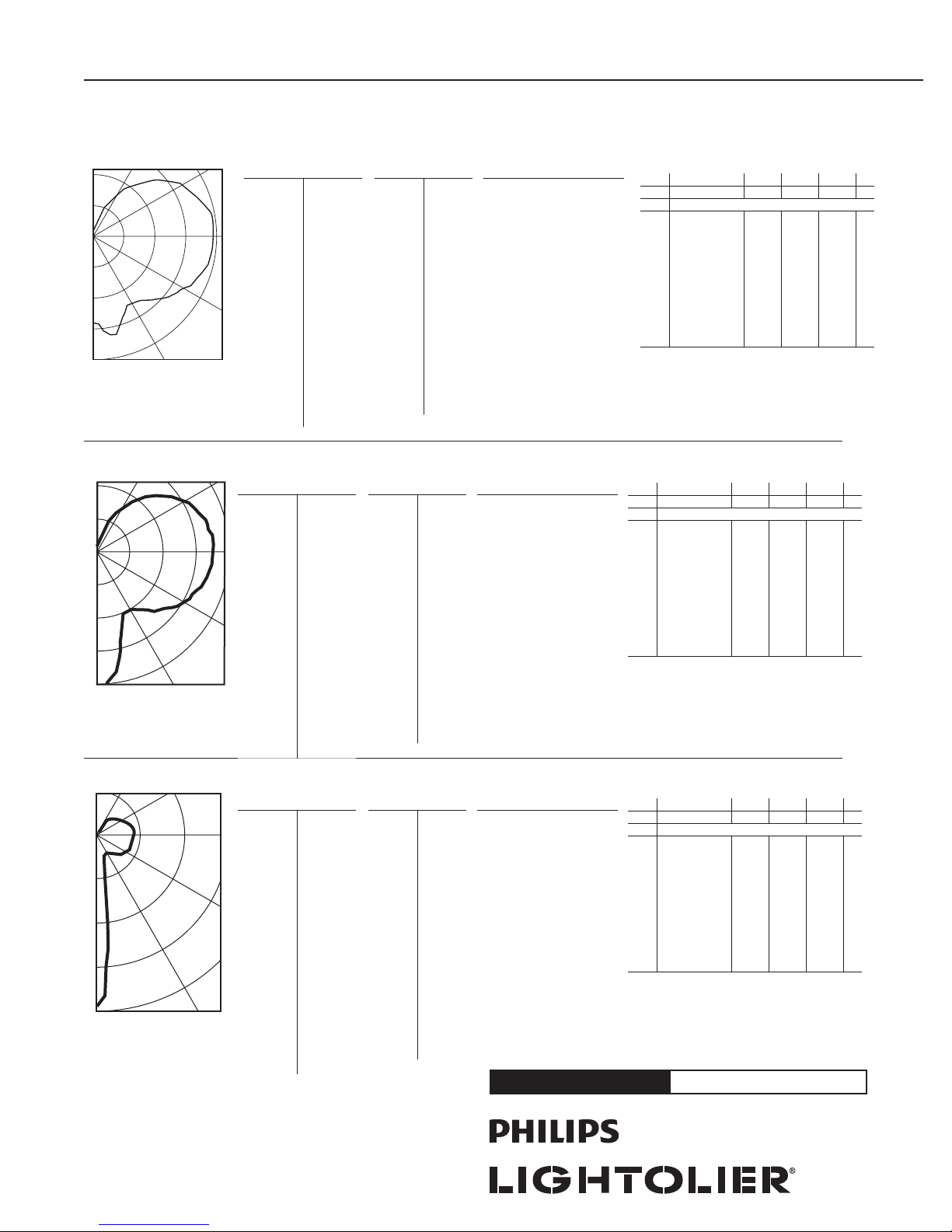

Architectural Decorative FS03
Page 2 of 2 Vetro Pendant
54
41
27
14
60°
30°
0
Catalog No. FS03/FS01, 4-Pin Twin Tube, 800 Lumens.
Catalog No. FS03Q/FS01Q, 13W 4-Pin Quad Tube, 900 Lumens.
Report No. 3108FR
COEFFICIENTS OF UTILIZATION
Ceiling 80% 70% 50% 30%
Wall 70 50 30 10 50 10 50 10 50 10 0
RCR Zonal Cavity Method - Effective Floor Reflectance = 20%
Room Cavity Ratio
0 74 74 74 74 69 69 58 58 49 49 36
1 64 60 56 52 55 48 46 40 37 33 23
2 57 50 44 40 46 37 38 31 31 25 17
3 51 43 37 32 39 29 33 24 26 20 13
4 46 37 31 26 34 24 28 20 23 16 10
5 42 33 26 22 30 20 25 17 20 14 8
6 39 29 23 18 27 17 22 14 18 12 7
7 36 26 20 16 24 15 20 12 16 10 6
8 33 24 18 14 22 13 18 11 15 9 5
9 31 22 16 12 20 11 17 9 14 8 4
10 29 20 14 11 18 10 15 8 13 7 4
Determined In Accordance With Current IES Published Procedures
Luminaire Input Watts = 16
54
41
27
14
60°
30°
0
Report No. 3105FR
Catalog No. IS03/IS01, 50W T-4, 950 Lumens.
60°
30°
0
158
119
79
40
1
Report No. 3101FR
CANDLEPOWER SUMMARY
Angle Mean CP Angle Mean CP
0 39 90 54
5 42 95 54
10 45 100 54
15 43 105 53
20 38 110 51
25 34 115 49
30 34 120 47
35 35 125 44
40 37 130 41
45 40 135 37
50 43 140 33
55 45 145 29
60 47 150 25
65 50 155 20
70 51 160 15
75 53 165 10
80 54 170 5
85 54 175 2
90 54 180 1
ZONAL LUMENS AND PERCENTAGES
Zone Lumens %Lamp %Fixt
0-30 32.14 4 5.8
0-40 54.24 6.8 9.8
0-60 125.68 15.7 22.8
0-90 289.44 36.2 52.4
90-120 163.26 20.4 29.6
90-130 202.8 25.4 36.7
90-150 249.85 31.2 36.7
90-180 262.55 32.8 47.6
0-180 551.99 69 100
** Efficiency = 69% **
ZONAL LUMEN SUMMARY
Zone Lumens
0-10 4.1
10-20 11.89
20-30 16.15
30-40 22.11
40-50 31.03
50-60 40.41
60-70 49.15
70-80 55.68
80-90 58.92
90-100 58.92
100-110 55.68
110-120 48.66
120-130 39.53
130-140 28.74
140-150 18.32
150-160 9.51
160-170 2.91
170-180 .29
CANDLEPOWER SUMMARY
Angle Mean CP Angle Mean CP
0 54 90 49
5 54 95 49
10 48 100 48
15 43 105 47
20 37 110 46
25 28 115 45
30 28 120 42
35 30 125 40
40 32 130 37
45 35 135 34
50 37 140 30
55 40 145 26
60 42 150 22
65 44 155 18
70 46 160 13
75 47 165 8
80 48 170 4
85 48 175 2
90 49 180 1
ZONAL LUMENS AND PERCENTAGES
Zone Lumens %Lamp %Fixt
0-30 28.52 3.2 5.8
0-40 47.41 5.3 9.6
0-60 110.28 12.3 22.4
0-90 256.23 28.5 52
90-120 147.51 16.4 29.9
90-130 183.11 20.3 37.1
90-150 225.8 25.1 37.1
90-180 236.85 26.3 48
0-180 493.07 54.8 100
** Efficiency = 54.8% **
ZONAL LUMEN SUMMARY
Zone Lumens
0-10 4.96
10-20 10.5
20-30 13.06
30-40 18.89
40-50 27.06
50-60 35.81
60-70 43.7
70-80 49.73
80-90 52.51
90-100 53.33
100-110 49.99
110-120 44.19
120-130 35.6
130-140 26.11
140-150 16.58
150-160 8.29
160-170 2.51
170-180 .25
COEFFICIENTS OF UTILIZATION
Ceiling 80% 70% 50% 30%
Wall 70 50 30 10 50 10 50 10 50 10 0
RCR Zonal Cavity Method - Effective Floor Reflectance = 20%
Room Cavity Ratio
0 59 59 59 59 55 55 46 46 39 39 28
1 51 47 44 41 43 38 36 32 30 26 18
2 45 40 35 31 36 29 30 24 24 20 13
3 41 34 29 25 31 23 26 19 21 16 10
4 37 30 24 20 27 19 22 16 18 13 8
5 34 26 21 17 24 16 20 13 16 11 6
6 31 23 18 15 21 13 18 11 14 9 5
7 28 21 16 13 19 12 16 10 13 8 5
8 26 19 14 11 17 10 14 9 12 7 4
9 25 17 13 10 16 9 13 8 11 6 4
10 23 16 11 9 14 8 12 7 10 5 3
Determined In Accordance With Current IES Published Procedures
Luminaire Input Watts = 14
CANDLEPOWER SUMMARY
Angle Mean CP Angle Mean CP
0 158 90 33
5 104 95 34
10 43 100 33
15 23 105 33
20 18 110 32
25 17 115 31
30 19 120 29
35 20 125 27
40 22 130 25
45 24 135 23
50 26 140 21
55 28 145 18
60 29 150 16
65 31 155 13
70 32 160 9
75 33 165 5
80 33 170 1
85 33 175 1
90 33 180 1
ZONAL LUMENS AND PERCENTAGES
Zone Lumens %Lamp %Fixt
0-30 23.21 2.4 6.8
0-40 36.04 3.8 10.5
0-60 79.48 8.4 23.1
0-90 180.42 19 52.5
90-120 101.76 10.7 29.6
90-130 126.02 13.3 36.7
90-150 155.48 16.4 36.7
90-180 163.04 17.2 47.5
0-180 343.46 36.2 100
** Efficiency = 36.2% **
ZONAL LUMEN SUMMARY
Zone Lumens
0-10 8.06
10-20 6.98
20-30 8.18
30-40 12.83
40-50 18.63
50-60 24.81
60-70 30.42
70-80 34.52
80-90 36.01
90-100 36.82
100-110 34.52
110-120 30.42
120-130 24.26
130-140 17.85
140-150 11.61
150-160 5.93
160-170 1.53
170-180 .1
COEFFICIENTS OF UTILIZATION
Ceiling 80% 70% 50% 30%
Wall 70 50 30 10 50 10 50 10 50 10 0
RCR Zonal Cavity Method - Effective Floor Reflectance = 20%
Room Cavity Ratio
0 39 39 39 39 36 36 31 31 26 26 19
1 34 31 29 27 29 25 24 21 20 18 12
2 30 26 23 21 24 19 20 16 16 13 9
3 27 23 19 17 21 15 17 13 14 11 7
4 25 20 16 14 18 13 15 11 12 9 5
5 22 18 14 12 16 11 13 9 11 7 5
6 21 16 12 10 14 9 12 8 10 6 4
7 19 14 11 9 13 8 11 7 9 6 3
8 18 13 10 8 12 7 10 6 8 5 3
9 16 12 9 7 11 6 9 5 7 4 3
10 15 11 8 6 10 6 8 5 7 4 2
Determined In Accordance With Current IES Published Procedures
Luminaire Input Watts = 50
