Furniture of America Wells CM7568CK User manual

BASIC ASSEMBLY TECHNIQUES
FOR YOUR FURNITURE TO LAST,CORRECT ASSEMBLY AND PROPER MAINTENANCE ARE NECESSARY.
PLEASE FOLLOW THE INFORMATION PROVIDED BELOW TO FULLY ENJOY YOUR FURNITURE.
FAILURE TO FOLLOW THE GUIDELINES ABOVE MAY
RESULT IN INJURY AND/OR PROPERTY DAMAGE.
IT IS THE USER'S RESPONSIBILITY TO MAINTAIN THE FURNITURE.THE HARDWARE MAY
LOOSEN OVER TIME AND MAY CAUSE THE FURNITURE TO BE WOBBLY AND UNABLE TO
SUPPORT ITS INTENDED WEIGHT CAPACITY. THIS MAY LEAD TO COLLAPSE AND MAY CAUSE
SERIOUS INJURY.
When lock or spring washer is used in
an assembly, please make sure the
lock or spring washer is placed
between the larger flat washer and the
head of the screw or bolt.
Some furniture comes with height
adjusetment knobs underneath each
leg. To lower or to raise each leg, you
need to turn clockwise or
counterclockwise, respectively.
FURNITURE OF AMERICA.ALL RIGHTS RESERVED.
Make sure all parts are properly
aligned, then use the appropriate
hand tool to completely tighten the
bolts or screws. Do not use power
tools and do not overtighten.
Position each part correctly and insert
screws or bolts into their respective
holes by hand tighten or using the
proper hand tool. Only tighten when
step is completed or when instructed
to do so.
Save the instructions and store the Allen
wrench or any supplied tool for later
maintenance. After two weeks, check and
tighten any loose hardware and repeat
again every six months thereafter.
Use cardboard or carpet area when
assembling furniture to prevent
scratches .Make sure the furniture
rests on a flat and level surface with
each leg evenly touching the floor.
No dragging of products/parts.
1 / 10
MODEL #
CM7568CK
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
EASY DIFFICULT
Phillips
Screwdriver
(Not Included)
(Included)
Allen Wrench
Recommended
ASSEMBLY RATING
Recommended
VERSION # 20-06-22

Thank you for your purchase!
We hope you enjoy this new addition to your home for many years to come.
Our commitment to providing quality products does not simply end when you purchase
our product. We fully stand behind our products from start to finish. Our customer
service department is available Monday – Friday 8:30 AM – 5:30 PM Pacific and can
help with assembly questions as well as, if necessary, replacing damaged or missing
parts. To help expedite our service, please have these assembly instructions readily
available, along with your order receipt.
E-MAIL
[e-mail]
Furniture of America
WEBSITE
www.foagroup.com
FOA Intro
FurnitureOfAmerica
foagroup
Monday to Friday
8:30AM- 5:30PM (PST)
Consumer Hotline
Toll-Free 1-888-980-5122
Prep Time!
Please review the assembly instructions and all
diagrams prior to assembling. Arrange parts as
recommended on Page 7 and group identical
hardware together to make assembling easier.
Check out our Quick Tips!
We recommend reviewing the pre-assembly
handouts. Even experts need a refresher now and
then!
Are you missing anything?
Double-check all parts, hardware and
accessories listed on Page 6 are
accounted for.
Should we send any replacements?
Are there any irregularities or flaws in the
parts? We can send replacements!
CHECK
BEFORE STARTING
2/ XXXXXXX10

PRE ASSEMBLY
INTRODUCTION

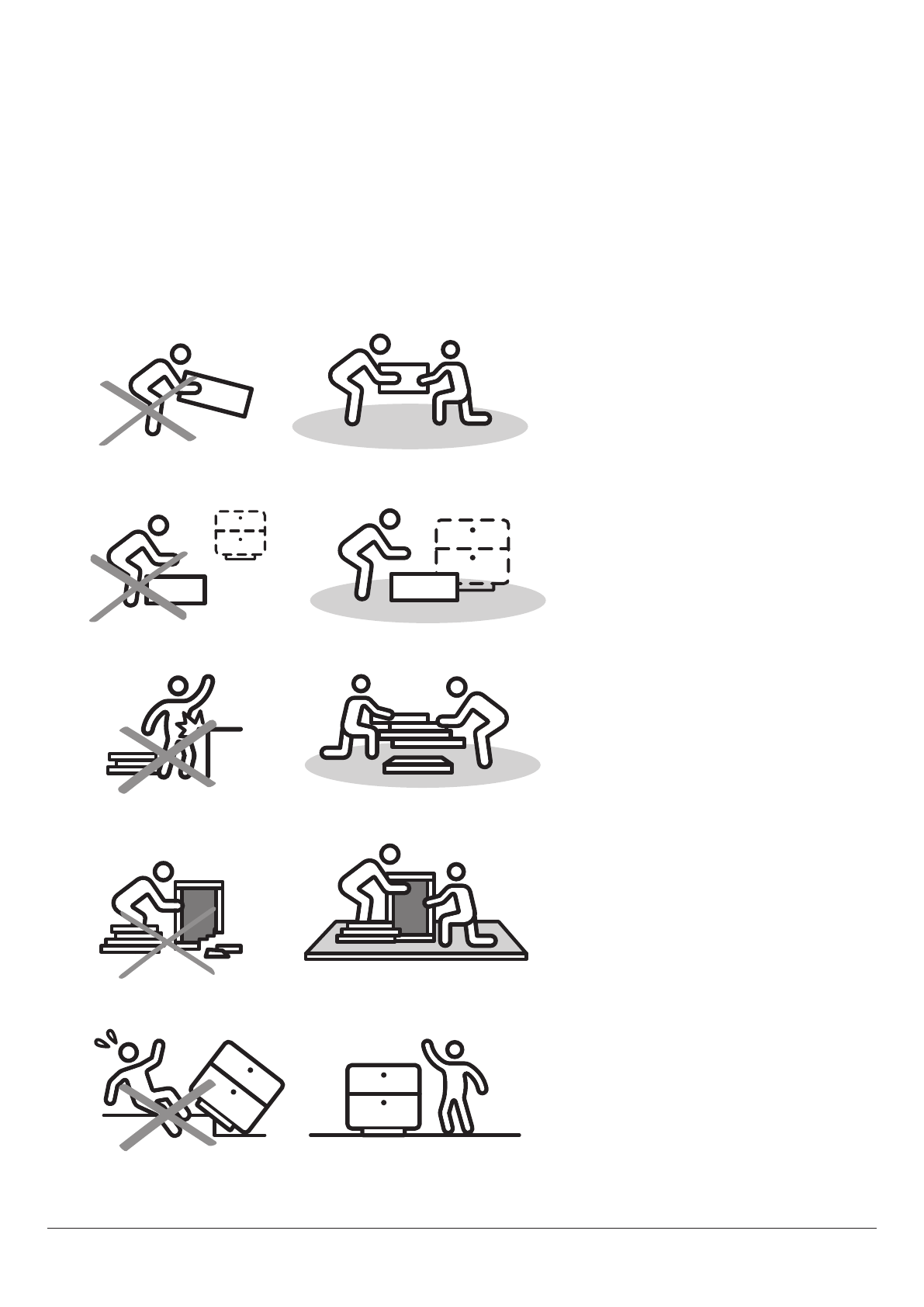

Suitable Location
Assembling near the area of the
intended location is highly
recommended.
Avoid Scratches
Use cardboard, blankets or a
carpeted area while assembling
furniture to prevent scratches.
Teamwork
ALWAYS have at least two people
to help with transporting and
assembling the product to avoid
potential injury and/or damage.
Flat Surface
Make sure the furniture rests on
a flat and level surface with each
leg evenly touching the floor.
Sufficient Space
Make sure you have enough
space to move around during the
assembly.
We understand building ready-to-assemble furniture can be a challenging
experience for some. To help avoid confusion, we have provided some helpful
tips that may speed up the process.
3/ XXXXXXX10

4/ XXXXXXX10

BASIC ASSEMBLY TECHNIQUES
FOR YOUR FURNITURE TO LAST,CORRECT ASSEMBLY AND PROPER MAINTENANCE ARE NECESSARY.
PLEASE FOLLOW THE INFORMATION PROVIDED BELOW TO FULLY ENJOY YOUR FURNITURE.
FAILURE TO FOLLOW THE GUIDELINES ABOVE MAY
RESULT IN INJURY AND/OR PROPERTY DAMAGE.
IT IS THE USER'S RESPONSIBILITY TO MAINTAIN THE FURNITURE.THE HARDWARE MAY
LOOSEN OVER TIME AND MAY CAUSE THE FURNITURE TO BE WOBBLY AND UNABLE TO
SUPPORT ITS INTENDED WEIGHT CAPACITY. THIS MAY LEAD TO COLLAPSE AND MAY CAUSE
SERIOUS INJURY.
When lock or spring washer is used in
an assembly, please make sure the
lock or spring washer is placed
between the larger flat washer and the
head of the screw or bolt.
Some furniture comes with height
adjusetment knobs underneath each
leg. To lower or to raise each leg, you
need to turn clockwise or
counterclockwise, respectively.
FURNITURE OF AMERICA.ALL RIGHTS RESERVED.
Make sure all parts are properly
aligned, then use the appropriate
hand tool to completely tighten the
bolts or screws. Do not use power
tools and do not overtighten.
Position each part correctly and insert
screws or bolts into their respective
holes by hand tighten or using the
proper hand tool. Only tighten when
step is completed or when instructed
to do so.
Save the instructions and store the Allen
wrench or any supplied tool for later
maintenance. After two weeks, check and
tighten any loose hardware and repeat
again every six months thereafter.
Use cardboard or carpet area when
assembling furniture to prevent
scratches .Make sure the furniture
rests on a flat and level surface with
each leg evenly touching the floor.
No dragging of products/parts.
Bolt Ø1/4" x 1-1/2"
Top Side Rail
Headboard Leg
(L&R)
Allen Key4mm
Headboard
Side Rail Bed Slat (13pcs)
Short Support Leg
115 x30x30mm
Footboard FbSupport Leg
164x30x30mm
Screw #8 x 32mm
Center Slat
Long Support Leg
362x30x30mm
Ø1/4"
FB LegØ110x84m m
Bolt Ø5/16" x 2"Lock Washer Ø5/16" Flat Washer Ø5/16"
1 / 10
MODEL #
CM7568CK
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
EASY DIFFICULT
VERSION# 20-06-09
2 - People
Phillips
Screwdriver
(Not Included)
(Included)
Allen Wrench
Recommended
BED
CM7568CK
#A 6pcs
5 / 10
#3 1pc #4 2pcs
#6 2pcs
#B 6pcs #C 6pcs #D 2pcs
#5 2pcs
Ø1/4"
#7 1pc #8 1pc #9 1pc #10 3pcs
Ø1/4" Ø1/4"
Bolt Ø1/4" x 1"Lock Washer Ø1/4"
Flat Washer Ø1/4"
#E 2pcs
#F 2pcs #G 1pc #H 26pcs
#11 2pcs
#J 10pcs
HARDWARE

Top Side Rail #11
CM7568CK is packedin 3 cases
Carton Disignation Part Hardware
Headboard
CM7568CK-HB
#A 6pcs
#B 6pcs
#C 6pcs
#D 2pcs
#E 2pcs
#F 2pcs
#G 1pc
#H 26pcs
Headboard Leg(L&R)
Footboard
Footboard
Leg
Footboard
Support Leg
CM7568CK-FB
Bed Slat
Side Rail
CM7568CK-R
Center Slat
Short Support Leg
Long Support Leg
#1
#2
#3
#4
#5
#7
#6
#8
#9
#10
6 / 10
#J 10pcs

BASIC ASSEMBLY TECHNIQUES
FOR YOUR FURNITURE TO LAST,CORRECT ASSEMBLY AND PROPER MAINTENANCE ARE NECESSARY.
PLEASE FOLLOW THE INFORMATION PROVIDED BELOW TO FULLY ENJOY YOUR FURNITURE.
FAILURE TO FOLLOW THE GUIDELINES ABOVE MAY
RESULT IN INJURY AND/OR PROPERTY DAMAGE.
IT IS THE USER'S RESPONSIBILITY TO MAINTAIN THE FURNITURE.THE HARDWARE MAY
LOOSEN OVER TIME AND MAY CAUSE THE FURNITURE TO BE WOBBLY AND UNABLE TO
SUPPORT ITS INTENDED WEIGHT CAPACITY. THIS MAY LEAD TO COLLAPSE AND MAY CAUSE
SERIOUS INJURY.
When lock or spring washer is used in
an assembly, please make sure the
lock or spring washer is placed
between the larger flat washer and the
head of the screw or bolt.
Some furniture comes with height
adjusetment knobs underneath each
leg. To lower or to raise each leg, you
need to turn clockwise or
counterclockwise, respectively.
FURNITURE OF AMERICA.ALL RIGHTS RESERVED.
Make sure all parts are properly
aligned, then use the appropriate
hand tool to completely tighten the
bolts or screws. Do not use power
tools and do not overtighten.
Position each part correctly and insert
screws or bolts into their respective
holes by hand tighten or using the
proper hand tool. Only tighten when
step is completed or when instructed
to do so.
Save the instructions and store the Allen
wrench or any supplied tool for later
maintenance. After two weeks, check and
tighten any loose hardware and repeat
again every six months thereafter.
Use cardboard or carpet area when
assembling furniture to prevent
scratches .Make sure the furniture
rests on a flat and level surface with
each leg evenly touching the floor.
No dragging of products/parts.
#6
#5
#7
#9
#10 #8
#1
#2L
#2R
#3
#4
Bolt Ø1/4" x 1-1/2"
Top Side Rail
#11
#11
Top Side Rail #11
Headboard Leg
(L&R)
Allen Key
4mm
Headboard
Side Rail Bed Slat (13pcs)
Short Support Leg
115 x30x30mm
Footboard FbSupport Leg
164x30x30mm
Screw #8 x 32mm
Center Slat
Long Support Leg
362x30x30mm
Ø1/4"
FB LegØ110x84m m
#A#B#C
#G
#2R
#2L
#1
CM7568CK is packedin 3 cases
Carton Disignation Part Hardware
Headboard
CM7568CK-HB
#A 6pcs
#B 6pcs
#C 6pcs
#D 2pcs
#E 2pcs
#F 2pcs
#G 1pc
#H 26pcs
Headboard Leg(L&R)
Footboard
Footboard
Leg
Footboard
Support
Leg
CM7568CK-FB
Bed Slat
Side Rail
CM7568CK-R
Center Slat
Short Support Leg
Long Support Leg
#1
#2
#3
#4
#5
#7
#6
#8
#9
#10
Bolt Ø5/16" x 2"Lock Washer Ø5/16" Flat Washer Ø5/16"
6 / 10
1 / 10
MODEL #
CM7568CK
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
EASY DIFFICULT
VERSION# 20-06-09
2 - People
Phillips
Screwdriver
(Not Included)
(Included)
Allen Wrench
Recommended
1
2
7 / 10
BED
CM7568CK
#1 1pc #2 2pcs
#A 6pcs
5 / 10
ASSEMBLYINSTRUCTIONS
Hardware
#A x 6pcs
#3 1pc #4 2pcs
#6 2pcs
#B 6pcs #C 6pcs #D 2pcs
Hardware
#B x 6pcs
Hardware
#C x 6pcs
Part#2 x2pcs
Part#1 x1pc
#5 2pcs
Ø1/4"
#7 1pc #8 1pc #9 1pc #10 3pcs
Ø1/4" Ø1/4"
Bolt Ø1/4" x 1"Lock Washer Ø1/4"
Flat Washer Ø1/4"
#E 2pcs
#F 2pcs #G 1pc #H 26pcs
#11 2pcs
#J 10pcs
#J 10pcs
Align HB legs (#2R/L) to the headboard (#1), then
secure by using bolts (#A) with washers (#B,C).

BASIC ASSEMBLY TECHNIQUES
FOR YOUR FURNITURE TO LAST,CORRECT ASSEMBLY AND PROPER MAINTENANCE ARE NECESSARY.
PLEASE FOLLOW THE INFORMATION PROVIDED BELOW TO FULLY ENJOY YOUR FURNITURE.
FAILURE TO FOLLOW THE GUIDELINES ABOVE MAY
RESULT IN INJURY AND/OR PROPERTY DAMAGE.
IT IS THE USER'S RESPONSIBILITY TO MAINTAIN THE FURNITURE.THE HARDWARE MAY
LOOSEN OVER TIME AND MAY CAUSE THE FURNITURE TO BE WOBBLY AND UNABLE TO
SUPPORT ITS INTENDED WEIGHT CAPACITY. THIS MAY LEAD TO COLLAPSE AND MAY CAUSE
SERIOUS INJURY.
When lock or spring washer is used in
an assembly, please make sure the
lock or spring washer is placed
between the larger flat washer and the
head of the screw or bolt.
Some furniture comes with height
adjusetment knobs underneath each
leg. To lower or to raise each leg, you
need to turn clockwise or
counterclockwise, respectively.
FURNITURE OF AMERICA.ALL RIGHTS RESERVED.
Make sure all parts are properly
aligned, then use the appropriate
hand tool to completely tighten the
bolts or screws. Do not use power
tools and do not overtighten.
Position each part correctly and insert
screws or bolts into their respective
holes by hand tighten or using the
proper hand tool. Only tighten when
step is completed or when instructed
to do so.
Save the instructions and store the Allen
wrench or any supplied tool for later
maintenance. After two weeks, check and
tighten any loose hardware and repeat
again every six months thereafter.
Use cardboard or carpet area when
assembling furniture to prevent
scratches .Make sure the furniture
rests on a flat and level surface with
each leg evenly touching the floor.
No dragging of products/parts.
#6
#5
#7
#9
#10 #8
#1
#2L
#2R
#3
#4
Bolt Ø1/4" x 1-1/2"
Top Side Rail
#11
#11
Top Side Rail #11
Headboard Leg
(L&R)
Allen Key
4mm
Headboard
Side Rail Bed Slat (13pcs)
Short Support Leg
115 x30x30mm
Footboard FbSupport Leg
164x30x30mm
Screw #8 x 32mm
Center Slat
Long Support Leg
362x30x30mm
Ø1/4"
FB LegØ110x84m m
#A#B#C
#G
#2R
#2L
#1
#5
#6
#6
#3
#4
CM7568CK is packedin 3 cases
Carton Disignation Part Hardware
Headboard
CM7568CK-HB
#A 6pcs
#B 6pcs
#C 6pcs
#D 2pcs
#E 2pcs
#F 2pcs
#G 1pc
#H 26pcs
Headboard Leg(L&R)
Footboard
Footboard
Leg
Footboard
Support
Leg
CM7568CK-FB
Bed Slat
Side Rail
CM7568CK-R
Center Slat
Short Support Leg
Long Support Leg
#1
#2
#3
#4
#5
#7
#6
#8
#9
#10
Bolt Ø5/16" x 2"Lock Washer Ø5/16" Flat Washer Ø5/16"
6 / 10
1 / 10
MODEL #
CM7568CK
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
EASY DIFFICULT
VERSION# 20-06-09
2 - People
Phillips
Screwdriver
(Not Included)
(Included)
Allen Wrench
Recommended
1
2
7 / 10
3
4
8 / 10
BED
CM7568CK
#1 1pc #2 2pcs
#A 6pcs
5 / 10
ASSEMBLYINSTRUCTIONS
ASSEMBLYINSTRUCTIONS
Hardware
#A x 6pcs
#3 1pc #4 2pcs
#6 2pcs
#B 6pcs #C 6pcs #D 2pcs
Hardware
#B x 6pcs
Hardware
#C x 6pcs
Part#2 x2pcs
Part#1 x1pc
#5 2pcs
Ø1/4"
#7 1pc #8 1pc #9 1pc #10 3pcs
Ø1/4" Ø1/4"
Bolt Ø1/4" x 1"Lock Washer Ø1/4"
Flat Washer Ø1/4"
#E 2pcs
#F 2pcs #G 1pc #H 26pcs
Part#4 x2pcs
Part#3 x1pc
Part#5 x2pcs
Part#6 x2pcs
#11 2pcs
#J 10pcs
#J 10pcs
Attach FB legs (#4) to the footboard (#3), then attach
support leg (#5) to footboard (#3).
Align and hook the side rails (#5) to the headboard (#1) and
footboard (#3). Make sure it is firmly in place.

BASIC ASSEMBLY TECHNIQUES
FOR YOUR FURNITURE TO LAST,CORRECT ASSEMBLY AND PROPER MAINTENANCE ARE NECESSARY.
PLEASE FOLLOW THE INFORMATION PROVIDED BELOW TO FULLY ENJOY YOUR FURNITURE.
FAILURE TO FOLLOW THE GUIDELINES ABOVE MAY
RESULT IN INJURY AND/OR PROPERTY DAMAGE.
IT IS THE USER'S RESPONSIBILITY TO MAINTAIN THE FURNITURE.THE HARDWARE MAY
LOOSEN OVER TIME AND MAY CAUSE THE FURNITURE TO BE WOBBLY AND UNABLE TO
SUPPORT ITS INTENDED WEIGHT CAPACITY. THIS MAY LEAD TO COLLAPSE AND MAY CAUSE
SERIOUS INJURY.
When lock or spring washer is used in
an assembly, please make sure the
lock or spring washer is placed
between the larger flat washer and the
head of the screw or bolt.
Some furniture comes with height
adjusetment knobs underneath each
leg. To lower or to raise each leg, you
need to turn clockwise or
counterclockwise, respectively.
FURNITURE OF AMERICA.ALL RIGHTS RESERVED.
Make sure all parts are properly
aligned, then use the appropriate
hand tool to completely tighten the
bolts or screws. Do not use power
tools and do not overtighten.
Position each part correctly and insert
screws or bolts into their respective
holes by hand tighten or using the
proper hand tool. Only tighten when
step is completed or when instructed
to do so.
Save the instructions and store the Allen
wrench or any supplied tool for later
maintenance. After two weeks, check and
tighten any loose hardware and repeat
again every six months thereafter.
Use cardboard or carpet area when
assembling furniture to prevent
scratches .Make sure the furniture
rests on a flat and level surface with
each leg evenly touching the floor.
No dragging of products/parts.
#6
#5
#7
#9
#10 #8
#1
#2L
#2R
#3
#4
Bolt Ø1/4" x 1-1/2"
Top Side Rail
#11
#11
Top Side Rail #11
Headboard Leg
(L&R)
Allen Key
4mm
Headboard
Side Rail Bed Slat (13pcs)
Short Support Leg
115 x30x30mm
Footboard FbSupport Leg
164x30x30mm
Screw #8 x 32mm
Center Slat
Long Support Leg
362x30x30mm
Adjust leveler
Ø1/4"
FB LegØ110x84m m
#A#B#C
#G
#2R
#2L
#1
#5
#6
#6
#9
#10
#8
#3
#H
#D
#E
#F
#G
#9
#10
#8
#5
#5
#7
#4
CM7568CK is packedin 3 cases
Carton Disignation Part Hardware
Headboard
CM7568CK-HB
#A 6pcs
#B 6pcs
#C 6pcs
#D 2pcs
#E 2pcs
#F 2pcs
#G 1pc
#H 26pcs
Headboard Leg(L&R)
Footboard
Footboard
Leg
Footboard
Support
Leg
CM7568CK-FB
Bed Slat
Side Rail
CM7568CK-R
Center Slat
Short Support Leg
Long Support Leg
#1
#2
#3
#4
#5
#7
#6
#8
#9
#10
Bolt Ø5/16" x 2"Lock Washer Ø5/16" Flat Washer Ø5/16"
6 / 10
1 / 10
MODEL #
CM7568CK
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
EASY DIFFICULT
VERSION# 20-06-09
2 - People
Phillips
Screwdriver
(Not Included)
(Included)
Allen Wrench
Recommended
1
2
7 / 10
3
4
8 / 10
BED
CM7568CK
#1 1pc #2 2pcs
#A 6pcs
5 / 10
ASSEMBLYINSTRUCTIONS ASSEMBLYINSTRUCTIONS
Hardware
#A x 6pcs
#3 1pc #4 2pcs
#6 2pcs
#B 6pcs #C 6pcs #D 2pcs
Hardware
#B x 6pcs
Hardware
#C x 6pcs
Part#2 x2pcs
Part#1 x1pc
#5 2pcs
Ø1/4"
#7 1pc #8 1pc #9 1pc #10 3pcs
Ø1/4" Ø1/4"
Bolt Ø1/4" x 1"Lock Washer Ø1/4"
Flat Washer Ø1/4"
#E 2pcs
#F 2pcs #G 1pc #H 26pcs
5
6
9 / 10
ASSEMBLYINSTRUCTIONS
Part#4 x2pcs
Part#3 x1pc
Part#5 x2pcs
Part#6 x2pcs
Part#9 x1pc
Part#8 x1pc
Part#10 x3pcs
Hardware
#D x 2pcs
Hardware
#E x 2pcs
Hardware
#F x 2pcs
Hardware
#H x 26pcs
#11 2pcs
#J 10pcs
#J 10pcs

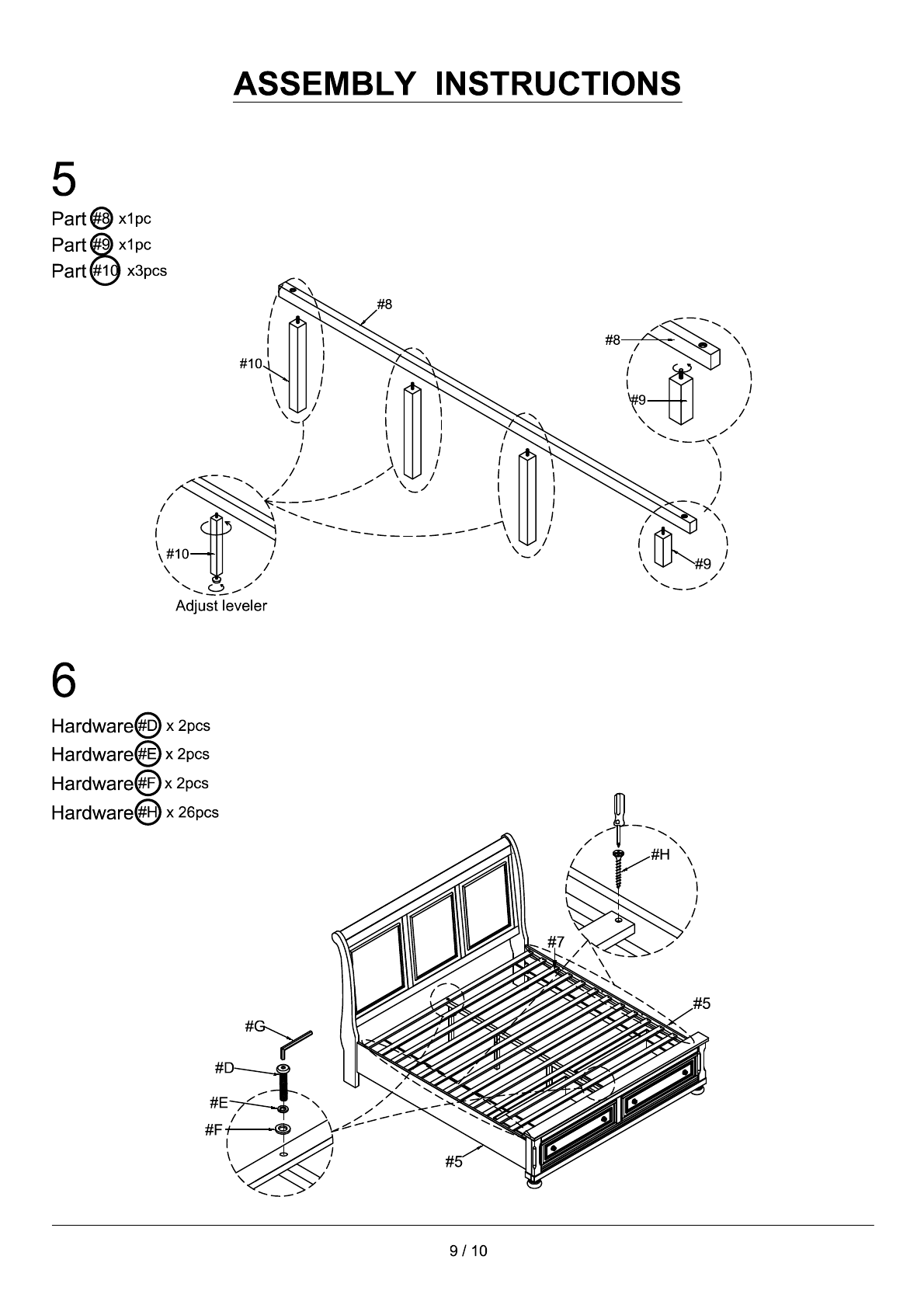

Attach support legs (#9,10) to the center support rail (#8), then
adjust leveler of the support legs (#10) according to ground
level.
Align slats (#7) to side rails, then secure by using screws (#H).
Align center slat (#8) to the slats
(#7), then secure by using bolts
(#D) with washers (#E,F).

BASIC ASSEMBLY TECHNIQUES
FOR YOUR FURNITURE TO LAST,CORRECT ASSEMBLY AND PROPER MAINTENANCE ARE NECESSARY.
PLEASE FOLLOW THE INFORMATION PROVIDED BELOW TO FULLY ENJOY YOUR FURNITURE.
FAILURE TO FOLLOW THE GUIDELINES ABOVE MAY
RESULT IN INJURY AND/OR PROPERTY DAMAGE.
IT IS THE USER'S RESPONSIBILITY TO MAINTAIN THE FURNITURE.THE HARDWARE MAY
LOOSEN OVER TIME AND MAY CAUSE THE FURNITURE TO BE WOBBLY AND UNABLE TO
SUPPORT ITS INTENDED WEIGHT CAPACITY. THIS MAY LEAD TO COLLAPSE AND MAY CAUSE
SERIOUS INJURY.
When lock or spring washer is used in
an assembly, please make sure the
lock or spring washer is placed
between the larger flat washer and the
head of the screw or bolt.
Some furniture comes with height
adjusetment knobs underneath each
leg. To lower or to raise each leg, you
need to turn clockwise or
counterclockwise, respectively.
FURNITURE OF AMERICA.ALL RIGHTS RESERVED.
Make sure all parts are properly
aligned, then use the appropriate
hand tool to completely tighten the
bolts or screws. Do not use power
tools and do not overtighten.
Position each part correctly and insert
screws or bolts into their respective
holes by hand tighten or using the
proper hand tool. Only tighten when
step is completed or when instructed
to do so.
Save the instructions and store the Allen
wrench or any supplied tool for later
maintenance. After two weeks, check and
tighten any loose hardware and repeat
again every six months thereafter.
Use cardboard or carpet area when
assembling furniture to prevent
scratches .Make sure the furniture
rests on a flat and level surface with
each leg evenly touching the floor.
No dragging of products/parts.
#6
#5
#7
#9
#10 #8
#1
#2L
#2R
#3
#4
Bolt Ø1/4" x 1-1/2"
Top Side Rail
#11
#11
#J
#G
#11
#11
#5
Top Side Rail #11
Headboard Leg
(L&R)
Allen Key
4mm
Headboard
Side Rail Bed Slat (13pcs)
Short Support Leg
115 x30x30mm
Footboard FbSupport Leg
164x30x30mm
Screw #8 x 32mm
Center Slat
Long Support Leg
362x30x30mm
Adjust leveler
Ø1/4"
FB LegØ110x84m m
#A#B#C
#G
#2R
#2L
#1
#5
#6
#6
#9
#10
#8
#3
#H
#D
#E
#F
#G
#9
#10
#8
#5
#5
#7
#4
CM7568CK is packedin 3 cases
Carton Disignation Part Hardware
Headboard
CM7568CK-HB
#A 6pcs
#B 6pcs
#C 6pcs
#D 2pcs
#E 2pcs
#F 2pcs
#G 1pc
#H 26pcs
Headboard Leg(L&R)
Footboard
Footboard
Leg
Footboard
Support
Leg
CM7568CK-FB
Bed Slat
Side Rail
CM7568CK-R
Center Slat
Short Support Leg
Long Support Leg
#1
#2
#3
#4
#5
#7
#6
#8
#9
#10
Bolt Ø5/16" x 2"Lock Washer Ø5/16" Flat Washer Ø5/16"
6 / 10
1 / 10
MODEL #
CM7568CK
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
EASY DIFFICULT
VERSION# 20-06-09
2 - People
Phillips
Screwdriver
(Not Included)
(Included)
Allen Wrench
Recommended
1
2
7 / 10
3
4
8 / 10
BED
CM7568CK
#1 1pc #2 2pcs
#A 6pcs
5 / 10
ASSEMBLYINSTRUCTIONS ASSEMBLYINSTRUCTIONS
Hardware
#A x 6pcs
#3 1pc #4 2pcs
#6 2pcs
#B 6pcs #C 6pcs #D 2pcs
Hardware
#B x 6pcs
Hardware
#C x 6pcs
Part#2 x2pcs
Part#1 x1pc
#5 2pcs
Ø1/4"
#7 1pc #8 1pc #9 1pc #10 3pcs
Ø1/4" Ø1/4"
Bolt Ø1/4" x 1"Lock Washer Ø1/4"
Flat Washer Ø1/4"
#E 2pcs
#F 2pcs #G 1pc #H 26pcs
5
6
9 / 10
ASSEMBLYINSTRUCTIONS
Part#4 x2pcs
Part#3 x1pc
Part#5 x2pcs
Part#6 x2pcs
Part#9 x1pc
Part#8 x1pc
Part#10 x3pcs
Hardware
#D x 2pcs
Hardware
#E x 2pcs
Hardware
#F x 2pcs
Hardware
#H x 26pcs
#11 2pcs
#J 10pcs
#J 10pcs
7
8
10 / 10
ASSEMBLYINSTRUCTIONS
Part#11 x2pcs
Hardware
#J x 10pcs
Align top side rails (#11) to the side rails (#5),
then secure by using bolts (#J).
