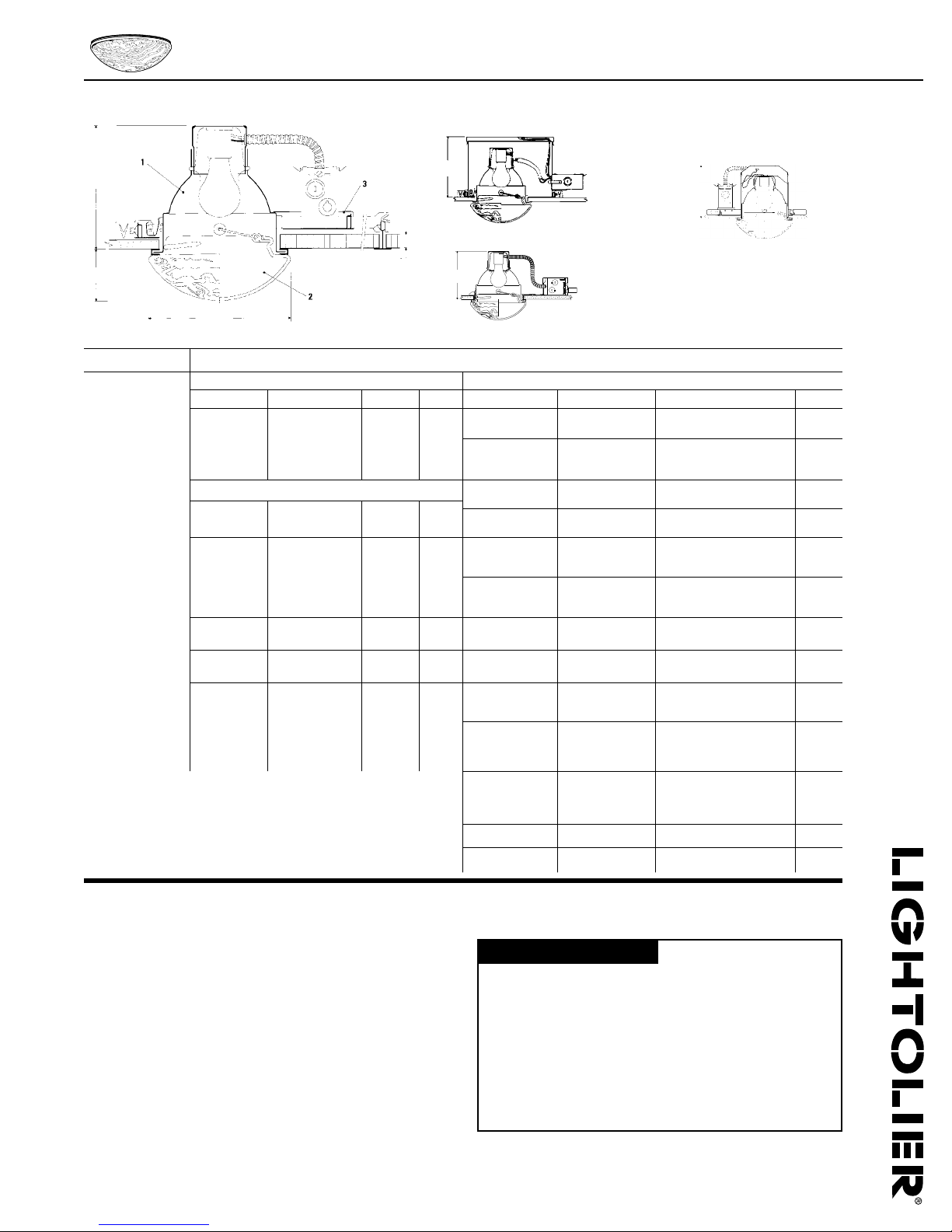

Lytecaster®Recessed Downlighting 1124
Page 1 of 2 6 3/4" Aperture Cratere Dome Diffuser Reflector Trim
Lightolier a Genlyte company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2011 Genlyte Group LLC • I911
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
1124/1102P1
Standard Incandescent
6 3/4"
2 3/4"
8 1/8"
1 1/4" Max.
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Reflector Trim Frame-In Kit — See Individual Frame-In Kit Specification Sheets
1124
Doubled
Etched
LED Fluorescent
Frame-In Kit Ceiling Type Lamping Height Frame-In Kit Installation Type Lamping Height
1101LED
1100LEDREM
L56LED
Non-IC
Non-IC Remodeler
Non-IC Retrofit
LED
LED
LED
6 3/4"
6 3/4"
6 3/4 "
1101F18U Series UniFrame™
Non-IC
(1) Quad/Triple 18W (GX24q-2) 5 7/8"
1101F2642U
Series
UniFrame™
Non-IC
(1) Quad/Triple 26W (GX24q-3)
(1) Triple 32W (GX24q-3)
(1) Triple 42W (GX24q-3)
5 7/8"
Incandescent 1104F13 Series IC (1) Quad/Triple 13W (GX24q-1) 7 1/2"
1102P1
1103R
Non-IC
Non-IC Remodeler
100W A19 6 3/4"
6 3/4" 1104F18 Series IC
(1) Quad/Triple 18W (GX24q-2) 7 1/2"
1100IC
1100AICM
1100DICM
1100DAICM
1104ICX/N
IC
AirSeal®IC
Deep IC
Deep AirSeal®IC
AirSeal®IC
60W A19 7 5/16"
7 5/16"
9 1/4"
9 1/4"
7 1/4"
1104F26 Series IC
(1) Quad/Triple 26W (GX24q-3) 7 1/2"
1100FTU Series Non-IC
(1) Triple 26/32W (GX24q-3) 6 3/4"
1104IC/N
1104ICR
AirSeal® IC
IC Remodeler
40W A19 7 1/4"
7 1/2"
1100AICMFT AirSeal®IC
(1) Triple 26W (GX24q-3) 6 7/8"
1104IC/N
1104ICR
Non-IC
Non-IC Remodeler
75W A19 7 1/2"
7 1/2"
1101F18ICU/N Performance IC
(1) Quad/Triple 18W (GX24q-2) 7 1/4"
1101LED
1100LEDREM
1156LED
Non-IC
Non-IC Remodeler
Non-IC Retrofit
LED
LED
LED
6 3/4"
6 3/4"
6 3/4 "
1101F2642ICU
1101F2642IUN
Performance IC
(1) Quad/Triple 26W (GX24q-3)
(1) Triple 32W (GX24q-3)
7 1/4"
1101FDICMX1/N Performance IC
Advance Mark10
Dimming 120v
(1) Quad/Triple 26W (GX24q-3)
(1) Triple 32W (GX24q-3)
7 1/4"
1101FDICMX2/N Performance IC
Advance Mark10
Dimming 277v
(1) Quad/Triple 26W (GX24q-3)
(1) Triple 32W (GX24q-3)
7 1/4"
1910XFH1 Conversion Kit
(1) Quad 13W (GX23-2) 6 3/4"
1910XDH1 Conversion Kit
(2) Quad 13W (GX23-2) 6 3/4"
7 1/2"
1124/1103R
0™
Non-IC
Remodeler Ring
6 3/4"
1124/1100
DEEP IC Series
Incandescent
Insulated Ceiling
9 1/4"
Features
1. Reflector: Hydroformed aluminum, .040 minimum thickness; Anobrite®
(anodic-processed) semi-specular finish for permanent reflectivity.
2. Diffuser: Textured double etched glass; twist tight to reflector trim.
Neoprene (captive on flange of reflector) seals unit under pressure of twist
lock. Concealed wire-hinge supports glass enclosure for quick servicing.
3. Frame-In Kit: (1102P1 standard frame shown). Other frames listed above
and shown on the right. See Frame-In Kit specification sheets for more
details.
Meets NEC®requirements for Spas and Hot Tubs.
Options & Accessories
Retaining Clips: 1955 - For installing in existing ceiling.
Labels
UL (Suitable for Wet Locations - Covered Ceiling Only), I.B.E.W.
NEC®is a registered trademark of the National Fire Protection Association.
1124/1104IC/N
0™
IC/Non-IC
Convertible

Lightolier a Genlyte company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2011 Genlyte Group LLC • I911
Job Information Type:
Lytecaster®Recessed Downlighting 1124
Page 2 of 2 6 3/4" Aperture Cratere Dome Diffuser Reflector Trim
To convert lighting data for a lower wattage incandescent lamp of the same type, multiply the footcandle (or candlepower) values by the ratio of the lumens of the two lamps.
The coefficients of utilization remain the same.
