Lightolier SL110C User manual

46-3/16"
(1173mm)
13-7/8"
(70 mm)
1"
(25 mm)
Features
Stand-Off Unit: 2-3/4" overall height, meets ADA requirements.
Channel: 1" x 1" brushed and anodized extruded aluminum ballast channel.
Provided with KO’s and threaded holes to accept all mounting accessories.
Cover: Brushed and anodized aluminum ballast cover. Press-fit installation.
No visible hardware.
Multi-fonction bloc (2): retains lampholder to the ballast channel. Also
functions as a wireway for continuous rows and patterns. Brushed and anodized
aluminum finish.
Lampholder Stem: Small 5/16" diameter aluminum wireway stem for lampholder,
suitable distance to permit the installation of the shielding options. Hold in place
by ball plungers to ease relamping.
Lampholder Housing (2): 1" square brushed and anodized aluminum with turret
style locking socket.
KUBIK 1.0 SL110C
Page 1 of 5 Bare Lamp Suspended Unit
1-28W T5 Linear
Dimensions
Louver accessories
Lightolier is a Philips group brand
Lightolier www.lightolier.com

We reserve the right to change details of design, materials and finish.
SL110C.pdf
Canlyte www.canlyte.com

Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Ordering guide (complete luminaire consist of unit & power feed)
Cat. No. Lamp Volts Description Finish
SL110A28IA1 120V 4 ft Bare Lamp Flush unit Brushed and Anodized Aluminum
SL110A28IA2 1 -28W T 5 277V
Accessories/Options
Cat. No. Description Finish
SL002ALG Spiral Louver Textured light grey (paint)
SL002C Orbit Louver Semi-diffused aluminum anodized
SL002D Tri-level Louver : 3 positions for different cut-off Semi-diffused aluminum anodized
SPR: Add to unit. The Spiral
louver produces refined, effective
lengthwise shielding to minimize add
to direct view of the light source.
ORB: Add to unit. The Orbit louver
displays perfect balance as it
rotates into any number of positions
from uplight to downlight to wall
washing. (Position shown below).
TRL: Add to unit. The Tri-Level louver
features three peg holes for varying
louver height and the resulting
downlight distribution. (Position
shown beside).
44-1/2"
(1130mm)
2"
(51mm)
43-1/2"
(1105 mm) 1-3/8"
(35 mm)
3-1/2"

43-7/8"
(1114 mm)
1-3/4"
(45 mm)
1-7/8"
(48 mm)
Spiral Louver
Orbit Louver (1 part)
Tri-Level Louver

KUBIK 1.0 SL110C
Page 2 of 5 Bare Lamp Suspended Unit
1-28W T5 Linear
Accessories/Options
Job Information Type:
Lightolier is a Philips group brand
Lightolier www.lightolier.com

We reserve the right to change details of design, materials and finish.
SL110C.pdf
Canlyte www.canlyte.com

Cat. No. Finish Feed Canopy Kit
SL003JLG
SL003JWH
Textured Light Grey
White
Mounts to end or middle of the channel for power feed from
3" (76mm) or 4" (102mm) octagonal outlet box. Kit includes
one 0.05" (1.3mm) thick, 4-1/2" (114mm) grounded square steel
plate. Comes with 4 wires 18 AWG, 10 Amps max.
4-1/2"
(114 mm)
Square
Cat. No. Finish Invisible Feed Kit
SL003K Corrosion Protected Accepts conduit or cable with 3/8" (10mm) or 1/2" (13mm)
electrical connector (by others). Kit includes one 0.06" (1.5mm)
thick wall by 1/2" (13mm) dia. seamless steel stem and,
one 0.09" (2.3mm) thick by 5/8" (16mm) by 15/16" (24mm) dia.
aluminum connector. (20 Amps max.)
Cat. No. Finish Power Feed Stem Kit
SLO03M18LG
SLO03M36LG
SLO03M48LG
SLO03M72LG
SLO03M18WH
SLO03M36WH
SL003M48WH
SLO03M72WH
18" Textured Light Grey
36" Textured Light Grey
48" Textured Light Grey
72" Textured Light Grey
18" White
36" White
48" White
72" White
Mounts to a 3" (76mm) or 4" (102mm) octagonal outlet box
Kit includes one 0.024" (0 6mm) thick, 5" (127mm) round steel
canopy, and one 0.06" (1.5mm) thick, 1/2" (13mm) dia. seamless
steel stem, available in 4 different lengths and two decorative
cylinder head screws. Complete installation of Power Feed
Stem Kit. Field cuttable, re-thread stem 1/4-18 NPS. Comes
with 5 pre-assembled wires. 10 Amps max.
Cat. No. Finish Stem Mounting Kit (non-electrical)
SLO04M18LG
SLO04M36LG
SLO04M48LG
SLO04M72LG
SLO04M18WH
SLO04M36WH
SLO04M48WH
SLO04M72WH
18" Textured Light Grey
36" Textured Light Grey
48" Textured Light Grey
72" Textured Light Grey
18" White
36" White
48" White
72" White
Mounts to a 3" (76mm) or 4" (102mm) octagonal outlet box
Kit includes one 0.024" (0 6mm) thick, 5" (127mm) round steel
canopy, and one 0.06" (1.5mm) thick, 1/2" (13mm) dia. seamless
steel stem, available in 4 different lengths and two decorative
cylinder head screws. Complete installation of Power Feed
Stem Kit. Field cuttable, re-thread stem 1/4-18 NPS.
Cat. No. Finish Grid Ceiling Feed Kit
SL003LLG
SL003LWH
Textured Light Grey
White
Mounts along runner or at the intersection of runners. Kit
Includes one 2-1/8" (54mm) deep by 4" (102mm) grounded
octagonal outlet box, one 0.05" (1.3mm) thick universal
crossbar, one 4-1/2" (114mm) white plastic square, and two
t-bar clips 5/32" (4mm) thick spacer, one 0.04" (1 mm) thick
aluminum canopy and two t-bar wrap around clips. Comes
with 4 wires 18 AWG, 10 Amps max.

KUBIK 1.0 SL110C
Page 3 of 5 Bare Lamp Suspended Unit
1-28W T5 Linear
Job Information Type:
Lightolier is a Philips group brand
Lightolier www.lightolier.com

We reserve the right to change details of design, materials and finish.
SL110C.pdf
Canlyte www.canlyte.com

Cat. No. Finish Power Feed Cable Kit
SL003NLG
SL003NWH
Textured Light Grey
White
Mounts to a 3" (76mm) or 4" (102mm) octogonal outlet box.
Kit includes one 0.024" (0.6mm) thick, 5" (127mm) round steel
canopy, one 0.05" (1.3mm) thick grounded crossbar threaded
stud, one 0.046" (1.2mm), 96" (2438mm) long aircraft galvanized
cable with zinc plated hanger adjusting glider hardware,
two white plastic cable stay and one 18 AWG (AWM), 10 feet
(3048mm) long white cord, 10 Amps max.
Cat. No. Finish Extension Blank (4')
SL003F4 Brushed Aluminum Permits power feed between two 1" x 1" (25mm x 25mm)
brushed and anodized units in a straight run with supplied
extra wires 18 AWG, 10 Amps max, and wire connectors
to energize them. Includes one 46-3/16" (1173mm) long
extruded aluminum channel and cover, two solid aluminum
multi-function blocks as a wireway, plug inserts and wire
connectors.
46-3/16"
(1173 mm)
Cat. No. Finish Invisible Coupler
SL003G Zinc plated Invisible coupler for joining two Kubik 1.0 units together
mechanically or/and electrically. Recommended for direct
surface mounting. Comes with 4 wires 18 AWG, 10 Amps max.
Cat. No. Finish 5 Face Connector
SL003H Brushed Aluminum Kubik 1.0 units coupled with exclusive solid brushed and
anodized aluminum 5-face connectors and power feed can
satisfy virtually any layout requirement. The connector permits
you to create square, rectangular, continuous rows, L, T,
X configurations. Includes four threaded couples, plug insert
(3), four wires 18 AWG and wire connectors, 10 Amps max.
Kubik 1.0
1"
(25 mm)
Cat. No. Finish Cable Mounting Kit (non-electrical)
SL004NLG
SL004NWH
Textured Light Grey
White
Mounts to a 3" (76mm) or 4" (10mm) octagonal outlet box.
Kit includes one 0.024" (0.6mm) thick, 5" (127mm) round steel
canopy, one 0.05" (1 3mm) thick grounded crossbar, threaded
stud, one 0.046" (1.2mm), 96' (2438mm) long galvanized
aircraft galvanized cable with zinc plated hanger and
adjusting glider hardware. Can be used with either Cable
or Stem Power Feed Kit.

Job Information Type:
Lightolier is a Philips group brand
Lightolier www.lightolier.com

We reserve the right to change details of design, materials and finish.
SL110C.pdf
Canlyte www.canlyte.com

KUBIK 1.0 SL110C
Page 4 of 5 Bare Lamp Suspended Unit
1-28W T5 Linear
ZONE
DEG
ALONG 22.5 45 67.5 ACROSS
0 555 555 555 555 555
     
     
25 422 423 423 432 448
35 340 337 332 344 358
45 253 244 235 212 213
     
     
     
85 1 1 4 8 16
     
     
     
115 51 77 23 7 6
125 46 166 88 52 40
     
145 25 317 281 251 236
155 16 272 337 346 333
     
175 2 36 163 163 134
180 1 1 1 1 1
ZONE
DEG
ALONG 22.5 45 67.5 ACROSS
0 448 448 448 448 448
5 443 440 452 460 462
     
25 343 356 353 362 371
35 281 287 274 248 248
45 210 205 168 118 104
     
65 70 52 20 16 15
75 20 14 11 12 18
85 0 2 3 5 8
     
     
105 52 45 10 5 4
     
     
135 46 310 313 284 270
     
     
     
     
180 3 3 3 3 3
COEFFICIENTS OF UTILIZATION
ZONAL CAVITY METHOD * EFFECTIVE FLOOR CAVITY REFLECTANCE = .20
80 70 50
Wall Reflectance
70 50 30 10 70 50 30 10 50 30 10
DETERMINED IN ACCORDANCE WITH CURRENT IES PUBLISHED PROCEDURES
LUMINAIRE INPUT WATTS = 26.5
COEFFICIENTS OF UTILIZATION
ZONAL CAVITY METHOD * EFFECTIVE FLOOR CAVITY REFLECTANCE = .20
80 70 50
Wall Reflectance
70 50 30 10 70 50 30 10 50 30 10
DETERMINED IN ACCORDANCE WITH CURRENT IES PUBLISHED PROCEDURES
LUMINAIRE INPUT WATTS = 26.5
Room Cavity RatioRoom Cavity Ratio
ZONE LUMENS % LAMP % LUMINAIRE
   
0-40 603 23.12 37.84
   
   
   
   
   
   
ZONE LUMENS % LAMP % LUMINAIRE
   
   
0-60 685 26.25 40.56
   
   
   
   
   
DISTRIBUTION
DISTRIBUTION

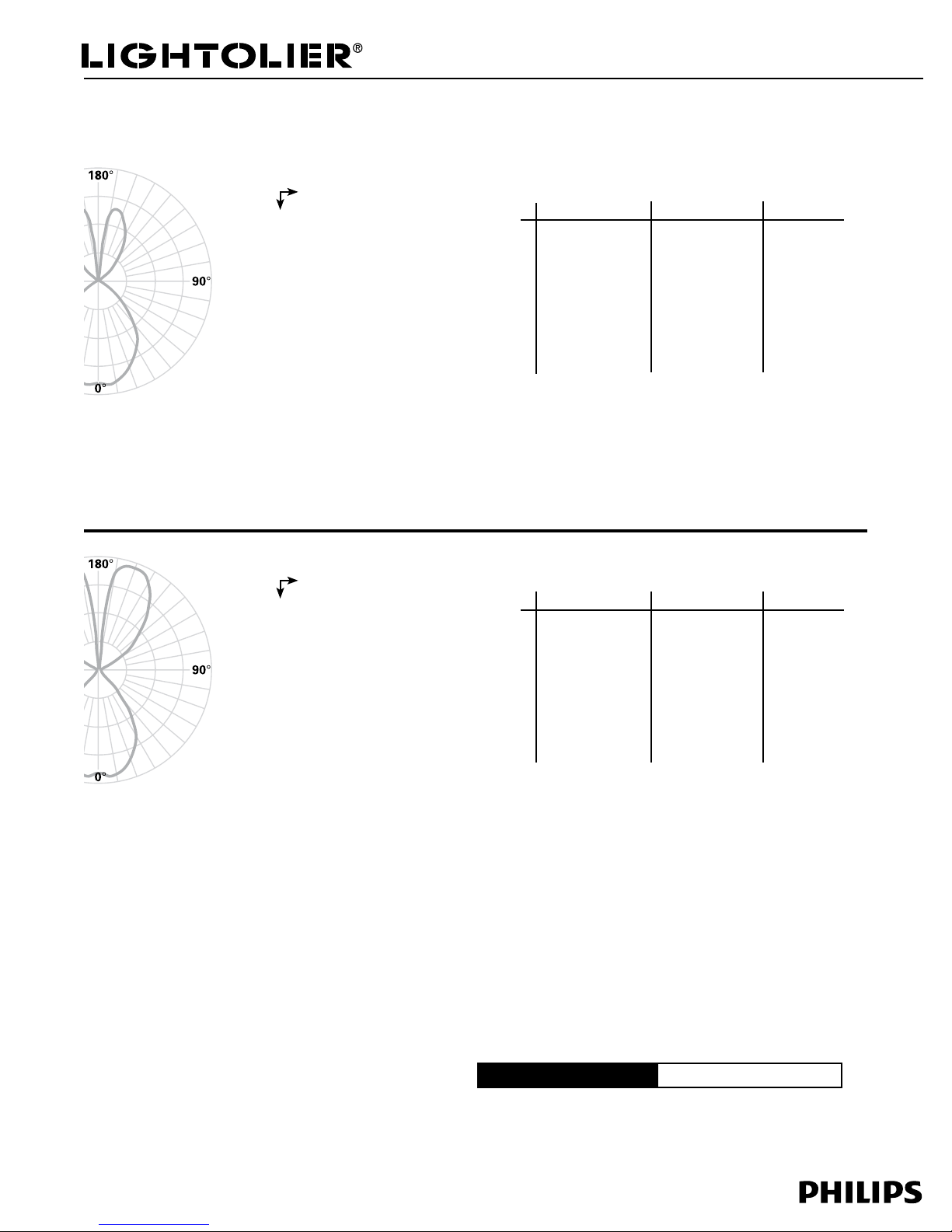

CANDLEPOWER CURVE
CANDLEPOWER CURVE
Performance
CANDLEPOWER
CANDLEPOWER

CAT. NO: SL110C281A/SL002D
(Bottom position)
1 x 28W T5 at 2610 Lumens
Efficiency: 61.1 %
Candela at Nadir: 555cd

CAT. NO: SL110C281A/SL002D
(Top position)
1 x 28W T5 at 2610 Lumens
Efficiency: 64.7%
Candela at Nadir: 448cd
600
400
200
600
400
200
0 .67 .67 .67 .67 .63 .63 .63 .63 .55 .55 .55
            
2 .58 .54 .50 .48 .54 .51 .48 .45 .45 .43 .41
            
            
            
            
            
            
            
           
0 .68 .68 .68 .68 .63 .63 .63 .63 .52 .52 .52
            
2 .58 .54 .51 .48 .53 .50 .47 .44 .42 .40 .38
            
            
            
            
            
            
            
           

Job Information Type:
Lightolier is a Philips group brand
Lightolier www.lightolier.com

We reserve the right to change details of design, materials and finish.
SL110C.pdf
Canlyte www.canlyte.com

KUBIK 1.0 SL110C
Page 5 of 5 Bare Lamp Suspended Unit
1-28W T5 Linear
Pattern
SL110C281A
SL110C281A
SL110C281A
SL110C281A
SL110C281A
SL110C281A
SL110C281A
SL110C281A
SL002C
SL002D
SL002ALG
SL003H
SL003H
SL003H
SL110C281A
SL110C281A
SL110C281A
Mounting
Direct Mount: Square canopies or invisible feed suitable for plaster ceiling, exposed ceiling
or T-Bar ceilings mounts. See details on page 2.
Suspended Mount: Single stem or aircraft cable with round canopy suitable for mounting
on a standard outlet box for plaster ceiling, exposed installation or T-Bar ceilings mounts.
Stem and cable mounts can both be used on the same fixture.
Wall Mount: can be wall mounted vertically or horizontally.
Labels
cULus Certified. Suitable for damp locations.
Electrical
Ballast: Electronic rapid start extra slim profile 1 lamp 28W T5 linear ballast. Not available
in universal voltage.
120V: 0.25 amps
277V: 0.11 amps
Lampholder: G5 plug-on base, miniature Bi-pin.
Finish
Natural brushed and anodized aluminum. All suspension parts and Spiral louver painted with
powder coat paint process.
