Lightolier TU Series User manual

Features
• Rugged telescoping turret lamp holders.
• Optimum 5 3/8" lamp spacing (2 lamp units).
• Reflector is embossed for rigidity.
• Reflector sides are turned up for rigidity and safe handling.
• 12% aperture reflector, standard.
• Solid top reflector, optional.
•
Reflector secured to housing with easy to use thumb screws.
• 4-1/8" wide clevis type housing channel.
• Fully enclosed wiring.
• Optional porcelain reflectors.
• Optional slide grip hangers.
• Optional heavy duty coupling, wire guards and reflector aligners.
Mounting Accessories Dimensions
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Volts/Ballast:
01/07
TU Turret Industrial Fluorescent TU Series
Page 1 of 2 Solid Top/12% Up-Light, 48", 6" Lenghts, 2 or 3 Lamp T8
41/16"
1"
9/16" DIA. K.O. (2)
1" 7/8" DIA. K.O. (3)
“A”
13/32" DIA. K.O. (2)
4
2 3/4"
1/2" DIA. K.O. (2)
61/2" 11/2"
3/4" SIDE VIEW
Lightolier a Genlyte company www.lightolier.com
Technical Information: ( 78) 657-7600 • Fax ( 78) 658-05 5
631 Airport Road, Fall River, MA 02720 • (508) 67 -8131 • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2007 a Genlyte company Section 7/Folio Q60-17
4' CHANNEL (1274 mm) 50 5/32"
8' CHANNEL (2548 mm) 100 5/16"
Canopy Spacer Catalog Number: AC1 CSP Stem and Canopy Set Catalog Number: ASC6 CSP
Slide Grip Hanger Catalog Number: LFL-111 Housing Row Coupler Catalog Number: LFL-3
DIM “A”

0.0 45.0 90.0 FLUX
0 2242 2242 2242
5 2242 2242 2235 213
15 2165 2198 2207 620
25 2012 2074 2108 955
35 1798 1898 1945 1184
45 1521 1651 1776 1281
55 1191 1391 1358 1187
65 819 959 970 928
75 430 462 263 455
85 87 87 72 107
95 10 27 23 29
105 68 84 77 72
115 141 65 151 101
125 218 57 60 85
135 289 133 73 117
145 350 215 158 146
155 389 283 250 146
165 429 419 353 113
175 442 439 437 42
0.0 45.0 90.0 FLUX
0 1452 1452 1452
5 1452 1453 1447 138
15 1407 1426 1429 402
25 1312 1345 1360 620
35 1178 1230 1264 771
45 1001 1080 1198 847
55 792 952 884 792
65 555 626 644 618
75 304 405 268 370
85 77 81 65 97
95 8 19 20 21
105 59 23 69 37
115 127 17 21 39
125 197 43 18 64
135 265 112 57 101
145 322 188 136 129
155 369 252 220 131
165 399 389 318 103
175 413 410 409 39
TU Turret Industrial Fluorescent TU Series
Page 2 of 2 Solid Top/12% Up-Light, 48", 6" Lenghts, 2 or 3 Lamp T8
Job Information Type:
Or ering Information
Explanation of Catalog Number. Example: TU4A232UNVHI
Options/Accessories
Fusing: Internal fast blow fusing: SUFFIX: GLR.
Internal slow blow fusing: SUFFIX: GMF.
Electrical Wiring Options: Consult factory.
Fluorescent Emergency Lighting Systems: Factory-installed emergency power
battery pack with charger and inverter. SUFFIX: EM.
Wire Guar : 4' Wire guard available. Specify two for 96" fixtures.
Catalog Number: LFL-173.
Reflector Row Aligners: Two aligners are included with all fixtures. For additional
aligners order Catalog Number: TU-SNA.
Housing Row Couplers: Required to connect and stabilize continuous rows of chain
or stem-mounted fixtures. Specify one coupler per joint. Catalog Number: LFL-3
Sli e Grip Hanger: Accepts 1/2" threaded stems or rods. Slides into fixture channel
grooves at any point along chassis. Catalog Number: LFL-111.
Canopy Spacer: Suspends fixture approximately 1-1/2" from surface and can be used
in conjunction with slide-grip hanger. Catalog Number: AC1 CSP
Stem an Canopy Set: Suspends fixture 6", 12", 18" or 24" from surface. Catalog
Number: ASC6 CSP (6"), ASC12 CSP (12"), ASC18 CSP (18"), ASC24 CSP (24").
Cor an Plug: Specify NEMA configuration and cord exit location when ordering.
For 120 volt fixtures specify: Catalog Number CPA* NEMA 5-15P. For 277 volt fix-
tures specify: CPB* NEMA.
Chain Hanger Kits: Includes two 5' heavy duty link chains with “S” hooks for fixture
suspension. Catalog Number: LFL-123
Specifications
Materials: Chassis parts are die-formed code gauge cold rolled steel, 2-5/8"
deep X 4-1/8" wide channel, grooved along the entire length for strength and
rigidity.
Reflector: Heavy duty die-formed with deep lateral embossments for additional
stability and uniformity with positive securing thumb screws for attachment to
housing.
Finish: Chassis – baked white polyester enamel. Phosphate undercoating.
Reflector – baked white polyester enamel (standard), porcelain reflector finish
(optional).
Electrical: Thermally protected class “P’ ballast C.B.M. approved, non PCB. If
K.O. is within 3" of ballast, use wire suitable for at least 90 .
Labels: I.B.E.W. Listed by Underwriters Laboratories. Suitable for indoor dry
and damp locations.
This product may have a mercury containing lamp. Manage in accord with
Disposal Laws. See: www.lamprecycle.org
TU
Options:
Add appropriate
suffix to catalog
no., ie: (GLR)
Turret In ustrial:
Flat Reflector
deep channel
housing
Fixture
Length:
4= 48"
8= 96"
Reflector
Number of Lamps in Wi th:
(By Others) 2 or 3 Lamps
32
Lamp Types/Watts:
32=32W T8
Voltage:
120 or 277
UNV=120-277
Ballast Type:
Electronic: <20THD <10THD
1-2 Lamp Elec. T8 SO* HI*
1&2 Lamp Elec. T8 SO* HI*
1-3 or 2-3 Lamp Elec. T8 03* H3*
1-4 Lamp Elec. T8 04* H4*
(96" Fixture Only)
*Instant Start Standard
Note: For T8 UNV you must use HI, H3 or H4
Ballast code
Mo el No. TU4A232UNVHI
LER = FI - 80 IW - 61 BF - .92
Comparative yearly lighting energy cost per
1000 lumens = $3.00
Report Number: ITL42334
Catalog Number: TU4A232UNVHI
Lamps: F32T8
Luminaire: Fabricated metal ballast hous-
ing. White polyester painted finish.
Ballast: B232I120RH
Report is based on 2900 Lumens per lamp.
Efficiency: 91.7%
CIE Type-Semi-Direct
Plane: 0-Deg 90-Deg
Spacing Criteria: 1.3 1.4
Shielding Angles: 90 90
Plane: 0-Deg 90-Deg
Luminous Length: 50.000 12.500

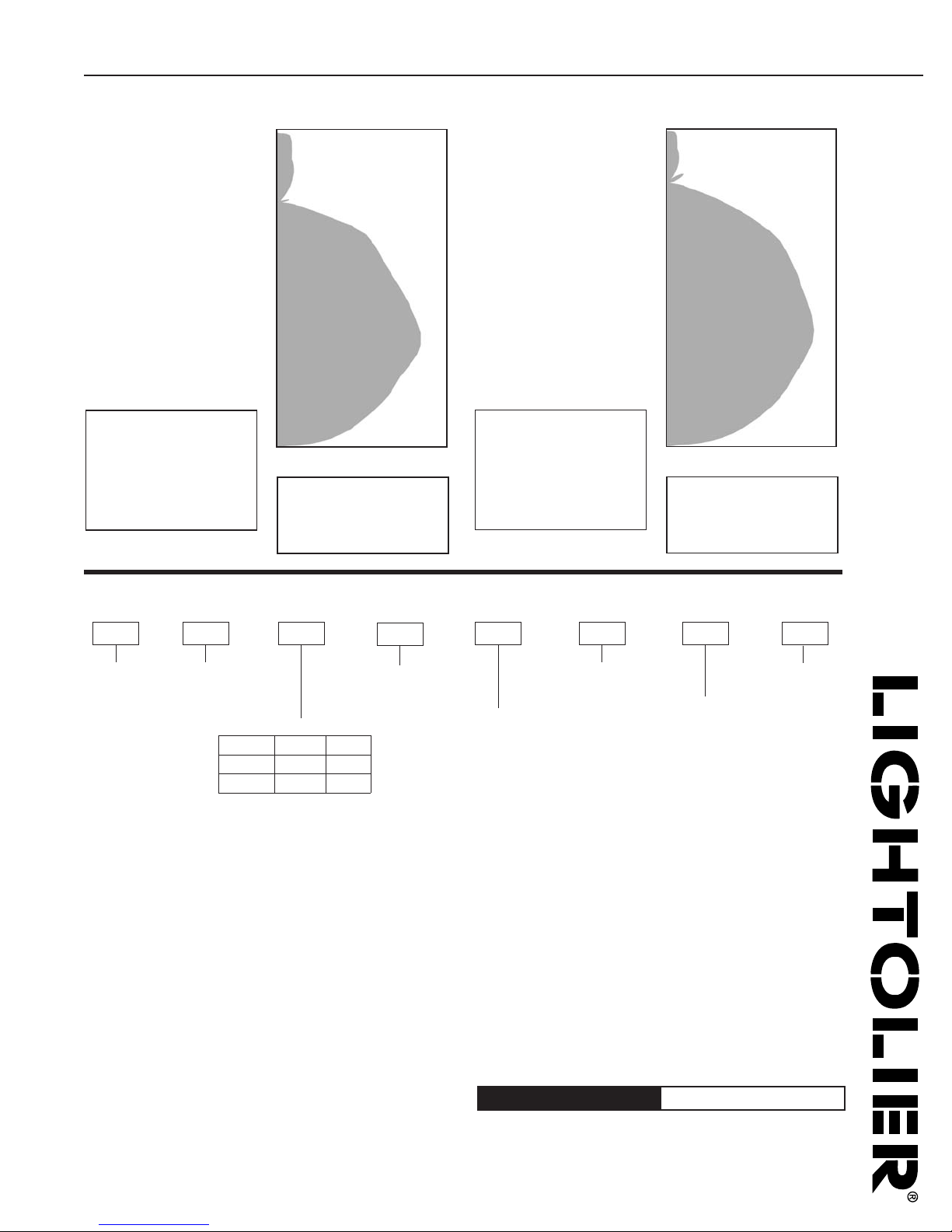

CANDELA DISTRIBUTION
COEFFICIENTS OF UTILIZATION –
ZONAL CAVITY METHOD. EFFECTIVE
FLOOR CAVITY REFLECTANCE 0.200
RC 80 50 30
RW 70 50 30 50 30 10 50 30 10
01 97 92 88 83 80 78 78 75 73
02 88 80 74 72 67 63 67 64 60
03 80 70 62 63 57 53 59 54 50
04 73 62 54 56 50 44 52 47 43
05 67 55 47 50 43 38 47 41 37
06 61 49 41 45 38 33 42 36 32
07 57 44 36 41 34 29 38 33 28
08 53 40 33 37 31 26 35 29 25
09 49 37 29 34 28 23 32 27 22
10 46 34 27 31 25 21 30 24 20
ZONE LUMENS % LAMP % FIXT
00-030 1160 20.0 21.8
00-040 1931 33.3 36.3
00-060 3570 61.6 67.1
00-090 4656 80.3 87.5
90-180 000664 11.4 0012.5
00-180 5320 91.7 100.0
ZONAL LUMEN SUMMARY
Lightolier a Genlyte company www.lightolier.com
Technical Information: ( 78) 657-7600 • Fax ( 78) 658-05 5
631 Airport Road, Fall River, MA 02720 • (508) 67 -8131 • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2007 a Genlyte company Section 7/Folio Q60-17
Reflector White Paint Porcelian
12% Up-Light A P
Solid Top S T
Mo el No. TU4A332UNVH3
LER = FI - 81 IW - 89 BF - .93
Comparative yearly lighting energy cost per
1000 lumens = $2.96
Report Number: ITL42335
Catalog Number: TU4A332UNVH3
Lamps: F32T8
Luminaire: Fabricated metal ballast hous-
ing. White polyester painted finish.
Ballast: B332I120RH
Report is based on 2900 Lumens per lamp.
Efficiency: 89.4%
CIE Type-Semi-Direct
Plane: 0-Deg 90-Deg
Spacing Criteria: 1.3 1.4
Shielding Angles: 90 90
Plane: 0-Deg 90-Deg
Luminous Length: 50.000 12.500
CANDELA DISTRIBUTION
COEFFICIENTS OF UTILIZATION –
ZONAL CAVITY METHOD. EFFECTIVE
FLOOR CAVITY REFLECTANCE 0.200
RC 80 50 30
RW 70 50 30 50 30 10 50 30 10
01 95 91 87 82 80 77 77 75 73
02 86 79 73 72 67 63 67 64 60
03 78 69 62 63 57 53 59 55 51
04 72 61 53 56 50 45 52 47 43
05 66 54 46 50 43 38 47 41 37
06 61 49 41 45 38 33 42 37 32
07 56 44 36 41 34 29 38 33 29
08 52 40 32 37 31 26 35 30 25
09 49 37 29 34 28 23 32 27 23
10 45 34 27 31 25 21 30 24 21
ZONE LUMENS % LAMP % FIXT
00-030 1789 20.6 23.0
00-040 2972 34.2 38.2
00-060 5440 62.5 69.9
00-090 6931 79.7 89.1
90-180 000850 9.8 0010.9
00-180 7780 89.4 100.0
ZONAL LUMEN SUMMARY
