Lightolier FA01 User manual

Job Information Type:
Job Name:
Cat. No.:
Notes:
FA01
Architectural Decorative, Vetro Pendant
Page 1 of 4
4 5/8"
Cable/Cord
Stem
Tr ack Mount
Close to Ceiling
3/8" Swivel Joint
3/8" Steel Tubing
4 5/8"
3"
3/8"
4 5/8" 1 1/2"
3 3/4"
3/8"
5 1/2"
5 1/2"
2 3/8"
1
2
6 1/8"
15 1/8"
Ordering Information: Complete fixture consists of Powerhead + Inner Glass + Suspension Kit. Each sold separately (ie PS13SA + SG03 + SK01).
Spec ID (reference only) Powerhead Inner
Glass
Outer
Glass Suspension Kit Lamp Volts
FA01 PS13SA SG03 NA *See suspensions
below 4-Pin Elect. Twin Tube 13W 120V
FA201 PS132SA SG03 NA 4-Pin Elect. Twin Tube 13W 277V
FA01Q PS13QSA SG03 NA 4-Pin Quad Tube 13W 120V
FA201Q PS132QSA SG03 NA 4-Pin Quad Tube 13W 277V
FA0126 PS26SA SG03 NA 4-Pin Quad Tube 26W 120V
FA20126 PS262SA SG03 NA 4-Pin Quad Tube 26W 277V
IA01 PS50SA SG03 NA T-4 Mini Can. 50W 120V
Suspension Kits:
Catalog Number Finish Description
SK01 Satin Aluminum Clear Metallic Straight Cord/Cable, 120" Length, (10') with canopy
SK02 Satin Aluminum Clear Metallic Straight Cord/Cable, 300" Length, (25') with canopy
ST01 Satin Aluminum 36" Length 3/8" Stem with canopy
ST02 Satin Aluminum 60" Length 3/8" Stem with canopy
CTC Satin Aluminum Close To Ceiling Kit with canopy
TM01 Satin Aluminum Silver Track Mounting Kit with Clear Metallic Straight Cord/Cable, 120" Length, (10')
(120V only)

Job Information Type:
FA01
Architectural Decorative, Vetro Pendant
Page 2 of 4
4 5/8"
Cable/Cord
Stem
Tr ack Mount
Close to Ceiling
3/8" Swivel Joint
3/8" Steel Tu bing
4 5/8"
3"
3/8"
4 5/8" 1 1/2"
3 3/4"
3/8"
5 1/2"
5 1/2"
2 3/8"
1
2
6 1/8"
15 1/8"
Features
1. Power Compartment: Die Cast and Machined Aluminum
Components. Brushed and Clear Lacquer Finish.
2. Primary Glass: Triplex Hand Blown Glass.
Lamping (by others)
Incandescent: 50W Max. T-4 Mini Candelabra
Fluorescent: 13W 4-Pin Electronic Twin Tube Specify Lightolier
Lightolier #56964
(**see chart below)
**Compact Fluorescent:
General Electric Osram/Sylvania Philips
(1) 13W Twin Tube 4-Pin Compact Fluorescent Lamp
N/A CF13DS/E/* N/A
(1) 13W Quad Tube 4-Pin Compact Fluorescent Lamp
F13DBX/SPX*/4P CF13DD/E/* PL-C13W/*/4P/ALTO
(1) 26W Quad Tube 4-Pin Compact Fluorescent Lamp
F26BX/*/EC04P CF26DD/E/* PL-C26W/*/4P/ALTO
*Manufacturers Color Temperature Designation
Electrical - Lampholders
Incandescent: E11 Base, Porcelain, Plated Copper Alloy
Screw Shell
Compact Fluorescent: 13W Twin: 2GX7 Base, High
Impact Thermoset Polymer with Brass Contacts.
13W Quad: G24Q-1 Base, High Impact Thermoset Polymer with
Brass Contacts.
26W Quad: G24Q-3 High impact thermoset polymers with
brass contacts.
Ballasts: Fluorescent: Electronic 13 Watts TT 13 Watts QT 26 Watt QT
Voltage 120 277 120 277 120 277
Max. Watts 16 11 20 14 25 18
Max. Line Current (Amps) 0.136 0.08 0.174 0.114 0.211 0.137
Labels
cULus Listed. Suitable for Damp Locations.

Job Information Type:
FA01
Architectural Decorative, Vetro Pendant
Page 3 of 4

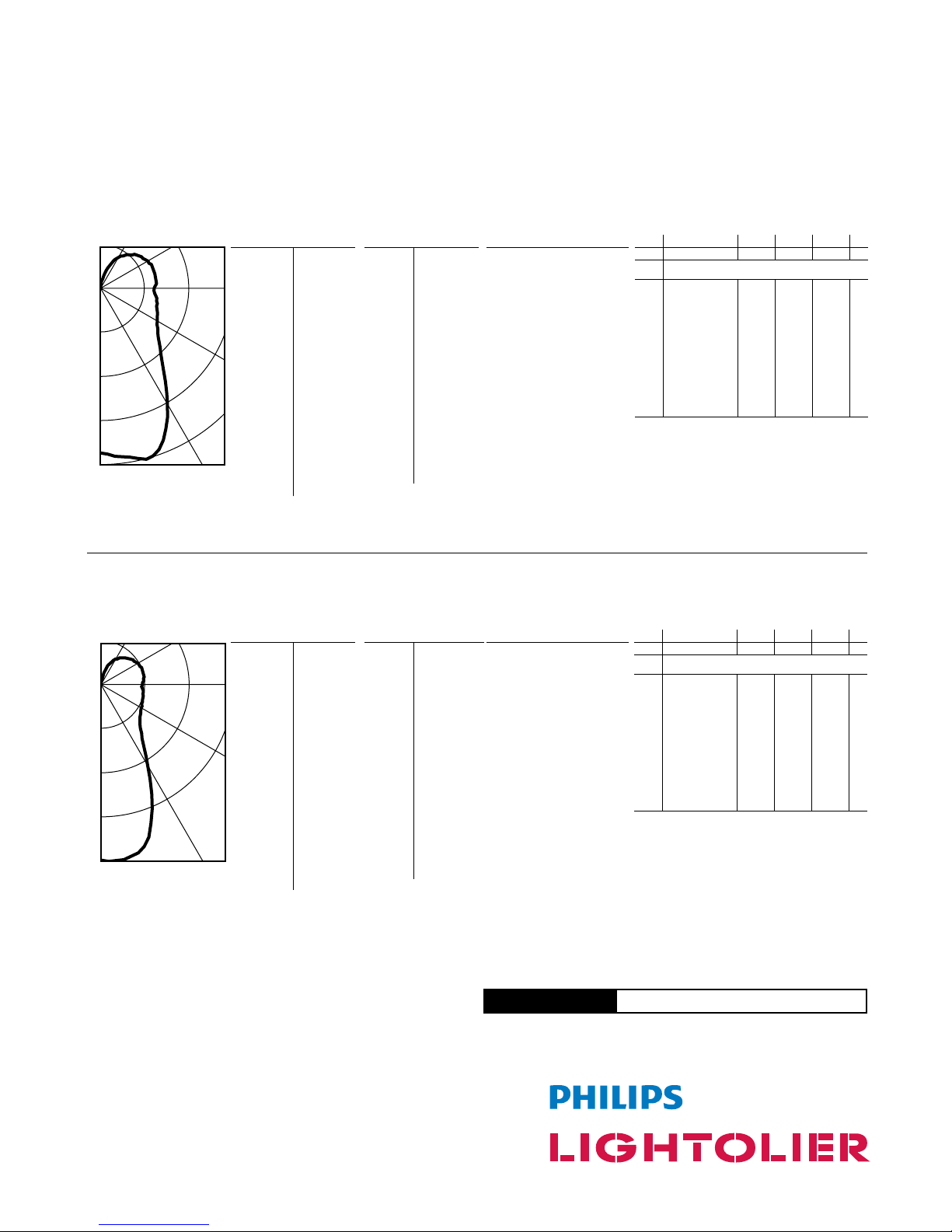

Catalog no. FA02/FA01, 13w 4 pin twin tube, 800 lumens.
Report No. 3109FR
SC = 1.2
Candlepower summary
Angle Mean cp Angle Mean cp
0 120 90 39
5 123 95 41
10 125 100 41
15 129 105 41
20 125 110 41
25 113 115 41
30 98 120 40
35 83 125 38
40 70 130 37
45 62 135 35
50 55 140 32
55 51 145 29
60 48 150 26
65 46 155 22
70 44 160 16
75 43 165 10
80 42 170 5
85 40 175 2
90 39 180 1
Zonal lumens and percentages
Zone Lumens %Lamp %Fixt
0-30 99.63 12.5 16.6
0-40 151.58 18.9 25.2
0-60 245.15 30.6 40.8
0-90 379.78 47.5 63.2
90-120 127.89
16 21.3
90-130 162 .34 20.3
27
90-150 207.67 26 27
90-180 221.06 27.6 36.8
0-180 600.84 75.1
100
** Efficiency = 75.1% **
129
97
65
32
60°
30°
0
Coefficients of utilization
Ceiling 80% 70% 50% 30%
Wall 70 50 30 10 50 10 50 10 50 10 0
RCR Zonal Cavity Method - Effective Floor Reflectance
= 20%
Room Cavity Ratio
083 83 83 83 78 78 68 68 59 59 47
173 69 65 62 65 58 56 51 49 45 35
266 60 54 49 56 47 49 42 42 36 29
360 52 46 41 49 39 43 34 37 30 24
455 46 39 34 43 33 38 29 33 26 20
551 41 34 30 39 28 34 25 30 23 18
647 37 30 26 35 25 31 22 27 20 15
743 34 27 23 32 22 28 20 25 18 14
840 31 24 20 29 19 26 18 23 16 12
938 28 22 18 26 17 24 16 21 14 11
10 35 26 20 16 24 16 22 14 19 13 10
Determined In Accordance With Current IES Published
Procedures
Luminaire Input Watts = 18
Zonal lumen summary
Zone Lumens
0-10 11.79
10-20 36.08
20-30 51.76
30-40 51.95
40-50 47.76
50-60 45.8
60-70 45.64
70-80 45.22
80-90 43.77
90-100 44.19
100-110 43.37
110 -120 40.33
120-130 34.45
130-140 26.87
140-150 18.45
150-160 10.09
160-170 3.03
170-180 .27
Catalog no. FA02Q/ FA01Q, 13W 4 pin quad tube, 900 lumens.
Zonal lumens and percentages
Zone Lumens %Lamp %Fixt
0-30
104.53 11.6 18.8
0-40 146.52 16.3 26.4
0-60 223.38 24.8 40.2
0-90 344.68 38.3 62.1
90-120 120.54 13.4 21.7
90-130 153.2 17 27.6
90-150 196.85 21.9 27.6
90-180 210.54 23.4 37.9
0-180 555.22 61.7 100
** Efficiency = 61.7% **
Candlepower summary
Angle Mean CP Angle Mean CP
0 155 90 37
5 156 95 38
10 154 100 39
15 148 105 39
20 130 110 39
25 107 115 38
30 83 120 38
35 66 125 36
40 56 130 35
45 49 135 33
50 45 140 31
55 43 145 29
60 41 150 26
65 40 155 22
70 39 160 18
75 39 165 11
80 38 170 4
85 37 175 0
90 37 180 0
Coefficients of utilization
Ceiling 80% 70% 50% 30%
Wall 70 50 30 10 50 10 50 10 50 10 0
RCR Zonal Cavity Method - Effective Floor Reflectance
= 20%
Room Cavity Ratio
068 68 68 68 64 64 56 56 48 48 38
160 57 54 51 53 48 46 42 40 37 29
255 49 45 41 46 39 40 34 34 30 23
350 43 38 34 40 32 35 29 30 25 20
446 38 33 29 36 27 31 25 27 22 17
542 34 29 25 32 24 28 21 25 19 15
639 31 26 22 29 21 26 19 22 17 13
736 28 23 19 27 19 24 17 21 15 12
834 26 21 17 24 17 22 15 19 14 11
9 31 24 19 16 22 15 20 14 18 13 10
10 30 22 17 14 21 14 19 13 17 11 9
Determined In Accordance With Current IES Published
Procedures
Luminaire Input Watts = 15
Zonal lumen summary
Zone Lumens
0-10 14.85
10-20 40.98
20-30 48.7
30-40 41.99
40-50 38.32
50-60 38.54
60-70 39.94
70-80 40.86
80-90 40.5
90-100 41.19
100-110 41.26
110 -120 38.1
120-130 32.66
130-140 25.6
140-150 18.05
150-160 10.29
160-170 3.25
170-180 .15
156
117
78
39
60°
30°
0
Report No. 3106FR
SC = .96

Philips Lightolier
e: [email protected]
t: [phone]
w: www.lightolier.com
FA01 October 31, 2011
Specifications are subject to change without notice.
© Koninklijke Philips Electronics N.V., 2010.All rights reserved.
Job Information Type:
FA01
Architectural Decorative, Vetro Pendant
Page 4 of 4
Catalog no. IA02/IA01, 50W T-4, 950 lumens.
261
196
131
65
60°
30°
0
Report No. 3102FR
SC = .54
Zonal lumens and percentages
Zone Lumens %Lamp %Fixt
0-30
90.84 9.6 21.7
0-40 118.23 12.4 28.2
0-60 172.67 18.2 41.2
0-90 261.7 27.5 62.5
90-120 88.88 9.4 21.2
90-130 112.89 11.9 27
90-150 145.78 15.3 27
90-180 157.11 16.5 37. 5
0-180 418.8 44.1 100
** Efficiency = 44.1% **
Candlepower summary
Angle Mean CP Angle Mean CP
0261 90 27
5222 95 28
10 186 100 28
15 144 105 29
20 91 110 29
25 70 115 28
30 53 120 28
35 43 125 27
40 38 130 26
45 34 135 25
50 32 140 23
55 31 145 22
60 30 150 20
65 29 155 18
70 29 160 15
75 28 165 10
80 28 170 4
85 27 175 2
90 27 180 1
Coefficients of utilization
Ceiling 80% 70% 50% 30%
Wall 70 50 30 10 50 10 50 10 50 10 0
RCR Zonal Cavity Method - Effective Floor Reflectance
= 20%
Room Cavity Ratio
049 49 49 49 45 45 40 40 35 35 28
143 41 39 37 38 35 33 30 29 27 21
243 41 39 37 38 35 33 30 29 27 21
339 35 32 30 33 28 29 25 25 22 17
436 31 28 25 29 24 26 21 22 19 15
5 33 28 24 21 26 20 23 18 20 16 13
6 31 25 21 19 24 18 21 16 18 14 12
728 23 19 17 22 16 19 14 17 13 10
826 21 17 15 20 14 18 13 16 12 10
923 18 14 12 17 12 15 11 14 10 8
10 22 17 13 11 16 11 14 10 13 9 8
Determined In Accordance With Current IES Published
Procedures
Luminaire Input Watts = 50
Zonal lumen summary
Zone Lumens
0-10 20.21
10-20 38.5
20-30 32.13
30-40 27.38
40-50 26.65
50-60 27.79
60-70 29.15
70-80 30.01
80-90 29.87
90-100 30.41
100-110 30.55
110 -120 27.92
120-130 24.02
130-140 19.1
140-150 13.78
150-160 8.23
160-170 2.88
170-180 .22
